Model LG L1770HQ-WF – Common Parts & Diagrams

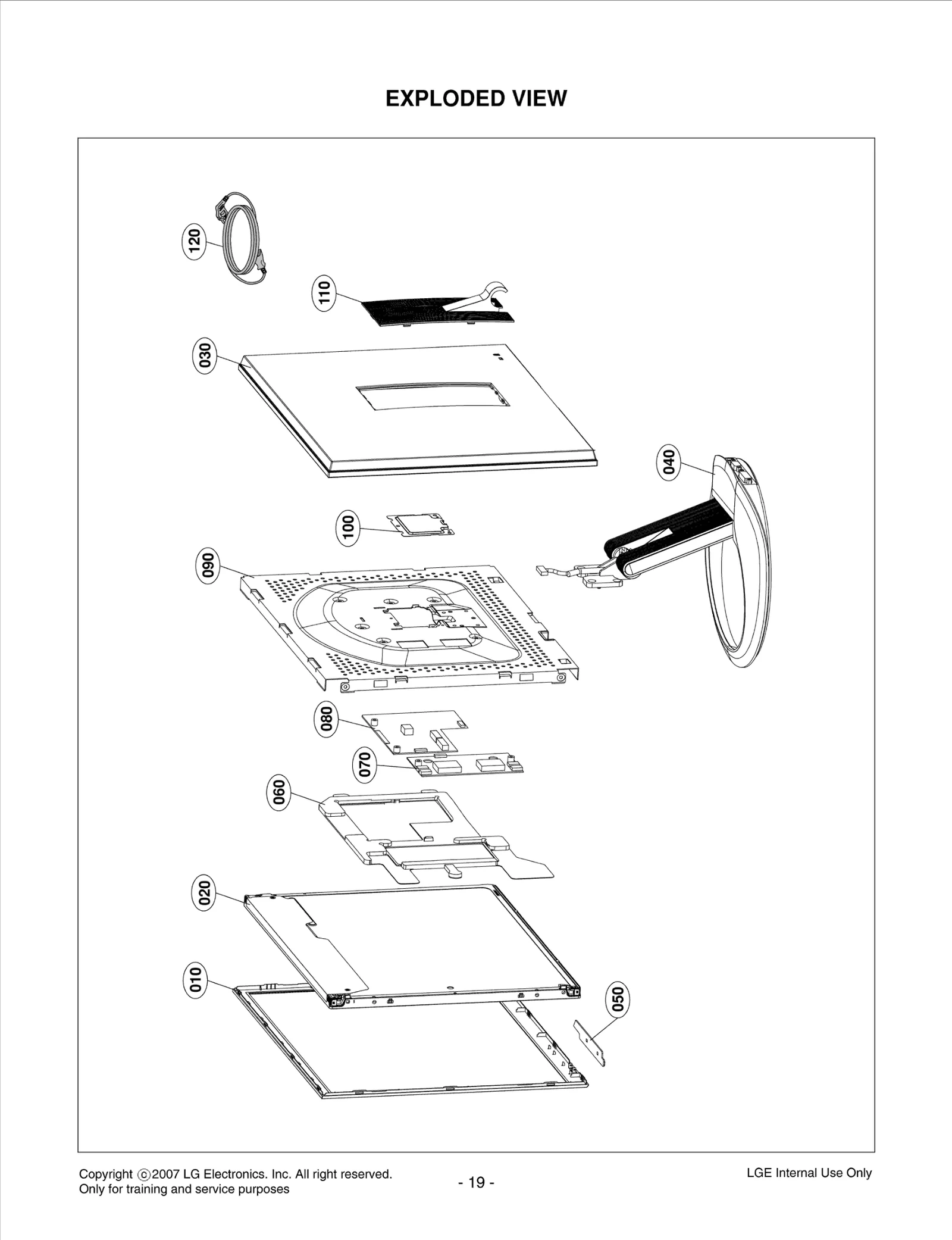

Diagram 0
Diagram 1
Common parts from model LG L1770HQ-WF
0
S/W Package LGE 3171910066M Contact Us For Availability
0
Card LGE 38409R0016B Contact Us For Availability
0
METAL ASSEMBLY LGE 49519K0121B Contact Us For Availability
0
Screw,Taptite LGE FAB30010104 Contact Us For Availability
0
Screw,Taptite LGE FAB30012103 Contact Us For Availability
0
Screw,Taptite LGE FAB30012106 Contact Us For Availability
0
Screw,Taptite LGE FAB30018403 Contact Us For Availability
0
BOX LGE 3890900254A Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631900080A Contact Us For Availability
0
ADAPTER,AC-DC LGE 6634B00084A Contact Us For Availability
0
Screw,Taptite LGE FAB30005104 Contact Us For Availability
0
CARTON PLATE LGE 3918TKK038A Contact Us For Availability
0
Card LGE 3840TRL099Q Contact Us For Availability
0
PACKING LGE 3920900080A Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T12006F Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T12006L Contact Us For Availability
0
CABLE,D-SUB LGE 6850TD9007D Contact Us For Availability
0
FLUX LGE 7245TZZ009A Contact Us For Availability
0
Screw,Taptite LGE FAB30007504 Contact Us For Availability
0
Screw,Taptite LGE FAB30018402 Contact Us For Availability
0
CABLE,DVI LGE 6850TAV002C Contact Us For Availability
010
Cover Assembly LGE 30919L0012C Contact Us For Availability
020
LCD(LIQUID CRYSTAL D LGE 6304FLP338A Contact Us For Availability
030
Cover Assembly LGE 3809900137D Contact Us For Availability
040
Base Assembly LGE 3043900017Q Contact Us For Availability
050
PWB(PCB) ASSEMBLY,SU LGE 68719ST966B Contact Us For Availability
060
Plate LGE 3300900023B Contact Us For Availability
070
Inverter,DC/AC LGE 6633TZA021C Contact Us For Availability
080
MAIN TOTAL ASSEMBLY LGE 33139L7019B Contact Us For Availability
090
METAL ASSEMBLY LGE 49519S0022B Contact Us For Availability
100
SHIELD LGE 48149K0021B Contact Us For Availability
110
Cover LGE 35509K0155C Contact Us For Availability
120
Power Cord LGE EAD30470701 Contact Us For Availability
C123
Capacitor,AL,Chip LGE 0CH8475J611 Contact Us For Availability
C126
CAPACITOR,CHIP[AL. E LGE 0CH8106F611 Contact Us For Availability
C221
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8107F611 Contact Us For Availability
C225
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C232
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C235
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C417
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C419
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
D201
DIODE,RECTIFIERS LGE 0DRON00268A Contact Us For Availability
D312
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
L201
COIL,CHOKE LGE 6140TBZ048A Contact Us For Availability
L202
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L301
FILTER(CIRC),EMC LGE 6210TCE001S Contact Us For Availability
LED1
LED LGE 0DLBE0248AA Contact Us For Availability
Q1
TRANSISTOR,BIPOLARS LGE 0TRIH80001A Contact Us For Availability
Q303
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
R5
RESISTOR,METAL GLAZE LGE 0RJ7501D677 Contact Us For Availability
R8
Resistor,Chip LGE 0RJ1201D677 Contact Us For Availability
R9
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R102
RESISTOR,METAL GLAZE LGE 0RJ0562D677 Contact Us For Availability
R105
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R110
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R111
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R118
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R201
RESISTOR,METAL GLAZE LGE 0RJ1502D477 Contact Us For Availability
R206
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R301
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R309
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R312
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R331
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
R357
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
RA436
RESISTOR,METAL GLAZE LGE 0RJ0332C687 Contact Us For Availability
SW5
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
U101
IC,PERIPHERALS LGE 0IPRP00705A Contact Us For Availability
U103
IC,EEPROM LGE 0ICS240813B Contact Us For Availability
U201
IC,MICRO CONTROLLER LGE 0IMCRMZ001A Contact Us For Availability
U202
IC,POWER MANAGEMENT LGE 0IPMGKE011A Contact Us For Availability
U203
IC,POWER MANAGEMENT LGE 0IPMGSG019A Contact Us For Availability
U204
TRANSISTOR,FETS LGE 0TFVI80067A Contact Us For Availability
U302
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
U402
IC,PERIPHERALS LGE 0IPRP00680A Contact Us For Availability
U406
IC,MEMORIES LGE 0IMMR00080A Contact Us For Availability
X101
CRYSTAL LGE 6202TST001A Contact Us For Availability
ZD306
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
× ![]()
