Model LG L1770HQ-BF – Common Parts & Diagrams

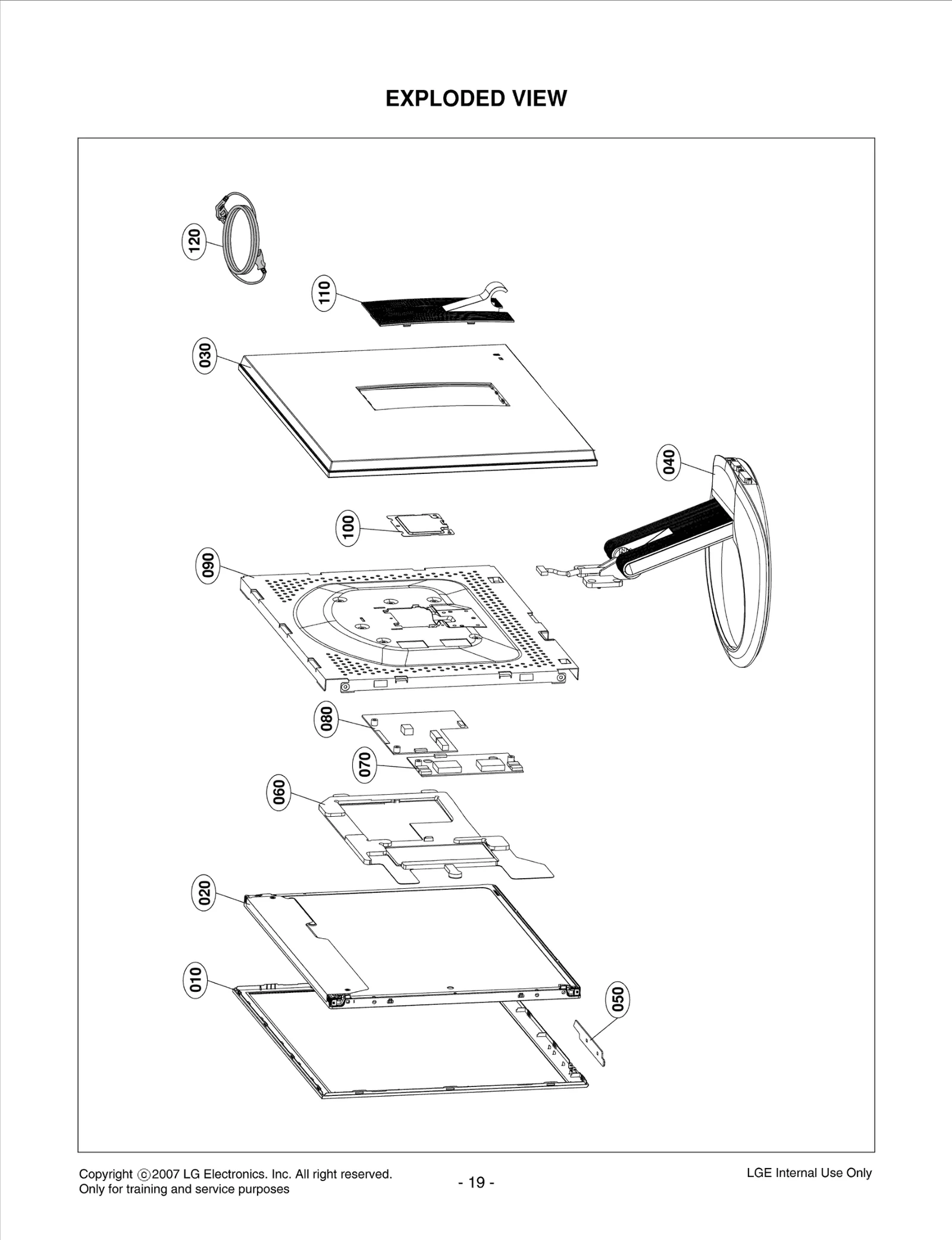

Diagram 0
Diagram 1
Common parts from model LG L1770HQ-BF
020
LCD(LIQUID CRYSTAL D LGE 6304FCI012A Contact Us For Availability
030
Cover Assembly LGE 3809900137N Contact Us For Availability
040
Base Assembly LGE 3043900017N Contact Us For Availability
050
PWB(PCB) ASSEMBLY,SU LGE 68719ST966B Contact Us For Availability
060
PLATE LGE 3300900042B Contact Us For Availability
070
Inverter,DC/AC LGE EAY35494001 Contact Us For Availability
080
MAIN TOTAL ASSEMBLY LGE 33139L7019B Contact Us For Availability
090
METAL ASSEMBLY LGE 49519S0022B Contact Us For Availability
100
SHIELD LGE 48149K0021B Contact Us For Availability
110
COVER LGE 35509K0155D Contact Us For Availability
A1
DISKETTE ASSEMBLY LGE 3171910066C Contact Us For Availability
A4
Card LGE 3840TRL087E Contact Us For Availability
A5
Card LGE 38409R0016B Contact Us For Availability
C123
Capacitor,AL,Chip LGE 0CH8475J611 Contact Us For Availability
C126
CAPACITOR,CHIP[AL. E LGE 0CH8106F611 Contact Us For Availability
C216
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C219
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8107F611 Contact Us For Availability
C232
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C405
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C410
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C435
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
D201
DIODE,RECTIFIER LGE 0DR190309AA Contact Us For Availability
D201
DIODE,RECTIFIERS LGE 0DRON00268A Contact Us For Availability
D310
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
J302
Connector,Wafer LGE 6602T20012K Contact Us For Availability
J303
Connector,Wafer LGE 6602T20012J Contact Us For Availability
J305
Connector,Wafer LGE 6602T12005F Contact Us For Availability
J306
Connector,Wafer LGE 6602T12005E Contact Us For Availability
J402
CONNECTOR (CIRC),WAF LGE 6630VF00530 Contact Us For Availability
L201
COIL,CHOKE LGE 6140TBZ048A Contact Us For Availability
L202
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L301
FILTER(CIRC),EMC LGE 6210TCE001S Contact Us For Availability
L301
Filter,Bead LGE EAM38769505 Contact Us For Availability
LED1
LED LGE 0DLBE0248AA Contact Us For Availability
Q303
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
Q403
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q403
TRANSISTOR,BIPOLARS LGE 0TRIH80001A Contact Us For Availability
Q403
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
R6
RESISTOR,METAL GLAZE LGE 0RJ7501D677 Contact Us For Availability
R7
Resistor,Chip LGE 0RJ1201D677 Contact Us For Availability
R9
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R106
RESISTOR,METAL GLAZE LGE 0RJ0562D677 Contact Us For Availability
R111
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R124
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R135
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R201
RESISTOR,METAL GLAZE LGE 0RJ1502D477 Contact Us For Availability
R206
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R303
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R309
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R313
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R331
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
R333
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R358
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
RA439
RESISTOR,METAL GLAZE LGE 0RJ0332C687 Contact Us For Availability
SW3
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
U101
IC,PERIPHERALS LGE 0IPRP00705A Contact Us For Availability
U102
IC Assembly LGE 0IZZ9H0140A Contact Us For Availability
U103
IC,EEPROM LGE EAN30296801 Contact Us For Availability
U201
IC,MICRO CONTROLLER LGE 0IMCRMZ001A Contact Us For Availability
U201
IC,DC,DC Converter LGE 0IMCRMZ001B Contact Us For Availability
U203
IC,POWER MANAGEMENT LGE 0IPMGSG019A Contact Us For Availability
U204
TRANSISTOR,FETS LGE 0TFVI80067A Contact Us For Availability
U302
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
U302
IC,MEMORIES LGE 0IMMRSG036A Contact Us For Availability
U401
IC Assembly LGE 0IZZ9H0141A Contact Us For Availability
U402
IC,PERIPHERALS LGE 0IPRP00680A Contact Us For Availability
U405
IC,MEMORIES LGE 0IMMR00080A Contact Us For Availability
U405
IC,MEMORIES LGE 0IMMR00229A Contact Us For Availability
U407
IC,ROHM LGE 0IRH033200A Contact Us For Availability
U407
IC,POWER MANAGEMENT LGE 0IPMGKE011A Contact Us For Availability
X101
CRYSTAL LGE 6202TST001A Contact Us For Availability
ZD306
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
× ![]()
