Model LG L1753S-SF – Common Parts & Diagrams

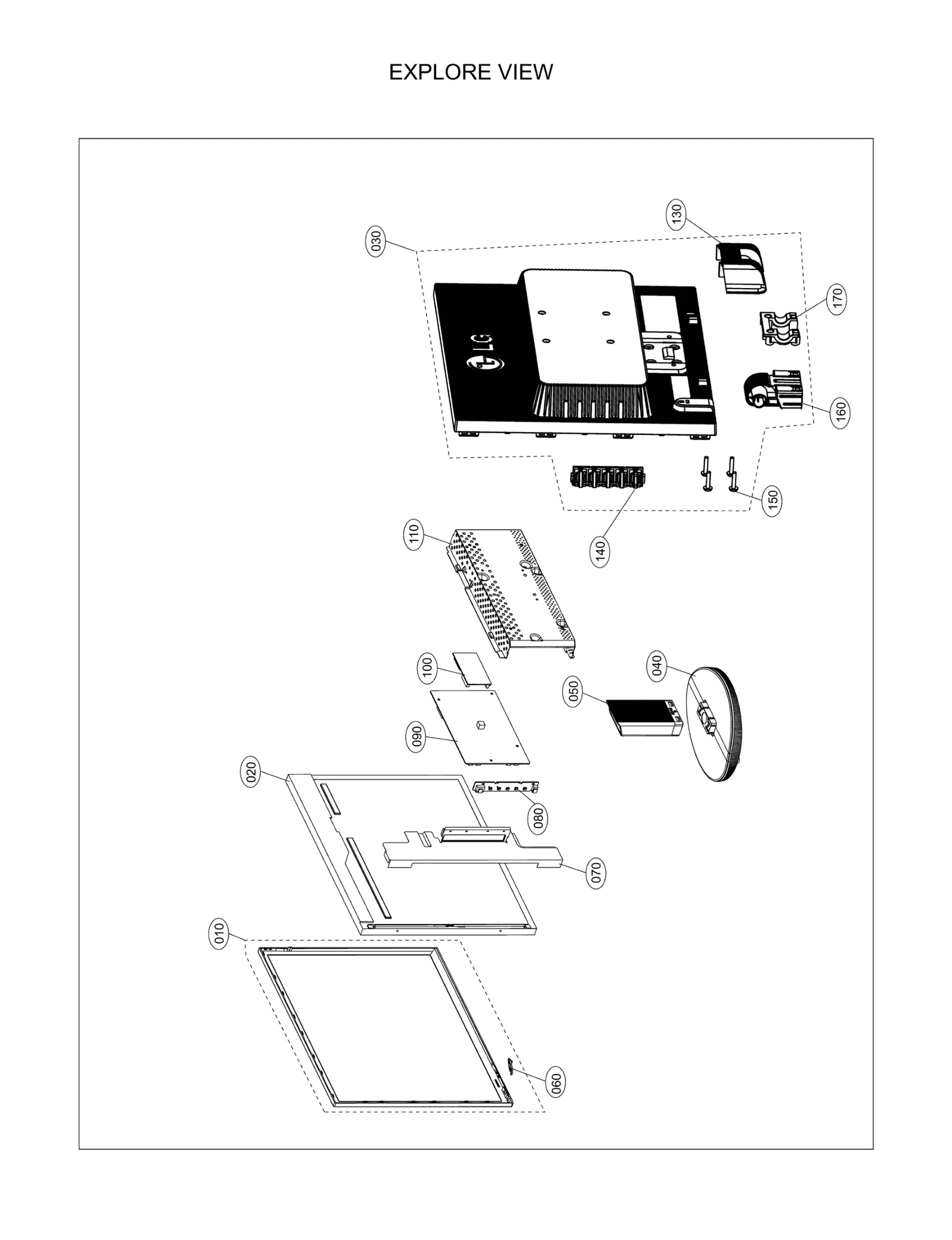

Diagram 0
Diagram 1
Common parts from model LG L1753S-SF
010
Cabinet Assembly LGE ABJ32220401 Contact Us For Availability
020
LCD,Module-TFT LGE EAJ36379501 Contact Us For Availability
030
Cover Assembly,Rear LGE ACQ33616805 Contact Us For Availability
040
Base Assembly LGE AAN32608908 Contact Us For Availability
050
COVER LGE 35509K0245A Contact Us For Availability
060
Indicator LGE 3520900038A Contact Us For Availability
070
Plate,Metal LGE MGJ37924303 Contact Us For Availability
080
PCB Assembly LGE EBR37001302 Contact Us For Availability
090
Power Supply Assembl LGE EAY36304901 Contact Us For Availability
100
Main Total Assembly LGE EBU36999402 Contact Us For Availability
110
Plate,Metal LGE MGJ37924107 Contact Us For Availability
130
Cover LGE MCK37398801 Contact Us For Availability
140
Knob LGE 4940900022A Contact Us For Availability
150
Screw,Taptite LGE FAB30006311 Contact Us For Availability
160
Cover LGE MCK37400101 Contact Us For Availability
170
Cover LGE MCK37399101 Contact Us For Availability
A1
S/W Package LGE SAB30844105 Contact Us For Availability
A3
POWER CORD LGE 6410TRW003A Contact Us For Availability
A4
Card LGE 38409R0026E Contact Us For Availability
A5
Cable,Assembly LGE 68509F0003A Contact Us For Availability
B1
Box LGE MAY39460403 Contact Us For Availability
C1
Harness,Single LGE 6631T20023J Contact Us For Availability
C2
CONNECTOR ASSEMBLY LGE 6631900011H Contact Us For Availability
C3
CONNECTOR ASSY LGE 6631T20010E Contact Us For Availability
C504
CAPACITOR,FIXED CERA LGE 0CK473CK56A Contact Us For Availability
C526
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C604
CAPACITOR,FIXED ELEC LGE 0CE107EF610 Contact Us For Availability
C605
Capacitor,AL,Radial LGE 0CE477EF638 Contact Us For Availability
C703
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C705
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C723
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
D712
DIODE,SWITCHING LGE 0DSIH00018A Contact Us For Availability
J701
Connector,DSUB LGE 6630G100316 Contact Us For Availability
P1
CARTON PLATE LGE 3918TKK038E Contact Us For Availability
P2
PACKING LGE 3920900157A Contact Us For Availability
Q501
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
Q702
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
R1
Resistor,Carbon Film LGE 0RD7501Q609 Contact Us For Availability
R3
RESISTOR,FIXED CARBON FILM LGE 0RD1801Q609 Contact Us For Availability
R502
RESISTOR,METAL GLAZE LGE 0RJ0562D677 Contact Us For Availability
R505
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R512
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R602
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R605
RESISTOR,FIXED SMALL LGE 0RX0681K668 Contact Us For Availability
R709
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R711
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R731
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R733
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
SW1
Switch,Tact LGE 6600R000133 Contact Us For Availability
U201
IC,Microprocessors LGE 0IPRP00704A Contact Us For Availability
U502
IC Assembly LGE EAN37000702 Contact Us For Availability
U503
IC,EEPROM LGE 0IMMR00203A Contact Us For Availability
X501
Crystal LGE 6212AA2001G Contact Us For Availability
ZD3
Diode,Zener LGE 0DZ560009AG Contact Us For Availability
ZD710
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
× ![]()
