Model LG L1750S-SN – Common Parts & Diagrams

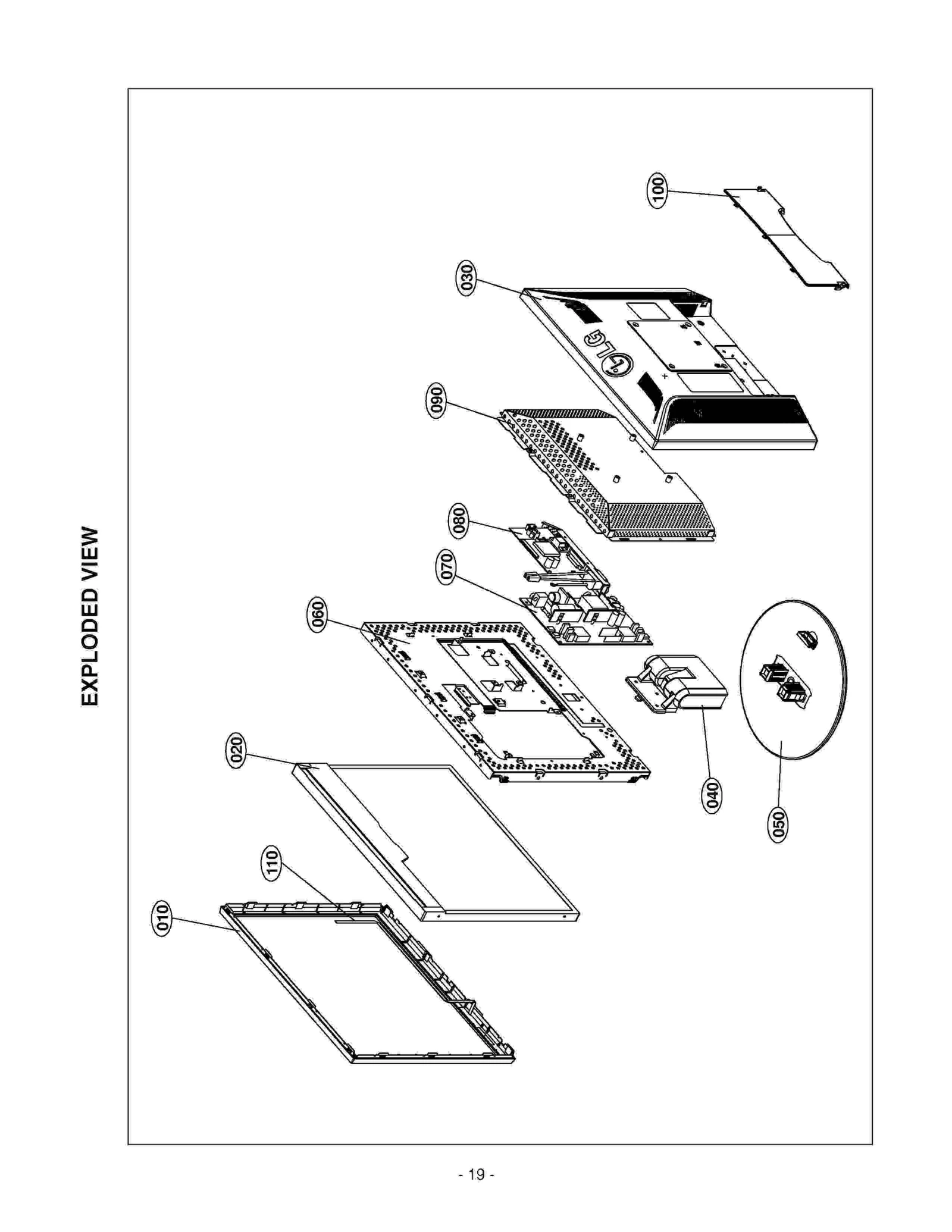

Diagram 0
Common parts from model LG L1750S-SN
0
SCREW, LGE 1SZZTER001A Contact Us For Availability
0
MAIN TOTAL ASSEMBLY LGE 3313TL7087A Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T11020W Contact Us For Availability
0
SCREW,DRAWING LGE 1SZZTPP001E Contact Us For Availability
0
BACK COVER ASSEMBLY LGE 3809TKL100E Contact Us For Availability
0
CABLE,D-SUB LGE 6850TD9007C Contact Us For Availability
0
SCREW,DRAWING LGE 1SZZTTC002C Contact Us For Availability
0
METAL ASSEMBLY LGE 4951TKS203A Contact Us For Availability
0
SCREW, LGE 1SZZTPP001C Contact Us For Availability
0
COVER LGE 3550TKK740A Contact Us For Availability
0
Bag LGE 373-071D Contact Us For Availability
0
METAL ASSEMBLY LGE 4951TKS199A Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T11017X Contact Us For Availability
0
SCREW,DRAWING LGE 1SZZTMF008B Contact Us For Availability
0
TILT SWIVEL ASSEMBLY LGE 3043TKK228A Contact Us For Availability
0
LCD(LIQUID CRYSTAL D LGE 6304FLP110B Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T20034M Contact Us For Availability
0
CABINET ASSEMBLY LGE 3091TKL143N Contact Us For Availability
0
SCREW LGE 332-095F Contact Us For Availability
0
SCREW, LGE 332-105H Contact Us For Availability
0
BOX LGE 3890TSE858A Contact Us For Availability
0
PWB(PCB) ASSEMBLY,PO LGE 6871TPT282C Contact Us For Availability
0
PWB(PCB) ASSEMBLY,SU LGE 6871TST798A Contact Us For Availability
0
SCREW, LGE 1SZZTPP001B Contact Us For Availability
0
LGE 6620K00002F LGE 6620K00002F Contact Us For Availability
0
SCREW, LGE 1SZZTPC001A Contact Us For Availability
0
TILT SWIVEL ASSEMBLY LGE 3043TKK227A Contact Us For Availability
0
DISKETTE ASSEMBLY LGE 3171TZ1528C Contact Us For Availability
0
SCREW ASSY LGE 339-006A Contact Us For Availability
0
PACKING LGE 3920TKE324A Contact Us For Availability
0
LGE 964-0016 LGE 964-0016 Contact Us For Availability
C1
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C701
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C720
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C819
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C832
CAPACITOR,FIXED ELEC LGE 0CE107EF610 Contact Us For Availability
D701
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
LED1
LED,Chip LGE 0DLLT0208AA Contact Us For Availability
Q502
IC,KEC LGE 0IKE704200H Contact Us For Availability
Q704
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
Q803
TRANSISTOR LGE 0TR127309AA Contact Us For Availability
Q804
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
R4
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R508
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R560
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
R703
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R709
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R779
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R782
RESISTOR,METAL GLAZE LGE 0RJ0471D677 Contact Us For Availability
R805
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R807
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R815
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
U201
IC,PERIPHERALS LGE 0IPRPGN016B Contact Us For Availability
U501
IC,DRAWING LGE 0IZZTSZ594A Contact Us For Availability
U502
IC,MEMORIES LGE 0ISG240860B Contact Us For Availability
U801
IC,POWER MANAGEMENT LGE 0IPMGKE011A Contact Us For Availability
U803
IC,POWER MANAGEMENT LGE 0IPMGSG019A Contact Us For Availability
X501
RESONATOR,CRYSTAL LGE 6212AA2004A Contact Us For Availability
ZD1
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
× ![]()
