Model LG L1750H-SN – Common Parts & Diagrams

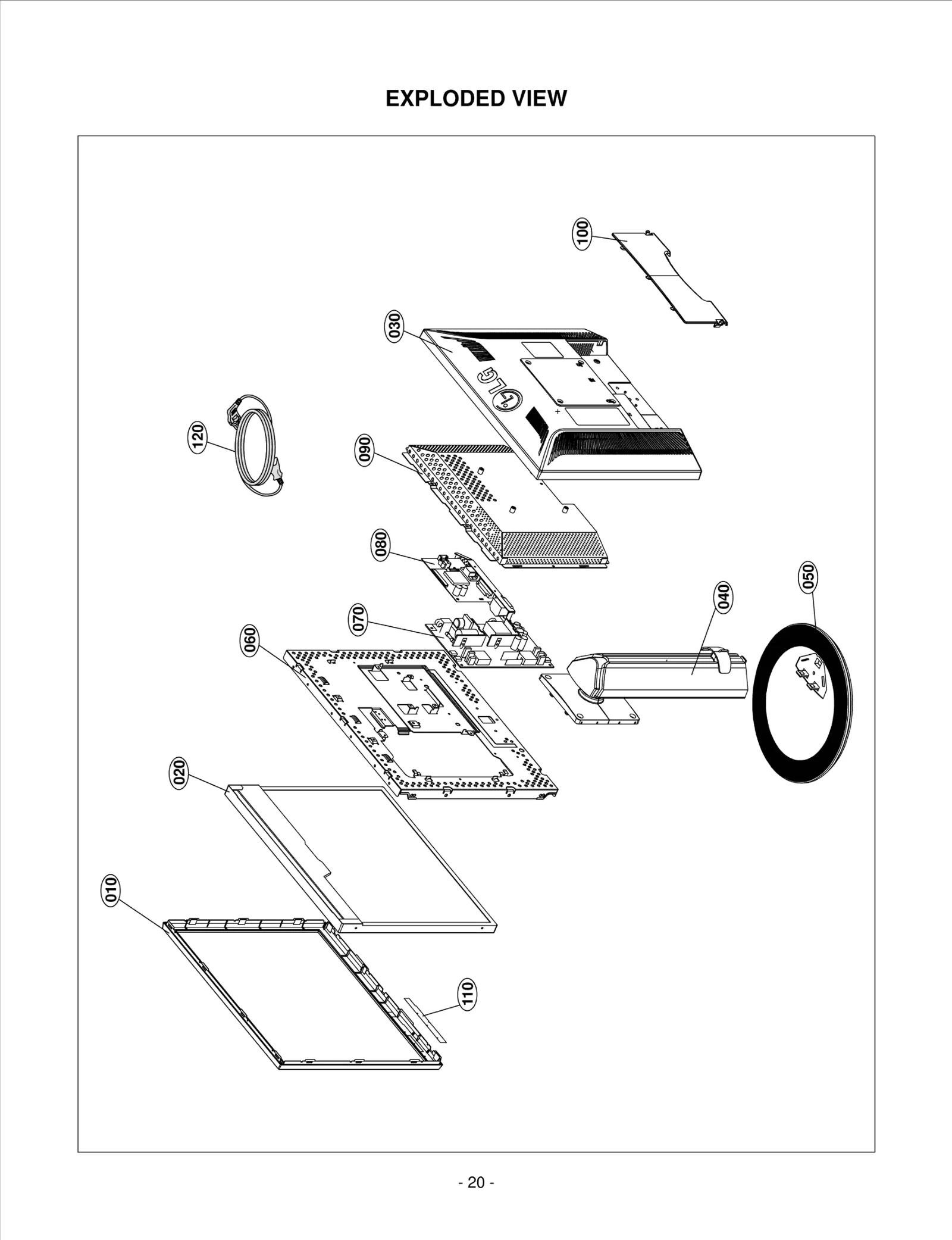

Diagram 0
Common parts from model LG L1750H-SN
0
LCD(LIQUID CRYSTAL D LGE 6304FLP274A Contact Us For Availability
0
SOCKET(CIRC),POWER LGE 6620K00003F Contact Us For Availability
0
SCREW, LGE 1SZZTPC002C Contact Us For Availability
0
SCREW TAP TITE(B),FLAT HEAD LGE 1SBFF04026C Contact Us For Availability
0
TILT SWIVEL ASSEMBLY LGE 3043TKK191D Contact Us For Availability
0
SCREW, LGE 332-105G Contact Us For Availability
0
SCREW ASSY LGE 339-006A Contact Us For Availability
0
MAIN TOTAL ASSEMBLY LGE 3313TL7101E Contact Us For Availability
0
SCREW LGE 332-105A Contact Us For Availability
0
BOX LGE 3890TSE858B Contact Us For Availability
0
SHIELD ASSY LGE 4815TKK035A Contact Us For Availability
0
METAL ASSEMBLY LGE 4951TKS203B Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T11017X Contact Us For Availability
0
PWB(PCB) ASSEMBLY,SU LGE 6871TST798C Contact Us For Availability
0
SCREW, LGE 1SZZTER001A Contact Us For Availability
0
TILT SWIVEL ASSEMBLY LGE 3043TKK190H Contact Us For Availability
0
SCREW,DRAWING LGE 332-068U Contact Us For Availability
0
BACK COVER ASSEMBLY LGE 3809TKL100F Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T11012W Contact Us For Availability
0
SCREW, LGE 1SZZTPC001A Contact Us For Availability
0
METAL ASSEMBLY LGE 4951TKS199B Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T20034M Contact Us For Availability
0
CABLE,D-SUB LGE 6850TD9007C Contact Us For Availability
0
SCREW,DRAWING LGE 1SZZTMF008B Contact Us For Availability
0
PWB(PCB) ASSEMBLY,PO LGE 6871TPT282C Contact Us For Availability
0
LGE 1SZZTPC002B LGE 1SZZTPC002B Contact Us For Availability
0
SCREW,DRAWING LGE 1SZZTPP001E Contact Us For Availability
0
CABINET ASSEMBLY LGE 3091TKL176N Contact Us For Availability
0
COVER LGE 3550TKK740A Contact Us For Availability
0
DISKETTE ASSEMBLY LGE 3171TZ1570C Contact Us For Availability
C214
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C504
CAPACITOR,CHIP[AL. E LGE 0CH8106F611 Contact Us For Availability
C727
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C743
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C744
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C814
Capacitor,AL,Radial LGE 0CE107EF628 Contact Us For Availability
D708
DIODE,SWITCHING LGE 0DSIH00018A Contact Us For Availability
LED1
LED,Chip LGE 0DLLT0208AA Contact Us For Availability
Q502
IC,KEC LGE 0IKE704200H Contact Us For Availability
Q505
TRANSISTOR,BIPOLARS LGE 0TRIH80001A Contact Us For Availability
Q704
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
Q801
TRANSISTOR LGE 0TR127309AA Contact Us For Availability
R4
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R203
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R207
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R240
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R522
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R560
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
R706
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R712
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R729
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R776
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R806
RESISTOR CHIP 200 1/10W 5 TA C LGE 0RH2000D622 Contact Us For Availability
R816
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R824
Resistor,Chip LGE 0RJ0272D677 Contact Us For Availability
R825
Resistor,Chip LGE 0RJ2000D677 Contact Us For Availability
U201
IC,PERIPHERALS LGE 0IPRPM3018A Contact Us For Availability
U501
IC,DRAWING LGE 0IZZTSZ599A Contact Us For Availability
U502
IC,EEPROM LGE 0ICS240813B Contact Us For Availability
U703
IC,MEMORIES LGE 0IMMRSG036A Contact Us For Availability
U801
IC,POWER MANAGEMENT LGE 0IPMGKE011A Contact Us For Availability
X501
Crystal LGE 6212AA2005C Contact Us For Availability
ZD711
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
× ![]()
