Model LG L1742S-SF – Common Parts & Diagrams

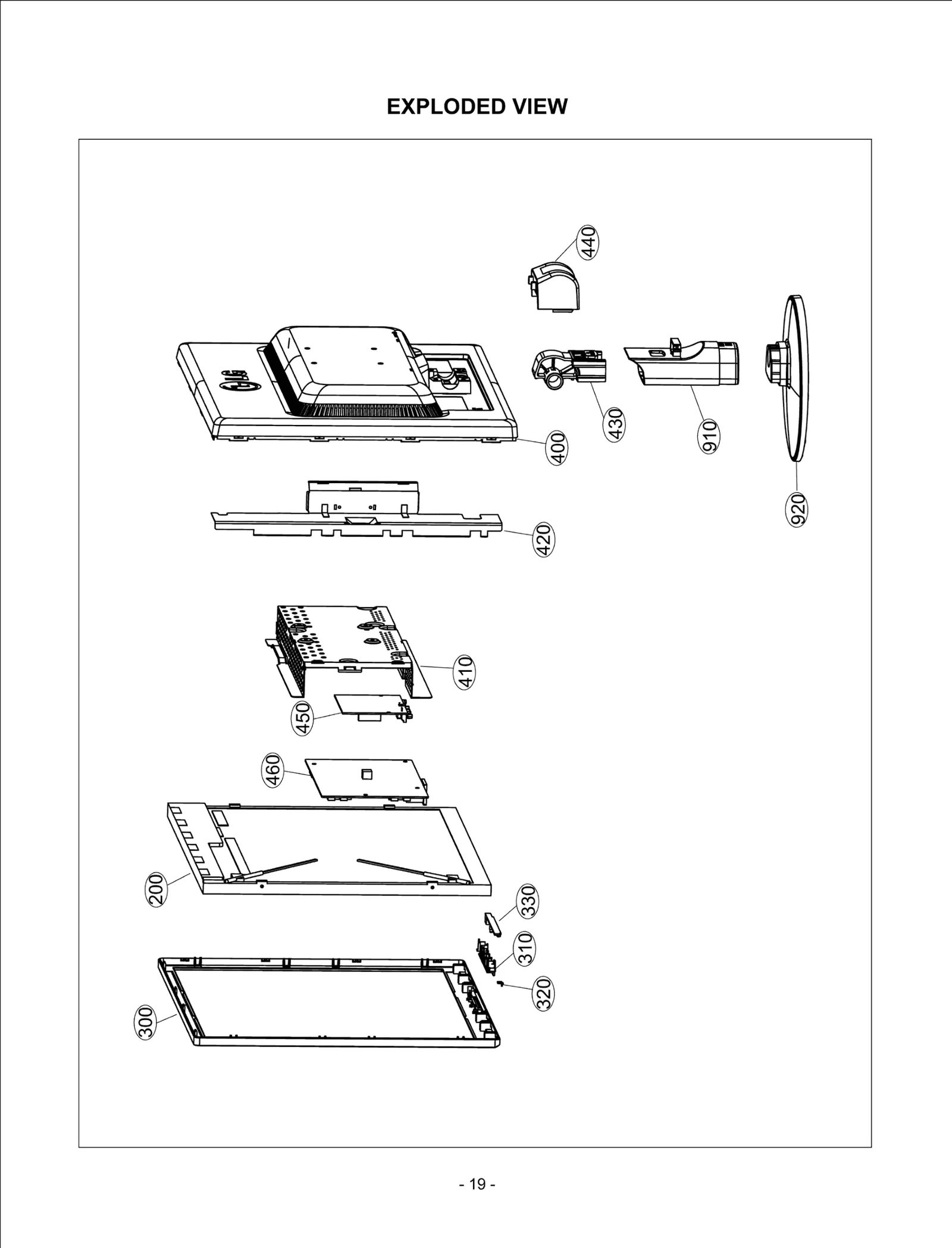

Diagram 0
Diagram 1
Common parts from model LG L1742S-SF
200
LCD,Module-TFT LGE EAJ44187302 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ44187501 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ44187502 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ44187401 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ44187002 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ44187402 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ44187301 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ44187001 Contact Us For Availability
300
Cabinet Assembly LGE ABJ52727013 Contact Us For Availability
310
Knob LGE MEY42882102 Contact Us For Availability
320
Lens LGE MFB42881801 Contact Us For Availability
330
PCB Assembly LGE EBR37001507 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ52727301 Contact Us For Availability
410
Frame LGE MDQ41956317 Contact Us For Availability
420
Frame LGE MDQ42883102 Contact Us For Availability
430
Cover LGE MCK40926801 Contact Us For Availability
440
Cover LGE MCK40927901 Contact Us For Availability
450
Power Supply Assembly LGE EAY41830902 Contact Us For Availability
450
PCB Assembly,Power LGE EBR36269403 Contact Us For Availability
460
Main Total Assembly LGE EBU57644201 Contact Us For Availability
910
Base Assembly LGE AAN59846101 Contact Us For Availability
920
Base Assembly LGE AAN55833901 Contact Us For Availability
A1
S/W Package LGE SAB32955801 Contact Us For Availability
A3
Power Cord LGE 64109EP004A Contact Us For Availability
A3
Power Cord LGE EAD37992101 Contact Us For Availability
A3
Power Cord LGE EAD38784801 Contact Us For Availability
A4
Card LGE MBM41933005 Contact Us For Availability
A5
Cable,Assembly LGE 68509F0003A Contact Us For Availability
A5
CABLE,D-SUB LGE 6850TD9007D Contact Us For Availability
C1
Harness,Single LGE EAD42157802 Contact Us For Availability
C2
Harness,Single LGE 6631900011J Contact Us For Availability
C102
CAPACITOR,DRAWING LGE 0CKZTTA002Q Contact Us For Availability
C103
CAPACITOR,DRAWING LGE 0CZZ9ST014A Contact Us For Availability
C104
Capacitor,Ceramic,Chip LGE 0CH6271K416 Contact Us For Availability
C105
CAPACITOR,DRAWING LGE 0CZZ9ST013A Contact Us For Availability
C107
CAPACITOR CERAMIC (HIGH DIELE) LGE 0CK1040K945 Contact Us For Availability
C201
Capacitor,Ceramic,Radial LGE 0CKZTTA002E Contact Us For Availability
C212
CAPACITOR,DRAWING LGE 0CZZ9ST018A Contact Us For Availability
C304
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
C305
Capacitor,Ceramic,Ch LGE 0CK473DK56A Contact Us For Availability
C312
Capacitor,Ceramic,Chip LGE 0CK224DH56A Contact Us For Availability
C318
CAPACITOR,FIXED CERA LGE 0CK474DH56A Contact Us For Availability
C320
Capacitor,Ceramic,Chip LGE 0CH5221K416 Contact Us For Availability
C323
Capacitor,Ceramic,Ch LGE 0CH2102K566 Contact Us For Availability
C325
Capacitor,Ceramic,Chip LGE 0CH2333K516 Contact Us For Availability
C328
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C332
Capacitor,Ceramic,Ch LGE 0CK222DK56A Contact Us For Availability
C405
Capacitor,Ceramic,Chip LGE 0CH1103K566 Contact Us For Availability
C508
CAPACITOR,FIXED CERA LGE 0CK473CK56A Contact Us For Availability
C521
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C601
Capacitor,AL,Radial LGE 0CE107EF628 Contact Us For Availability
C602
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C603
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C605
Capacitor,AL,Radial LGE 0CE477EF610 Contact Us For Availability
C605
Capacitor,AL,Radial LGE 0CE477EF638 Contact Us For Availability
C705
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C723
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
CY102
Capacitor,Ceramic,Ra LGE 0CZZ9ST024A Contact Us For Availability
CY104
Capacitor,Ceramic,Ra LGE 0CZZ9ST023A Contact Us For Availability
D101
Diode,Rectifier LGE 0DRGF00354A Contact Us For Availability
D102
Diode,Rectifier LGE EAH39171701 Contact Us For Availability
D103
DIODE,SWITCHING LGE 0DSGF00019A Contact Us For Availability
D106
Diode,Rectifier LGE 0DRTW00274A Contact Us For Availability
D304
Diode,Switching LGE 0DSGD00048A Contact Us For Availability
D403
Diode,Switching LGE 0DSDI00038A Contact Us For Availability
D405
Diode,Switching LGE 0DSDI00068A Contact Us For Availability
D405
Diode,Switching LGE EAH39577901 Contact Us For Availability
D713
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D713
DIODE,SWITCHING LGE 0DSIH00018A Contact Us For Availability
FB101
CORE (CIRC),BEAD LGE 6210TCE003G Contact Us For Availability
J1
Connector,Wafer LGE 6602T20008E Contact Us For Availability
J707
Connector,FFC/FPC/PIC LGE EAG38153601 Contact Us For Availability
LED1
LED,DIP LGE EAV43331201 Contact Us For Availability
LED1
LED,DIP LGE EAV30486601 Contact Us For Availability
LF101
FILTER(CIRC),EMC LGE 6200J000154 Contact Us For Availability
P201
Connector,Wafer LGE 6630V90220K Contact Us For Availability
PC201
IC,POWER MANAGEMENT LGE 0IPMG78432A Contact Us For Availability
Q303
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
Q501
TRANSISTOR,BIPOLARS LGE 0TRIH80001A Contact Us For Availability
Q501
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q602
TR,Bipolar LGE EBK39150701 Contact Us For Availability
Q701
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
Q701
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
R5
Resistor,Chip LGE 0RH1801D422 Contact Us For Availability
R103
RESISTOR CHIP 1.0M 1/10W 5 D. LGE 0RH1004D622 Contact Us For Availability
R105
Resistor,Carbon Film LGE 0RD0512Q609 Contact Us For Availability
R106
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R107
Resistor,Carbon Film LGE 0RD8203A609 Contact Us For Availability
R108
Resistor,Carbon Film LGE 0RD4702A609 Contact Us For Availability
R109
Resistor,Metal Oxide LGE 0RX0560J609 Contact Us For Availability
R110
Resistor,Metal Oxide Film LGE 0RX1003K607 Contact Us For Availability
R111
Resistor,Carbon Film LGE 0RD0101Q609 Contact Us For Availability
R112
RESISTOR,METAL GLAZE LGE 0RJ1302E472 Contact Us For Availability
R116
RESISTOR,METAL GLAZE LGE 0RJ4703G676 Contact Us For Availability
R122
Resistor,Chip LGE 0RH0471D622 Contact Us For Availability
R201
Resistor,Metal Oxide Film LGE 0RX0102K665 Contact Us For Availability
R204
Resistor,Metal Film LGE 0RN6802F409 Contact Us For Availability
R205
RESISTOR FIX METAL FILM 2.20K LGE 0RN2201F409 Contact Us For Availability
R210
Resistor,Chip LGE 0RH3301D422 Contact Us For Availability
R211
RESISTOR,METAL GLAZE LGE 0RJ1001G476 Contact Us For Availability
R301
Resistor,Chip LGE 0RH1004D422 Contact Us For Availability
R315
Resistor,Chip LGE 0RH4303D622 Contact Us For Availability
R316
Resistor,Carbon Film LGE 0RD0222Q609 Contact Us For Availability
R319
Resistor,Chip LGE 0RH7501D422 Contact Us For Availability
R320
Resistor,Chip LGE 0RH1102D422 Contact Us For Availability
R322
Resistor,Chip LGE 0RH3303D622 Contact Us For Availability
R333
Resistor,Chip LGE 0RH1003D422 Contact Us For Availability
R409
R METAL FILM 1K 1/6W 1% SKN14V LGE 0RN1001F409 Contact Us For Availability
R505
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R513
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R516
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R601
RESISTOR,METAL GLAZE LGE 0RJ2701D677 Contact Us For Availability
R603
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R709
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R731
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R736
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
SC101
SOCKET(CIRC),POWER LGE 6620K00020A Contact Us For Availability
SW5
Switch,Tact LGE 6600S-TV01A Contact Us For Availability
TH101
THERMISTOR,NTC LGE 6322A00035A Contact Us For Availability
U101
IC,POWER MANAGEMENT LGE 0IPMG78425A Contact Us For Availability
U201
IC,Microprocessors LGE 0IPRP00704A Contact Us For Availability
U502
IC Assembly LGE EAN57645001 Contact Us For Availability
U503
IC,EEPROM LGE 0IMMR00203A Contact Us For Availability
U503
IC,MEMORIES LGE 0ISG240860B Contact Us For Availability
X501
Crystal LGE 6212AA2001H Contact Us For Availability
ZD710
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
× ![]()
