Model LG L1553S-BF – Common Parts & Diagrams

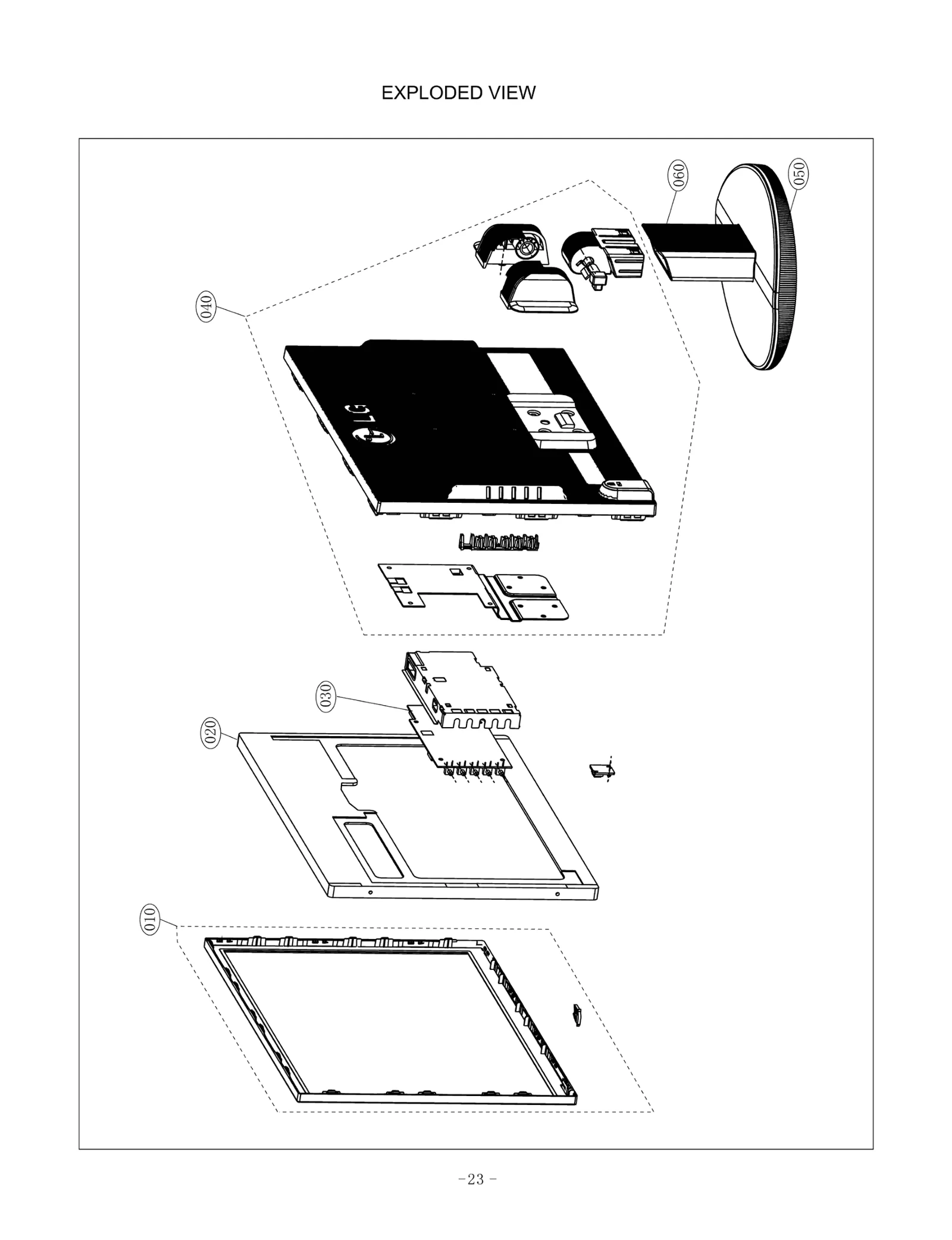

Diagram 0
Diagram 1
Common parts from model LG L1553S-BF
010
Cover Assembly LGE ACQ30329115 Contact Us For Availability
020
LCD,Module-TFT LGE EAJ38167901 Contact Us For Availability
030
Main Total Assembly LGE 33139L7032P Contact Us For Availability
040
Cover Assembly LGE ACQ30329003 Contact Us For Availability
050
Base Assembly LGE AAN32608901 Contact Us For Availability
060
Cover LGE 35509K0245D Contact Us For Availability
A1
LGE SAB30685601 LGE SAB30685601 Contact Us For Availability
A3
POWER CORD LGE 6410TEW010A Contact Us For Availability
A4
LGE 38409R0022Q LGE 38409R0022Q Contact Us For Availability
A5
Cable,Assembly LGE 6631900110A Contact Us For Availability
A6
Cable,Assembly LGE 68509F0004A Contact Us For Availability
B1
Box LGE MAY30407104 Contact Us For Availability
C1
CONNECTOR ASSEMBLY LGE 6631900125A Contact Us For Availability
C207
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C208
CAPACITOR,FIXED CERA LGE 0CK473CK56A Contact Us For Availability
C230
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C232
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C427
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C707
Capacitor,Ceramic,Chip LGE 0CK472CK56A Contact Us For Availability
C708
Capacitor,Ceramic,Chip LGE 0CC181CK41A Contact Us For Availability
C712
CAPACITOR,FIXED CERA LGE 0CK334CF56A Contact Us For Availability
C714
CAPACITOR,FIXED CERA LGE 0CC221CK41A Contact Us For Availability
C718
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C805
CAPACITOR,FIXED CERA LGE 0CK474CH94A Contact Us For Availability
C810
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C822
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
D418
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D701
Diode,Switching LGE 0DSDI00068A Contact Us For Availability
D801
Diode,Schottky LGE 0DRTW00238A Contact Us For Availability
J3
Conector,Wafer LGE 6602T20009B Contact Us For Availability
J702
Connector,Wafer LGE EAG30427201 Contact Us For Availability
L801
Inductor,Wire Wound,Chip LGE 0LCJB00001A Contact Us For Availability
LED1
LED LGE 0DLLT0089AA Contact Us For Availability
P1
Packing LGE MFZ30284201 Contact Us For Availability
P2
Packing LGE MFZ30456001 Contact Us For Availability
Q402
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
Q702
TR,Bipolar LGE 0TR222209AB Contact Us For Availability
Q801
TRANSISTOR LGE 0TR127309AA Contact Us For Availability
Q802
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
R3
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R4
Resistor,Chip LGE 0RJ1201D677 Contact Us For Availability
R204
RESISTOR,METAL GLAZE LGE 0RJ0562D677 Contact Us For Availability
R211
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R212
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R401
Resistor,Chip LGE 0RJ3300D677 Contact Us For Availability
R423
Resistor,Chip LGE 0RJ4701D477 Contact Us For Availability
R442
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R448
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R705
RESISTOR,METAL GLAZE LGE 0RJ1202D477 Contact Us For Availability
R709
Resistor,Chip LGE 0RJ2702D477 Contact Us For Availability
R710
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
R712
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R714
Resistor,Chip LGE 0RJ7502D677 Contact Us For Availability
R715
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R718
RESISTOR,METAL GLAZE LGE 0RJ2203D677 Contact Us For Availability
R722
RESISTOR,METAL GLAZE LGE 0RJ0471D677 Contact Us For Availability
R731
Resistor,Chip LGE 0RJ6802D677 Contact Us For Availability
R733
RESISTOR,METAL GLAZE LGE 0RJ5101D677 Contact Us For Availability
R809
Resistor,Chip LGE 0RJ4301D477 Contact Us For Availability
R811
Resistor,Chip LGE 0RH1200D622 Contact Us For Availability
R811
RESISTOR CHIP 200 1/10W 5 TA C LGE 0RH2000D622 Contact Us For Availability
R812
Resistor,Chip LGE 0RJ3301D477 Contact Us For Availability
R818
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
SW5
Switch,Tact LGE 6600R000132 Contact Us For Availability
T701
Transformer,Switching LGE 61709MC009A Contact Us For Availability
U201
IC,Microprocessors LGE 0IPRP00704A Contact Us For Availability
U203
IC,MEMORIES LGE 0ISG240860B Contact Us For Availability
U701
IC,Power Driver LGE EAN30593401 Contact Us For Availability
U702
FET LGE 0TFAN80001A Contact Us For Availability
U803
IC,LDO Voltage Regulator LGE 0IPMG78429A Contact Us For Availability
X201
Crystal LGE 6212AA2001H Contact Us For Availability
ZD2
Diode,Zener LGE 0DZDI00078A Contact Us For Availability
× ![]()
