Model Whirlpool KWVU265YBA1 SLIDE OUT RANGE HOOD – Common Parts & Diagrams

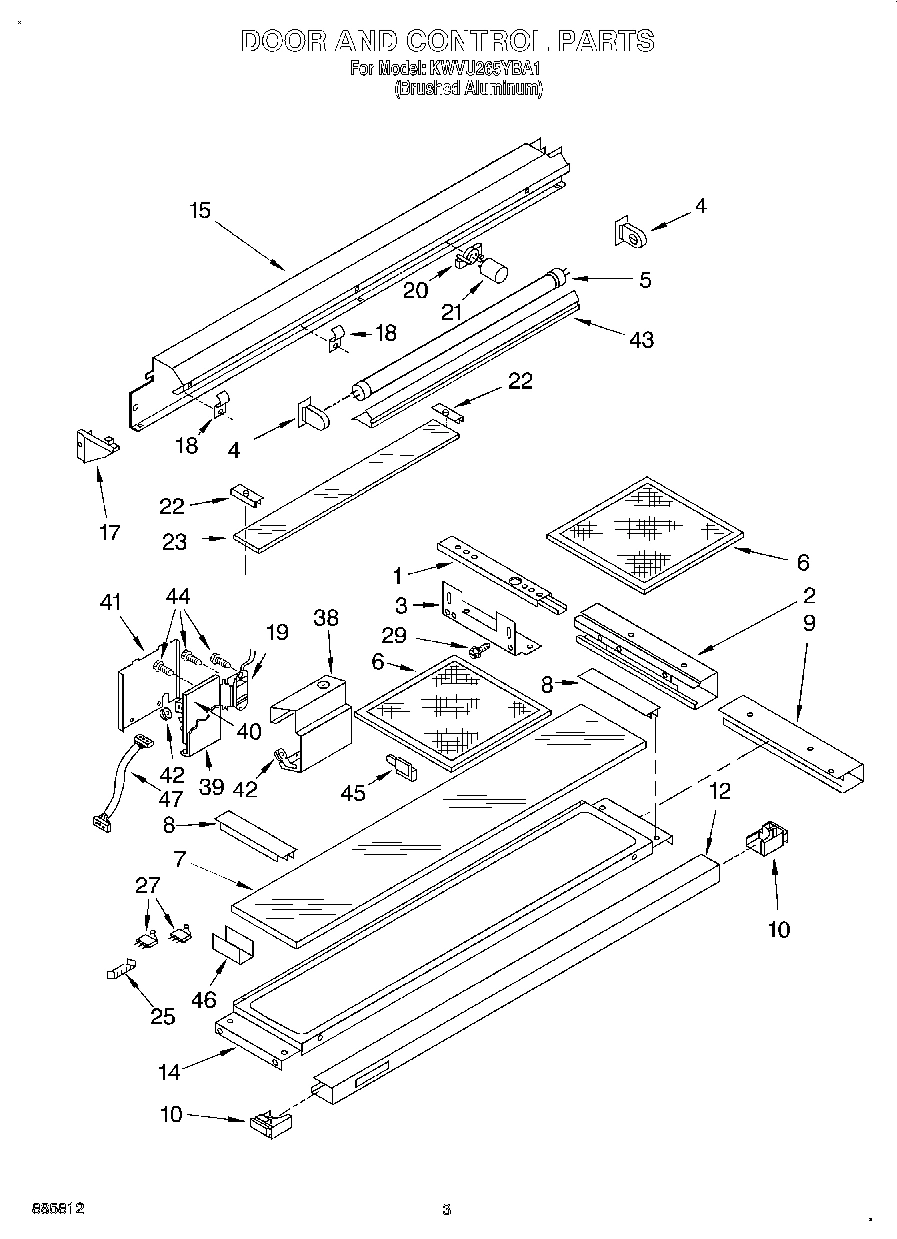

01 - SECTION
03 - SECTION
02 - SECTION
Common parts from model Whirlpool KWVU265YBA1 SLIDE OUT RANGE HOOD
Installation Instructions WPL LIT4360084 Contact Us For Availability
Parts List WPL LIT4360123 Contact Us For Availability
1
Guide, Door (2) WPL 4360010 Contact Us For Availability
2
Housing Guide (Left Side) WPL 4360104 Contact Us For Availability
2
Housing Guide (Right Side) WPL 4360105 Contact Us For Availability
3
Support, Canopy (2) WPL 4360002 Contact Us For Availability
3
Support, Guide (2) WPL 4360012 Contact Us For Availability
4
Bracket, Blower (Right Side) WPL 4360054 Contact Us For Availability
4
Socket, Lamp (2) WPL 4360013 Contact Us For Availability
5
Lamp WPL 4360125 Contact Us For Availability
7
Screw 5 x 1/2 (3) WPL 4360006 Contact Us For Availability
7
Frame, Control Panel WPL 4360129 Contact Us For Availability
7
Glass, Door WPL 4360076 Contact Us For Availability
8
Endcap, Blower (Left) WPL 4360007 Contact Us For Availability
8
Endcap, Blower (Right) WPL 4360053 Contact Us For Availability
8
Connector WPL 4360117 Contact Us For Availability
8
Brace, Glass (2) WPL 4360017 Contact Us For Availability
9
Housing, Blower WPL 4360008 Contact Us For Availability
9
Escutcheon WPL 4360118 Contact Us For Availability
9
Frame, Door (Left Side) WPL 4360018 Contact Us For Availability
9
Frame, Door (Right Side) WPL 4360024 Contact Us For Availability
10
Support, Housing WPL 4360075 Contact Us For Availability
10
End Cap, Door (Left Side) WPL 4360069 Contact Us For Availability
10
End Cap, Door (Right Side) WPL 4360070 Contact Us For Availability
11
Bushing (4) WPL 4360063 Contact Us For Availability
11
End Cap, Handle (Left Side) WPL 4360020 Contact Us For Availability
11
End Cap, Handle (Right Side) WPL 4360022 Contact Us For Availability
11
Trim Kit-White WPL 4360202 Contact Us For Availability
11
Trim Kit-Black WPL 4360204 Contact Us For Availability
12
Handle WPL 4360128 Contact Us For Availability
13
Plate Mount WPL 4360088 Contact Us For Availability
14
Cover Terminal (Right Side) WPL 4360056 Contact Us For Availability
14
Cover Terminal (Left Side) WPL 4360060 Contact Us For Availability
14
Baffle, Door WPL 4360077 Contact Us For Availability
15
Terminal WPL 4360057 Contact Us For Availability
15
Support, Light WPL 4360124 Contact Us For Availability
16
Capacitor WPL 4360058 Contact Us For Availability
17
Bracket Light (Right Side) WPL 4360103 Contact Us For Availability
17
Bracket Light (Left Side) WPL 4360100 Contact Us For Availability
18
Wheel, Blower (Left Side) WPL 4360049 Contact Us For Availability
18
Wheel, Blower (Right Side) WPL 4360055 Contact Us For Availability
18
Clamp, Wiring WPL 4360044 Contact Us For Availability
19
Motor WPL 4360040 Contact Us For Availability
19
Ballast Lamp WPL 4360045 Contact Us For Availability
20
Plate, Motor WPL 4360052 Contact Us For Availability
20
Receptacle WPL 4360047 Contact Us For Availability
21
Starter WPL 4360046 Contact Us For Availability
22
Brace, Glass (2) WPL 4360041 Contact Us For Availability
23
Grille, Blower (2) WPL 4360064 Contact Us For Availability
23
Lens Light WPL 4360127 Contact Us For Availability
24
Screw 6 x 10 (2) WPL 4360067 Contact Us For Availability
25
Clip (2) WPL 4360074 Contact Us For Availability
25
Base Switch WPL 4360102 Contact Us For Availability
26
Pin, Filter (2) WPL 4360048 Contact Us For Availability
27
Bracket, Filter WPL 4360071 Contact Us For Availability
28
Spring, Filter (2) WPL 4360072 Contact Us For Availability
29
Screw WPL 4360073 Contact Us For Availability
31
Clamp (2) WPL 4360119 Contact Us For Availability
32
Bracket, Support (6) WPL 4360120 Contact Us For Availability
38
Frame, Controls WPL 4360090 Contact Us For Availability
39
Plate, Board Mtg. WPL 4360091 Contact Us For Availability
40
Board, Microcomputer WPL 4360092 Contact Us For Availability
41
Shield, Microcomputer WPL 4360093 Contact Us For Availability
42
Grommet (2) WPL 4360094 Contact Us For Availability
43
Support, Light (Front) WPL 4360126 Contact Us For Availability
44
Screw WPL 4360114 Contact Us For Availability
45
Guide, Cable WPL 4360115 Contact Us For Availability
46
Bracket, Guide WPL 4360116 Contact Us For Availability
47
Harness WPL 4360121 Contact Us For Availability
× ![]()
