Model Whirlpool KWCV167MSS0 36`` PROFESSIONAL HOOD – Common Parts & Diagrams

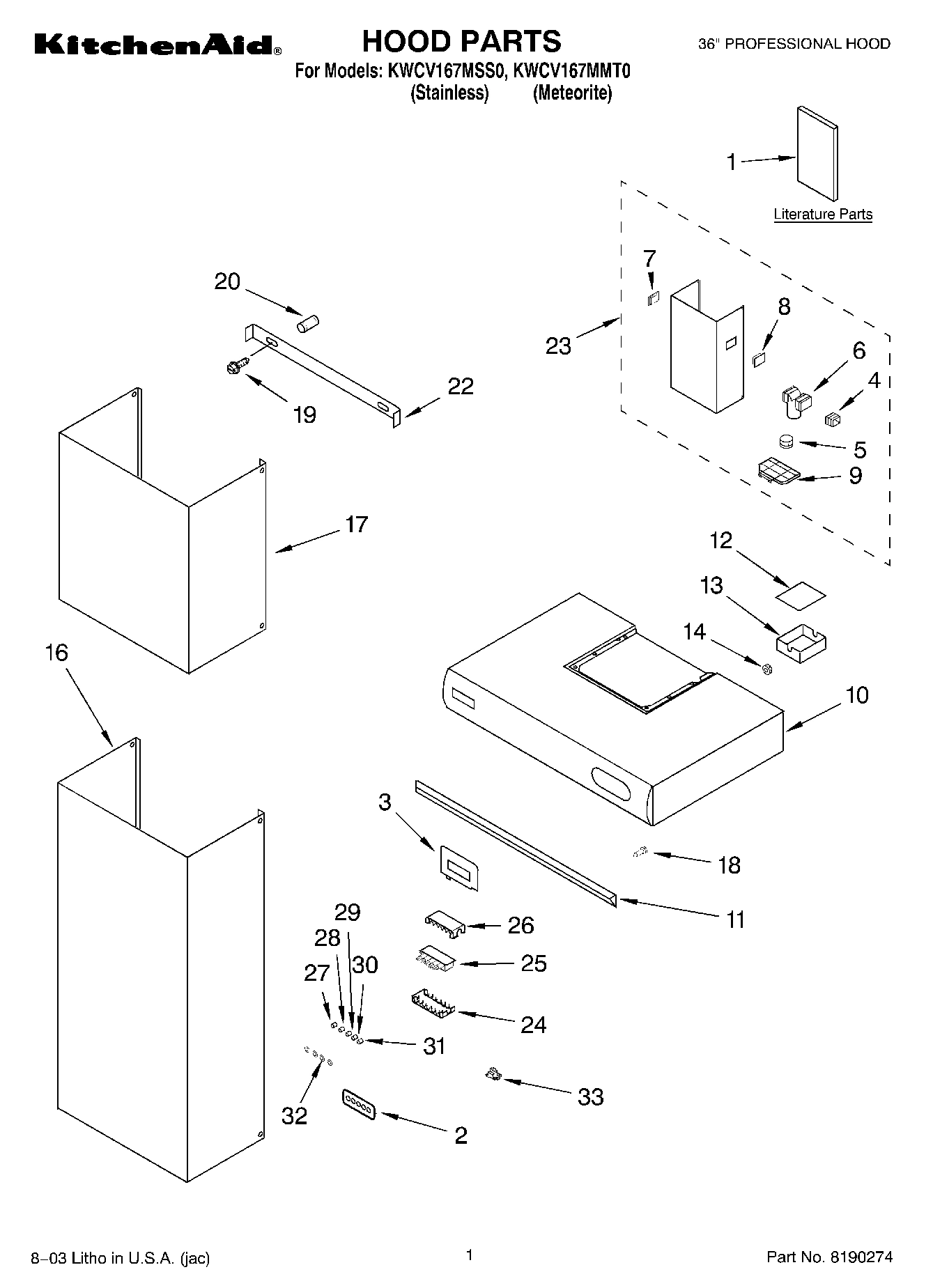

01 - HOOD PARTS

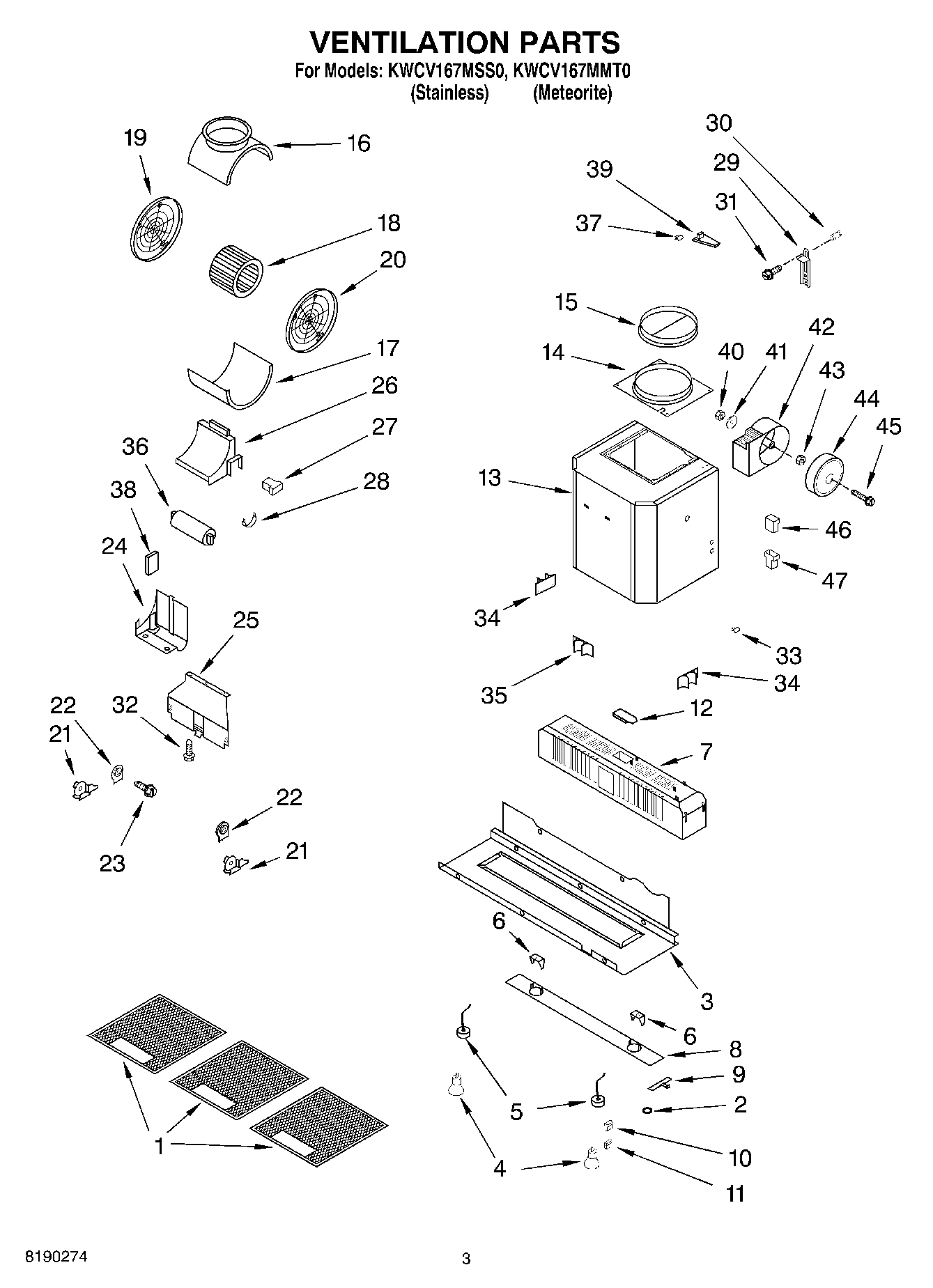

02 - VENTILATION PARTS
Common parts from model Whirlpool KWCV167MSS0 36`` PROFESSIONAL HOOD
2
Spacer, Lighting WPL 8190370 Contact Us For Availability
3
Panel, Control WPL 8190349 Contact Us For Availability
3
Support, Light (Stainless) WPL 8190367 Contact Us For Availability
3
Support, Light (Meteorite) WPL 8190368 Contact Us For Availability
4
Duct, Air - Spacer WPL 8190356 Contact Us For Availability
5
Holder, Bulb WPL 8189597 Contact Us For Availability
5
Duct, Air-Extnsion WPL 8190357 Contact Us For Availability
6
Duct, Air-Diverter WPL 8190355 Contact Us For Availability
6
Support, Bulb WPL 8190346 Contact Us For Availability
7
Grate, Vent-Left WPL 4360330 Contact Us For Availability
7
Cover, Light WPL 8190366 Contact Us For Availability
8
Grate, Vent-Right WPL 4360332 Contact Us For Availability
8
Support, Light WPL 8190369 Contact Us For Availability
9
Bracket WPL 4360263 Contact Us For Availability
10
Casing Assembly (Stainless) WPL 8190361 Contact Us For Availability
10
Casing Assembly (Meteorite) WPL 8190362 Contact Us For Availability
10
Connector, Male WPL 4360161 Contact Us For Availability
11
Support, Filter (Stainless) WPL 8190363 Contact Us For Availability
11
Support, Filter (Meteorite) WPL 8190364 Contact Us For Availability
11
Connector, Female WPL 4360162 Contact Us For Availability
12
Cover WPL 8190359 Contact Us For Availability
12
Clamp-Cable Holder WPL 8190365 Contact Us For Availability
13
Box, Wiring WPL 8190360 Contact Us For Availability
13
Housing WPL 8190406 Contact Us For Availability
14
Clamp-Stran Relief WPL 4360062 Contact Us For Availability
14
Extension, Flange WPL 8190405 Contact Us For Availability
15
Damper WPL 8190358 Contact Us For Availability
16
Chimney, Lower Ducted (Stainless) WPL 8190350 Contact Us For Availability
16
Chimney, Lower Ducted (Meteorite) WPL 8190351 Contact Us For Availability
16
Housing, Upper WPL 8190389 Contact Us For Availability
17
Chimney, Upper (Stainless) WPL 8190352 Contact Us For Availability
17
Chimney, Upper (Meteorite) WPL 8190353 Contact Us For Availability
17
Housing, Lower WPL 8190387 Contact Us For Availability
18
Pin, Hinge (6) WPL 4360048 Contact Us For Availability
18
Motor, Blower WPL 8190390 Contact Us For Availability
19
Support, Motor-SX WPL 8190388 Contact Us For Availability
20
Support, Motor-DX WPL 8190391 Contact Us For Availability
21
Bracket, Diffuser (Left) WPL 8190395 Contact Us For Availability
21
Bracket, Diffuser (Right) WPL 8190399 Contact Us For Availability
22
Bracket, Upper WPL 8190354 Contact Us For Availability
22
Bracket, Flexible (Left-SX) WPL 8190394 Contact Us For Availability
22
Bracket, Flexible (Right-DX) WPL 8190400 Contact Us For Availability
23
Ductless Kit (Stainless) WPL 8285505 Contact Us For Availability
23
Ductless Kit (Meteorite) WPL 8285506 Contact Us For Availability
23
Screw WPL 8190396 Contact Us For Availability
24
Housing, Control WPL 8190373 Contact Us For Availability
24
Cover, Wire WPL 8190383 Contact Us For Availability
25
Control, Motor WPL 8190374 Contact Us For Availability
25
Bracket, Mounting WPL 8190398 Contact Us For Availability
26
Housing, Control WPL 8190375 Contact Us For Availability
26
Cover, Wire WPL 8190392 Contact Us For Availability
27
Button WPL 8190376 Contact Us For Availability
27
Connector WPL 8190393 Contact Us For Availability
28
Button WPL 8190377 Contact Us For Availability
28
Cover, Wire WPL 8190386 Contact Us For Availability
29
Button WPL 8190378 Contact Us For Availability
29
Bracket, Mount (2) WPL 8190402 Contact Us For Availability
30
Plug WPL 4360318 Contact Us For Availability
30
Button WPL 8190379 Contact Us For Availability
31
Screw WPL 4360320 Contact Us For Availability
31
Button WPL 8190380 Contact Us For Availability
32
Trim, Button (4) WPL 8190382 Contact Us For Availability
32
SCREW WPL 8190397 Contact Us For Availability
33
Connector WPL 8190381 Contact Us For Availability
33
Clamp, Cable Guide WPL 8190401 Contact Us For Availability
34
Cover WPL 8190415 Contact Us For Availability
35
Cover WPL 8190407 Contact Us For Availability
36
Capacitor WPL 8190385 Contact Us For Availability
37
Clamp, Cable WPL 4360239 Contact Us For Availability
38
Cover, Box WPL 8190384 Contact Us For Availability
39
Cover, Wire WPL 8190404 Contact Us For Availability
40
NUT WPL 8190414 Contact Us For Availability
41
WASHER WPL 8190413 Contact Us For Availability
42
SUPPORT WPL 8190412 Contact Us For Availability
43
NUT WPL 8190411 Contact Us For Availability
45
SCREW WPL 8190403 Contact Us For Availability
46
Connector, Female WPL 8190409 Contact Us For Availability
47
Connector, Male WPL 8190408 Contact Us For Availability
× ![]()
