Model Whirlpool KWCU405SSS0 30`` CANOPY HOOD – Common Parts & Diagrams

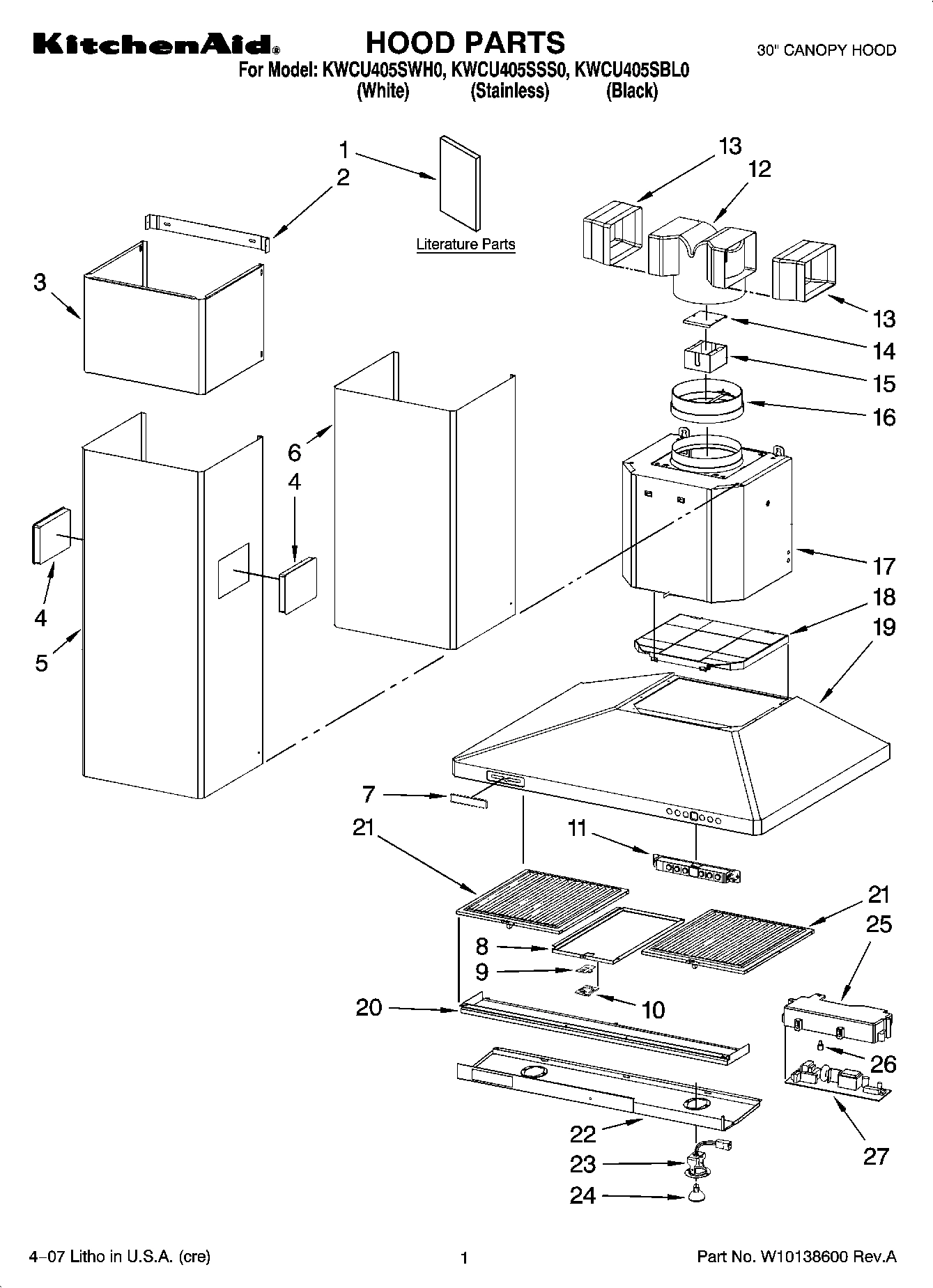

01 - HOOD PARTS

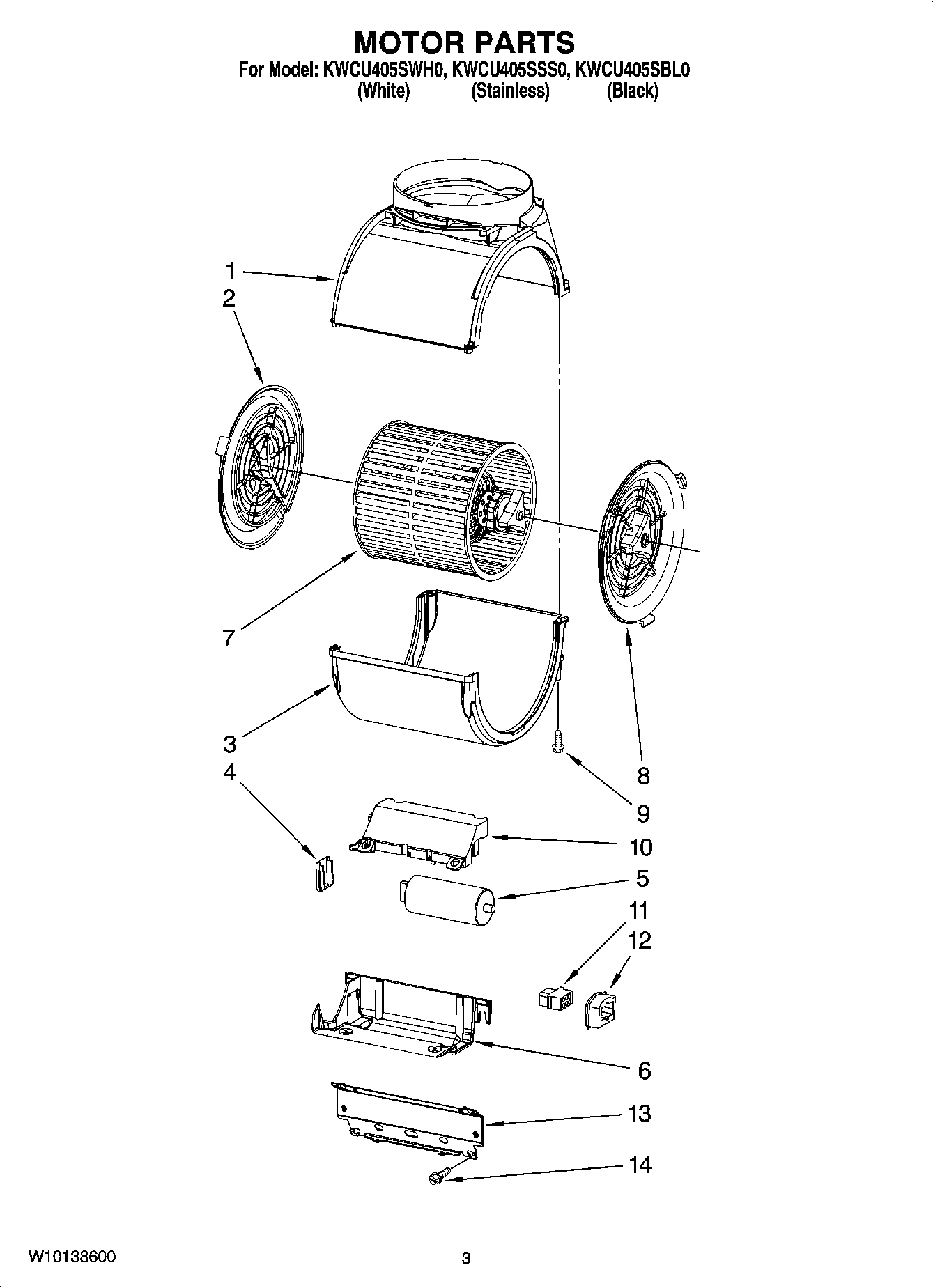

02 - MOTOR PARTS
Common parts from model Whirlpool KWCU405SSS0 30`` CANOPY HOOD
1
Housing, Fan (Upper) WPL 8190389 Contact Us For Availability
2
Bracket, Upper WPL 8190354 Contact Us For Availability
2
Support, Motor LH WPL 8190388 Contact Us For Availability
3
Pipe, Fitting (Upper) (White) WPL W10138366 Contact Us For Availability
3
Pipe, Fitting (Upper) (Black) WPL W10138368 Contact Us For Availability
3
Pipe, Fitting (Upper) (S.Steel) WPL W10138369 Contact Us For Availability
3
Housing, Fan (Lower) WPL W10138388 Contact Us For Availability
4
Air-Outlet (LH White) WPL 4360316 Contact Us For Availability
4
Air-Outlet (RH White) WPL 4360323 Contact Us For Availability
4
Air-Outlet (LH S.Steel) WPL 4360330 Contact Us For Availability
4
Air-Outlet (RH S.Steel) WPL 4360332 Contact Us For Availability
4
Air-Outlet (RH Black) WPL W10138372 Contact Us For Availability
4
Air-Outlet (LH Black) WPL W10138373 Contact Us For Availability
4
Cover WPL 8190384 Contact Us For Availability
5
CAPACITOR WPL W10136368 Contact Us For Availability
5
Pipe Fitting (Ductless) (White) WPL W10138374 Contact Us For Availability
5
Pipe Fitting (Ductless) (Black) WPL W10138375 Contact Us For Availability
5
Pipe Fitting (Ductless) (S.Steel) WPL W10138376 Contact Us For Availability
6
Pipe Fitting (Ducted) (White) WPL W10138377 Contact Us For Availability
6
Pipe Fitting (Ducted) (Black) WPL W10138378 Contact Us For Availability
6
Pipe Fitting (Ducted) (S.Steel) WPL W10138379 Contact Us For Availability
6
Cover, Wiring WPL W10138387 Contact Us For Availability
7
Motor Assy WPL W10138389 Contact Us For Availability
8
Spacer, Filter WPL W10138383 Contact Us For Availability
8
Support, Motor RH WPL 8190391 Contact Us For Availability
9
Bolt WPL 8189939 Contact Us For Availability
9
SCREW WPL W10138393 Contact Us For Availability
10
Filter, Latch WPL 8189938 Contact Us For Availability
10
Box, Electrical WPL W10138390 Contact Us For Availability
11
Board, Control WPL W10138386 Contact Us For Availability
11
Connector WPL 8190393 Contact Us For Availability
12
Duct, Air WPL 8190355 Contact Us For Availability
12
Connection, 6-Way WPL W10138392 Contact Us For Availability
13
Duct, Air - Spacer WPL 8190356 Contact Us For Availability
13
Bracket WPL W10138391 Contact Us For Availability
14
Cover, Terminal WPL 8190359 Contact Us For Availability
14
Screw WPL 8190582 Contact Us For Availability
15
Box, Terminal WPL 8190360 Contact Us For Availability
16
Damper, Hood WPL 8190358 Contact Us For Availability
17
Casing, Motor (Not Serviced) WPL ARI117357A Contact Us For Availability
18
Hood, Upper (Not Serviced) WPL ARI117358A Contact Us For Availability
19
Hood (White) WPL W10138361 Contact Us For Availability
19
Hood (Black) WPL W10138362 Contact Us For Availability
19
Hood (S.Steel) WPL W10138364 Contact Us For Availability
20
Support, Filter (White) WPL W10138358 Contact Us For Availability
20
Support, Filter (Black) WPL W10138359 Contact Us For Availability
20
Support, Filter (S.Steel) WPL W10138360 Contact Us For Availability
22
Support, Light (White) WPL W10138355 Contact Us For Availability
22
Support, Light (Black) WPL W10138356 Contact Us For Availability
22
Support, Light (S.Steel) WPL W10138357 Contact Us For Availability
25
Box, Control WPL W10138395 Contact Us For Availability
26
Knob, Control WPL W10138394 Contact Us For Availability
27
Control, Motor WPL W10138496 Contact Us For Availability
× ![]()
