Model Whirlpool KWCU360JSS0 RANGE HOOD – Common Parts & Diagrams

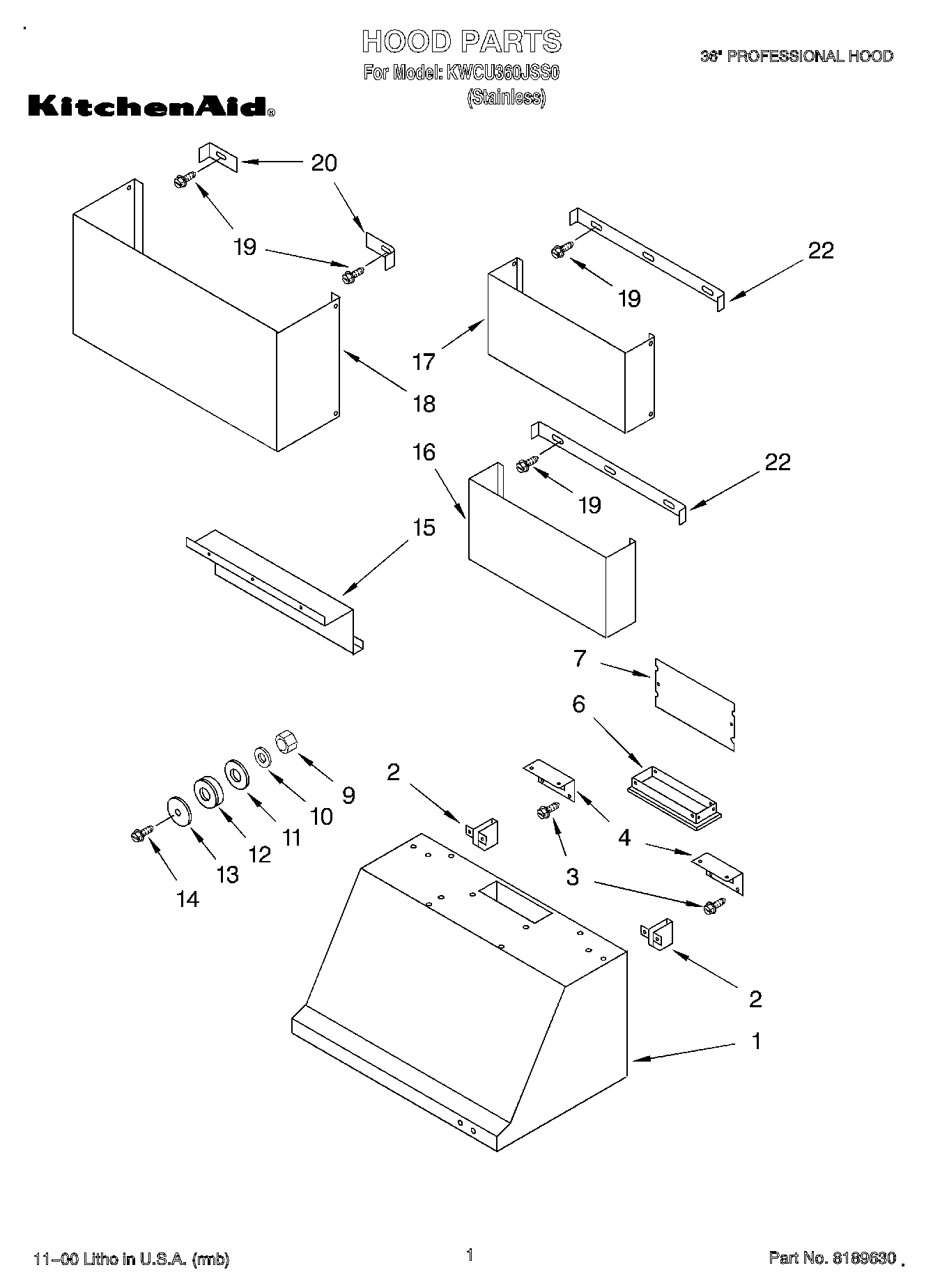

01 - SECTION

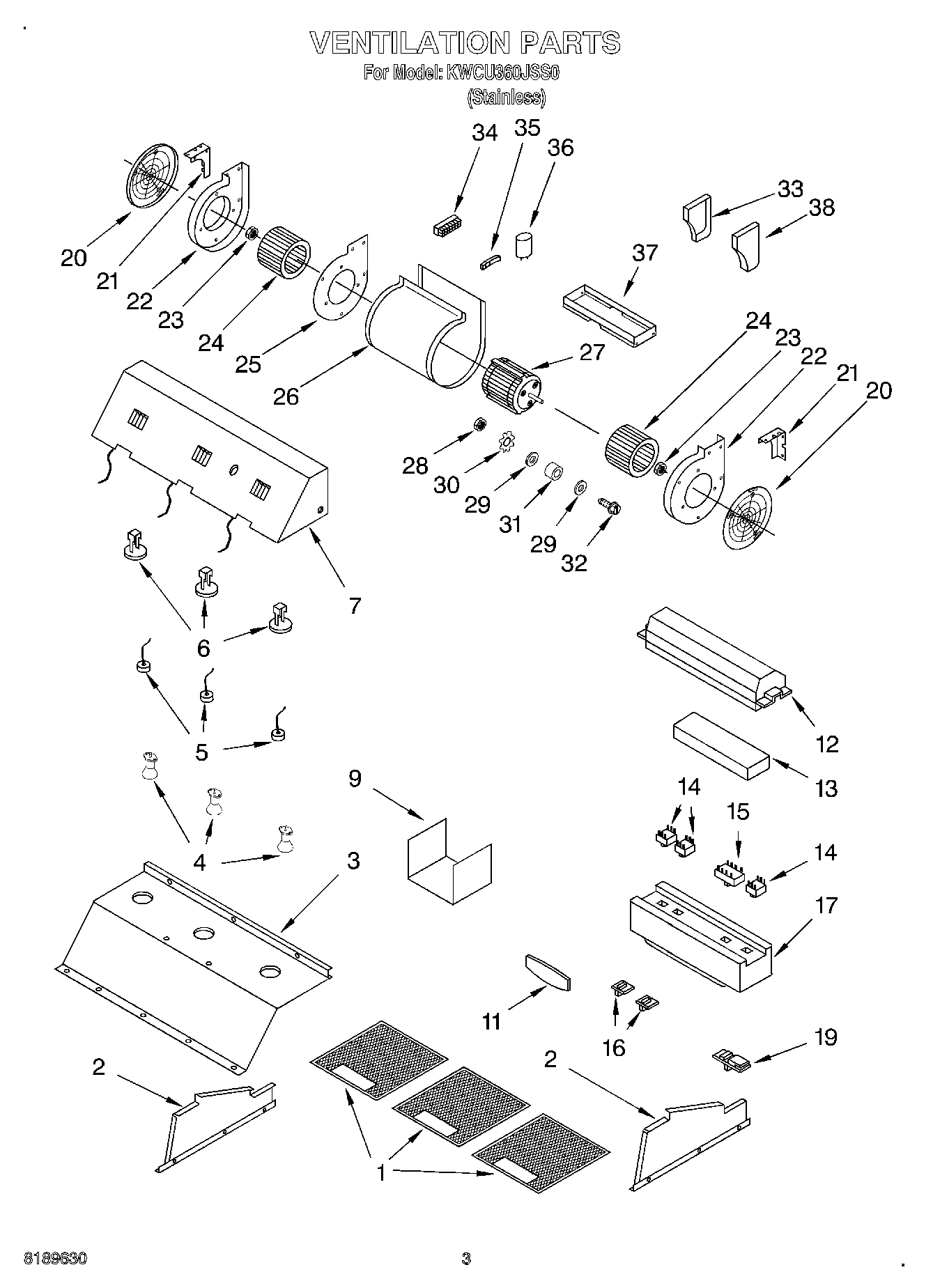

02 - SECTION
Common parts from model Whirlpool KWCU360JSS0 RANGE HOOD
Wire Racks WPL 4378616 Contact Us For Availability
Rack Hanger Kits WPL 4378617 Contact Us For Availability
Utensil Bars (Side) WPL 4378618 Contact Us For Availability
Utensil Bars (Rear) WPL 4378619 Contact Us For Availability
Wiring Diagram WPL LIT8189631 Contact Us For Availability
Use & Care Guide WPL LIT8284829 Contact Us For Availability
2
Support. Side (Left) WPL 8189595 Contact Us For Availability
2
Support. Side (Right) WPL 8189617 Contact Us For Availability
3
Screw WPL 8189611 Contact Us For Availability
3
Support, Light WPL 8189596 Contact Us For Availability
4
Bracket, Mounting WPL 8189610 Contact Us For Availability
5
Holder, Bulb WPL 8189597 Contact Us For Availability
5
Grommet WPL 4360318 Contact Us For Availability
6
Damper WPL 4360001 Contact Us For Availability
6
Support, Bulb WPL 8189598 Contact Us For Availability
7
Cover, Exhaust WPL 4360190 Contact Us For Availability
7
Cover, Light WPL 8189599 Contact Us For Availability
8
Relief, Strain WPL 4360062 Contact Us For Availability
9
Nut WPL 8189600 Contact Us For Availability
9
Cover, Inlet WPL 8189614 Contact Us For Availability
10
Spacer WPL 8189615 Contact Us For Availability
11
Plate (Rubber) WPL 8189601 Contact Us For Availability
11
Nameplate WPL 8189616 Contact Us For Availability
12
Cover, Switch WPL 8189624 Contact Us For Availability
13
Plate (Nylon) WPL 8189603 Contact Us For Availability
13
Support, Switch WPL 8189623 Contact Us For Availability
14
Screw WPL 4360310 Contact Us For Availability
15
Support, Back WPL 8189604 Contact Us For Availability
16
Button, On/Off WPL 8189618 Contact Us For Availability
16
Chimney, Lower WPL 8189605 Contact Us For Availability
17
Chimney, Upper WPL 8189606 Contact Us For Availability
17
Box, Control WPL 8189619 Contact Us For Availability
18
Chimney, 36`` WPL 8189607 Contact Us For Availability
18
Lens, Indicator WPL 4360028 Contact Us For Availability
19
Screw WPL 4360320 Contact Us For Availability
19
Button, Mtr Speed WPL 8189620 Contact Us For Availability
20
Bracket, Chimney WPL 8189608 Contact Us For Availability
20
Support, Filter WPL 4360257 Contact Us For Availability
21
Bracket, Diffuser (Right) WPL 8189625 Contact Us For Availability
21
Bracket, Diffuser (Left) WPL 8189628 Contact Us For Availability
22
Bracket, Upper WPL 8189609 Contact Us For Availability
22
Cover, Blower (Right) WPL 4360179 Contact Us For Availability
22
Cover, Blower (Left) WPL 4360188 Contact Us For Availability
23
Nut, Locking WPL 4360180 Contact Us For Availability
24
Impeller, Blower (Right) WPL 4360181 Contact Us For Availability
24
Impeller, Blower (Left) WPL 4360187 Contact Us For Availability
25
Plate, Mtr Mount WPL 4360185 Contact Us For Availability
26
Housing, Fan WPL 4360184 Contact Us For Availability
27
Motor, Blower WPL 8189627 Contact Us For Availability
28
Nut, Motor WPL 8189626 Contact Us For Availability
29
Washer WPL 4360345 Contact Us For Availability
30
Washer, Star WPL 4360344 Contact Us For Availability
31
Spacer, Motor WPL 4360342 Contact Us For Availability
32
Screw, Mtr Mount WPL 4360347 Contact Us For Availability
33
Box, Capacitor WPL 4360056 Contact Us For Availability
34
Block, Terminal WPL 8189629 Contact Us For Availability
35
Bracket, Capacitor WPL 4360059 Contact Us For Availability
36
Capacitor WPL 4360175 Contact Us For Availability
37
Extension, Blower WPL 4360255 Contact Us For Availability
38
Cover, Box WPL 4360060 Contact Us For Availability
× ![]()
