Model Whirlpool KWCU285HBT0 RANGE HOOD – Common Parts & Diagrams

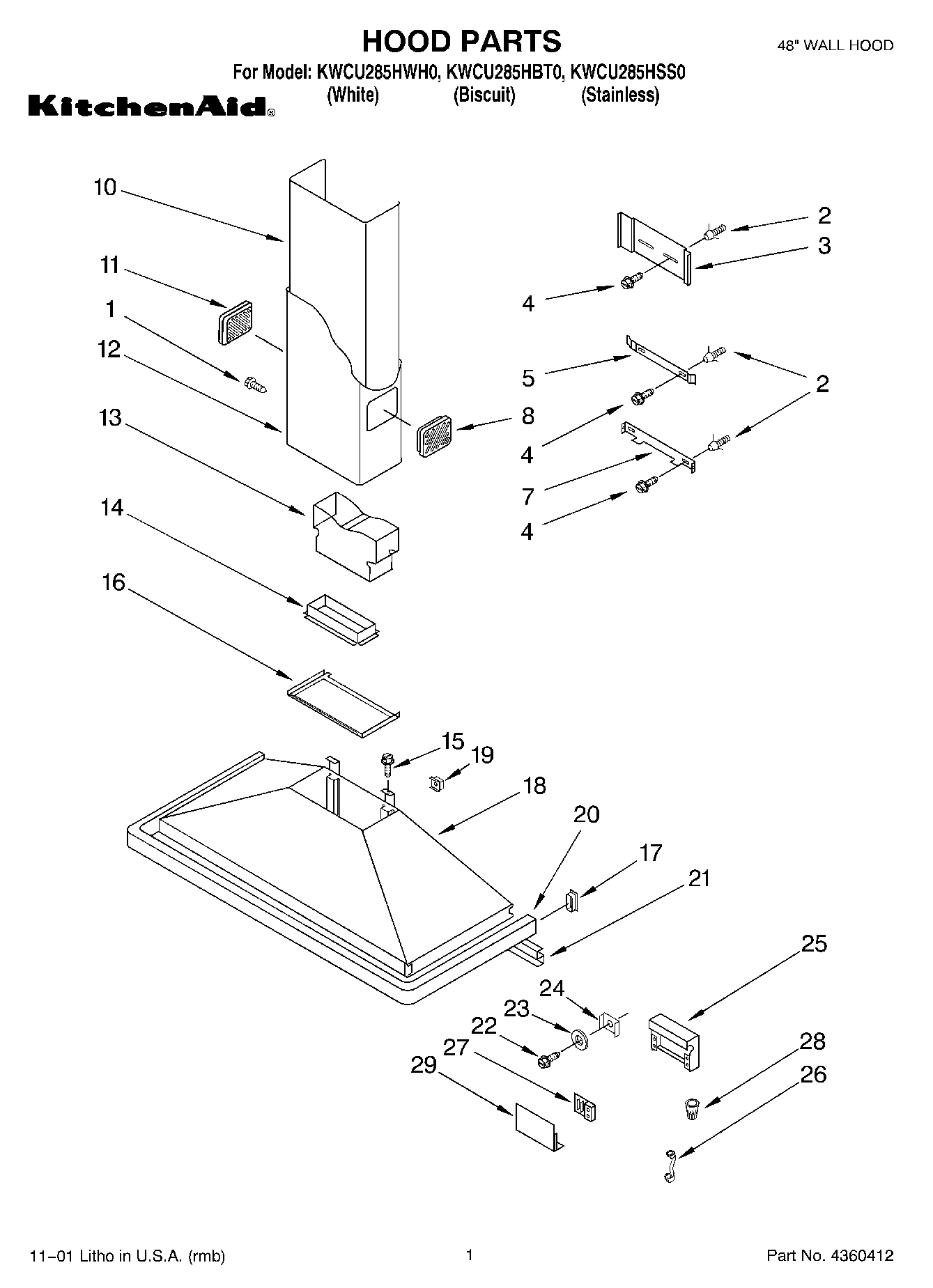

01 - SECTION

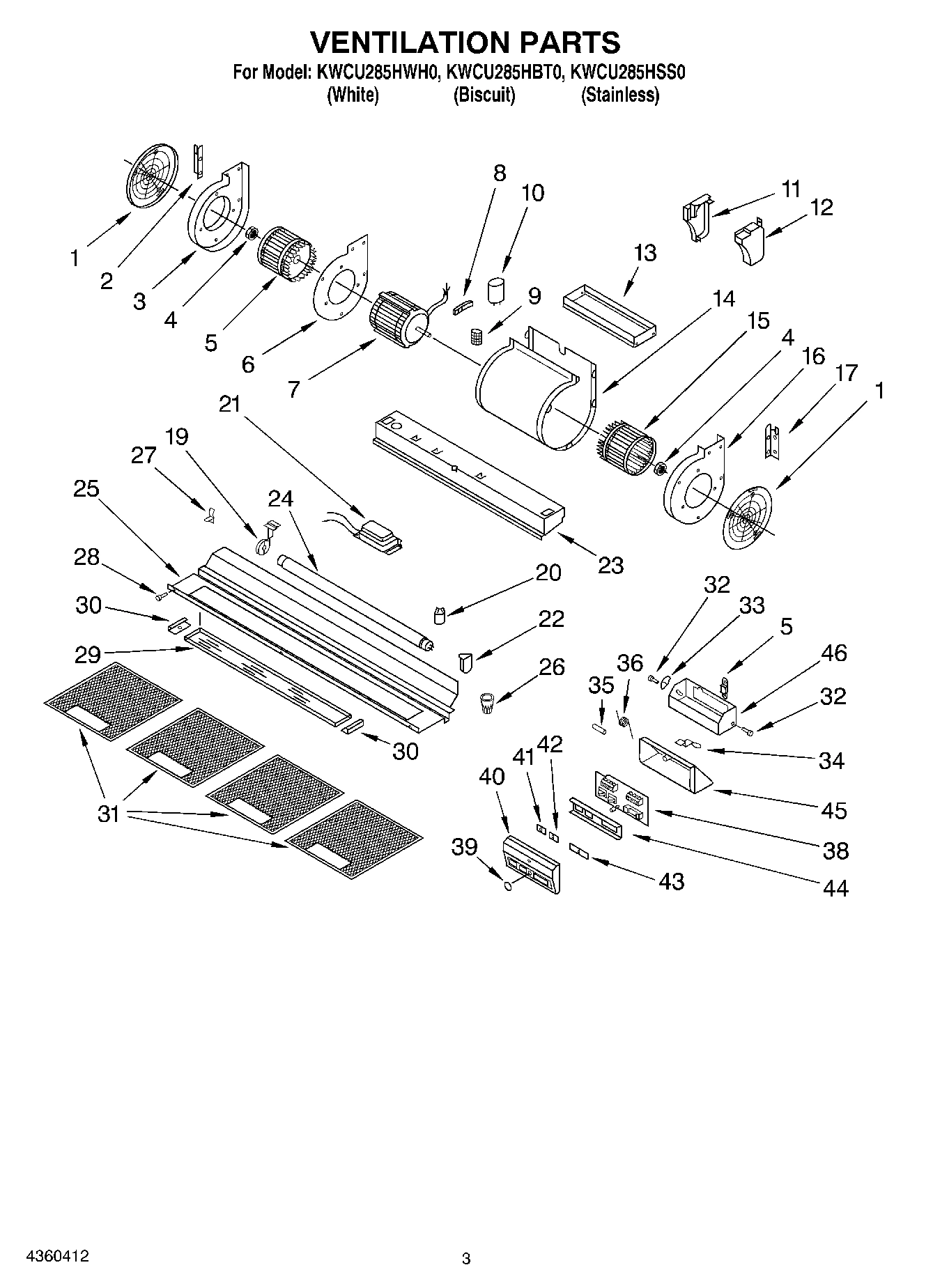

02 - SECTION
Common parts from model Whirlpool KWCU285HBT0 RANGE HOOD
Backsplash WPL 4378615 Contact Us For Availability
Wire Racks WPL 4378616 Contact Us For Availability
Rack Hanger Kits WPL 4378617 Contact Us For Availability
Utensil Bars (Side) WPL 4378618 Contact Us For Availability
Utensil Bars (Rear) WPL 4378619 Contact Us For Availability
Ductless Kit (Stainless Model) WPL 4378621 Contact Us For Availability
Ductless Kit (White Model) WPL 4378622 Contact Us For Availability
Utensil Bars (Filters (2-Pak)) WPL 4378623 Contact Us For Availability
Ductless Kit (Biscuit Model) WPL 8171290 Contact Us For Availability
Wiring Diagram WPL LIT4360296 Contact Us For Availability
Use & Care Guide WPL LIT4360367 Contact Us For Availability
1
Filter, Charcoal WPL 4360257 Contact Us For Availability
2
Plug WPL 4360318 Contact Us For Availability
2
Bracket, Diffuser WPL 4360389 Contact Us For Availability
3
Bracket WPL 4360319 Contact Us For Availability
3
Cover, Blower WPL 4360188 Contact Us For Availability
4
Screw WPL 4360320 Contact Us For Availability
4
Nut WPL 4360180 Contact Us For Availability
5
Bracket, Middle WPL 4360321 Contact Us For Availability
5
Impeller WPL 4360187 Contact Us For Availability
6
Motor Mount WPL 4360185 Contact Us For Availability
7
Bracket, Wall WPL 4360322 Contact Us For Availability
7
Motor WPL 4360212 Contact Us For Availability
8
Air - Outlet (Right) (White Model) WPL 4360323 Contact Us For Availability
8
Air - Outlet (Right) (Stainless Model) WPL 4360332 Contact Us For Availability
8
Air - Outlet (Right) (Biscuit Model) WPL 4360400 Contact Us For Availability
8
Block, Capacitor WPL 4360059 Contact Us For Availability
9
Terminal WPL 4360176 Contact Us For Availability
10
Pipe, Fitting (Upper) (White Model) WPL 4360317 Contact Us For Availability
10
Pipe, Fitting (Upper) (Stainless Model) WPL 4360331 Contact Us For Availability
10
Pipe, Fitting (Upper) (Biscuit Model) WPL 4360373 Contact Us For Availability
10
Capacitor WPL 4360175 Contact Us For Availability
11
Air - Outlet (Left) (White Model) WPL 4360316 Contact Us For Availability
11
Air - Outlet (Left) (Stainless Model) WPL 4360330 Contact Us For Availability
11
Air - Outlet (Left) (Biscuit Model) WPL 4360398 Contact Us For Availability
11
Box, Electric WPL 4360060 Contact Us For Availability
12
Pipe Fitting (Ductless) (White Model) WPL 4360313 Contact Us For Availability
12
Pipe Fitting (Ductless) (White Model) WPL 4360314 Contact Us For Availability
12
Pipe Fitting (Ductless) (Stainless Model) WPL 4360328 Contact Us For Availability
12
Pipe Fitting (Ductless) (Stainless Model) WPL 4360329 Contact Us For Availability
12
Pipe Fitting (Ductless) (Biscuit Model Pipe F WPL 4360371 Contact Us For Availability
12
Pipe Fitting (Ductless) (Biscuit Model) WPL 4360372 Contact Us For Availability
12
Cover, Box WPL 4360056 Contact Us For Availability
13
Air Duct WPL 4360312 Contact Us For Availability
13
Extension, Diffuser WPL 4360255 Contact Us For Availability
14
Damper WPL 4360001 Contact Us For Availability
14
Housing, Motor WPL 4360184 Contact Us For Availability
15
Screw WPL 4360310 Contact Us For Availability
15
Impeller WPL 4360181 Contact Us For Availability
16
Cover, Diffuser WPL 4360309 Contact Us For Availability
16
Cover, Blower WPL 4360179 Contact Us For Availability
17
End Cap (White Model) WPL 4360306 Contact Us For Availability
17
End Cap (Stainless Model) WPL 4360325 Contact Us For Availability
17
End Cap (Biscuit Model) WPL 4360393 Contact Us For Availability
17
Bracket WPL 4360390 Contact Us For Availability
18
Hood (Stainless Model) WPL 8189814 Contact Us For Availability
18
Hood (White Model) WPL 8189815 Contact Us For Availability
18
Hood (Biscuit Model) WPL 8189816 Contact Us For Availability
19
Nut WPL 4360074 Contact Us For Availability
19
Lampholder WPL 4360261 Contact Us For Availability
20
Trim (Stainless Model) WPL 8189817 Contact Us For Availability
20
Trim (White Model) WPL 8189818 Contact Us For Availability
20
Trim (Biscuit Model) WPL 8189819 Contact Us For Availability
20
Starter WPL 4360260 Contact Us For Availability
21
Support, Wiring WPL 4360305 Contact Us For Availability
21
Ballast WPL 4360045 Contact Us For Availability
22
Screw WPL 4360006 Contact Us For Availability
22
Lamp Holder WPL 4360266 Contact Us For Availability
23
Washer WPL 4360005 Contact Us For Availability
23
Support, Light WPL 4360297 Contact Us For Availability
24
Guide, Ground WPL 4360146 Contact Us For Availability
24
Light WPL 4360014 Contact Us For Availability
25
Box, Distribution WPL 4360304 Contact Us For Availability
25
Support, Light (White Model) WPL 4360298 Contact Us For Availability
25
Support, Light (Stainless Model) WPL 4360324 Contact Us For Availability
25
Support, Light (Biscuit Model) WPL 4360392 Contact Us For Availability
26
Strain Relief WPL 4360147 Contact Us For Availability
26
Wire Nut WPL 4360211 Contact Us For Availability
27
Control, Speed WPL 4360391 Contact Us For Availability
27
Clamp, Wire WPL 4360299 Contact Us For Availability
28
Pin WPL 4360048 Contact Us For Availability
29
Cover, Box WPL 4360303 Contact Us For Availability
29
Glass, Light WPL 4360264 Contact Us For Availability
30
Side, Lighting WPL 4360300 Contact Us For Availability
32
Pin WPL 4360238 Contact Us For Availability
33
Lever, Switches WPL 4360241 Contact Us For Availability
34
Clamp, Cable WPL 4360242 Contact Us For Availability
35
Spring, Pin WPL 4360244 Contact Us For Availability
36
Spring WPL 4360243 Contact Us For Availability
37
Clamp, Cable WPL 4360239 Contact Us For Availability
38
Control Board WPL 4360246 Contact Us For Availability
39
Cover, Lamp WPL 4360028 Contact Us For Availability
40
Cover, Box WPL 4360251 Contact Us For Availability
41
Actuator, Lighting WPL 4360250 Contact Us For Availability
42
Actuator, Motor WPL 4360249 Contact Us For Availability
43
1-2-3 Actuator WPL 4360248 Contact Us For Availability
44
Support, Actuators WPL 4360247 Contact Us For Availability
45
Control Box WPL 4360245 Contact Us For Availability
46
Housing, Control Box WPL 4360240 Contact Us For Availability
× ![]()
