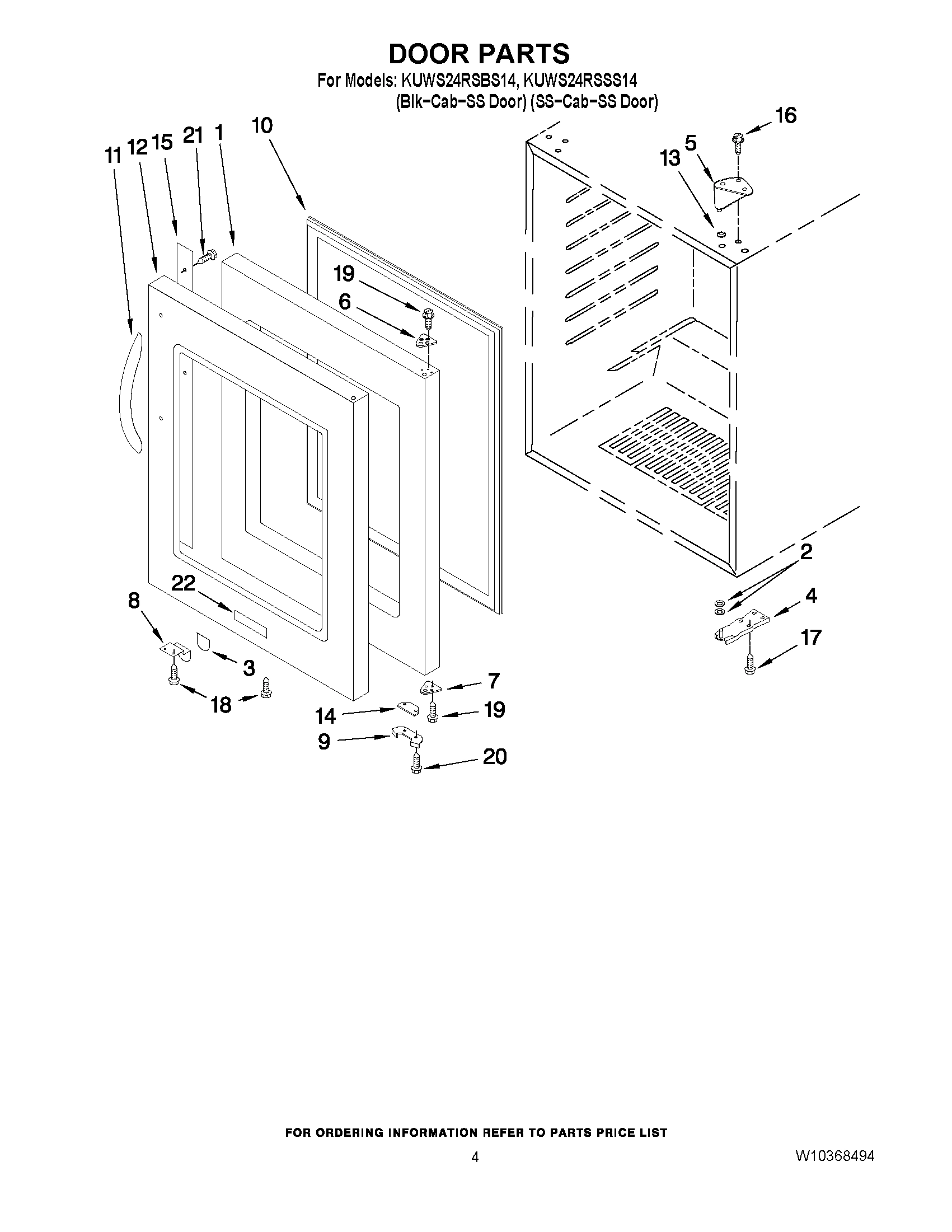

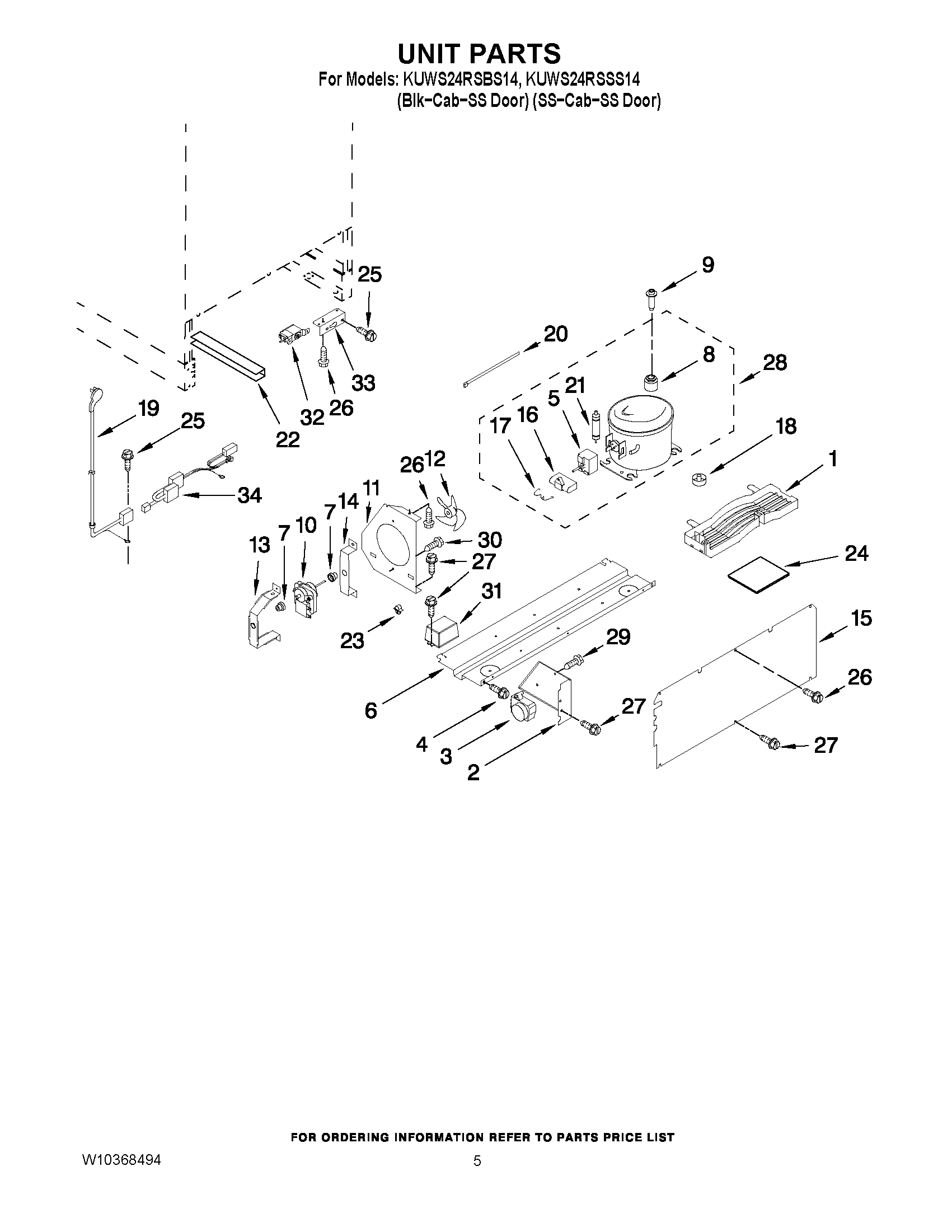

Model Whirlpool KUWS24RSSS14 WINE CELLAR – Common Parts &amp; Diagrams

1

Drain Pan WPL W10163193 Contact Us For Availability

1

Door Assembly (Includes Gasket) WPL 4344853 Contact Us For Availability

2

W11241702 Whirlpool Refrigerator Washer Backorder WPL W11241702 $9.13

2

BRACKET, (DEFROST TIMER) WPL W10239387 Contact Us For Availability

3

W11609704 Whirlpool Refrigerator Defrost Time In Stock WPL W11609704 $50.67

3

Gasket, Push Pad WPL W10163191 Contact Us For Availability

4

4344797 Whirlpool Screw Backorder WPL 4344797 $9.15

4

W10239363 Whirlpool Refrigerator Door Hinge Backorder WPL W10239363 $30.93

5

4344754 Whirlpool Refrigerator Door Hinge Backorder WPL 4344754 $45.84

5

W11230119 Whirlpool Refrigerator Heater Backorder WPL W11230119 $52.08

5

WP4344776 Whirlpool Refrigerator Start Device Backorder WPL WP4344776 $62.59

6

4344755 Whirlpool Refrigerator Spacer Backorder WPL 4344755 $11.27

6

MOUNTING PLATE, COMPRESSOR WPL W10238066 Contact Us For Availability

7

4344756 Whirlpool Refrigerator Spacer Backorder WPL 4344756 $11.84

7

Grommet, Fan Motor WPL 4344778 Contact Us For Availability

8

4344757 Whirlpool Refrigerator Bracket Backorder WPL 4344757 $52.06

8

WP4344779 Whirlpool Refrigerator Grommet Backorder WPL WP4344779 $3.70

8

Stop, Lower Rack WPL 4344850 Contact Us For Availability

9

W10772873 Whirlpool Screw Backorder WPL W10772873 $28.44

9

W11106296 Whirlpool Refrigerator Leveler Backorder WPL W11106296 $6.35

9

Screw WPL 4344851 Contact Us For Availability

9

DOOR STOP WPL W10238067 Contact Us For Availability

10

WPW10238068 Whirlpool Refrigerator Gasket Backorder WPL WPW10238068 $122.68

10

WPW10299090 Whirlpool Refrigerator Condenser Backorder WPL WPW10299090 $129.23

10

TRIM, TOP AND MIDDLE RACKS WPL W10239372 Contact Us For Availability

WP9872207S Whirlpool Refrigerator Handle Backorder WPL WP9872207S $92.65

Control Box WPL 4344898 Contact Us For Availability

Support (Left) WPL 4344866 Contact Us For Availability

Support (Right) WPL 4344867 Contact Us For Availability

Baffle, Air WPL 4344782 Contact Us For Availability

12

TRIM, LOWER RACK WPL W10239373 Contact Us For Availability

12

DOOR SKIN, WPL 4344855 Contact Us For Availability

4344760 Whirlpool Refrigerator Washer Backorder WPL 4344760 $10.69

4344784 Whirlpool Bracket Backorder WPL 4344784 $84.36

4344886 Whirlpool Support Backorder WPL 4344886 $73.90

Support, Bumper (Left) WPL 4344885 Contact Us For Availability

4344785 Whirlpool Bracket Backorder WPL 4344785 $67.13

4344788 Whirlpool Refrigerator Spacer Backorder WPL 4344788 $61.45

W10299347 Whirlpool Refrigerator Evaporator M Backorder WPL W10299347 $204.74

Screw (Left) WPL 4344914 Contact Us For Availability

Screw (Right) WPL 4344915 Contact Us For Availability

4344786 Whirlpool Back Cover Backorder WPL 4344786 $84.36

W10238024 Whirlpool Wire Backorder WPL W10238024 $28.80

WP4344859 Whirlpool Refrigerator Thermostat Backorder WPL WP4344859 $100.22

Plate WPL W10238056 Contact Us For Availability

16

4344796 Whirlpool Refrigerator Screw Backorder WPL 4344796 $9.61

16

W10282164 Whirlpool Refrigerator Display Backorder WPL W10282164 $193.67

16

WP1188476 Whirlpool Air Conditioner Capacitor Backorder WPL WP1188476 $57.14

WP4344767 Whirlpool Refrigerator Switch Backorder WPL WP4344767 $12.08

WP4344836 Whirlpool Clip Backorder WPL WP4344836 $26.21

SCREW W/WASHER WPL W10162986 Contact Us For Availability

Screw, Lower Hinge (Quantity 1) WPL 4344906 Contact Us For Availability

SCREW, LOWER HINGE (QUANTITY 3) WPL W10243104 Contact Us For Availability

18

W10163276 Whirlpool Refrigerator Trap Backorder WPL W10163276 $28.80

18

W10238025 Whirlpool Refrigerator Sensor Backorder WPL W10238025 $43.96

18

W10837731 Whirlpool Screw Assembly In Stock WPL W10837731 $2.51

19

W10238026 Whirlpool Refrigerator Sensor Backorder WPL W10238026 $51.61

19

W10243123 Whirlpool Refrigerator Screw Backorder WPL W10243123 $9.61

19

WPW10204676 Whirlpool Refrigerator Power Cord Backorder WPL WPW10204676 $45.31

20

4344801 Whirlpool Refrigerator Screw Backorder WPL 4344801 $9.61

20

4344829 Whirlpool Tie Wire Backorder WPL 4344829 $9.15

21

W10163273 Whirlpool Refrigerator Tube Backorder WPL W10163273 $29.43

21

Screw WPL 4344825 Contact Us For Availability

21

Screw WPL 4344808 Contact Us For Availability

22

TRIM, EDGE WPL 434907 Contact Us For Availability

22

NAME PLATE WPL W10239386 Contact Us For Availability

23

4344820 Whirlpool Refrigerator Support Backorder WPL 4344820 $78.90

23

4344821 Whirlpool Refrigerator Support Backorder WPL 4344821 $44.01

23

W10238022 Whirlpool Refrigerator Clip Backorder WPL W10238022 $26.21

24

W10163274 Whirlpool Pad Backorder WPL W10163274 $40.15

26

4344826 Whirlpool Refrigerator Screw Backorder WPL 4344826 $9.61

27

W10860146 Whirlpool Refrigerator Defrost Bi-M Backorder WPL W10860146 $101.54

27

W11380570 Whirlpool Microwave Screw In Stock WPL W11380570 $9.86

28

8201787 Whirlpool Refrigerator Compressor Backorder WPL 8201787 $373.05

29

Screw WPL 4344834 Contact Us For Availability

30

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

30

WPW10299081 Whirlpool Refrigerator Fan Blade Backorder WPL WPW10299081 $36.65

31

W10238070 Whirlpool Refrigerator Transformer Backorder WPL W10238070 $138.47

32

W10163278 Whirlpool Refrigerator Thermostat Backorder WPL W10163278 $96.44

33

Harness, Wire WPL 4344877 Contact Us For Availability

33

Bracket, Thermostat WPL 4344864 Contact Us For Availability

34

HARNESS, WIRE WPL W10358906 Contact Us For Availability

38

4344858 Whirlpool Refrigerator Switch Backorder WPL 4344858 $39.69

Screw, Cover WPL W10204809 Contact Us For Availability

LED Spacer WPL W10238031 Contact Us For Availability

Support WPL W10238189 Contact Us For Availability

SEAL WPL W10239384 Contact Us For Availability

Support Spacer WPL W10239385 Contact Us For Availability

OVERLAY, DISPLAY WPL W10325066 Contact Us For Availability

REFRIGERANT CHARGE (3.5 OUNCES (R-134A)) WPL NP Contact Us For Availability

CLEANER, STAINLESS STELL (12 OZ ) WPL 8171420 Contact Us For Availability
