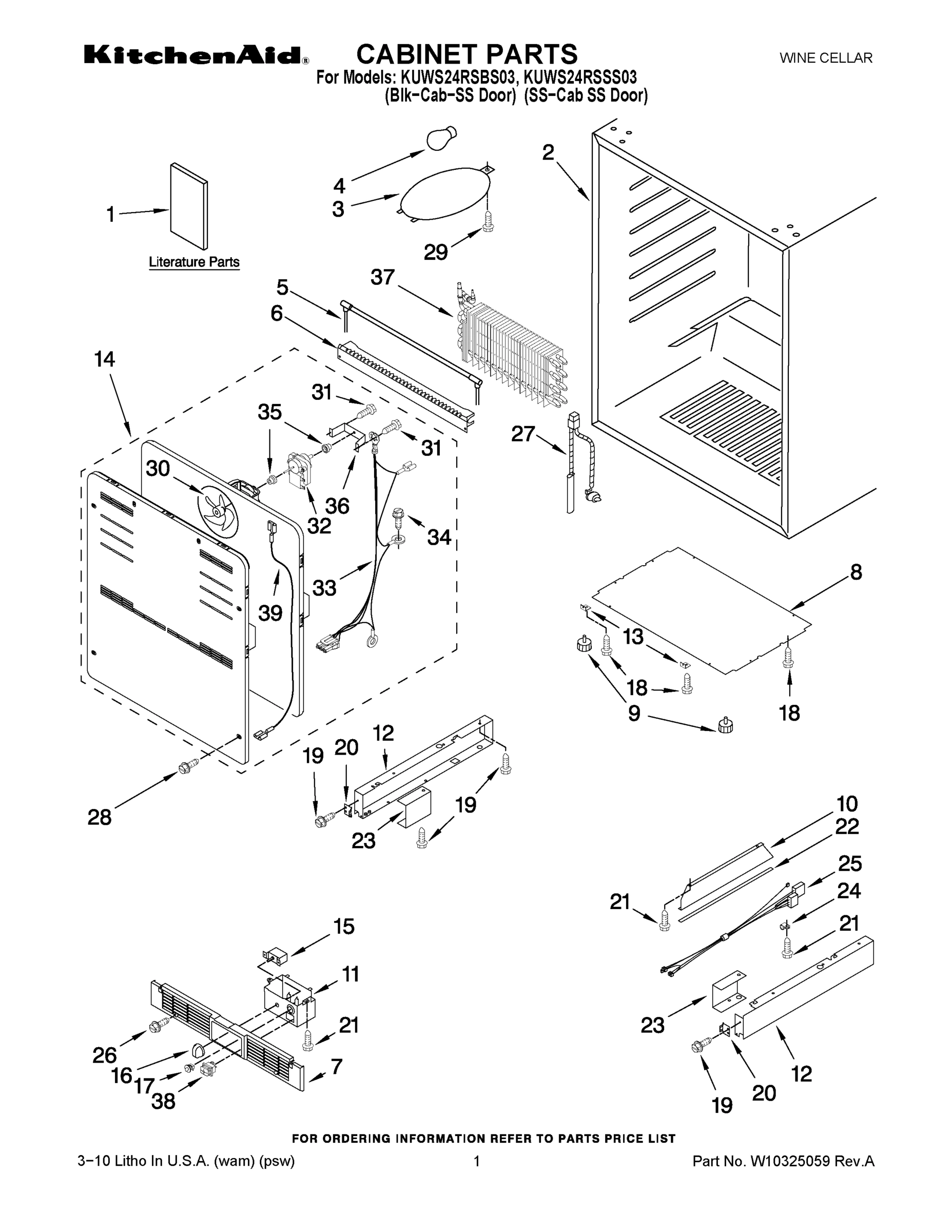

Model Whirlpool KUWS24RSSS03 WINE CELLAR – Common Parts &amp; Diagrams

1

Drain Pan WPL W10163193 Contact Us For Availability

1

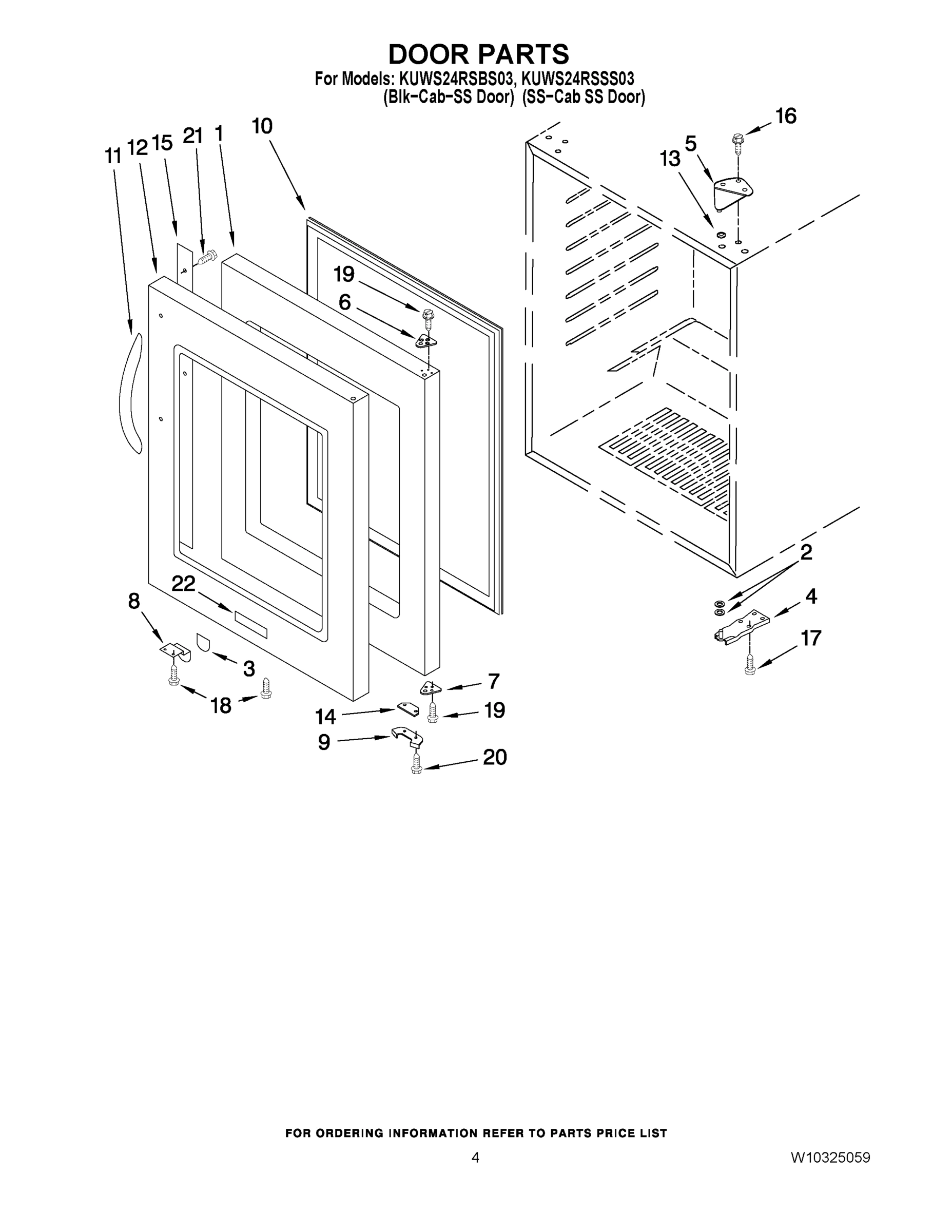

Door Assembly (Includes Gasket) WPL 4344853 Contact Us For Availability

1

Use & Care Guide WPL 2300272 Contact Us For Availability

1

Wiring Diagram WPL 4344900 Contact Us For Availability

2

W11241702 Whirlpool Refrigerator Washer Backorder WPL W11241702 $9.13

3

W11609704 Whirlpool Refrigerator Defrost Time In Stock WPL W11609704 $50.67

3

Lens, Light WPL 4344739 Contact Us For Availability

3

Gasket, Push Pad WPL W10163191 Contact Us For Availability

4

W10239363 Whirlpool Refrigerator Door Hinge Backorder WPL W10239363 $30.93

4

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $7.83

5

4344754 Whirlpool Refrigerator Door Hinge Backorder WPL 4344754 $45.84

5

W11230119 Whirlpool Refrigerator Heater Backorder WPL W11230119 $52.08

5

WP4344776 Whirlpool Refrigerator Start Device Backorder WPL WP4344776 $62.59

6

4344747 Whirlpool Refrigerator Shield Backorder WPL 4344747 $26.21

6

4344755 Whirlpool Refrigerator Spacer Backorder WPL 4344755 $11.27

7

4344756 Whirlpool Refrigerator Spacer Backorder WPL 4344756 $11.84

7

GRILLE WPL W10238193 Contact Us For Availability

8

4344757 Whirlpool Refrigerator Bracket Backorder WPL 4344757 $52.06

8

Plate, Bottom WPL 4344762 Contact Us For Availability

9

W11106296 Whirlpool Refrigerator Leveler Backorder WPL W11106296 $6.35

9

DOOR STOP WPL W10238067 Contact Us For Availability

10

WPW10238068 Whirlpool Refrigerator Gasket Backorder WPL WPW10238068 $122.68

10

WPW10299090 Whirlpool Refrigerator Condenser Backorder WPL WPW10299090 $129.23

10

Brace, Support WPL W10204638 Contact Us For Availability

11

WP9872207S Whirlpool Refrigerator Handle Backorder WPL WP9872207S $92.65

11

Control Box WPL 4344898 Contact Us For Availability

11

Baffle, Air WPL 4344782 Contact Us For Availability

12

4344770 Whirlpool Refrigerator Support Backorder WPL 4344770 $158.21

12

Frame, Side (Left Side) WPL 4344769 Contact Us For Availability

12

DOOR SKIN, WPL 4344855 Contact Us For Availability

13

4344760 Whirlpool Refrigerator Washer Backorder WPL 4344760 $10.69

13

4344784 Whirlpool Bracket Backorder WPL 4344784 $84.36

13

W10239388 Whirlpool Brace Backorder WPL W10239388 $26.21

14

4344785 Whirlpool Bracket Backorder WPL 4344785 $67.13

14

4344788 Whirlpool Refrigerator Spacer Backorder WPL 4344788 $61.45

14

W10299347 Whirlpool Refrigerator Evaporator M Backorder WPL W10299347 $204.74

15

4344786 Whirlpool Back Cover Backorder WPL 4344786 $84.36

15

WP4344859 Whirlpool Refrigerator Thermostat Backorder WPL WP4344859 $100.22

15

Plate WPL W10238056 Contact Us For Availability

4344796 Whirlpool Refrigerator Screw Backorder WPL 4344796 $9.61

W10282164 Whirlpool Refrigerator Display Backorder WPL W10282164 $193.67

WP1188476 Whirlpool Air Conditioner Capacitor Backorder WPL WP1188476 $57.14

WP3402573 Whirlpool Appliance Knob Backorder WPL WP3402573 $38.25

WP4344767 Whirlpool Refrigerator Switch Backorder WPL WP4344767 $12.08

WP4344836 Whirlpool Clip Backorder WPL WP4344836 $26.21

SCREW, LOWER HINGE (QUANTITY 3) WPL W10243104 Contact Us For Availability

Screw, Lower Hinge (Quantity 1) WPL 4344906 Contact Us For Availability

18

W10163276 Whirlpool Refrigerator Trap Backorder WPL W10163276 $28.80

18

W10837731 Whirlpool Screw Assembly In Stock WPL W10837731 $2.51

19

W10238026 Whirlpool Refrigerator Sensor Backorder WPL W10238026 $51.61

19

W10243123 Whirlpool Refrigerator Screw Backorder WPL W10243123 $9.61

19

POWER CORD WPL W10238072 Contact Us For Availability

20

4344801 Whirlpool Refrigerator Screw Backorder WPL 4344801 $9.61

20

4344829 Whirlpool Tie Wire Backorder WPL 4344829 $9.15

20

Clip, Grille WPL 4344819 Contact Us For Availability

21

W10163273 Whirlpool Refrigerator Tube Backorder WPL W10163273 $29.43

21

Screw WPL 4344825 Contact Us For Availability

21

Screw WPL 4344808 Contact Us For Availability

22

4344823 Whirlpool Refrigerator Seal Backorder WPL 4344823 $33.64

22

TRIM EDGE WPL 4344907 Contact Us For Availability

22

NAME PLATE WPL W10239386 Contact Us For Availability

23

4344820 Whirlpool Refrigerator Support Backorder WPL 4344820 $78.90

23

4344821 Whirlpool Refrigerator Support Backorder WPL 4344821 $44.01

23

W10238022 Whirlpool Refrigerator Clip Backorder WPL W10238022 $26.21

24

W10163274 Whirlpool Pad Backorder WPL W10163274 $40.15

24

W11456069 Whirlpool Refrigerator Clamp In Stock WPL W11456069 $10.76

25

HARNESS, WIRE WPL W10238069 Contact Us For Availability

26

4344826 Whirlpool Refrigerator Screw Backorder WPL 4344826 $9.61

27

W10860146 Whirlpool Refrigerator Defrost Bi-M Backorder WPL W10860146 $101.54

28

4344793 Whirlpool Screw Backorder WPL 4344793 $9.15

28

8201787 Whirlpool Refrigerator Compressor Backorder WPL 8201787 $373.05

29

Screw WPL 4344834 Contact Us For Availability

29

Screw WPL 4344791 Contact Us For Availability

30

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

30

WPW10299081 Whirlpool Refrigerator Fan Blade Backorder WPL WPW10299081 $36.65

31

W10238070 Whirlpool Refrigerator Transformer Backorder WPL W10238070 $138.47

31

Screw WPL 4344878 Contact Us For Availability

32

W10163278 Whirlpool Refrigerator Thermostat Backorder WPL W10163278 $96.44

32

MOTOR-EVAP Backorder WPL W10299082 $48.77

33

Harness, Wire WPL 4344877 Contact Us For Availability

33

Bracket, Thermostat WPL 4344864 Contact Us For Availability

34

W11380570 Whirlpool Microwave Screw In Stock WPL W11380570 $9.86

35

Grommet, Fan Motor WPL 4344778 Contact Us For Availability

36

4344899 Whirlpool Refrigerator Bracket Backorder WPL 4344899 $63.64

37

EVAPORATOR (NOT SERVICED) WPL NP Contact Us For Availability

38

4344858 Whirlpool Refrigerator Switch Backorder WPL 4344858 $39.69

39

TRANSFORMER CABLE WPL W10238071 Contact Us For Availability

NI

CLEANER, STAINLESS STEEL (12 OZ) WPL 8171420 Contact Us For Availability
