Model Whirlpool KUWS24RSSS01 WINE CELLAR – Common Parts & Diagrams

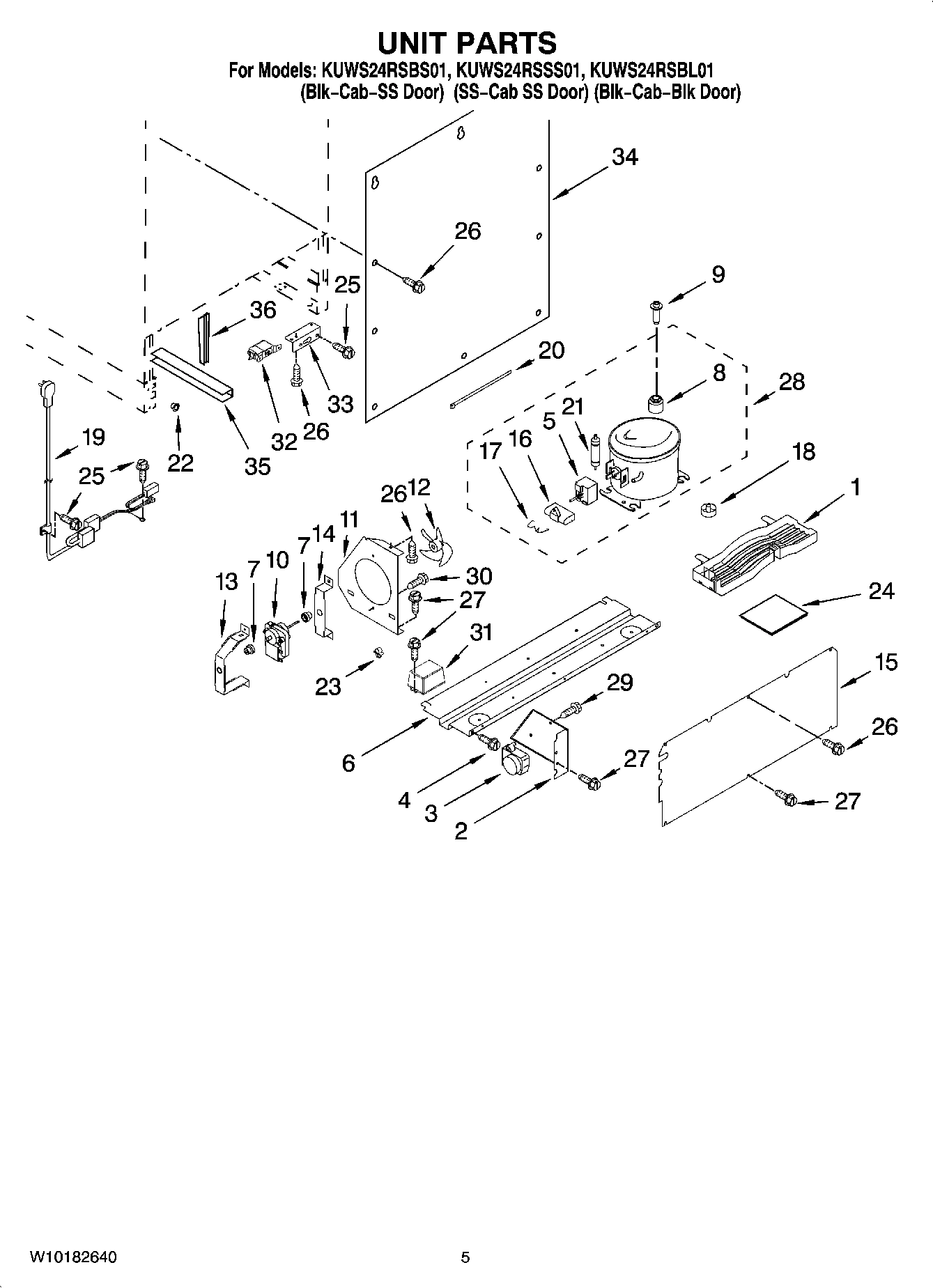

04 - UNIT PARTS

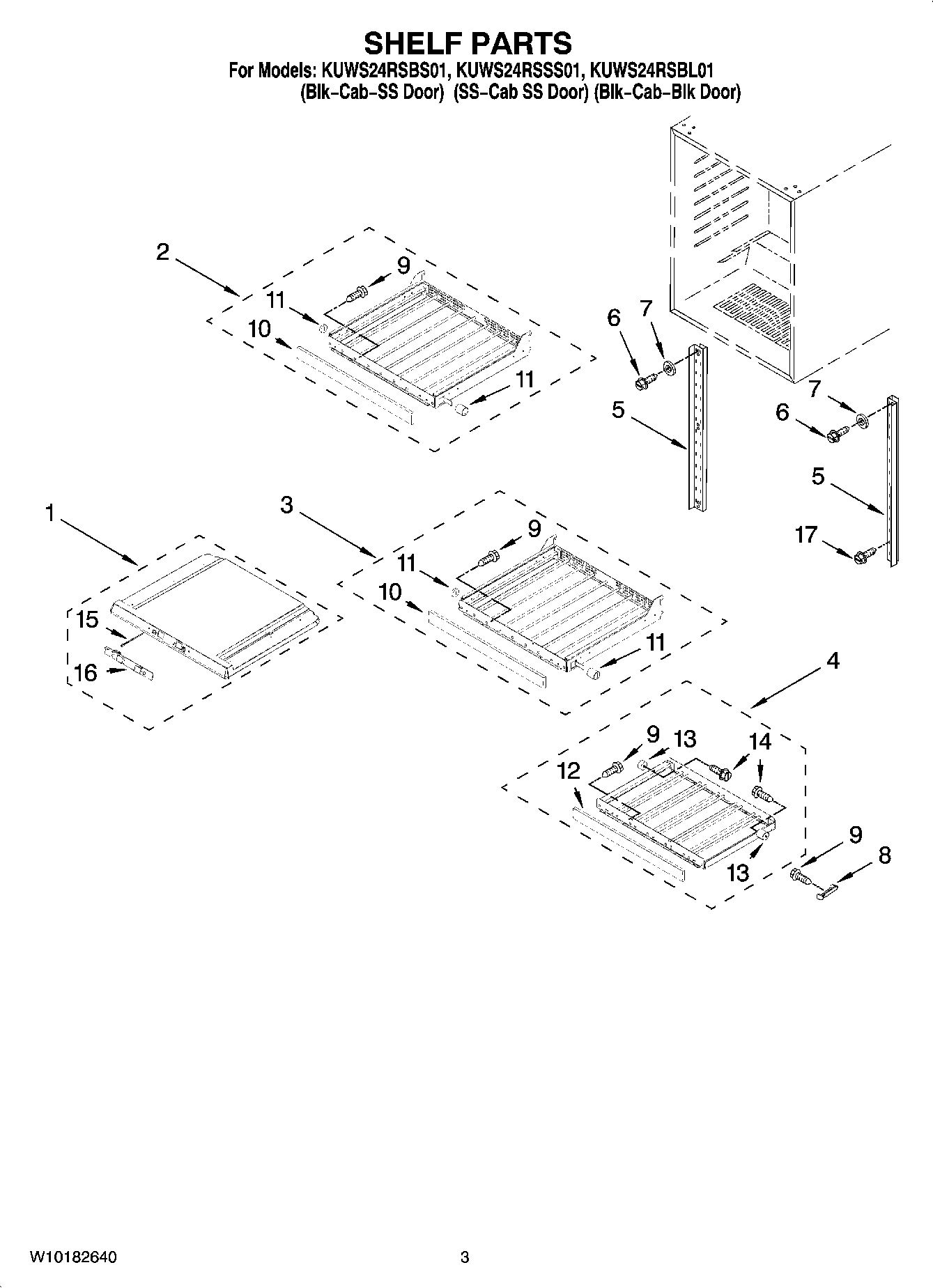

02 - SHELF PARTS
03 - DOOR PARTS
01 - CABINET PARTS
Common parts from model Whirlpool KUWS24RSSS01 WINE CELLAR
CLEANER, STAINLESS STEEL (12 OZ) WPL 8171420 Contact Us For Availability
OPTIONAL PARTS NOT ILLUSTRATED WPL ARI117222A Contact Us For Availability
1
Drain Pan WPL W10163193 Contact Us For Availability
1
Door Assembly (Includes Gasket) WPL 4344853 Contact Us For Availability
1
Use & Care Guide WPL 2300272 Contact Us For Availability
1
Wiring Diagram WPL 4344900 Contact Us For Availability
2
Wine Rack, (4) WPL 4344844 Contact Us For Availability
2
Cabinet (Not A Service Part) WPL ARI117220A Contact Us For Availability
3
Wine Rack, (1) WPL 4344845 Contact Us For Availability
3
Gasket, Push Pad WPL W10163191 Contact Us For Availability
3
Lens, Light WPL 4344739 Contact Us For Availability
4
Wine Rack, Lower WPL 4344848 Contact Us For Availability
5
Ladder, Shelf (Left Side) WPL 4344842 Contact Us For Availability
5
Ladder, Shelf (Right Side) WPL 4344843 Contact Us For Availability
6
Screw WPL 4344794 Contact Us For Availability
7
Washer WPL 4344795 Contact Us For Availability
7
Grille WPL 4344761 Contact Us For Availability
8
Stop, Lower Rack WPL 4344850 Contact Us For Availability
8
Plate, Bottom WPL 4344762 Contact Us For Availability
9
Screw WPL 4344851 Contact Us For Availability
9
Door Stop (Black) WPL W10163074 Contact Us For Availability
10
Trim, Top And Middle Racks WPL 4344882 Contact Us For Availability
10
Brace, Support WPL 4344764 Contact Us For Availability
11
Control Box WPL 4344898 Contact Us For Availability
11
Support (Left) WPL 4344866 Contact Us For Availability
11
Support (Right) WPL 4344867 Contact Us For Availability
11
Handle, Door (Black) WPL W10202513 Contact Us For Availability
12
Trim, Lower Rack WPL W10163279 Contact Us For Availability
12
Door Skin, Stainless Steel WPL 4344855 Contact Us For Availability
12
Door Skin (Black) WPL W10187193 Contact Us For Availability
12
Frame, Side (Left Side) WPL 4344769 Contact Us For Availability
13
Support, Bumper (Left) WPL 4344885 Contact Us For Availability
14
Screw (Left) WPL 4344914 Contact Us For Availability
14
Screw (Right) WPL 4344915 Contact Us For Availability
15
Transformer Cable WPL 4344895 Contact Us For Availability
15
Plate WPL 4344904 Contact Us For Availability
16
Screw (Black Wrap Models) WPL W10162988 Contact Us For Availability
17
SCREW W/WASHER WPL W10162986 Contact Us For Availability
17
Screw, Lower Hinge (Quantity 1) WPL 4344906 Contact Us For Availability
20
Clip, Grille WPL 4344819 Contact Us For Availability
21
Screw WPL 4344808 Contact Us For Availability
22
NAMEPLATE WPL 4344813 Contact Us For Availability
26
Screw WPL 4344825 Contact Us For Availability
26
Screw WPL 4344827 Contact Us For Availability
29
Screw WPL 4344791 Contact Us For Availability
30
Fan Blade WPL 4344783 Contact Us For Availability
31
Screw WPL 4344878 Contact Us For Availability
32
Evaporator Fan Motor WPL 4344865 No Longer Available
33
Harness, Wire WPL 4344877 Contact Us For Availability
33
Bracket, Thermostat WPL 4344864 Contact Us For Availability
34
Ballast WPL 4344881 Contact Us For Availability
35
Grommet, Fan Motor WPL 4344778 Contact Us For Availability
36
Support, Drain WPL 4344908 Contact Us For Availability
36
REFRIGERANT CHARGE 3.5 Ounces (R-134A) WPL ARI117223A Contact Us For Availability
37
Evaporator (Not Serviced) WPL ARI117221A Contact Us For Availability
39
Transformer Cable WPL 4344917 Contact Us For Availability
× ![]()
