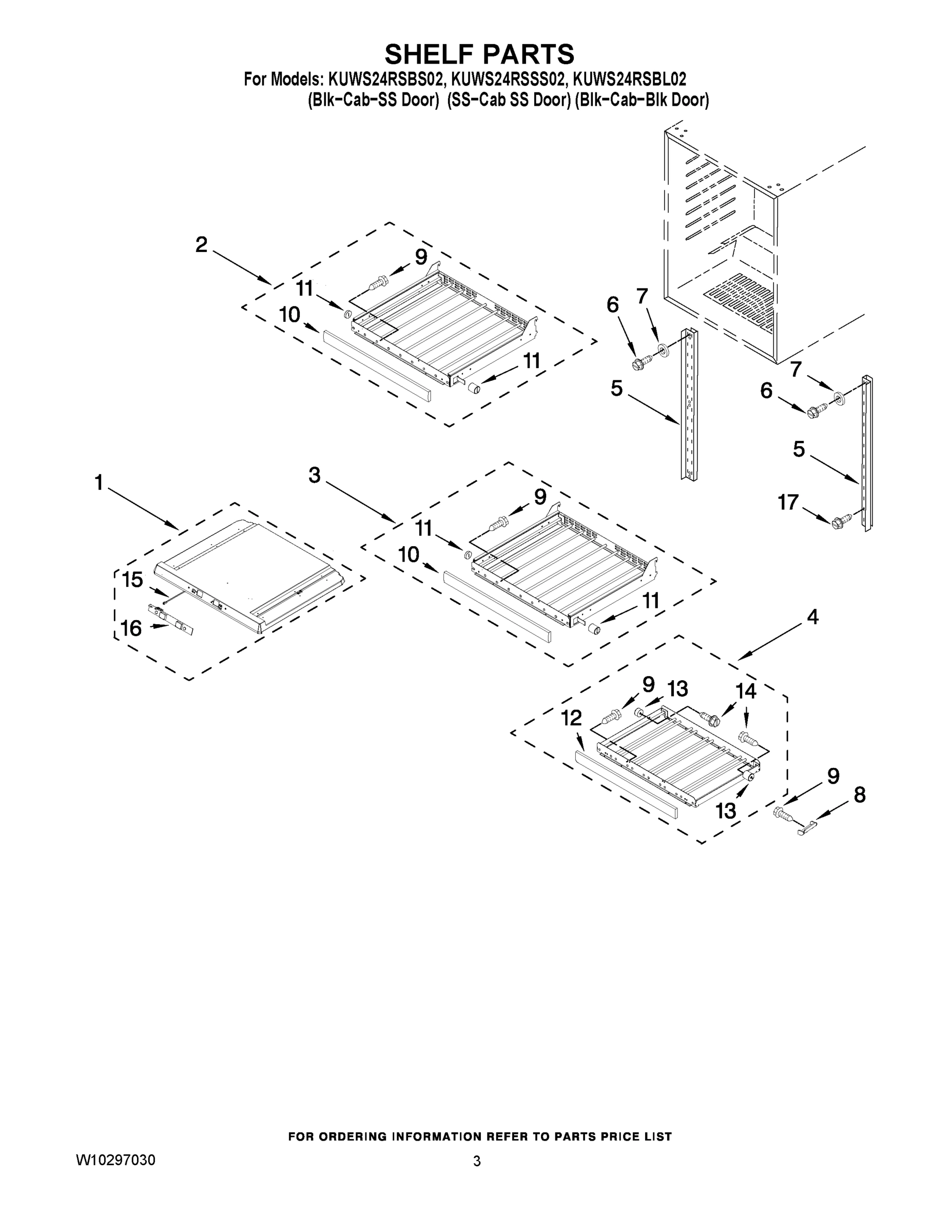

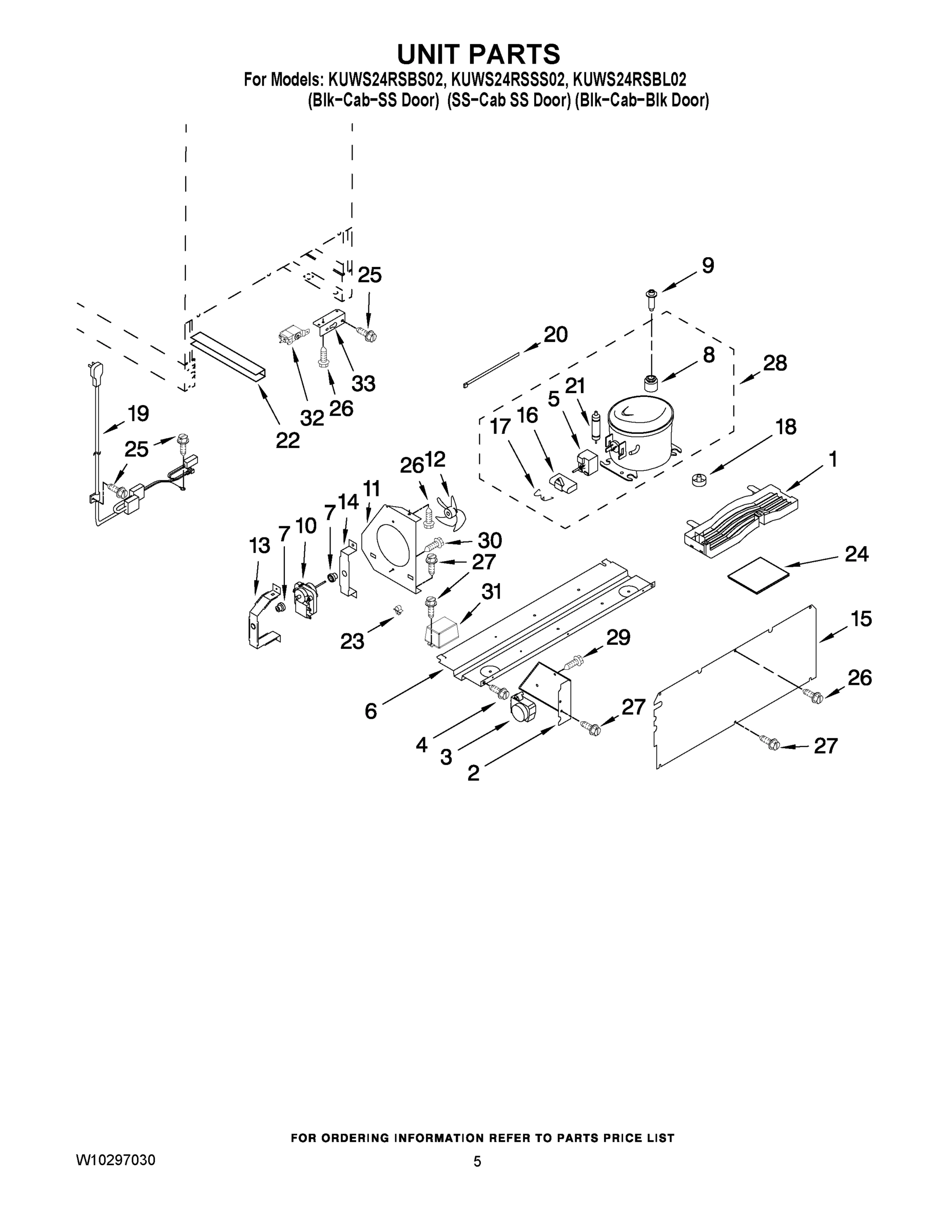

Model Whirlpool KUWS24RSBL02 WINE CELLAR – Common Parts &amp; Diagrams

1

Drain Pan WPL W10163193 Contact Us For Availability

1

Door Assembly (Includes Gasket) WPL 4344853 Contact Us For Availability

1

Use & Care Guide WPL 2300272 Contact Us For Availability

1

Wiring Diagram WPL 4344900 Contact Us For Availability

2

W11241702 Whirlpool Refrigerator Washer Backorder WPL W11241702 $9.13

3

Gasket, Push Pad WPL W10163191 Contact Us For Availability

3

Lens, Light WPL 4344739 Contact Us For Availability

4

W10239363 Whirlpool Refrigerator Door Hinge Backorder WPL W10239363 $30.93

4

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $7.83

4

HINGE BOTTOM (BLACK DOOR) WPL W10163066 Contact Us For Availability

5

4344754 Whirlpool Refrigerator Door Hinge Backorder WPL 4344754 $45.84

5

W11230119 Whirlpool Refrigerator Heater Backorder WPL W11230119 $52.08

5

WP4344776 Whirlpool Refrigerator Start Device Backorder WPL WP4344776 $62.59

5

HINGE, TOP (BLACK DOOR) WPL W10162991 Contact Us For Availability

6

4344747 Whirlpool Refrigerator Shield Backorder WPL 4344747 $26.21

6

4344755 Whirlpool Refrigerator Spacer Backorder WPL 4344755 $11.27

7

4344756 Whirlpool Refrigerator Spacer Backorder WPL 4344756 $11.84

7

Grille WPL 4344761 Contact Us For Availability

8

4344757 Whirlpool Refrigerator Bracket Backorder WPL 4344757 $52.06

8

Plate, Bottom WPL 4344762 Contact Us For Availability

9

4344758 Whirlpool Refrigerator Bracket Backorder WPL 4344758 $10.69

9

W11106296 Whirlpool Refrigerator Leveler Backorder WPL W11106296 $6.35

9

Door Stop (Black) WPL W10163074 Contact Us For Availability

10

WPW10238068 Whirlpool Refrigerator Gasket Backorder WPL WPW10238068 $122.68

10

WPW10299090 Whirlpool Refrigerator Condenser Backorder WPL WPW10299090 $129.23

10

Brace, Support WPL 4344764 Contact Us For Availability

WP9872207S Whirlpool Refrigerator Handle Backorder WPL WP9872207S $92.65

Control Box WPL 4344898 Contact Us For Availability

Baffle, Air WPL 4344782 Contact Us For Availability

Handle, Door (Black) WPL W10202513 Contact Us For Availability

4344770 Whirlpool Refrigerator Support Backorder WPL 4344770 $158.21

Door Skin, Stainless Steel WPL 4344855 Contact Us For Availability

Door Skin (Black) WPL W10187193 Contact Us For Availability

Frame, Side (Left Side) WPL 4344769 Contact Us For Availability

13

4344760 Whirlpool Refrigerator Washer Backorder WPL 4344760 $10.69

13

4344771 Whirlpool Refrigerator Clip Backorder WPL 4344771 $34.39

13

4344784 Whirlpool Bracket Backorder WPL 4344784 $84.36

14

4344785 Whirlpool Bracket Backorder WPL 4344785 $67.13

14

4344788 Whirlpool Refrigerator Spacer Backorder WPL 4344788 $61.45

14

W10299347 Whirlpool Refrigerator Evaporator M Backorder WPL W10299347 $204.74

15

4344786 Whirlpool Back Cover Backorder WPL 4344786 $84.36

15

WP4344859 Whirlpool Refrigerator Thermostat Backorder WPL WP4344859 $100.22

15

Plate WPL W10238056 Contact Us For Availability

4344796 Whirlpool Refrigerator Screw Backorder WPL 4344796 $9.61

W10282164 Whirlpool Refrigerator Display Backorder WPL W10282164 $193.67

WP1188476 Whirlpool Air Conditioner Capacitor Backorder WPL WP1188476 $57.14

WP3402573 Whirlpool Appliance Knob Backorder WPL WP3402573 $38.25

Screw (Black Wrap Models) WPL W10162988 Contact Us For Availability

17

WP4344767 Whirlpool Refrigerator Switch Backorder WPL WP4344767 $12.08

17

WP4344836 Whirlpool Clip Backorder WPL WP4344836 $26.21

17

Screw, Lower Hinge (Quantity 1) WPL 4344906 Contact Us For Availability

18

W10163276 Whirlpool Refrigerator Trap Backorder WPL W10163276 $28.80

18

W10837731 Whirlpool Screw Assembly In Stock WPL W10837731 $2.51

19

W10243123 Whirlpool Refrigerator Screw Backorder WPL W10243123 $9.61

19

Power Cord WPL 4344861 Contact Us For Availability

19

Screw WPL W10243104 Contact Us For Availability

20

4344801 Whirlpool Refrigerator Screw Backorder WPL 4344801 $9.61

20

4344829 Whirlpool Tie Wire Backorder WPL 4344829 $9.15

20

Clip, Grille WPL 4344819 Contact Us For Availability

21

W10163273 Whirlpool Refrigerator Tube Backorder WPL W10163273 $29.43

21

Screw WPL 4344825 Contact Us For Availability

21

Screw WPL 4344808 Contact Us For Availability

4344823 Whirlpool Refrigerator Seal Backorder WPL 4344823 $33.64

TRIM EDGE WPL 4344907 Contact Us For Availability

NAMEPLATE (STAINLESS DOOR) WPL 4344813 Contact Us For Availability

NAMEPLATE (BLACK DOOR) WPL W10297315 Contact Us For Availability

23

4344820 Whirlpool Refrigerator Support Backorder WPL 4344820 $78.90

23

4344821 Whirlpool Refrigerator Support Backorder WPL 4344821 $44.01

23

W10238022 Whirlpool Refrigerator Clip Backorder WPL W10238022 $26.21

24

W10163274 Whirlpool Pad Backorder WPL W10163274 $40.15

24

W11456069 Whirlpool Refrigerator Clamp In Stock WPL W11456069 $10.76

25

4344857 Whirlpool Refrigerator Wire Harness Backorder WPL 4344857 $26.21

26

4344826 Whirlpool Refrigerator Screw Backorder WPL 4344826 $9.61

27

4344792 Whirlpool Refrigerator Bi-Metal Backorder WPL 4344792 $42.58

28

4344793 Whirlpool Screw Backorder WPL 4344793 $9.15

28

8201787 Whirlpool Refrigerator Compressor Backorder WPL 8201787 $373.05

29

Screw WPL 4344834 Contact Us For Availability

29

Screw WPL 4344791 Contact Us For Availability

30

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

30

Fan Blade WPL 4344783 Contact Us For Availability

31

W10238070 Whirlpool Refrigerator Transformer Backorder WPL W10238070 $138.47

31

Screw WPL 4344878 Contact Us For Availability

32

W10163278 Whirlpool Refrigerator Thermostat Backorder WPL W10163278 $96.44

32

Evaporator Fan Motor WPL 4344865 Contact Us For Availability

33

Harness, Wire WPL 4344877 Contact Us For Availability

33

Bracket, Thermostat WPL 4344864 Contact Us For Availability

34

W11380570 Whirlpool Microwave Screw In Stock WPL W11380570 $9.86

35

Grommet, Fan Motor WPL 4344778 Contact Us For Availability

36

4344899 Whirlpool Refrigerator Bracket Backorder WPL 4344899 $63.64

37

EVAPORATOR (NOT SERVICED) WPL NP Contact Us For Availability

38

4344858 Whirlpool Refrigerator Switch Backorder WPL 4344858 $39.69

39

Transformer Cable WPL 4344917 Contact Us For Availability

NI

CLEANER, STAINLESS STEEL (12 OZ) WPL 8171420 Contact Us For Availability
