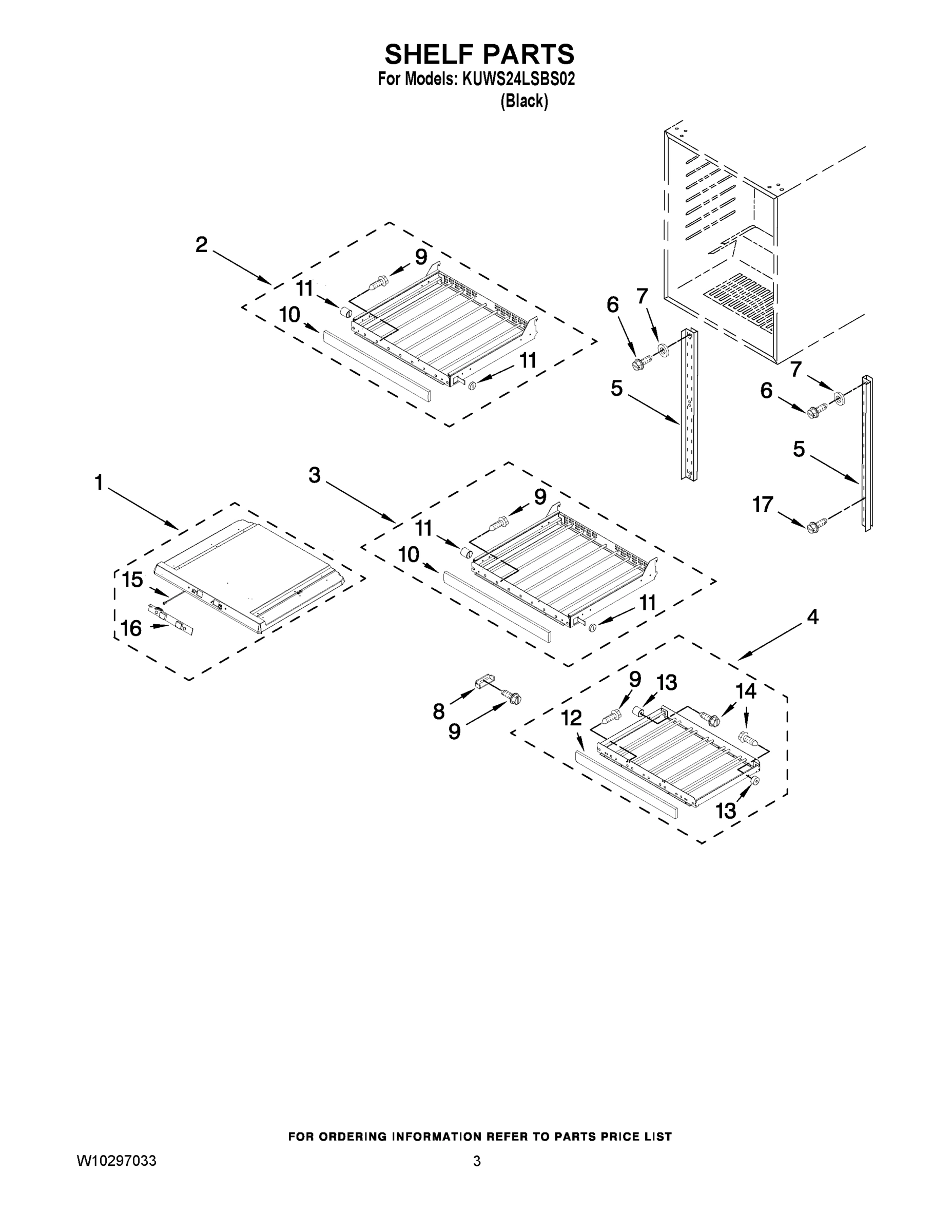

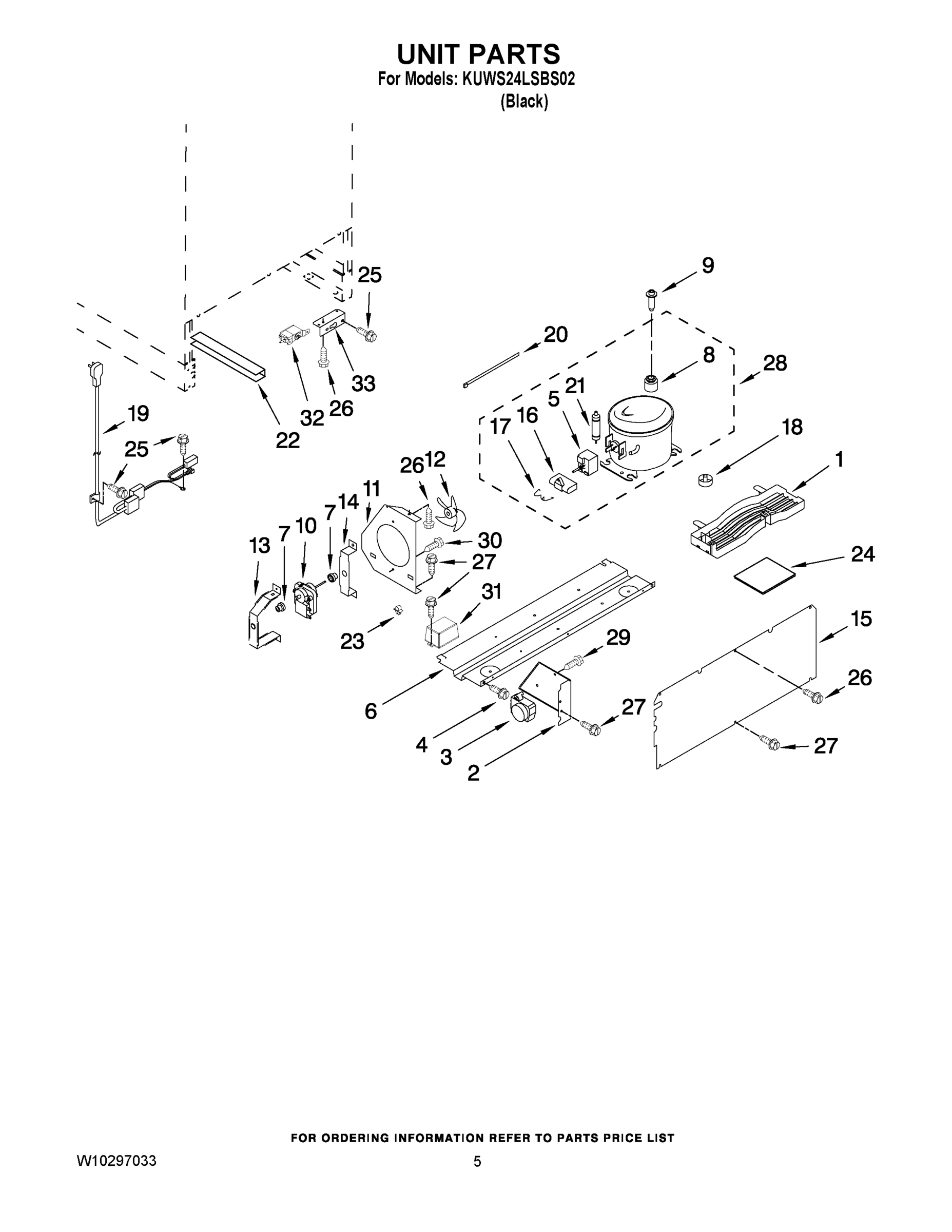

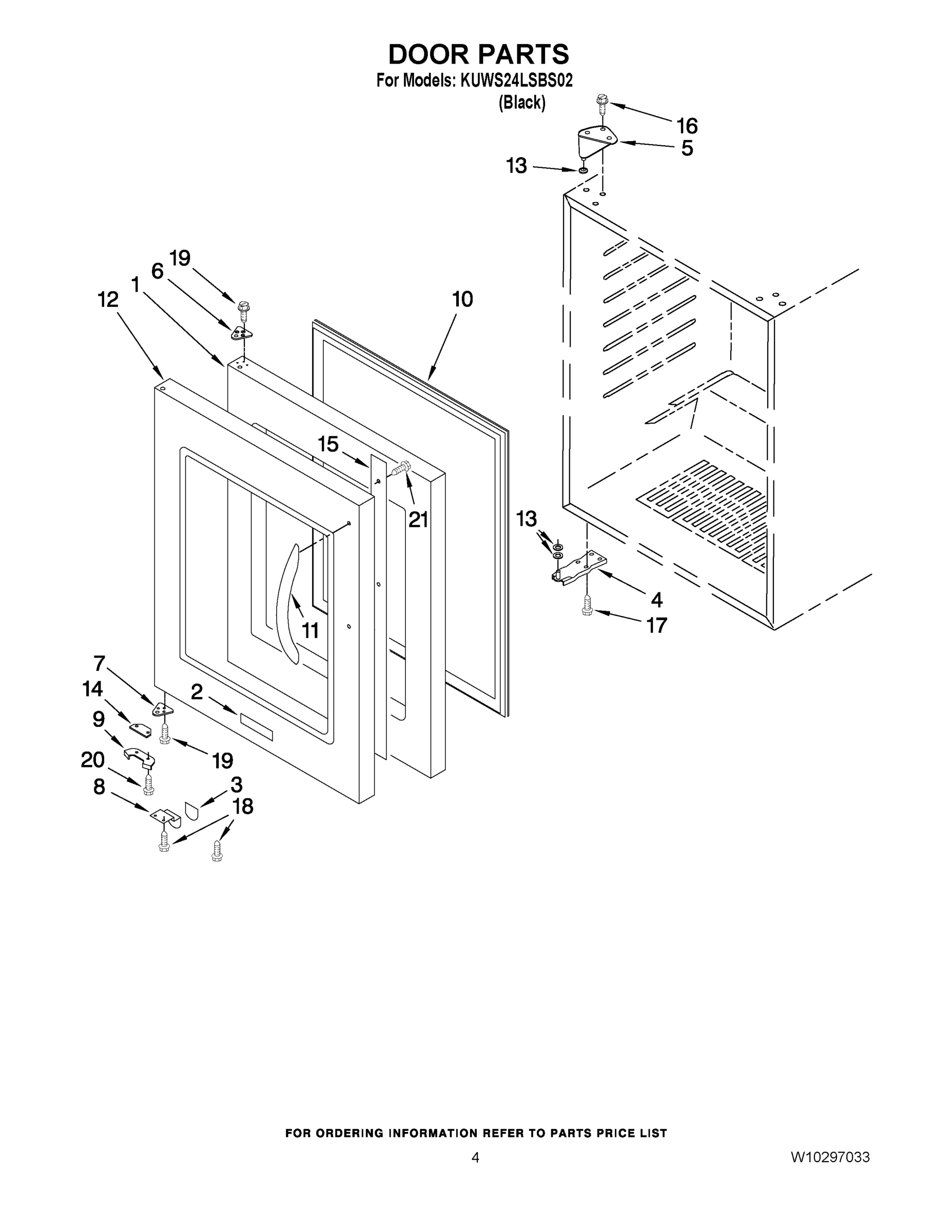

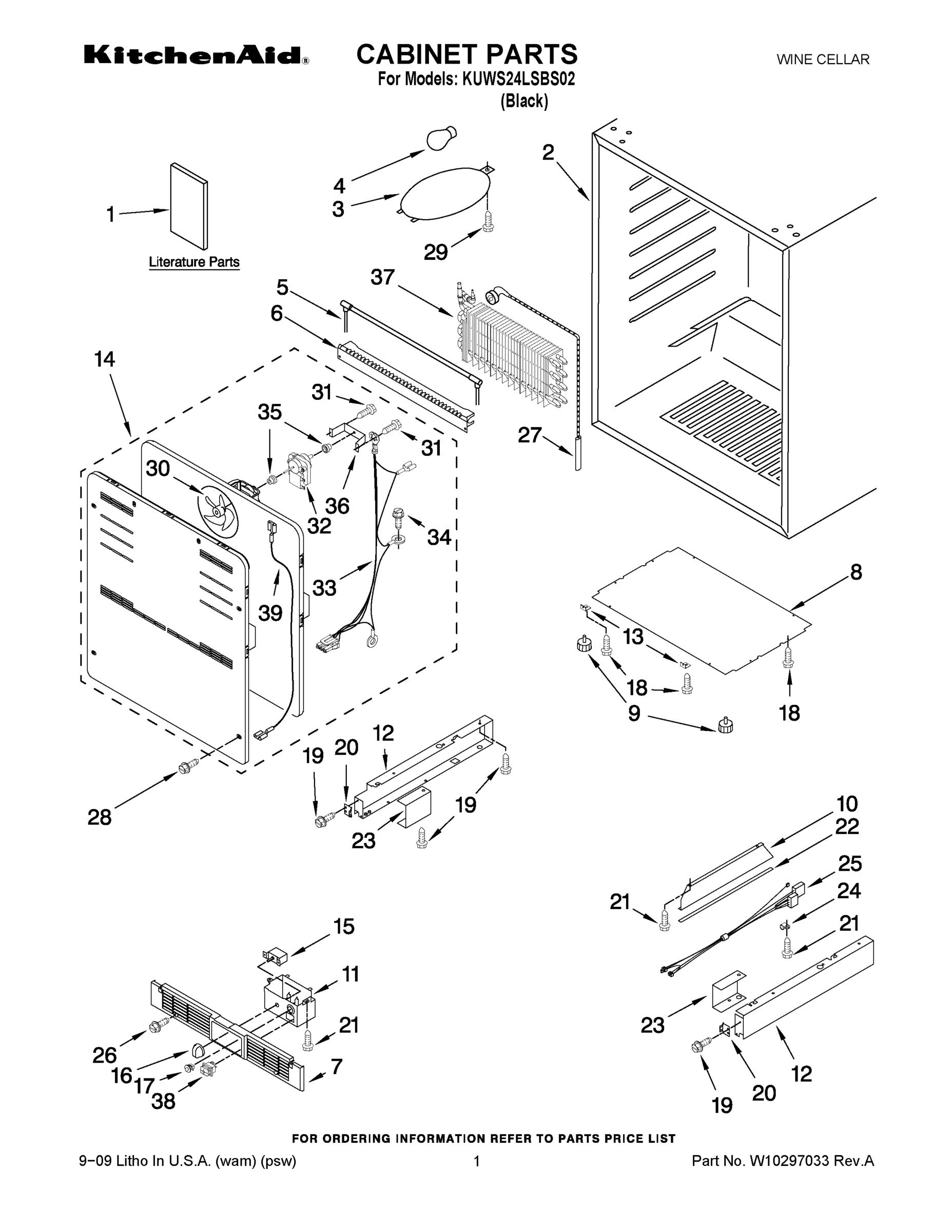

Model Whirlpool KUWS24LSBS02 WINE CELLAR – Common Parts &amp; Diagrams

1

Drain Pan WPL W10163193 Contact Us For Availability

1

Door Assembly (Includes Gasket) WPL 4344854 Contact Us For Availability

2

NAMEPLATE WPL 4344813 Contact Us For Availability

2

Wine Rack, (4) WPL 4344846 Contact Us For Availability

2

Bracket, Defrost Timer WPL 4344773 Contact Us For Availability

3

W11609704 Whirlpool Refrigerator Defrost Time In Stock WPL W11609704 $50.67

3

GASKET-PUSH PLATE WPL W10163191 Contact Us For Availability

3

Wine Rack, (1) WPL 4344847 Contact Us For Availability

4

4344787 Whirlpool Refrigerator Door Hinge Backorder WPL 4344787 $79.60

4

4344797 Whirlpool Screw Backorder WPL 4344797 $9.15

4

Wine Rack, Lower WPL 4344849 Contact Us For Availability

5

4344754 Whirlpool Refrigerator Door Hinge Backorder WPL 4344754 $45.84

5

W11230119 Whirlpool Refrigerator Heater Backorder WPL W11230119 $52.08

5

WP4344776 Whirlpool Refrigerator Start Device Backorder WPL WP4344776 $62.59

5

Ladder, Shelf (Left Side) WPL 4344842 Contact Us For Availability

5

Ladder, Shelf (Right Side) WPL 4344843 Contact Us For Availability

6

4344755 Whirlpool Refrigerator Spacer Backorder WPL 4344755 $11.27

6

Screw WPL 4344794 Contact Us For Availability

6

MOUNTING PLATE, COMPRESSOR WPL W10238066 Contact Us For Availability

7

4344756 Whirlpool Refrigerator Spacer Backorder WPL 4344756 $11.84

7

Washer WPL 4344795 Contact Us For Availability

7

Grommet, Fan Motor WPL 4344778 Contact Us For Availability

8

4344757 Whirlpool Refrigerator Bracket Backorder WPL 4344757 $52.06

8

WP4344779 Whirlpool Refrigerator Grommet Backorder WPL WP4344779 $3.70

8

Stop, Lower Rack WPL 4344850 Contact Us For Availability

9

4344758 Whirlpool Refrigerator Bracket Backorder WPL 4344758 $10.69

9

W10772873 Whirlpool Screw Backorder WPL W10772873 $28.44

9

W11106296 Whirlpool Refrigerator Leveler Backorder WPL W11106296 $6.35

9

Screw WPL 4344851 Contact Us For Availability

10

WPW10238068 Whirlpool Refrigerator Gasket In Stock WPL WPW10238068 $122.68

10

WPW10299090 Whirlpool Refrigerator Condenser Backorder WPL WPW10299090 $129.23

10

Trim, Top And Middle Racks WPL 4344882 Contact Us For Availability

WP9872207S Whirlpool Refrigerator Handle Backorder WPL WP9872207S $92.65

Control Box WPL 4344898 Contact Us For Availability

Support (Right) WPL 4344866 Contact Us For Availability

Support (Left) WPL 4344867 Contact Us For Availability

Baffle, Air WPL 4344782 Contact Us For Availability

12

Door Skin, Stainless Steel WPL 4344856 Contact Us For Availability

12

Trim, Lower Rack WPL 4344884 Contact Us For Availability

12

Fan Blade WPL 4344783 Contact Us For Availability

4344760 Whirlpool Refrigerator Washer Backorder WPL 4344760 $10.69

4344771 Whirlpool Refrigerator Clip Backorder WPL 4344771 $34.39

4344784 Whirlpool Bracket Backorder WPL 4344784 $84.36

4344886 Whirlpool Support Backorder WPL 4344886 $73.90

Support, Bumper (Right) WPL 4344885 Contact Us For Availability

4344785 Whirlpool Bracket Backorder WPL 4344785 $67.13

4344788 Whirlpool Refrigerator Spacer Backorder WPL 4344788 $61.45

Screw (Right) WPL 4344914 Contact Us For Availability

Screw (Left) WPL 4344915 Contact Us For Availability

4344786 Whirlpool Back Cover Backorder WPL 4344786 $84.36

W10238024 Whirlpool Wire Backorder WPL W10238024 $28.80

WP4344859 Whirlpool Refrigerator Thermostat Backorder WPL WP4344859 $100.22

Plate WPL W10238056 Contact Us For Availability

16

4344796 Whirlpool Refrigerator Screw Backorder WPL 4344796 $9.61

16

W10282164 Whirlpool Refrigerator Display Backorder WPL W10282164 $193.67

16

WP1188476 Whirlpool Air Conditioner Capacitor Backorder WPL WP1188476 $57.14

WP4344767 Whirlpool Refrigerator Switch Backorder WPL WP4344767 $12.08

WP4344836 Whirlpool Clip Backorder WPL WP4344836 $26.21

Screw, Lower Hinge (Quantity 1) WPL 4344906 Contact Us For Availability

SCREW, LOWER HINGE (QUANTITY 3) WPL W10243104 Contact Us For Availability

SCREW W/WASHER WPL W10162986 Contact Us For Availability

18

W10163276 Whirlpool Refrigerator Trap Backorder WPL W10163276 $28.80

18

W10837731 Whirlpool Screw Assembly In Stock WPL W10837731 $2.51

19

W10243123 Whirlpool Refrigerator Screw In Stock WPL W10243123 $9.61

19

Power Cord WPL 4344861 Contact Us For Availability

20

4344801 Whirlpool Refrigerator Screw Backorder WPL 4344801 $9.61

20

4344829 Whirlpool Tie Wire Backorder WPL 4344829 $9.15

21

W10163273 Whirlpool Refrigerator Tube In Stock WPL W10163273 $29.43

21

Screw WPL 4344808 Contact Us For Availability

22

TRIM EDGE WPL 4344907 Contact Us For Availability

23

4344820 Whirlpool Refrigerator Support Backorder WPL 4344820 $78.90

23

4344821 Whirlpool Refrigerator Support Backorder WPL 4344821 $44.01

23

W10238022 Whirlpool Refrigerator Clip Backorder WPL W10238022 $26.21

24

W10163274 Whirlpool Pad Backorder WPL W10163274 $40.15

26

4344826 Whirlpool Refrigerator Screw Backorder WPL 4344826 $9.61

26

Screw WPL 4344825 Contact Us For Availability

27

4344792 Whirlpool Refrigerator Bi-Metal Backorder WPL 4344792 $42.58

27

W11380570 Whirlpool Microwave Screw In Stock WPL W11380570 $9.86

28

8201787 Whirlpool Refrigerator Compressor Backorder WPL 8201787 $373.05

29

Screw WPL 4344834 Contact Us For Availability

30

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

31

W10238070 Whirlpool Refrigerator Transformer Backorder WPL W10238070 $138.47

32

W10163278 Whirlpool Refrigerator Thermostat Backorder WPL W10163278 $96.44

33

Harness, Wire WPL 4344877 Contact Us For Availability

33

Bracket, Thermostat WPL 4344864 Contact Us For Availability

36

4344899 Whirlpool Refrigerator Bracket Backorder WPL 4344899 $63.64

38

4344858 Whirlpool Refrigerator Switch Backorder WPL 4344858 $39.69

39

Transformer Cable WPL 4344917 Contact Us For Availability

NI

REFRIGERANT CHARGE (3.5 OUNCES (R-134A)) WPL NP Contact Us For Availability

NI

CLEANER, STAINLESS STEEL (12 OZ) WPL 8171420 Contact Us For Availability
