  • Whirlpool KUWO244PBL00 Parts List

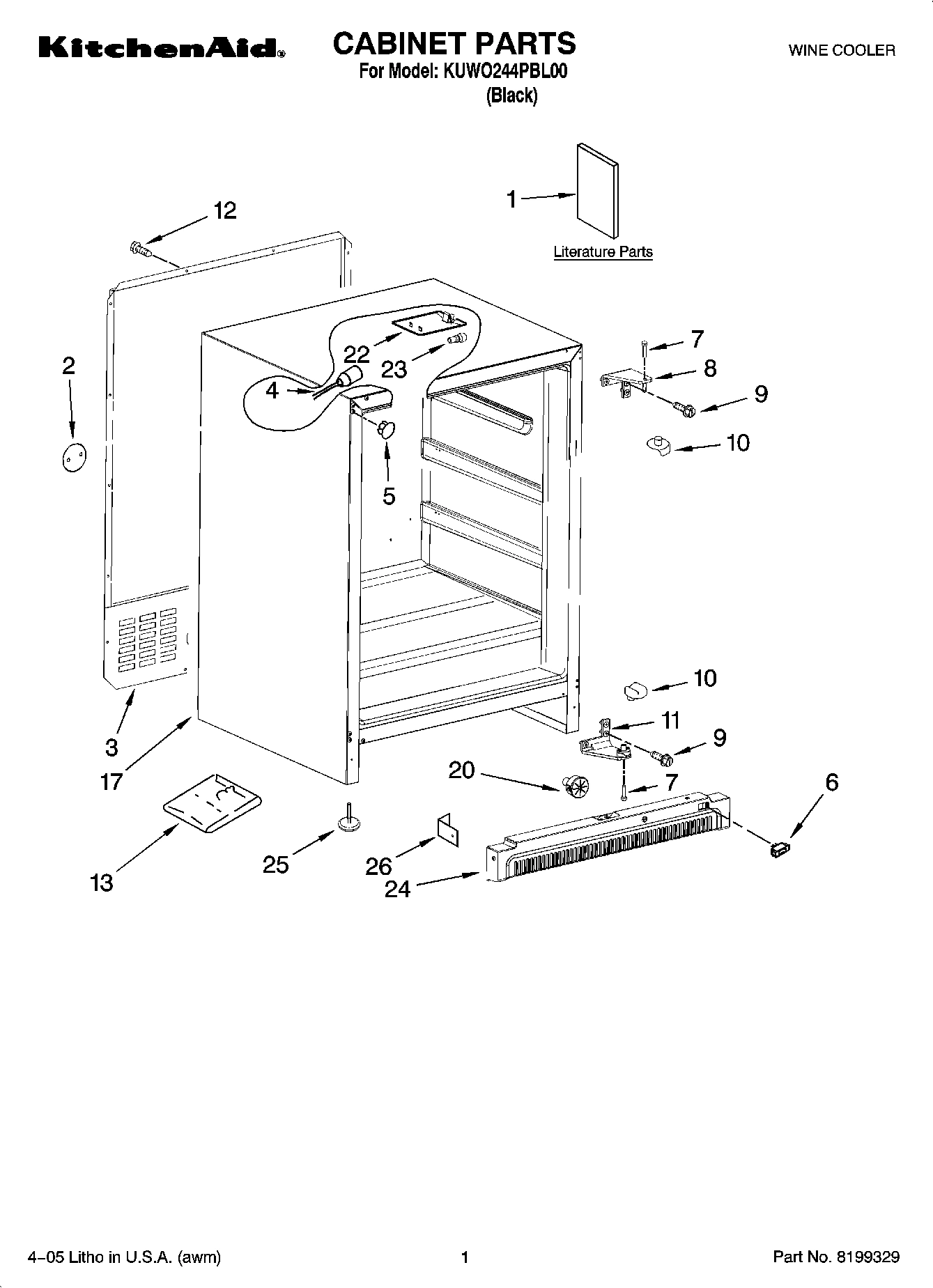

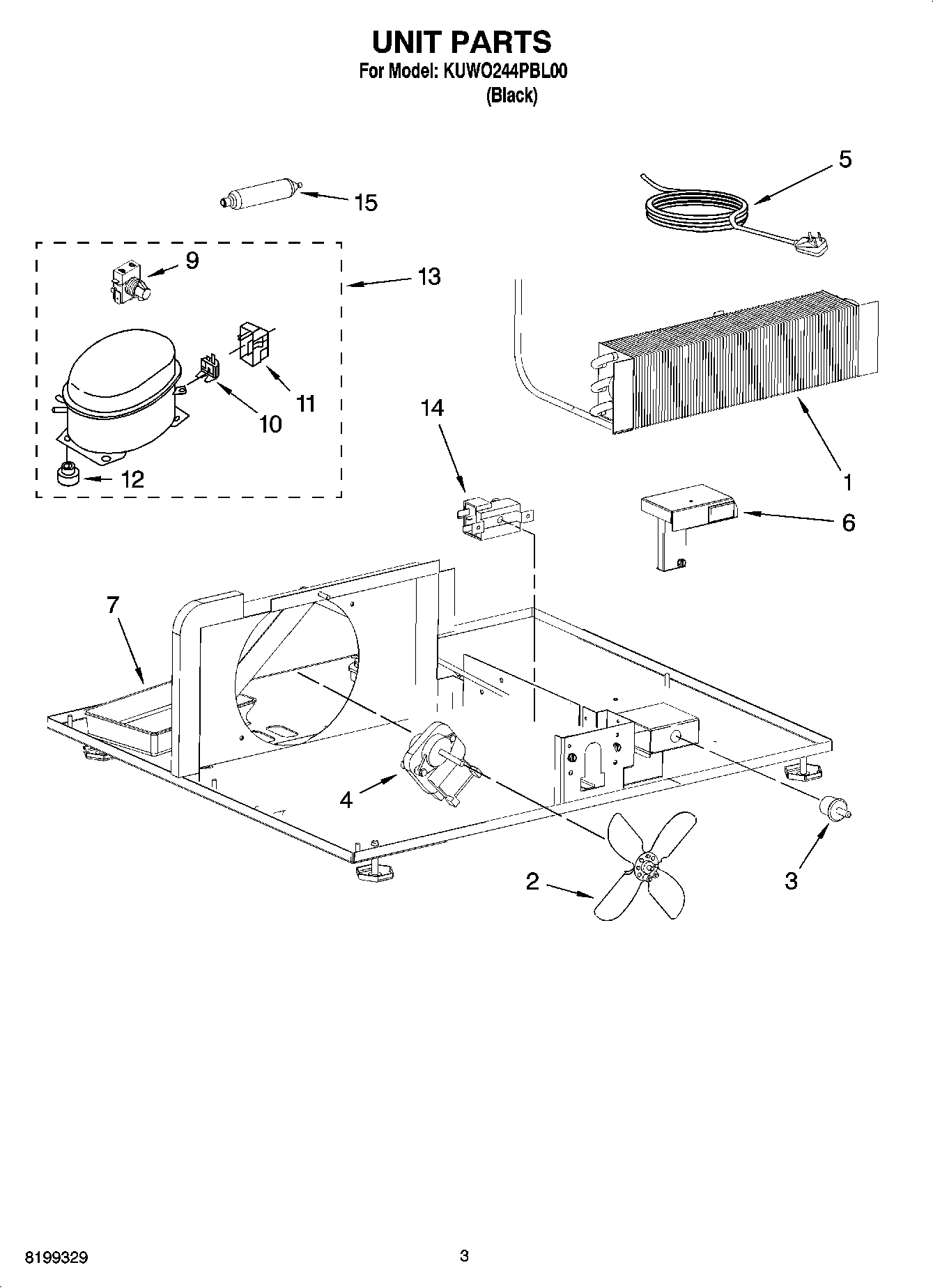

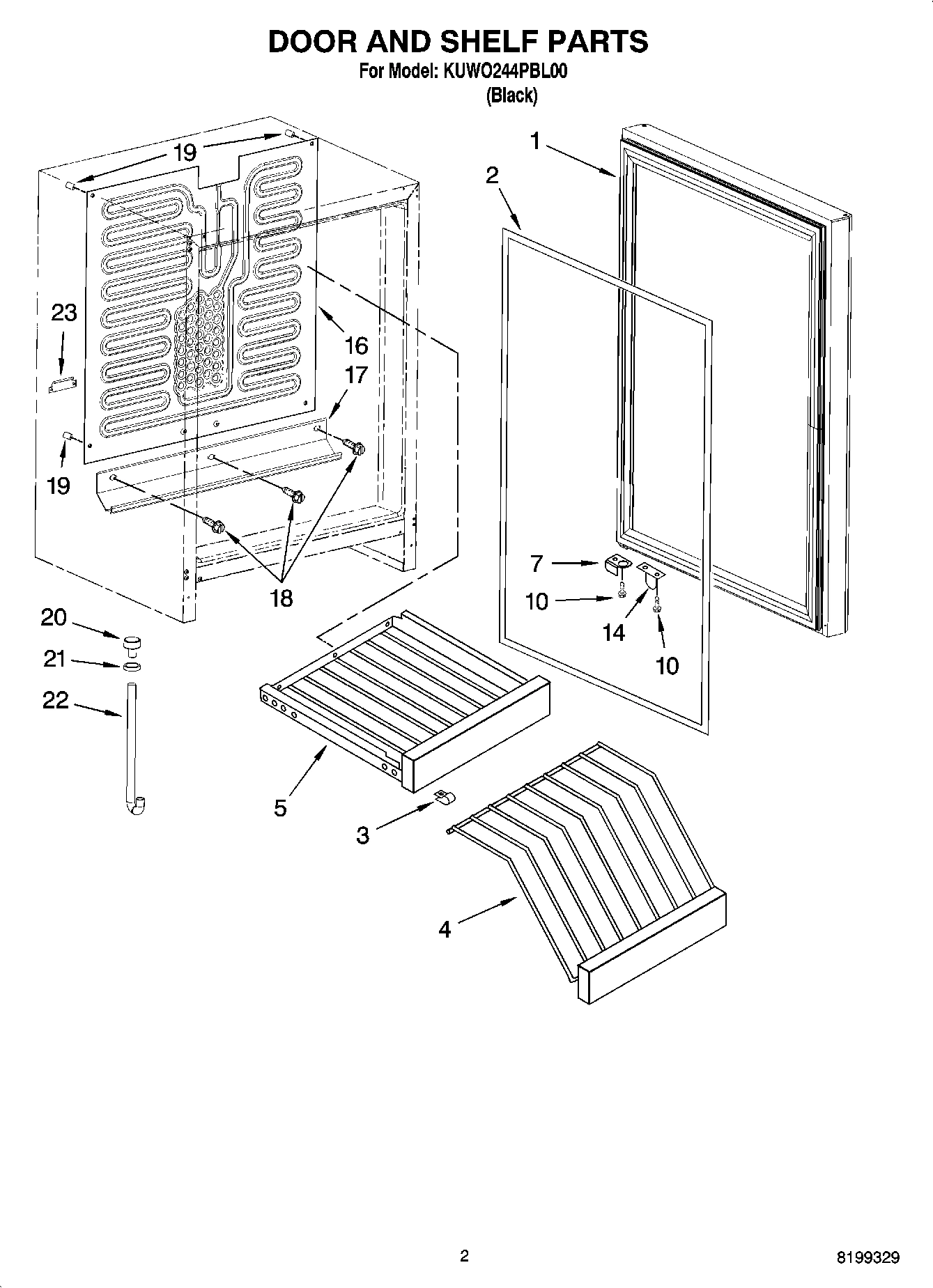

Model Whirlpool KUWO244PBL00 WINE COOLER – Common Parts & Diagrams

1
Door Assembly (Includes Gasket)
Door Assembly (Includes Gasket) WPL 4344732 Contact Us For Availability
View on Model
1
Use & Care Guide
Use & Care Guide WPL 2300247 Contact Us For Availability
View on Model
1
Wiring Diagram
Wiring Diagram WPL 4344731 Contact Us For Availability
View on Model
2
Blade, Fan
Blade, Fan WPL 4344632 Contact Us For Availability
View on Model
2
Gasket, Door
Gasket, Door WPL 4344696 Contact Us For Availability
View on Model
2
Cover, Hole
Cover, Hole WPL 4344664 Contact Us For Availability
View on Model
3
Clip
Clip WPL 4344660 Contact Us For Availability
View on Model
3
Panel, Back
Panel, Back WPL 4344662 Contact Us For Availability
View on Model
4
Motor, Fan
Motor, Fan WPL 4344631 Contact Us For Availability
View on Model
4
Wine Display Rack
Wine Display Rack WPL 4344692 Contact Us For Availability
View on Model
4
Socket, Light
Socket, Light WPL 4344678 Contact Us For Availability
View on Model
5
Shelf, Wine (5)
Shelf, Wine (5) WPL 4344686 Contact Us For Availability
View on Model
5
Plug, Hole (6)
Plug, Hole (6) WPL 4344702 Contact Us For Availability
View on Model
6
Switch, Light
Switch, Light WPL 4344625 Contact Us For Availability
View on Model
7
Plate, Pivot
Plate, Pivot WPL 4344733 Contact Us For Availability
View on Model
7
Pivot Post
Pivot Post WPL 4344730 Contact Us For Availability
View on Model
8
Hinge, Upper
Hinge, Upper WPL 4344693 Contact Us For Availability
View on Model
9
Relay, Starting
Relay, Starting WPL 4344638 Contact Us For Availability
View on Model
10
Closer, Door (Upper)
Closer, Door (Upper) WPL 4344680 Contact Us For Availability
View on Model
10
Closer, Door (Lower)
Closer, Door (Lower) WPL 4344681 Contact Us For Availability
View on Model
11
Hinge, Lower
Hinge, Lower WPL 4344694 Contact Us For Availability
View on Model
13
Compressor (Includes Items 9, 10, 11 & 12)
Compressor (Includes Items 9, 10, 11 & 12) WPL 4344621 Contact Us For Availability
View on Model
13
Overlay Kit (Custom Wood Door)
Overlay Kit (Custom Wood Door) WPL 4344734 Contact Us For Availability
View on Model
14
Bracket, Door Switch
Bracket, Door Switch WPL 4344709 Contact Us For Availability
View on Model
15
Drier Assembly
Drier Assembly WPL 4344630 Contact Us For Availability
View on Model
15
REFRIGERANT CHARGE 4.0 oz. (R-134)
REFRIGERANT CHARGE 4.0 oz. (R-134) WPL ARI117160A Contact Us For Availability
View on Model
16
Evaporator
Evaporator WPL 4344679 Contact Us For Availability
View on Model
17
Channel, Drain
Channel, Drain WPL 4344718 Contact Us For Availability
View on Model
17
Cabinet (Not A Serviceable Part)
Cabinet (Not A Serviceable Part) WPL ARI117159A Contact Us For Availability
View on Model
18
Rivet, Push-In
Rivet, Push-In WPL 4344719 Contact Us For Availability
View on Model
19
Spacer
Spacer WPL 4344720 Contact Us For Availability
View on Model
20
Knob, Control
Knob, Control WPL 4344672 Contact Us For Availability
View on Model
20
Funnel, Drain
Funnel, Drain WPL 4344611 Contact Us For Availability
View on Model
21
Washer, Foam
Washer, Foam WPL 4344722 Contact Us For Availability
View on Model
22
Tube, Drain
Tube, Drain WPL 4344723 Contact Us For Availability
View on Model
22
Lens, Light
Lens, Light WPL 4344667 Contact Us For Availability
View on Model
23
Clamp
Clamp WPL 4344724 Contact Us For Availability
View on Model
24
Grille
Grille WPL 4344670 Contact Us For Availability
View on Model
25
Foot, Leveling (4)
Foot, Leveling (4) WPL 4344635 Contact Us For Availability
View on Model
26
Clip, Grille
Clip, Grille WPL 4344673 Contact Us For Availability
View on Model
