Model Whirlpool KUWL204EPA01 REFRIGERATOR, WINE CELLAR, UNDERCOUNTER, 24 INCH – Common Parts & Diagrams
01 - COVER SHEET
02 - CABINET PARTS

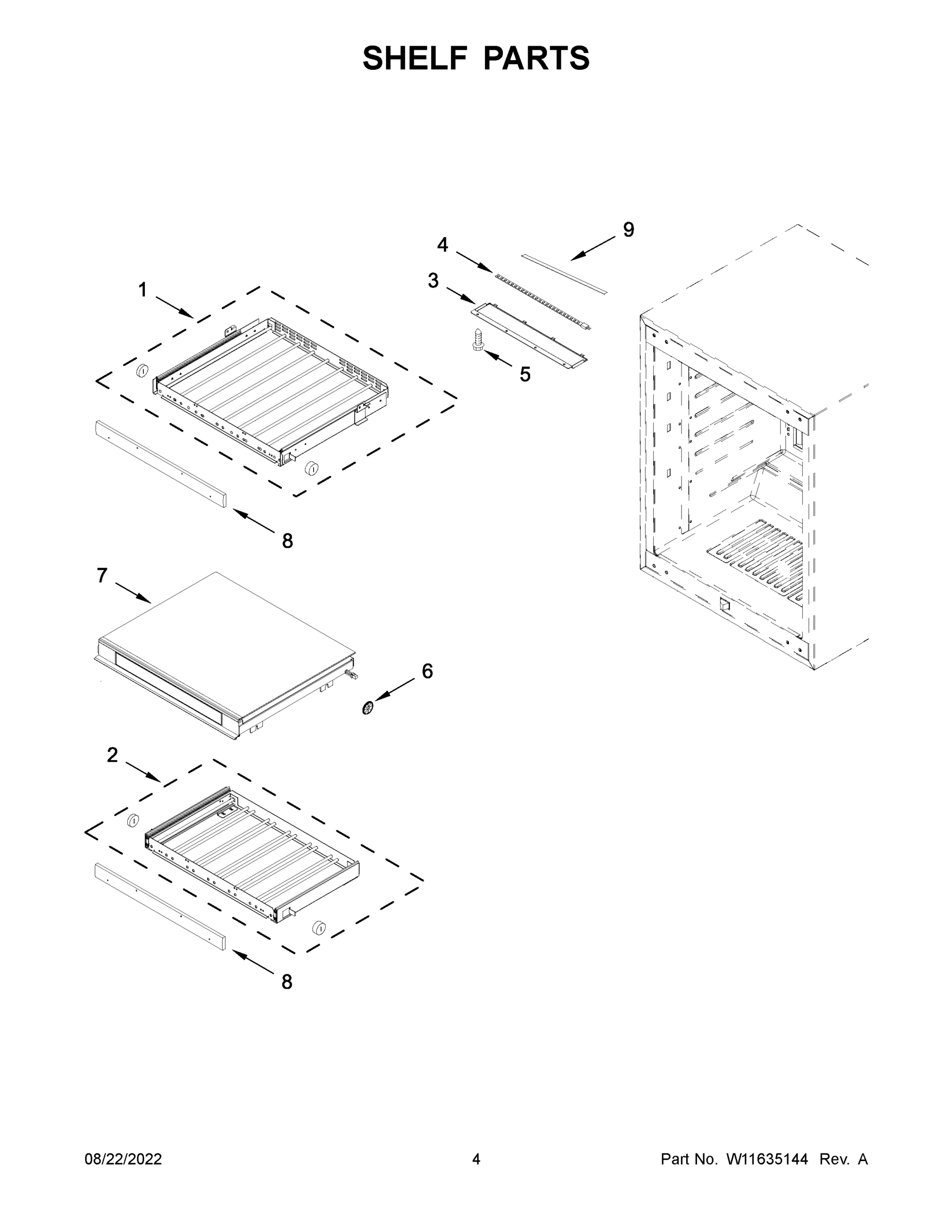

03 - SHELF PARTS

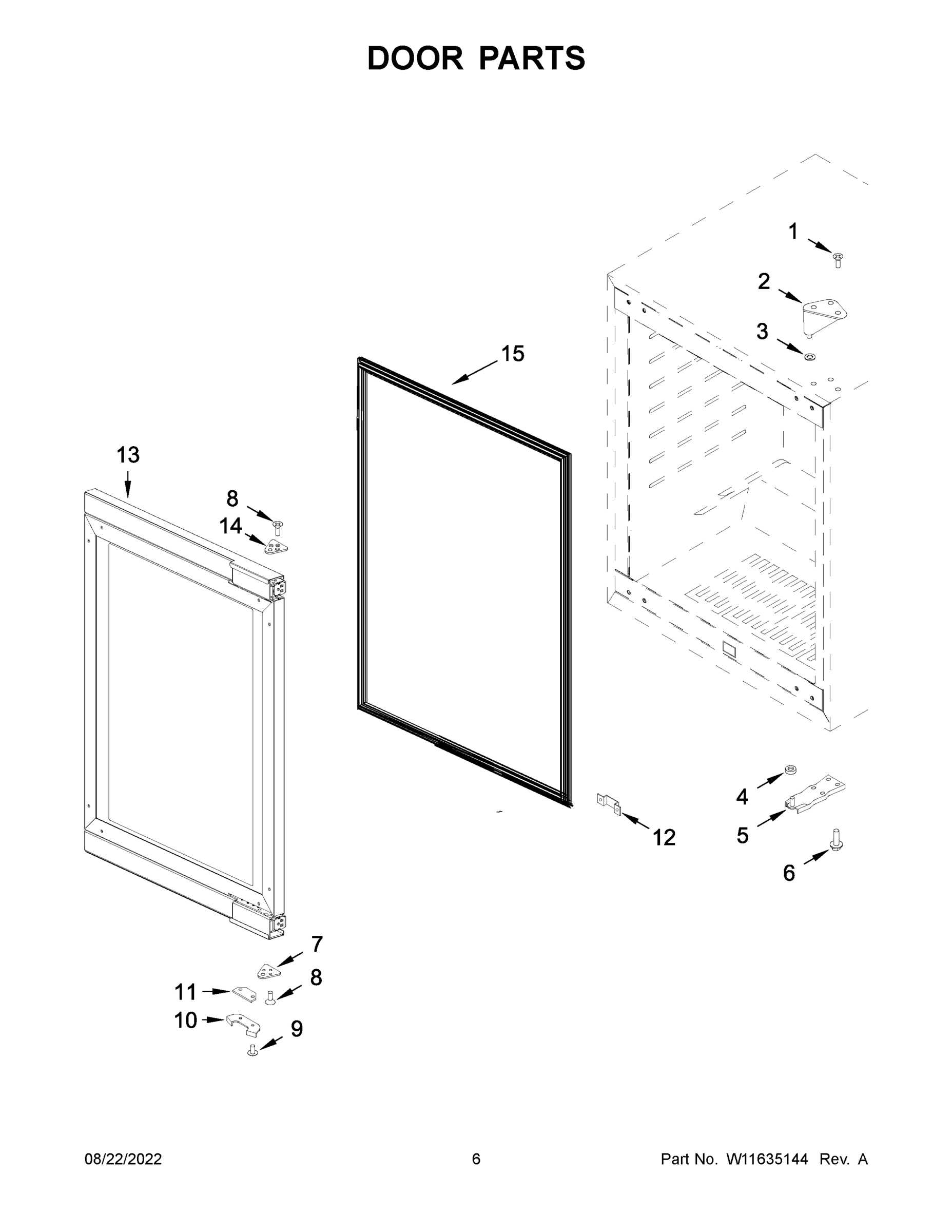

04 - DOOR PARTS

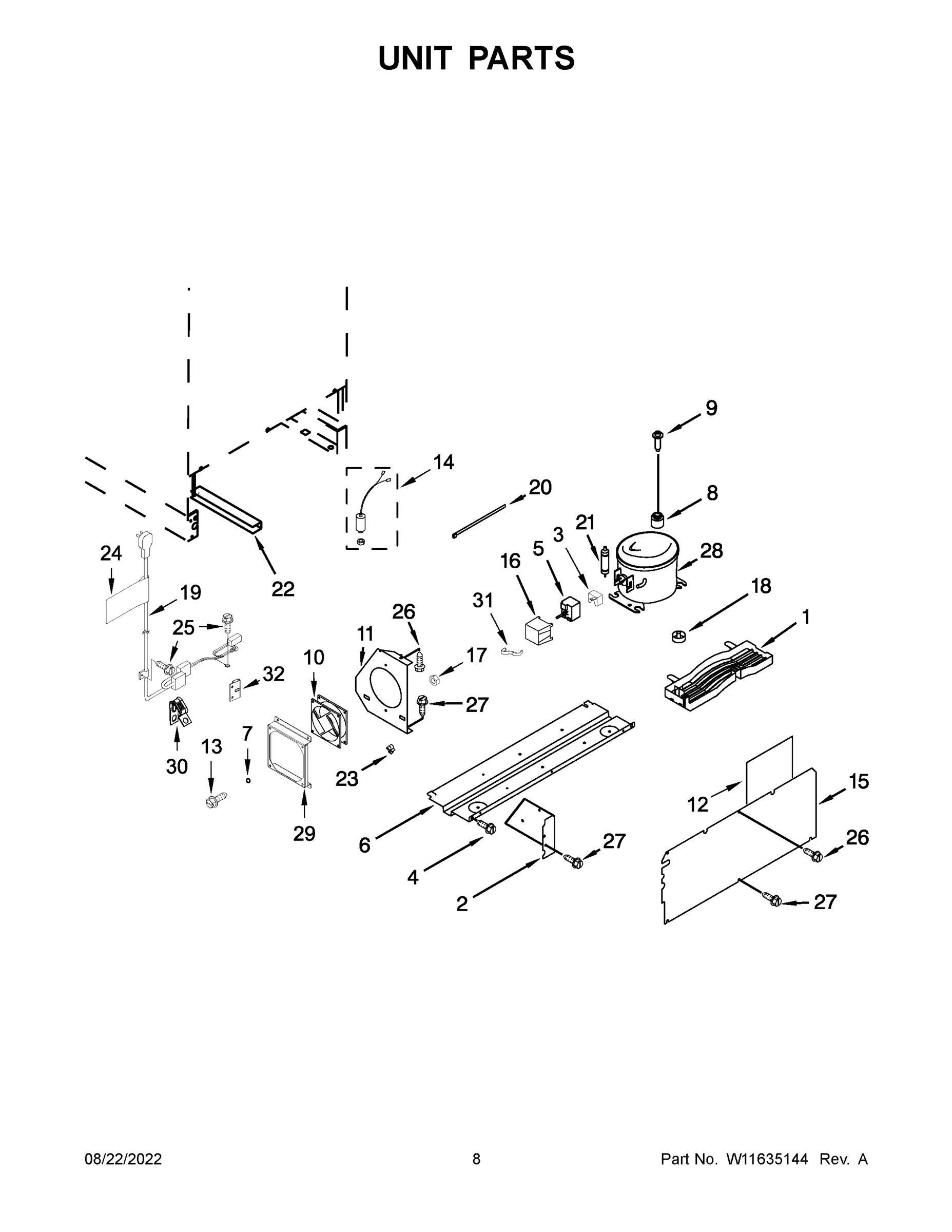

05 - UNIT PARTS
Common parts from model Whirlpool KUWL204EPA01 REFRIGERATOR, WINE CELLAR, UNDERCOUNTER, 24 INCH
1
TOP WINE RACK ASSEMBLY (RIGHT HINGE) WPL W10803968 Contact Us For Availability
1
PAN, DRAIN WPL W10316689 Contact Us For Availability
1
SCREW WPL 4344796 Contact Us For Availability
1A
TOP WINE RACK ASSEMBLY (LEFT HINGE) WPL W10803969 Contact Us For Availability
2
WINE RACK ASSEMBLY, LOWER WPL W10803971 Contact Us For Availability
2
HINGE, TOP WPL 4344754 Contact Us For Availability
2
BRACKET, DEFROST TIMER WPL W10239387 Contact Us For Availability
3
WASHER WPL 4344760 Contact Us For Availability
3
OVERLOAD RELAY WPL W11422769 Contact Us For Availability
4
SCREW WPL 4344797 Contact Us For Availability
5
BOTTOM HINGE (RIGHT HINGE) WPL W10239363 Contact Us For Availability
5A
BOTTOM HINGE (LEFT HINGE) WPL 4344787 Contact Us For Availability
6
LINER BUSHING WPL W10621514 Contact Us For Availability
6
BOLT WPL W10780355 Contact Us For Availability
6
CABINET BASE PLATE WPL W11422734 Contact Us For Availability
7
GRILLE WPL W10780351 Contact Us For Availability
7
SPACER, BOTTOM HINGE WPL 4344798 Contact Us For Availability
7
FAN BUSHING WPL W10204688 Contact Us For Availability
9
PLATE, LIGHT WPL W11635437 Contact Us For Availability
9
SCREW WPL 4344801 Contact Us For Availability
10
CONDENSER DC MOTOR WPL W10772882 Contact Us For Availability
10
DOOR STOP WPL 4344802 Contact Us For Availability
11
SPACER, DOOR WPL 4344803 Contact Us For Availability
11
FAN COVER, CONDENSER WPL W11506521 Contact Us For Availability
12
SWITCH PLATE WPL W10622808 Contact Us For Availability
12
INSULATION, REAR COVER WPL W10778963 Contact Us For Availability
13
BRACKET, GRILLE WPL 4344771 Contact Us For Availability
13
SCREW WPL W10772886 Contact Us For Availability
13A
DOOR ASSEMBLY (LEFT HINGE) WPL W10803978 Contact Us For Availability
14
RUNNING CAPACITOR WPL W10778969 Contact Us For Availability
14
SPACER, TOP HINGE WPL 4344804 Contact Us For Availability
15
COVER, REAR WPL W10796445 Contact Us For Availability
16
COVER, RELAY WPL W11422786 Contact Us For Availability
17
NUT WPL W10270493 Contact Us For Availability
18
TRAP, DRAIN WPL W10163276 Contact Us For Availability
18
SCREW WPL 4344826 Contact Us For Availability
20
KICK PLATE MOUNT WPL W10204640 Contact Us For Availability
20
TIE, CABLE WPL 4344829 Contact Us For Availability
21
DRIER WPL W10163273 Contact Us For Availability
21
SCREW WPL 4344825 Contact Us For Availability
22
TRIM, EDGE WPL 4344907 Contact Us For Availability
23
SUPPORT (RIGHT HAND) WPL 4344821 Contact Us For Availability
23
CLIP, BUSHING WPL W10238022 Contact Us For Availability
23A
SUPPORT (LEFT HAND) WPL 4344820 Contact Us For Availability
24
WARNING LABEL WPL 4344913 Contact Us For Availability
25
HARNESS EXTENSION WPL W10772870 Contact Us For Availability
28
COMPRESSOR WPL W11422743 Contact Us For Availability
30
CLAMP, CORD WPL W10281591 Contact Us For Availability
31
SPRING TAB WPL W11498144 Contact Us For Availability
32
CLAMP, CORD WPL W10270517 Contact Us For Availability
35
DOOR SWITCH WPL W10721454 Contact Us For Availability
37
LID, PROXIMITY SENSOR WPL W10797391 Contact Us For Availability
38
PROXIMITY SENSOR WPL W10780359 Contact Us For Availability
40
SPEAKER WPL W10780358 Contact Us For Availability
NI
PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE WPL NP Contact Us For Availability
× ![]()
