Model Alliance KUT30S Dryer – Common Parts & Diagrams

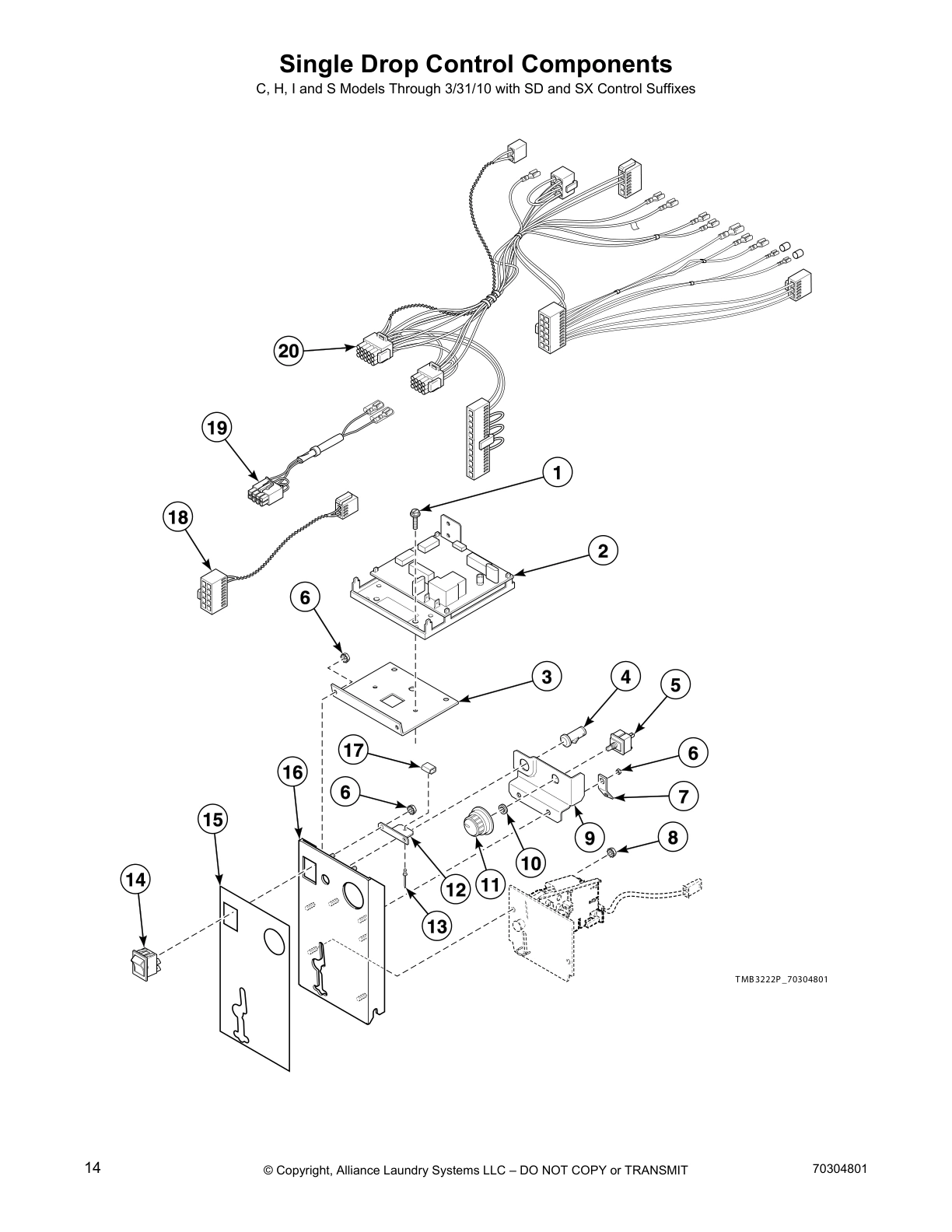

Single Drop Control Components

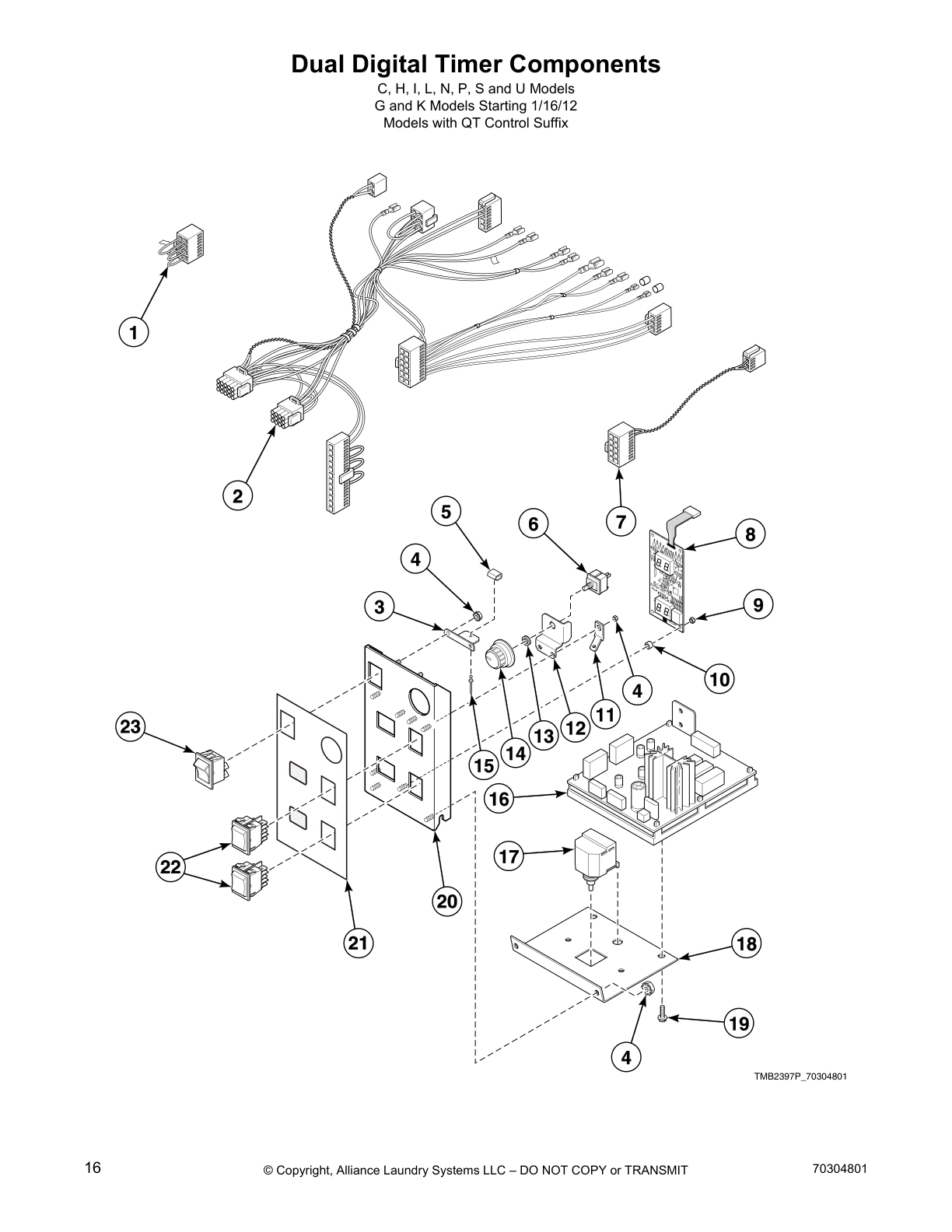

Dual Digital Timer Components

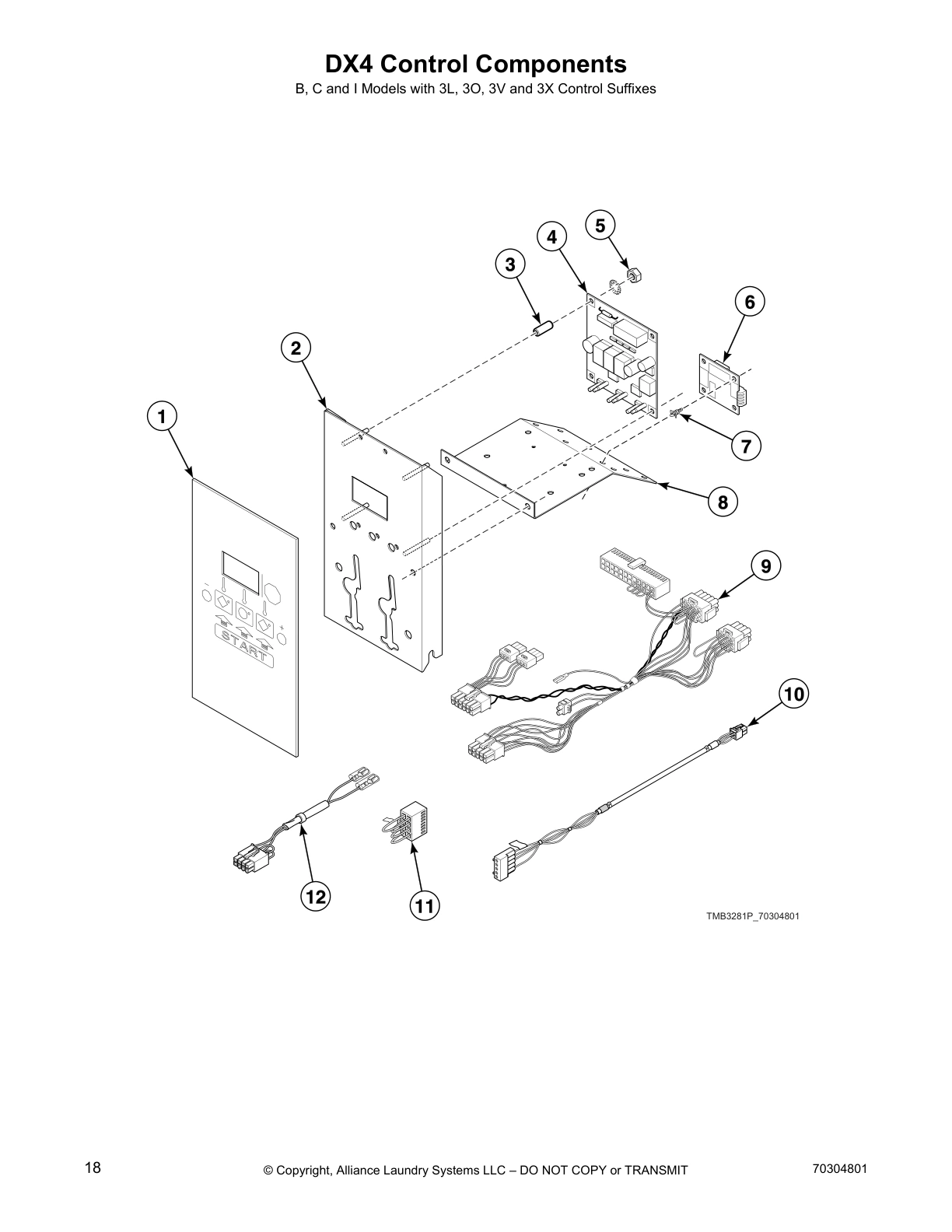

DX4 Control Components

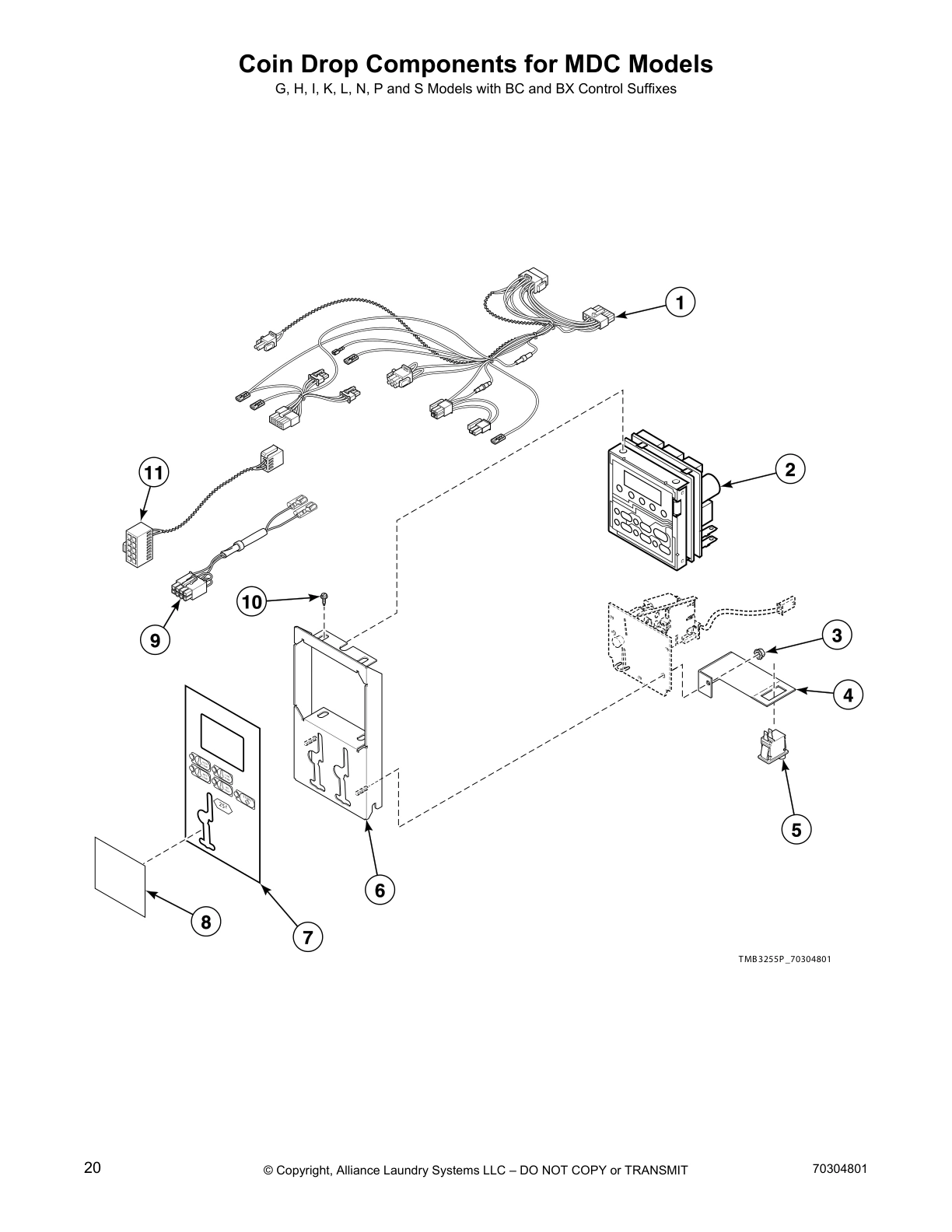

Coin Drop Components for MDC Models

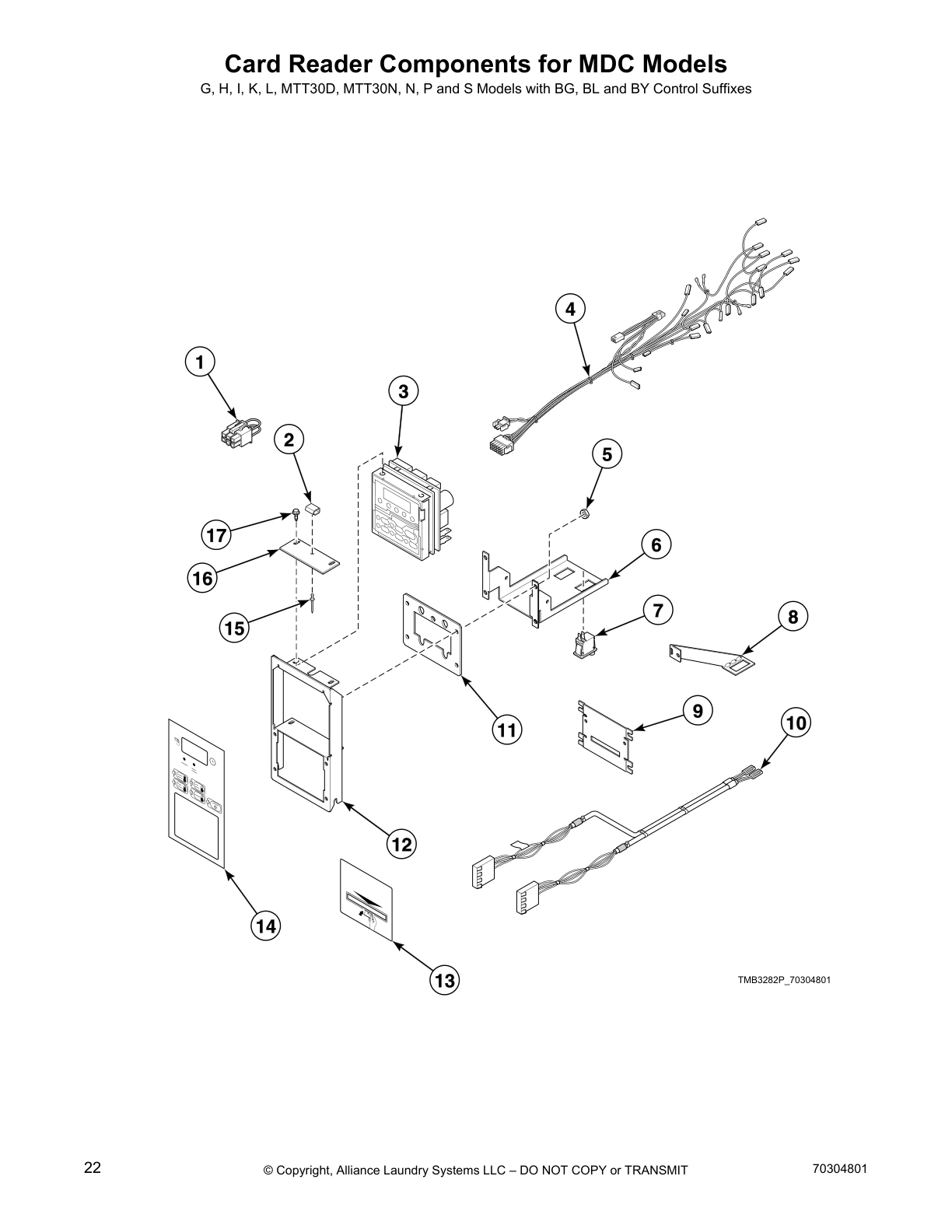

Card Reader Components for MDC Models

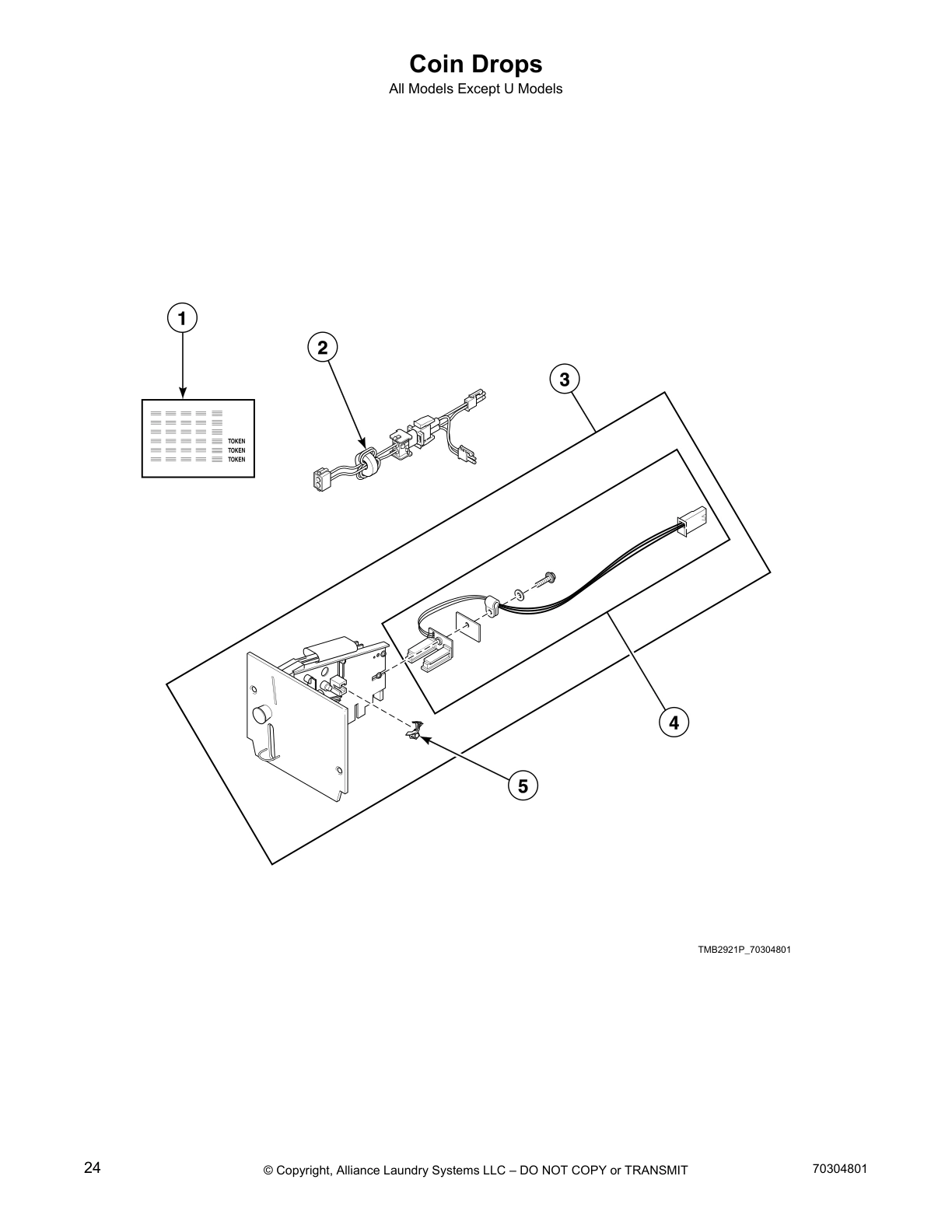

Coin Drops

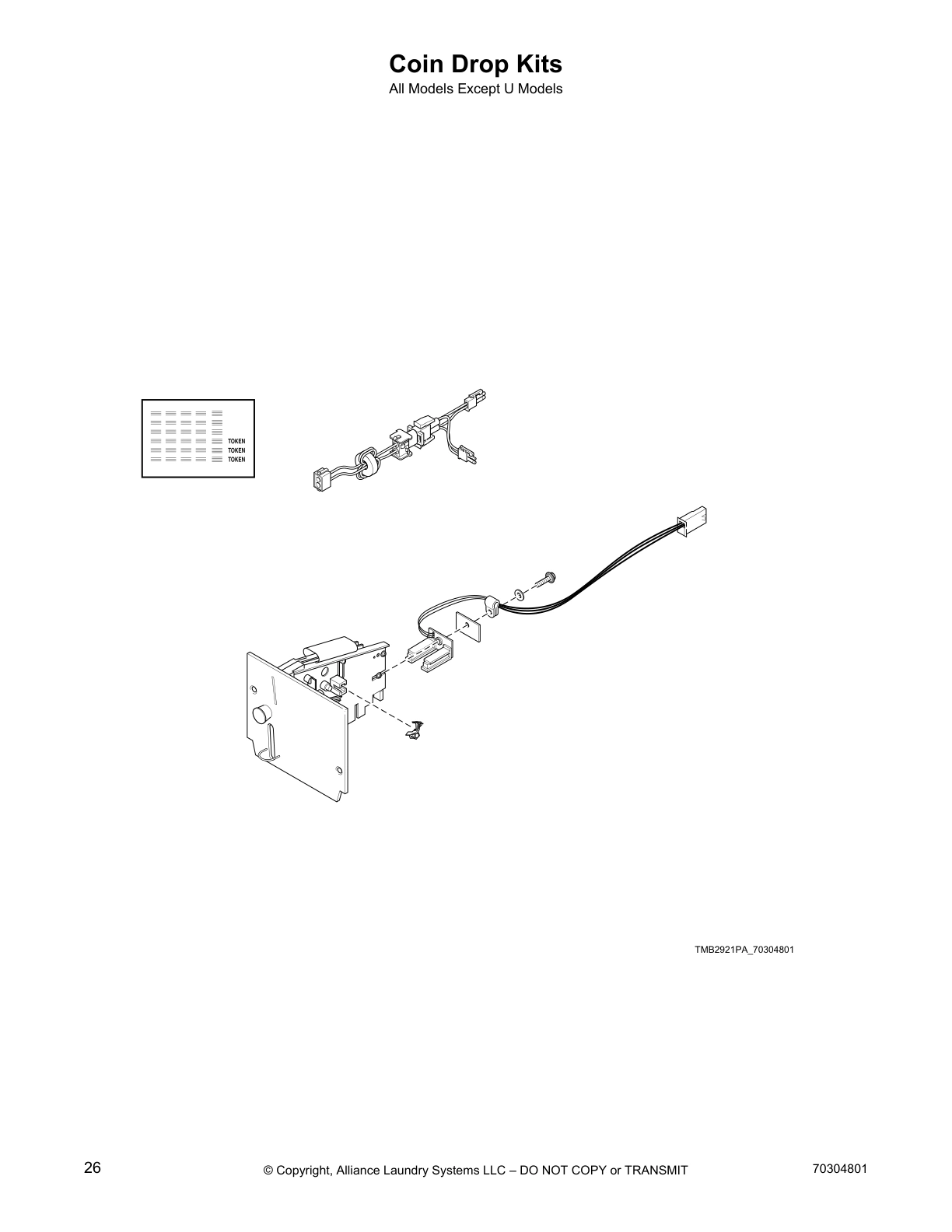

Coin Drop Kits

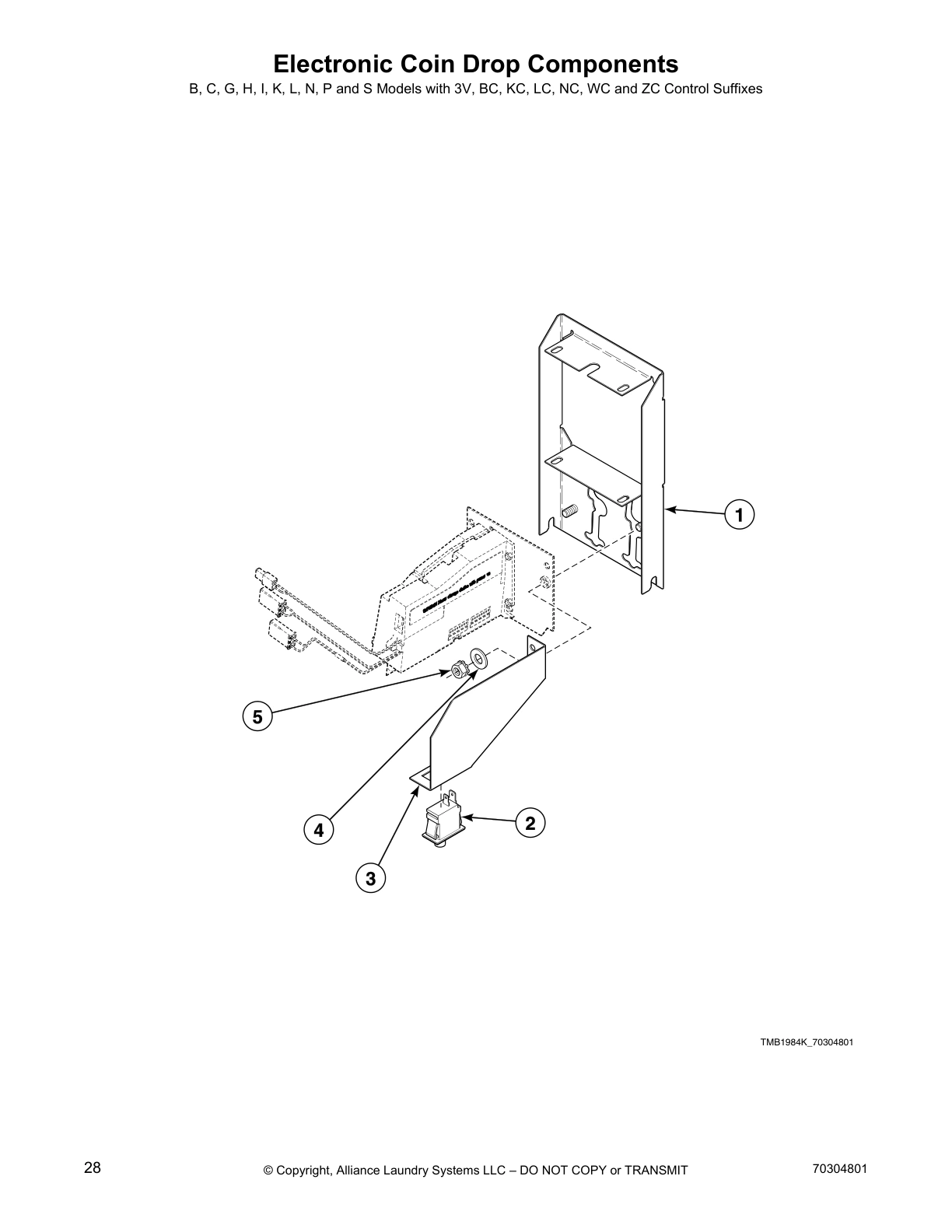

Electronic Coin Drop Components

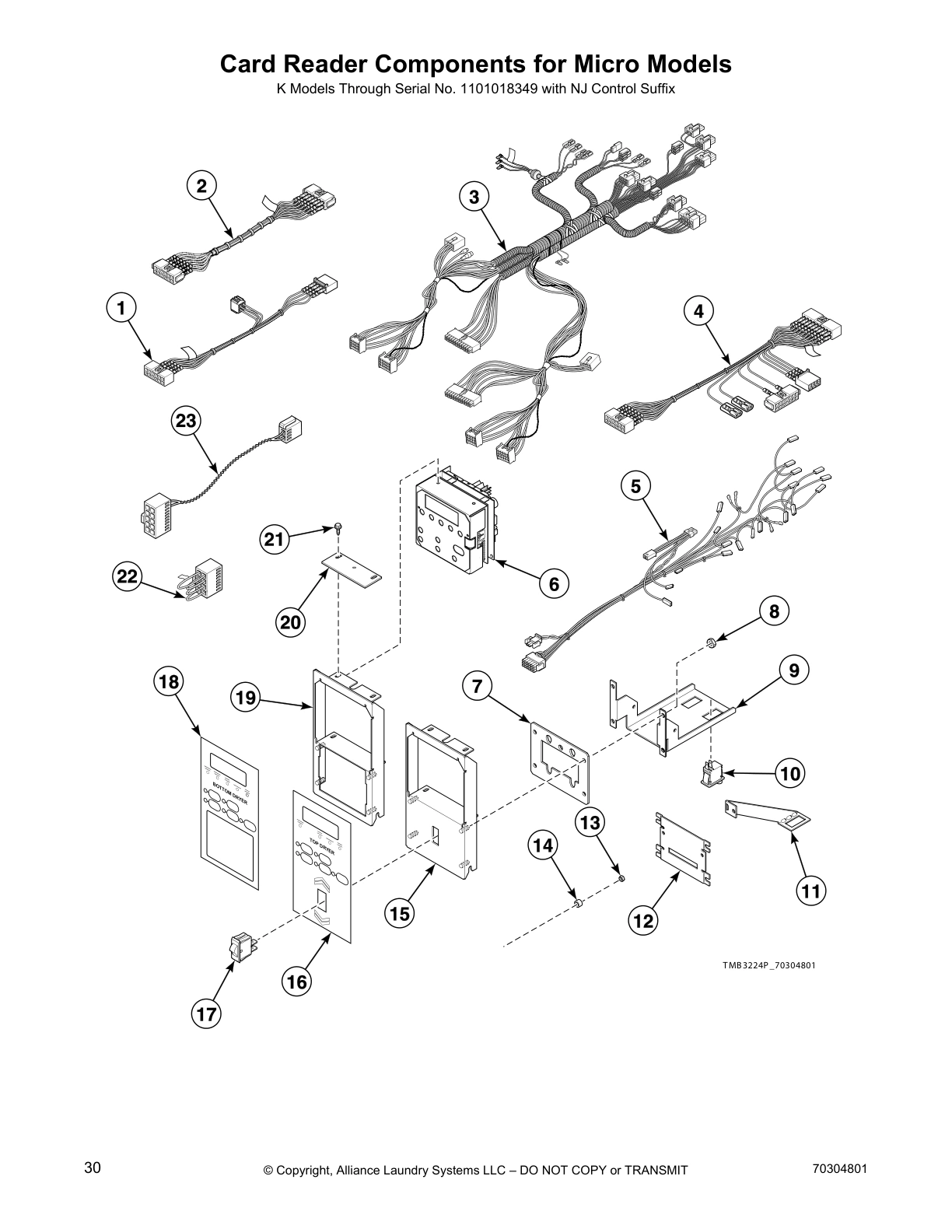

Card Reader Components for Micro Models

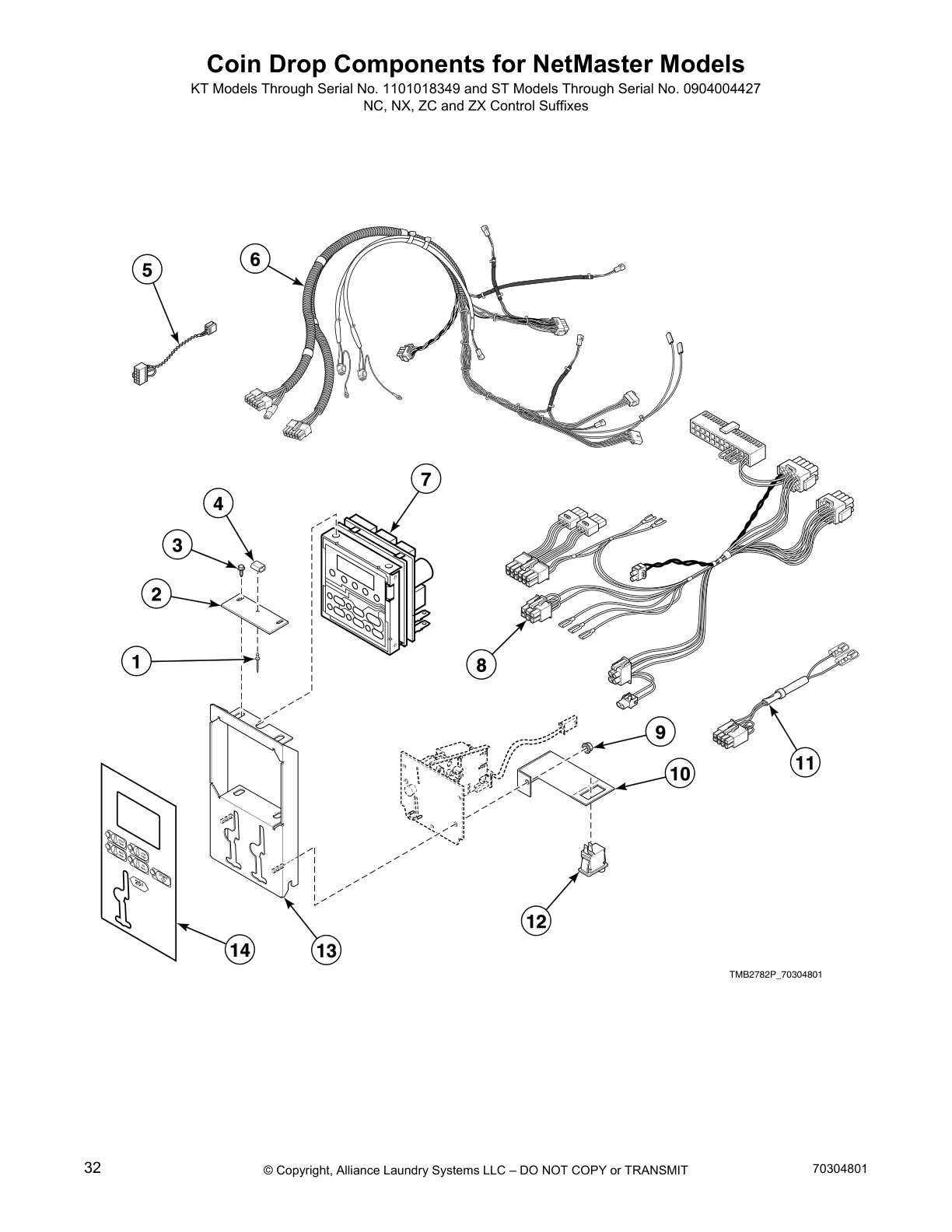

Coin Drop Components for NetMaster Models

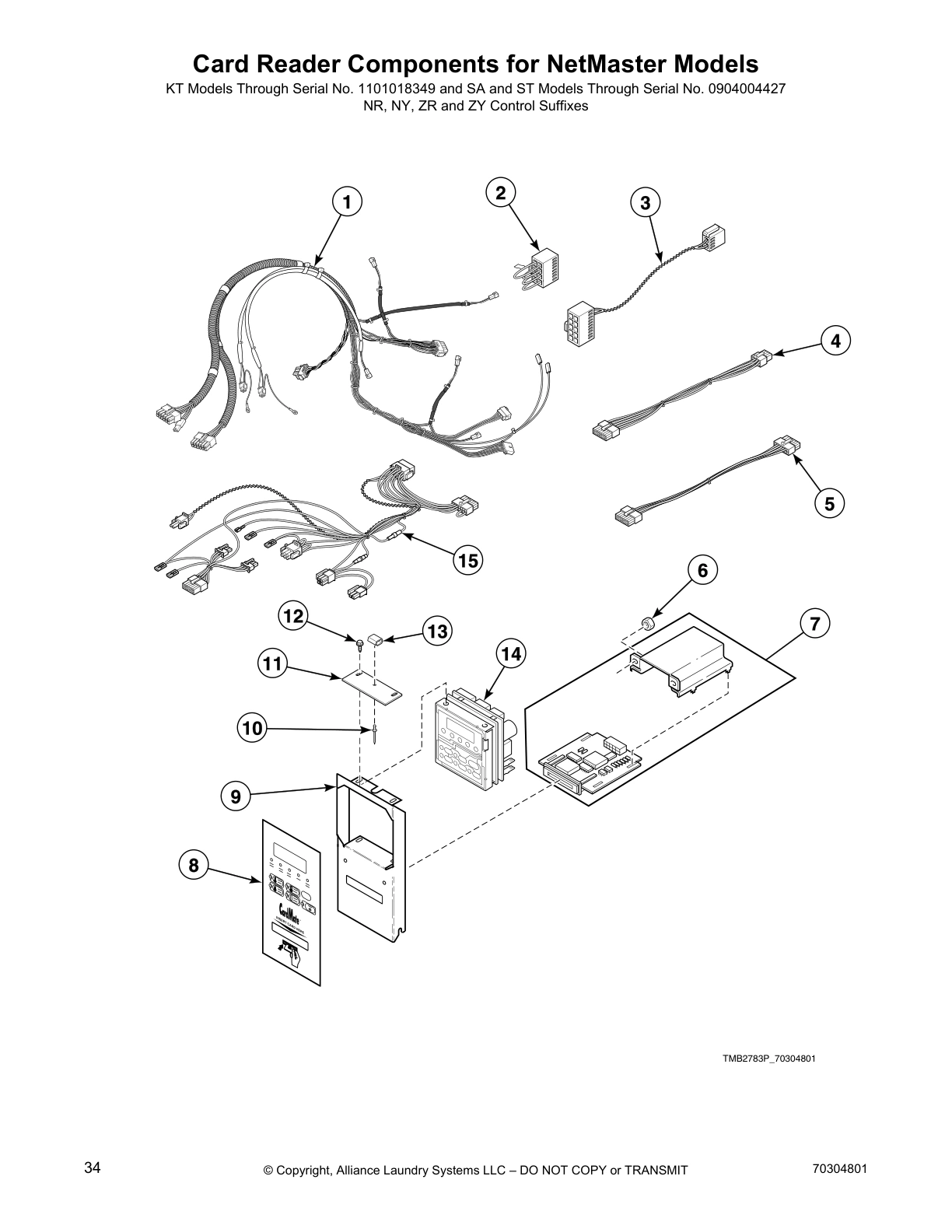

Card Reader Components for NetMaster Models

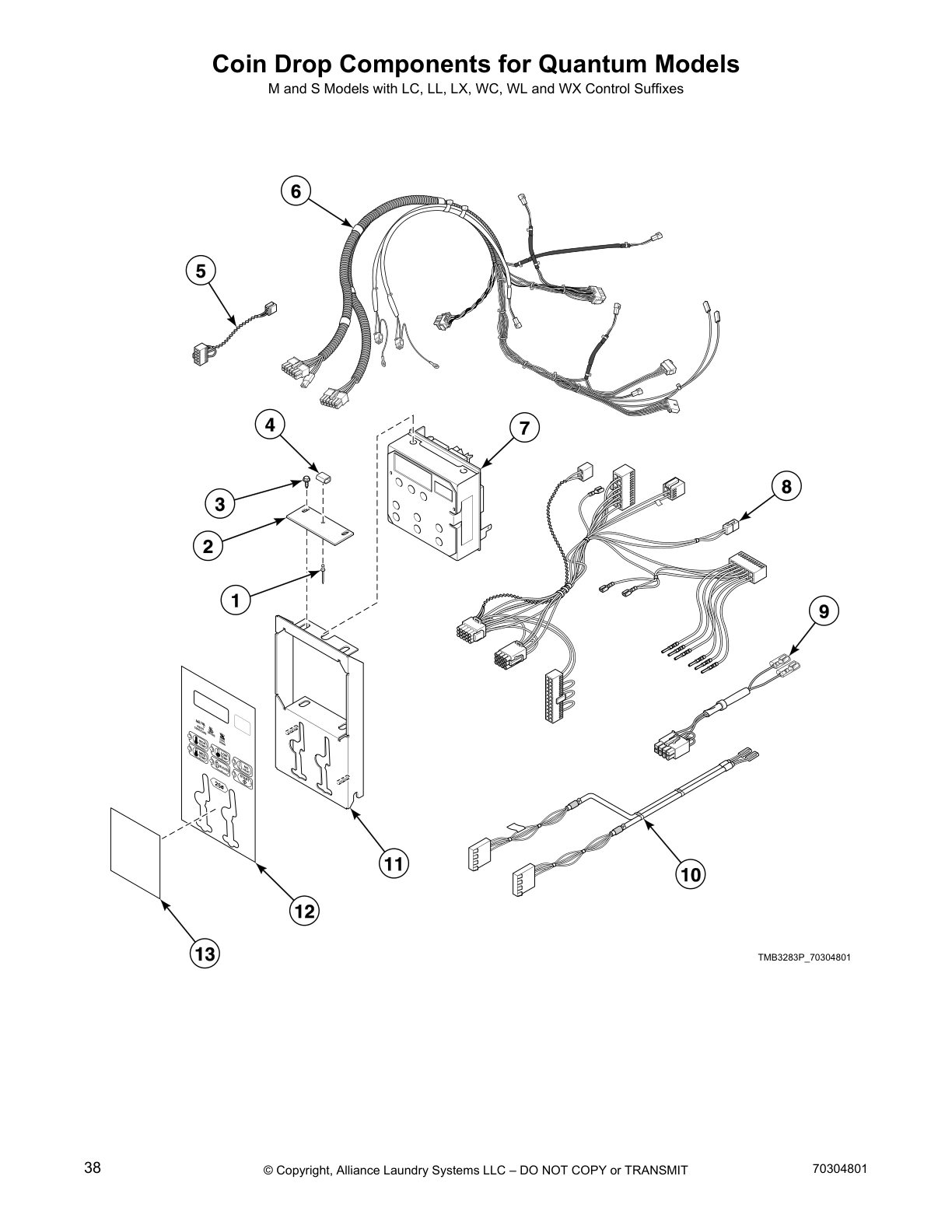

Coin Drop Components for Quantum Models

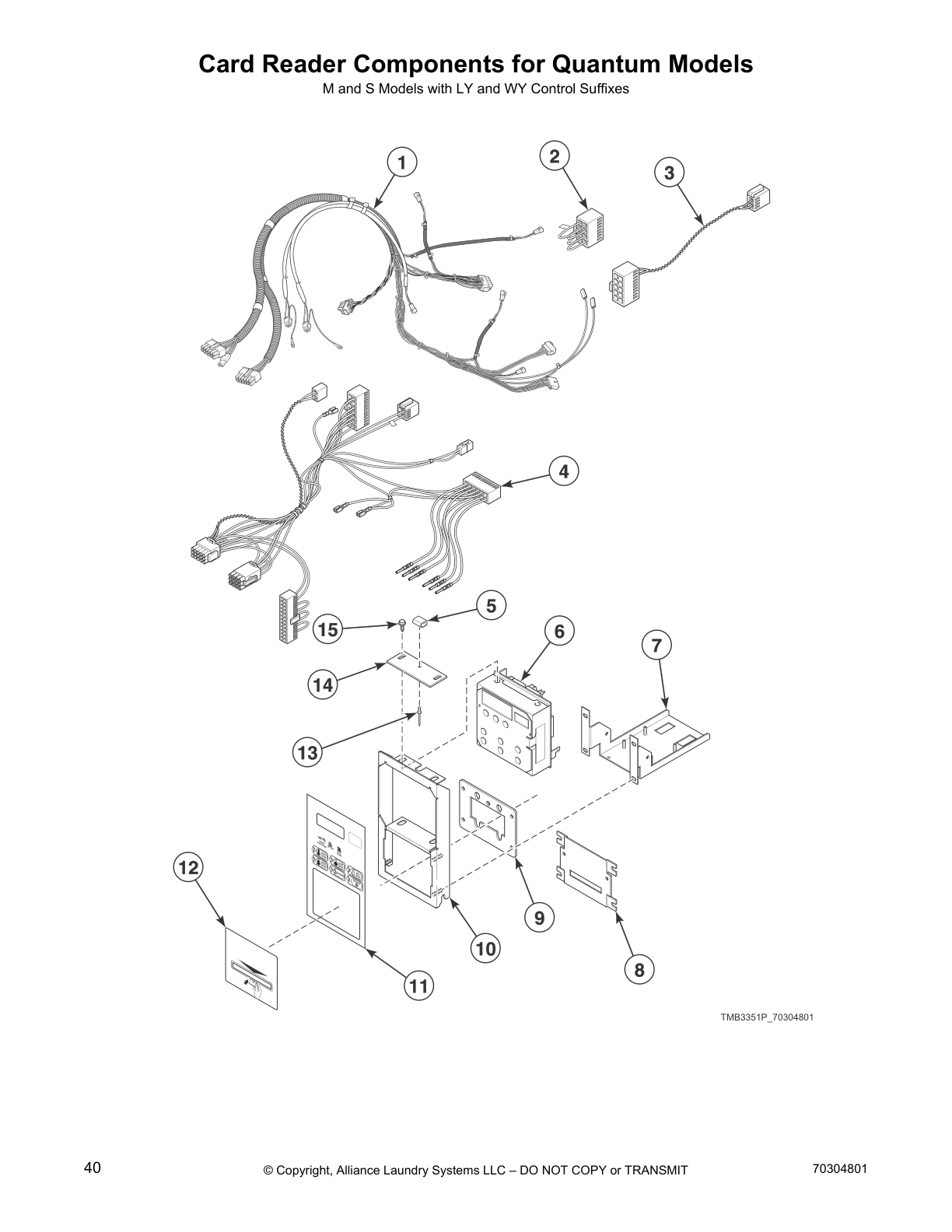

Card Reader Components for Quantum Models

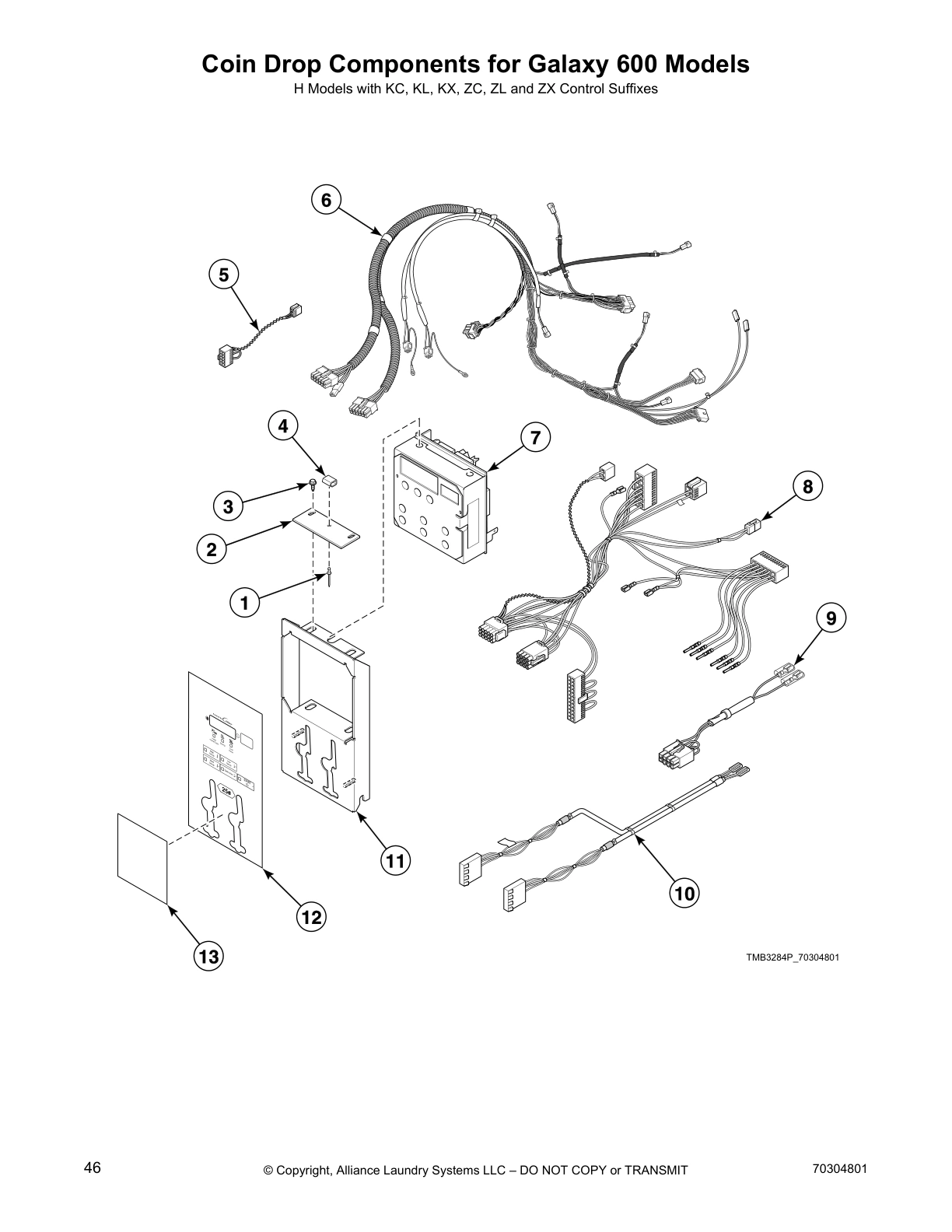

Coin Drop Components for Galaxy 600 Models

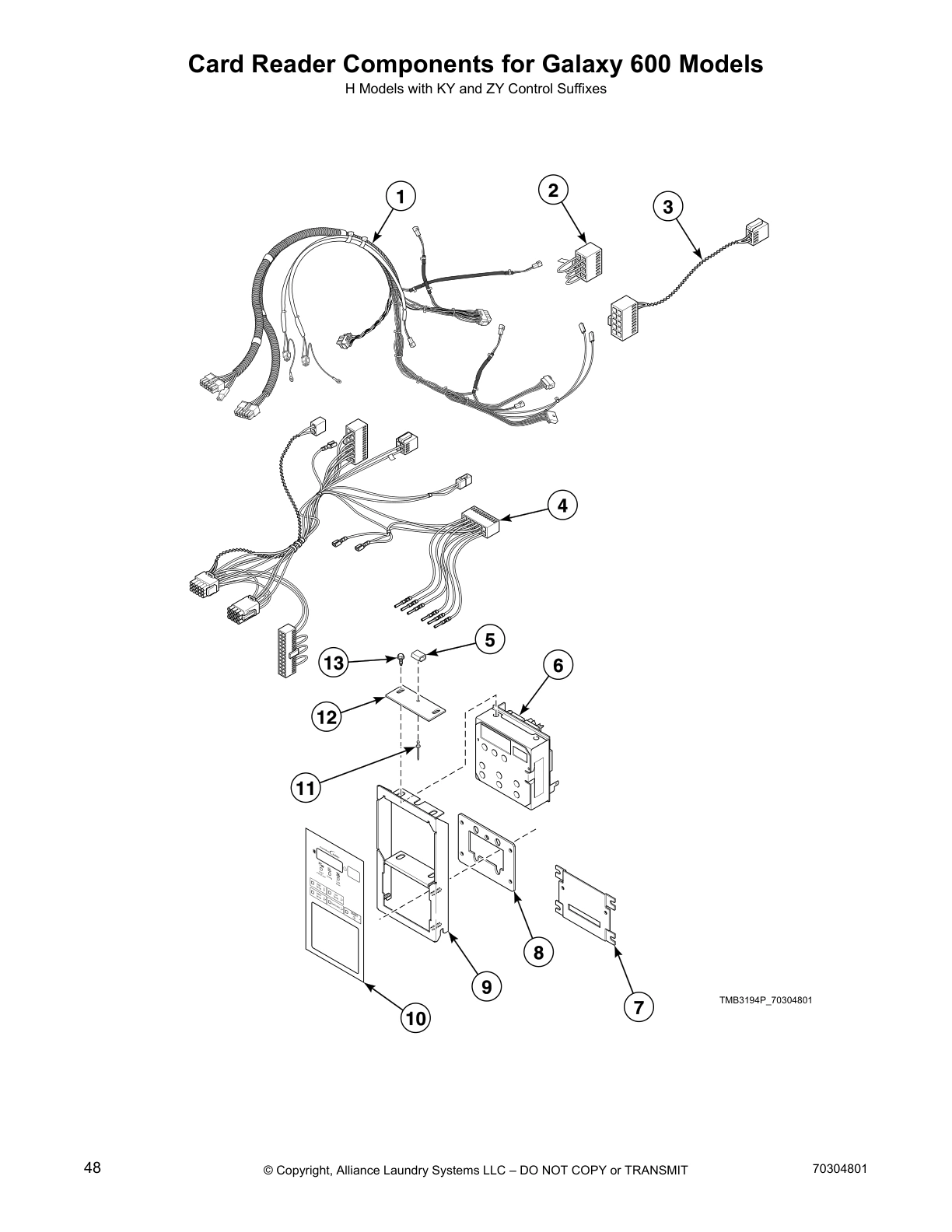

Card Reader Components for Galaxy 600 Models

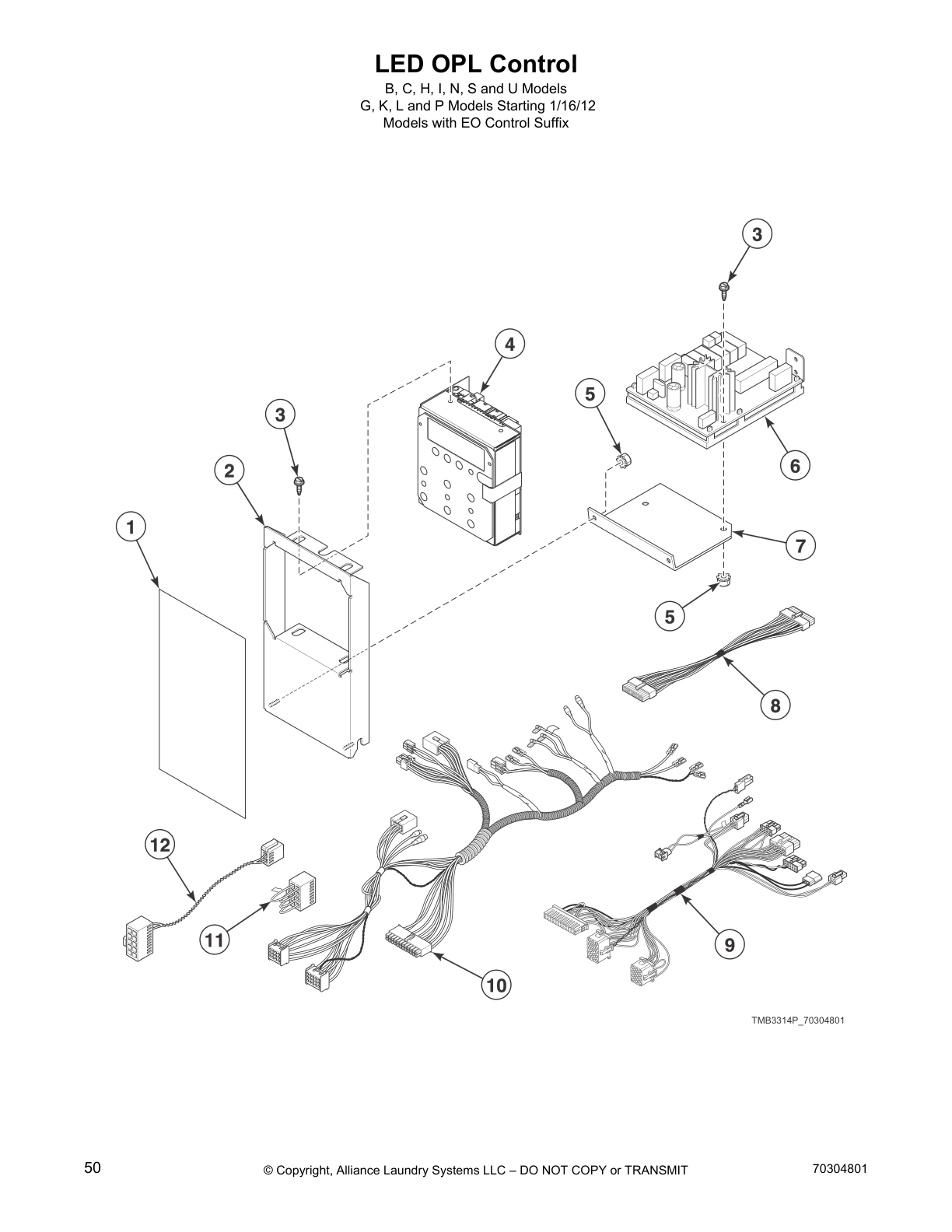

LED OPL Control

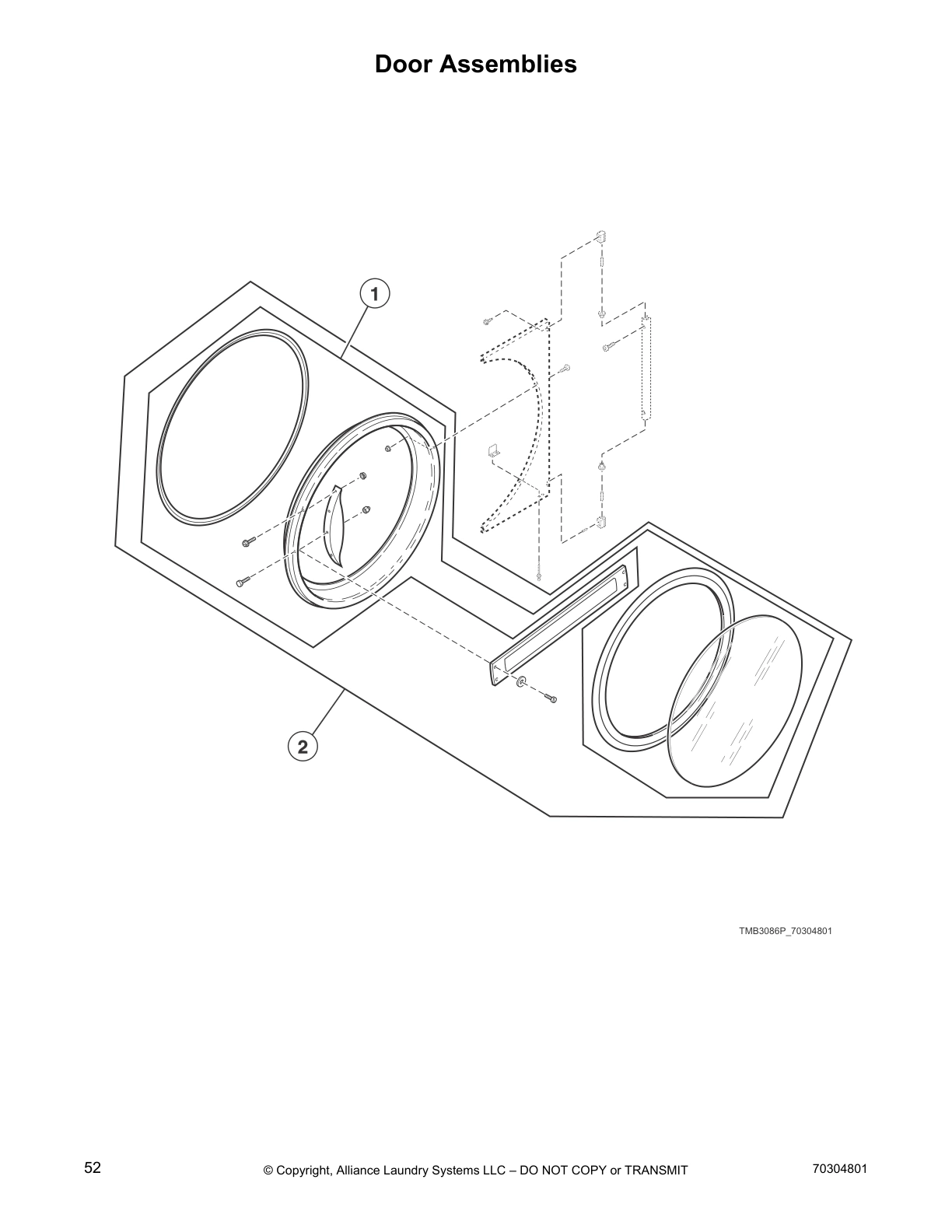

Door Assemblies

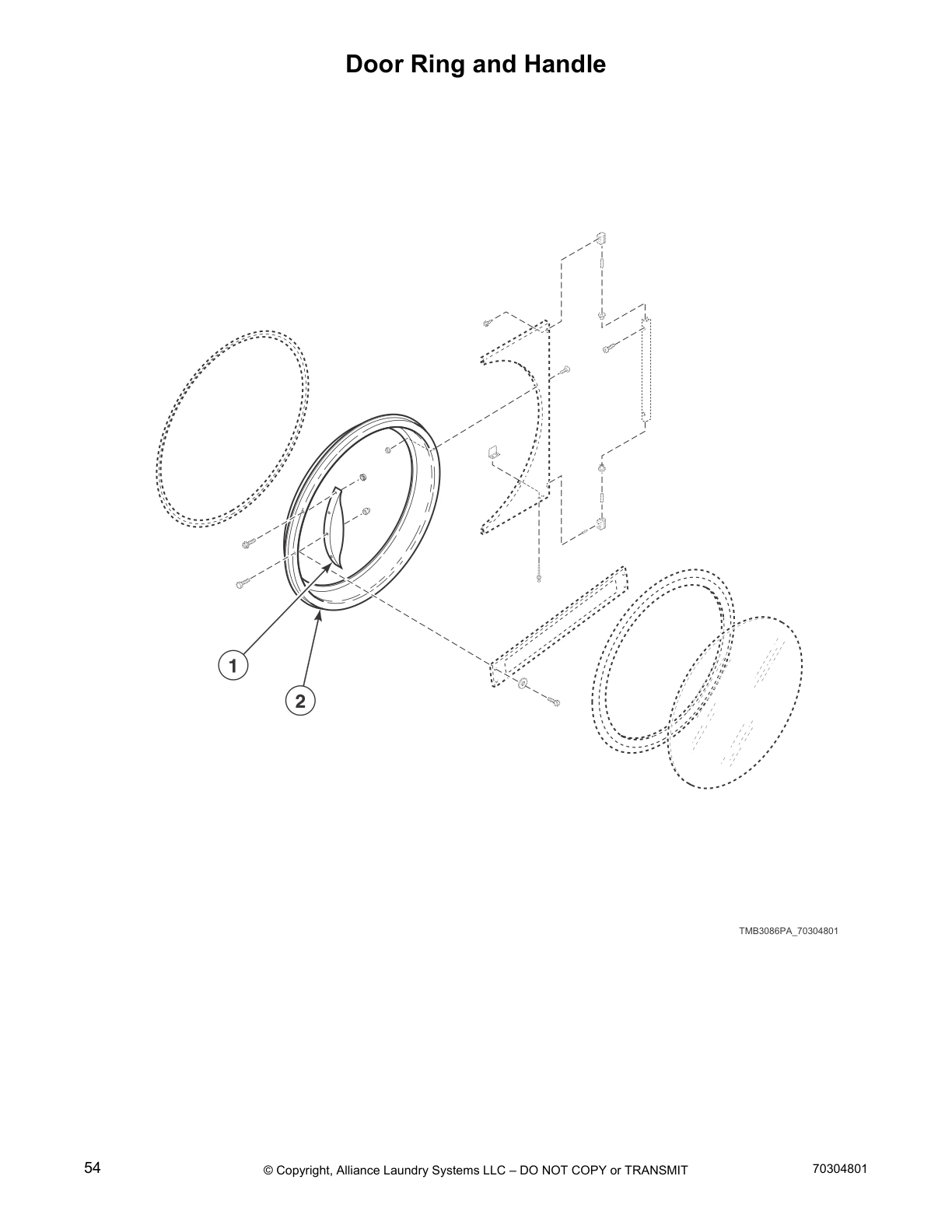

Door Ring and Handle

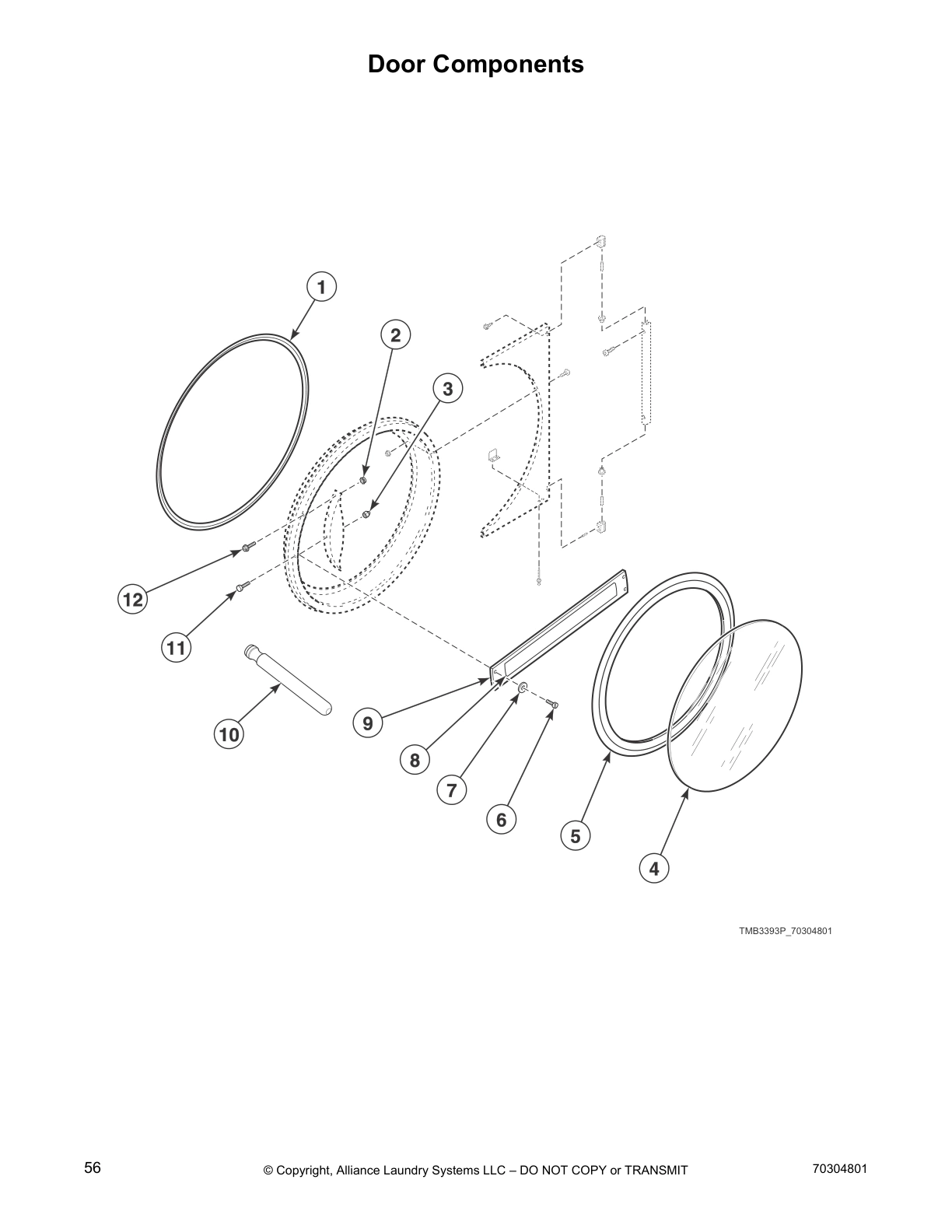

Door Components

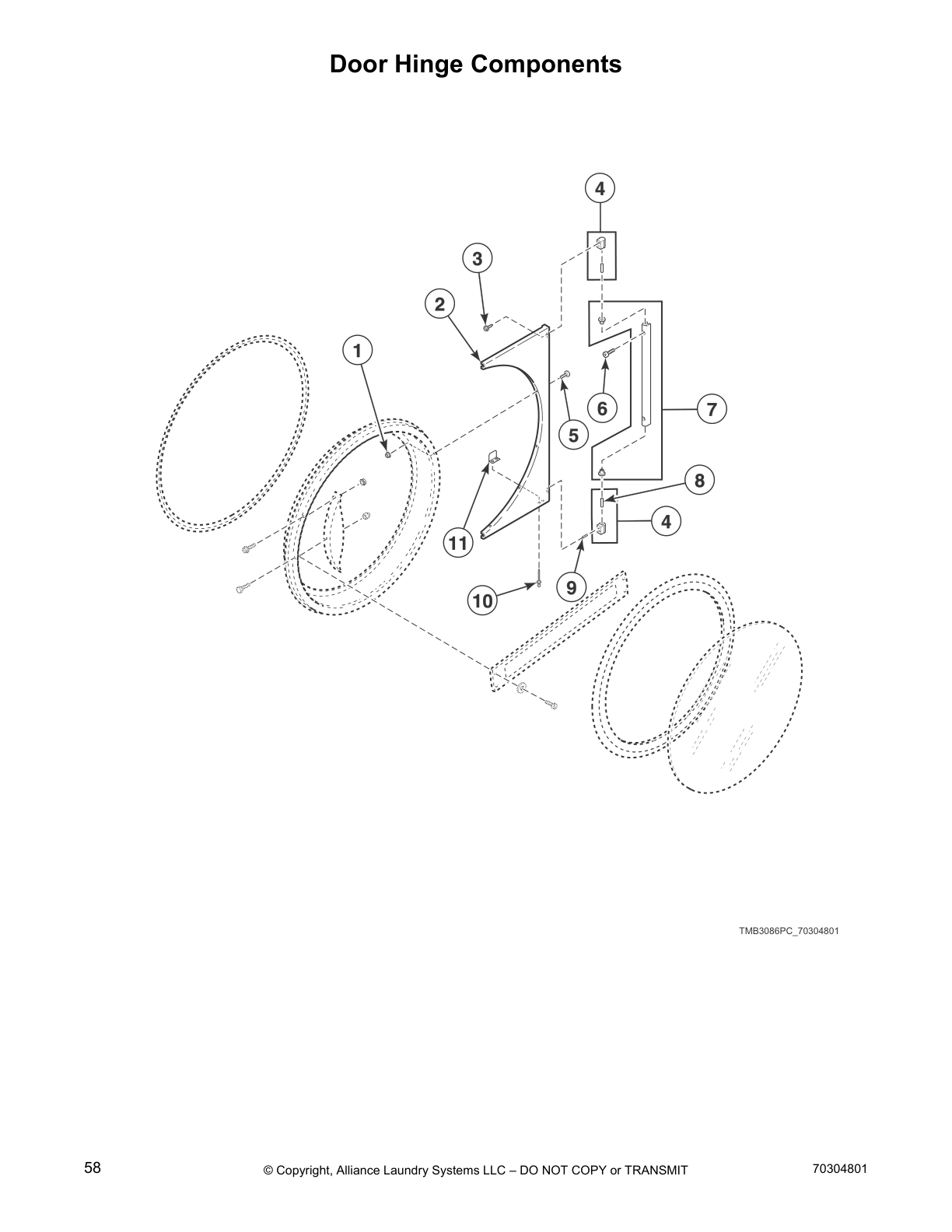

Door Hinge Components

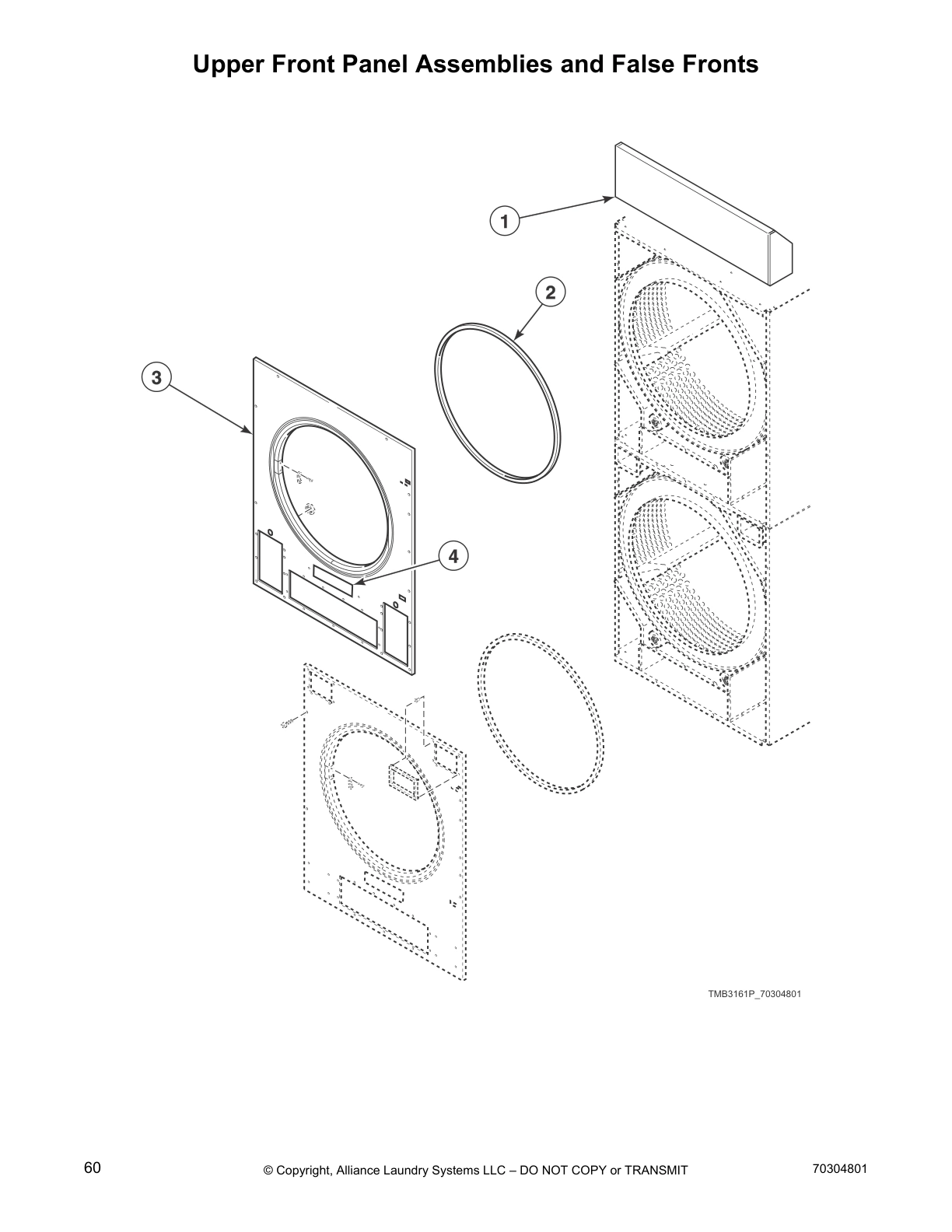

Upper Front Panel Assemblies and False Fronts

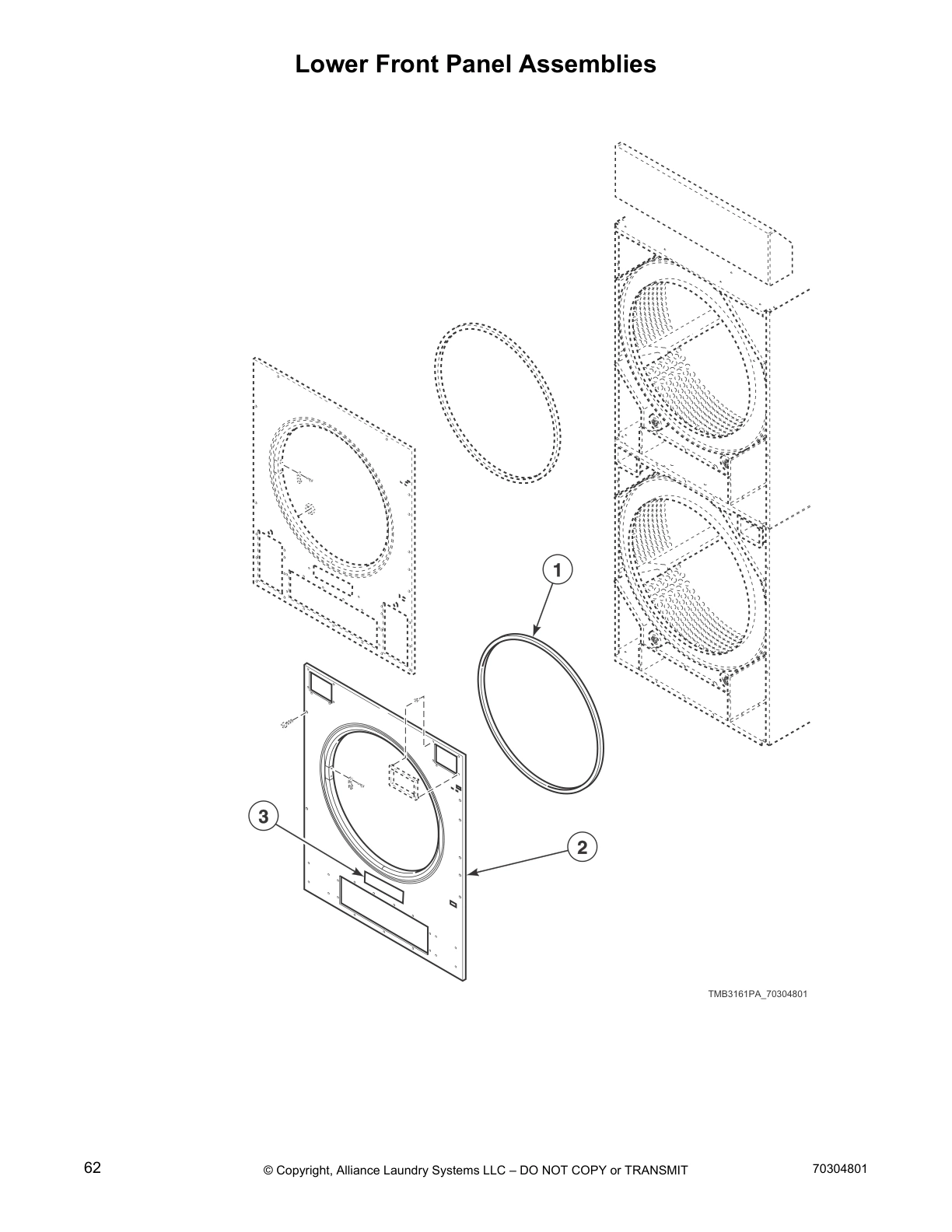

Lower Front Panel Assemblies

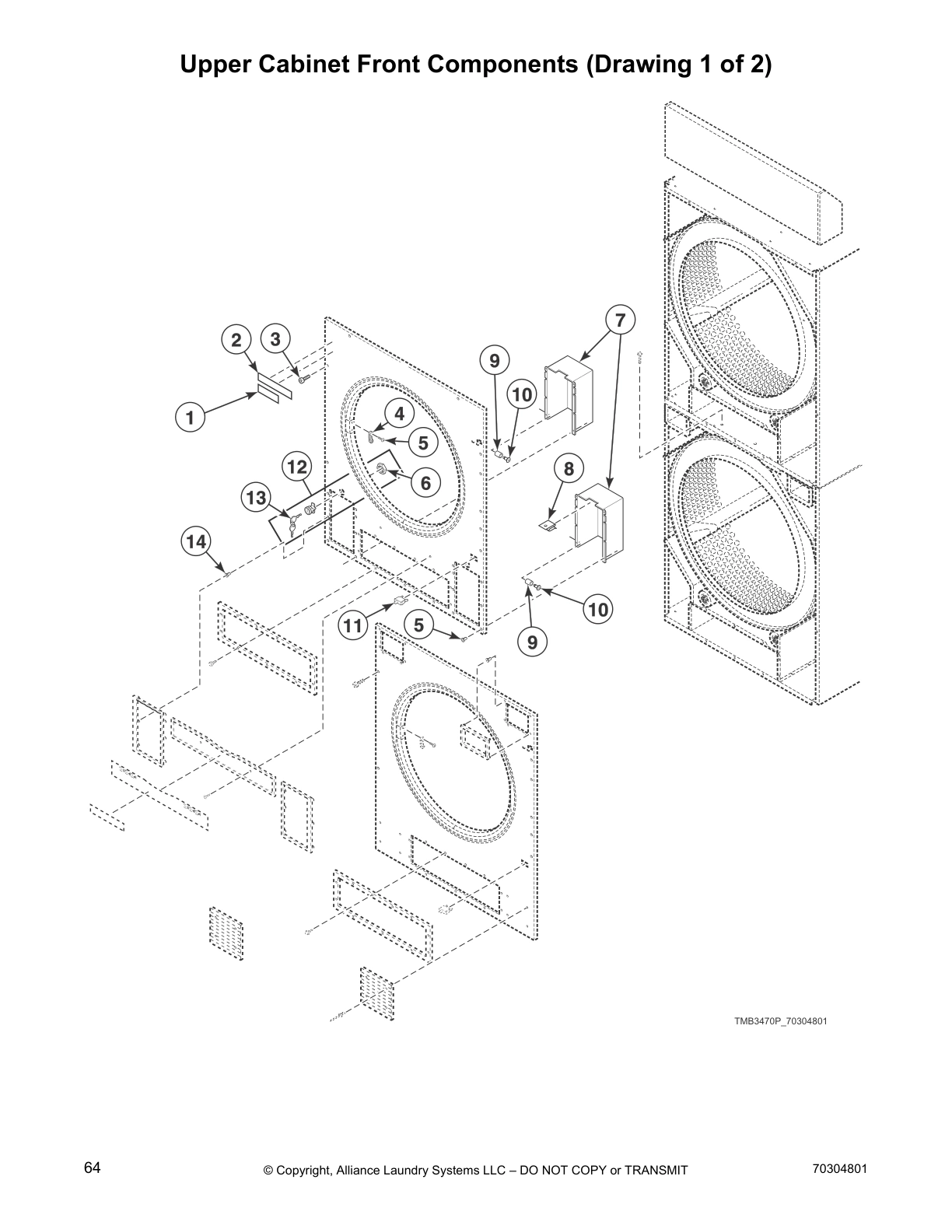

Upper Cabinet Front Components (Drawing 1 of 2)

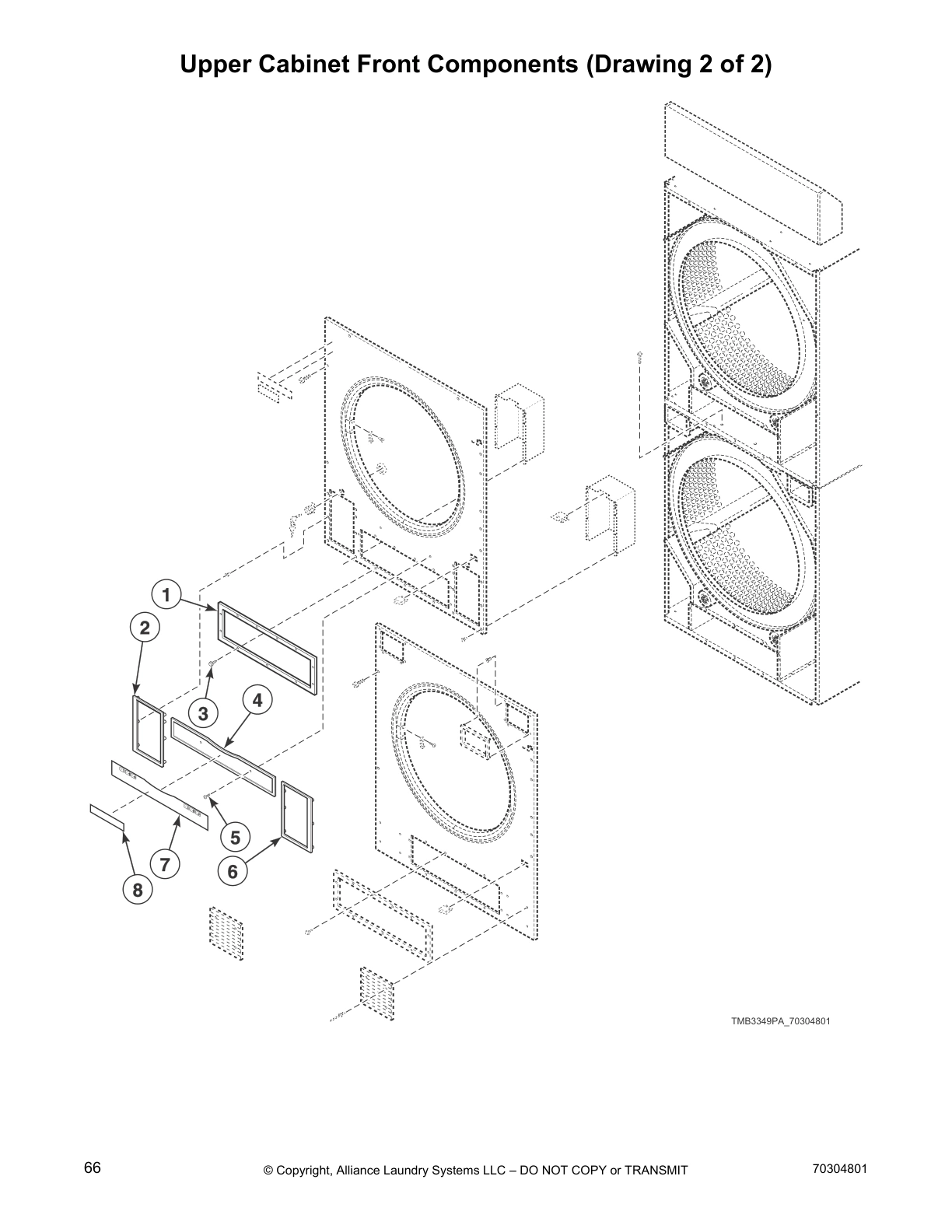

Upper Cabinet Front Components (Drawing 2 of 2)

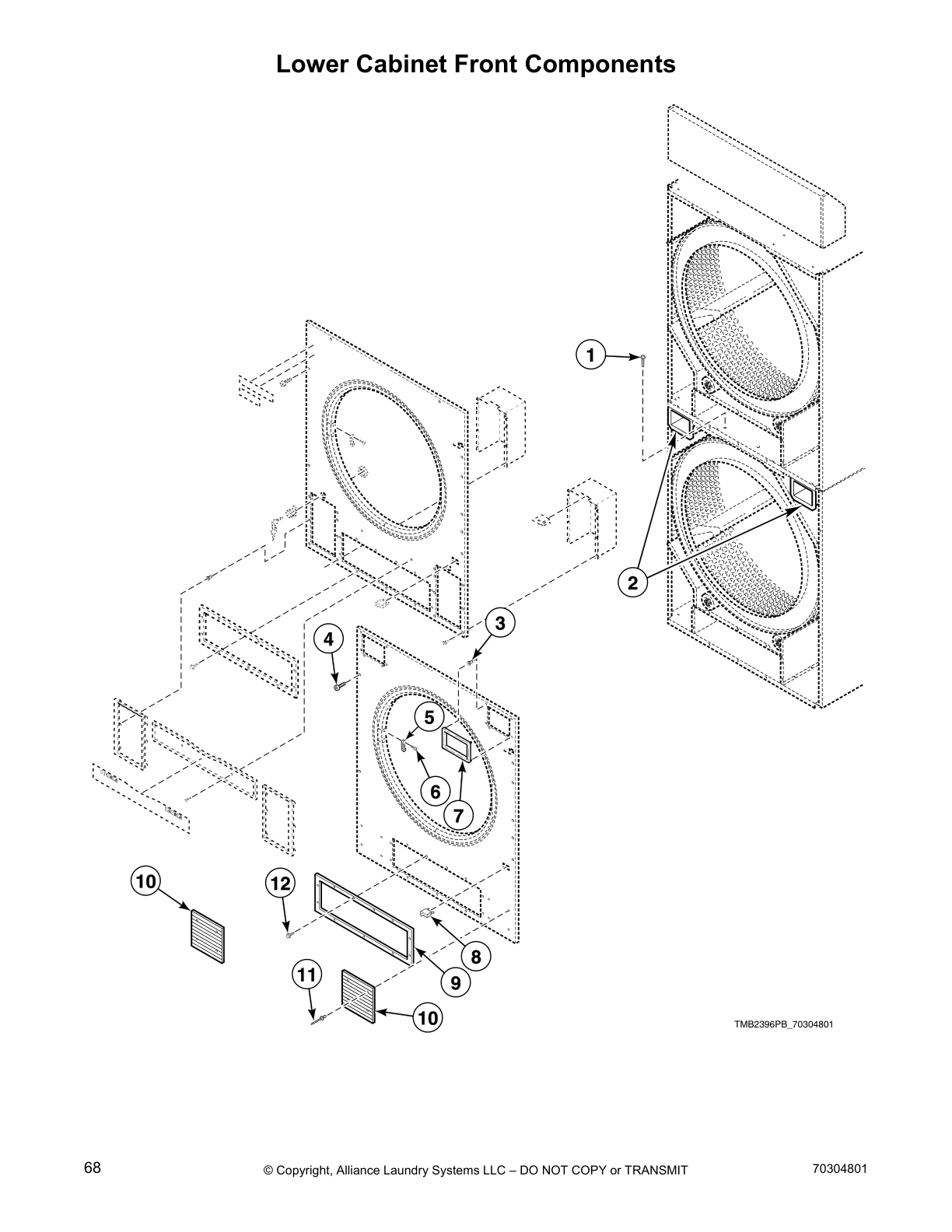

Lower Cabinet Front Components

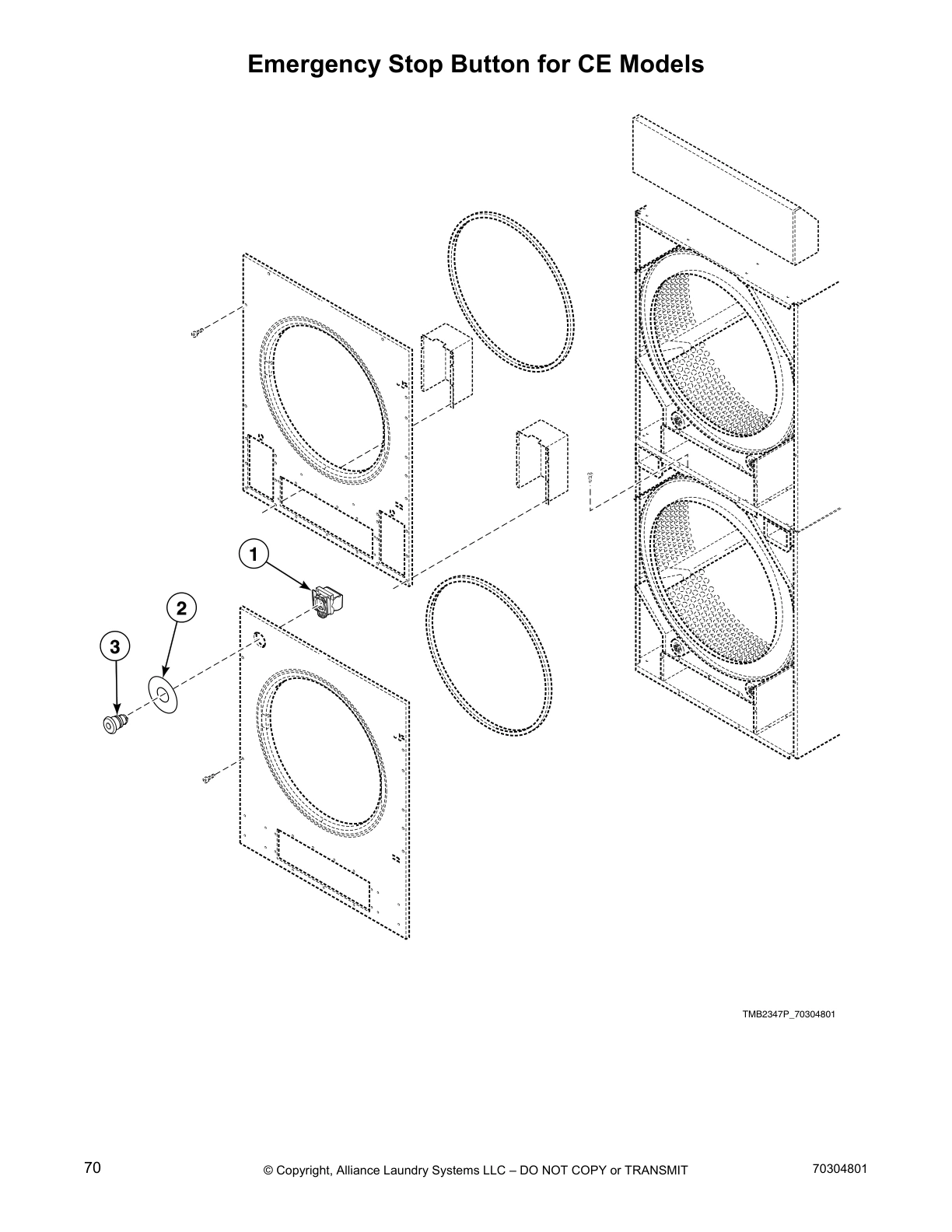

Emergency Stop Button for CE Models

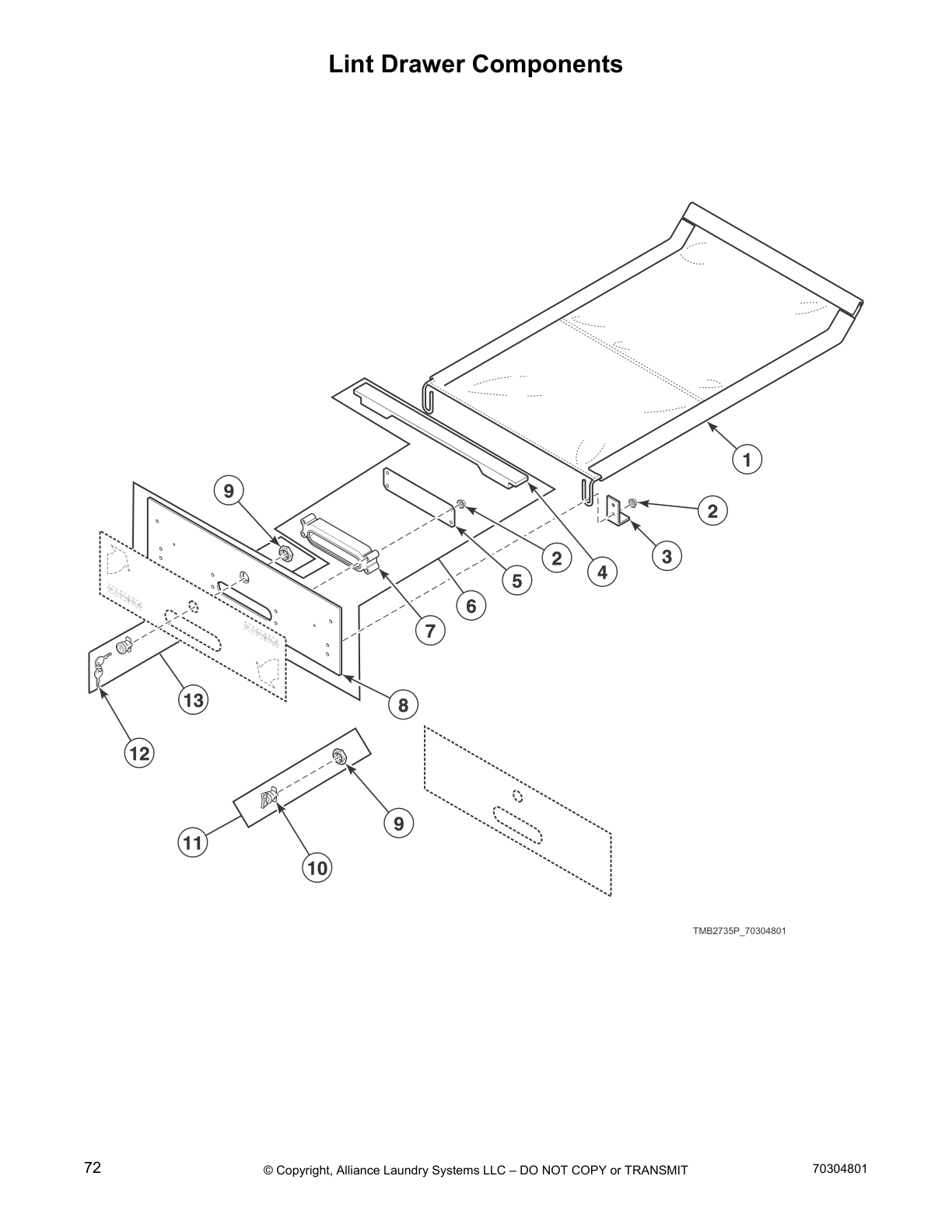

Lint Drawer Components

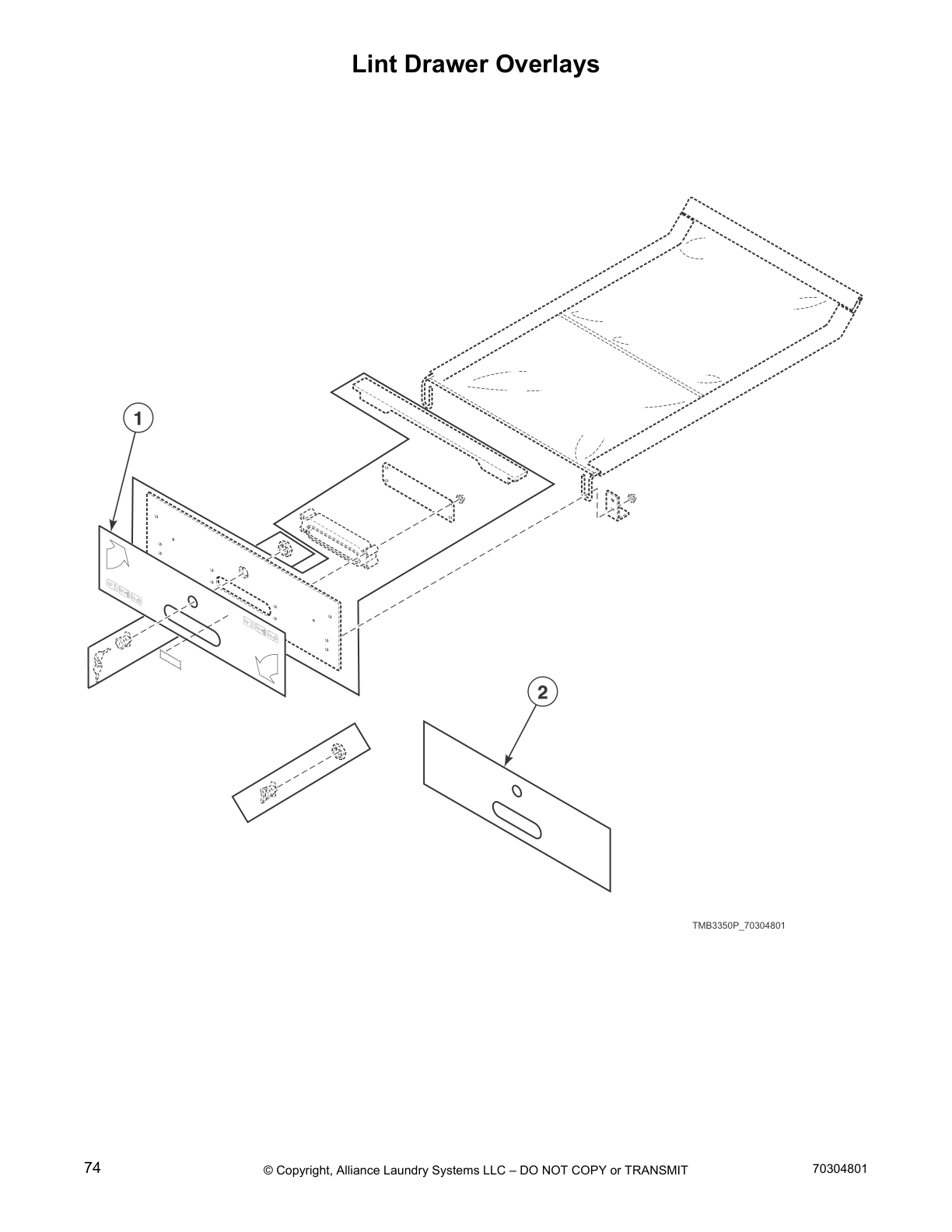

Lint Drawer Overlays
Cylinder and Trunnion Components

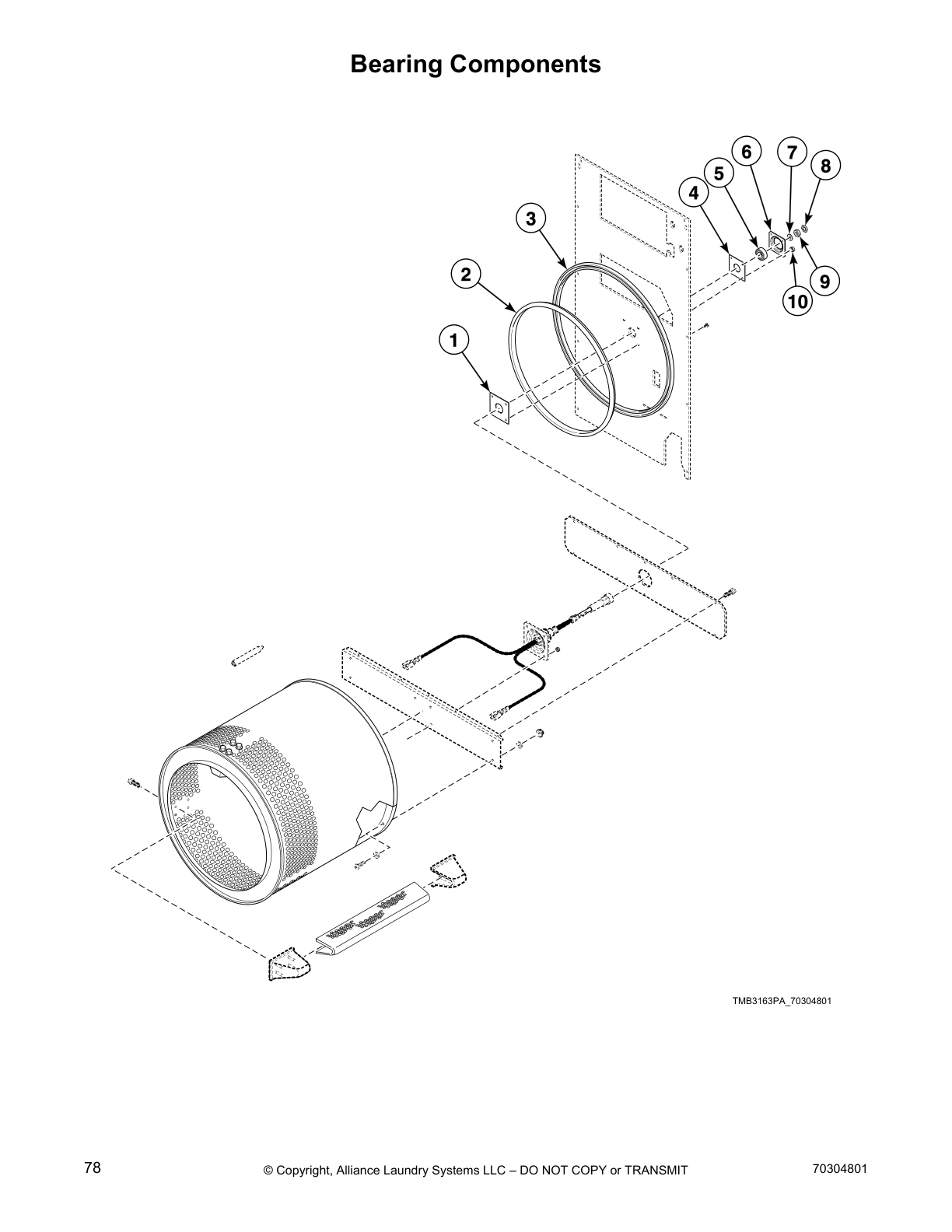

Bearing Components

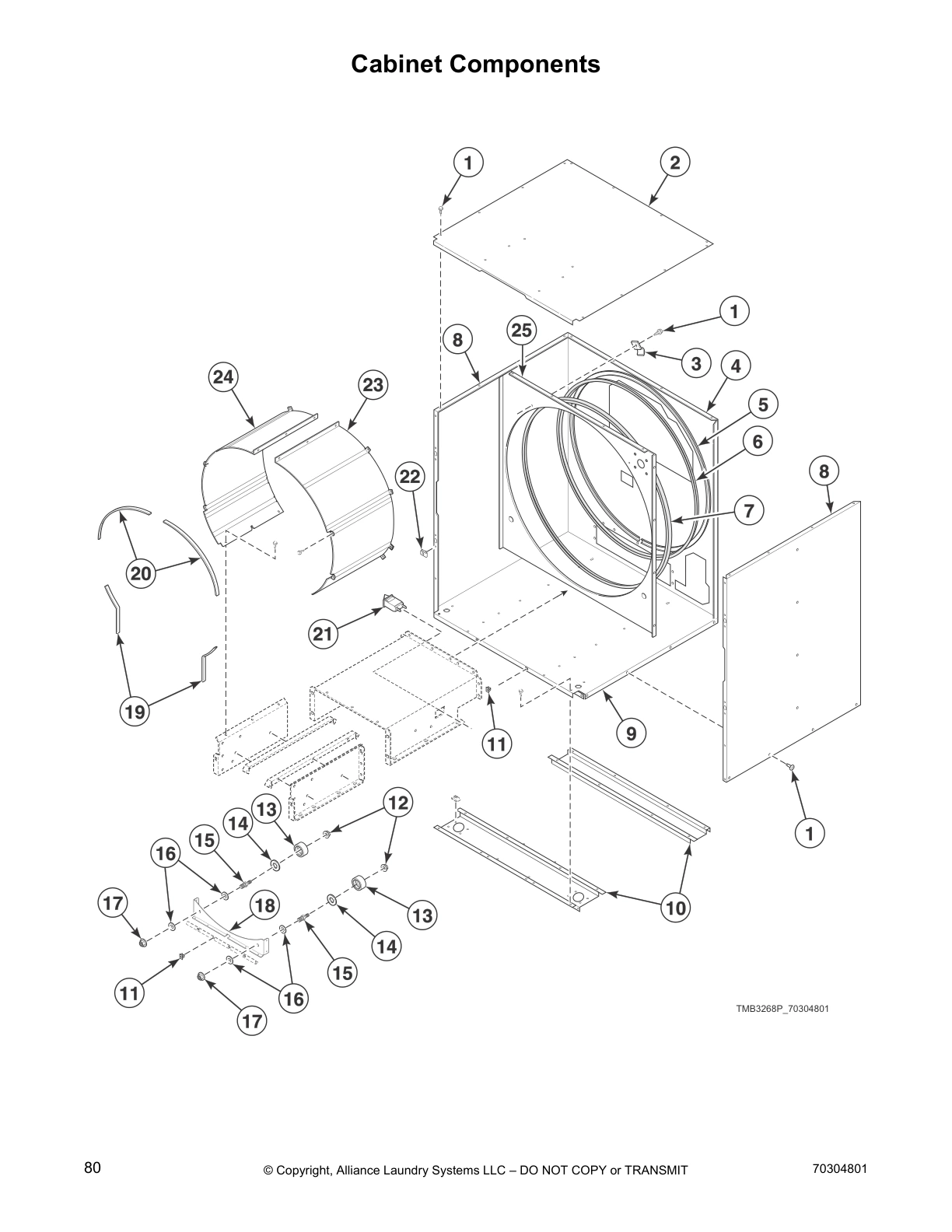

Cabinet Components

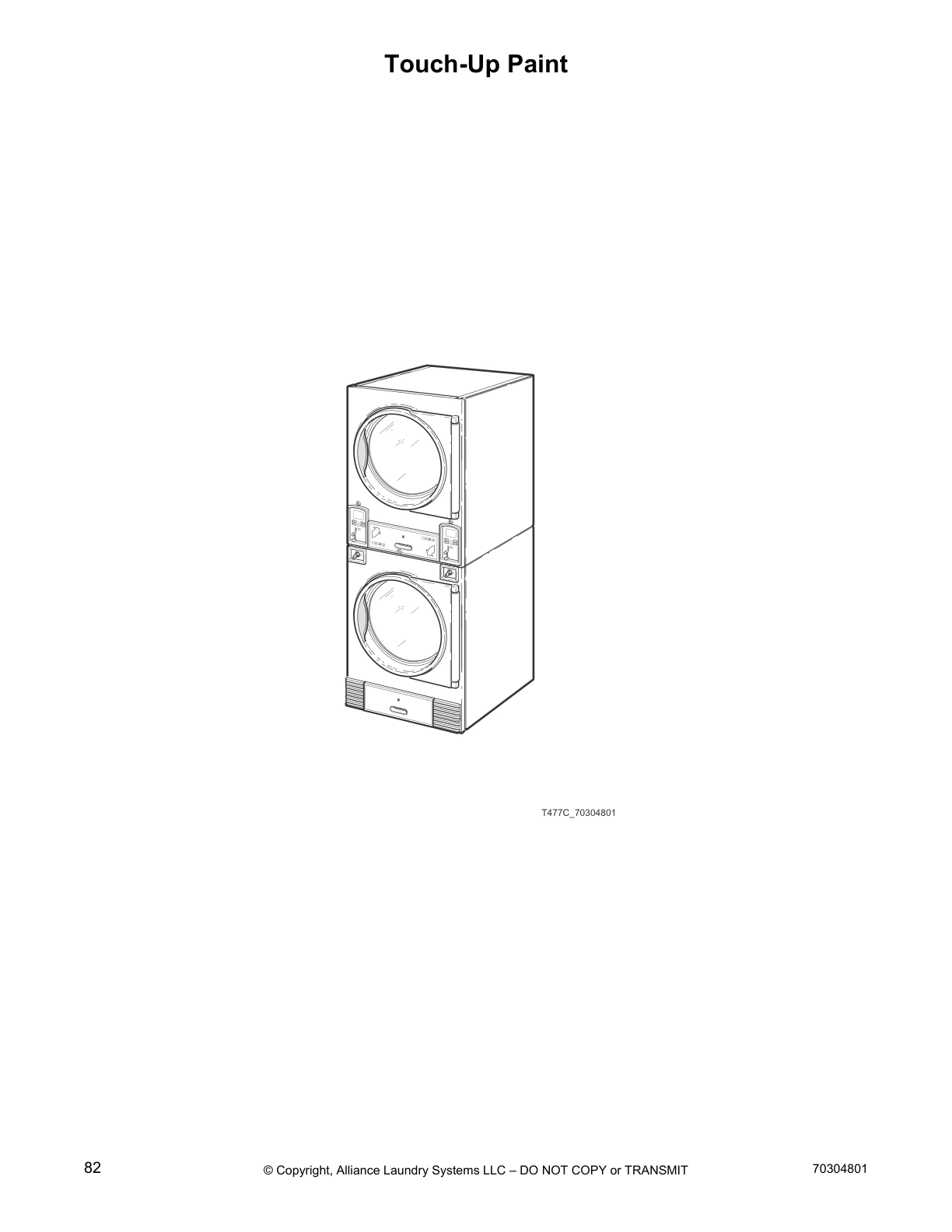

Touch-Up Paint

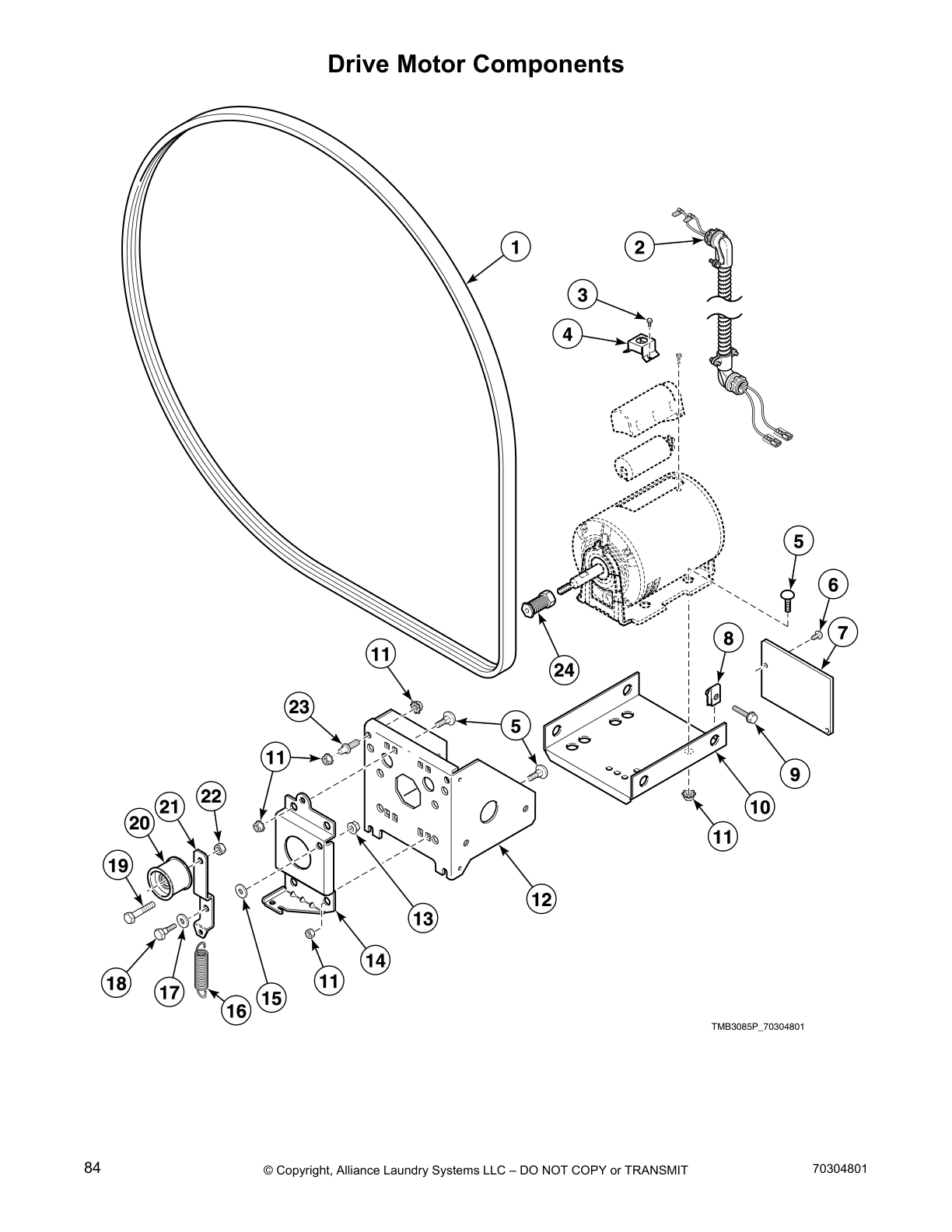

Drive Motor Components

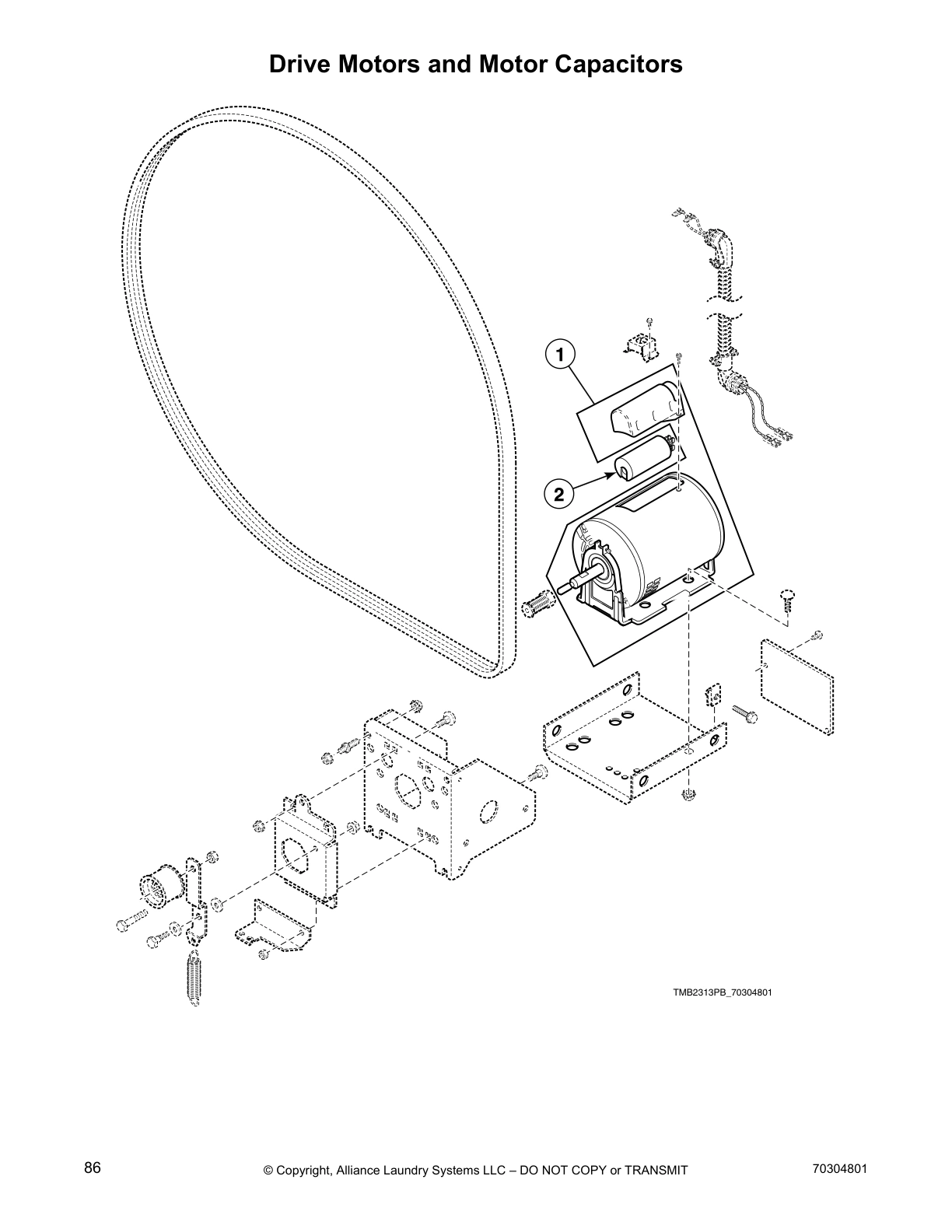

Drive Motors and Motor Capacitors

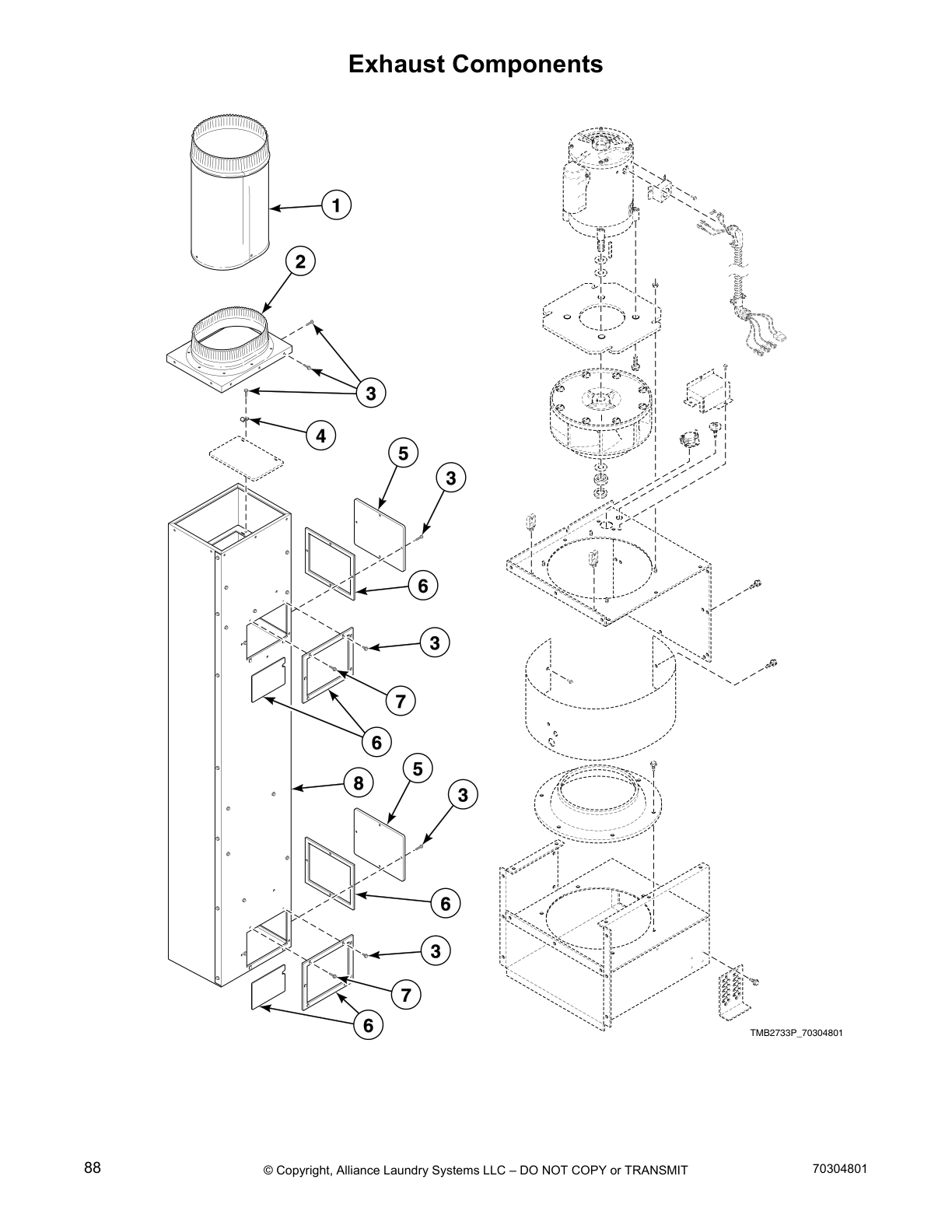

Exhaust Components

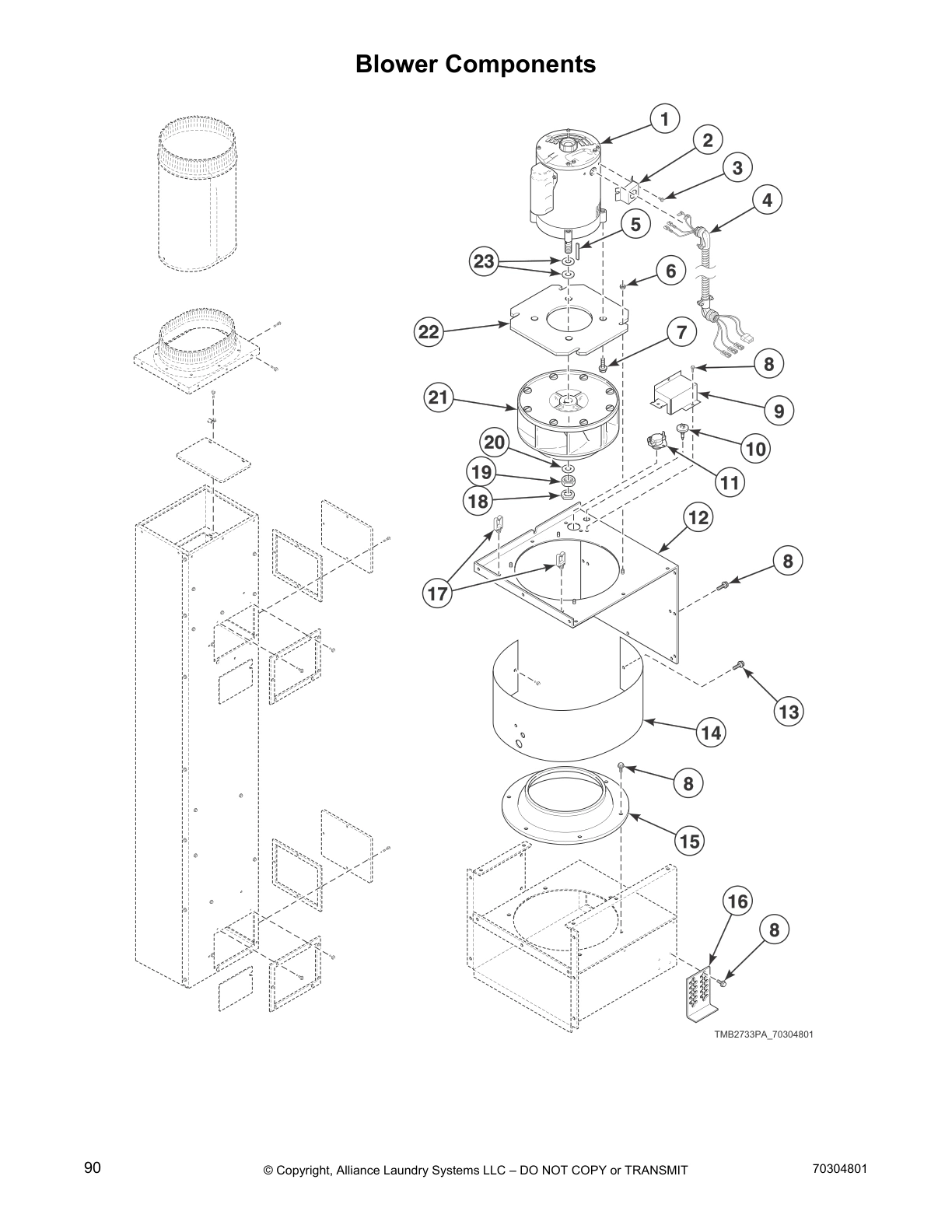

Blower Components

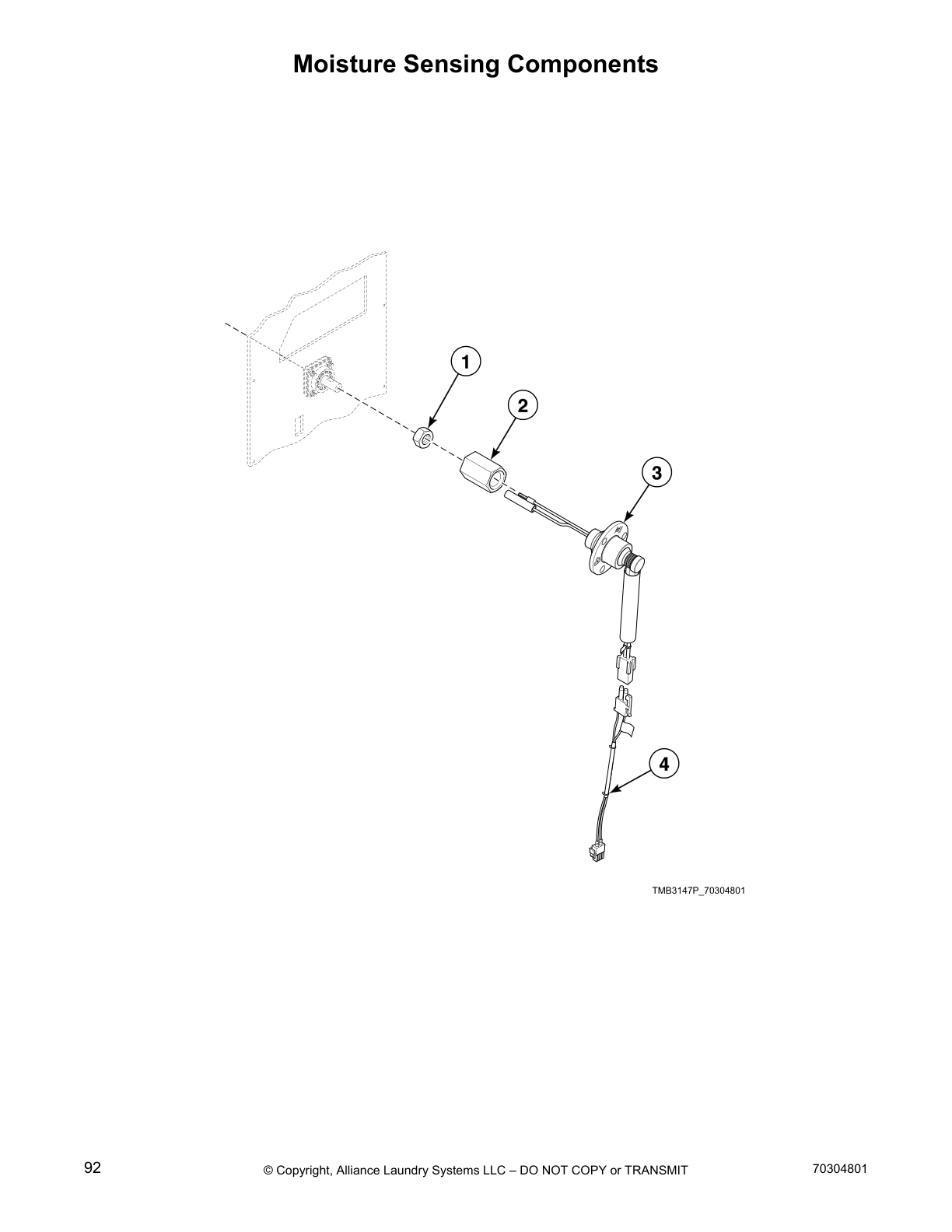

Moisture Sensing Components

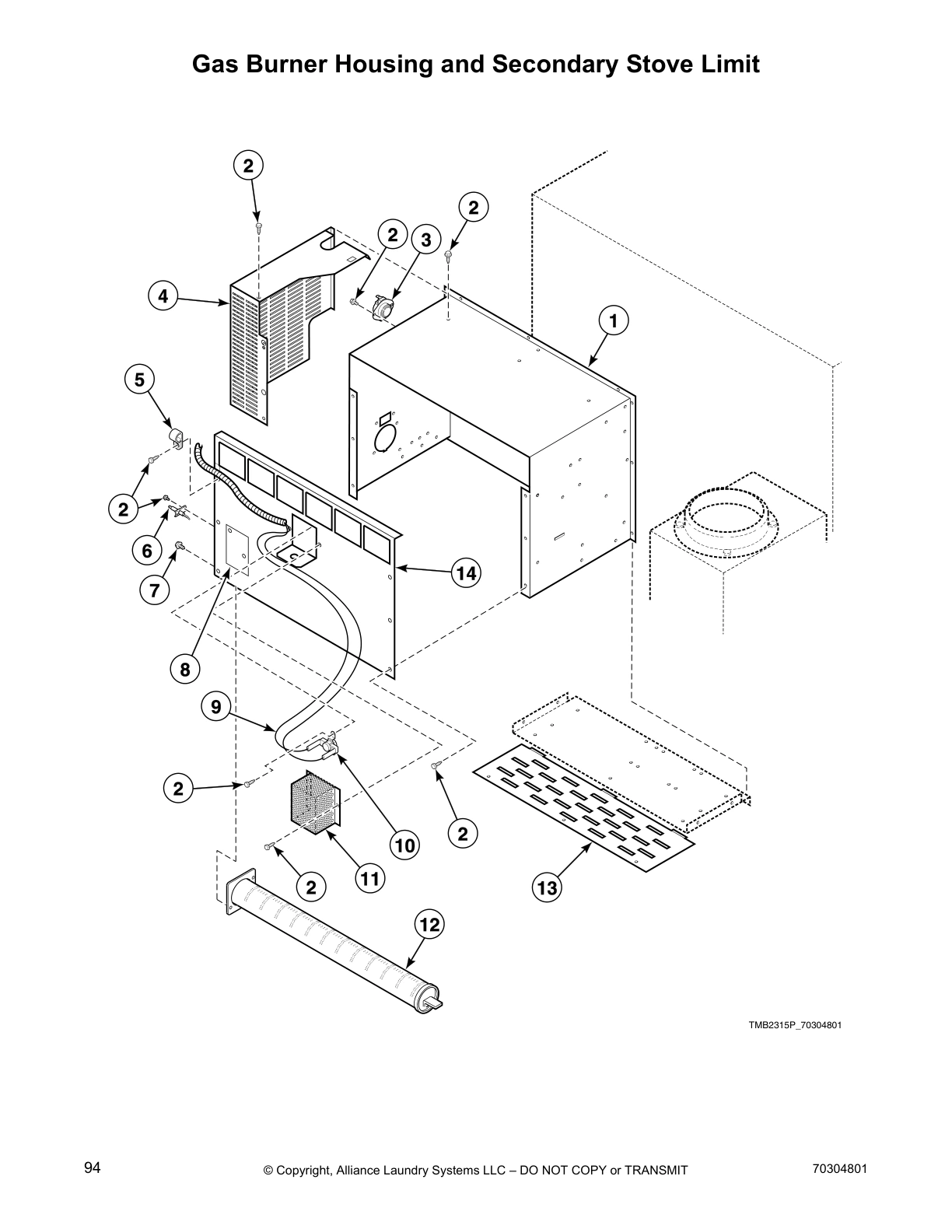

Gas Burner Housing and Secondary Stove Limit

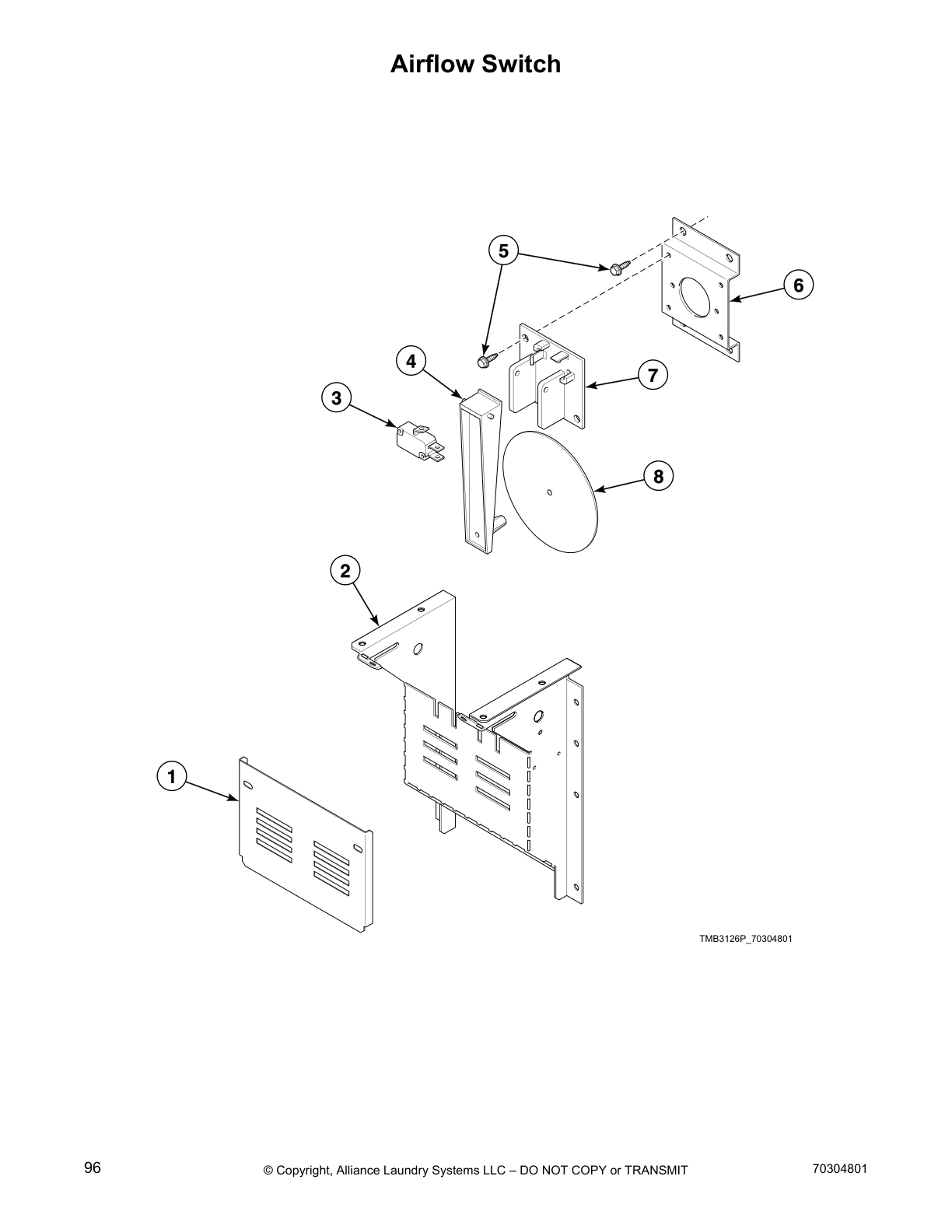

Airflow Switch

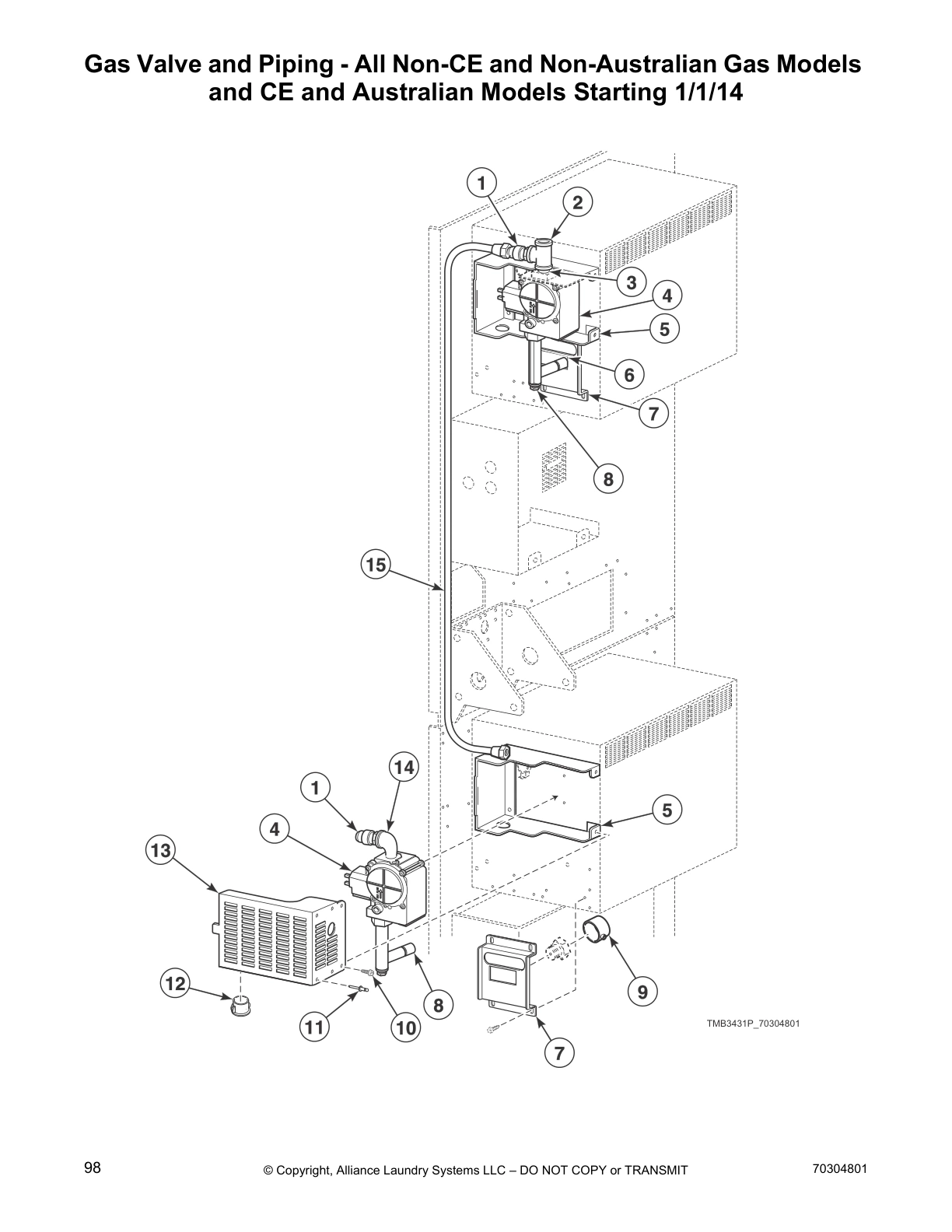

Gas Valve and Piping - All Non-CE and Non-Australian Gas Models
and CE and Australian Models Starting 1/1/14

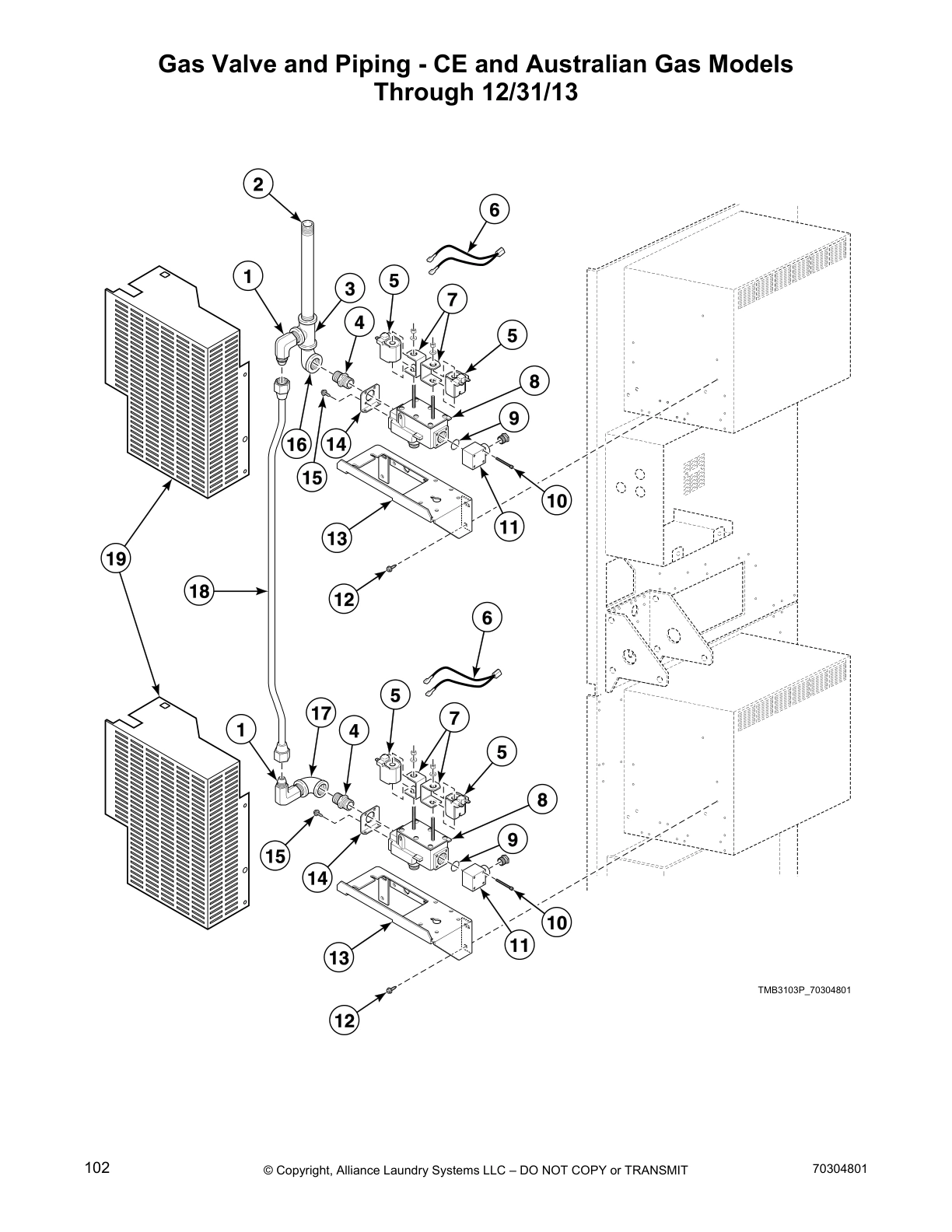

Gas Valve and Piping - CE and Australian Gas Models
Through 12/31/13

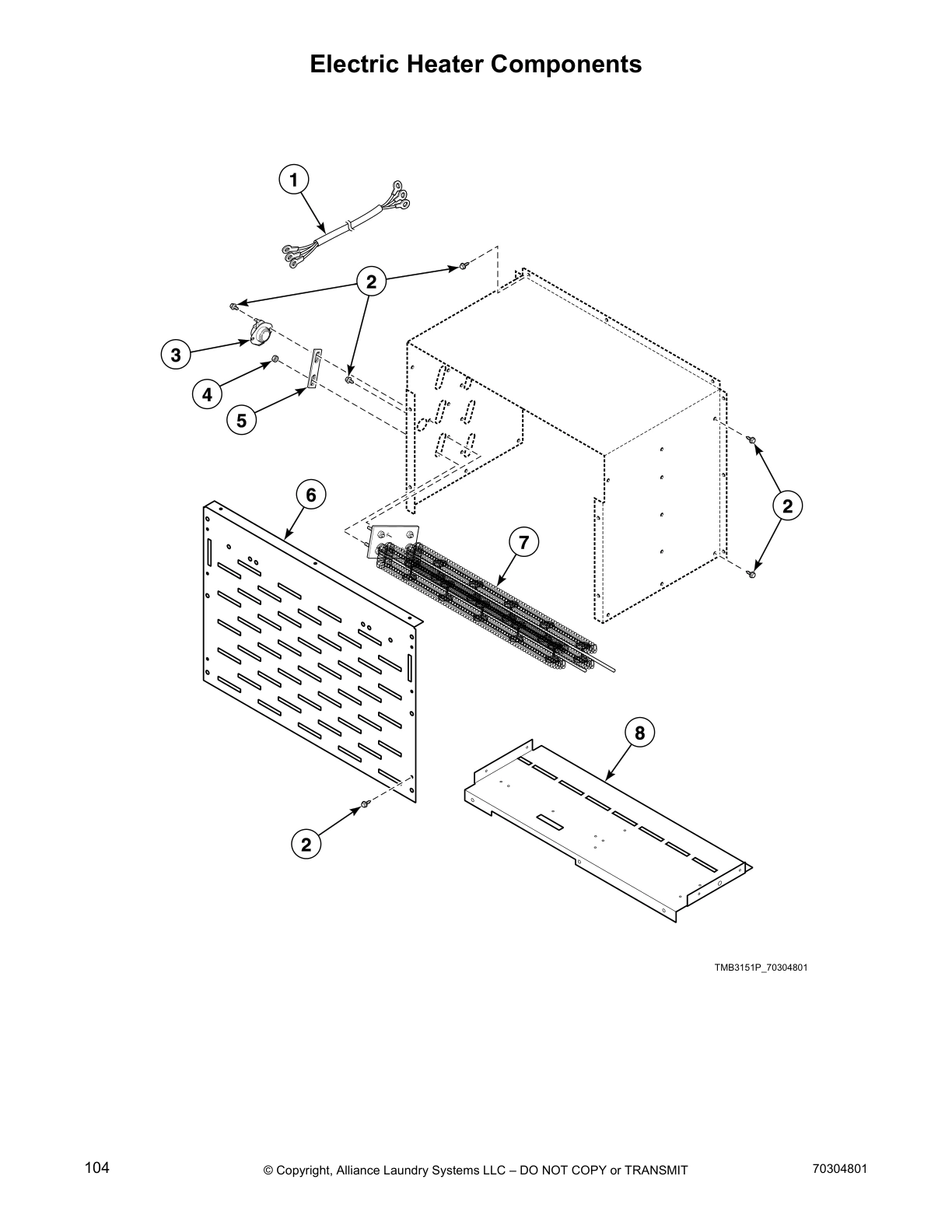

Electric Heater Components

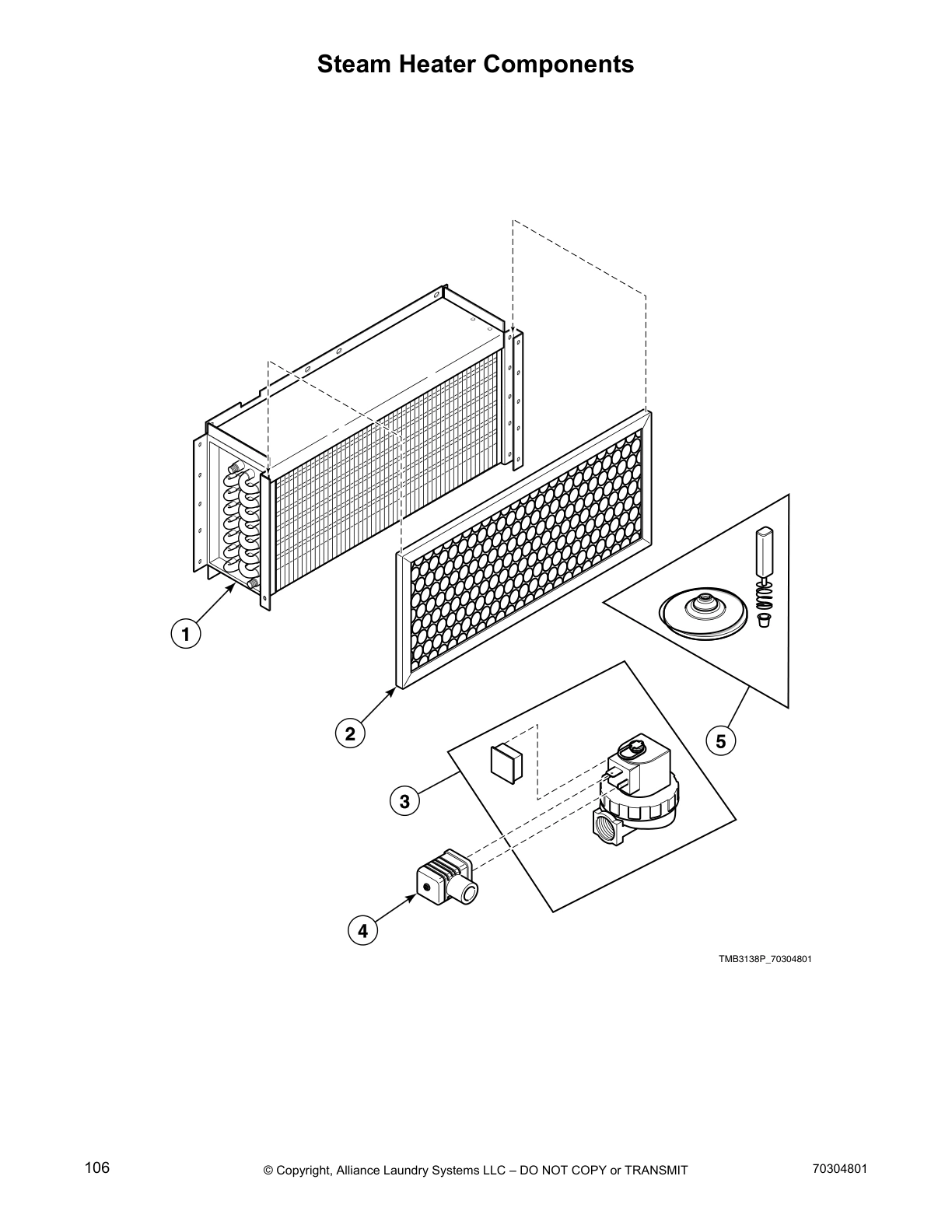

Steam Heater Components

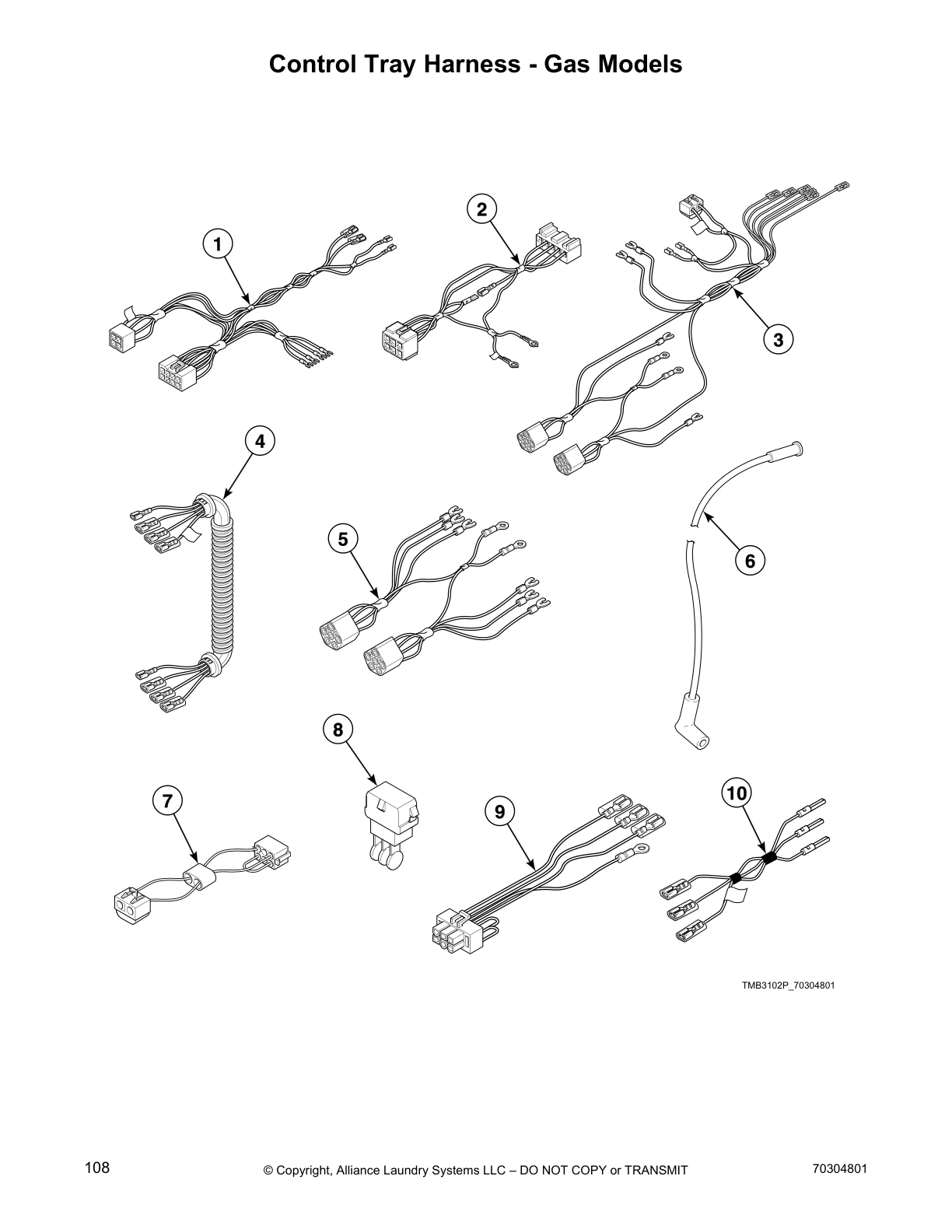

Control Tray Harness - Gas Models
Control Tray Components - Non-CE and Non-Australian

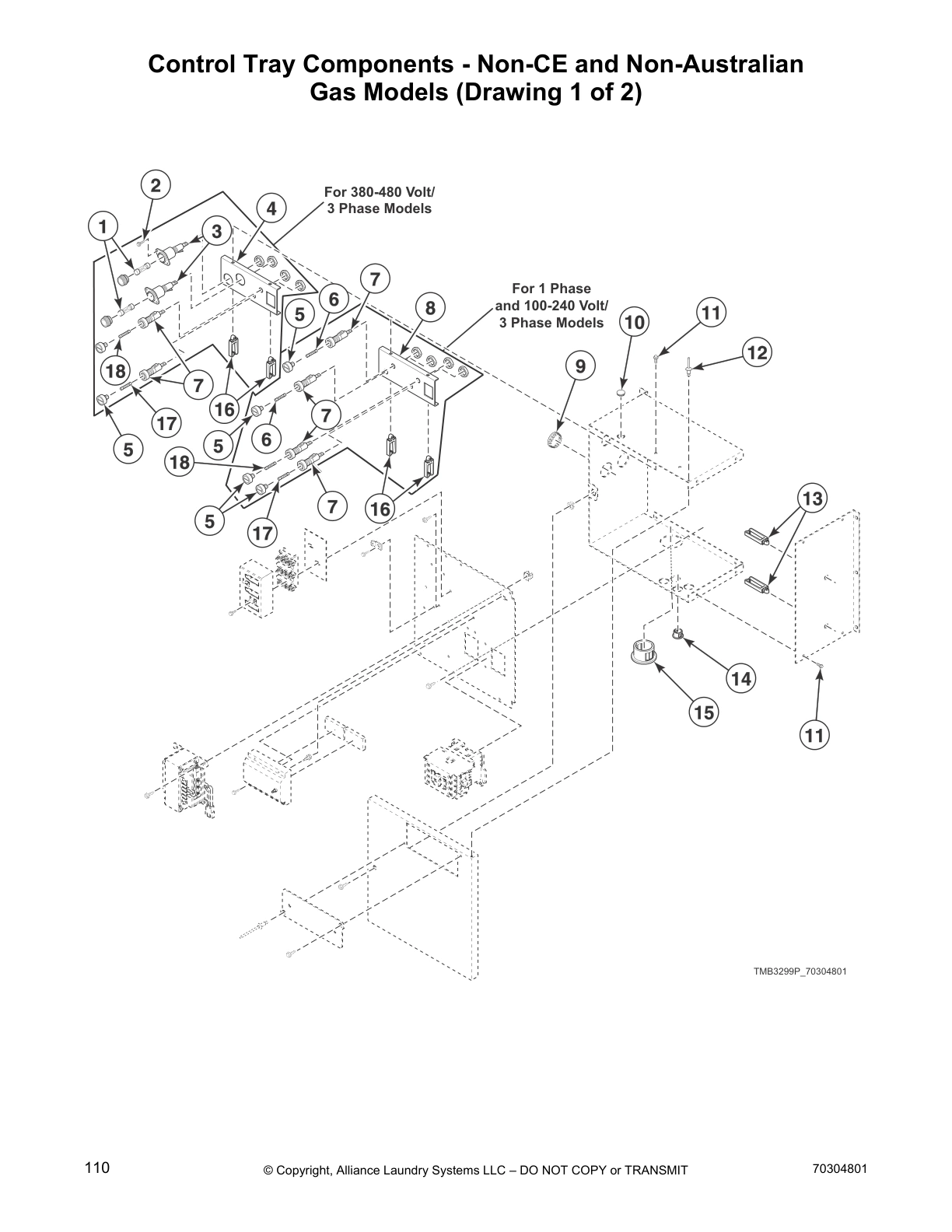

Gas Models (Drawing 1 of 2)
Control Tray Components - Non-CE and Non-Australian

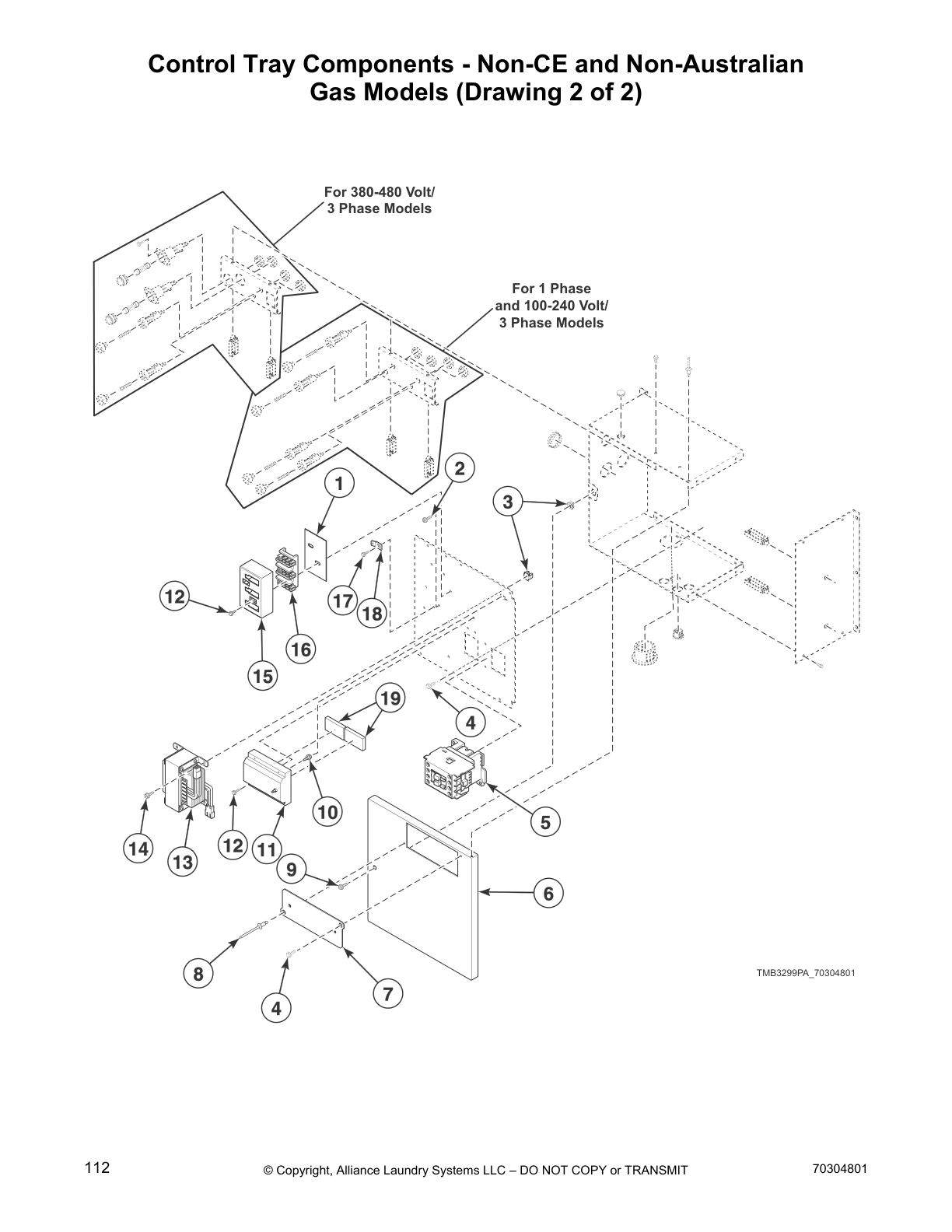

Gas Models (Drawing 2 of 2)

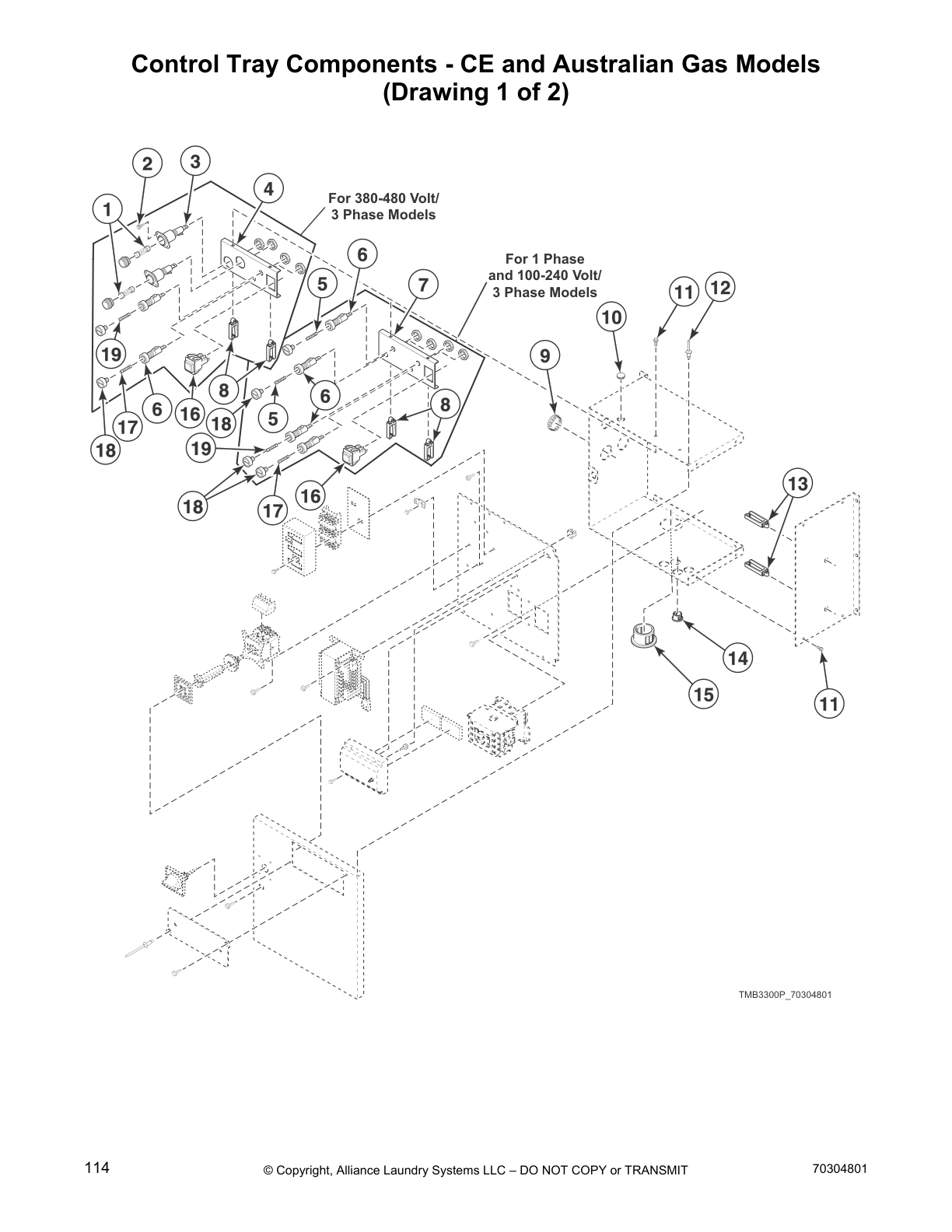

Control Tray Components - CE and Australian Gas Models
(Drawing 1 of 2)

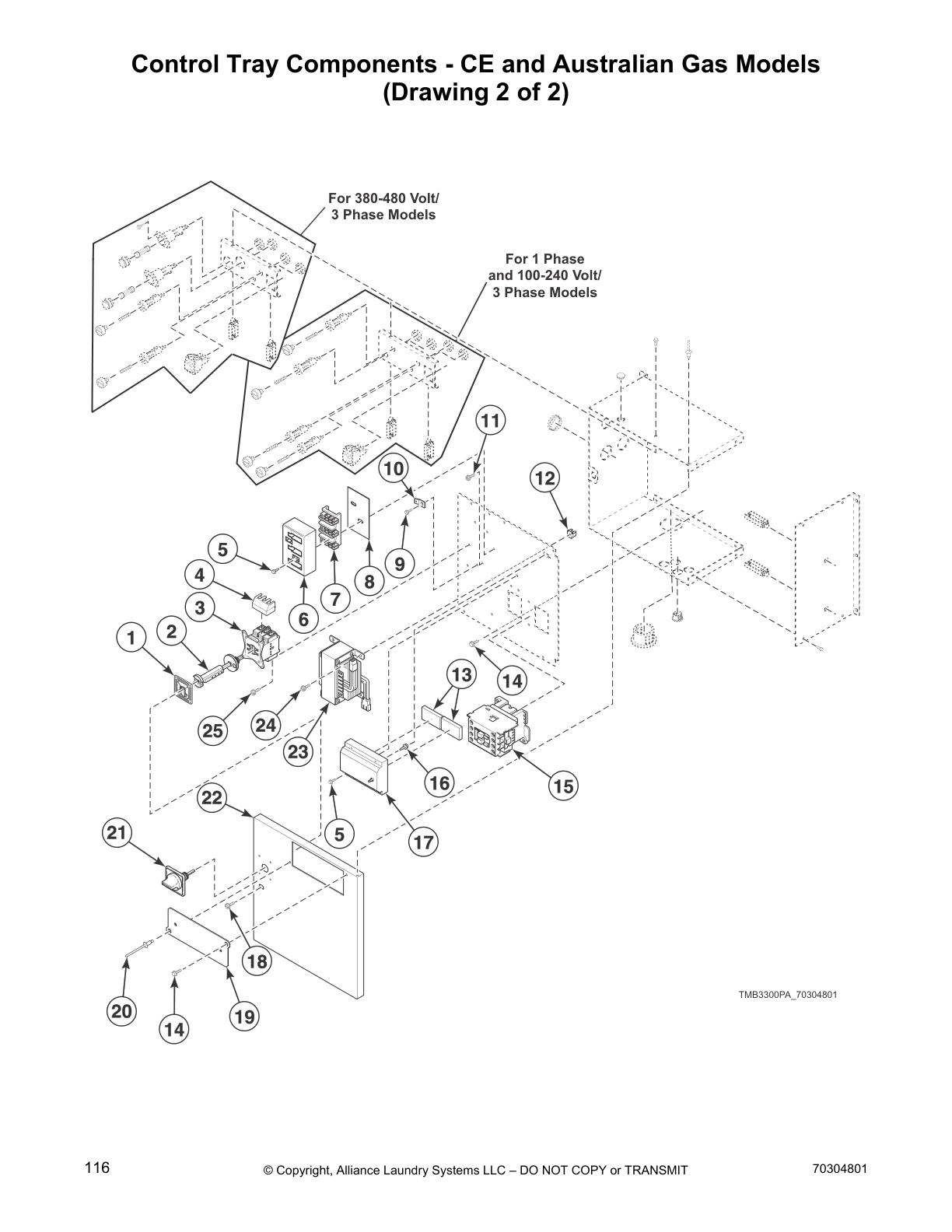

Control Tray Components - CE and Australian Gas Models
(Drawing 2 of 2)

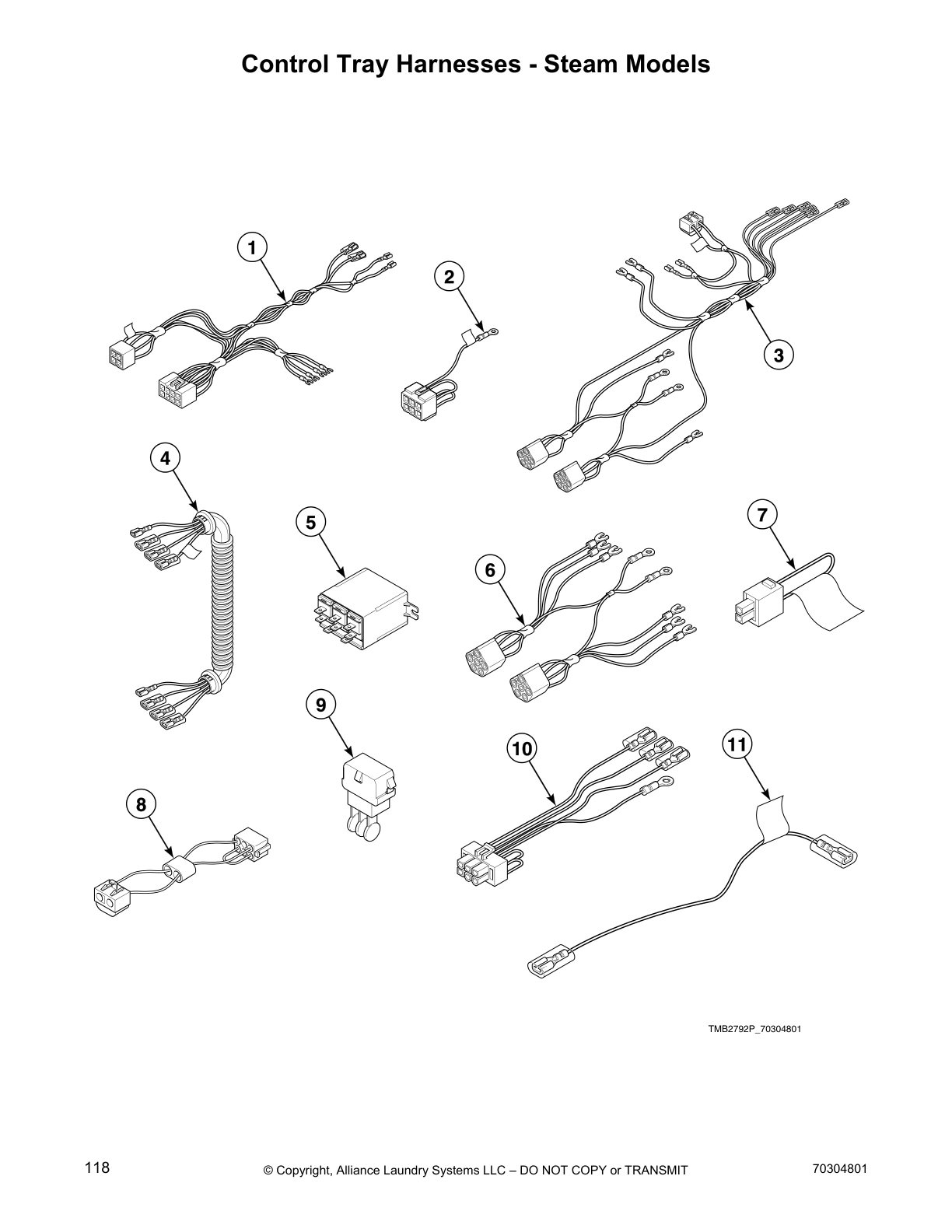

Control Tray Harnesses - Steam Models

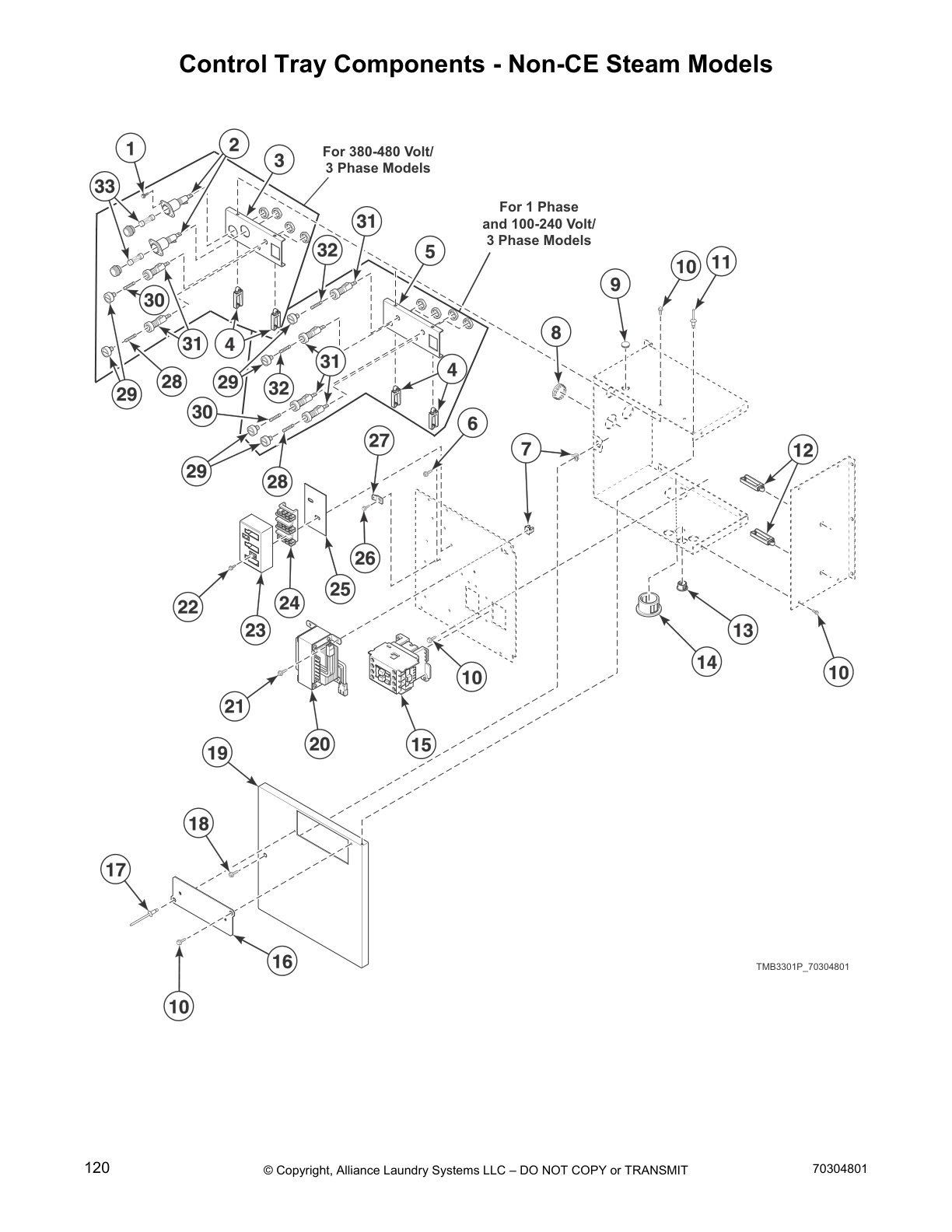

Control Tray Components - Non-CE Steam Models

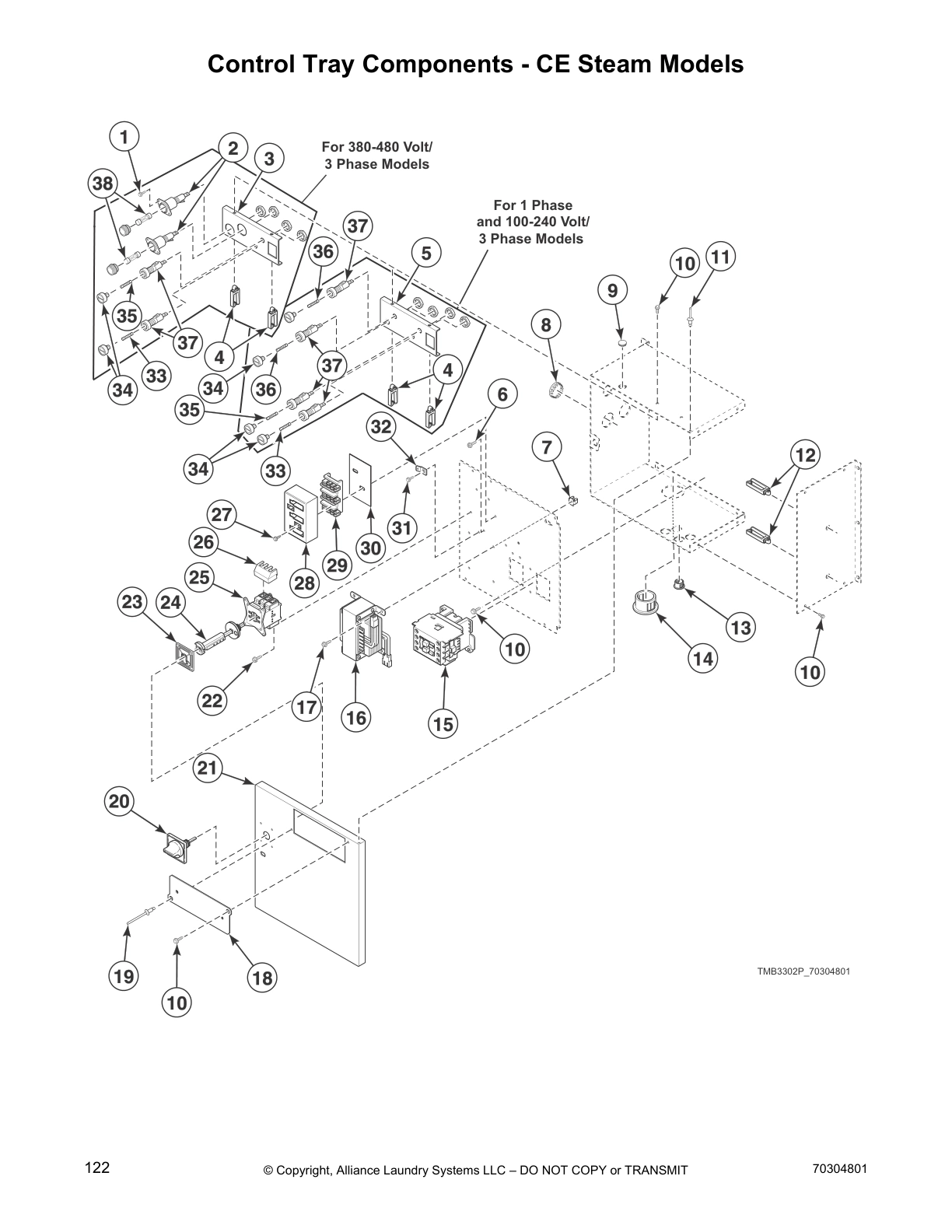

Control Tray Components - CE Steam Models

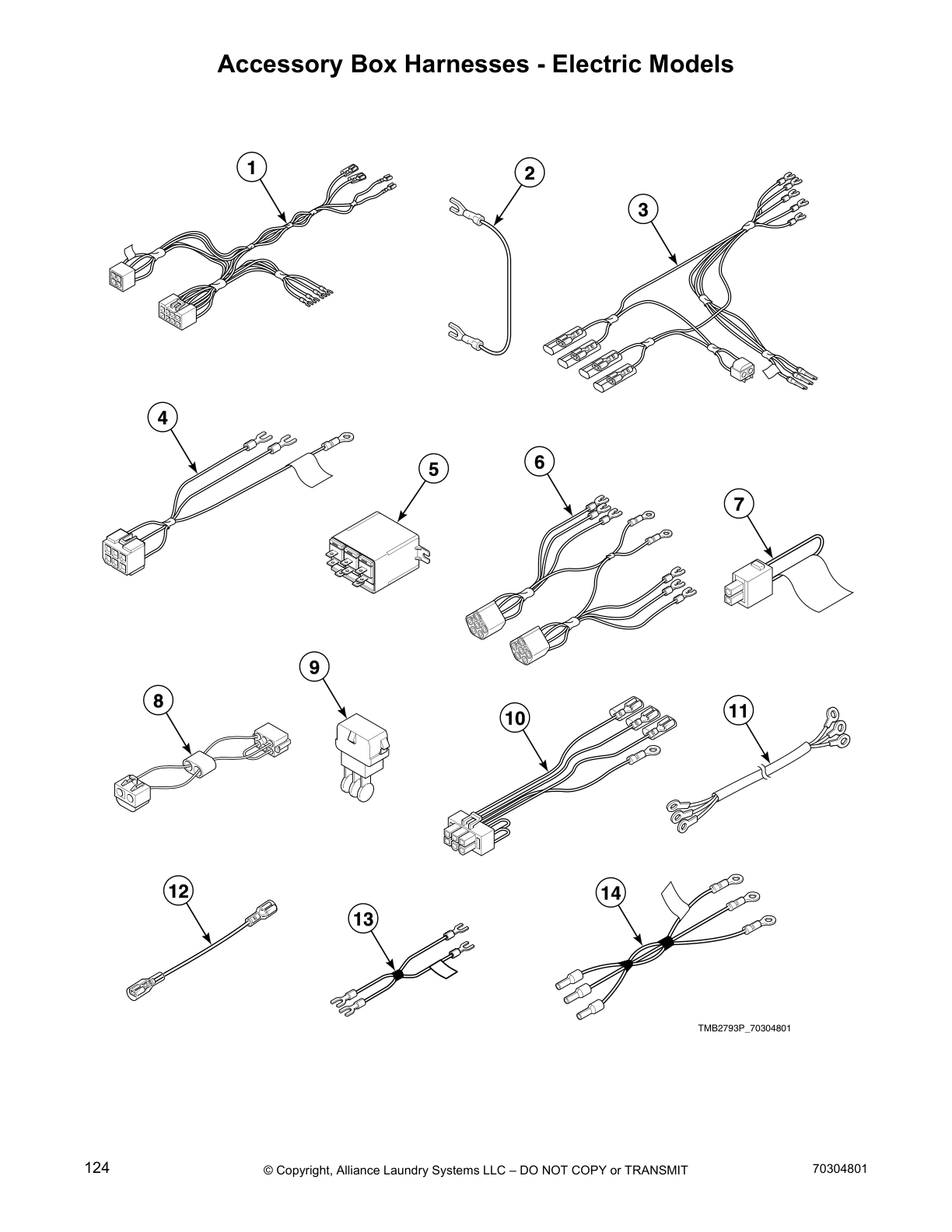

Accessory Box Harnesses - Electric Models

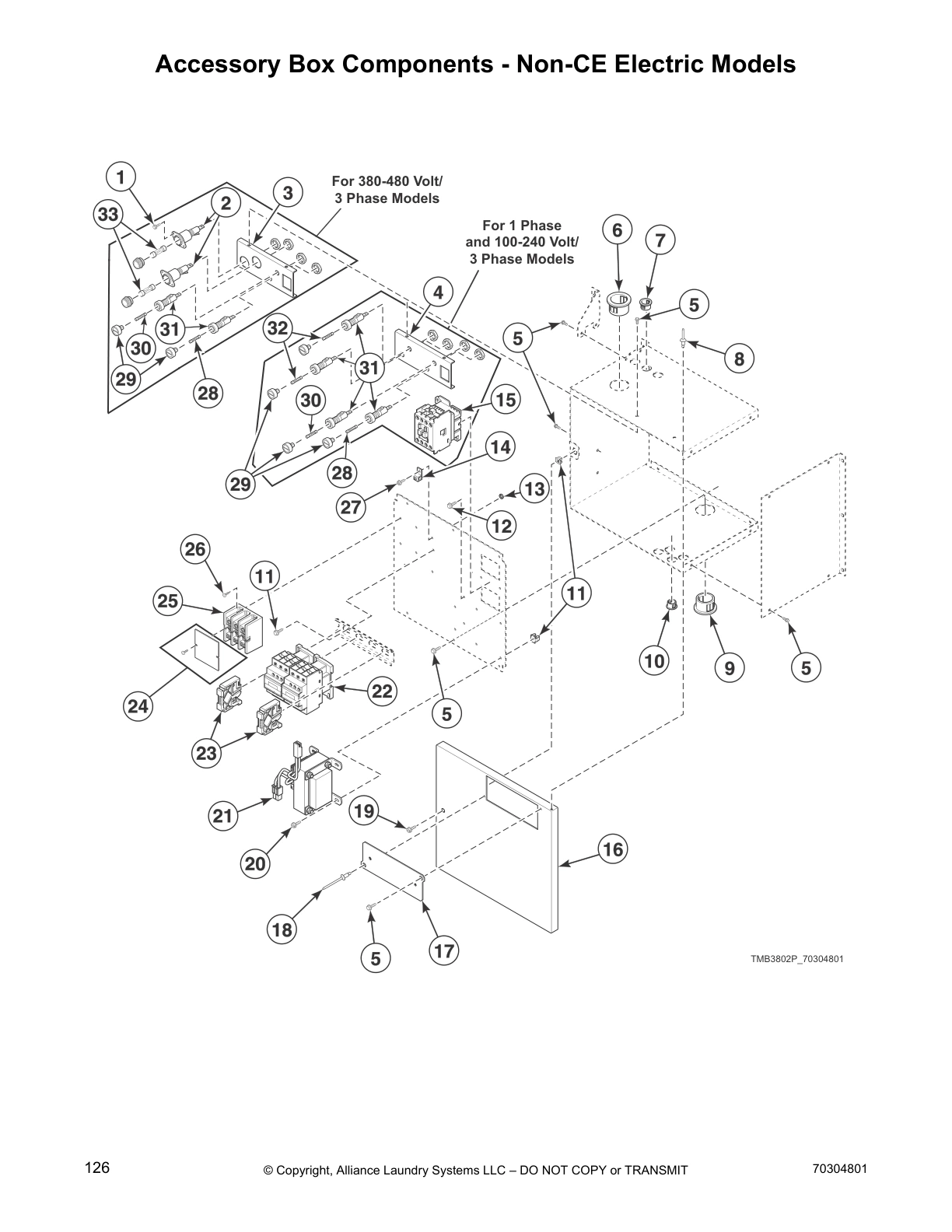

Accessory Box Components - Non-CE Electric Models

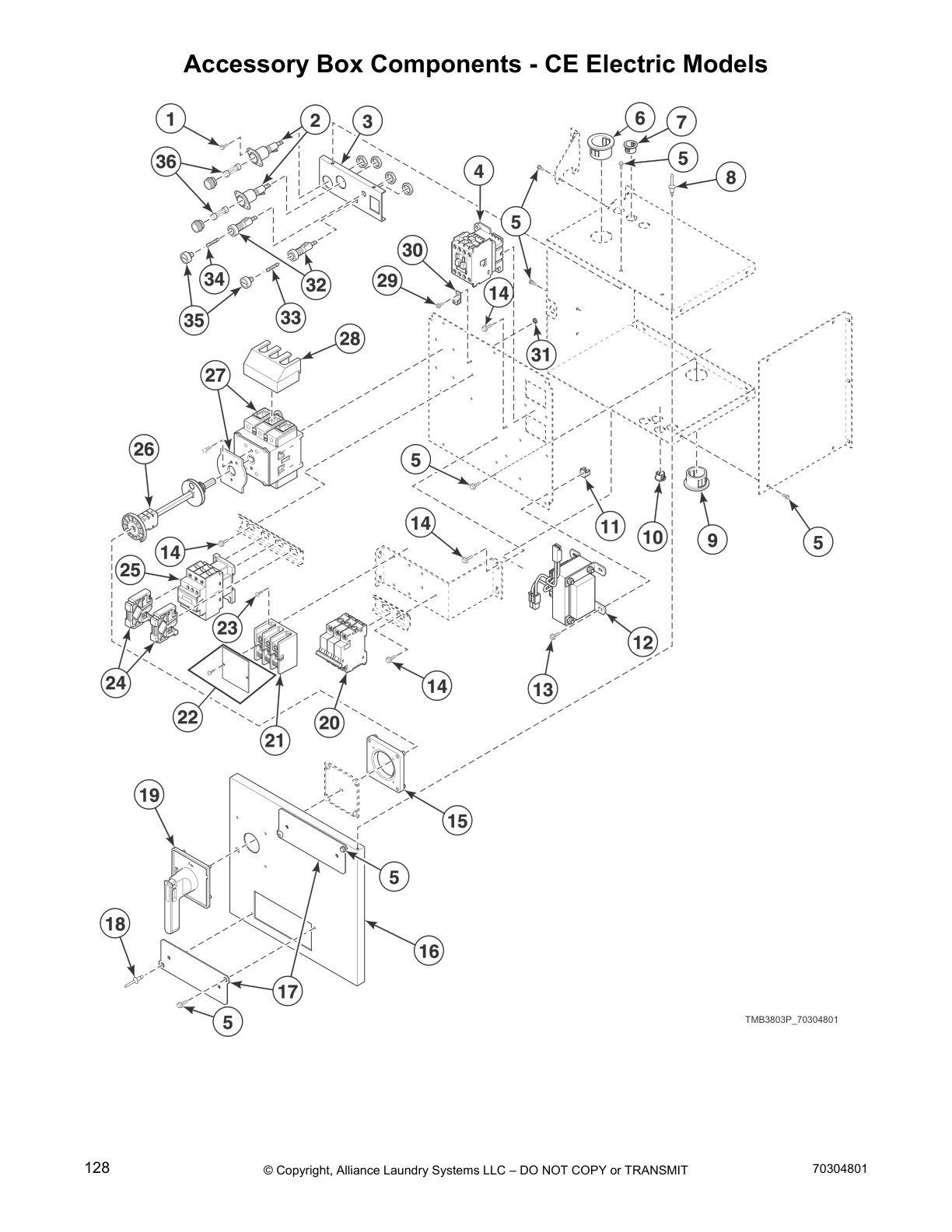

Accessory Box Components - CE Electric Models
Common parts from model Alliance KUT30S Dryer
Access Panel Trim SPQ 70418101 Contact Us For Availability
SPQ 70534301 SPQ 70534301 Contact Us For Availability
Pushbutton SPQ F200233500 Contact Us For Availability
Emergency Stop Harness SPQ F200233700P Contact Us For Availability
SPQ 70342402 SPQ 70342402 Contact Us For Availability
SPQ 215P4P SPQ 215P4P Contact Us For Availability
Motor Capacitor SPQ M410296 Contact Us For Availability
Steam Valve Rebuild Kit SPQ F8379502 Contact Us For Availability
SPQ 70316201 SPQ 70316201 Contact Us For Availability
SPQ 70058502 SPQ 70058502 Contact Us For Availability
SPQ 70306901 SPQ 70306901 Contact Us For Availability
1
Belt SPQ 70276201P Contact Us For Availability
1
Front Panel Seal SPQ 70173401P Contact Us For Availability
1
Door Ring Gasket SPQ 70296801 Contact Us For Availability
1
Lower Card Reader Harness SPQ 70420101P Contact Us For Availability
1
Main Harness SPQ 70346001P Contact Us For Availability
1
Overlay SPQ 70463002 Contact Us For Availability
1
False Front Kit SPQ 70371702P Contact Us For Availability
1
Screw SPQ 70069901 Contact Us For Availability
1
Contact Switch SPQ F8069501 Contact Us For Availability
1
Lint Screen Assembly SPQ 70290601 Contact Us For Availability
1
Overlay SPQ 70413701 Contact Us For Availability
1
Cylinder Assembly SPQ 70372503P Contact Us For Availability
1
Drive Motor SPQ 70338101P Contact Us For Availability
1
Exhaust Pipe SPQ 44154301 Contact Us For Availability
1
Blower Motor SPQ 70342601P Contact Us For Availability
1
Nut SPQ M400035 Contact Us For Availability
1
Airflow Switch Cover SPQ 70356601 Contact Us For Availability
1
Steam Coil SPQ 70369101P Contact Us For Availability
1
Junction Box Harness SPQ 70315801 Contact Us For Availability
2
Motor Conduit Mounting Bracket SPQ M400034 Contact Us For Availability
2
Latch Mounting Bracket SPQ 70419901P Contact Us For Availability
2
Door Assembly SPQ 70408901 Contact Us For Availability
2
Door Ring Assembly SPQ 70543901 Contact Us For Availability
2
Door Hinge SPQ 70115903B Contact Us For Availability
2
Lower Front Panel Assembly SPQ 70454502 Contact Us For Availability
2
Label SPQ 70414001 Contact Us For Availability
2
Control Trim SPQ 70116902 Contact Us For Availability
2
Shadow Box Clip SPQ 70180101 Contact Us For Availability
2
Contact Block Switch SPQ F200233401P Contact Us For Availability
2
Nut SPQ 44087101 Contact Us For Availability
2
Overlay SPQ 70136401 Contact Us For Availability
2
Cylinder Rib Assembly SPQ 70070102 Contact Us For Availability
2
Washer SPQ 70411301 Contact Us For Availability
2
Switch SPQ 70357701 Contact Us For Availability
2
Double Ended Stud SPQ 70440301 Contact Us For Availability
2
Drive Motor Kit SPQ 70338001P Contact Us For Availability
2
Duct Cover SPQ 70207501 Contact Us For Availability
2
Airflow Switch Wrapper SPQ 70465701 Contact Us For Availability
2
Steam Configuration Harness SPQ 70389901 Contact Us For Availability
3
Screw SPQ D501524 Contact Us For Availability
3
Upper Front Panel Assembly SPQ 70454501 Contact Us For Availability
3
Lower Front Panel Assembly SPQ 70391204 Contact Us For Availability
3
Contact Block SPQ 44018901 Contact Us For Availability
3
Lint Screen Bracket SPQ 70026901 Contact Us For Availability
3
Screw SPQ 70433002 Contact Us For Availability
3
Switch SPQ 70356101 Contact Us For Availability
3
Steam Valve Coil SPQ M412258 Contact Us For Availability
3
Fuse SPQ M413544P Contact Us For Availability
3
Fuse Holder Body SPQ 51783 Contact Us For Availability
3
Power Harness SPQ 70322401P Contact Us For Availability
4
Washer SPQ 70292801 Contact Us For Availability
4
Control Panel Harness SPQ 70420001P Contact Us For Availability
4
Control Assembly SPQ 70437104P Contact Us For Availability
4
Door Glass SPQ M414215 Contact Us For Availability
4
Hinge Cam Kit SPQ M4773P3 Contact Us For Availability
4
Upper Front Panel Assembly SPQ 70391302P Contact Us For Availability
4
Pop Rivet SPQ 70182601 Contact Us For Availability
4
Front Panel Baffle Seal SPQ 70120501 Contact Us For Availability
4
Lint Frame Gasket SPQ 70333101 Contact Us For Availability
4
Clip SPQ 70226701 Contact Us For Availability
4
Top Panel SPQ 70339402 Contact Us For Availability
4
SPQ 70334701 SPQ 70334701 Contact Us For Availability
4
Key SPQ 70341001 Contact Us For Availability
4
Moisture Sensor Harness Assembly SPQ 70448902 Contact Us For Availability
4
Airflow Switch Arm SPQ 70411901 Contact Us For Availability
4
Valve Kit SPQ 70205701P Contact Us For Availability
4
Power Harness SPQ 70445501 Contact Us For Availability
4
SPQ 70406501 SPQ 70406501 Contact Us For Availability
5
Pop Rivet SPQ 70506402 Contact Us For Availability
5
Rear Bearing Shim SPQ 70355001 Contact Us For Availability
5
Steam Valve SPQ F8521701 Contact Us For Availability
5
Door Glass Seal Kit SPQ M400784P Contact Us For Availability
5
Control Door Latch SPQ 431318 Contact Us For Availability
5
Coin Vault Trim SPQ 70033502 Contact Us For Availability
5
Lint Drawer Handle Plate SPQ 70323201 Contact Us For Availability
5
SPQ 70284203 SPQ 70284203 Contact Us For Availability
5
Duct Access Cover SPQ 70340301 Contact Us For Availability
5
Screw SPQ 70319401 Contact Us For Availability
5
SPQ 70329501 SPQ 70329501 Contact Us For Availability
6
Support Bearing SPQ 70448701 Contact Us For Availability
6
Cylinder Bearing Stud Plate Asse SPQ 70013701P Contact Us For Availability
6
Nut SPQ M400003 Contact Us For Availability
6
Washer SPQ 70211901P Contact Us For Availability
6
Screw SPQ 70407301 Contact Us For Availability
6
Pushbutton Switch SPQ M401223 Contact Us For Availability
6
Warning Label SPQ 70116901 Contact Us For Availability
6
Lint Drawer Front Kit SPQ 70322901P Contact Us For Availability
6
Trunnion and Seal Kit SPQ 70257101 Contact Us For Availability
6
SPQ 70284201 SPQ 70284201 Contact Us For Availability
6
Exhaust Duct Gaskets Assembly SPQ 70340401 Contact Us For Availability
6
Gasket SPQ 70440401 Contact Us For Availability
6
Motor Contactor Harness SPQ 70320201 Contact Us For Availability
6
Motor Contactor Harness SPQ 70439001 Contact Us For Availability
7
Rear Cylinder Bearing Housing SPQ 70013901 Contact Us For Availability
7
Slot Card Plate Assembly SPQ 44089501 Contact Us For Availability
7
Nameplate Overlay SPQ 70412601 Contact Us For Availability
7
Lint Drawer Gasket SPQ 44166601 Contact Us For Availability
7
Lint Drawer Handle SPQ 70322902P Contact Us For Availability
7
Rear Cylinder Channel Plate SPQ 70257102 Contact Us For Availability
7
SPQ 70066003 SPQ 70066003 Contact Us For Availability
7
SPQ 70440001P SPQ 70440001P Contact Us For Availability
7
Airflow Switch and Arm Bracket SPQ 70356301 Contact Us For Availability
7
Stove Limit Bypass Harness SPQ 70438901 Contact Us For Availability
7
Stove Limit Bypass Harness SPQ 44142601P Contact Us For Availability
8
Nut SPQ 70564803 Contact Us For Availability
8
SPQ M400991 SPQ M400991 Contact Us For Availability
8
SPQ 70406701 SPQ 70406701 Contact Us For Availability
8
Mounting Plate SPQ 70208801 Contact Us For Availability
8
Control Panel Harness SPQ 44186101 Contact Us For Availability
8
Handle Bar SPQ 70409301 Contact Us For Availability
8
Door Hinge Lug Assembly SPQ 44035002 Contact Us For Availability
8
Panel Clip SPQ 70119901 Contact Us For Availability
8
Front Panel Baffle Seal SPQ 70117502 Contact Us For Availability
8
SPQ 70317001 SPQ 70317001 Contact Us For Availability
8
Airflow Switch Vane SPQ 70319602 Contact Us For Availability
8
Jumper Harness Assembly SPQ 70347701P Contact Us For Availability
8
SPQ 70347601 SPQ 70347601 Contact Us For Availability
8
Jumper Harness Assembly SPQ 70316601 Contact Us For Availability
9
SPQ 70144101 SPQ 70144101 Contact Us For Availability
9
Warning Label SPQ 70413301 Contact Us For Availability
9
Control Housing Cover SPQ 70119001 Contact Us For Availability
9
Coin Vault Switch Harness SPQ 70364104P Contact Us For Availability
9
SPQ 44240301 SPQ 44240301 Contact Us For Availability
9
SPQ 44144401 SPQ 44144401 Contact Us For Availability
9
Pin SPQ 70071401 Contact Us For Availability
9
Lock Shim SPQ 70320802 Contact Us For Availability
9
Drywall Screw Magnet Kit SPQ 70257201 Contact Us For Availability
9
SPQ 70339501 SPQ 70339501 Contact Us For Availability
9
SPQ 70062401 SPQ 70062401 Contact Us For Availability
9
Jumper Configuration Assembly SPQ M413508 Contact Us For Availability
9
Jumper Configuration Assembly SPQ 70316101P Contact Us For Availability
10
Audit Switch Bracket SPQ 70292601 Contact Us For Availability
10
Main Harness SPQ 70441401 Contact Us For Availability
10
Kickplate SPQ 70117605 Contact Us For Availability
10
Panel Latch SPQ 70399201 Contact Us For Availability
10
Cylinder and Trunnion Assembly SPQ 70443903 Contact Us For Availability
10
Channel Base Assembly SPQ 70288201 Contact Us For Availability
10
Motor Mount Bracket SPQ 70127301 Contact Us For Availability
10
Blower Motor Kit SPQ 70337701P Contact Us For Availability
10
Network Capacitor Harness Assembly SPQ 44143401P Contact Us For Availability
11
Thermistor SPQ 70337601P Contact Us For Availability
11
Audit Switch Bracket SPQ 70183901 Contact Us For Availability
11
Bypass Harness SPQ 70364103 Contact Us For Availability
11
Screw SPQ M400661 Contact Us For Availability
11
Pop Rivet SPQ 70126301 Contact Us For Availability
11
Door Switch Actuator Kit SPQ 70215001P Contact Us For Availability
11
Panel Latch Kit SPQ 70399201P Contact Us For Availability
11
Steam Stove Limit Bypass Harness SPQ M413878 Contact Us For Availability
12
Key SPQ 70155602 Contact Us For Availability
12
Latch Mounting Bracket SPQ 70184501 Contact Us For Availability
12
Jumper Calibration Wire SPQ 70324603 Contact Us For Availability
12
Snap Bushing SPQ 70366201 Contact Us For Availability
12
Lock, Key and Nut Kit SPQ 44089301P Contact Us For Availability
12
Coin Vault Assembly SPQ 70275801 Contact Us For Availability
12
End Cap SPQ 70070101 Contact Us For Availability
12
Motor Channel SPQ 70261701 Contact Us For Availability
12
Transformer SPQ M414229P Contact Us For Availability
13
Lock, Key and Nut Kit SPQ 44089302P Contact Us For Availability
13
Key SPQ 70155601 Contact Us For Availability
13
Pop Rivet SPQ 70497401 Contact Us For Availability
13
Roller and Seal Kit SPQ 70616701 Contact Us For Availability
13
Blower Housing Cover Assembly SPQ M411307 Contact Us For Availability
13
Fuse Cover SPQ 44074401 Contact Us For Availability
14
Roller Seal SPQ 70443601 Contact Us For Availability
14
Washer SPQ 70443301 Contact Us For Availability
14
Pop Rivet SPQ M411072 Contact Us For Availability
14
Screw SPQ 70341401 Contact Us For Availability
15
Control Panel Harness SPQ 70315501P Contact Us For Availability
15
Control Mounting Bracket Assembly SPQ 70420201 Contact Us For Availability
15
Roller Shaft SPQ 70249501 Contact Us For Availability
15
SPQ 23222 SPQ 23222 Contact Us For Availability
15
Drum Idler Spring SPQ 70270301 Contact Us For Availability
16
Washer SPQ 70261401 Contact Us For Availability
16
Overlay SPQ 70418001 Contact Us For Availability
16
Screw SPQ 70045301 Contact Us For Availability
16
Blower Inlet Cone SPQ 70340801 Contact Us For Availability
17
Rocker Switch SPQ 44099601 Contact Us For Availability
17
Sheet Metal Edge Gasket SPQ 70288801 Contact Us For Availability
17
Cylinder Motor Harness SPQ 70265901 Contact Us For Availability
17
Rear Stabilizer Bracket SPQ 70014101 Contact Us For Availability
18
Control Door and Studs Assembly SPQ 70417901 Contact Us For Availability
18
Idler Wheel Assembly SPQ 431539 Contact Us For Availability
18
Wire Clip SPQ 70200301 Contact Us For Availability
18
Fuse Bracket SPQ 70313301 Contact Us For Availability
19
Top Panel Assembly SPQ 70015711 Contact Us For Availability
19
Cylinder Idler Arm SPQ 430648 Contact Us For Availability
20
Cylinder Shroud SPQ 70015712 Contact Us For Availability
20
Motor Pulley SPQ 70439901 Contact Us For Availability
21
Blower Assembly SPQ M400022 Contact Us For Availability
21
Motor Conduit Mounting Bracket SPQ 70316801P Contact Us For Availability
22
Rear Panel SPQ 70030401 Contact Us For Availability
22
Blower Motor Mounting Plate SPQ 70321701 Contact Us For Availability
22
Bolt SPQ 70316701P Contact Us For Availability
23
Rear Cylinder Seal Support SPQ 70339301 Contact Us For Availability
23
Drive Access Cover SPQ 70050401P Contact Us For Availability
23
Terminal Block Shield SPQ M412208 Contact Us For Availability
24
Rear Cylinder Seal SPQ 70339302 Contact Us For Availability
24
Belt Tension Tool Kit SPQ 70259901 Contact Us For Availability
24
Terminal Block SPQ 70313402 Contact Us For Availability
26
Insulator SPQ M412368 Contact Us For Availability
27
Male Tab Terminal SPQ 70342501P Contact Us For Availability
28
Fuse SPQ M412187P Contact Us For Availability
29
Fuse Holder Body SPQ M414228P Contact Us For Availability
29
Fuse Holder Cap SPQ M412366 Contact Us For Availability
30
SPQ 70406601 SPQ 70406601 Contact Us For Availability
30
Expansion Clip SPQ 70333001 Contact Us For Availability
31
Plug SPQ 430642 Contact Us For Availability
32
Fuse Holder Cap SPQ 44155601P Contact Us For Availability
33
Contactor SPQ 70313602 Contact Us For Availability
34
Snap Bushing SPQ 70313601 Contact Us For Availability
34
SPQ M413862 SPQ M413862 Contact Us For Availability
35
SPQ 70329401P SPQ 70329401P Contact Us For Availability
36
SPQ 00177 SPQ 00177 Contact Us For Availability
NI
Base Harness SPQ 70117901P Contact Us For Availability
NI
SPQ 70211502 SPQ 70211502 Contact Us For Availability
NI
SPQ 70211401 SPQ 70211401 Contact Us For Availability
NI
SPQ CK100 SPQ CK100 Contact Us For Availability
NI
SPQ CK119 SPQ CK119 Contact Us For Availability
NI
SPQ CK117 SPQ CK117 Contact Us For Availability
NI
SPQ CK103 SPQ CK103 Contact Us For Availability
NI
SPQ 70307003 SPQ 70307003 Contact Us For Availability
NI
Door Ring SPQ 70505707B Contact Us For Availability
NI
SPQ 70399502B SPQ 70399502B Contact Us For Availability
NI
SPQ 70399401 SPQ 70399401 Contact Us For Availability
NI
Lower Front Panel Assembly SPQ 70391202P Contact Us For Availability
NI
Instruction Label SPQ 70391206P Contact Us For Availability
NI
SPQ 44088801 SPQ 44088801 Contact Us For Availability
NI
Tumbler Dolly Kit SPQ 70017301 Contact Us For Availability
NI
SPQ 70449001 SPQ 70449001 Contact Us For Availability
NI
SPQ M4379P4 SPQ M4379P4 Contact Us For Availability
NI
Emergency Stop Label SPQ 44018701 Contact Us For Availability
NI
Emergency Stop Pushbutton SPQ 44012901 Contact Us For Availability
NI
Emergency Stop Button Kit SPQ 44018801 Contact Us For Availability
NI
SPQ 70364102 SPQ 70364102 Contact Us For Availability
NI
SPQ 70364101P SPQ 70364101P Contact Us For Availability
NI
SPQ 70320801 SPQ 70320801 Contact Us For Availability
NI
SPQ 70342401 SPQ 70342401 Contact Us For Availability
NI
SPQ 70343101P SPQ 70343101P Contact Us For Availability
NI
SPQ 70247701 SPQ 70247701 Contact Us For Availability
NI
Spray Paint SPQ 298P4P Contact Us For Availability
NI
Porcelain Touch-Up Paint SPQ 297P4 Contact Us For Availability
NI
SPQ 370P4P SPQ 370P4P Contact Us For Availability
NI
SPQ 70202501 SPQ 70202501 Contact Us For Availability
NI
SPQ 70566401 SPQ 70566401 Contact Us For Availability
NI
SPQ M4853P3 SPQ M4853P3 Contact Us For Availability
NI
Motor Capacitor SPQ 70337901P Contact Us For Availability
NI
SPQ 70289101P SPQ 70289101P Contact Us For Availability
NI
SPQ 70126101 SPQ 70126101 Contact Us For Availability
NI
SPQ 70346301 SPQ 70346301 Contact Us For Availability
NI
SPQ 70392701P SPQ 70392701P Contact Us For Availability
NI
Moisture Sensor Test Wires SPQ 70468901 Contact Us For Availability
NI
SPQ 70319201 SPQ 70319201 Contact Us For Availability
NI
SPQ M412997 SPQ M412997 Contact Us For Availability
NI
Solenoid Valve DIN Connector SPQ F8322902 Contact Us For Availability
NI
Valve Rebuild Kit SPQ 70370301P Contact Us For Availability
NI
Harness Assembly SPQ 70351021P Contact Us For Availability
NI
SPQ M413863 SPQ M413863 Contact Us For Availability
NI
Network Capacitor Assembly SPQ 70439501 Contact Us For Availability
NI
SPQ M400985 SPQ M400985 Contact Us For Availability
NI
SPQ M402917 SPQ M402917 Contact Us For Availability
NI
SPQ 44024202 SPQ 44024202 Contact Us For Availability
× ![]()
