Model Whirlpool KURR104ESB01 REFRIGERATOR, UNDERCOUNTER – Common Parts & Diagrams
01 - COVER SHEET
02 - CABINET PARTS

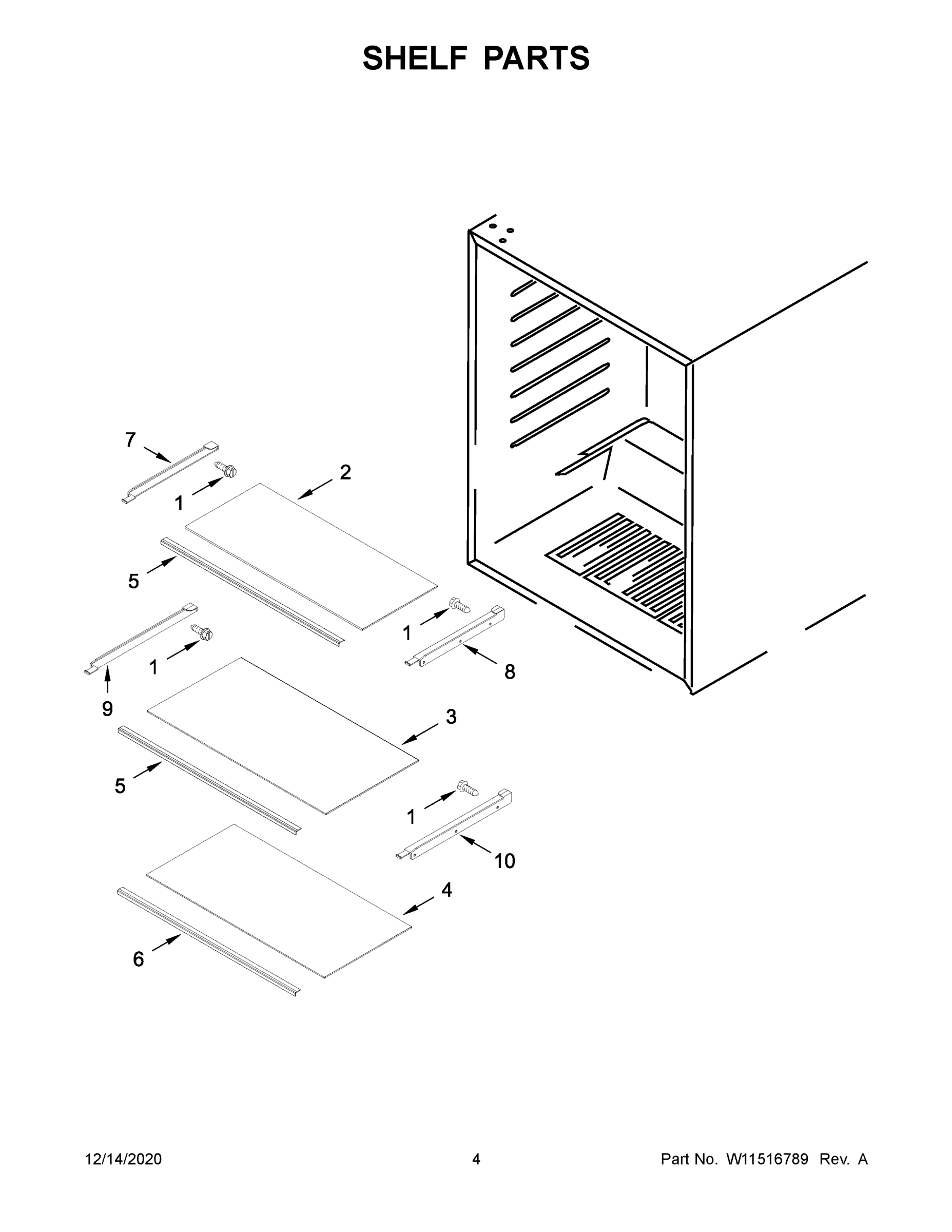

03 - SHELF PARTS

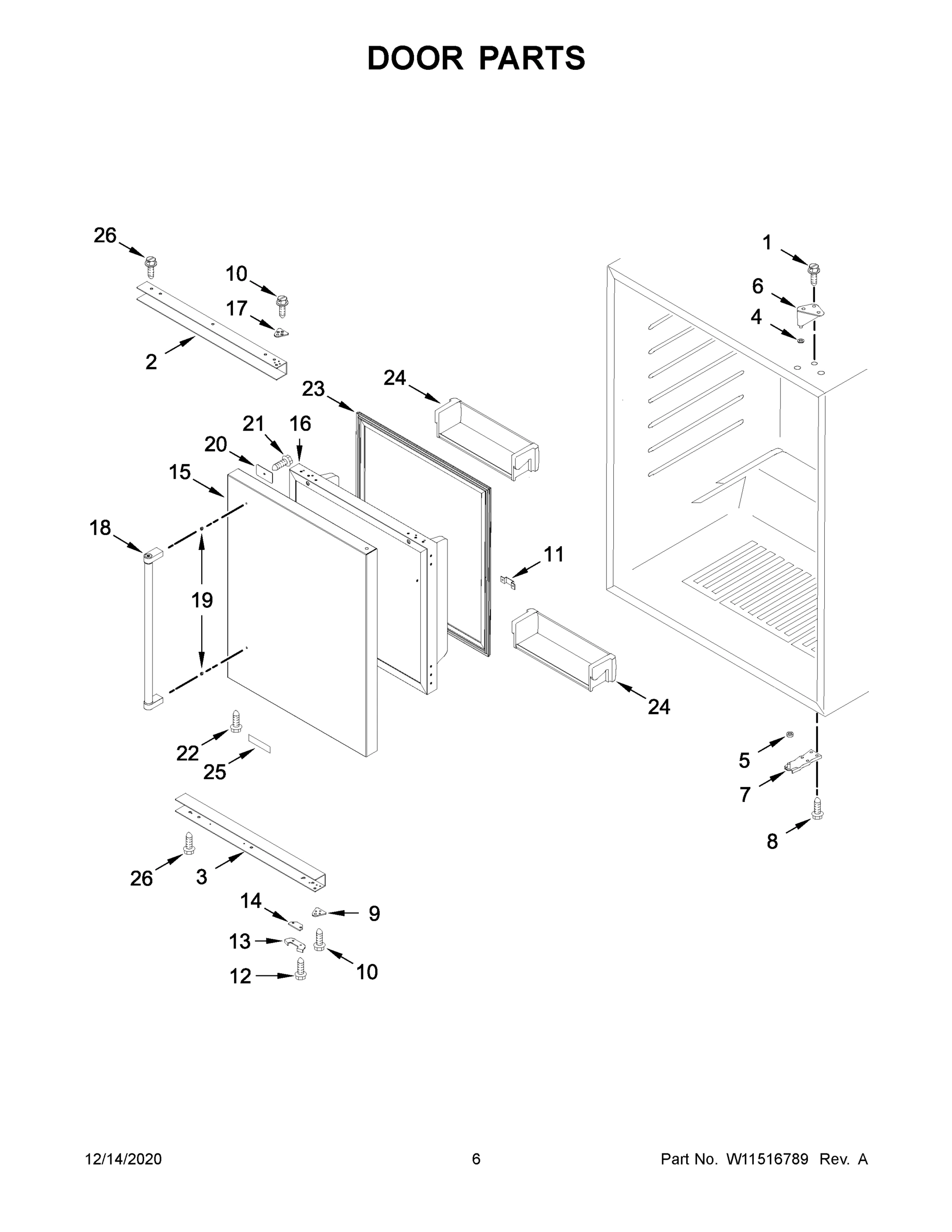

04 - DOOR PARTS

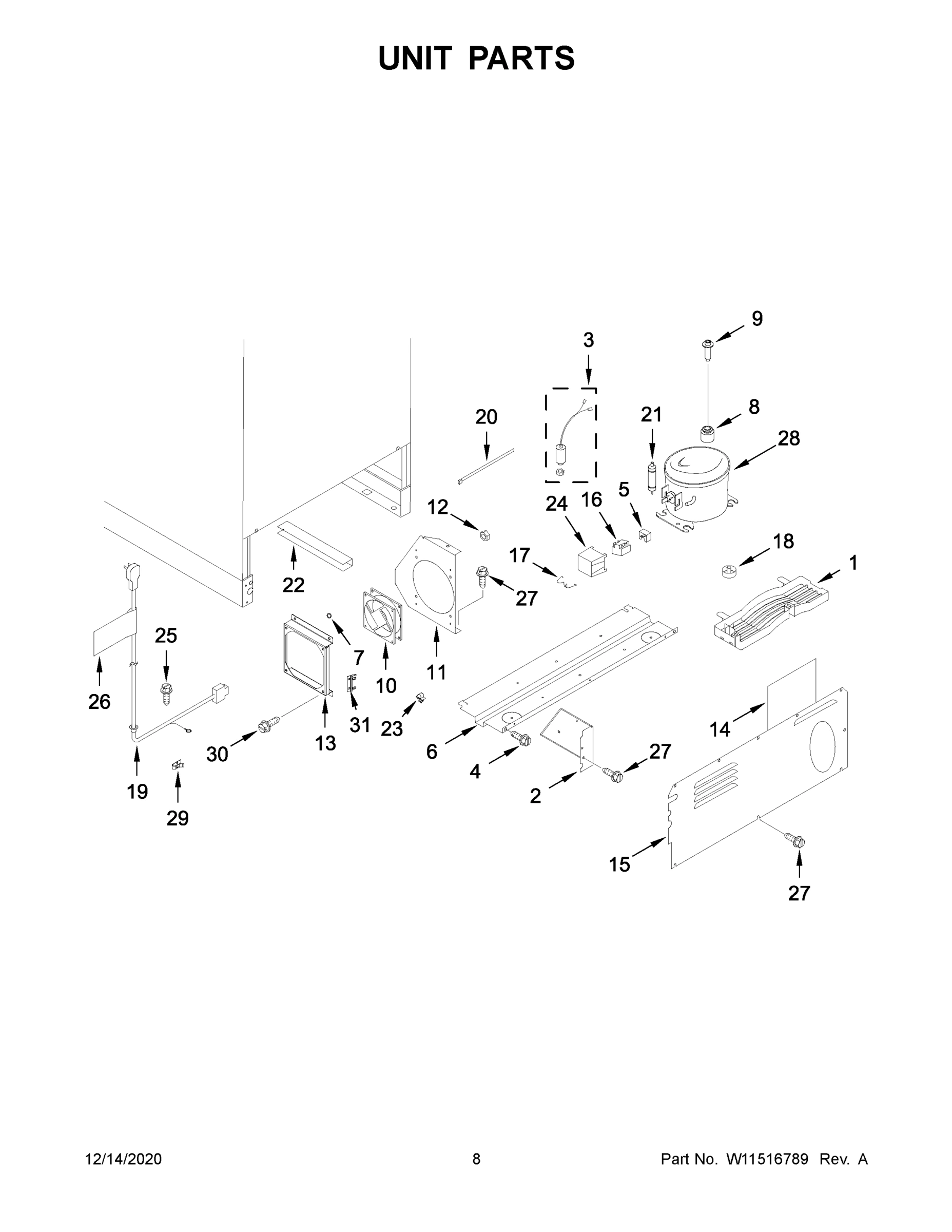

05 - UNIT PARTS
Common parts from model Whirlpool KURR104ESB01 REFRIGERATOR, UNDERCOUNTER
1
SCREW WPL 4344796 Contact Us For Availability
2
TOP HINGE PLATE (RIGHT HINGE) WPL W11517021 Contact Us For Availability
2
BRACKET, DEFROST TIMER WPL W10239387 Contact Us For Availability
2A
TOP HINGE PLATE (LEFT HINGE) WPL W10797369 Contact Us For Availability
3
RUNNING CAPACITOR WPL W10778969 Contact Us For Availability
3
GLASS SHELF, MIDDLE WPL W11517077 Contact Us For Availability
3
BOTTOM HINGE PLATE (RIGHT HINGE) WPL W11517023 Contact Us For Availability
3A
BOTTOM HINGE PLATE (LEFT HINGE) WPL W10797375 Contact Us For Availability
4
GLASS SHELF, BOTTOM WPL W11517083 Contact Us For Availability
4
SCREW WPL 4344797 Contact Us For Availability
6
TRIM, SHELF WPL W10797330 Contact Us For Availability
6
CABINET BASE PLATE WPL W11517060 Contact Us For Availability
7
SUPPORT, SHELF (LEFT HAND) WPL W10797332 Contact Us For Availability
7
FAN BUSHING WPL W10204688 Contact Us For Availability
8
THERMAL FUSE ASSEMBLY WPL W10292475 Contact Us For Availability
8
SUPPORT, SHELF (RIGHT HAND) WPL W10797333 Contact Us For Availability
8
BOLT WPL W10780355 Contact Us For Availability
9
SUPPORT, SHELF (LEFT HAND) WPL W10797336 Contact Us For Availability
9
SPACER, BOTTOM HINGE WPL 4344756 Contact Us For Availability
9
BOLT WPL W10772873 Contact Us For Availability
10
SUPPORT, SHELF (RIGHT HAND) WPL W10797337 Contact Us For Availability
11
SWITCH PLATE WPL W10622808 Contact Us For Availability
11
AIR BAFFLE WPL W10204674 Contact Us For Availability
12
SCREW WPL 4344801 Contact Us For Availability
12
NUT WPL W10772890 Contact Us For Availability
13
STOP, DOOR WPL W10238067 Contact Us For Availability
14
SPACER, DOOR WPL 4344788 Contact Us For Availability
14
INSULATION, REAR COVER WPL W10778963 Contact Us For Availability
15
STAINLESS WRAP (RIGHT HINGE) WPL W10797378 Contact Us For Availability
15A
STAINLESS WRAP (LEFT HINGE) WPL W10797379 Contact Us For Availability
16
PTC THERMISTOR WPL W10778966 Contact Us For Availability
17
MAIN PCB BOX WPL W10772866 Contact Us For Availability
17
SPACER, TOP HINGE WPL 4344755 Contact Us For Availability
17
CLIP, RELAY COVER WPL W10778971 Contact Us For Availability
19
FRAME (RIGHT HAND) WPL W10797389 Contact Us For Availability
20
TIE, CABLE WPL 4344829 Contact Us For Availability
22
SUPPORT (LEFT HAND) WPL 4344820 Contact Us For Availability
22
SCREW WPL 4344827 Contact Us For Availability
22
TRIM, EDGE WPL 4344907 Contact Us For Availability
23
SUPPORT (RIGHT HAND) WPL 4344821 Contact Us For Availability
23
CLIP, BUSHING WPL W10238022 Contact Us For Availability
24
DOOR BIN WPL W10175958 Contact Us For Availability
24
COVER, RELAY WPL W10778967 Contact Us For Availability
26
SCREW WPL W10319185 Contact Us For Availability
26
WARNING LABEL WPL 4344913 Contact Us For Availability
27
SCREW WPL 4344825 Contact Us For Availability
29
CLAMP, CORD WPL W10281591 Contact Us For Availability
30
SCREW WPL W10772886 Contact Us For Availability
31
CLAMP, CORD WPL W10270517 Contact Us For Availability
38
PCB STANDOFF WPL W10204659 Contact Us For Availability
NI
PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE WPL NP Contact Us For Availability
× ![]()
