Model Whirlpool KURO24RSBX00 REFRIGERATOR – Common Parts & Diagrams

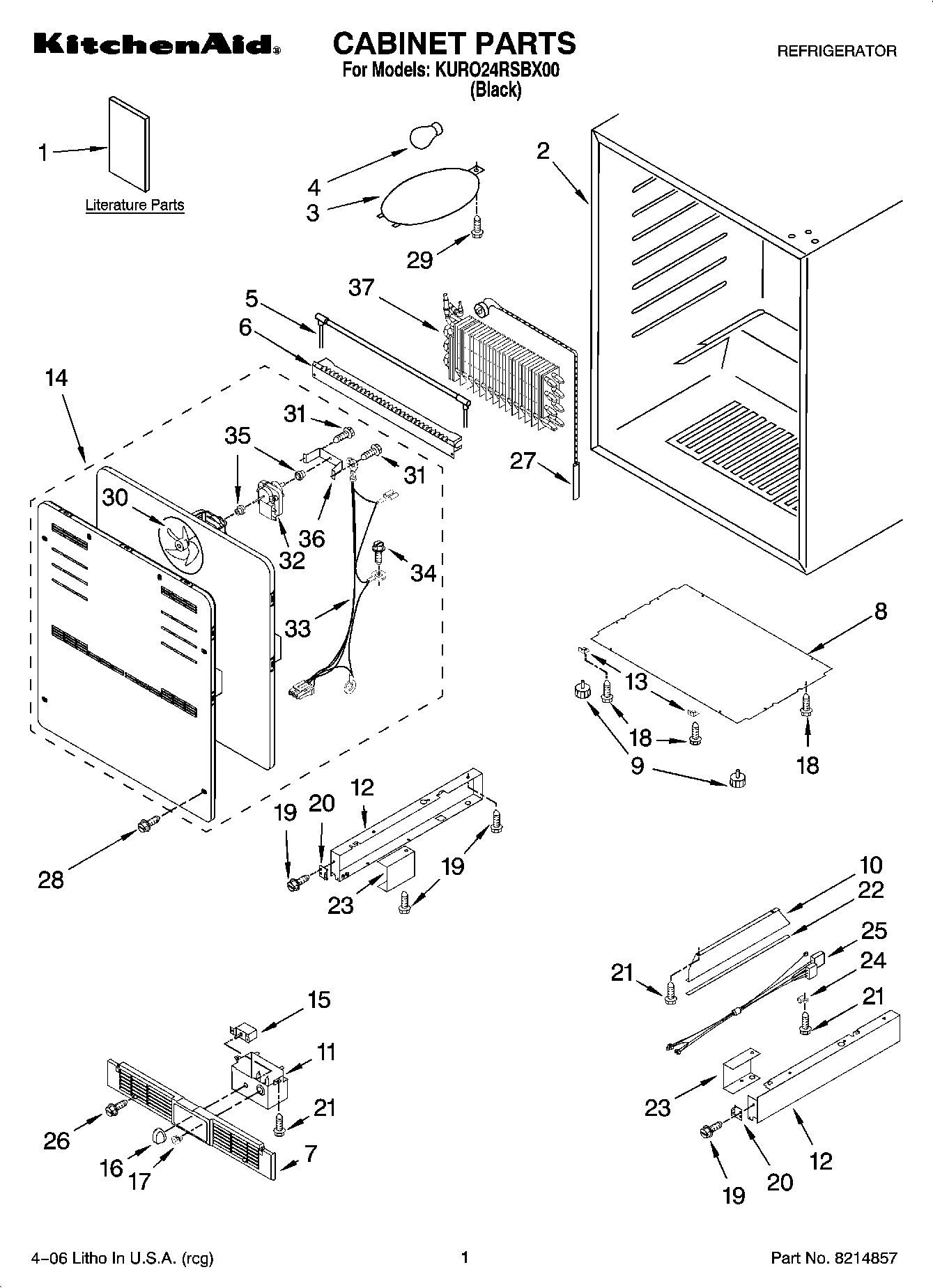

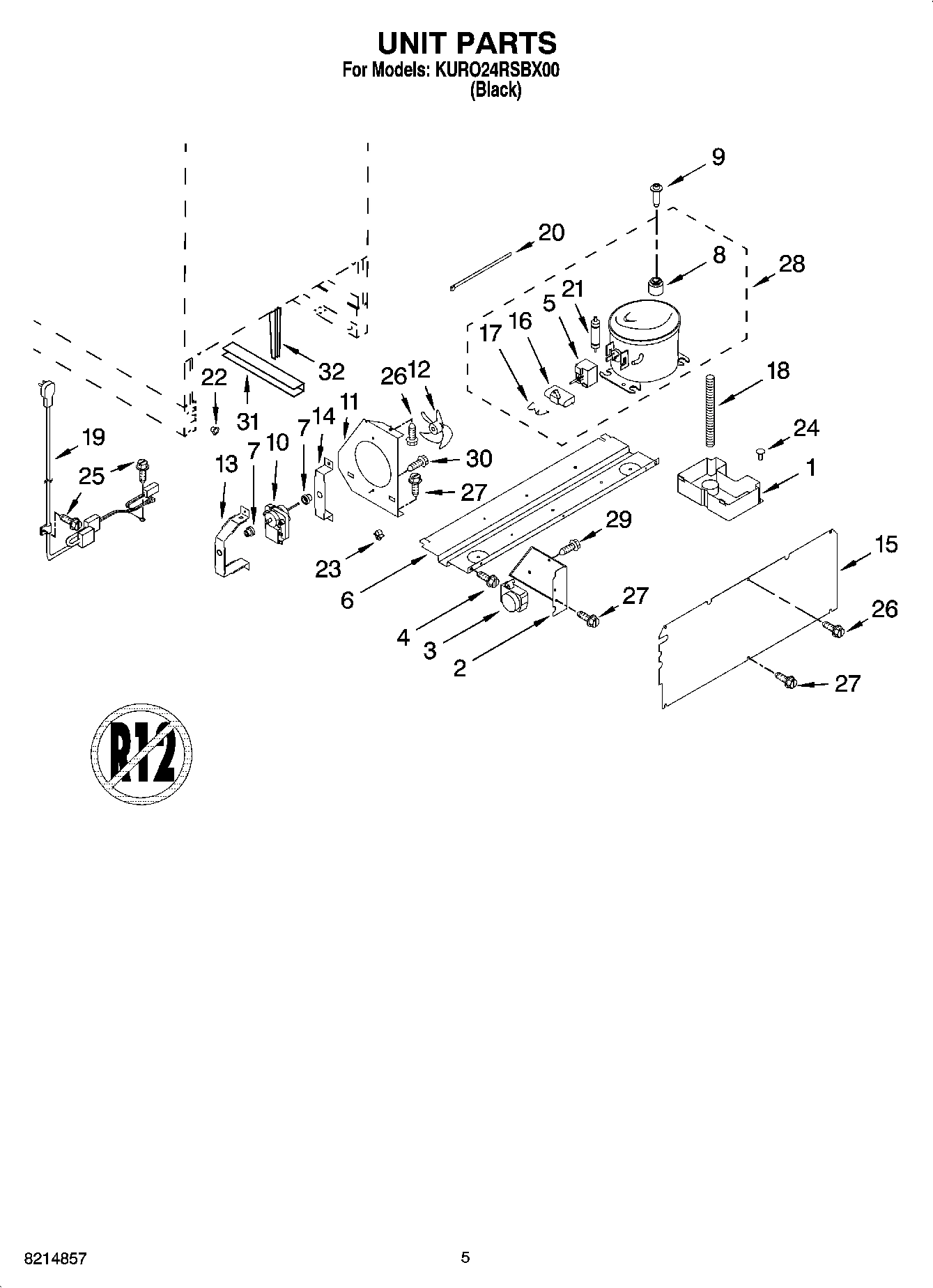

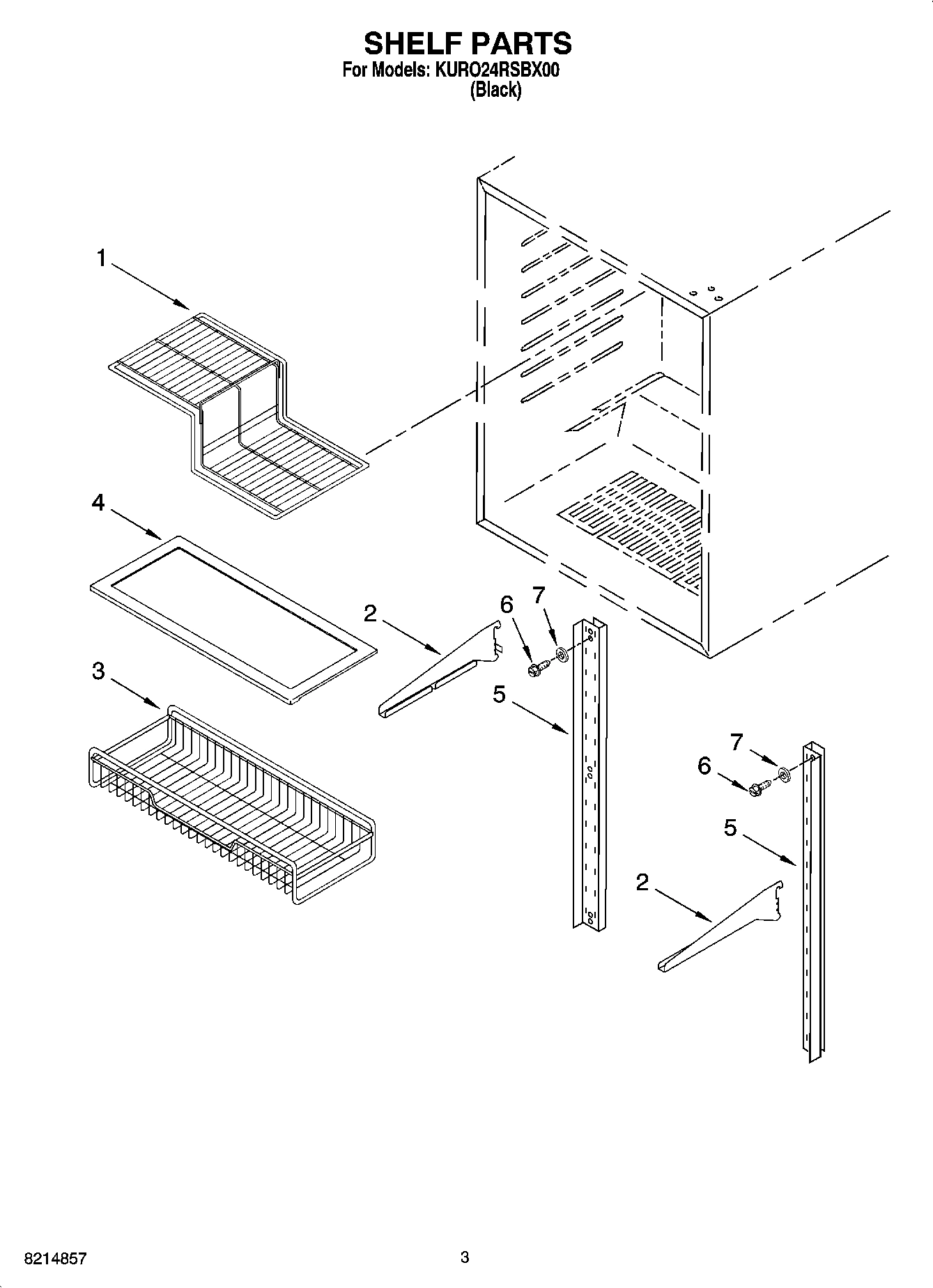

Common parts from model Whirlpool KURO24RSBX00 REFRIGERATOR
1
Use & Care Guide WPL 2300275 Contact Us For Availability
1
Wiring Diagram WPL 4344902 Contact Us For Availability
1
Energy Guide WPL 4344903 Contact Us For Availability
1

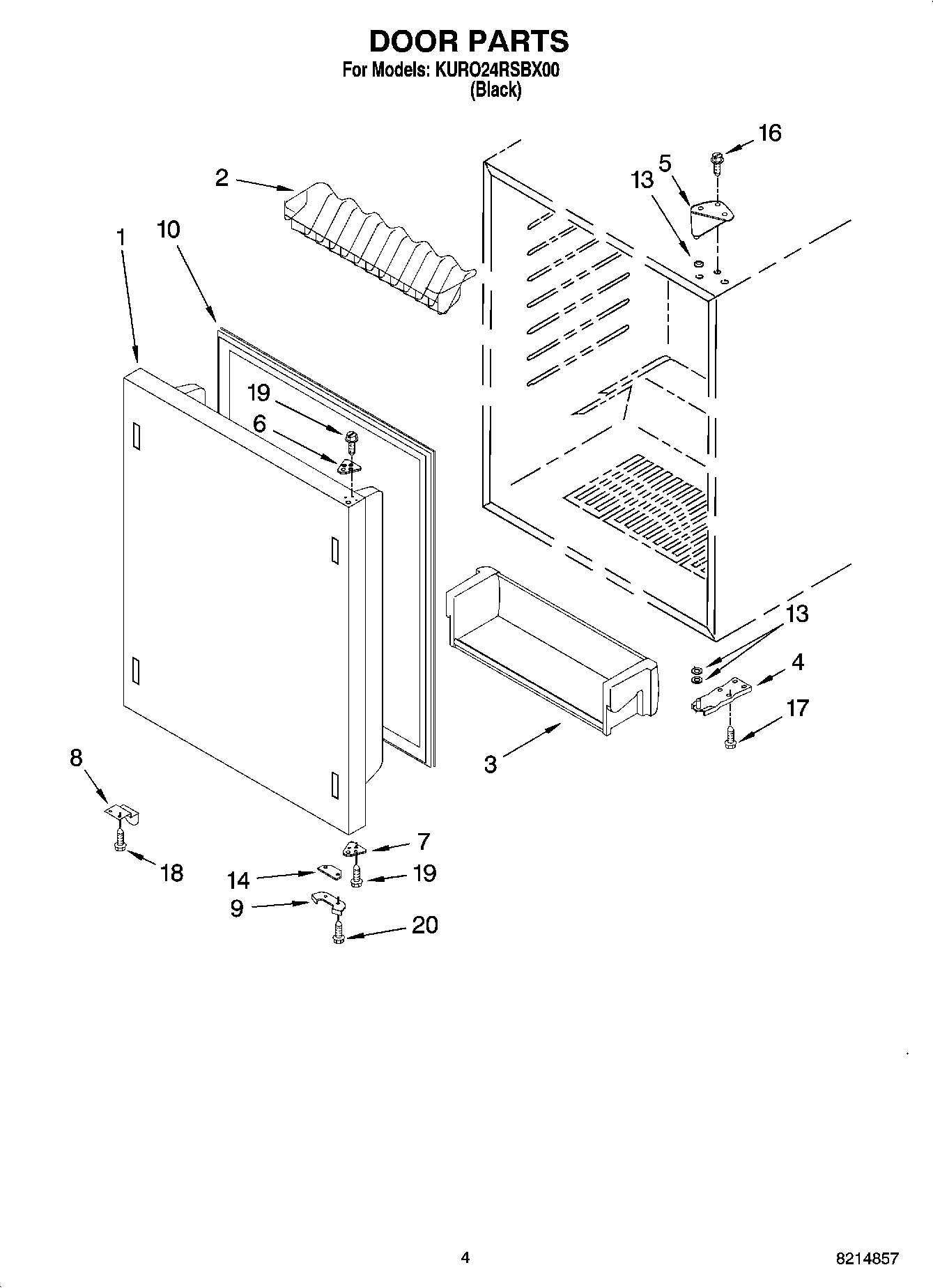

Door Assembly (Includes Gasket) WPL 4344805 Contact Us For Availability
2
Cabinet (Not A Service Part) WPL ARI117115A Contact Us For Availability
2
Beverage Holder WPL 4344751 Contact Us For Availability
3
Lens, Light WPL 4344739 Contact Us For Availability
3
Door Bin WPL 4344752 Contact Us For Availability
7
Grille WPL 4344761 Contact Us For Availability
8
Plate, Bottom WPL 4344762 Contact Us For Availability
10
Door Gasket WPL 4344759 Contact Us For Availability
10
Brace, Support WPL 4344764 Contact Us For Availability
11
Control Box WPL 4344765 Contact Us For Availability
12
Frame, Side (Left Side) WPL 4344769 Contact Us For Availability
14
Evaporator Fan Assembly WPL 4344876 Contact Us For Availability
17
Screw, Lower Hinge (Quantity 1) WPL 4344906 Contact Us For Availability
18
Tube, Drain WPL 4344839 Contact Us For Availability
18
Screw WPL 4344827 Contact Us For Availability
19
Power Cord WPL 4344830 Contact Us For Availability
19
Screw WPL 4344800 Contact Us For Availability
20
Clip, Grille WPL 4344819 Contact Us For Availability
20
Installation Kit, Door Panel WPL 4344818 Contact Us For Availability
20
Following Parts Not Illustrated WPL ARI117117A Contact Us For Availability
22
Bushing WPL 4344838 Contact Us For Availability
23
Clip, Bushing WPL 4344831 Contact Us For Availability
24
Bushing WPL 4344835 Contact Us For Availability
26
Screw WPL 4344825 Contact Us For Availability
29
Screw WPL 4344834 Contact Us For Availability
29
Screw WPL 4344791 Contact Us For Availability
30
Fan Blade WPL 4344783 Contact Us For Availability
31
Screw WPL 4344878 Contact Us For Availability
32
Support, Drain WPL 4344908 Contact Us For Availability
32
REFRIGERANT CHARGE 3.5 Ounces (R-134A) WPL ARI117118A Contact Us For Availability
32
Evaporator Fan Motor WPL 4344865 Contact Us For Availability
33
Harness, Wire WPL 4344877 Contact Us For Availability
35
Grommet, Fan Motor WPL 4344778 Contact Us For Availability
37
Evaporator (Not Serviced) WPL ARI117116A Contact Us For Availability
× ![]()
