Model Whirlpool KURL114KPA00 REFRIGERATOR, ALL – Common Parts & Diagrams

Common parts from model Whirlpool KURL114KPA00 REFRIGERATOR, ALL

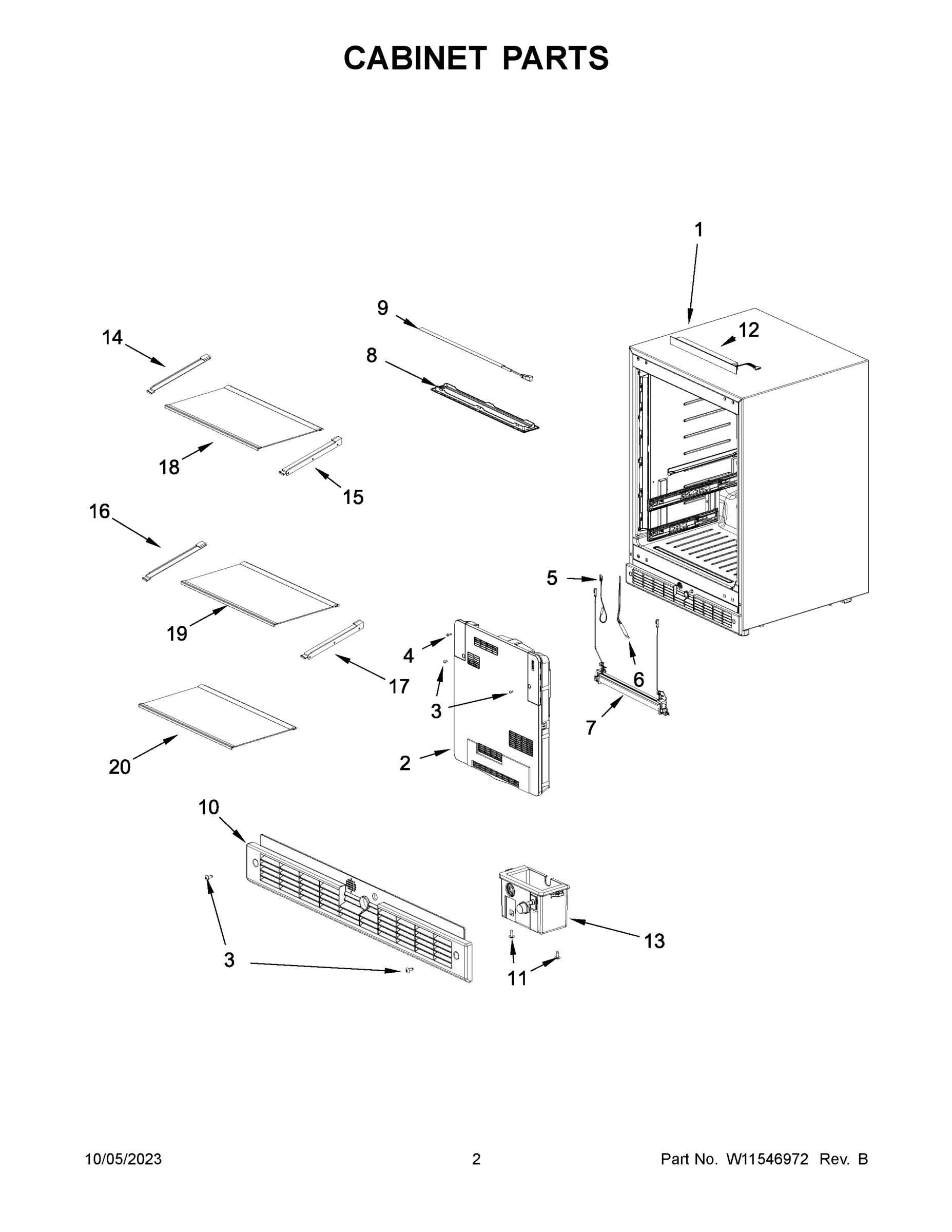

01 - COVER SHEET

Print

• This Diagram
• All Diagrams

1

CLIP Backorder WPL W10270517 View Details $27.52

View on Model

1

DOOR ASSEMBLY (LEFT HINGE) WPL W11546129 Contact Us For Availability

View on Model

1A

DOOR ASSEMBLY (RIGHT HINGE) WPL W11546133 Contact Us For Availability

View on Model

2

W11360659 Whirlpool Plate Backorder WPL W11360659 View Details $12.59

View on Model

2

W11371097 Whirlpool Screw Backorder WPL W11371097 View Details $9.59

View on Model

3

W11675284 Whirlpool Screw Backorder WPL W11675284 View Details $8.11

View on Model

3

PAN, WATER WPL W11538057 Contact Us For Availability

View on Model

4

W11360661 Whirlpool Cover Backorder WPL W11360661 View Details $96.15

View on Model

4

SCREW WPL W11375763 Contact Us For Availability

View on Model

4A

W11360664 Whirlpool Refrigerator Cover Backorder WPL W11360664 View Details $96.15

View on Model

5

W11546126 Whirlpool Refrigerator Control Box Backorder WPL W11546126 View Details $228.99

View on Model

5

W11747576 Whirlpool Gasket Backorder WPL W11747576 View Details $41.82

View on Model

6

W11359415 Whirlpool Bi-metal Defrost Backorder WPL W11359415 View Details $39.69

View on Model

6

WP4344779 Whirlpool Refrigerator Grommet Backorder WPL WP4344779 View Details $3.70

View on Model

7

4344826 Whirlpool Refrigerator Screw Backorder WPL 4344826 View Details $9.61

View on Model

7

W11359416 Whirlpool Heater Backorder WPL W11359416 View Details $71.88

View on Model

8

W11266077 Whirlpool Washer Backorder WPL W11266077 View Details $9.13

View on Model

8

W11312450 Whirlpool Light Lens Backorder WPL W11312450 View Details $36.65

View on Model

9

W11313206 Whirlpool Refrigerator Cover Backorder WPL W11313206 View Details $30.60

View on Model

9

W11497301 Whirlpool Refrigerator Light Bulb Backorder WPL W11497301 View Details $29.19

View on Model

10

W11360218 Whirlpool Grille Backorder WPL W11360218 View Details $43.39

View on Model

10

W11360536 Whirlpool Refrigerator Evaporator M Backorder WPL W11360536 View Details $81.20

View on Model

11

W10163273 Whirlpool Refrigerator Tube Backorder WPL W10163273 View Details $30.89

View on Model

12

W11546137 Whirlpool Refrigerator Control Backorder WPL W11546137 View Details $182.02

View on Model

12

CLAMP WPL W11265569 Contact Us For Availability

View on Model

13

W11407983 Whirlpool Cover Backorder WPL W11407983 View Details $42.57

View on Model

13

COMPRESSOR, RUBBER WPL W11360595 Contact Us For Availability

View on Model

14

W10772873 Whirlpool Screw Backorder WPL W10772873 View Details $29.87

View on Model

14

W10797332 Whirlpool Refrigerator Support In Stock WPL W10797332 View Details $11.47

View on Model

15

W10797333 Whirlpool Refrigerator Support In Stock WPL W10797333 View Details $11.47

View on Model

15

W11754545 Whirlpool Compressor In Stock WPL W11754545 View Details $325.74

View on Model

16

W10797336 Whirlpool Refrigerator Support Backorder WPL W10797336 View Details $10.93

View on Model

16

COVER WPL W11568820 Contact Us For Availability

View on Model

17

W10797337 Whirlpool Refrigerator Support Backorder WPL W10797337 View Details $10.93

View on Model

17

W11596023 Whirlpool Start Device In Stock WPL W11596023 View Details $27.12

View on Model

18

ASSEMBLY, GLASS TRAY WPL W11546124 Contact Us For Availability

View on Model

18

PROTECTOR, MOTOR WPL W11568812 Contact Us For Availability

View on Model

19

W11548216 Whirlpool Tray Backorder WPL W11548216 View Details $85.38

View on Model

20

W11547158 Whirlpool Tray Assembly Backorder WPL W11547158 View Details $58.14

View on Model

NI

REFRIGERANT CHARGE 52 GRAMS (R600A) WPL ARIF916CC318E008C40755DF76F91C7B724 Contact Us For Availability
