Model Whirlpool KUIS185GSS0 ICE CUBE MAKER – Common Parts & Diagrams

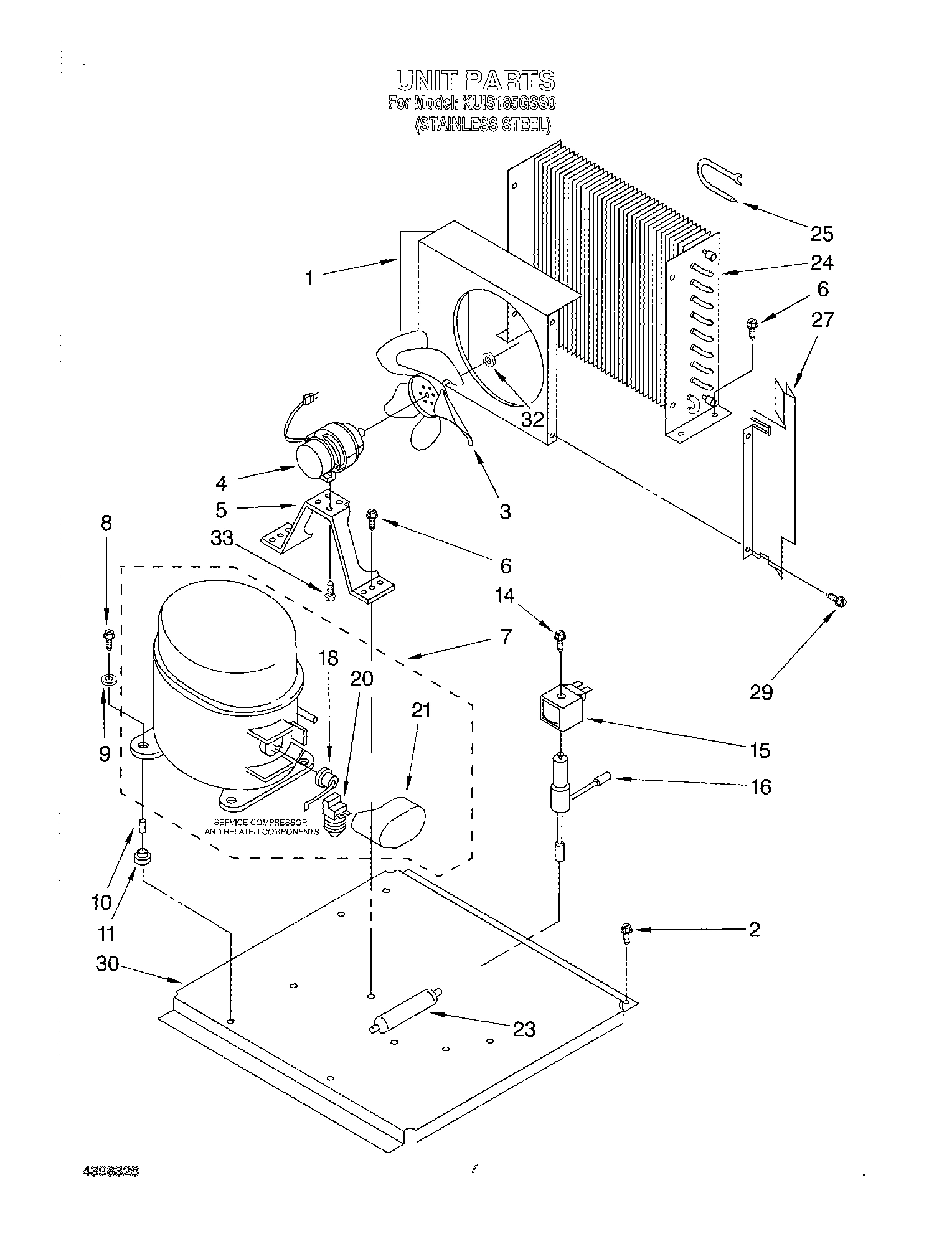

05 - UNIT

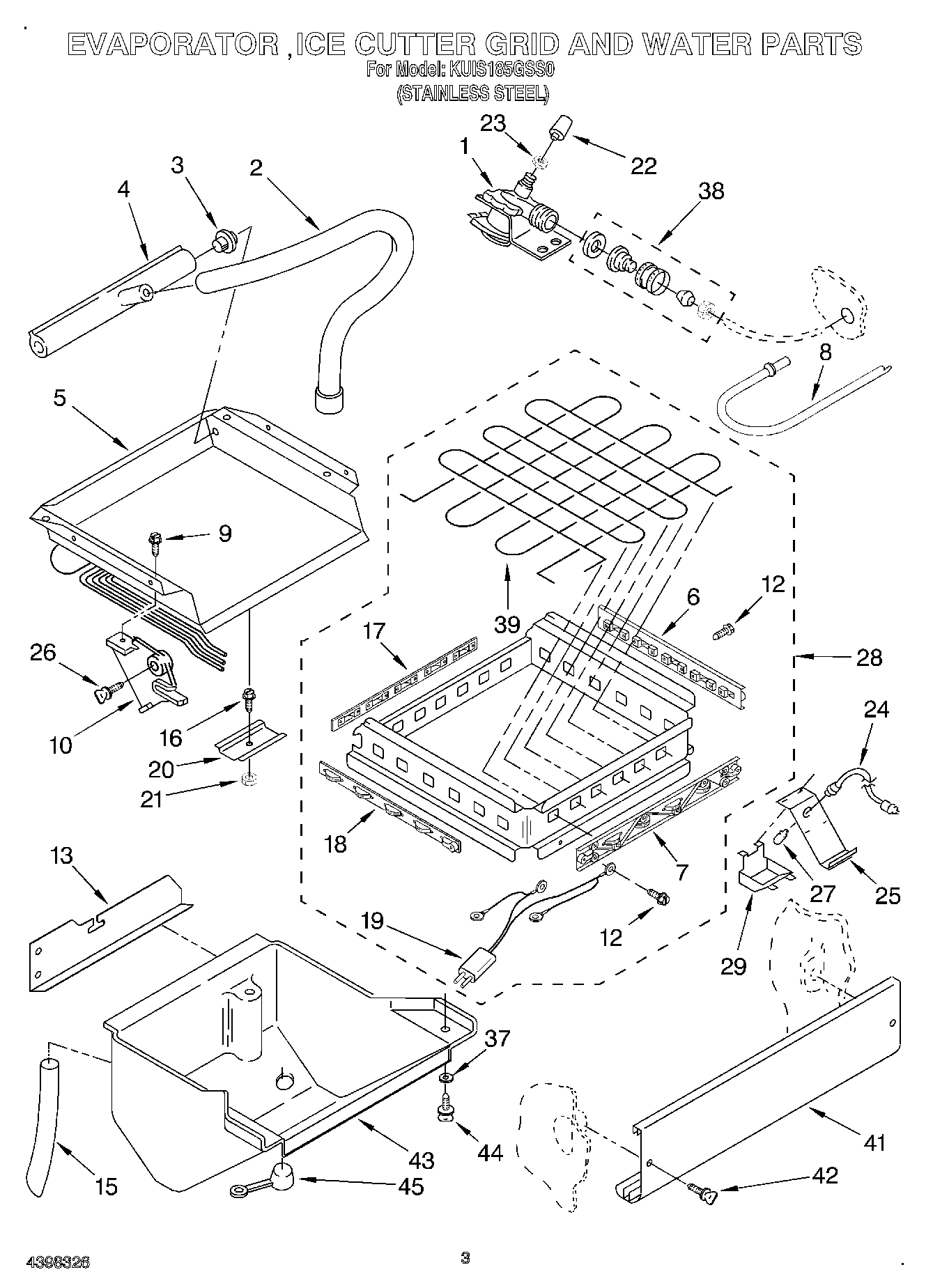

02 - EVAPORATOR, ICE CUTTER GRID AND WATER

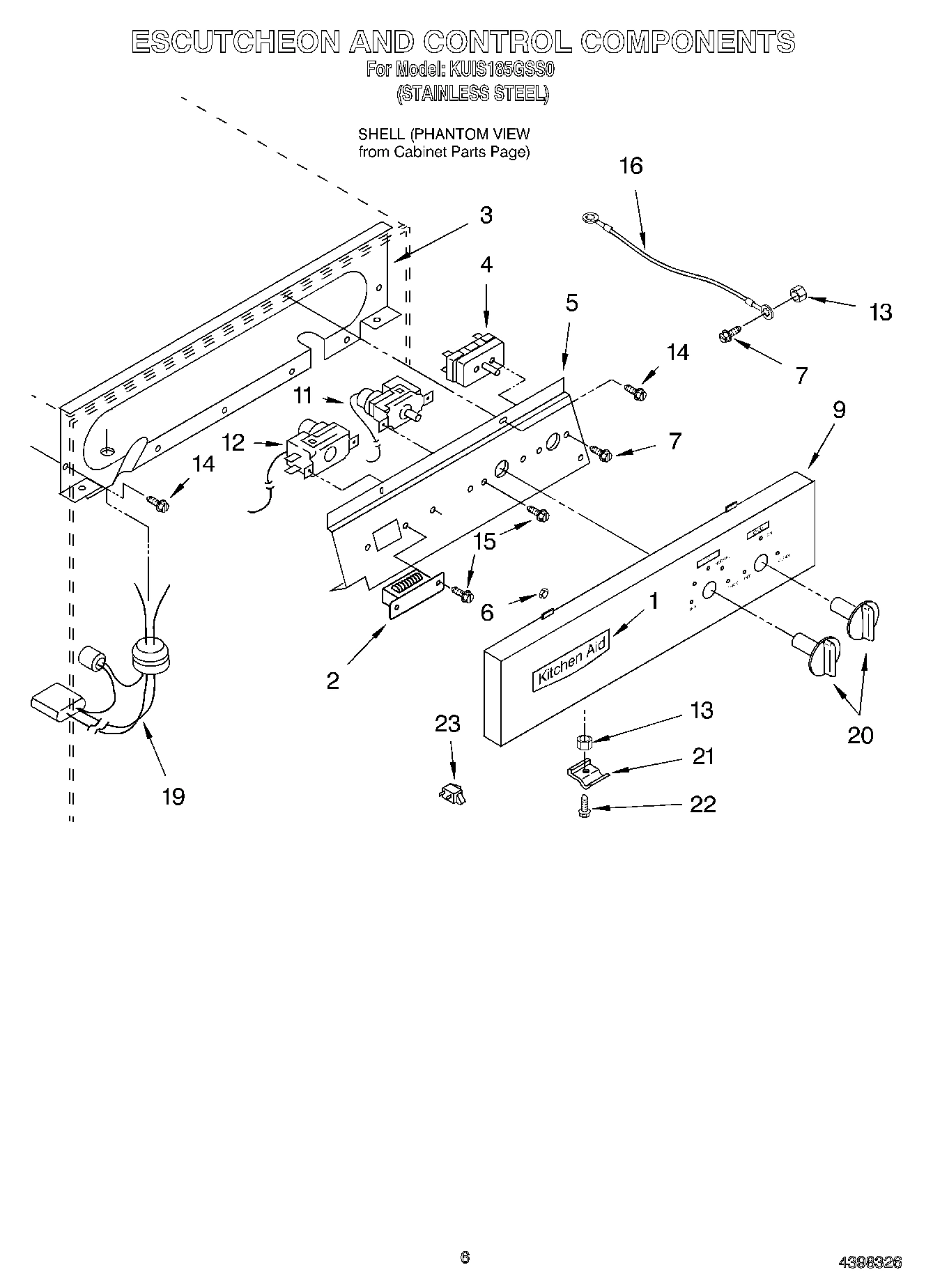

04 - ESCUTCHEON AND CONTROL

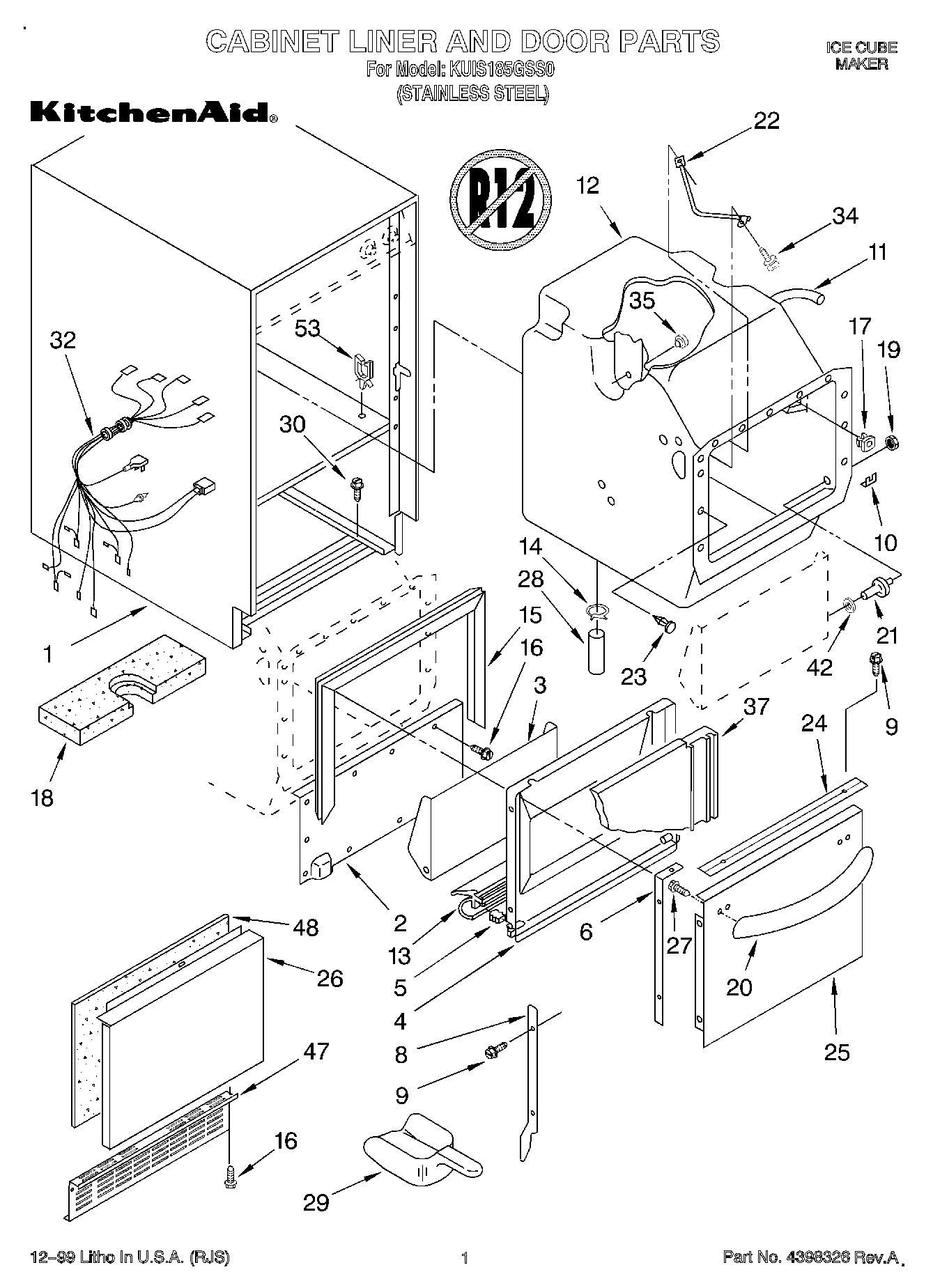

01 - CABINET LINER AND DOOR, LIT/OPTIONAL

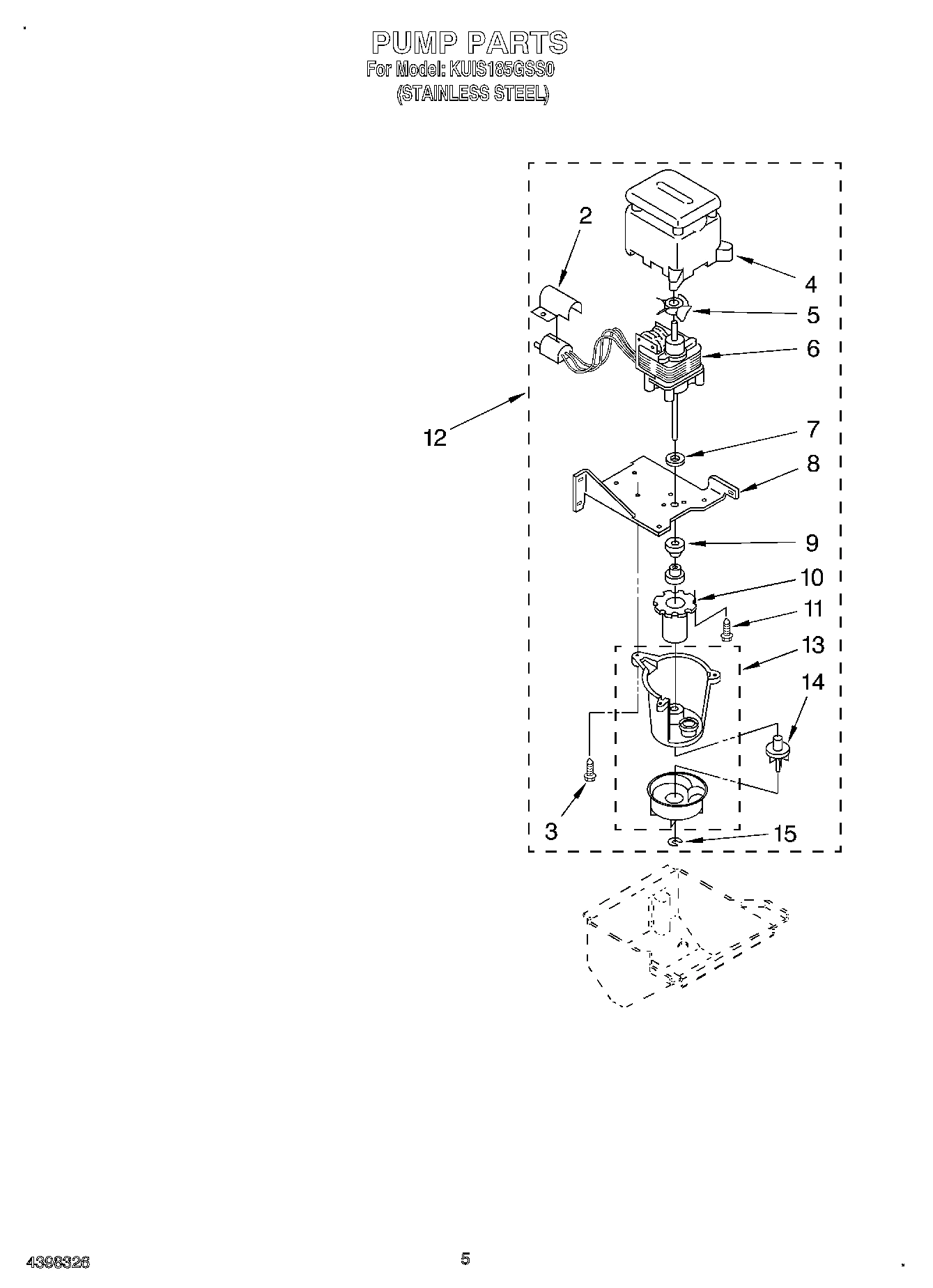

03 - PUMP
Common parts from model Whirlpool KUIS185GSS0 ICE CUBE MAKER
Service and Wiring Sheet WPL LIT2180830 Contact Us For Availability
Use & Care Guide WPL LIT2181092 Contact Us For Availability
Instructions, Installation WPL LIT2181133 Contact Us For Availability
1
Valve, Complete Water WPL 759296 Contact Us For Availability
1
Nameplate WPL 2005292 Contact Us For Availability
1
Shell WPL 2175696 Contact Us For Availability
2
Tube, Plastic WPL 585856 Contact Us For Availability
2
Transformer WPL 2165483 Contact Us For Availability
2
Front, Shell WPL 2175619 Contact Us For Availability
2
Cover, Plug WPL 756124 Contact Us For Availability
3
Plug (2) WPL 758597 Contact Us For Availability
3
Escutcheon, Panel WPL 2165530 Contact Us For Availability
3
Door, Inner Bin WPL 756330 Contact Us For Availability
3
Screw, 8-18 x 3/4 WPL 681391 Contact Us For Availability
4
Dispenser, Water WPL 1129798 Contact Us For Availability
4
Switch, Service WPL 2181045 Contact Us For Availability
4
Liner, Door WPL 758222 Contact Us For Availability
4
Housing, Motor WPL 583155 Contact Us For Availability
5
Evaporator WPL 2181076 Contact Us For Availability
5
Bracket, Control WPL 2181207 Contact Us For Availability
5
Plug, Hinge WPL 593192 Contact Us For Availability
5
Blade, Fan WPL 587096 Contact Us For Availability
6
Spacer, Adjustable (Side) WPL 2174726 Contact Us For Availability
6
Strip, Tapping (2) WPL 593104 Contact Us For Availability
6
Motor, Pump WPL 1127834 Contact Us For Availability
7
Spacer, Adjustable (Front) WPL 2174724 Contact Us For Availability
7
Washer WPL 583424 Contact Us For Availability
8
Rail, R.S. WPL 593184 Contact Us For Availability
8
Rail, L.S. WPL 593185 Contact Us For Availability
8
Bracket, Pump WPL 756122 Contact Us For Availability
9
Escutcheon WPL 2181219 Contact Us For Availability
9
Screw, 8-32 x 5/8 (6) WPL 681459 Contact Us For Availability
9
Grommet (2) WPL 596016 Contact Us For Availability
10
Bracket, Grid Mounting (2) WPL 756564 Contact Us For Availability
10
Washer (2) WPL 758492 Contact Us For Availability
10
Sleeve WPL 593229 Contact Us For Availability
11
Thermostat, Evaporator WPL 759308 Contact Us For Availability
11
Tube, Water Fill WPL 759213 Contact Us For Availability
12
Thermostat, Bin Control WPL 759309 Contact Us For Availability
12
Liner (Includes Nos. 10, 11, 17, 19, 21, and WPL 2180752 Contact Us For Availability
13
Shelf, Water Pan WPL 585853 Contact Us For Availability
13
Gasket, Bottom WPL 2172898 Contact Us For Availability
13
Pump WPL 583518 Contact Us For Availability
14
Clamp (2) WPL 596023 Contact Us For Availability
14
Impeller (Includes Retaining Ring 15) WPL 583426 Contact Us For Availability
15
Coil, Solenoid WPL 759112 Contact Us For Availability
15
Hose, Overflow WPL 759109 Contact Us For Availability
15
Screw, WPL 681036 Contact Us For Availability
15
Gasket WPL 758921 Contact Us For Availability
15
Ring, Retaining WPL 681301 Contact Us For Availability
16
Screw, 10-32 x 1/2 WPL 596037 Contact Us For Availability
17
Spacer, Fixed (Rear) WPL 2174725 Contact Us For Availability
17
Grommet WPL 596807 Contact Us For Availability
18
Spacer, Fixed (Side) WPL 2174727 Contact Us For Availability
18
Insulation, Bottom, Foam WPL 756891 Contact Us For Availability
19
Harness, Grid WPL 2174750 Contact Us For Availability
19
Harness, Grid WPL 758567 Contact Us For Availability
19
Nut WPL 681542 Contact Us For Availability
20
Clamp WPL 587662 Contact Us For Availability
20
Knob WPL 2181229 Contact Us For Availability
20
Handle, Door WPL 2181223 Contact Us For Availability
21
Nut, Wing WPL 681676 Contact Us For Availability
21
Latch WPL 759007 Contact Us For Availability
21
Stud (2) WPL 758220 Contact Us For Availability
22
Screw, 8-32 x 1/2 WPL 680964 Contact Us For Availability
22
Well, Bin Thermostat WPL 593183 Contact Us For Availability
23
Clip, Panel (12) WPL 596812 Contact Us For Availability
24
Harness, Light WPL 758488 Contact Us For Availability
24
Door Trim, Top WPL 2180971 Contact Us For Availability
25
Accumulator WPL 2180807 Contact Us For Availability
25
Bracket, Lamp WPL 758490 Contact Us For Availability
25
Panel, Door WPL 2181222 Contact Us For Availability
26
Thumbscrew WPL 681611 Contact Us For Availability
26
Panel, Outer WPL 2181226 Contact Us For Availability
27
Deflector, Front WPL 758811 Contact Us For Availability
27
Bulb WPL 745362 Contact Us For Availability
28
Grid Assembly (Complete) WPL 2174752 Contact Us For Availability
28
Connector, Hose WPL 593577 Contact Us For Availability
29
Shield, Light WPL 758489 Contact Us For Availability
30
Base, Unit WPL 2180938 Contact Us For Availability
30
Screw, 10-32 x 3/8 WPL 680811 Contact Us For Availability
32
Conical Washer 1/4-20 Hex WPL 681650 Contact Us For Availability
32
Harness, Cabinet WPL 2181157 Contact Us For Availability
33
Screw WPL 489199 Contact Us For Availability
34
Thumbscrew, 10-1/2 WPL 680930 Contact Us For Availability
35
Well Nut (3) WPL 596715 Contact Us For Availability
37
Washer, WPL 681245 Contact Us For Availability
37
Insulation, Door WPL 758754 Contact Us For Availability
38
Adapter WPL 2165477 Contact Us For Availability
41
Panel, Grid WPL 593171 Contact Us For Availability
42
Thumbscrew, 10-32 x 5/8 WPL 681534 Contact Us For Availability
42
Washer WPL 681613 Contact Us For Availability
43
Pan WPL 756659 Contact Us For Availability
44
Thumbscrew, 10 x 1/2 WPL 681419 Contact Us For Availability
45
Stopper, Water Pan WPL 759043 Contact Us For Availability
47
Grill, Front WPL 758769 Contact Us For Availability
48
Insulation WPL 2181176 Contact Us For Availability
53
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
53
Retainer, Wire WPL 489482 Contact Us For Availability
53
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
