Model Whirlpool KUIS185FAL1 ICE CUBE MAKER – Common Parts & Diagrams

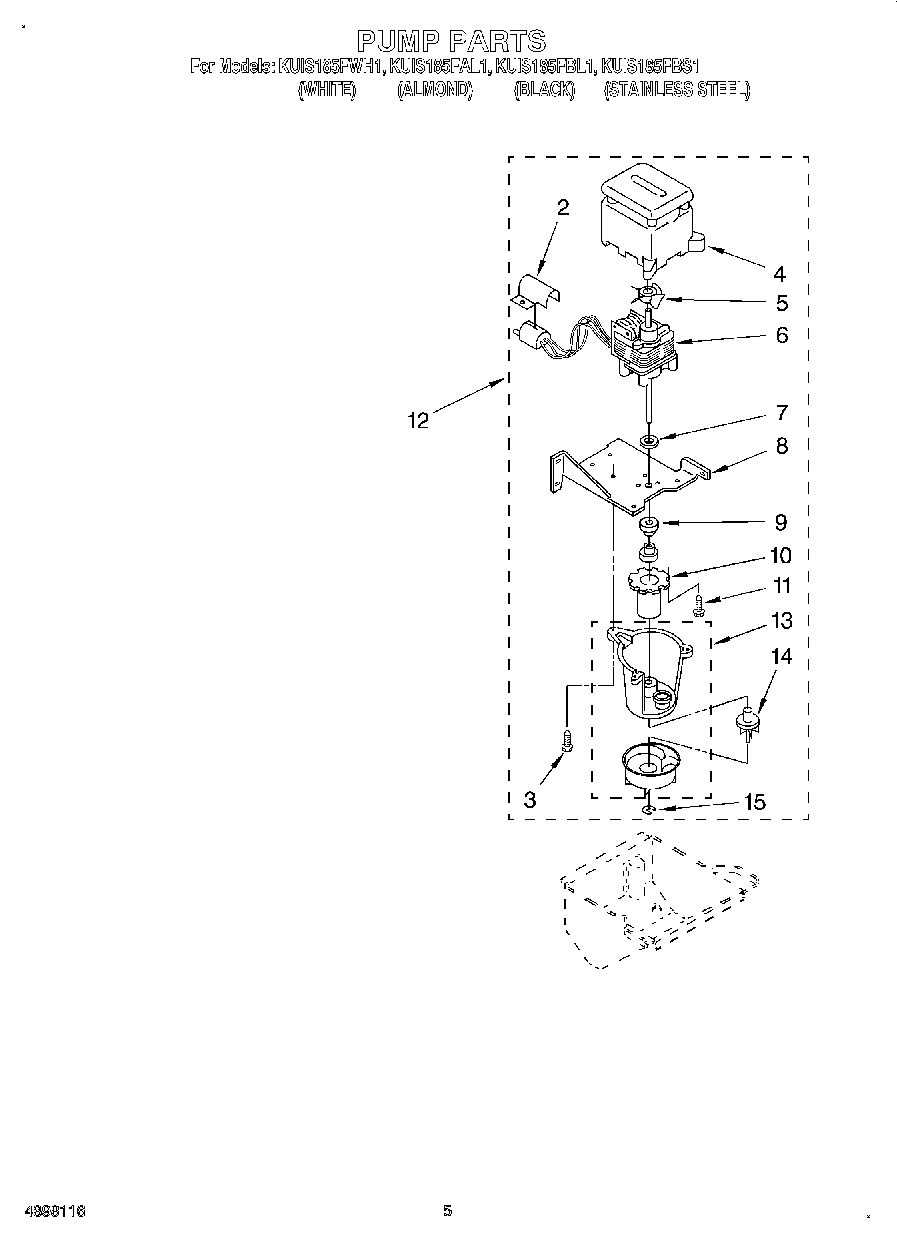

03 - PUMP

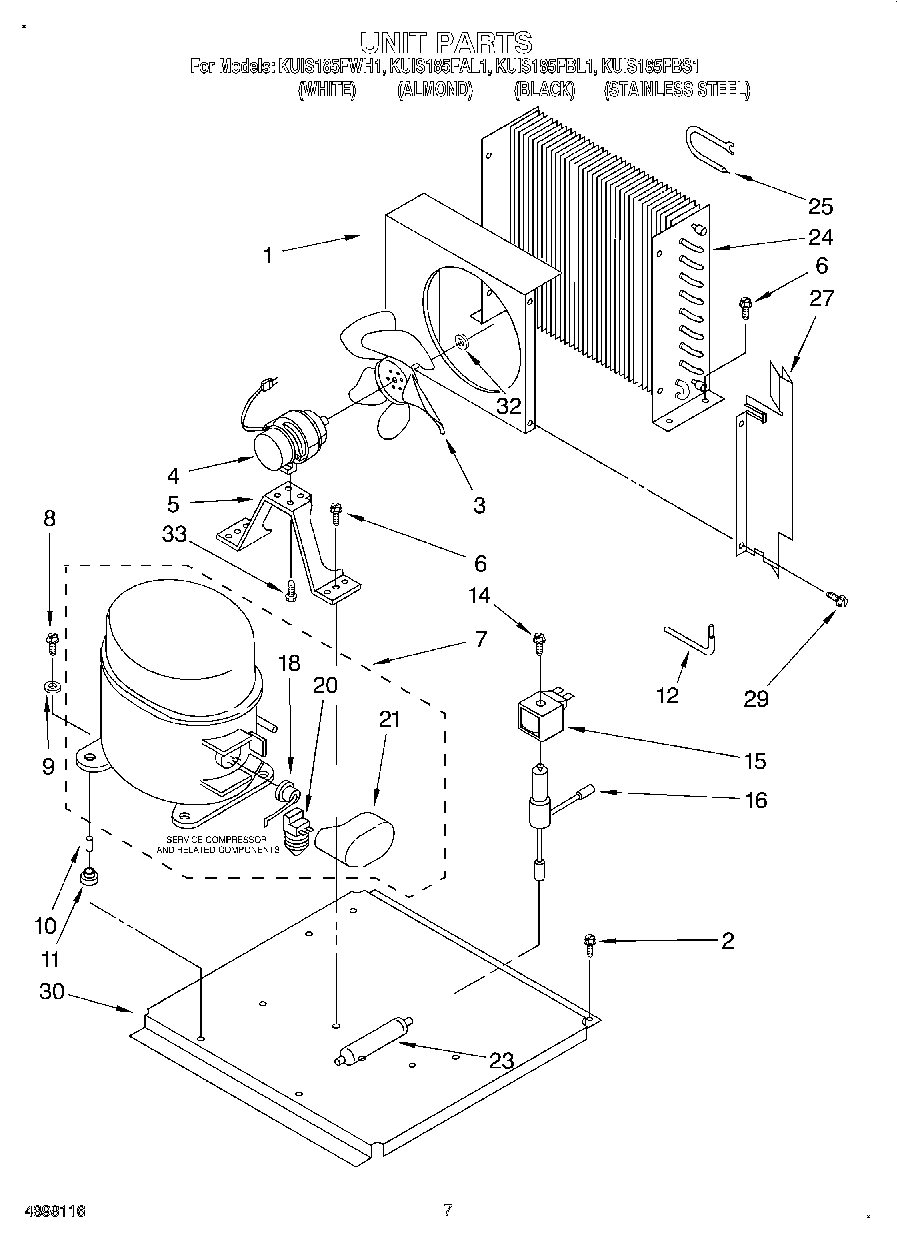

05 - UNIT

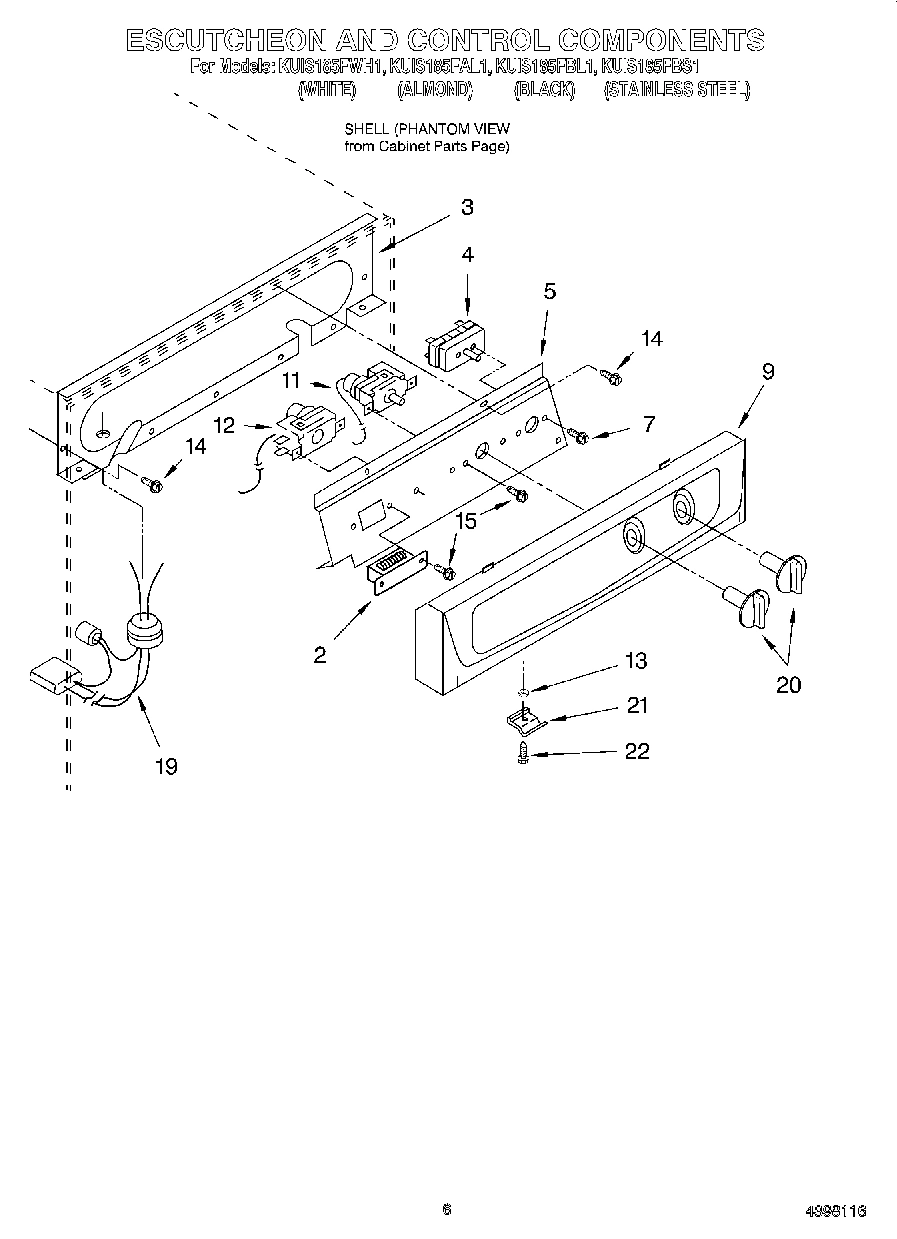

04 - ESCUTCHEON AND CONTROL

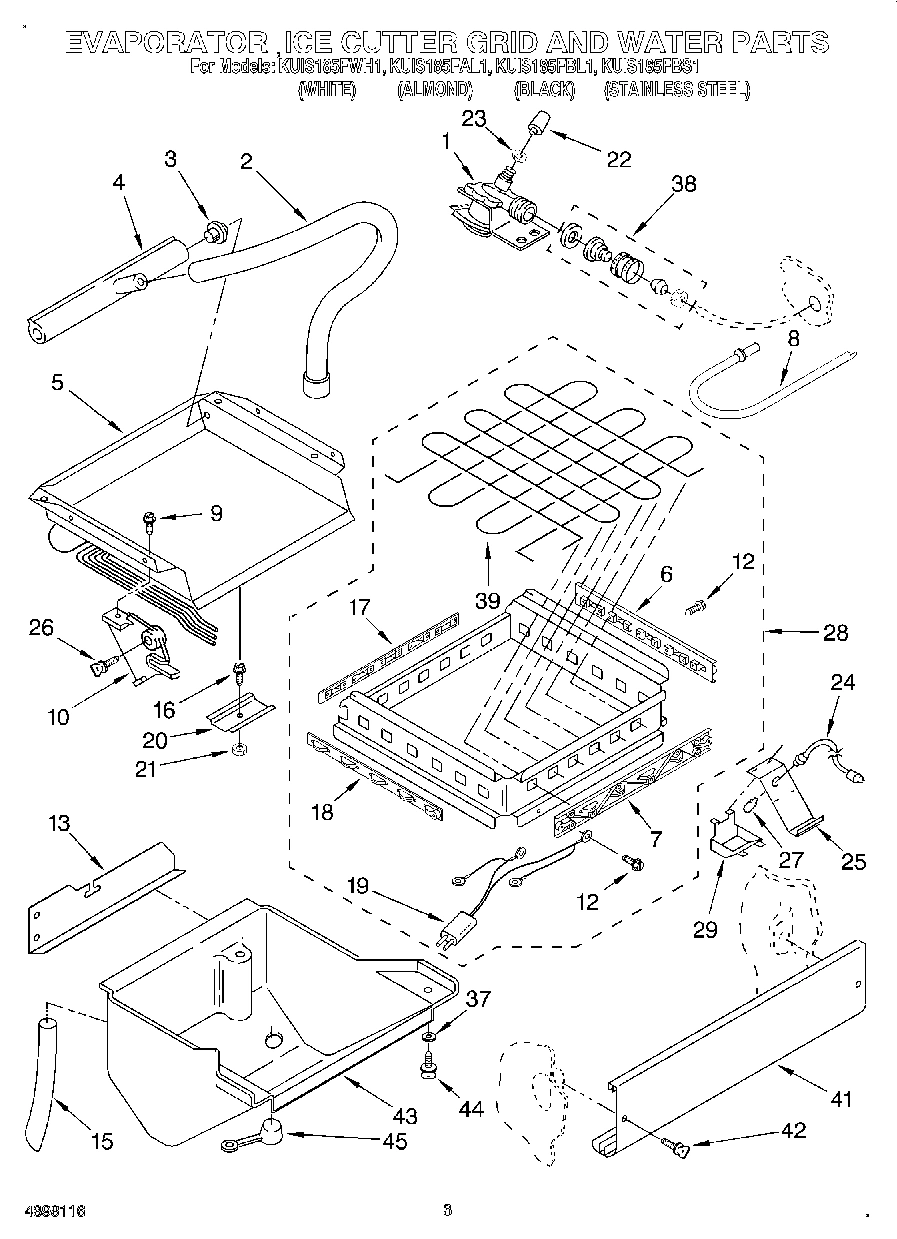

02 - EVAPORATOR, ICE CUTTER GRID AND WATER

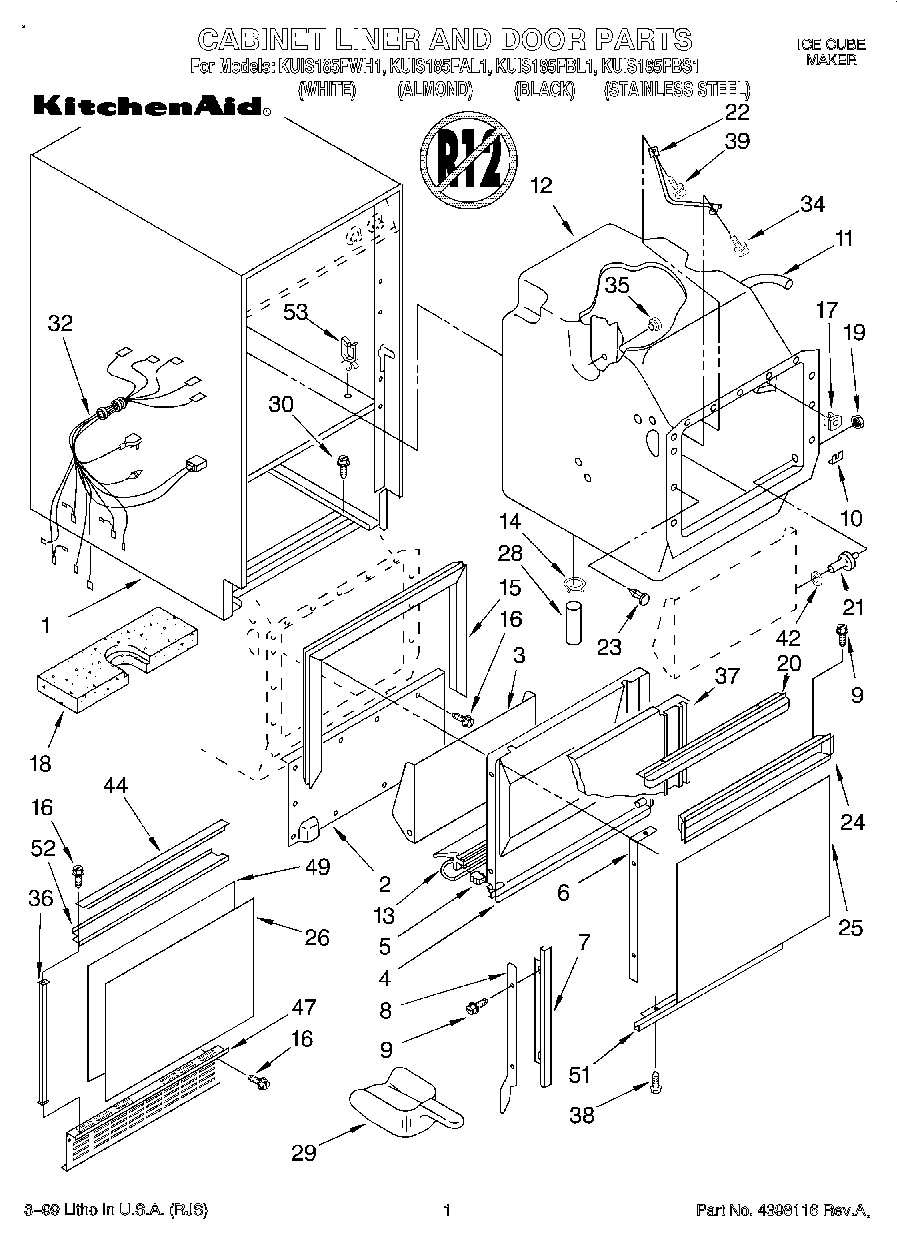

01 - CABINET, LINER AND DOOR, LITERATURE
Common parts from model Whirlpool KUIS185FAL1 ICE CUBE MAKER
WPL LIT2175675 WPL LIT2175675 Contact Us For Availability
WPL LIT2180830 WPL LIT2180830 Contact Us For Availability
WPL LIT2181092 WPL LIT2181092 Contact Us For Availability
1
Valve, Complete Water WPL 759296 Contact Us For Availability
1
Shell (White) WPL 2175636 Contact Us For Availability
1
Shell (BLack) WPL 2175696 Contact Us For Availability
1
Shell (Almond) WPL 2175698 Contact Us For Availability
2
Transformer WPL 2165483 Contact Us For Availability
2
Tube, Plastic WPL 585856 Contact Us For Availability
2
Front, Shell WPL 2175619 Contact Us For Availability
3
Escutcheon, Panel WPL 2165530 Contact Us For Availability
3
Plug (2) WPL 758597 Contact Us For Availability
3
Door, Inner Bin WPL 756330 Contact Us For Availability
4
Motor, Fan WPL 1108089 Contact Us For Availability
4
Switch, Service WPL 2181045 Contact Us For Availability
4
Dispenser, Water WPL 1129798 Contact Us For Availability
4
Liner, Door WPL 758655 Contact Us For Availability
5
Bracket WPL 560817 Contact Us For Availability
5
Bracket, Control WPL 2172846 Contact Us For Availability
5
Evaporator WPL 2181203 Contact Us For Availability
5
Plug, Hinge WPL 593192 Contact Us For Availability
6
Screw, 1/4-20 x 1/2 (6) WPL 681305 Contact Us For Availability
6
Spacer, Adjustable (Side) WPL 2174726 Contact Us For Availability
6
Strip, Tapping (2) WPL 593104 Contact Us For Availability
7
Spacer, Adjustable (Front) WPL 2174724 Contact Us For Availability
7
Trim, Door (2) (White) WPL 2181113 Contact Us For Availability
7
Trim, Door (2) (Black) WPL 2181114 Contact Us For Availability
7
Trim, Door (2) (Almond) WPL 2181115 Contact Us For Availability
7
Trim, Door (2) (Stainless Steel) WPL 759272 Contact Us For Availability
8
Screw (4) WPL 680233 Contact Us For Availability
8
Rail, R.S. WPL 593184 Contact Us For Availability
8
Rail, L.S. WPL 593185 Contact Us For Availability
9
Washer (4) WPL 595230 Contact Us For Availability
9
Escutcheon (Black) WPL 2180975 Contact Us For Availability
9
Escutcheon (White) WPL 2180995 Contact Us For Availability
9
Escutcheon (Almond) WPL 2180996 Contact Us For Availability
9
Screw, 8-32 x 5/8 (6) WPL 681459 Contact Us For Availability
10
Sleeve (4) WPL 585564 Contact Us For Availability
10
Bracket, Grid Mounting (2) WPL 756564 Contact Us For Availability
10
Washer (2) WPL 758492 Contact Us For Availability
11
Thermostat, Evaporator WPL 759308 Contact Us For Availability
11
Grommet (4) WPL 596355 Contact Us For Availability
11
Tube, Water Fill WPL 759213 Contact Us For Availability
12
Thermostat, Bin Control WPL 759309 Contact Us For Availability
12
Tube, Process WPL 2154019 Contact Us For Availability
12
Liner (Includes Nos. 10, 11, 17, 19, 21, and WPL 2180752 Contact Us For Availability
13
Shelf, Water Pan WPL 585853 Contact Us For Availability
13
Gasket, Bottom WPL 2172898 Contact Us For Availability
14
Screw WPL 489472 Contact Us For Availability
14
Clamp (2) WPL 596023 Contact Us For Availability
15
Coil, Solenoid WPL 759112 Contact Us For Availability
15
Screw, WPL 681036 Contact Us For Availability
15
Hose, Overflow WPL 759109 Contact Us For Availability
15
Gasket WPL 758921 Contact Us For Availability
16
Screw, 10-32 x 1/2 WPL 596037 Contact Us For Availability
17
Spacer, Fixed (Rear) WPL 2174725 Contact Us For Availability
17
Grommet WPL 596807 Contact Us For Availability
18
Overload WPL 2183404 Contact Us For Availability
18
Spacer, Fixed (Side) WPL 2174727 Contact Us For Availability
18
Insulation, Bottom, Foam WPL 756891 Contact Us For Availability
19
Harness, Grid WPL 758567 Contact Us For Availability
19
Harness, Grid WPL 2174750 Contact Us For Availability
19
Nut WPL 681542 Contact Us For Availability
20
Relay, Start WPL 2183410 Contact Us For Availability
20
Knob (Black) WPL 2180997 Contact Us For Availability
20
Knob (White) WPL 2180998 Contact Us For Availability
20
Knob (Almond) WPL 2180999 Contact Us For Availability
20
Clamp WPL 587662 Contact Us For Availability
20
Handle, Door (Black) WPL 2181152 Contact Us For Availability
20
Handle, Door (White) WPL 2181153 Contact Us For Availability
20
Handle, Door (Almond) WPL 2181154 Contact Us For Availability
21
Latch (Almond) WPL 2180773 Contact Us For Availability
21
Latch (Black) WPL 759007 Contact Us For Availability
21
Latch (White) WPL 759123 Contact Us For Availability
21
Nut, Wing WPL 681676 Contact Us For Availability
21
Stud (2) WPL 758220 Contact Us For Availability
22
Screw, 8-32 x 1/2 WPL 680964 Contact Us For Availability
22
Well, Bin Thermostat WPL 593183 Contact Us For Availability
23
Clip, Panel (12) WPL 596812 Contact Us For Availability
24
Harness, Light WPL 758488 Contact Us For Availability
24
Pocket, Handle (White) WPL 2181117 Contact Us For Availability
24
Pocket, Handle (BLack) WPL 2181118 Contact Us For Availability
24
Pocket, Handle (Almond) WPL 2181119 Contact Us For Availability
24
Pocket, Handle (Stainless Steel) WPL 759274 Contact Us For Availability
25
Accumulator WPL 2180807 Contact Us For Availability
25
Bracket, Lamp WPL 758490 Contact Us For Availability
25
Panel, Exterior (Almond & Harvest Gold) WPL 758745 Contact Us For Availability
25
Panel, Exterior (White & Black) WPL 758746 Contact Us For Availability
25
Panel, Exterior (Stainless Steel) WPL 758923 Contact Us For Availability
26
Thumbscrew WPL 681611 Contact Us For Availability
26
Panel, Outer (White/ Black) WPL 758720 Contact Us For Availability
26
Panel, Outer (Almond/ Harvest Gold) WPL 758722 Contact Us For Availability
26
Panel, Outer (Stainless Steel) WPL 758924 Contact Us For Availability
27
Deflector, Front WPL 758811 Contact Us For Availability
27
Bulb WPL 745362 Contact Us For Availability
28
Grid Assembly (Complete) WPL 2174752 Contact Us For Availability
28
Connector, Hose WPL 593577 Contact Us For Availability
29
Shield, Light WPL 758489 Contact Us For Availability
30
Base, Unit WPL 2180938 Contact Us For Availability
30
Screw, 10-32 x 3/8 WPL 680811 Contact Us For Availability
32
Conical Washer 1/4-20 Hex WPL 681650 Contact Us For Availability
32
Harness, Cabinet WPL 2181157 Contact Us For Availability
33
Screw WPL 489199 Contact Us For Availability
34
Thumbscrew, 10-1/2 WPL 680930 Contact Us For Availability
35
Well Nut (3) WPL 596715 Contact Us For Availability
36
Trim, Side (2) (White) WPL 2181102 Contact Us For Availability
36
Trim, Side (2) (Black) WPL 2181103 Contact Us For Availability
36
Trim, Side (2) (Almond) WPL 2181104 Contact Us For Availability
36
Trim, Side (2) (Stainle WPL 758713 Contact Us For Availability
37
Washer, WPL 681245 Contact Us For Availability
37
WPL 758608 WPL 758608 Contact Us For Availability
38
Adapter WPL 2165477 Contact Us For Availability
38
WPL 681196 WPL 681196 Contact Us For Availability
39
WPL 681419 WPL 681419 Contact Us For Availability
41
Panel, Grid WPL 593171 Contact Us For Availability
42
Thumbscrew, 10-32 x 5/8 WPL 681534 Contact Us For Availability
42
WPL 681613 WPL 681613 Contact Us For Availability
43
Pan WPL 756659 Contact Us For Availability
44
WPL 2181105 WPL 2181105 Contact Us For Availability
44
WPL 2181106 WPL 2181106 Contact Us For Availability
44
WPL 2181107 WPL 2181107 Contact Us For Availability
44
WPL 758716 WPL 758716 Contact Us For Availability
45
Stopper, Water Pan WPL 759043 Contact Us For Availability
47
WPL 2180778 WPL 2180778 Contact Us For Availability
47
WPL 758769 WPL 758769 Contact Us For Availability
47
WPL 759132 WPL 759132 Contact Us For Availability
49
WPL 758771 WPL 758771 Contact Us For Availability
51
WPL 2181109 WPL 2181109 Contact Us For Availability
51
WPL 2181110 WPL 2181110 Contact Us For Availability
51
WPL 2181111 WPL 2181111 Contact Us For Availability
51
WPL 755677 WPL 755677 Contact Us For Availability
52
WPL 2175604 WPL 2175604 Contact Us For Availability
53
WPL 978029 WPL 978029 Contact Us For Availability
53
WPL 489482 WPL 489482 Contact Us For Availability
53
WPL 978028 WPL 978028 Contact Us For Availability
× ![]()
