Model Whirlpool KUIS185DWH0 ICE CUBE MAKER – Common Parts & Diagrams

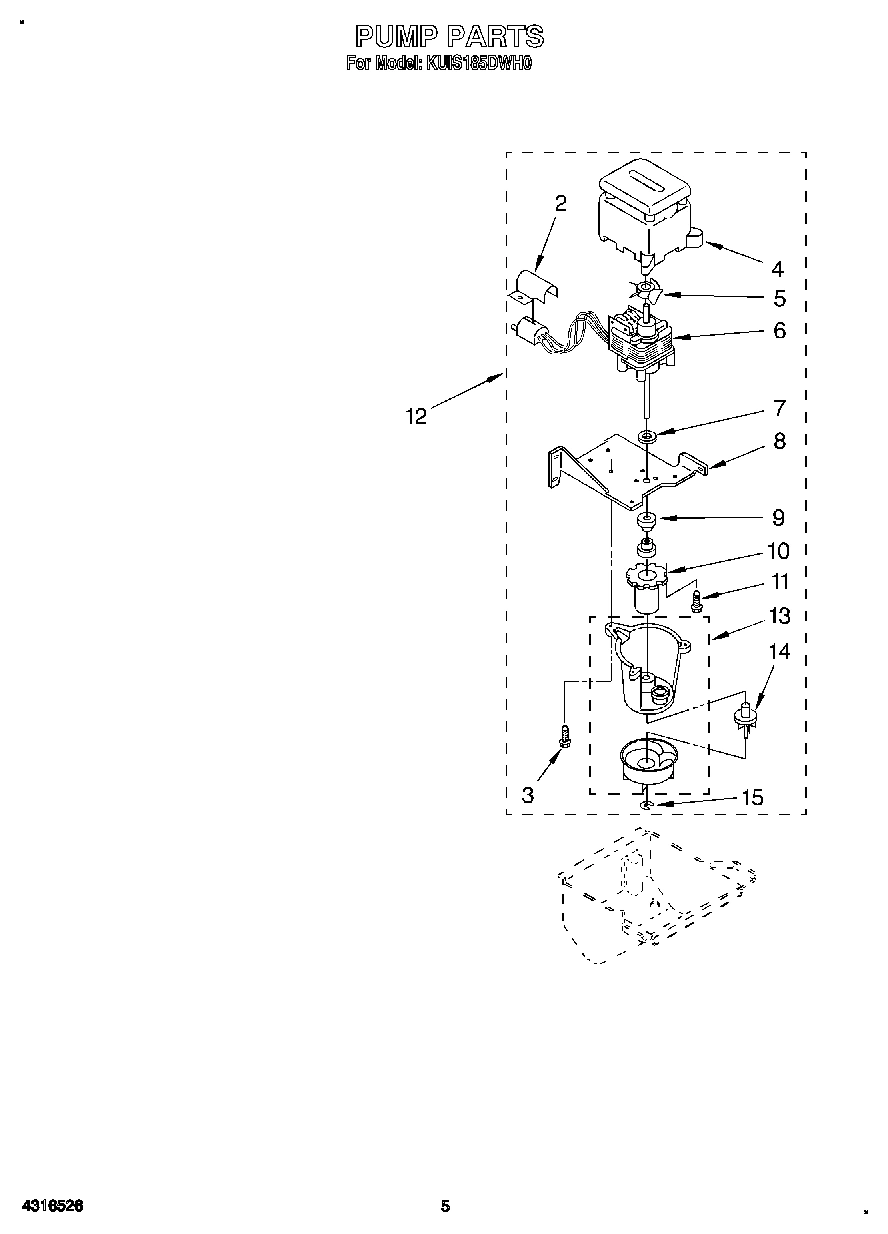

03 - PUMP

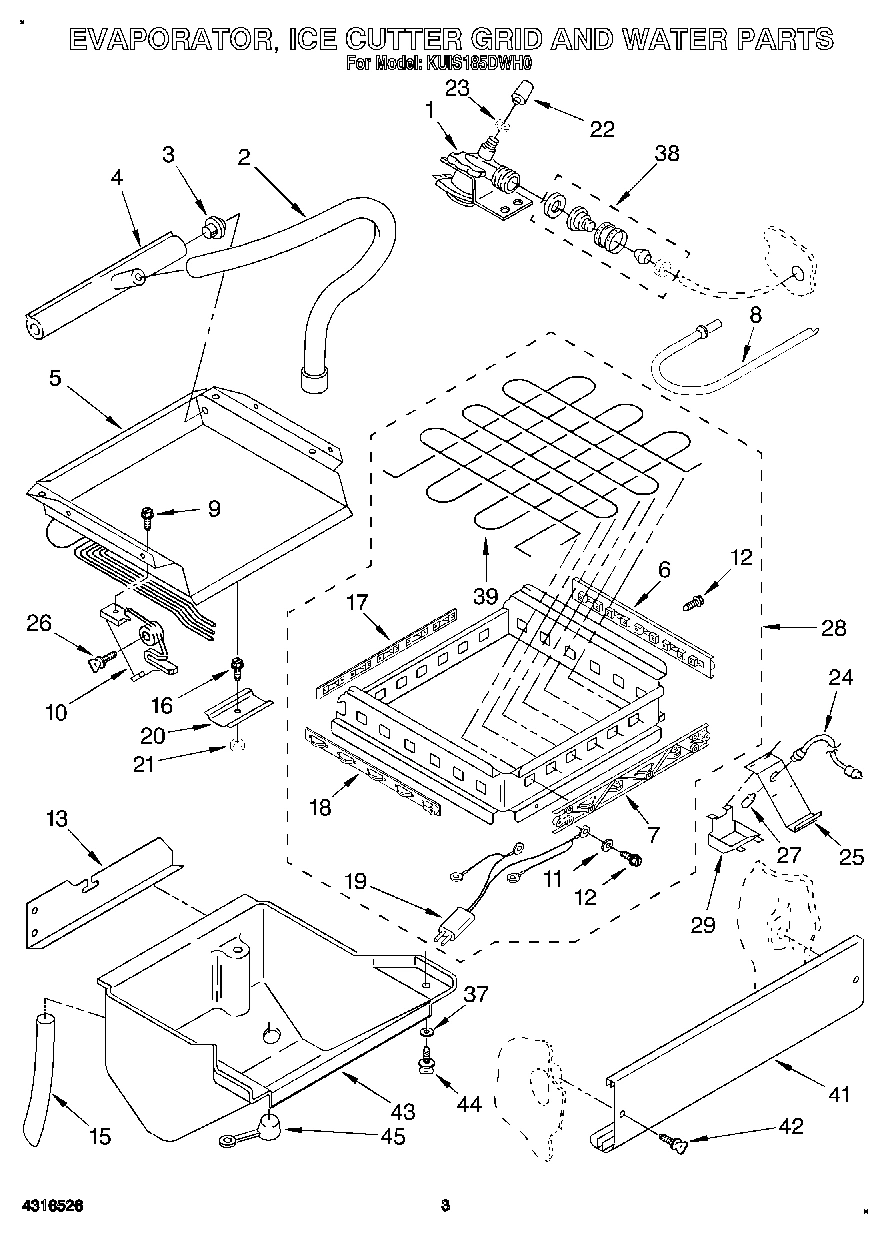

02 - EVAPORATOR, ICE CUTTER GRID AND WATER

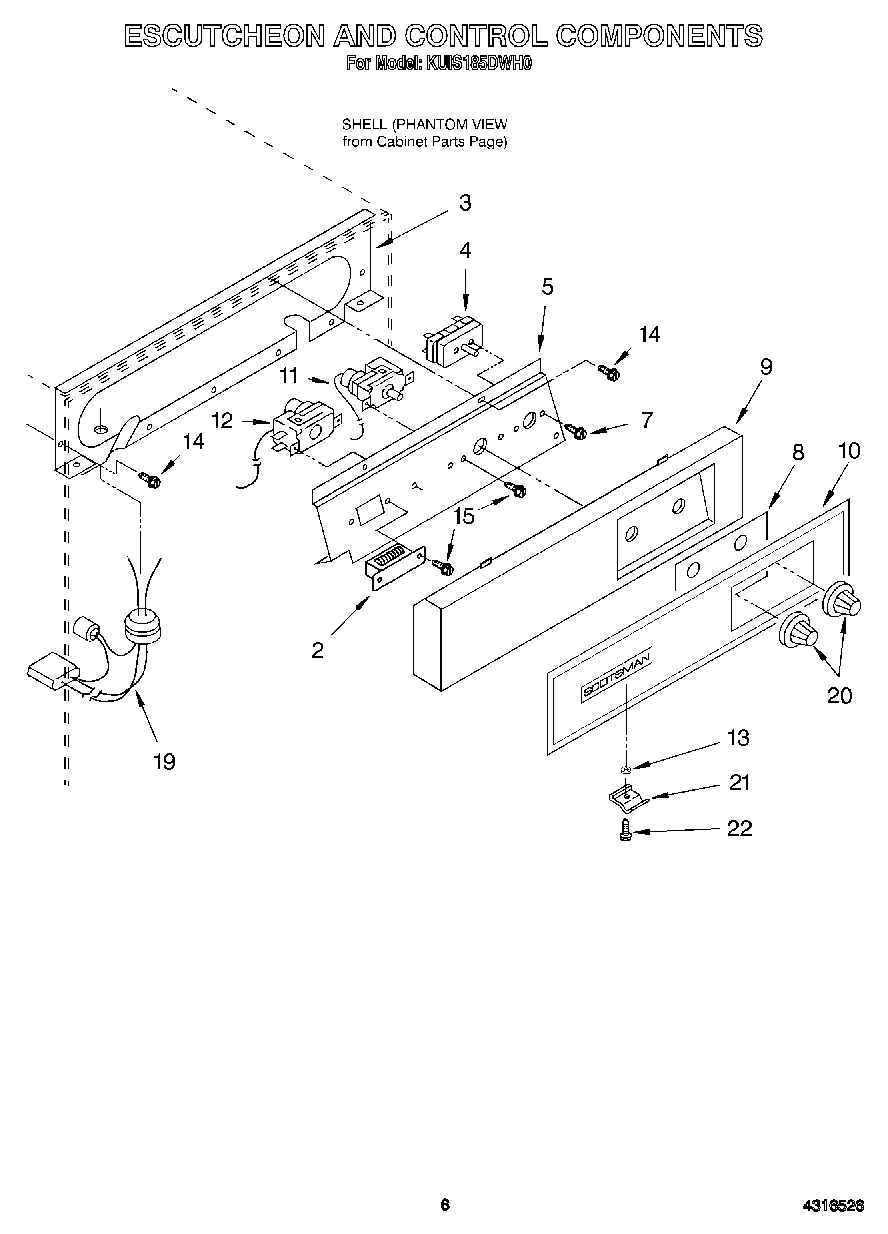

04 - ESCUTCHEON AND CONTROL COMPONENTS
01 - CABINET LINER AND DOOR, LITERATURE

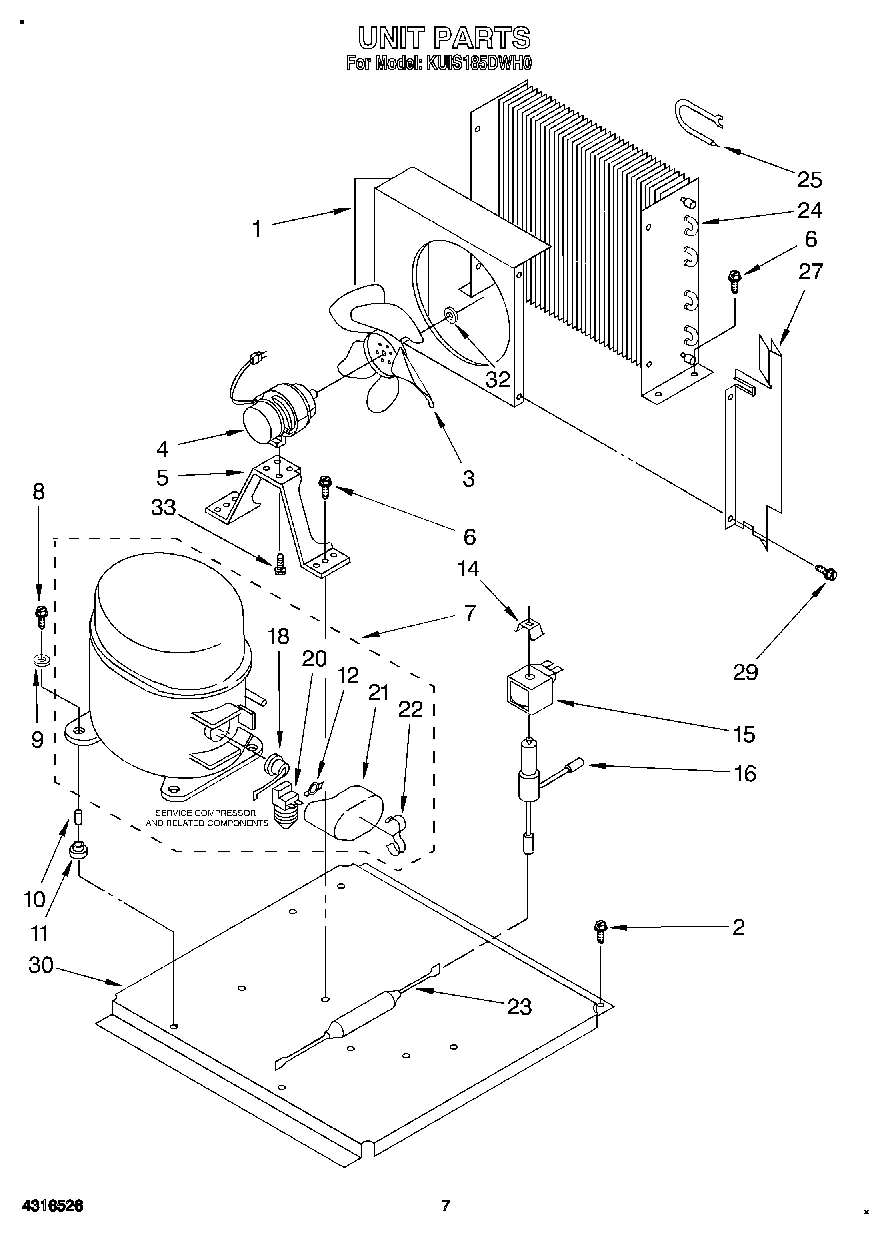

05 - UNIT
Common parts from model Whirlpool KUIS185DWH0 ICE CUBE MAKER
Label, Wiring Diagram WPL LIT2174784 Contact Us For Availability
Service and Wiring She WPL LIT2174786 Contact Us For Availability
WPL LIT2175674 WPL LIT2175674 Contact Us For Availability
WPL LIT2175675 WPL LIT2175675 Contact Us For Availability
1
Valve, Complete Water WPL 759296 Contact Us For Availability
1
Shell WPL 2175636 Contact Us For Availability
1
Shroud WPL 757955 Contact Us For Availability
2
Tube, Plastic WPL 585856 Contact Us For Availability
2
Transformer WPL 2165483 Contact Us For Availability
2
Front, Shell WPL 2175619 Contact Us For Availability
2
Screw, WPL 680811 Contact Us For Availability
3
Plug (2) WPL 758597 Contact Us For Availability
3
Escutcheon, Panel WPL 2165530 Contact Us For Availability
3
Door, Inner Bin WPL 756330 Contact Us For Availability
4
Dispenser, Water WPL 1129798 Contact Us For Availability
4
Switch, Service WPL 2172893 Contact Us For Availability
4
Liner, Door WPL 758655 Contact Us For Availability
4
Motor, Fan WPL 1108089 Contact Us For Availability
5
Evaporator WPL 758028 Contact Us For Availability
5
Bracket, Control WPL 2172846 Contact Us For Availability
5
Plug, Hinge WPL 593192 Contact Us For Availability
5
Bracket WPL 560817 Contact Us For Availability
6
Spacer, Adjustable WPL ARI116822A Contact Us For Availability
6
Strip, Tapping (2) WPL 593104 Contact Us For Availability
6
Screw, 1/4-20 x 1/2 (6) WPL 681305 Contact Us For Availability
7
Spacer, Adjustable WPL ARI116823A Contact Us For Availability
7
Trim, Door (2) WPL 2175667 Contact Us For Availability
7
Compressor, WPL 758593 Contact Us For Availability
8
Decal, Control Panel WPL 2175663 Contact Us For Availability
8
Rail, R.S. WPL 593184 Contact Us For Availability
8
Rail, L.S. WPL 593185 Contact Us For Availability
8
Screw (4) WPL 680233 Contact Us For Availability
9
Escutcheon WPL 2175661 Contact Us For Availability
9
Screw, 8-32 x 5/8 (6) WPL 681459 Contact Us For Availability
9
Washer (4) WPL 595230 Contact Us For Availability
10
Bracket, Grid Mounting (2) WPL 756564 Contact Us For Availability
10
Decal, Escutcheon WPL 2175662 Contact Us For Availability
10
Washer (2) WPL 758492 Contact Us For Availability
10
Sleeve (4) WPL 585564 Contact Us For Availability
11
Tube, Water Fill WPL 759213 Contact Us For Availability
11
Washer, Plain WPL ARI116824A Contact Us For Availability
11
Thermostat, Evaporator WPL 2157321 Contact Us For Availability
11
Grommet (4) WPL 596355 Contact Us For Availability
12
Screw WPL ARI116825A Contact Us For Availability
12
Thermostat, Bin Control WPL 2165478 Contact Us For Availability
12
Liner (Includes Illus. 10, 11, 17, 19, 21 & 3 WPL 756350 Contact Us For Availability
12
Spring, Overload (Service) WPL 549086 Contact Us For Availability
13
Shelf, Water Pan WPL 585853 Contact Us For Availability
13
Washer, WPL 681245 Contact Us For Availability
13
Gasket, Bottom WPL 2172898 Contact Us For Availability
14
Impeller (Includes Retaining Ring 15) WPL 583426 Contact Us For Availability
14
Clamp (2) WPL 596023 Contact Us For Availability
14
Clamp, Coil Retainer WPL 564234 Contact Us For Availability
15
Ring, Retaining WPL 681301 Contact Us For Availability
15
Hose, Overflow WPL 759109 Contact Us For Availability
15
Screw, WPL 681036 Contact Us For Availability
15
Gasket WPL 758921 Contact Us For Availability
15
Coil, Solenoid WPL 587970 Contact Us For Availability
16
Screw, 10-32 x 1/2 WPL 596037 Contact Us For Availability
16
Valve, Body WPL 598086 Contact Us For Availability
17
Spacer, Fixed WPL ARI116826A Contact Us For Availability
17
Grommet WPL 596807 Contact Us For Availability
18
Spacer, Fixed WPL ARI116827A Contact Us For Availability
18
Insulation, Bottom, Foam WPL 756891 Contact Us For Availability
18
OVERLOAD (Service) WPL 589231 Contact Us For Availability
18
OVERLOAD (Production) WPL 758638 Contact Us For Availability
19
Harness, Grid WPL ARI116828A Contact Us For Availability
19
Harness, Grid WPL 758567 Contact Us For Availability
19
Nut WPL 681542 Contact Us For Availability
20
Clamp WPL 587662 Contact Us For Availability
20
Knob WPL 2175664 Contact Us For Availability
20
Relay, Start (Service) WPL 549337 Contact Us For Availability
20
Relay, Start (Production) WPL 758637 Contact Us For Availability
21
Nut, Wing WPL 681676 Contact Us For Availability
21
Latch WPL 759123 Contact Us For Availability
21
Stud (2) WPL 758220 Contact Us For Availability
21
Cover, Terminal (Production) WPL 1108115 Contact Us For Availability
21
Cover, Terminal (Service) WPL 549336 Contact Us For Availability
22
Screw, 8-32 x 1/2 WPL 680964 Contact Us For Availability
22
Well, Bin Thermostat WPL 593183 Contact Us For Availability
22
Retainer, Cover (Service) WPL 549342 Contact Us For Availability
22
Retainer, Cover (Production) WPL 938384 Contact Us For Availability
23
Clip, Panel (12) WPL 596812 Contact Us For Availability
24
Harness, Light WPL 758488 Contact Us For Availability
24
Pocket, Handle WPL 2175669 Contact Us For Availability
24
Condenser WPL 756299 Contact Us For Availability
25
Bracket, Lamp WPL 758490 Contact Us For Availability
25
Panel, Exterior WPL 758746 Contact Us For Availability
25
Accumulator WPL 756298 Contact Us For Availability
26
Thumbscrew WPL 681611 Contact Us For Availability
26
Panel, Outer WPL 758720 Contact Us For Availability
27
Bulb WPL 745362 Contact Us For Availability
27
Deflector, Front WPL 758811 Contact Us For Availability
28
Grid Assembly (Complete) WPL 2174752 Contact Us For Availability
28
Connector, Hose WPL 593577 Contact Us For Availability
29
Shield, Light WPL 758489 Contact Us For Availability
30
Base, Unit WPL 758810 Contact Us For Availability
31
Handle, Recessed WPL 2175668 Contact Us For Availability
32
Wiring Harness, Cabinet WPL 2174781 Contact Us For Availability
32
Conical Washer 1/4-20 Hex WPL 681650 Contact Us For Availability
33
Screw WPL 489199 Contact Us For Availability
34
Thumbscrew, 10-1/2 WPL 680930 Contact Us For Availability
35
Well Nut (3) WPL 596715 Contact Us For Availability
36
Trim, Side (2) WPL 2175671 Contact Us For Availability
37
Insulation, Door WPL 758608 Contact Us For Availability
38
Adapter WPL 2165477 Contact Us For Availability
38
Screw WPL 681196 Contact Us For Availability
39
Wire, Grid Cutter WPL ARI116829A Contact Us For Availability
39
Thumbscrew WPL 681419 Contact Us For Availability
41
Panel, Grid WPL 593171 Contact Us For Availability
42
Thumbscrew, 10-32 x 5/8 WPL 681534 Contact Us For Availability
42
Washer WPL 681613 Contact Us For Availability
43
Pan WPL 756659 Contact Us For Availability
44
Trim, Top And Bottom WPL 2175672 Contact Us For Availability
45
Stopper, Water Pan WPL 759043 Contact Us For Availability
47
Grill, Front WPL 759132 Contact Us For Availability
48
Panel, Filler WPL 758770 Contact Us For Availability
49
Panel, Inner WPL 758771 Contact Us For Availability
51
Trim, Door (Lower) WPL 2175666 Contact Us For Availability
52
Support, Front WPL 2175604 Contact Us For Availability
53
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
53
Retainer, Wire WPL 758844 Contact Us For Availability
53
Blend, Thinner (1 Gal.) WPL 799351 Contact Us For Availability
53
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
