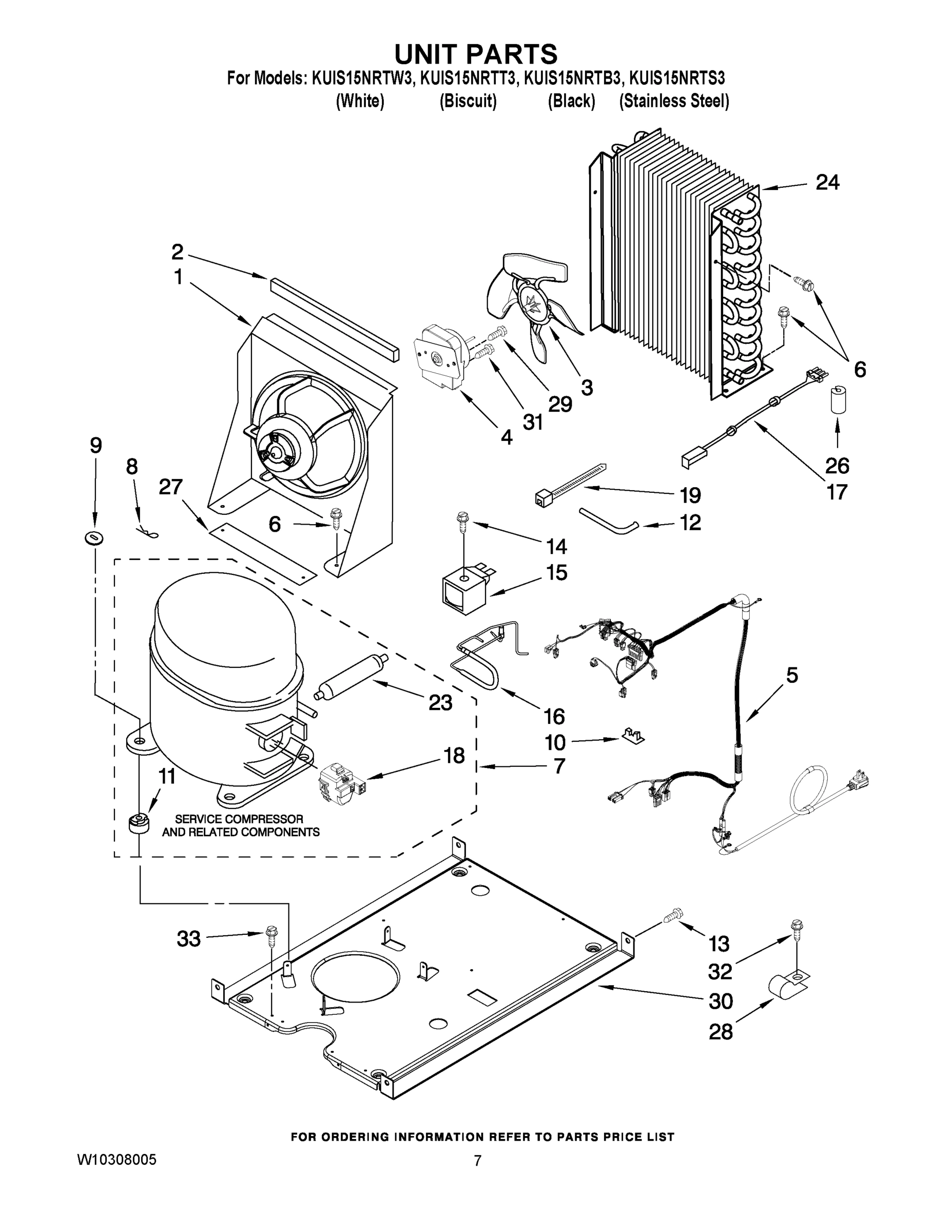

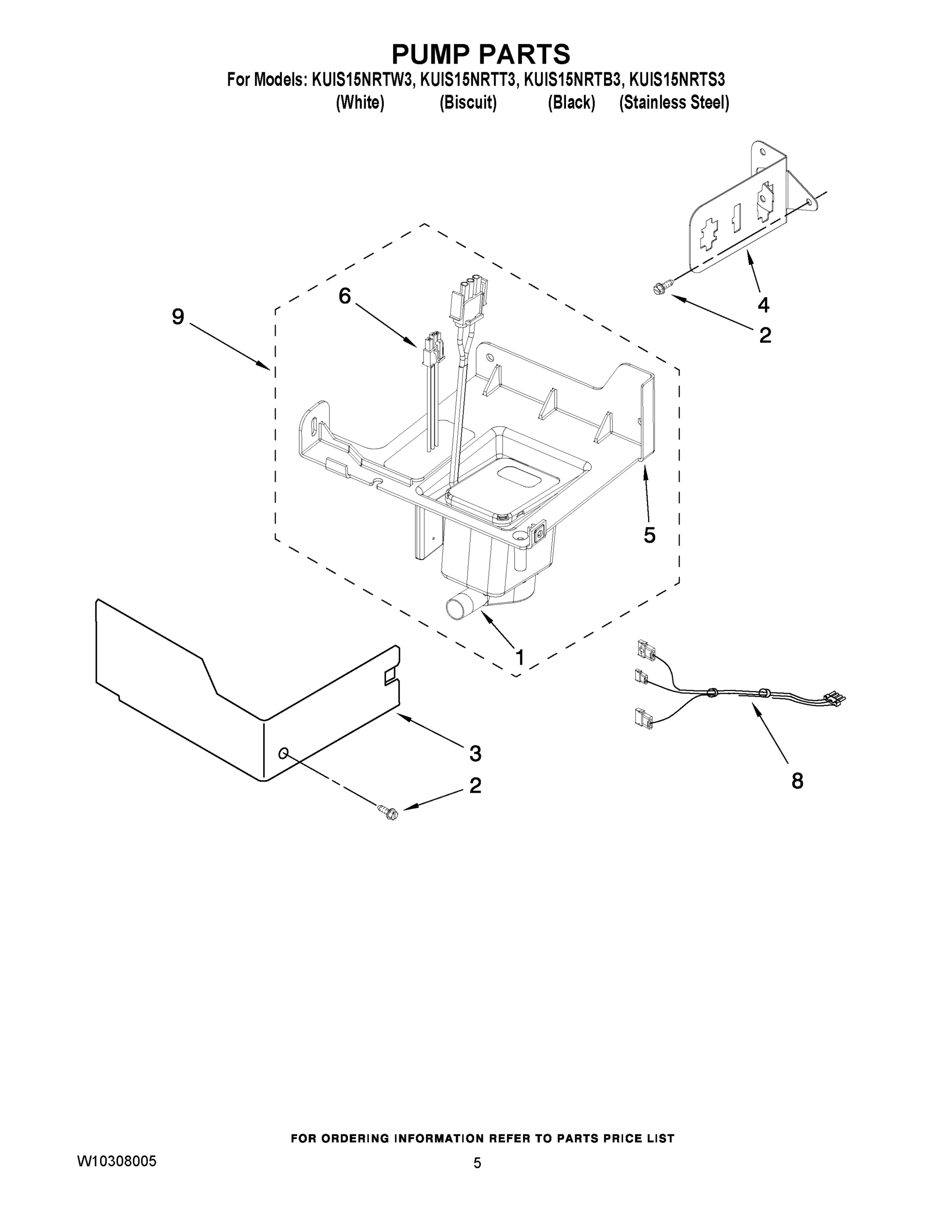

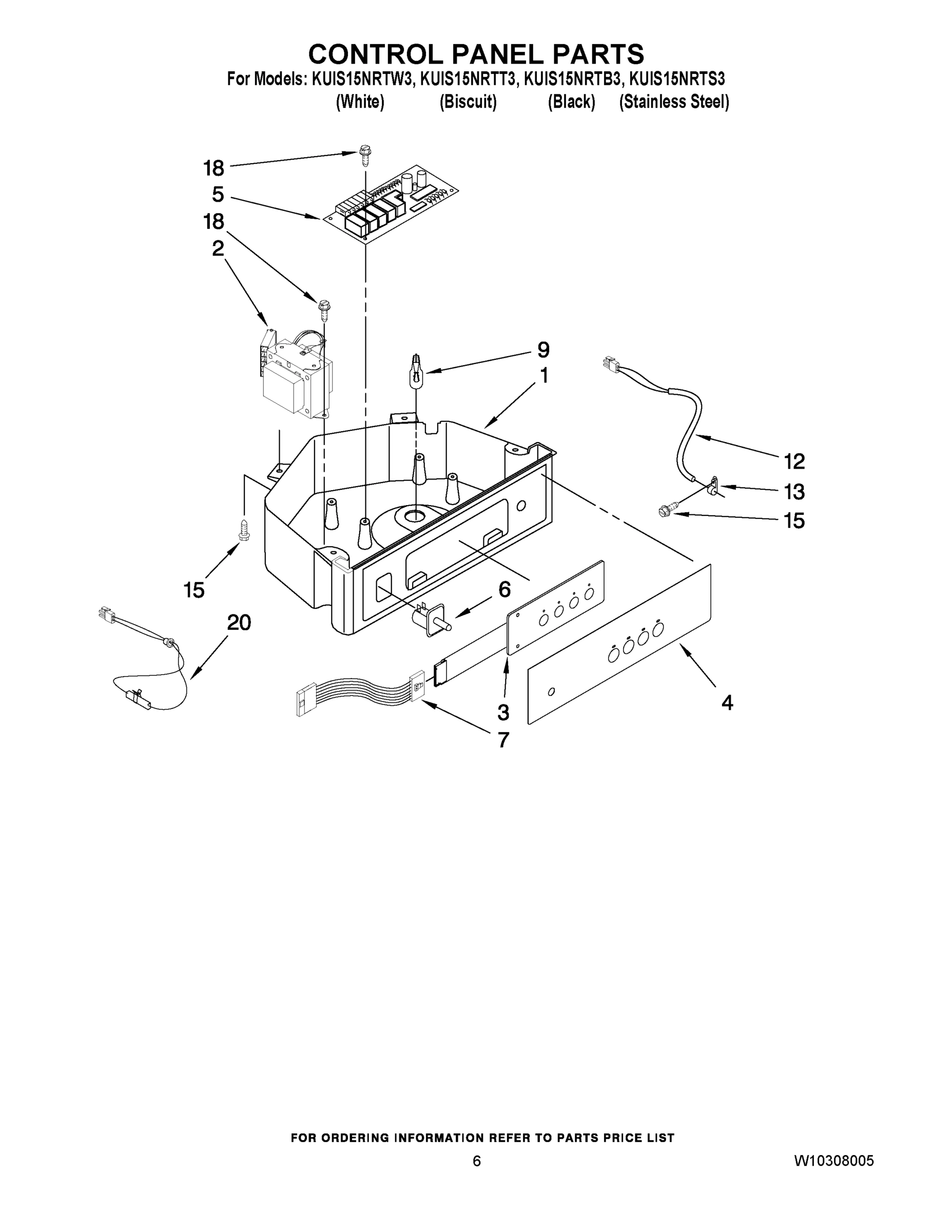

Model Whirlpool KUIS15NRTS3 ICE CUBE MAKER – Common Parts &amp; Diagrams

1

Box, Control WPL 2185738 Contact Us For Availability

2

WP2310139 Whirlpool Refrigerator Transformer Backorder WPL WP2310139 $134.82

3

2185677 Whirlpool Refrigerator Pump Cover Backorder WPL 2185677 $30.25

3

WP2188935 Whirlpool Refrigerator Fan Blade In Stock WPL WP2188935 $31.71

3

ASSEMBLY, SWITCH (ALSO ORDER No.4) WPL 2304122 Contact Us For Availability

4

2185678 Whirlpool Refrigerator Spacer Backorder WPL 2185678 $4.65

4

W10863947 Whirlpool Refrigerator Tube In Stock WPL W10863947 $31.71

4

OVERLAY WPL W10206463 Contact Us For Availability

5

W11204894 Whirlpool Refrigerator Bracket Backorder WPL W11204894 $26.54

5

WPW10218037 Whirlpool Refrigerator Evaporator In Stock WPL WPW10218037 $380.30

5

WPW10226156-includeCORE Whirlpool WPW10226156 Backorder WPL WPW10226156-includeCORE $281.60

6

W11566407 Whirlpool Pump In Stock WPL W11566407 $60.89

6

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $24.28

6

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $4.56

7

Wire Assy-Active Overlay Jumper WPL 2187585 Contact Us For Availability

7

TUBE, RESERVOIR PUMP WPL 2313851 Contact Us For Availability

8

8559320 Whirlpool Clip Backorder WPL 8559320 $13.91

8

WP2310092 Whirlpool Refrigerator Pump Harness In Stock WPL WP2310092 $71.06

9

A201441 Whirlpool Refrigerator Shim Backorder WPL A201441 $5.65

9

Pump Assembly WPL 2313702 Contact Us For Availability

9

Bulb WPL 745362 Contact Us For Availability

10

WP2151652 Whirlpool Refrigerator Button Plug In Stock WPL WP2151652 $9.02

10

CLIP, WIRING WPL 1115375 Contact Us For Availability

11

2185965 Whirlpool Refrigerator Grommet Backorder WPL 2185965 $14.31

11

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

12

W10528572 Whirlpool Refrigerator Tube In Stock WPL W10528572 $14.26

12

WPW10503764 Whirlpool Refrigerator Thermistor In Stock WPL WPW10503764 $40.23

2185825 Whirlpool Refrigerator Clamp Backorder WPL 2185825 $27.52

2217367 Whirlpool Refrigerator Door Gasket Backorder WPL 2217367 $30.89

WP2185625 Whirlpool Refrigerator Water Pan Backorder WPL WP2185625 $64.06

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

14

WP2185626 Whirlpool Refrigerator Hose Backorder WPL WP2185626 $39.53

14

WP489503 Whirlpool Refrigerator Clamp Backorder WPL WP489503 $4.81

14

Screw WPL 489472 Contact Us For Availability

15

WP2217294 Whirlpool Refrigerator Door Gasket Backorder WPL WP2217294 $115.70

15

WP2313890 Whirlpool Overflow Hose Backorder WPL WP2313890 $45.05

15

WPW10206473 Whirlpool Refrigerator Coil Solen Backorder WPL WPW10206473 $81.63

16

2185640 Whirlpool Refrigerator Sleeve Backorder WPL 2185640 $28.11

16

2313604 Whirlpool Refrigerator Guide Backorder WPL 2313604 $31.26

16

WPW10534030 Whirlpool Refrigerator Gas Valve Backorder WPL WPW10534030 $137.67

WP2187629 Whirlpool Refrigerator Wire Jumper Backorder WPL WP2187629 $39.49

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $34.73

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $37.53

Nameplate (Grey) WPL W10046610 Contact Us For Availability

18

WP489443 Whirlpool Refrigerator Screw Backorder WPL WP489443 $2.51

18

WPW10136197 Whirlpool Refrigerator Start Devi In Stock WPL WPW10136197 $72.04

19

Strap WPL 851095 Contact Us For Availability

20

WP2313635 Whirlpool Refrigerator Thermistor In Stock WPL WP2313635 $36.44

20

Handle, Door (White) WPL 2208492W Contact Us For Availability

20

Handle, Door (Black) WPL 2208492B Contact Us For Availability

21

WP2310169 Whirlpool Refrigerator Harness Backorder WPL WP2310169 $46.99

23

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

24

WP2313624 Whirlpool Refrigerator Condenser In Stock WPL WP2313624 $178.20

25

W10532250 Whirlpool Refrigerator Foam Pad Backorder WPL W10532250 $7.43

26

2185691 Whirlpool Refrigerator Channel Backorder WPL 2185691 $9.50

26

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $4.52

27

2217397 Whirlpool Foam Pad Backorder WPL 2217397 $30.65

28

WP2185989 Whirlpool Refrigerator Tube Backorder WPL WP2185989 $40.68

28

CLAMP, POWER CORD WPL 2185960 Contact Us For Availability

29

8281197 Whirlpool Refrigerator Screw Backorder WPL 8281197 $5.38

30

2185570 Whirlpool Refrigerator Panel Backorder WPL 2185570 $42.71

30

2217445 Whirlpool Refrigerator Base Condenser Backorder WPL 2217445 $95.42

31

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $4.52

32

WP2324334 Whirlpool Refrigerator Water Pan In Stock WPL WP2324334 $73.93

32

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $3.33

33

WP3400884 Whirlpool Refrigerator Screw Backorder WPL WP3400884 $2.51

33

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

34

2185712 Whirlpool Refrigerator Hinge Pin Backorder WPL 2185712 $30.51

34

WP2185696 Whirlpool Cap In Stock WPL WP2185696 $17.33

40

2185927 Whirlpool Refrigerator Holder Backorder WPL 2185927 $32.39

46

W11624957 Whirlpool Refrigerator Top Gasket Backorder WPL W11624957 $57.00

47

WP2185571B Whirlpool Refrigerator Grille Backorder WPL WP2185571B $84.13

48

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.75

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $29.35

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

W11179302 Whirlpool Ice Machine Cleaner In Stock WPL W11179302 $13.63

WP279368 Whirlpool High-Temperature Silicone In Stock WPL WP279368 $29.08

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

REFRIGERANT CHARGE (6.5 OZ. (R134A)) WPL NP Contact Us For Availability

Cleaner, Stainless Steel WPL 8537055 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
