Model Whirlpool KUIO15NNLS ICE CUBE MAKER – Common Parts & Diagrams

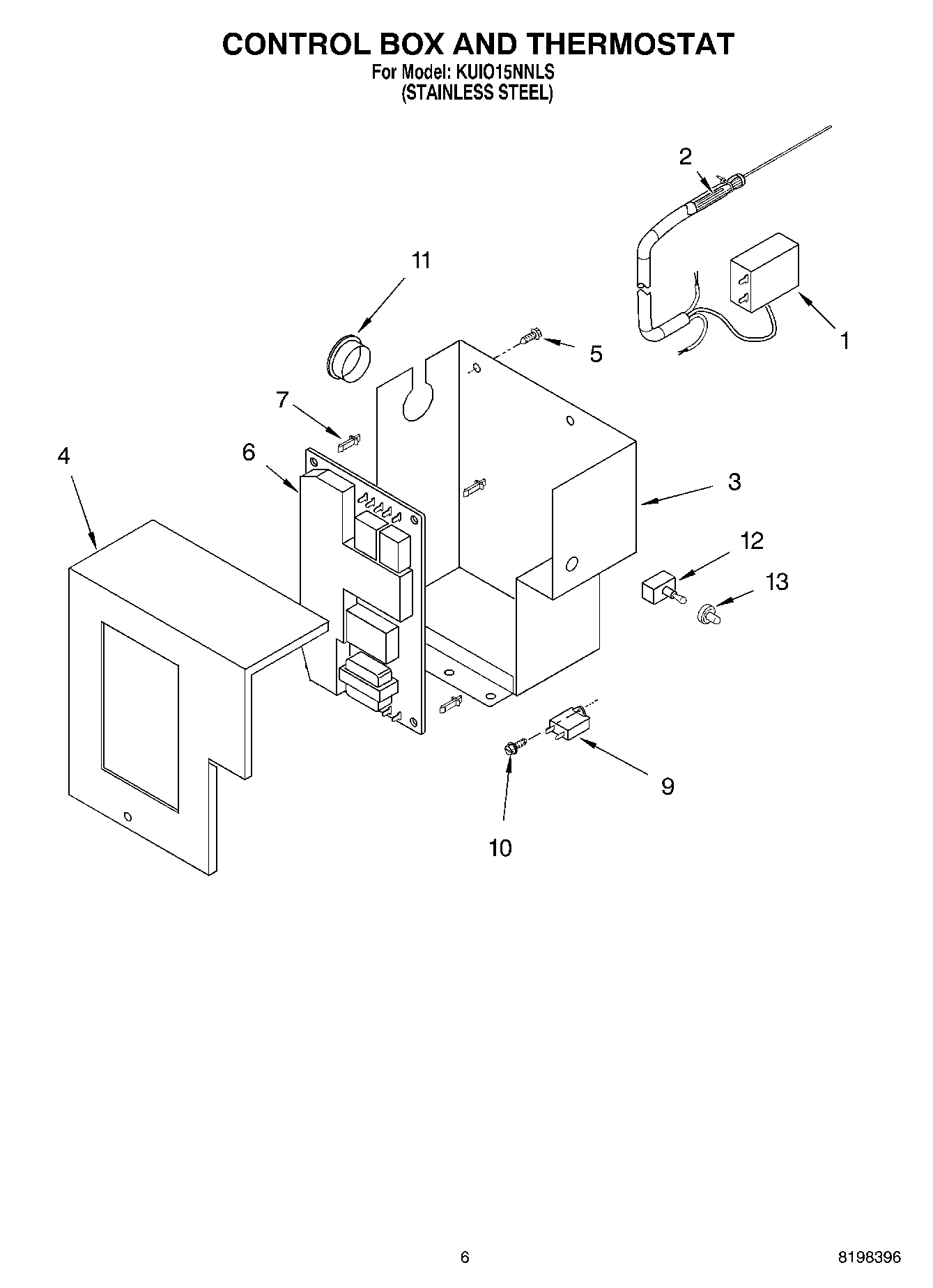

04 - CONTROL BOX AND THERMOSTAT

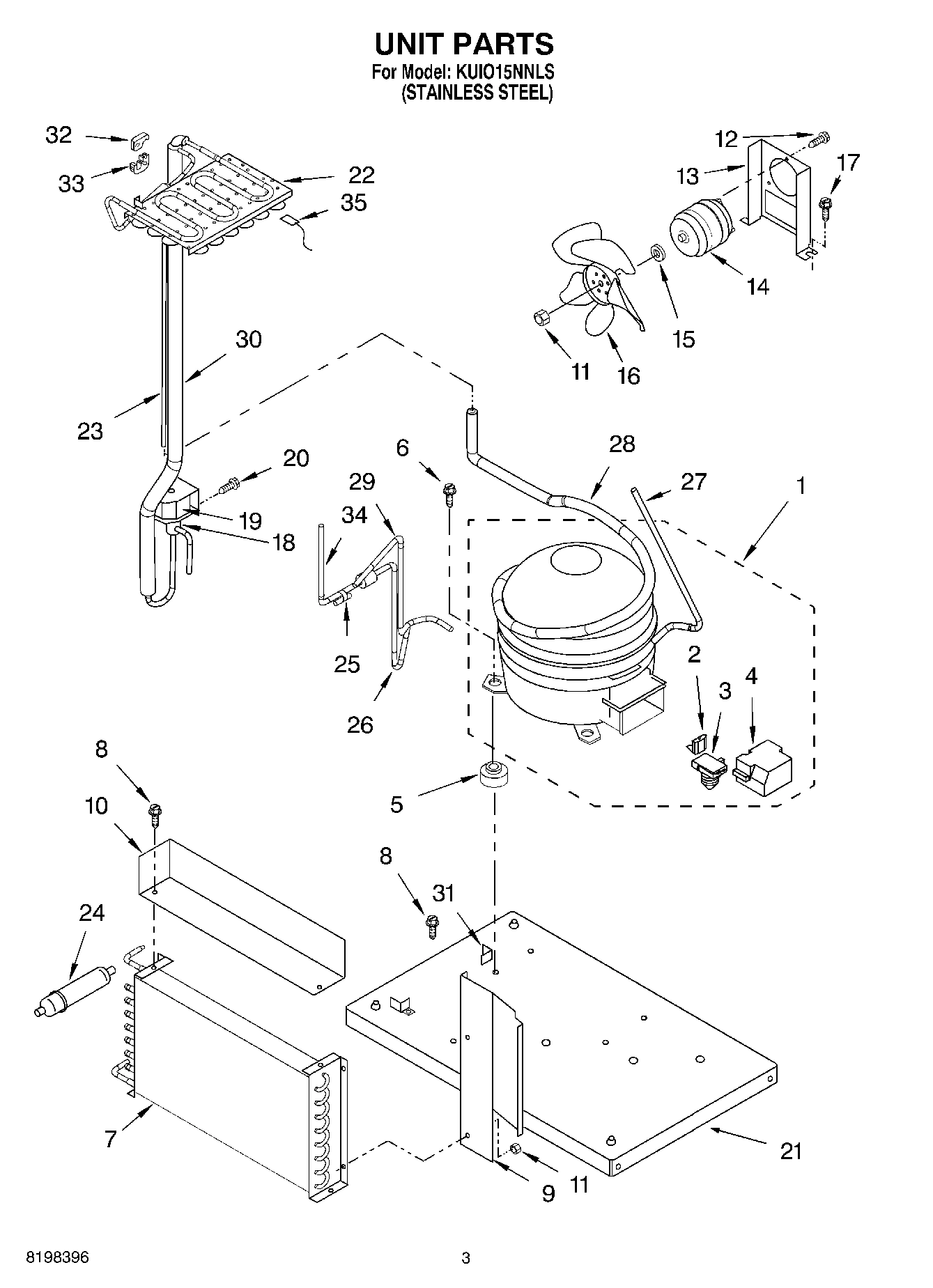

02 - UNIT PARTS

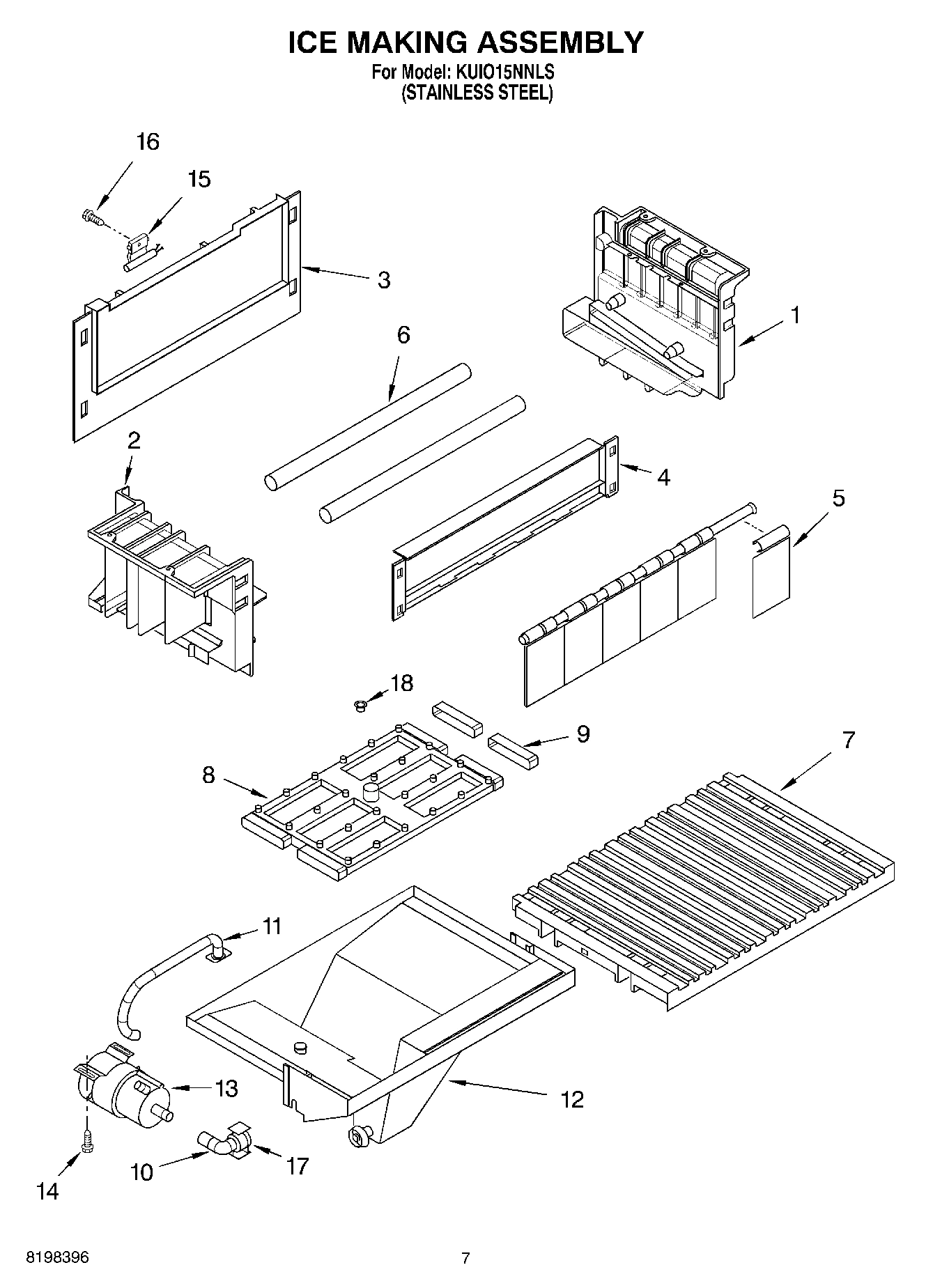

05 - ICE MAKING ASSEMBLY

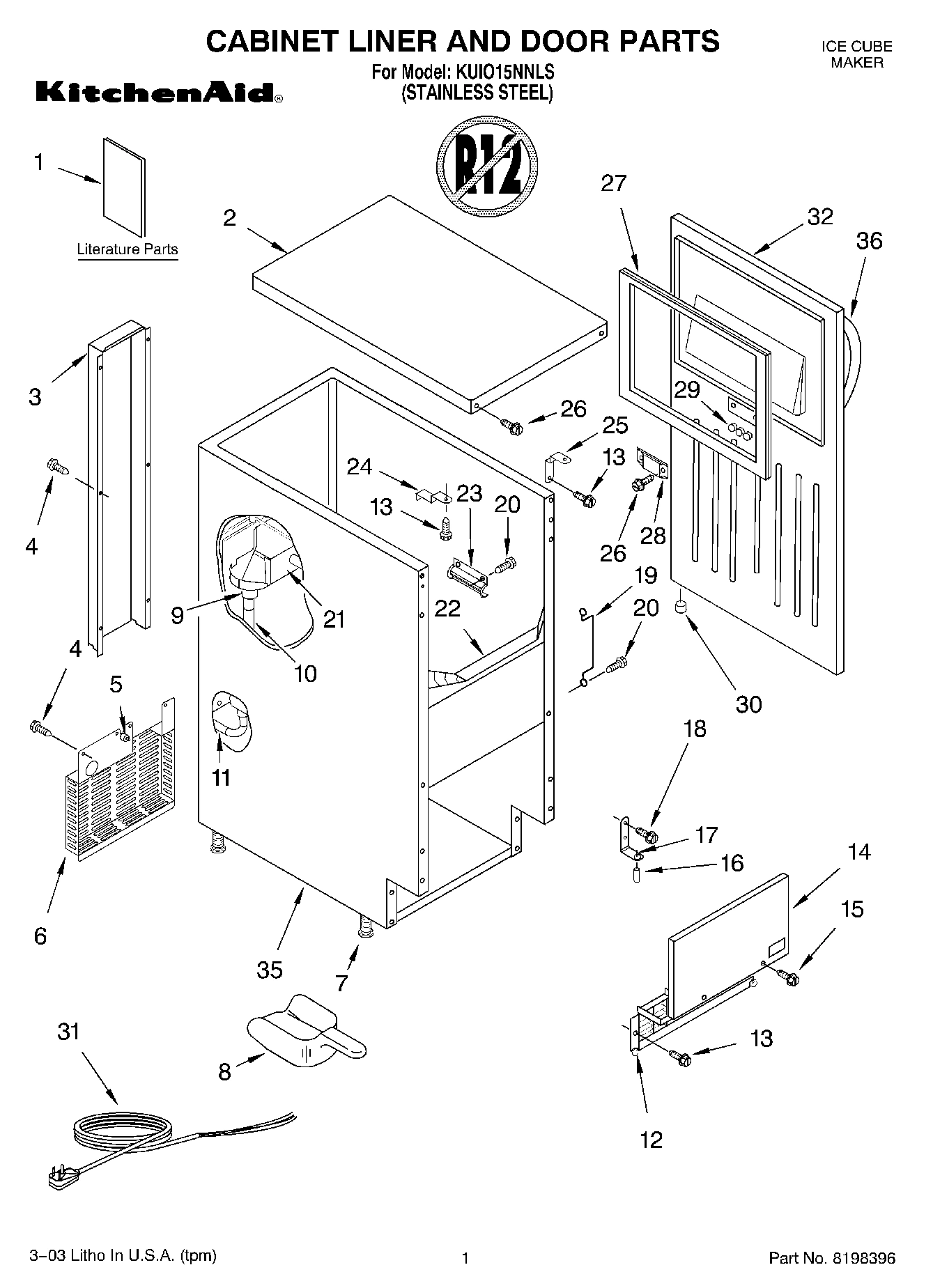

01 - CABINET LINER AND DOOR PARTS

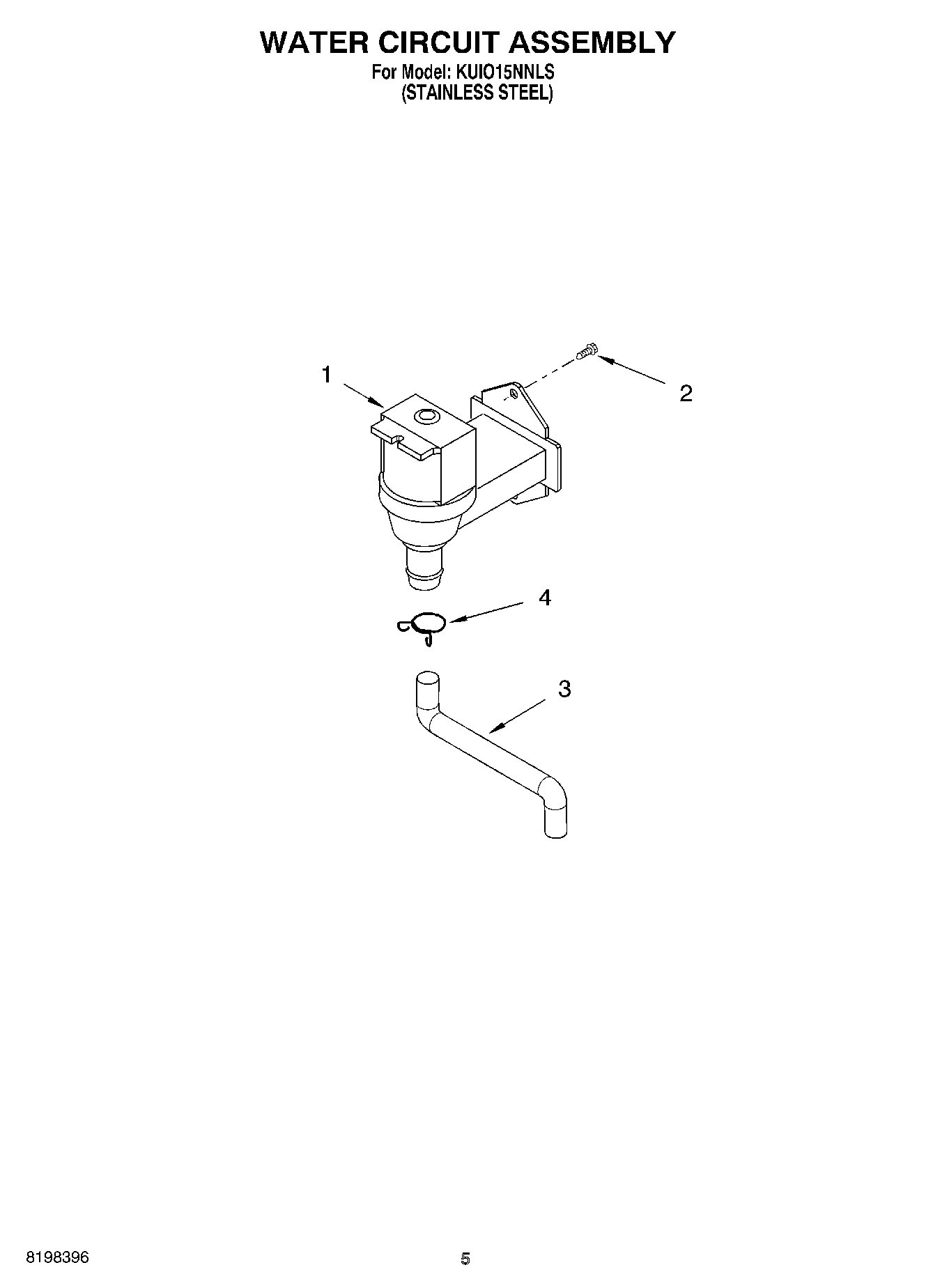

03 - WATER CIRCUIT ASSEMBLY
Common parts from model Whirlpool KUIO15NNLS ICE CUBE MAKER
1
Compressor WPL 8173904 Contact Us For Availability
1
Bracket (Right) WPL 8173962 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT2225453 Contact Us For Availability
1
Literature Parts (Label, Wiring Diagram) WPL LIT8173984 Contact Us For Availability
1
Valve, Water WPL 8173979 Contact Us For Availability
2
Overload WPL 8173906 Contact Us For Availability
2
Bracket (Left) WPL 8173963 Contact Us For Availability
2
Bolt, Hex WPL 8173975 Contact Us For Availability
2
Top WPL 8173894 Contact Us For Availability
3
Relay WPL 8173905 Contact Us For Availability
3
Guide, Rear WPL 8173964 Contact Us For Availability
3
Cover WPL 8173896 Contact Us For Availability
3
Tube, Valve WPL 8173980 Contact Us For Availability
4
Cover, Terminal WPL 8173907 Contact Us For Availability
4
Screw WPL 8173897 Contact Us For Availability
4
Guide, Front WPL 8173965 Contact Us For Availability
4
Clamp WPL 8173981 Contact Us For Availability
5
Grommet (4) WPL 8173908 Contact Us For Availability
5
Separator WPL 8173966 Contact Us For Availability
5
Bushing WPL 8173937 Contact Us For Availability
6
Bolt (4) WPL 8173942 Contact Us For Availability
6
Tube, Frame WPL 8173967 Contact Us For Availability
6
Cover, Rear WPL 8173898 Contact Us For Availability
7
Condenser WPL 8173910 Contact Us For Availability
7
Grid, Ice WPL 8173968 Contact Us For Availability
7
Leg, Leveler WPL 8173893 Contact Us For Availability
8
Nozzle WPL 8173969 Contact Us For Availability
9
Plate, Condenser WPL 8173943 Contact Us For Availability
9
Cap, Nozzle WPL 8173970 Contact Us For Availability
9
Tube, Drain WPL 8173933 Contact Us For Availability
10
Screw WPL 8173925 Contact Us For Availability
10
Guide, Condenser WPL 8173944 Contact Us For Availability
10
Tube, Suction WPL 8173971 Contact Us For Availability
10
Pipe, Drain WPL 8173934 Contact Us For Availability
11
Bushing WPL 8173926 Contact Us For Availability
11
Tube, Discharge WPL 8173972 Contact Us For Availability
11
Hose, Drain WPL 8173938 Contact Us For Availability
12
Switch. Toggle WPL 8173927 Contact Us For Availability
12
Screw WPL 8173917 Contact Us For Availability
12
Water Tank WPL 8173973 Contact Us For Availability
12
Grille WPL 8173931 Contact Us For Availability
13
Cap WPL 8173928 Contact Us For Availability
13
Bracket, Fan Motor WPL 8173912 Contact Us For Availability
13
Motor, Pump WPL 8173974 Contact Us For Availability
14
Motor, Fan WPL 8173913 Contact Us For Availability
14
Panel, Front WPL 8173891 Contact Us For Availability
15
Washer WPL 8173914 Contact Us For Availability
15
Holder, Thermistor WPL 8173976 Contact Us For Availability
15
Screw WPL 8173892 Contact Us For Availability
16
Blade, Fan WPL 8173916 Contact Us For Availability
16
Pin WPL 8173900 Contact Us For Availability
17
Bolt, Hex WPL 8173945 Contact Us For Availability
17
Connector WPL 8173977 Contact Us For Availability
17
Hinge, Bottom WPL 8173899 Contact Us For Availability
18
Valve, Hot Gas WPL 8173946 Contact Us For Availability
18
Tube, Reducing WPL 8173978 Contact Us For Availability
19
Coil, Valve WPL 8173947 Contact Us For Availability
19
Holder, Scoop WPL 8173939 Contact Us For Availability
20
Screw WPL 8173948 Contact Us For Availability
20
Screw WPL 8173936 Contact Us For Availability
21
Base WPL 8173909 Contact Us For Availability
21
Pan, Drain WPL 8173932 Contact Us For Availability
22
Evaporator (ALSO ORDER 35) WPL 8173949 Contact Us For Availability
22
Bin, Door WPL 8173903 Contact Us For Availability
23
Exchanger, Heat WPL 8173950 Contact Us For Availability
23
Bracket, Thermo WPL 8173935 Contact Us For Availability
24
Drier WPL 8173918 Contact Us For Availability
24
Bracket, Top WPL 8173929 Contact Us For Availability
25
Connector (4-Way) WPL 8173952 Contact Us For Availability
25
Hinge, Top WPL 8173902 Contact Us For Availability
26
Tube, Copper (Includes Strainer) WPL 8173953 Contact Us For Availability
27
Tube, Copper (E) WPL 8173954 Contact Us For Availability
27
Gasket WPL 8173986 Contact Us For Availability
28
Tube, Copper (F) WPL 8173955 Contact Us For Availability
28
Holder, Magnet WPL 8173987 Contact Us For Availability
29
Tube, Copper (G) WPL 8173956 Contact Us For Availability
29
Magnet WPL 8173988 Contact Us For Availability
30
Tube, Copper (H) WPL 8173957 Contact Us For Availability
30
Bushing, Hinge WPL 8173989 Contact Us For Availability
31
Guide, Drain WPL 8173958 Contact Us For Availability
31
Cord, Power WPL 8173911 Contact Us For Availability
32
Grommet, Top WPL 8173959 Contact Us For Availability
32
Door (Includes Handle) WPL 8173990 Contact Us For Availability
33
Grommet, Bottom WPL 8173960 Contact Us For Availability
34
Tube, Copper (J) WPL 8173961 Contact Us For Availability
35
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
35
Thermistor (Includes Sealant) WPL 8173921 Contact Us For Availability
35
REFRIGERANT CHARGE 4.2 OZ. (R134A) WPL ARI116555A Contact Us For Availability
35
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
35
Cabinet & Liner (Not Serviced) WPL ARI116552A Contact Us For Availability
35
ORDER ITEM 32 WPL ARI116553A Contact Us For Availability
35
Parts Not Illustrated and Optional Parts (Not WPL ARI116554A Contact Us For Availability
× ![]()
