Model Whirlpool KUDS21SS0 – Common Parts & Diagrams

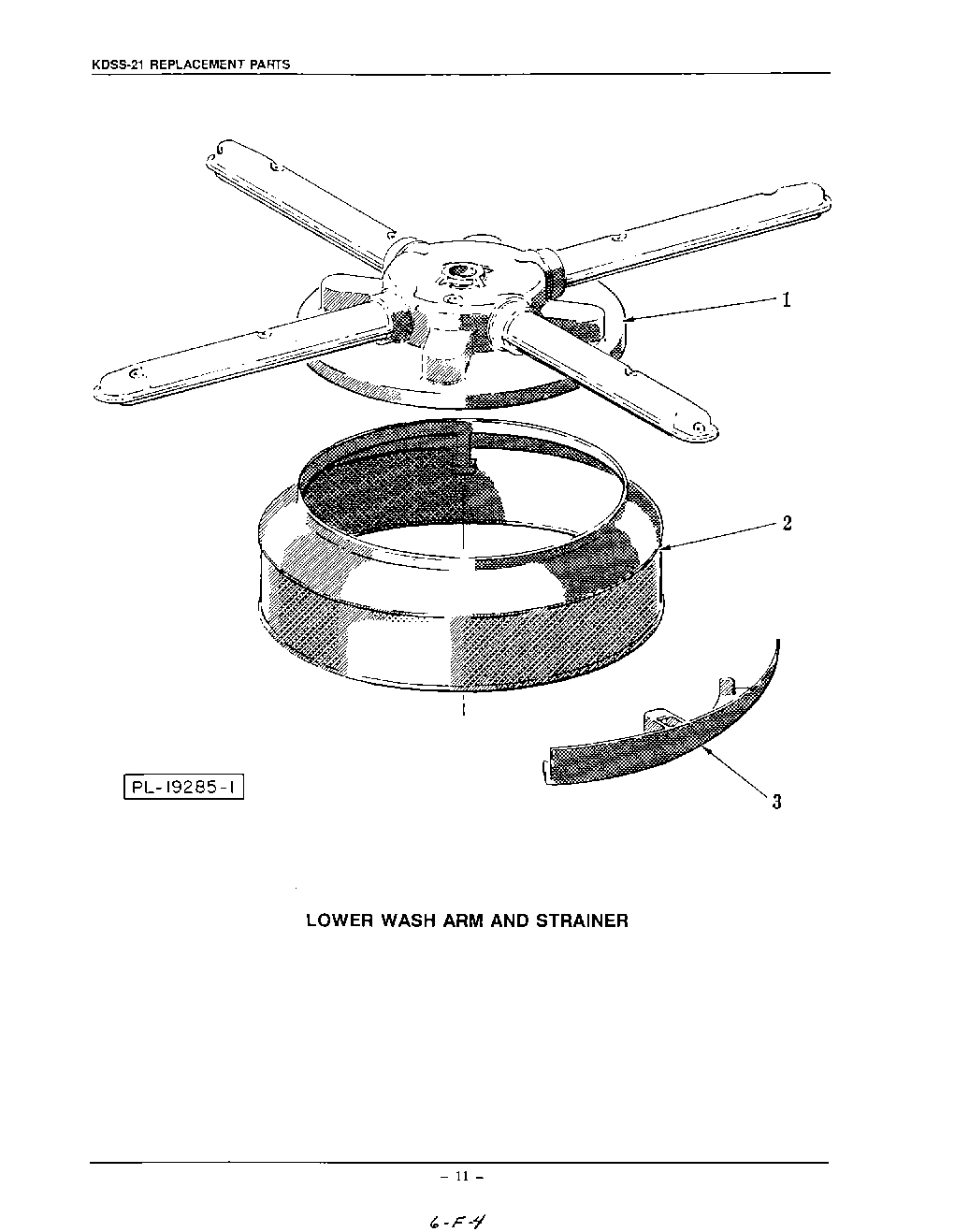

07 - LOWER WASH ARM AND STRAINER

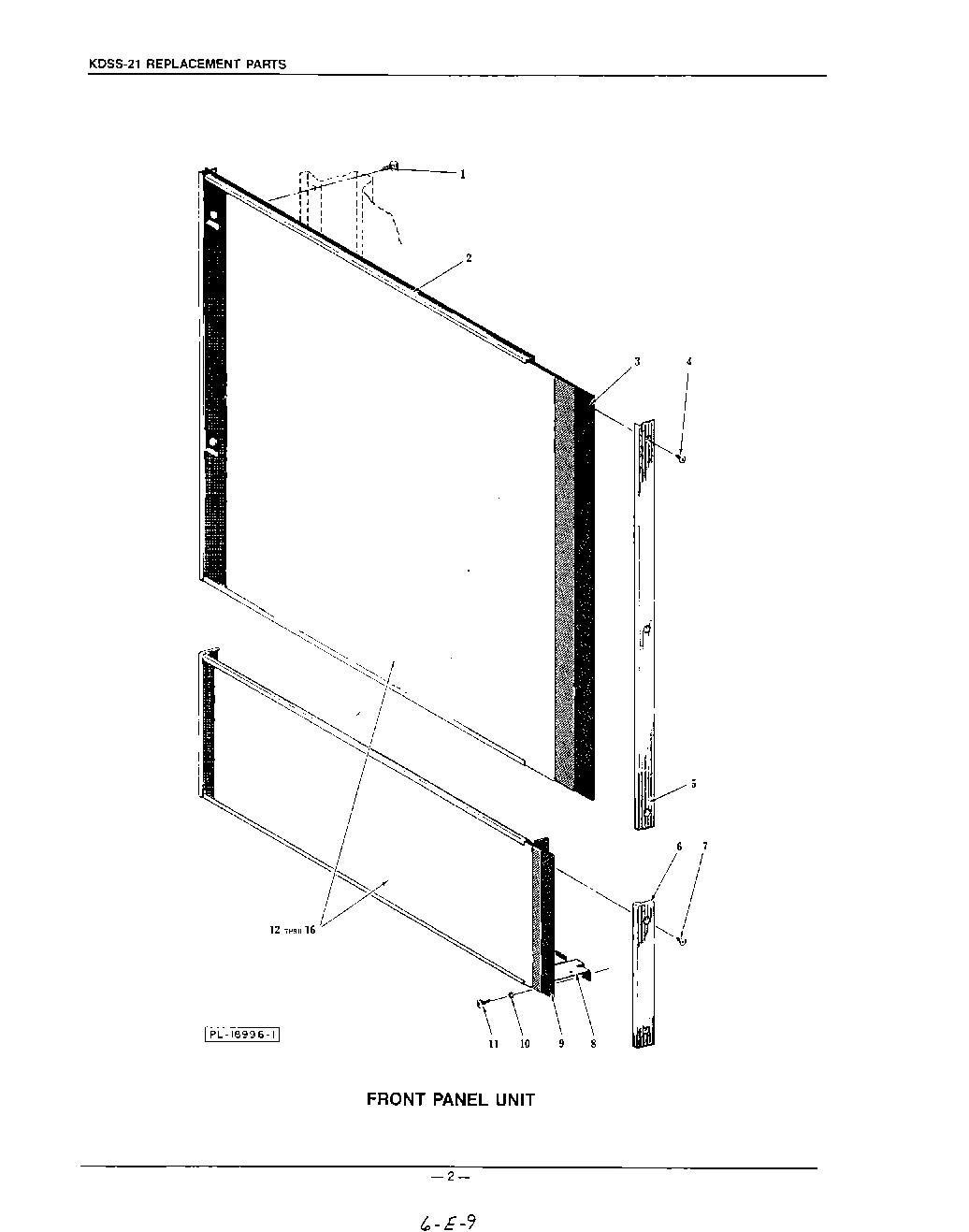

02 - FRONT PANEL

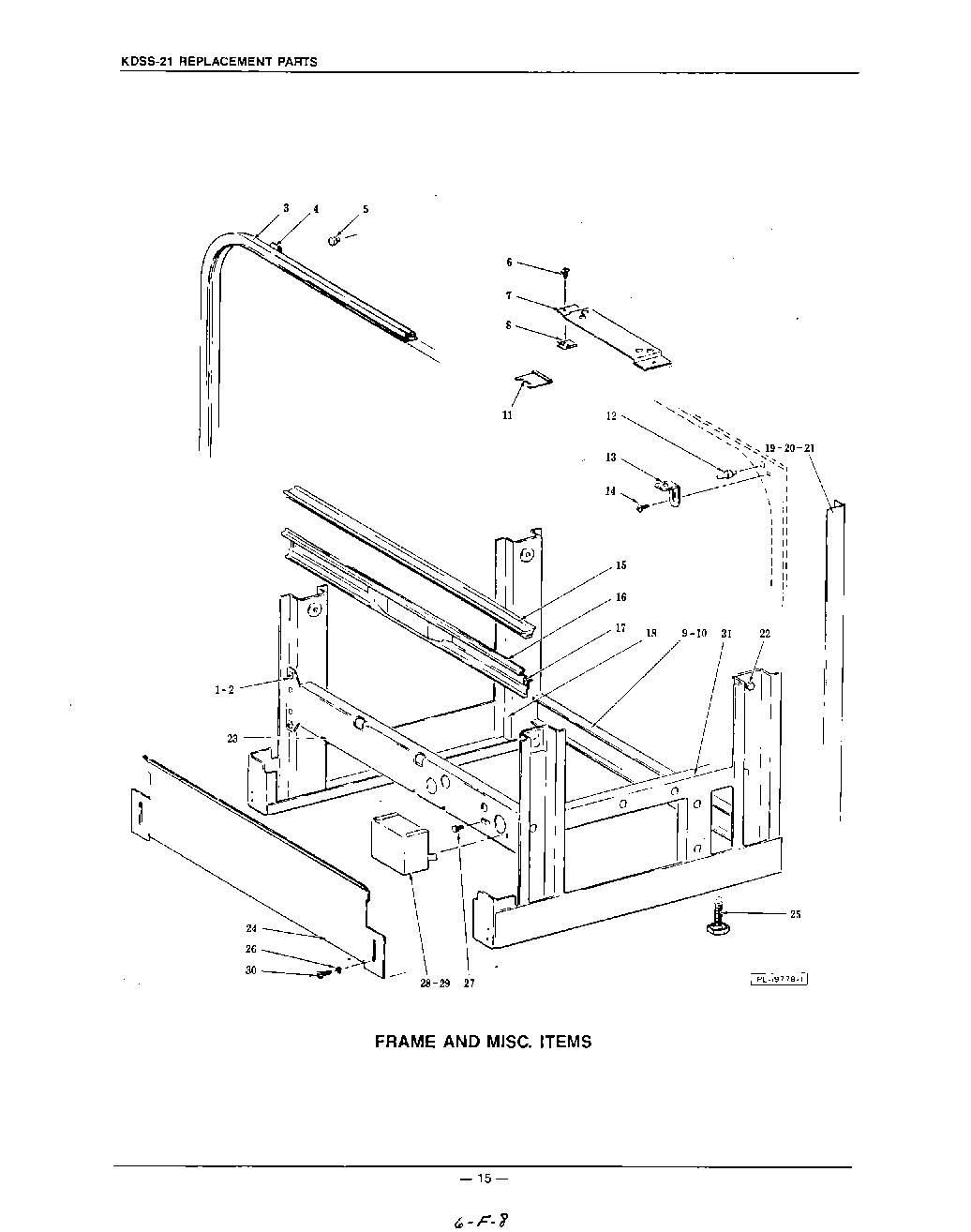

10 - FRAME AND MISCELLANEOUS

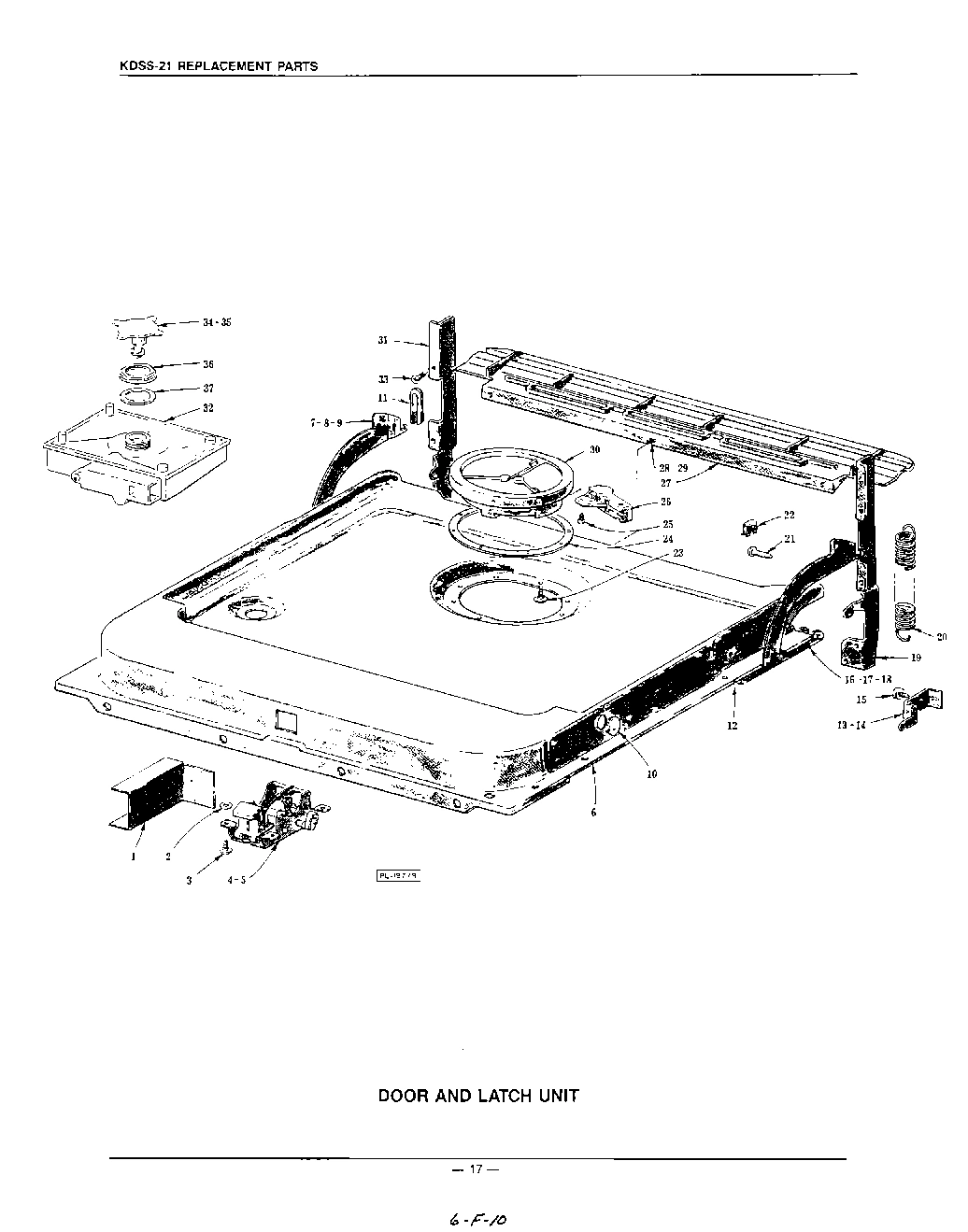

11 - DOOR AND LATCH

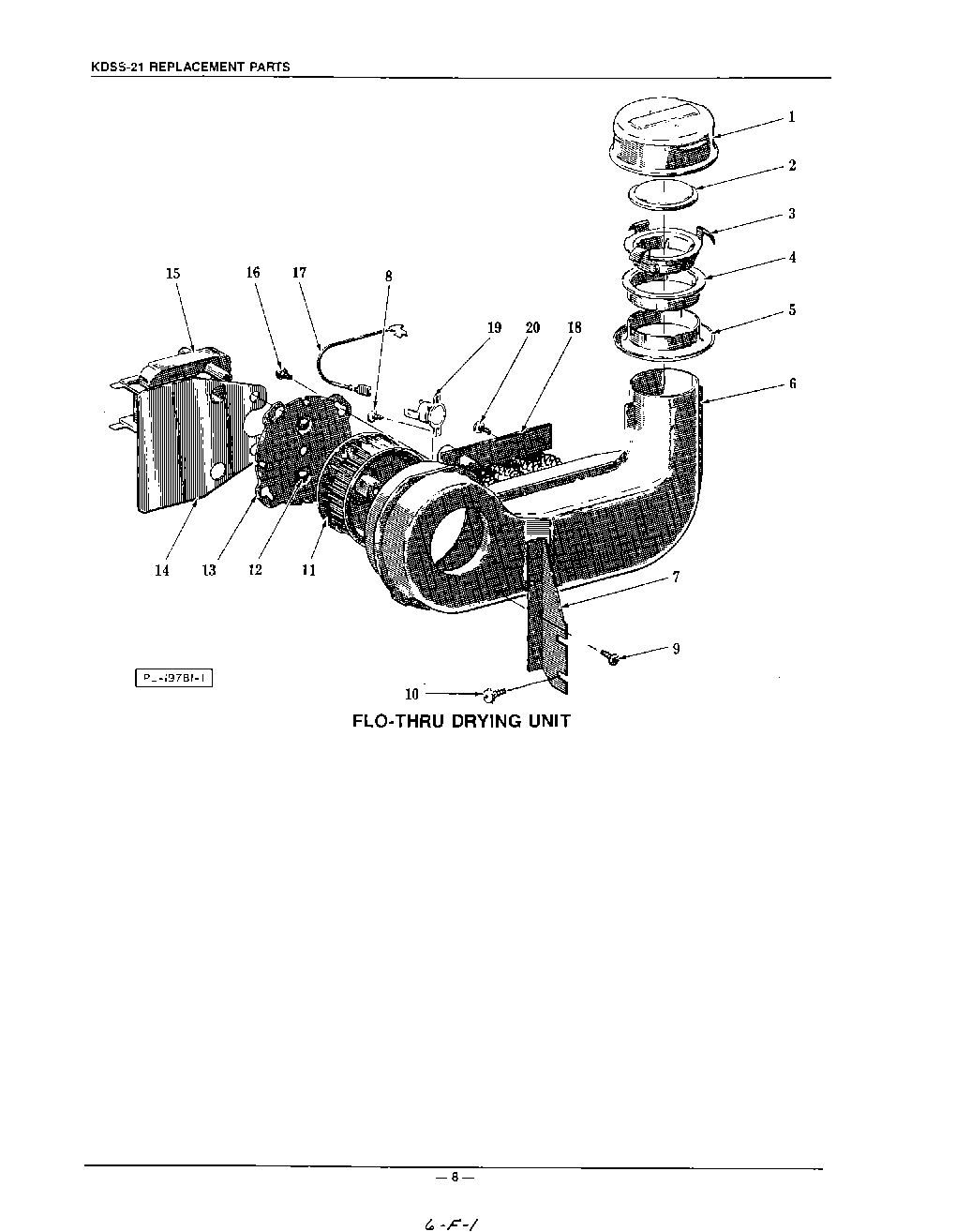

05 - FLO-THRU DRYING

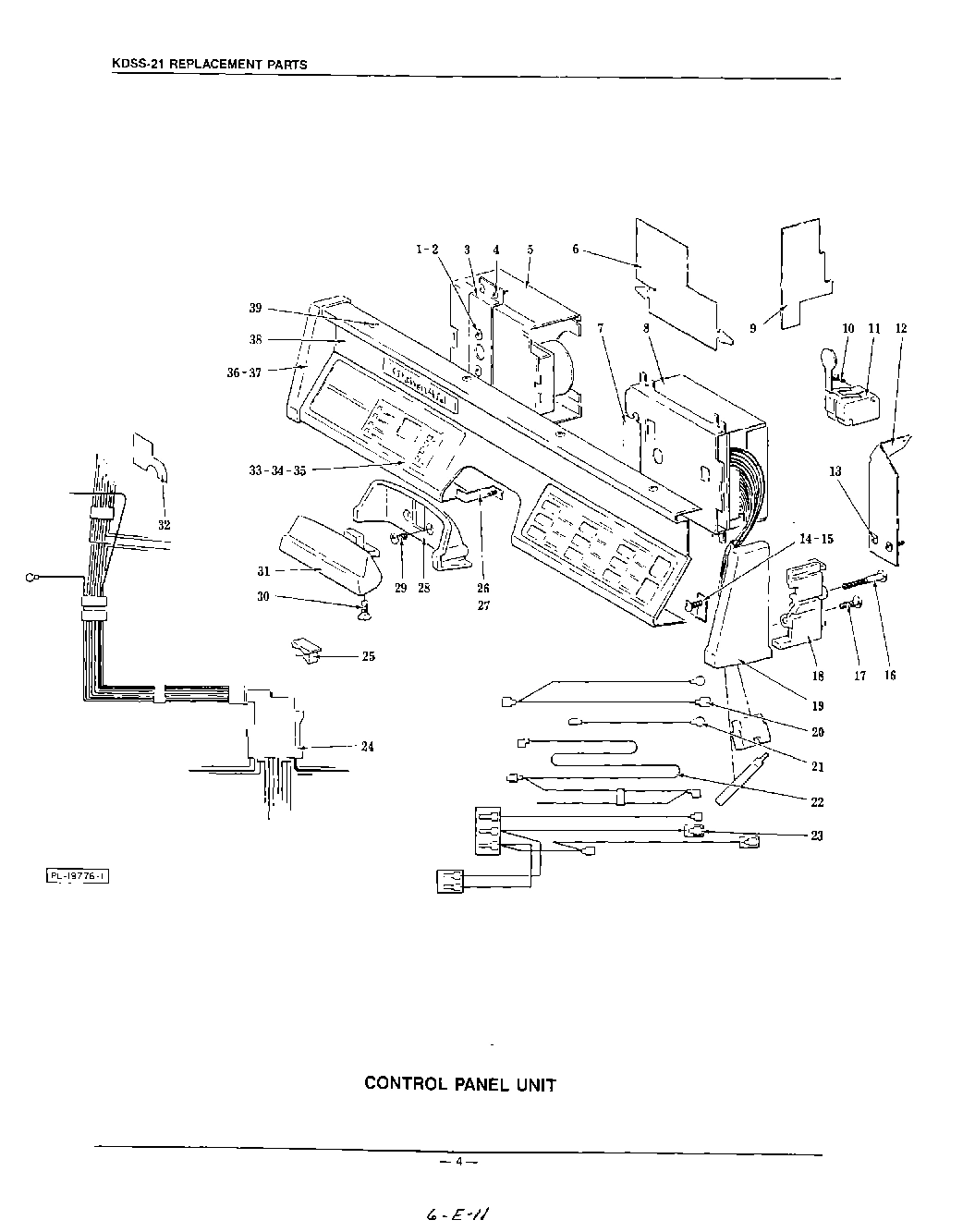

03 - CONTROL PANEL

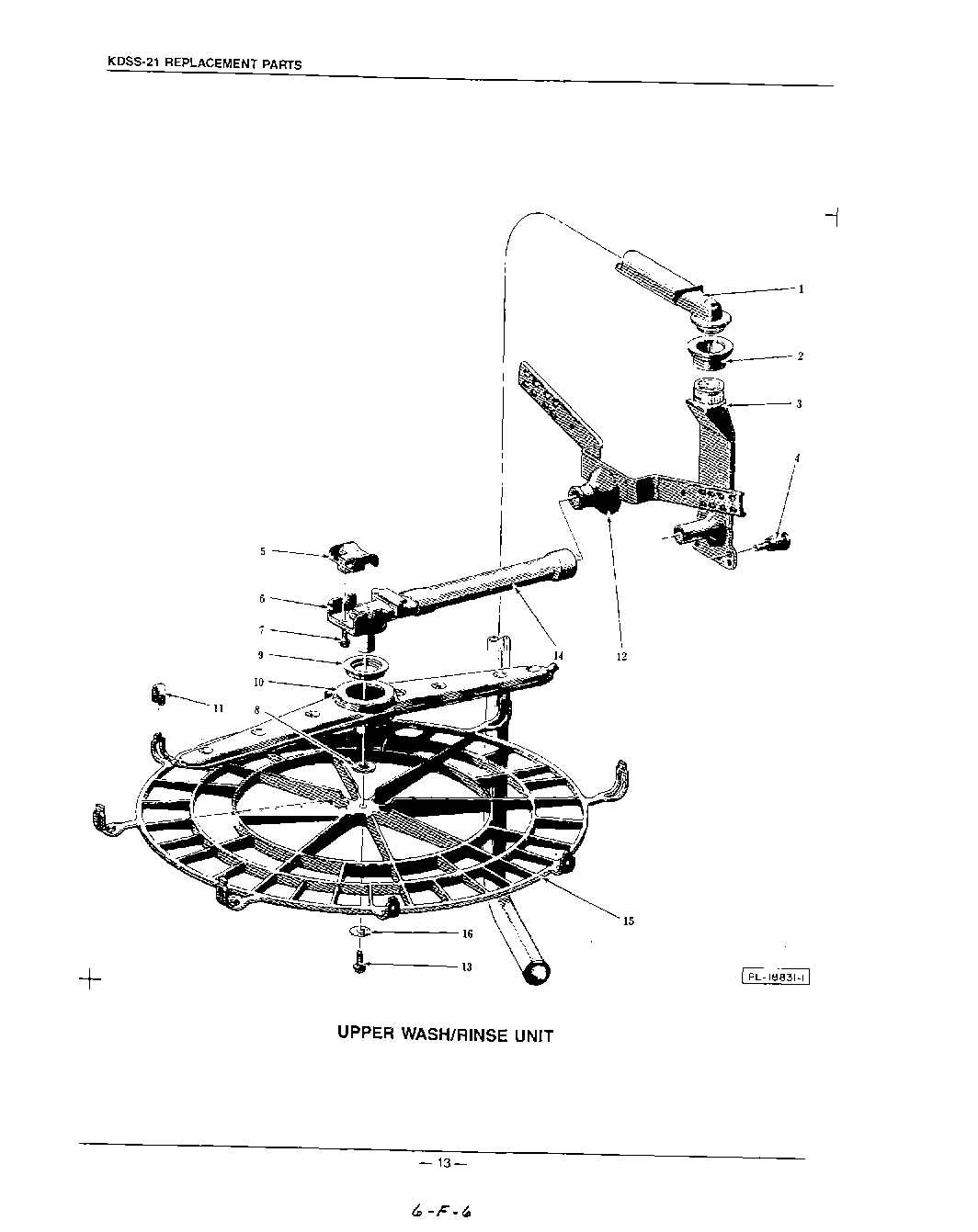

09 - UPPER WASH/RINSE

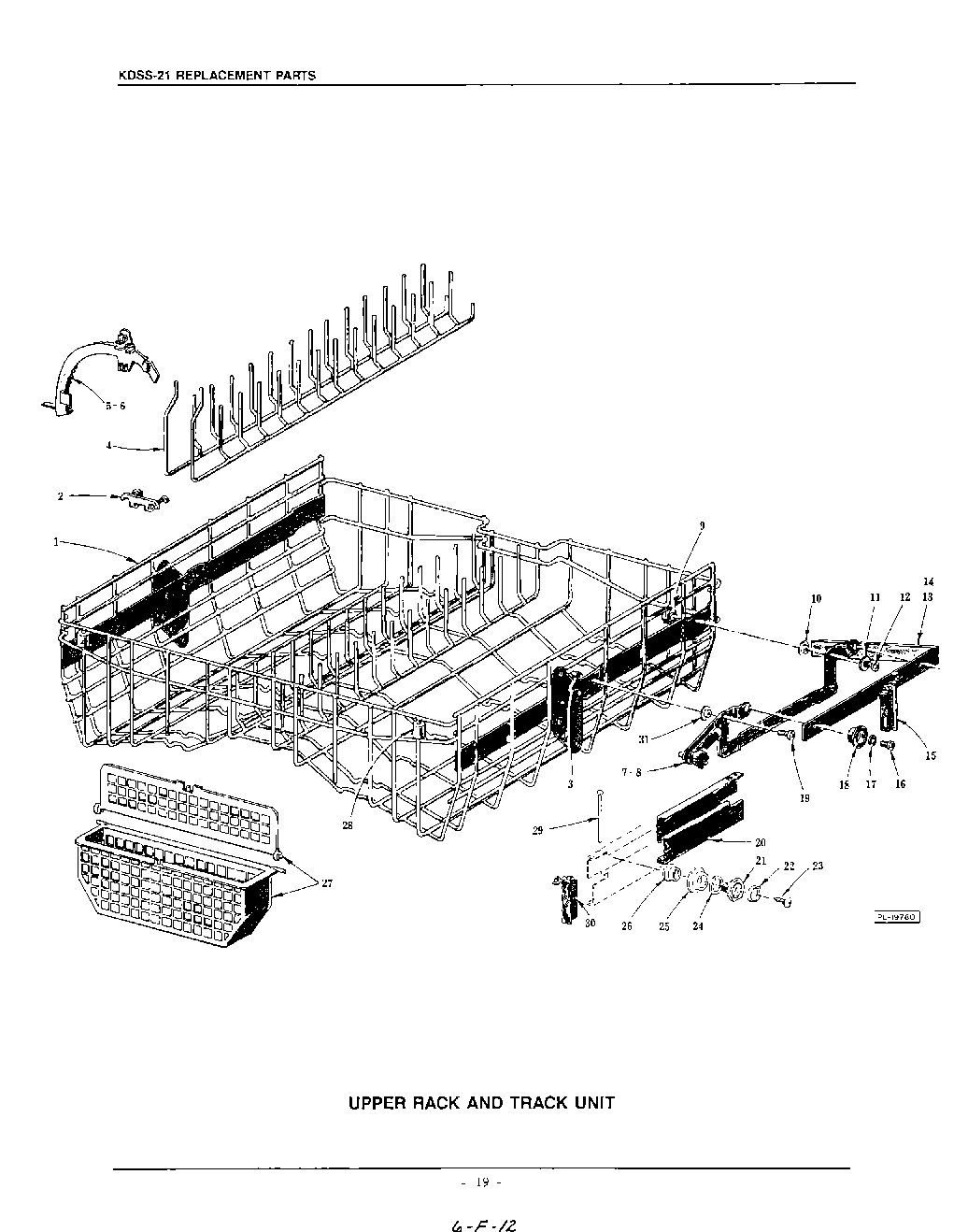

12 - UPPER RACK AND TRACK

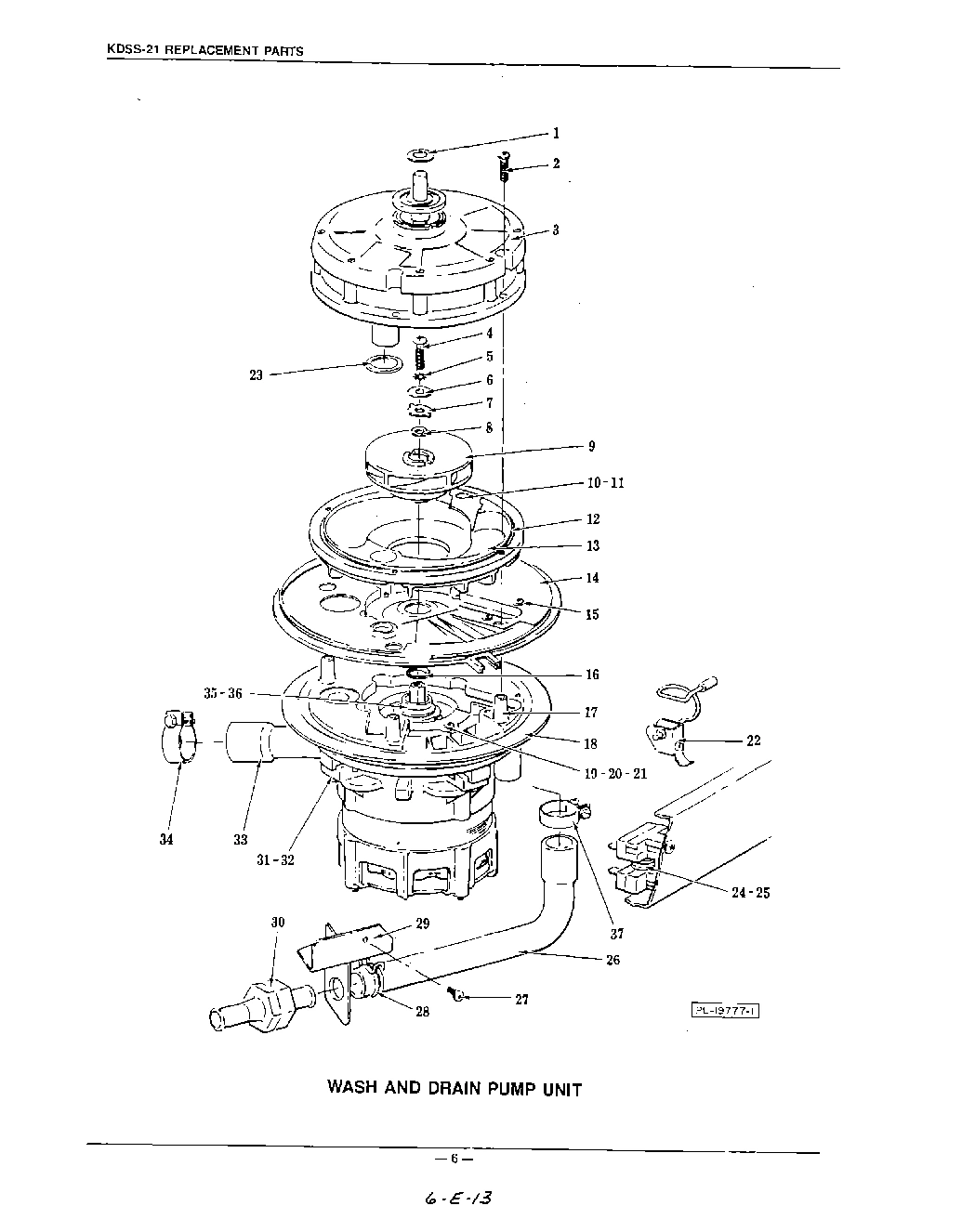

04 - WASH AND DRAIN PUMP

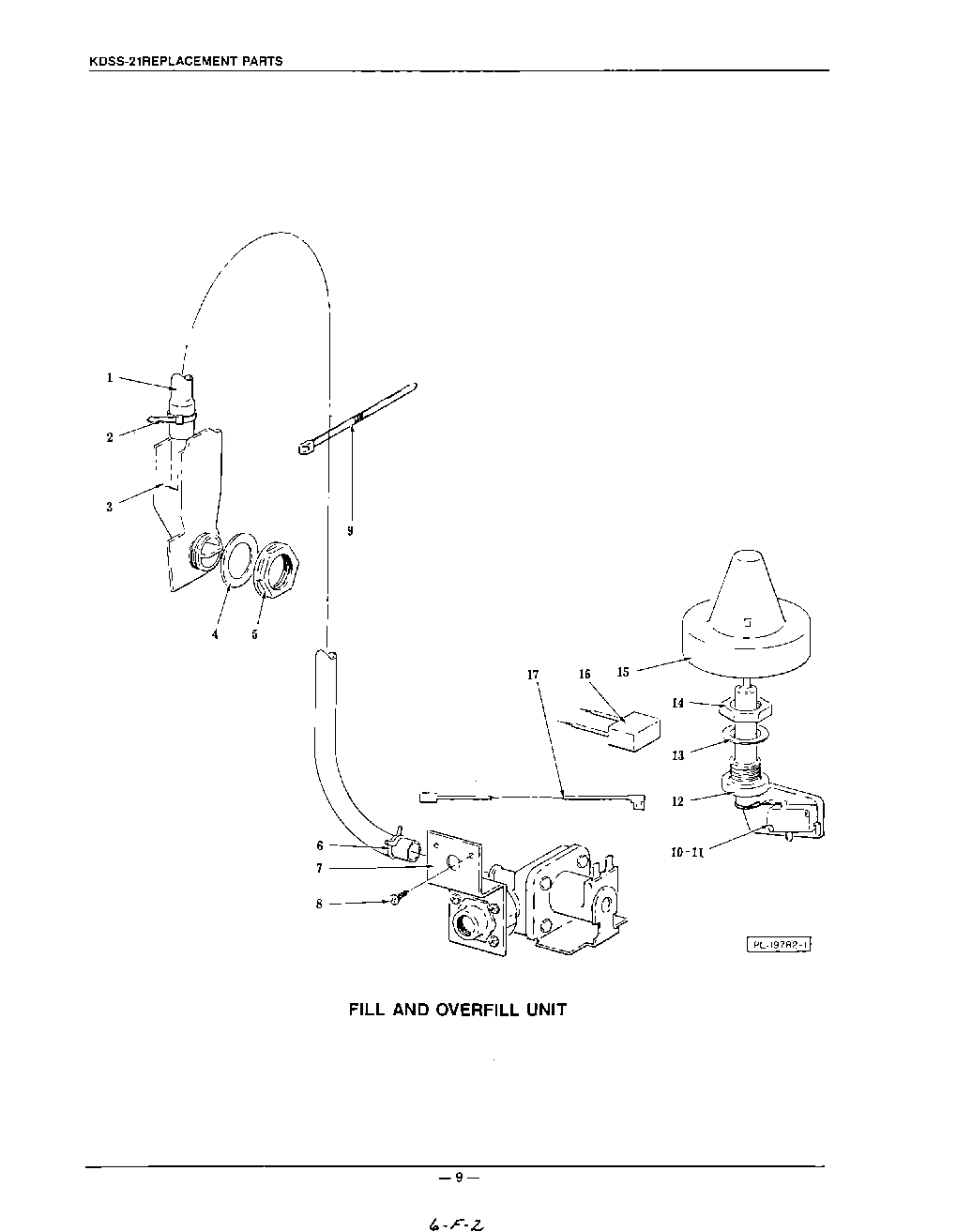

06 - FILL AND OVER FILL

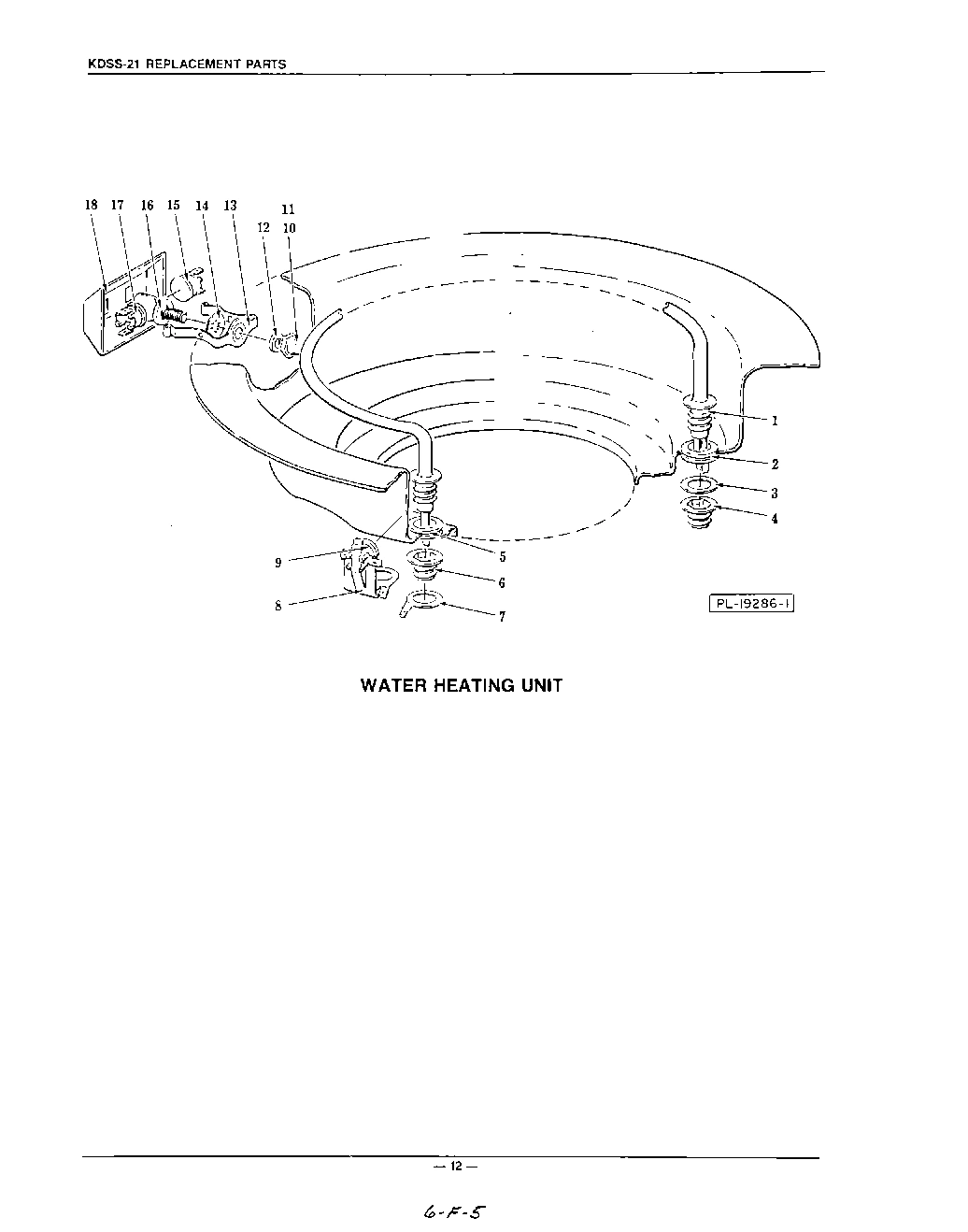

08 - WATER HEATING

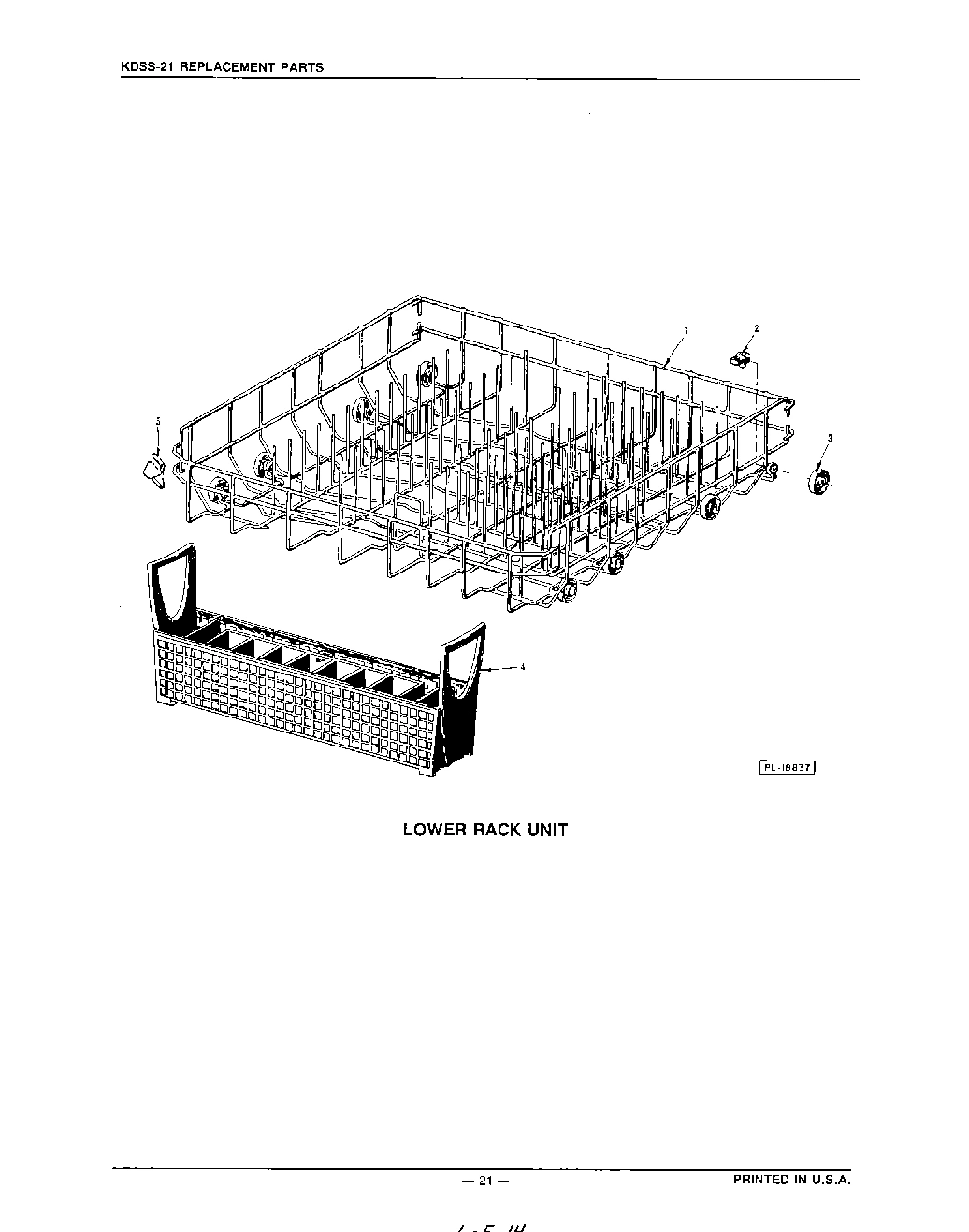

13 - LOWER RACK
Common parts from model Whirlpool KUDS21SS0
1
xxScrew & Washer Assy WPL ARI115908A Contact Us For Availability
1
Short Frame Assy. (Incls. items 2, 9, 10, 18, WPL 241837 Contact Us For Availability
1
Cover - Wiring Harness WPL 116174 Contact Us For Availability
1
Cover - Air Inlet WPL 116189 Contact Us For Availability
1
Mach. Screw 10-32 x 3/8 Phil. Pan Hd WPL SC1825 Contact Us For Availability
1
Tube & Connector Assy WPL 241439 Contact Us For Availability
1
Upper Rack Assy. (Incls. items 2, 4, 5, 6 & 2 WPL 241195 Contact Us For Availability
1
Washer - Wear WPL 241783 Contact Us For Availability
1
Hose - Flexible (Fill Valve to Air Gap) WPL 242402 Contact Us For Availability
1
Water Heating Element Assy. (Incls. items 2, WPL 241267 Contact Us For Availability
1
Lower Rack Assy. (Incls. items 2 & 3) WPL 116157 Contact Us For Availability
2
Strainer - Fine WPL 241924 Contact Us For Availability
2
xUpper Mounting Panel & Trim Assy WPL ARI115909A Contact Us For Availability
2
Lock Washer 10 Ext. Shakeproof WPL WL712 Contact Us For Availability
2
Washer WPL WS251 Contact Us For Availability
2
Float - Check Valve WPL 115976 Contact Us For Availability
2
Connector - Vertical Conduit WPL 241546 Contact Us For Availability
2
Clip - Partition Retaining WPL 101685 Contact Us For Availability
2
Mach. Screw 10-24 x 1 Phil. Pan Hd WPL SC10958 Contact Us For Availability
2
Clamp - Hose WPL 240318 Contact Us For Availability
2
Axle - Lower Rack WPL 240682 Contact Us For Availability
3
Strainer - Coarse WPL 241939 Contact Us For Availability
3
xFiller (Upper Panel) WPL ARI115910A Contact Us For Availability
3
Door Seal Assy. (Incls. item 4) WPL 116115 Contact Us For Availability
3
Support - Air Inlet Cover WPL 115988 Contact Us For Availability
3
Bracket - Rotary Switch WPL 242227 Contact Us For Availability
3
Conduit - Vertical WPL 241392 Contact Us For Availability
3
Wash Pump Top Kit (Incls. items 1 & 23) WPL 242638 Contact Us For Availability
3
Air Gap - Fill Assy. (Incls. items 1 & 2) WPL 242446 Contact Us For Availability
3
Washer WPL WS2925 Contact Us For Availability
3
Wheel - Lower Rack WPL 240683 Contact Us For Availability
4
xxSelf-Tapping Screw 6 x 1/4 Phil. Flat Hd., WPL ARI115911A Contact Us For Availability
4
Clip - Seal WPL 116010 Contact Us For Availability
4
Latch Mechanism Assy. (Incls. iem 5) WPL 242848 Contact Us For Availability
4
Gasket - Rubber WPL 115840 Contact Us For Availability
4
Deflector - Air (Upper) WPL 116151 Contact Us For Availability
4
Partition - Upper Rack WPL 115948 Contact Us For Availability
4
Special Screw - No.10-32 WPL 241898 Contact Us For Availability
4
Basket - Silverware WPL 101296 Contact Us For Availability
5
Side Trim - Upper Panel WPL 241482 Contact Us For Availability
5
Bumper - Door WPL 116101 Contact Us For Availability
5
Actuator - Latch Switch WPL 242844 Contact Us For Availability
5
Nut (Fill Air Gap) WPL 1161982 Contact Us For Availability
5
Deflector - Air (Lower) WPL 105174 Contact Us For Availability
5
Rotary Switch Assy. (Incls. items 1, 2 & 3) WPL 242850 Contact Us For Availability
5
Retainer - Manifold WPL 241105 Contact Us For Availability
5
Quadrant - Flexo Divider (L.H.) WPL 108783 Contact Us For Availability
5
Lock Washer 10 Ext. Shakeproof WPL WL147 Contact Us For Availability
5
Grommet - Heat Element WPL 2411352 Contact Us For Availability
5
Bumper - Lower Rack WPL 241244 Contact Us For Availability
6
Side Trim - Lower Panel WPL 241484 Contact Us For Availability
6
Inner Door Assy (KDSS-21) WPL 242223 Contact Us For Availability
6
Inner Door Assy. (KDSS-21A) WPL 2431522 Contact Us For Availability
6
Dryer Housing & Bracket Assy. (Incls. items 7 WPL 241594 Contact Us For Availability
6
Insulator - Harness WPL 241745 Contact Us For Availability
6
Manifold - Upper Arm WPL 241051 Contact Us For Availability
6
Quadrant - Flexo Divider (R.H.) (Not Shown) WPL 108784 Contact Us For Availability
6
Washer - Spring (Impeller) WPL 83752 Contact Us For Availability
6
Clamp - Hose WPL 1157475 Contact Us For Availability
6
Nut - Heat Element WPL 241134 Contact Us For Availability
7
Fill Valve Assy. (115 V., 60 Hz.) WPL 242905 Contact Us For Availability
7
xxSelf-Tapping Screw 6 x 1/4 Phil. Flat Hd., WPL ARI115912A Contact Us For Availability
7
Protector - Upper Water Inlet WPL 116247 Contact Us For Availability
7
Bracket - Housing Support WPL 241506 Contact Us For Availability
7
Insulator - Controller WPL 242926 Contact Us For Availability
7
Adjustable Rack Track Mech. (R.H.) WPL 116155 Contact Us For Availability
7
Washer - Impeller WPL 241896 Contact Us For Availability
7
Terminal - Grounding (Heat Element) WPL 242527 Contact Us For Availability
8
xLower Mounting Panel & Trim Assy WPL ARI115913A Contact Us For Availability
8
Speed Nut 10, Type U WPL 240423 Contact Us For Availability
8
Controller Assy. (Solid State) WPL 242837 Contact Us For Availability
8
Bearing - Arm (Bottom) WPL 241332 Contact Us For Availability
8
Adjustable Rack Track Mech. (L.H.) WPL 116154 Contact Us For Availability
8
``O`` Ring WPL 67500107 Contact Us For Availability
8
Self-Tapping Screw 10-16 x 1/2 Phil. Truss Hd WPL SD2629 Contact Us For Availability
8
Bracket - Thermostat WPL 242434 Contact Us For Availability
9
xFiller (Lower Panel) WPL ARI115914A Contact Us For Availability
9
Cross Frame - Rear WPL 241753 Contact Us For Availability
9
Bracket - L.H. Door Stop WPL 1159773 Contact Us For Availability
9
Insulation - Switch WPL 240377 Contact Us For Availability
9
Bearing - Arm (Top) WPL 241095 Contact Us For Availability
9
Nut - Roller WPL 114054 Contact Us For Availability
9
Wash Impeller Assy WPL 241908 Contact Us For Availability
9
Strap (Flexible Connector to Tank) WPL 241941 Contact Us For Availability
9
Thermostat WPL 242627 Contact Us For Availability
10
xxLock Washer 10 Ext. Shakeproof (Left Side f WPL ARI115915A Contact Us For Availability
10
Plug Button WPL PB312 Contact Us For Availability
10
Self-Tapping Screw 4-40 x 1 1/8 Phil. Pan Hd. WPL SD3529 Contact Us For Availability
10
Wash/Rinse Arm Assy WPL 241055 Contact Us For Availability
10
Plate - Air Inlet Cover WPL 241973 Contact Us For Availability
10
Self-Tapping Screw 4-40 x 3/4 Phil. Pan Hd., WPL SD2912 Contact Us For Availability
10
Nut - Heat Sensing WPL 116136 Contact Us For Availability
11
xxSelf-Tapping Screw 10 x 1/2 Phil. Truss Hd. WPL ARI115916A Contact Us For Availability
11
Keeper - Latch WPL 81218 Contact Us For Availability
11
Bearing - Door Stop Insert WPL 88044 Contact Us For Availability
11
Wheel - Blower (Incls. screws) WPL 241566 Contact Us For Availability
11
Door Interlock Switch Assy. (Incls. items 10 WPL 242995 Contact Us For Availability
11
Clip - Arm Guard WPL 241107 Contact Us For Availability
11
Washer - Rack WPL 241025 Contact Us For Availability
11
Gasket - Cover Plate WPL 241974 Contact Us For Availability
11
Switch - Overfill Control (115 V., 60 Hz.) WPL 116269 Contact Us For Availability
11
``O`` Ring WPL 6750088 Contact Us For Availability
12
Kit - Panel Inserts (FA/CO) WPL 2416773 Contact Us For Availability
12
Actuator - Interlock Switch WPL 116100 Contact Us For Availability
12
Vapor Shield Kit WPL 241970 Contact Us For Availability
12
Self-Tapping Screw 10-24 x 5/16 Phil. Pan Hd. WPL SD3312 Contact Us For Availability
12
Bracket - Door Switch Assy WPL 242230 Contact Us For Availability
12
Receiver - Manifold Tube WPL 115958 Contact Us For Availability
12
Standpipe - Overfill WPL 116270 Contact Us For Availability
12
Gasket - Heat Transfer WPL 116141 Contact Us For Availability
13
Kit - Panel Inserts (SST) WPL 2416774 Contact Us For Availability
13
Bracket - Top Panel Anchor WPL 2404121 Contact Us For Availability
13
Bracket - R.H. Spring Mounting WPL 240028 Contact Us For Availability
13
Pate - Blower Motor Mounting WPL 82104 Contact Us For Availability
13
Special Screw - Hex Washer Hd WPL 116277 Contact Us For Availability
13
Lift - Receiver (R.H.) WPL 116114 Contact Us For Availability
13
Seal - Wash Pump Ring WPL 241901 Contact Us For Availability
13
Spring - Thermostat Mounting WPL 116137 Contact Us For Availability
14
Kit - Panel Inserts (AL/WH) WPL 2416775 Contact Us For Availability
14
Bracket - L.H. Spring Mounting (Not Shown) WPL 240027 Contact Us For Availability
14
Cover - Dryer Motor WPL 240990 Contact Us For Availability
14
Clip - Grounding WPL 240220 Contact Us For Availability
14
Tube (Manifold to Receiver) WPL 116029 Contact Us For Availability
14
Lift - Receiver (L.H.) (Not Shown) WPL 116113 Contact Us For Availability
14
Fine Strainer WPL 241938 Contact Us For Availability
14
Nut - Standpipe WPL 115983 Contact Us For Availability
14
Terminal - Grounding WPL 16222 Contact Us For Availability
15
Kit - Panel Inserts (HT/OB) WPL 2416776 Contact Us For Availability
15
Channel - Evaporation WPL 240649 Contact Us For Availability
15
Screw & Washer Assy. 10 x 3/8 Phil. Hex Hd., WPL SA218 Contact Us For Availability
15
Self-Tapping Screw 8-18 x 1/2 Phil. Pan hd., WPL SD1311 Contact Us For Availability
15
Motor - Blower (115 V., 60 Hz.) WPL 240330 Contact Us For Availability
15
Guard - Arm WPL 241056 Contact Us For Availability
15
Float & Retainer Assy WPL 240917 Contact Us For Availability
15
Protector - Heat Control WPL 242626 Contact Us For Availability
16
Support - Evaporation Channel WPL 115912 Contact Us For Availability
16
Bracket - R.H. Door Stop WPL 1159783 Contact Us For Availability
16
Screw & Washer Assy WPL 242436 Contact Us For Availability
16
Washer WPL 241331 Contact Us For Availability
16
Mach. Screw 8-32 x 1/4 Phil. Pan Hd. ``Nylok` WPL SC6910 Contact Us For Availability
16
``O`` Ring WPL 67500108 Contact Us For Availability
16
Filter - Resistor/Capacitor WPL 2947072 Contact Us For Availability
16
Screw - Thermostat Thumb WPL 116138 Contact Us For Availability
17
Mach. Screw 10-32 x 5/16 Phil. Truss Hd WPL SC667 Contact Us For Availability
17
Lead (Heater to Thermostat) (115 V.) WPL 242802 Contact Us For Availability
17
Self-Tapping Screw 8-32 x 7/8 Phil. Pan Hd., WPL SD3623 Contact Us For Availability
17
Washer WPL WS2814 Contact Us For Availability
17
Motor Mounting Plate Kit (Incls. items 18 & 3 WPL 242636 Contact Us For Availability
17
Lead Assy. (Fill Control Switch to Fill Valve WPL 242777 Contact Us For Availability
17
Thermostat - Heat Control WPL 242625 Contact Us For Availability
18
Frame Assy. (L.H.) WPL 241852 Contact Us For Availability
18
Washer (Rubber) WPL WS2815 Contact Us For Availability
18
Heater - Open Coil (Dryer Unit) (115 V.) WPL 240203 Contact Us For Availability
18
Spacer - End Cap (R.H.) WPL 2424941 Contact Us For Availability
18
Roller - Upper Rack WPL 116008 Contact Us For Availability
18
Gasket - Motor Mounting Plate WPL 115716 Contact Us For Availability
18
Cover - Thermostat WPL 116227 Contact Us For Availability
18
Lead Assy. (Thermoprotector) (Not Shown) WPL 116282 Contact Us For Availability
19
Trim, Tank (R.H.) WPL 115904 Contact Us For Availability
19
Bracket - R.H. Hinge WPL 1159703 Contact Us For Availability
19
Protector - Control WPL 101332 Contact Us For Availability
19
Cap - End (R.H.) WPL 2424131 Contact Us For Availability
19
Self-Tapping Screw 10-16 x 5/8 Phil. Pan Hd., WPL SD3220 Contact Us For Availability
19
Drain Pump Top Assy WPL 241915 Contact Us For Availability
20
Trim - Tank (L.H.) (Not Shown) WPL 115903 Contact Us For Availability
20
Spring - Door Co-Balance WPL 241342 Contact Us For Availability
20
Self-Tapping Screw 8 x 3/8 Phil. Pan Undercut WPL SD3389 Contact Us For Availability
20
Air Inlet Cover Assy. (Incls. items 1, 2 & 3) WPL 115989 Contact Us For Availability
20
Dryer Unit Assy. (115 V., 60 Hz.) (Incls. ite WPL 2415021 Contact Us For Availability
20
Blower Unit Assy. (115 V., 60 Hz.) (Incls. it WPL 2415671 Contact Us For Availability
20
Wiring Harness (Grounding) WPL 242445 Contact Us For Availability
20
Track - Rack WPL 240989 Contact Us For Availability
20
Gasket - Drain Pump WPL 242108 Contact Us For Availability
21
Self-Tapping Screw 10-16 x 1/2 Phil. Truss Hd WPL SD1713 Contact Us For Availability
21
Pin - Hinge WPL 115910 Contact Us For Availability
21
Harness Ground Wire WPL 242847 Contact Us For Availability
21
Stud - Rack Roller WPL 241952 Contact Us For Availability
21
Mach. Screw 8-32 x 1/2 Phil. Pan Hd WPL SC934 Contact Us For Availability
22
Self-Tapping Screw 1/4-20 x 1/2 Hex Washer Hd WPL SD3390 Contact Us For Availability
22
Clip - Hinge Pin Retaining WPL 115968 Contact Us For Availability
22
Common Harness Assy. (Lower) WPL 242443 Contact Us For Availability
22
Gasket - Rack Stud WPL 241950 Contact Us For Availability
22
Motor Clamp Assy WPL 240106 Contact Us For Availability
23
Cross Frame - Front WPL 115370 Contact Us For Availability
23
Screw & Washer Assy WPL 240333 Contact Us For Availability
23
Harness Assy. (Thermostat) WPL 242851 Contact Us For Availability
23
Self-Tapping Screw 10-16 x 3/8 Phil. Pan Hd., WPL SD3622 Contact Us For Availability
23
Gasket - Venturi WPL 241894 Contact Us For Availability
24
Kick Board WPL 115957 Contact Us For Availability
24
Gasket - Detergent Dispenser WPL 116065 Contact Us For Availability
24
Main Wiring Harness Assy WPL 242852 Contact Us For Availability
24
Washer - Roller Spacing WPL 241954 Contact Us For Availability
24
Relay - Start WPL 8771419 Contact Us For Availability
25
Foot - Leveling (5/16-18 Thd.) WPL 241857 Contact Us For Availability
25
Clip - Harness Guide WPL 242641 Contact Us For Availability
25
Roller - Rack Track WPL 241951 Contact Us For Availability
25
Self-Tapping Screw 8-18 x 1 1/4 Phil. Rd. Hd. WPL SD1926 Contact Us For Availability
26
Bimetal Assy WPL 241225 Contact Us For Availability
26
Bushing - Rack Track WPL 241953 Contact Us For Availability
26
Tube - Flexible (Drain) WPL 242211 Contact Us For Availability
27
Self-Tapping Screw 10-16 x 1/2 Phil. Truss Hd WPL SD3629 Contact Us For Availability
27
Self-Tapping Screw 10-32 x 3/8 Indented Hex W WPL SD1238 Contact Us For Availability
27
Baffle - Lower WPL 1150531 Contact Us For Availability
27
Self-Tapping Screw 6-20 x 3/8 Phil. Truss Hd. WPL SD3580 Contact Us For Availability
27
Small Items Basket & Lid Assy WPL 83696 Contact Us For Availability
28
Enclosure - Elec. Supply WPL 115371 Contact Us For Availability
28
Self-Tapping Screw 8-18 x 1/2 Phil. Truss Hd. WPL SD1742 Contact Us For Availability
28
Trim - Handle WPL 242422 Contact Us For Availability
28
Bumper - Upper Rack WPL 240228 Contact Us For Availability
28
Clamp - Hose (.937`` Dia.) WPL 1157477 Contact Us For Availability
29
Self-Tapping Screw 8-18 x 1/2 Phil. Bind. Hd. WPL SD1741 Contact Us For Availability
29
Cap WPL 240471 Contact Us For Availability
29
Mach. Screw 8-32 x 1/2 Phil. Flat Hd WPL SC11752 Contact Us For Availability
29
Stud - Bumper Retaining WPL 89746 Contact Us For Availability
29
Bracket - Check Valve WPL 242525 Contact Us For Availability
30
Tank & Frame Assy. WPL 242639 Contact Us For Availability
30
WPL 243075 WPL 243075 Contact Us For Availability
30
WPL SD2625 WPL SD2625 Contact Us For Availability
30
Detergent Dispenser & Gasket Assy, (115 V., 6 WPL 115153 Contact Us For Availability
30
Mach. Screw 10-32 x 5/8 Phil. Oval Hd WPL SC1714 Contact Us For Availability
30
Bumper - Rack Track WPL 240288 Contact Us For Availability
30
Check Valve Assy WPL 241905 Contact Us For Availability
31
Bracket - L.H. Hinge WPL 1159713 Contact Us For Availability
31
Handle - Latch WPL 242414 Contact Us For Availability
31
Bearing & Spacer - Rack Roller WPL 241034 Contact Us For Availability
31
Motor, Seal & Gasket Kit (Incls. items 18, 24 WPL 242635 Contact Us For Availability
32
Rinse Agent Dispensing Valve WPL 241137 Contact Us For Availability
32
Insulator - Integral Bracket WPL 242907 Contact Us For Availability
32
Mach. Screw 1/4-20 x 1 Pan Hd WPL SC1871 Contact Us For Availability
33
Mach. Screw 10-32 x 1/2 Phil. Truss Hd., CA P WPL 240388 Contact Us For Availability
33
Displ WPL 242898 Contact Us For Availability
33
Connector - Overhead WPL 116003 Contact Us For Availability
34
Fill Hole Plug Assy. (Inc WPL 241163 Contact Us For Availability
34
WPL 242857 WPL 242857 Contact Us For Availability
34
Clamp - Hose (1.468`` Dia.) WPL 2402021 Contact Us For Availability
35
WPL 241101 WPL 241101 Contact Us For Availability
35
WPL 242917 WPL 242917 Contact Us For Availability
35
Shaft Seal & Gasket Kit (Incls. items 8, 16, WPL 242634 Contact Us For Availability
36
WPL 2424132 WPL 2424132 Contact Us For Availability
36
Impeller - Drain WPL 242097 Contact Us For Availability
37
WPL 2424942 WPL 2424942 Contact Us For Availability
37
Clamp - Hose (1`` Dia.) WPL 2402023 Contact Us For Availability
37
Pu WPL 241936 Contact Us For Availability
38
WPL 242977 WPL 242977 Contact Us For Availability
38
WPL 243151 WPL 243151 Contact Us For Availability
39
WPL 242849 WPL 242849 Contact Us For Availability
39
WPL SD2227 WPL SD2227 Contact Us For Availability
× ![]()
