Model Whirlpool KUDS21MS0 – Common Parts & Diagrams
02 - FRONT PANEL
13 - FRAME AND MISCELLANEOUS

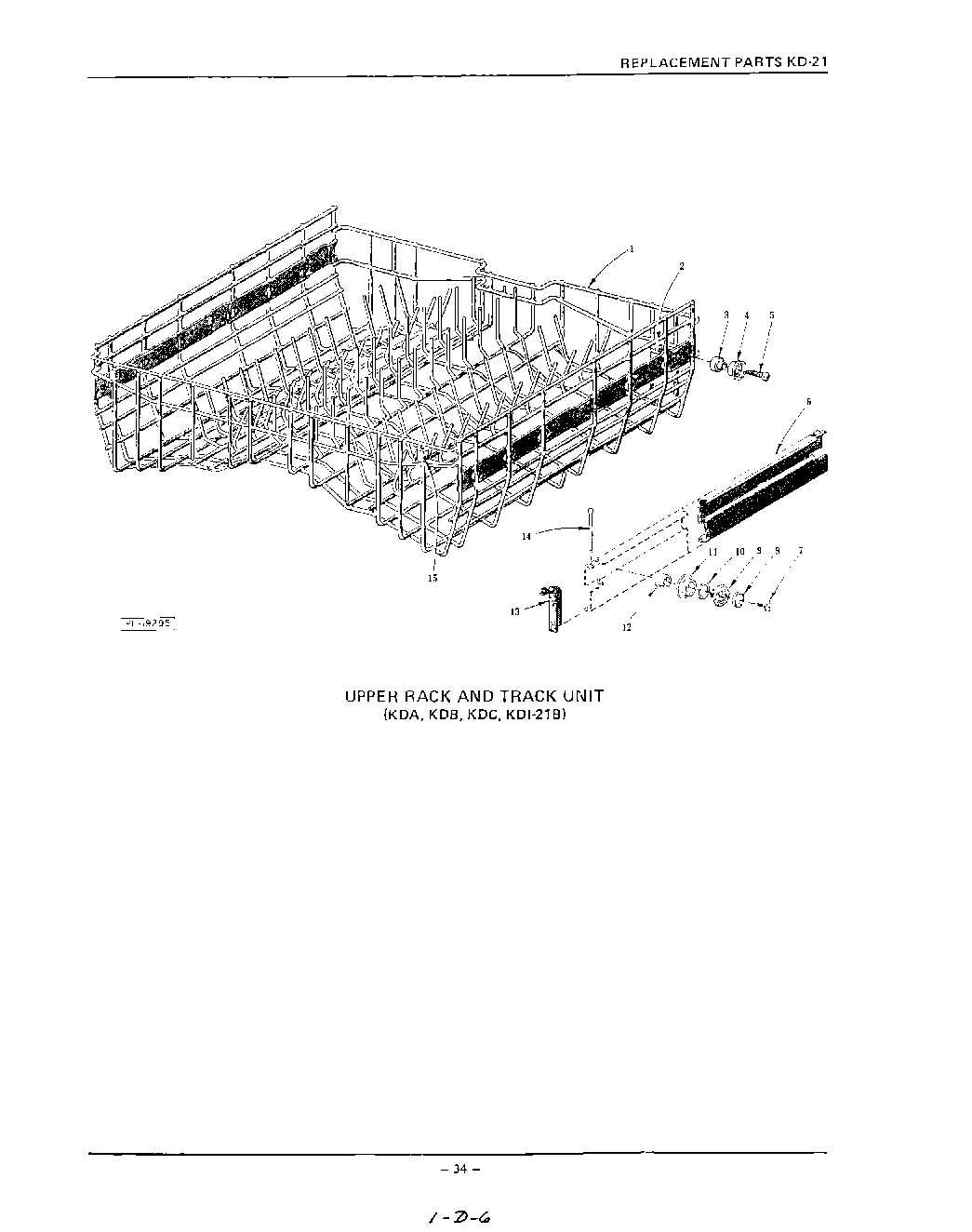

20 - KDA, KDB, KDC, KDI-21B

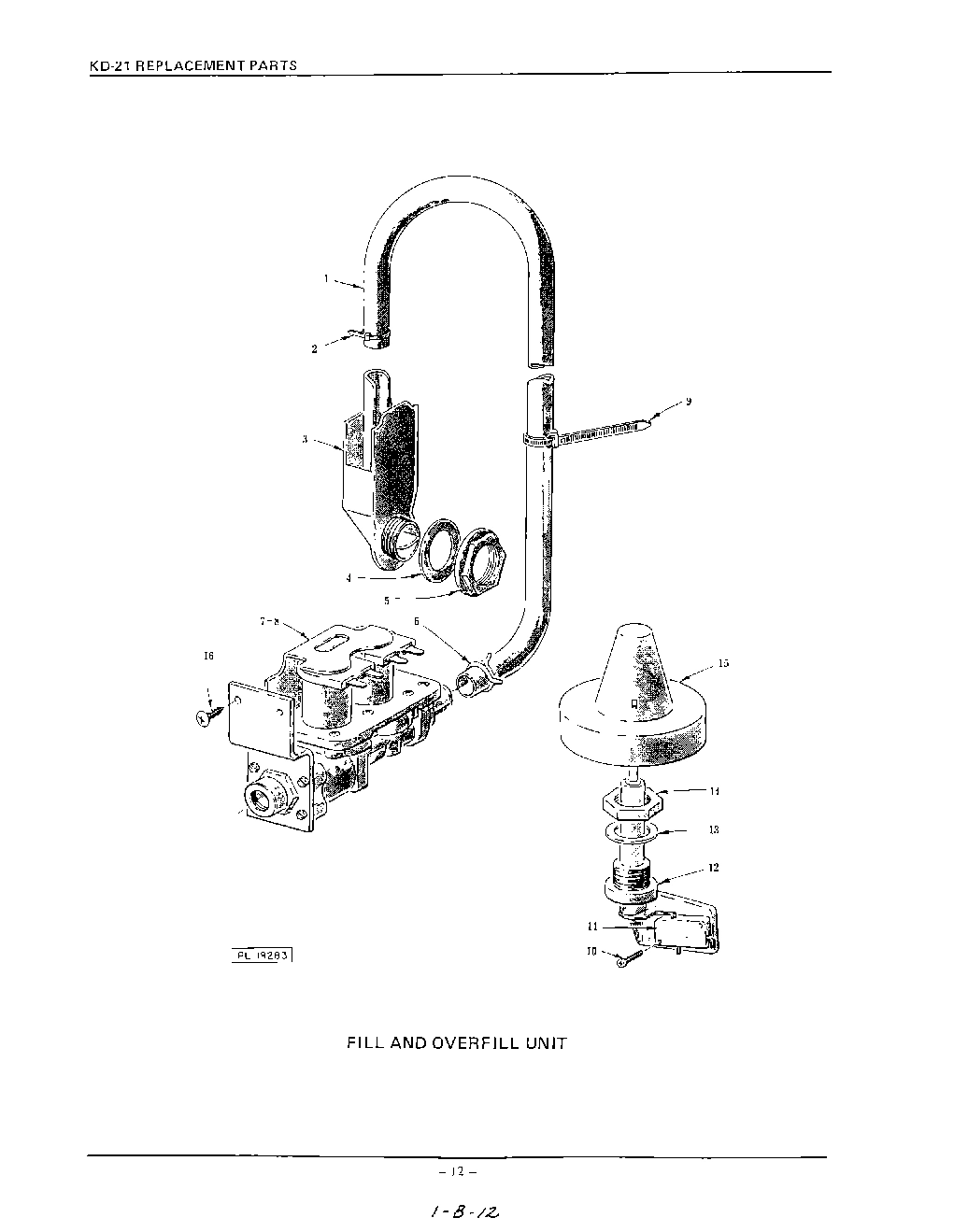

07 - FILL AND OVERFILL

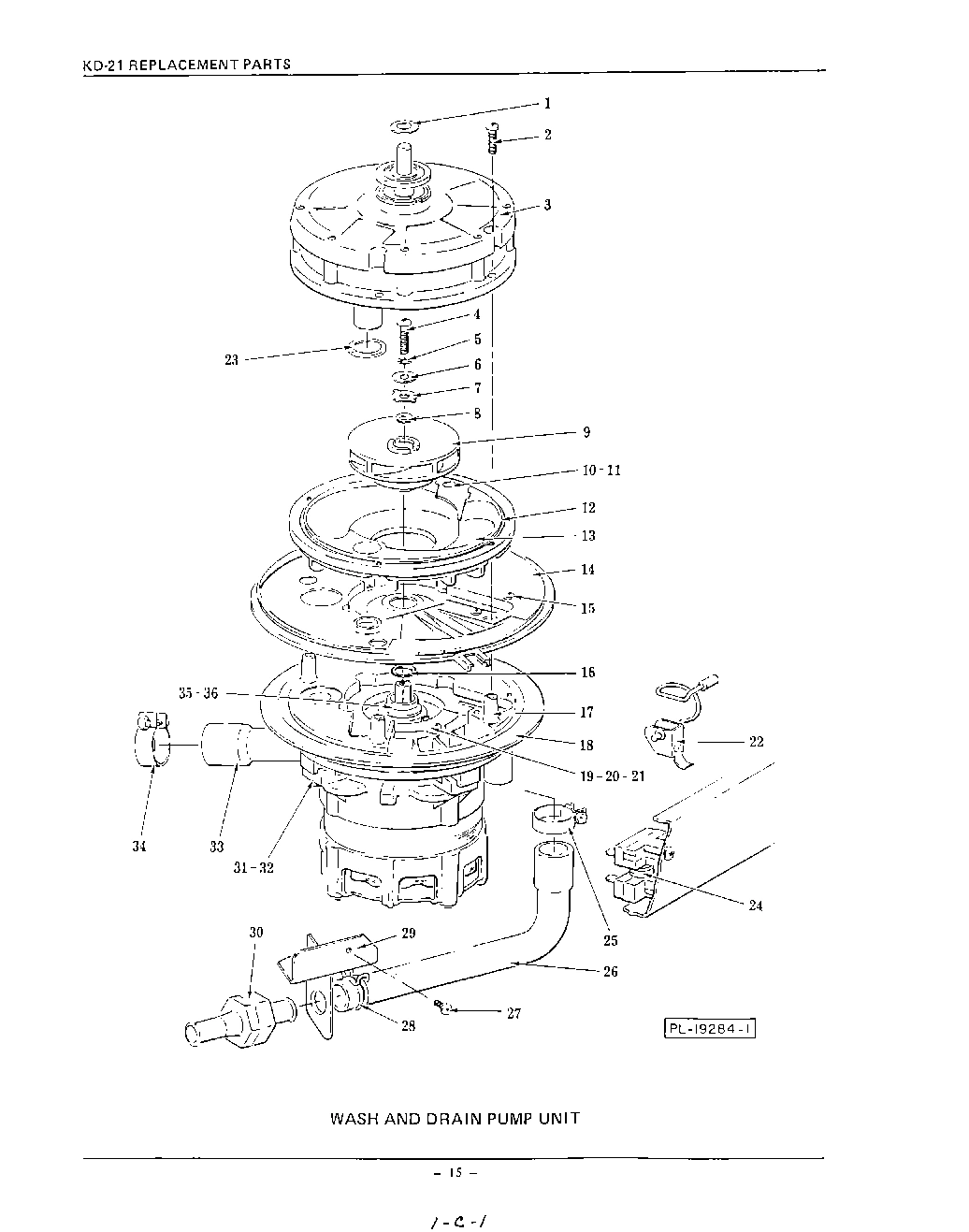

09 - WASH AND DRAIN PUMP

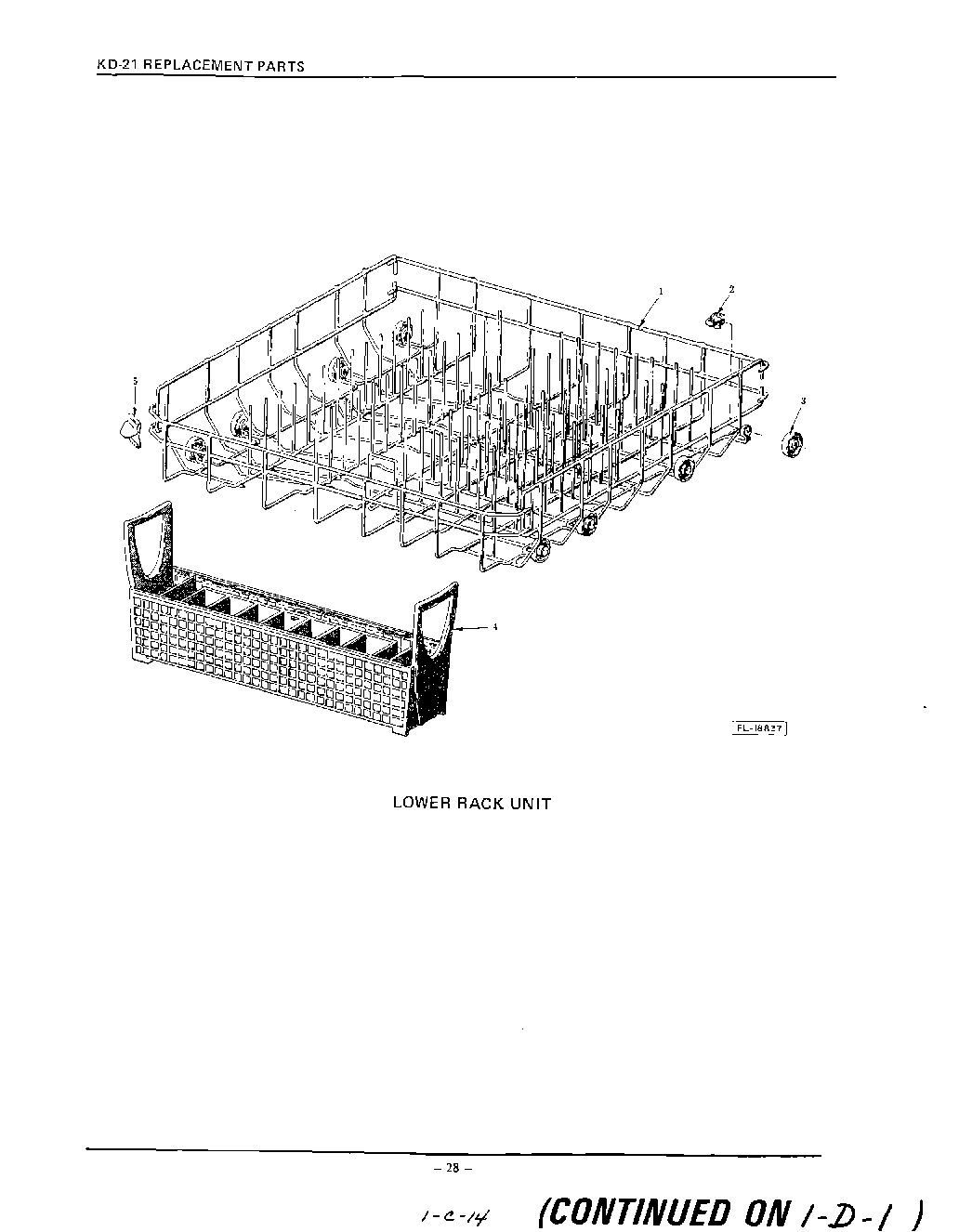

16 - LOWER RACK

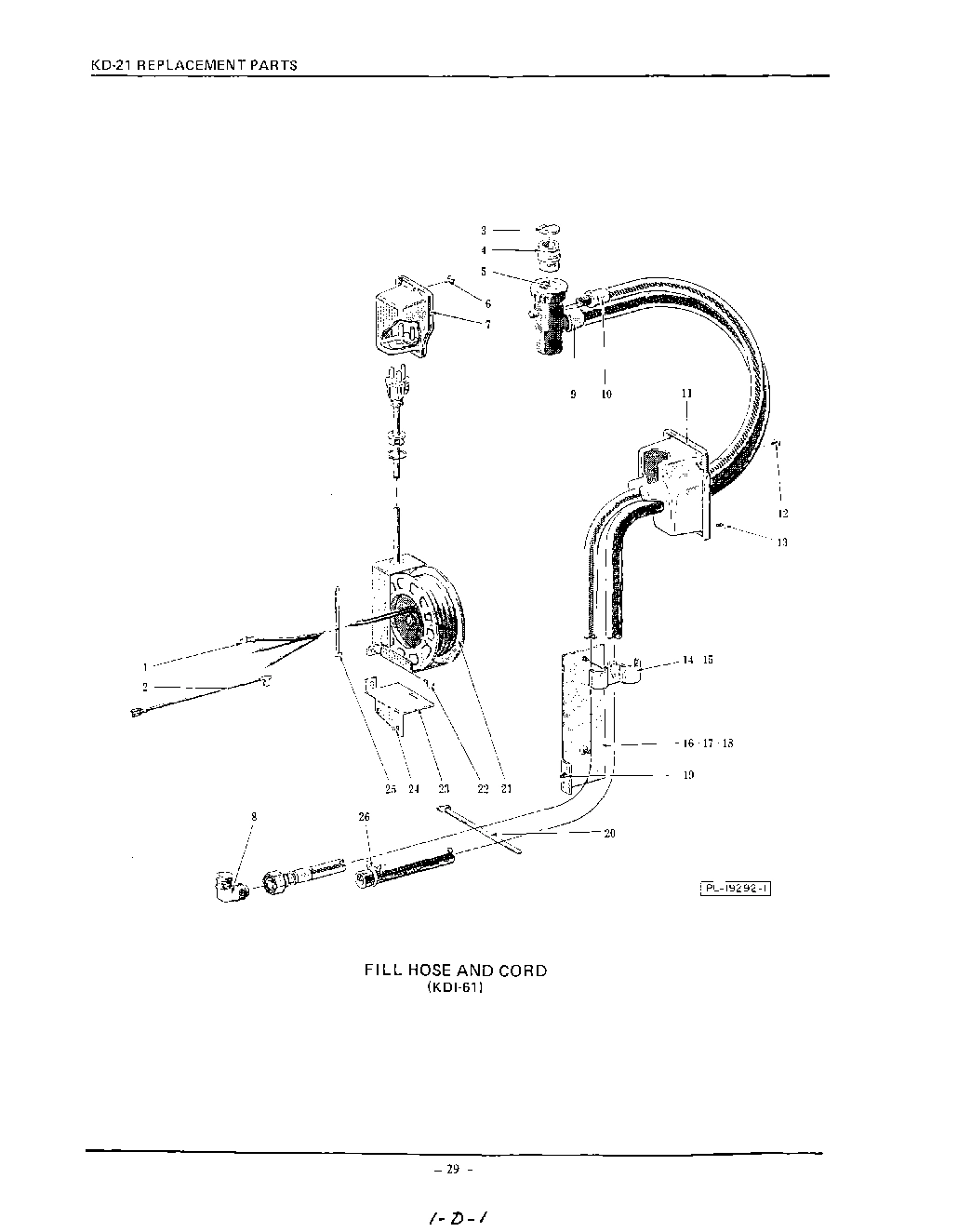

17 - FILL HOSE AND CORD KDI-61
10 - WATER HEATING

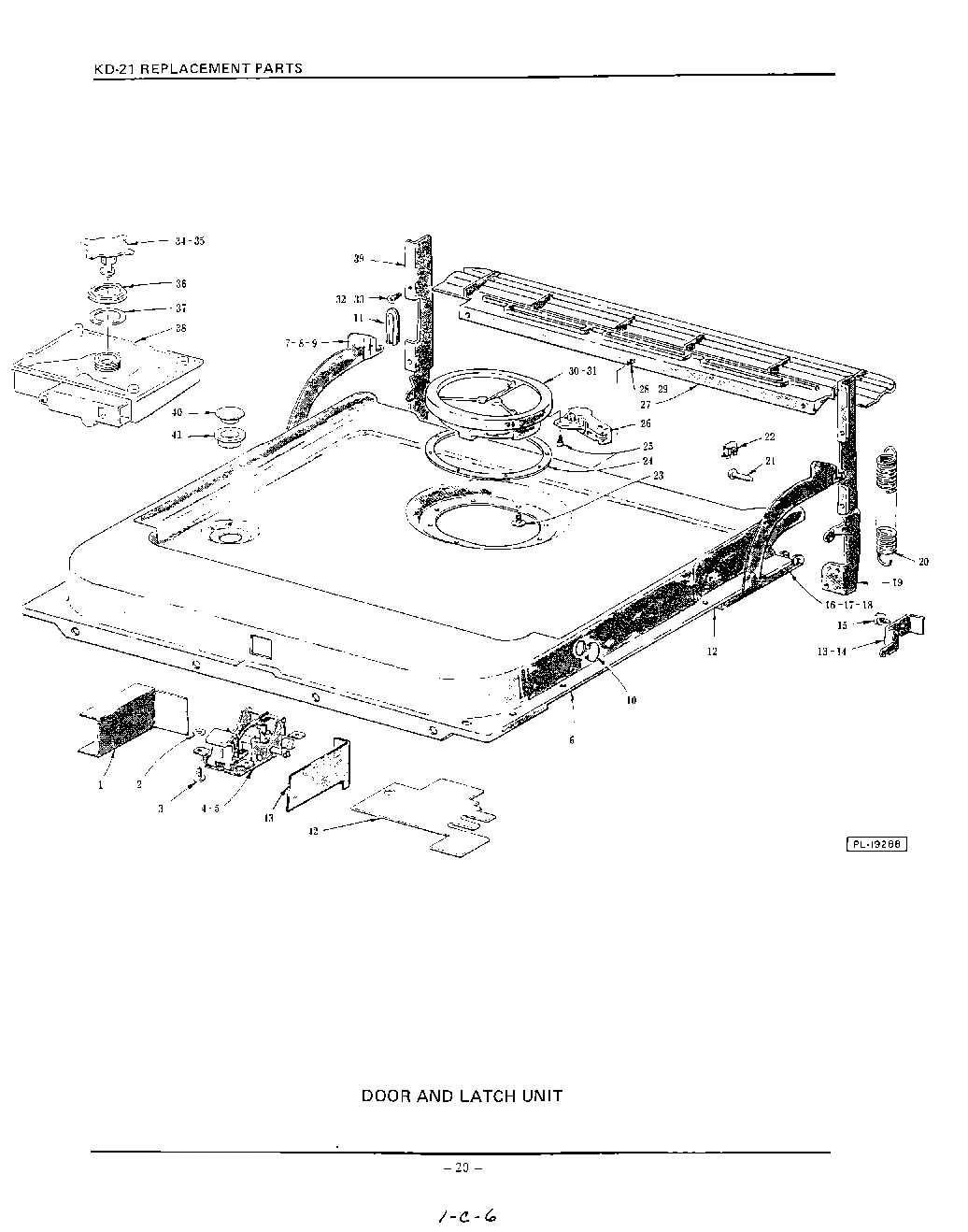

12 - DOOR AND LATCH

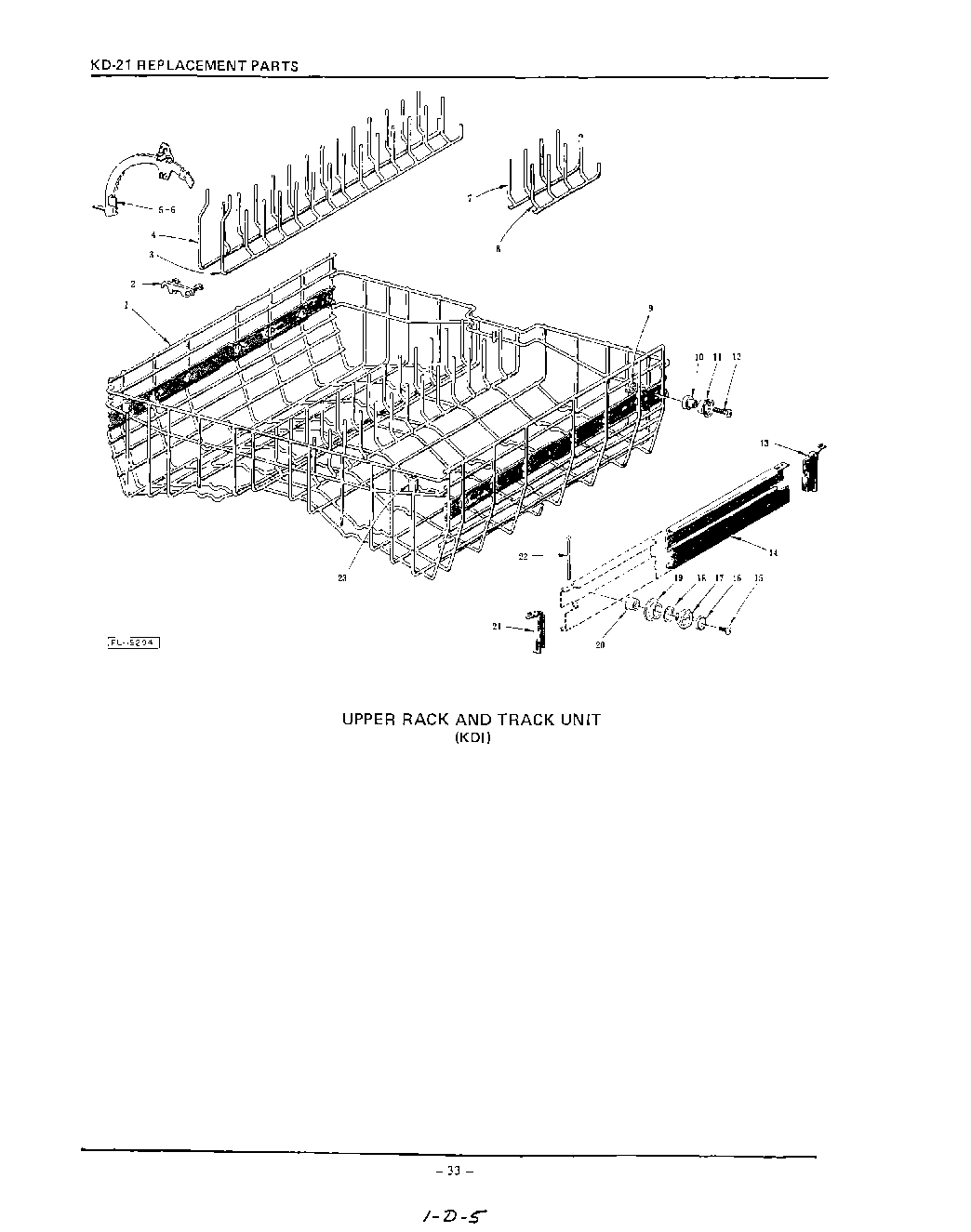

19 - KDI

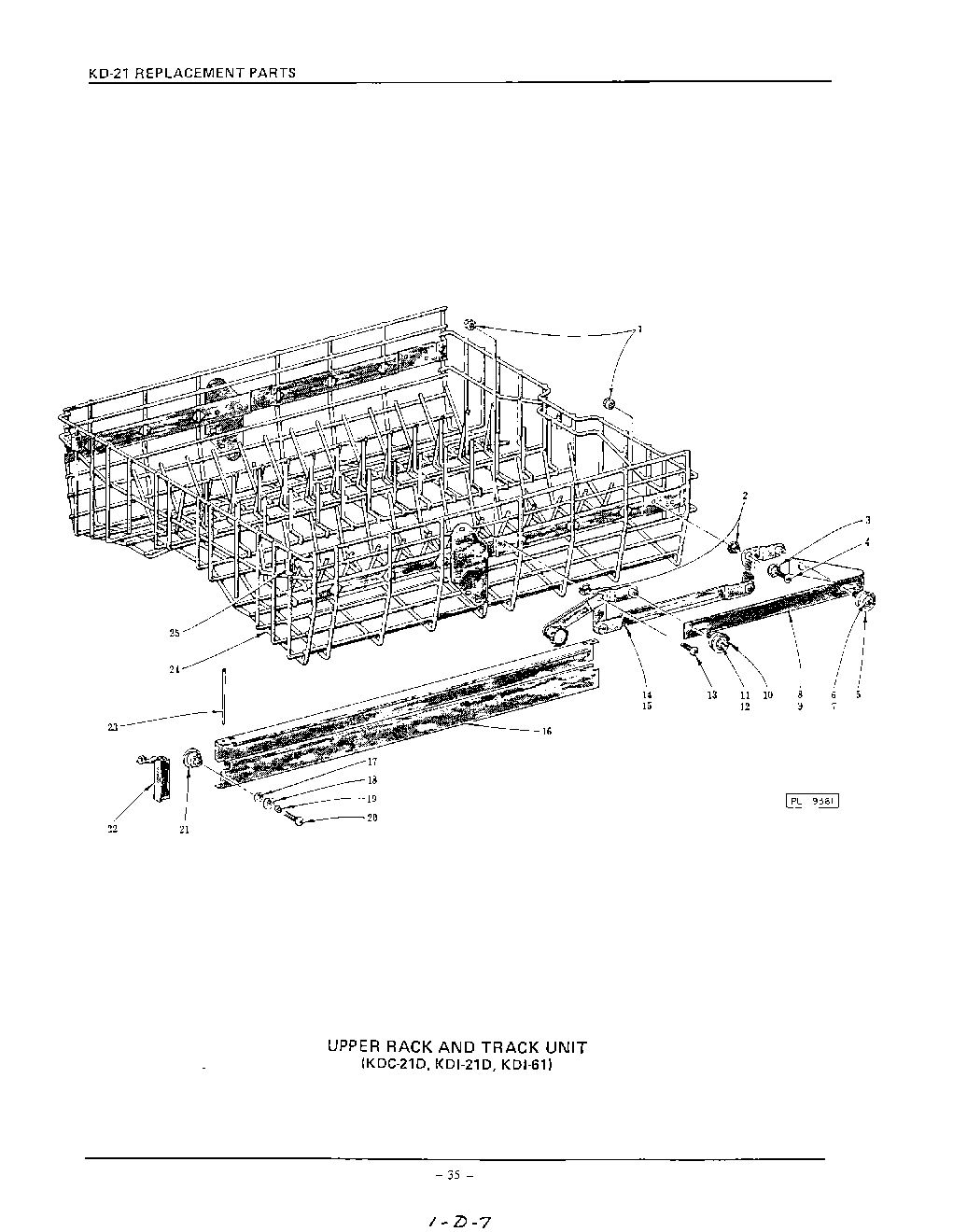

21 - KDC-21D, KDI-21D, KDI-61

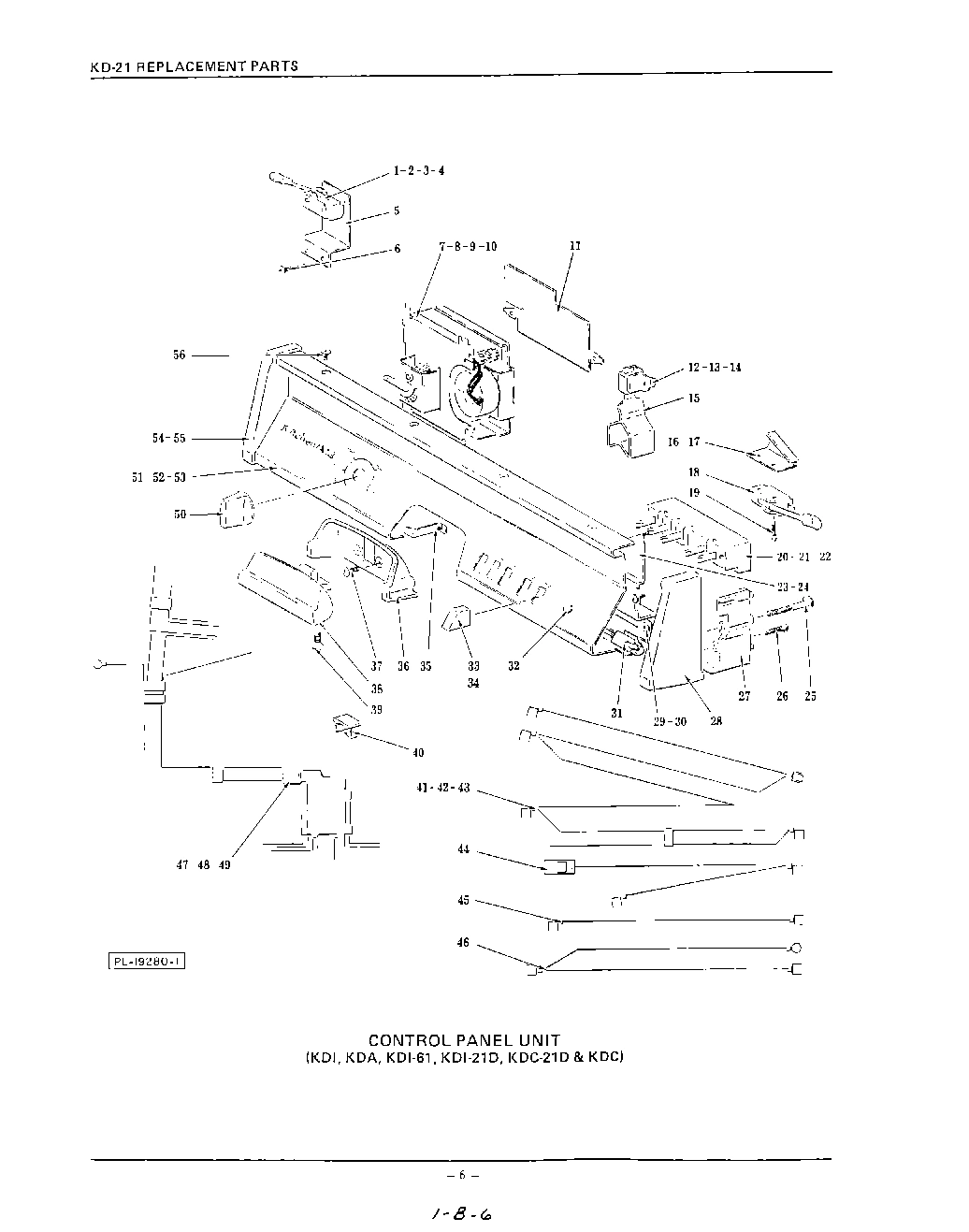

04 - KDI, KDA, KDI-61, KDI-21D, KDC-21,

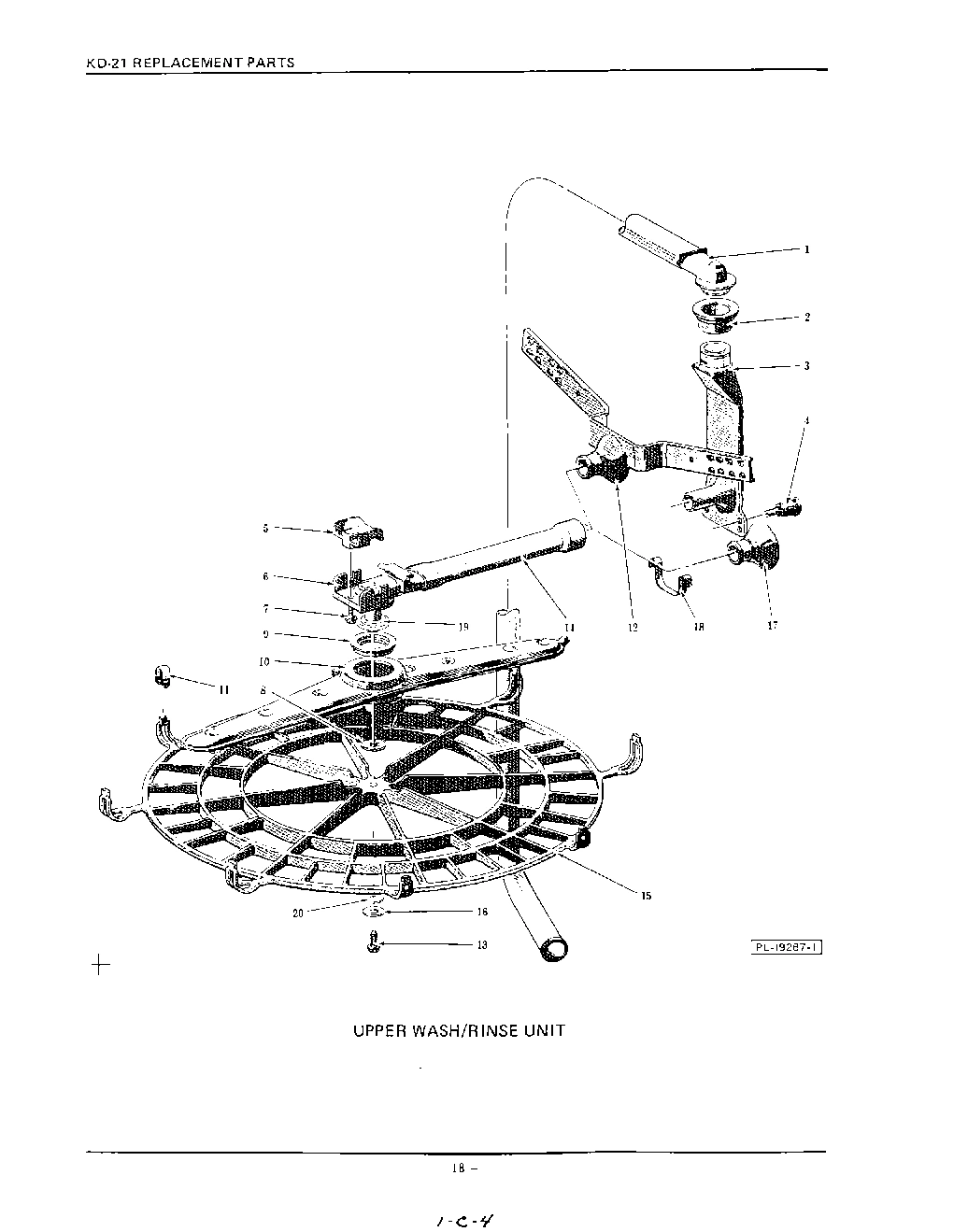

11 - UPPER WASH/RINSE

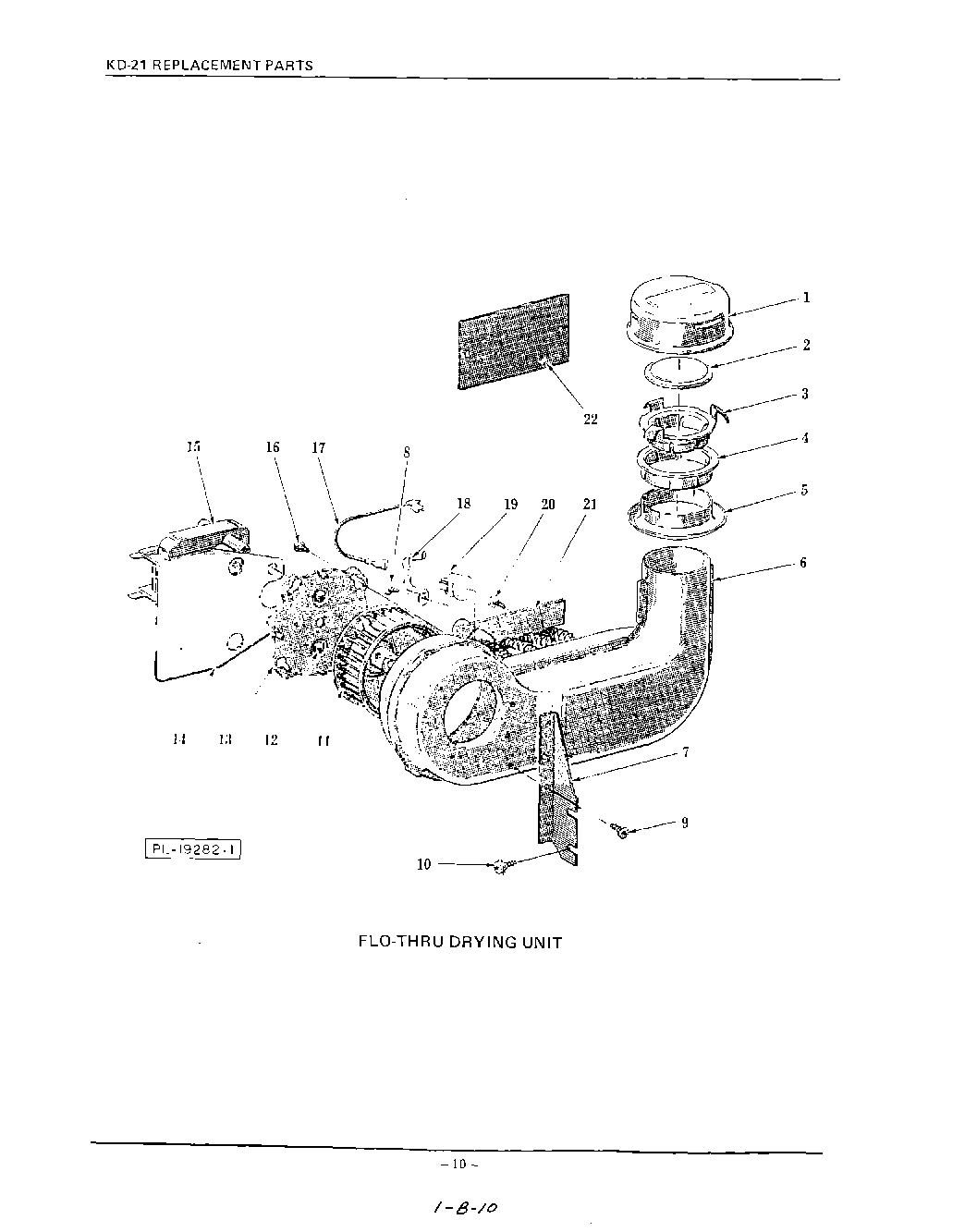

06 - FLO-THRU DRYING

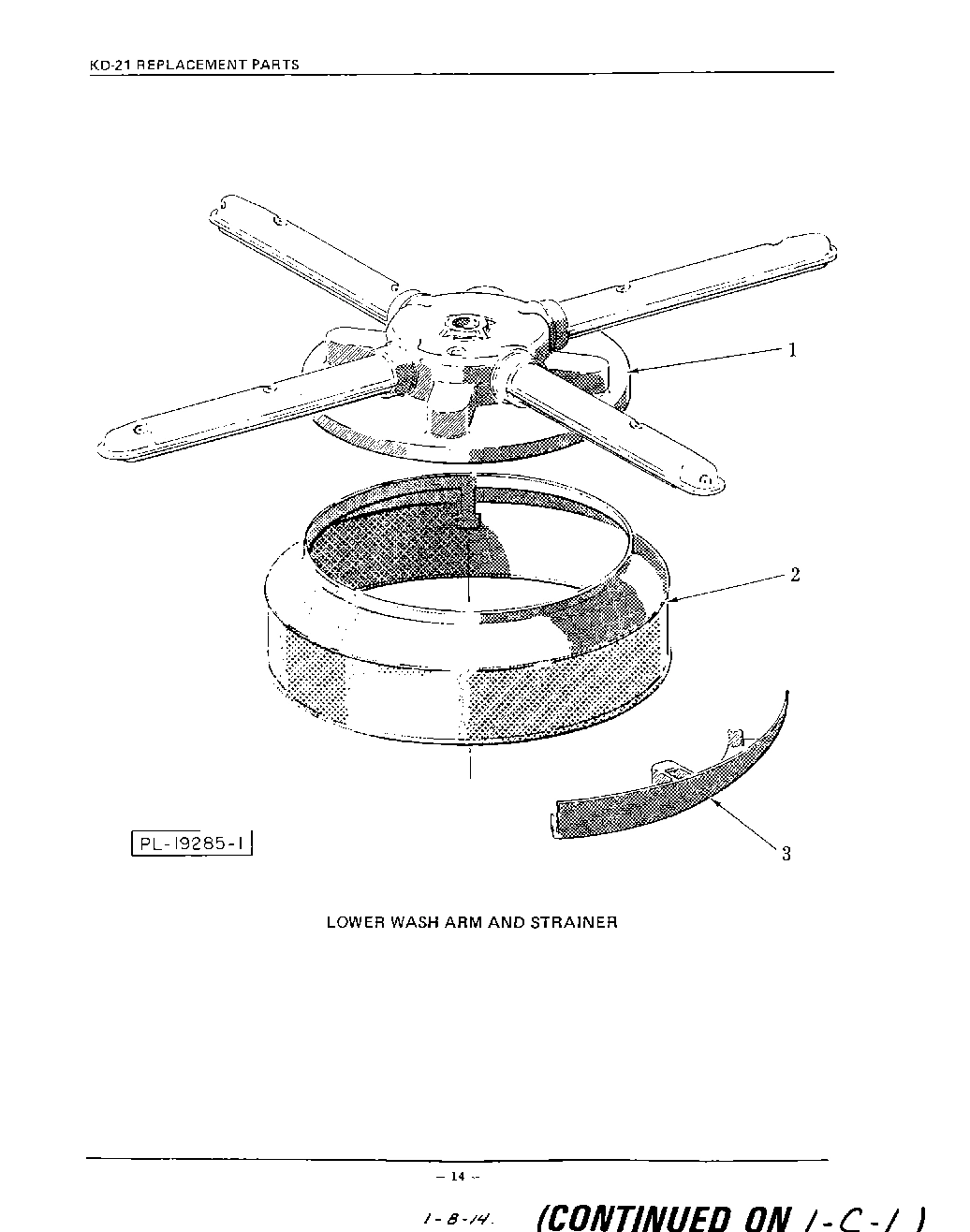

08 - LOWER WASH ARM AND STRAINER

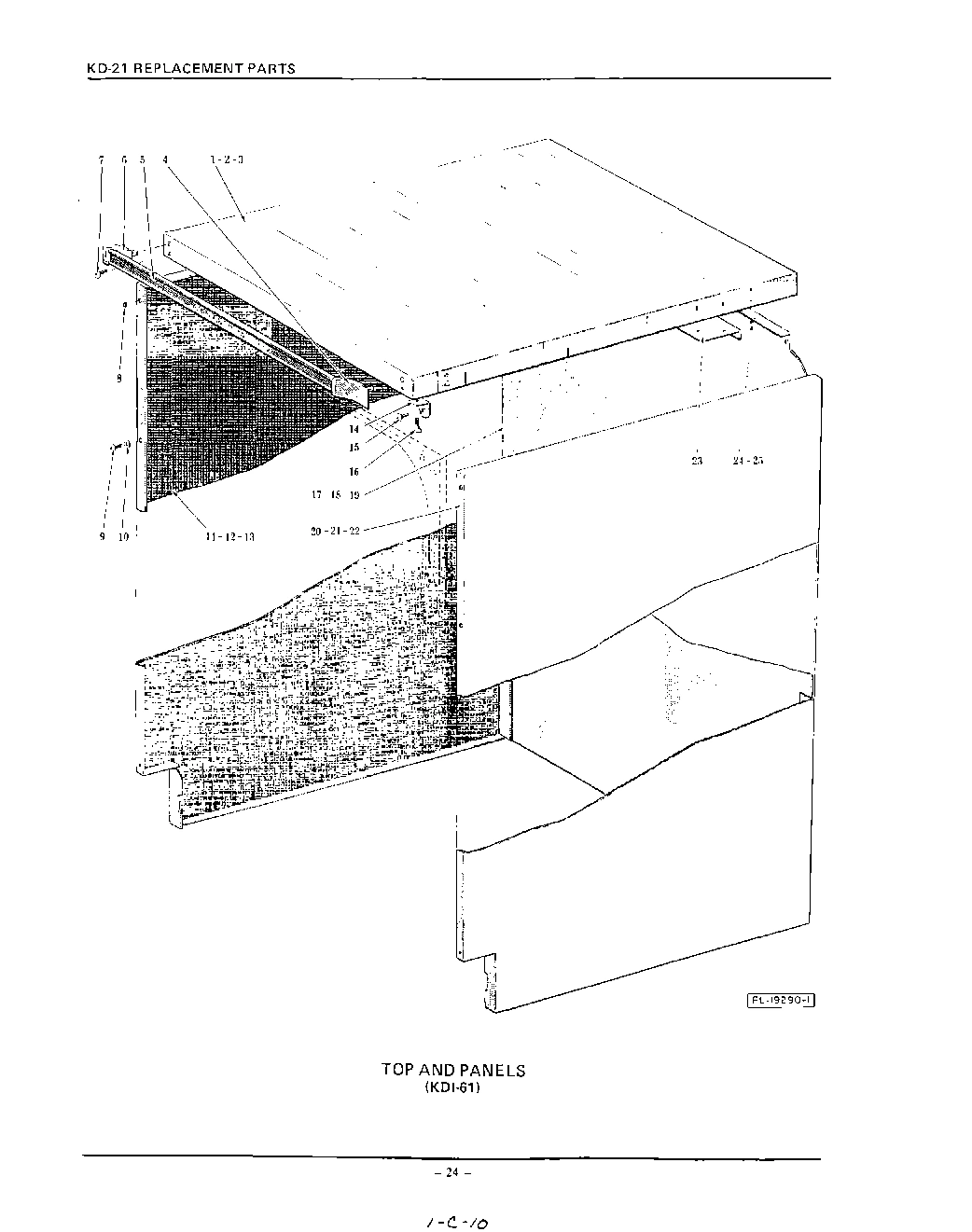

14 - TOP AND PANEL KDI-61

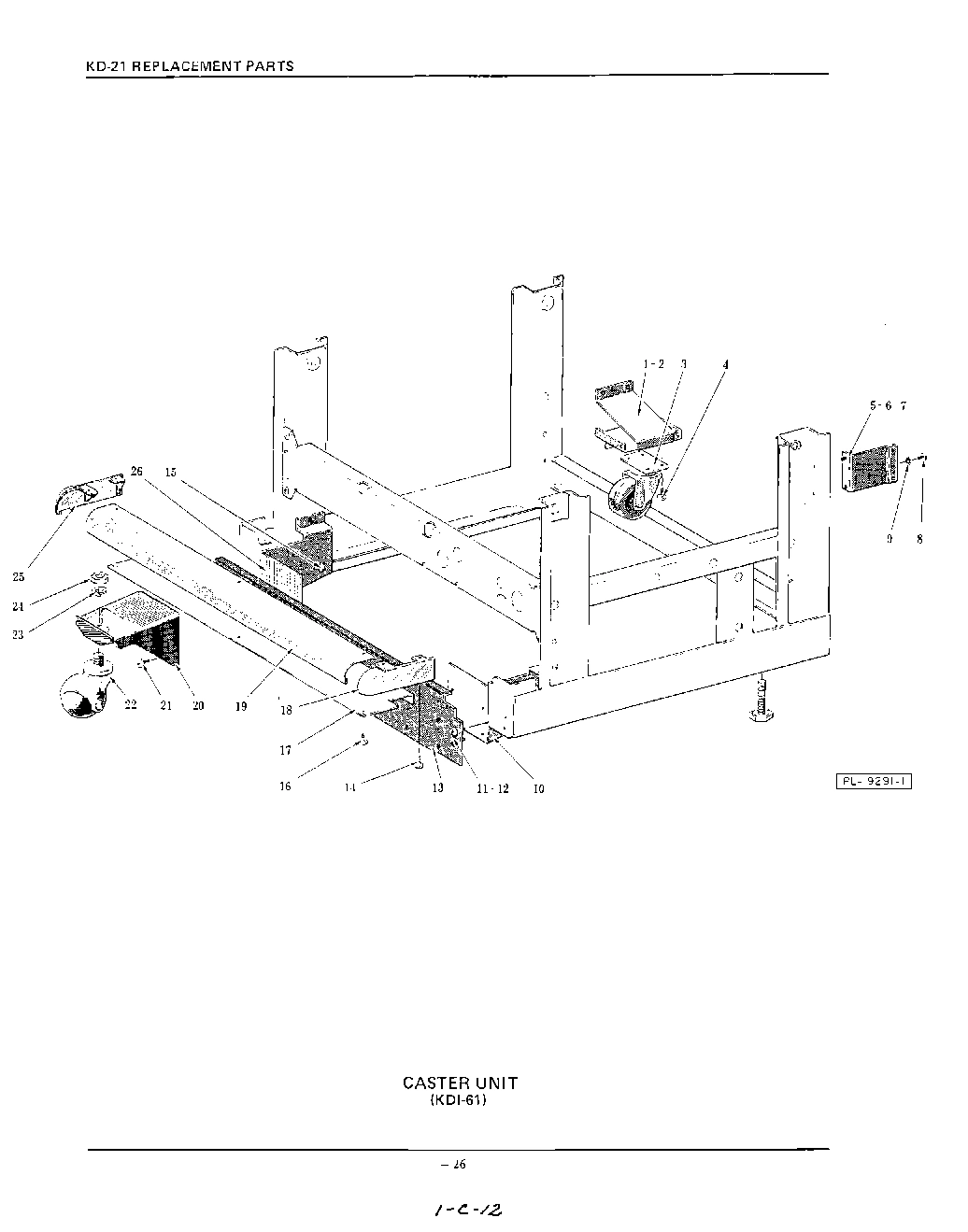

15 - CASTER KDI-61

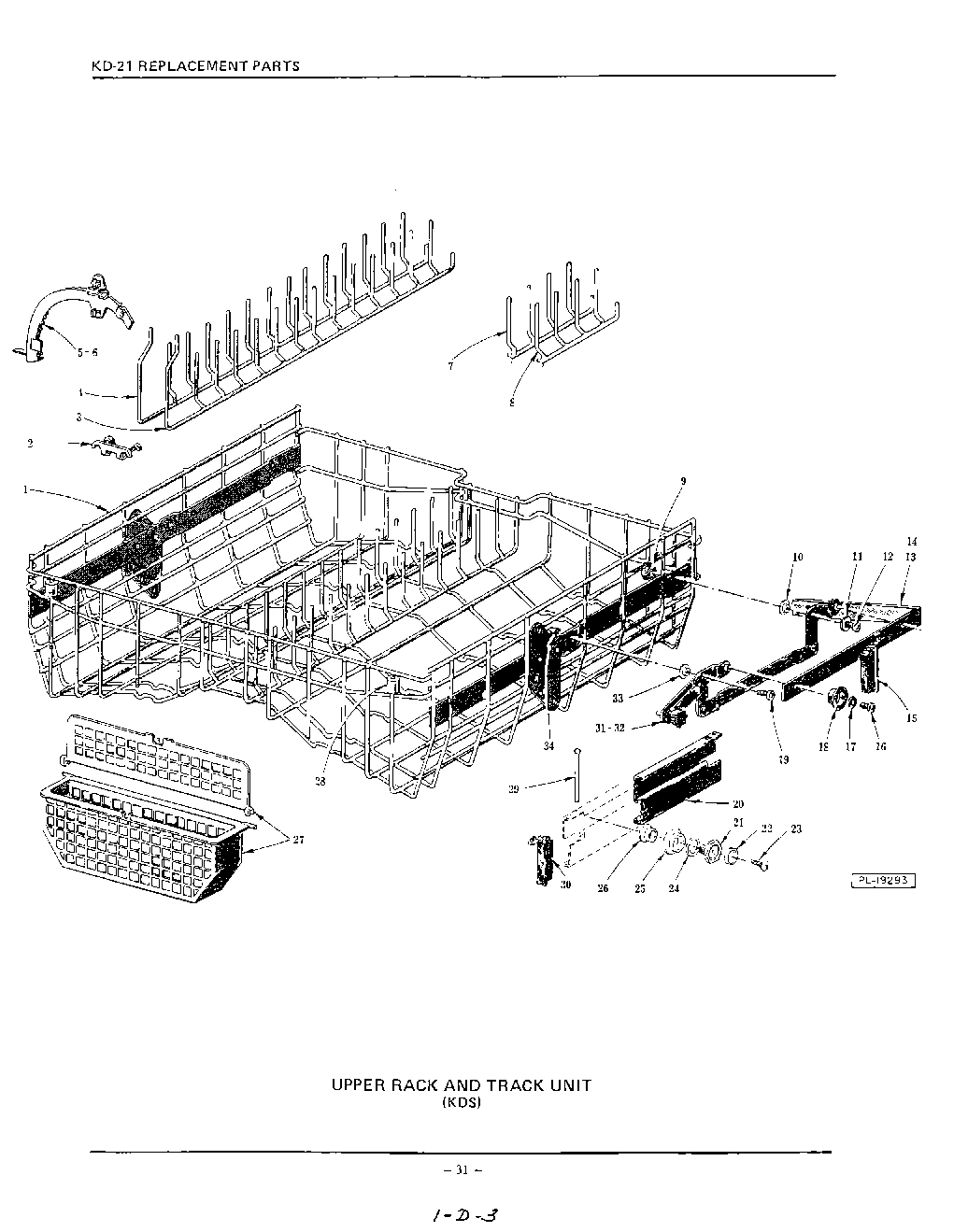

18 - KDS

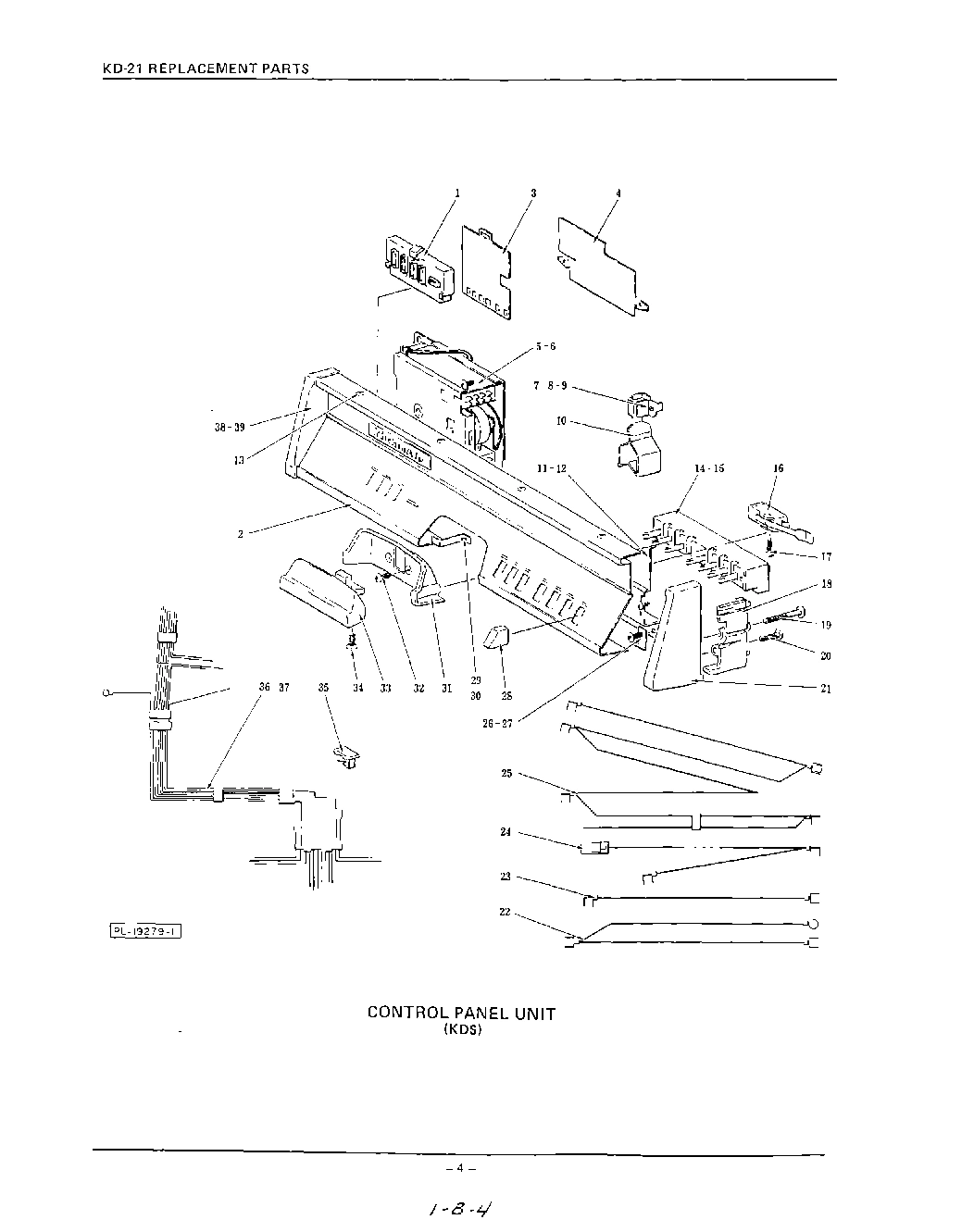

03 - KDS

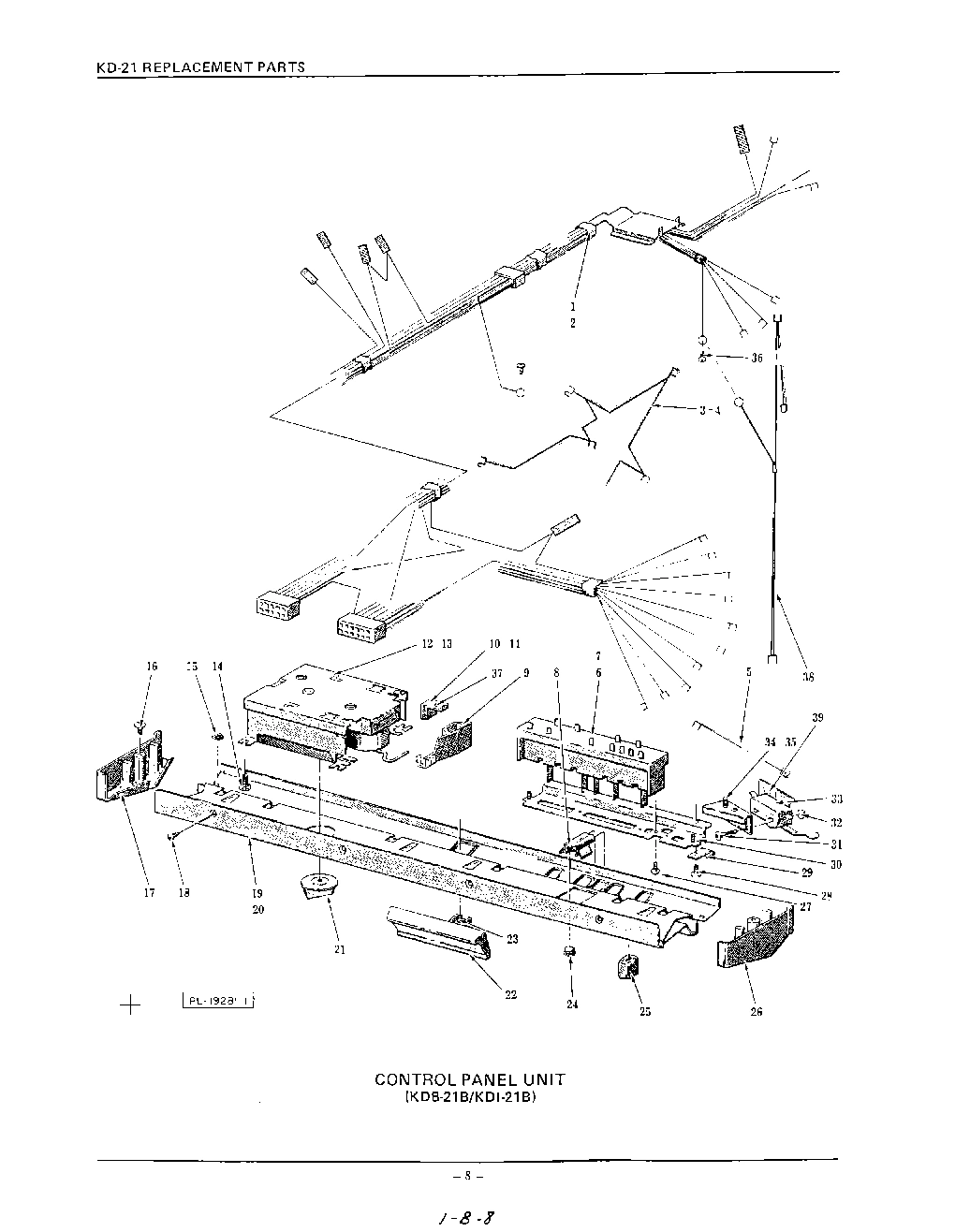

05 - KDB-21B/KDI-21B
Common parts from model Whirlpool KUDS21MS0
WPL 242630 WPL 242630 Contact Us For Availability
WPL M83745 WPL M83745 Contact Us For Availability
WPL 242649 WPL 242649 Contact Us For Availability
1
xxScrew & Washer Assy WPL ARI115886A Contact Us For Availability
1
Short Frame Assy. (Incls. items No.2, 18, 19, WPL D241837 Contact Us For Availability
1
Upper Rack Assy. (KDI-21B) WPL 241197 Contact Us For Availability
1
Upper Rack Assy. (Incls. items No.2, 3, 4, 5 WPL B242257 Contact Us For Availability
1
Hose - Flexible (Fill Valve to Air Gap) WPL C242402 Contact Us For Availability
1
Washer - Wear WPL B240754 Contact Us For Availability
1
Lower Rack Assy. (Incls. items No.2 & 3) WPL E116157 Contact Us For Availability
1
Self-Tapping Screw - No.10-16 x 1/2`` Phil. R WPL SD1712 Contact Us For Availability
1
Water Heating Element Assy. (Incls. items No. WPL 241267 Contact Us For Availability
1
Cover - Wiring Harness WPL C116174 Contact Us For Availability
1
Upper Rack Assy. (KDB-21BSE) WPL 241131 Contact Us For Availability
1
Upper Rack Assy. (Incls. items No.2 thru 12 & WPL B241196 Contact Us For Availability
1
Interlock Switch & Bracket Assy. (Incls. item WPL 242642 Contact Us For Availability
1
Tube & Connector Assy WPL B241439 Contact Us For Availability
1
Cover - Air Inlet WPL E116189 Contact Us For Availability
1
Wash Arm Assy WPL 241917 Contact Us For Availability
1
Wood Top & Insulation Assy. (With Pull Bar) ( WPL B2416861 Contact Us For Availability
1
Bracket - Rear Caster WPL D242003 Contact Us For Availability
1
Upper Rack Assy. (Incls. items No.2 thru 8 & WPL B241195 Contact Us For Availability
1
Sequence Light Assy WPL 242404 Contact Us For Availability
1
Wiring Harness (Main) (KDB-21B) WPL 242440 Contact Us For Availability
2
xUpper Mounting Panel & Trim Assy WPL ARI115887A Contact Us For Availability
2
Clamp - Hose WPL B240318 Contact Us For Availability
2
Mach. Screw - No.10-24 x 1`` Phil. Pan Hd WPL SC10958 Contact Us For Availability
2
Axle - Lower Rack WPL C240682 Contact Us For Availability
2
Lead Assy. (Over Fill Switch to Fill Valve) WPL 240022 Contact Us For Availability
2
Clip - Partition Retaining WPL P101685 Contact Us For Availability
2
Wiring Harness (Main) (KDI-21B) WPL 242439 Contact Us For Availability
2
Connector - Vertical Conduit WPL C241546 Contact Us For Availability
2
Float - Check Valve WPL C115976 Contact Us For Availability
2
Strainer - Fine WPL 241924 Contact Us For Availability
2
Wood Top & Insulation Assy. (Without Pull Bar WPL B2416862 Contact Us For Availability
2
Control Panel (KDS-21) WPL 2424201 Contact Us For Availability
2
Control Panel (KDM-21) WPL 242833 Contact Us For Availability
2
Control Panel (KDSC-21) & KDSC-21A WPL 2431831 Contact Us For Availability
2
Control Panel (KDSM-21) & KDSM-21A WPL 2431832 Contact Us For Availability
3
xFiller (Upper Panel) WPL ARI115888A Contact Us For Availability
3
Door Seal Assy. (Incls. item No.4) WPL D116115 Contact Us For Availability
3
Air Gap - Fill WPL C242446 Contact Us For Availability
3
Wash Pump Top Kit WPL 242638 Contact Us For Availability
3
Wheel - Lower Rack WPL C240683 Contact Us For Availability
3
Washer Kit WPL 110553 Contact Us For Availability
3
Washer WPL WS2925 Contact Us For Availability
3
Washer WPL WS251 Contact Us For Availability
3
Conduit - Vertical WPL D241392 Contact Us For Availability
3
Support - Air Inlet Cover WPL D115988 Contact Us For Availability
3
Strainer - Coarse WPL 241939 Contact Us For Availability
3
Wood Screw 10-13 x 3/4 Phil. Rd. Hd WPL SW525 Contact Us For Availability
3
Caster - Rear WPL B104540 Contact Us For Availability
3
Insulator - Light Package WPL 242599 Contact Us For Availability
3
Wiring Harness (Lower) (KDB-21B) WPL 242443 Contact Us For Availability
4
xxSelf-Tapping Screw - No.6 x 1/4`` Phil. Fla WPL ARI115889A Contact Us For Availability
4
Clip - Seal WPL C116010 Contact Us For Availability
4
Special Screw - No.10-32 WPL 241898 Contact Us For Availability
4
Basket - Silverware WPL E101296 Contact Us For Availability
4
Aerator & Connector Assy. (Incls. item No.3) WPL 110552 Contact Us For Availability
4
Latch Mechanism Assy. (KDB-21B & KDI-21B) WPL D1160221 Contact Us For Availability
4
Insulator - Harness WPL 241745 Contact Us For Availability
4
Wiring Harness (Lower) (KDI-21B) WPL 2424422 Contact Us For Availability
4
Retainer - Conduit WPL D241286 Contact Us For Availability
4
Deflector - Air (Upper) WPL C116151 Contact Us For Availability
4
End Cap - Guide Bar (R.H.) WPL D116298 Contact Us For Availability
5
Side Trim - Upper Panel WPL D241482 Contact Us For Availability
5
Bumper - Door WPL B116101 Contact Us For Availability
5
Lock Washer 10 Ext. Shakeproof WPL WL147 Contact Us For Availability
5
Bumper - Lower Rack WPL C241244 Contact Us For Availability
5
Gasket - Seal (``U`` Section) WPL 89038 Contact Us For Availability
5
Grommet - Heat Element WPL 2411352 Contact Us For Availability
5
Latch Mechanism Assy. (KDA-21, KDC-21, KDI-21 WPL D1160022 Contact Us For Availability
5
Quadrant - Flexo Divider (L.H.) WPL D108783 Contact Us For Availability
5
Mounting Bracket - Interlock Switch WPL 240598 Contact Us For Availability
5
Lead Assy. (Interlock Switch to Program Switc WPL 241315 Contact Us For Availability
5
Retainer - Manifold WPL C241105 Contact Us For Availability
5
Deflector - Air (Lower) WPL P105174 Contact Us For Availability
5
Bar - Guide WPL C116297 Contact Us For Availability
5
Bracket - Side Panel Mounting WPL C116223 Contact Us For Availability
5
Timer Assy. (115 V., 60 Hz.) WPL 242428 Contact Us For Availability
6
Side Trim - Lower Panel WPL D241484 Contact Us For Availability
6
Clamp - Hose WPL C1157475 Contact Us For Availability
6
Washer - Spring (Impeller) WPL 83752 Contact Us For Availability
6
Nut - Heat Element WPL 241134 Contact Us For Availability
6
Inner Door Assy WPL E241119 Contact Us For Availability
6
Quadrant - Flexo Divider (R.H.) (Not Shown) WPL D108784 Contact Us For Availability
6
Switch - Program (KDB-21B) (2 Button) WPL 242433 Contact Us For Availability
6
Manifold - Upper Arm WPL E241051 Contact Us For Availability
6
Dryer Housing & Bracket Assy. (Incls. items N WPL C241594 Contact Us For Availability
6
End Cap - Guide Bar (L.H.) WPL B116299 Contact Us For Availability
7
xxSelf-Tapping Screw - No.6 x 1/4`` Phil. Fla WPL ARI115890A Contact Us For Availability
7
Protector - Upper Water Inlet WPL D116247 Contact Us For Availability
7
Valve - Fill (Double Coil) (115 V., 60 Hz.) ( WPL A116152 Contact Us For Availability
7
Washer - Impeller WPL 241896 Contact Us For Availability
7
Housing - Power Cord WPL 111465 Contact Us For Availability
7
Terminal - Grounding (Heat Element) WPL 242527 Contact Us For Availability
7
Partition - Upper Rack (R.H., Inside) WPL D115948 Contact Us For Availability
7
Timer Assy. (115 V., 60 Hz.) (KDI) WPL 242429 Contact Us For Availability
7
Anchor - Cancel Spring WPL 242632 Contact Us For Availability
7
Bracket - Housing Support WPL D241506 Contact Us For Availability
7
Wood Screw 10-13 x 3/4 Phil. Oval Hd WPL SW910 Contact Us For Availability
7
Switch - Program (KDI-21B) (5 Button) WPL 242432 Contact Us For Availability
8
xLower Mounting Panel & Trim Assy WPL ARI115891A Contact Us For Availability
8
Speed Nut - No.10, Type U WPL B240423 Contact Us For Availability
8
Valve - Fill (Single Coil) (KDA-21B, KDB-21B, WPL D242592 Contact Us For Availability
8
``O`` Ring WPL 67500107 Contact Us For Availability
8
Elbow - Tube Fitting WPL 240872 Contact Us For Availability
8
Bracket - Thermostat WPL 242434 Contact Us For Availability
8
Partition - Upper Rack (R.H., Outside) WPL D115949 Contact Us For Availability
8
Timer Assy. (115 V., 60 Hz.) (KDA) WPL 242475 Contact Us For Availability
8
Light - Water Heat (KDI-21B) WPL 241572 Contact Us For Availability
8
Bearing - Arm (Bottom) WPL B241332 Contact Us For Availability
8
Self-Tapping Screw 10-16 x 5/16 Phil. Truss H WPL SD179 Contact Us For Availability
9
xFiller (Lower Panel) WPL ARI115892A Contact Us For Availability
9
Clip - Corner Seal WPL C241592 Contact Us For Availability
9
Tie - Wire (8`` Lg.) WPL B241941 Contact Us For Availability
9
Wash Impeller Assy WPL 241908 Contact Us For Availability
9
Coupler, Drain Hose & Ferrule Assy. (Incls. i WPL 1069552 Contact Us For Availability
9
Thermostat WPL 242627 Contact Us For Availability
9
Bracket - L.H. Door Stop WPL C1159773 Contact Us For Availability
9
Timer Assy. (115 V., 60 Hz.) (KDC) WPL 242600 Contact Us For Availability
9
Bearing - Arm (Top) WPL C241095 Contact Us For Availability
9
Spring - Switch Cancel WPL 116122 Contact Us For Availability
10
xLock Washer - No.10 Ext. Shakeproof (Left Si WPL ARI115893A Contact Us For Availability
10
Seal - Corner WPL B242352 Contact Us For Availability
10
Screw & Lock Washer Assy. 10-16 x 5/8 Phil. T WPL SA118 Contact Us For Availability
10
Bearing & Spacer - Rack Roller WPL B241035 Contact Us For Availability
10
Self-Tapping Screw - No.4-40 x 3/4`` Phil. Pa WPL SD2912 Contact Us For Availability
10
Plate - Air Inlet Cover WPL 241973 Contact Us For Availability
10
Fill Hose, Sleeve & Nut Assy WPL 107113 Contact Us For Availability
10
Nut - Heat Sensing WPL 116136 Contact Us For Availability
10
Plug Button WPL PB312 Contact Us For Availability
10
Spacer - Spring WPL 108984 Contact Us For Availability
10
Spring - Switch Cancel WPL 242425 Contact Us For Availability
10
Wash/Rinse Arm Assy WPL D241055 Contact Us For Availability
10
Support - Front Caster Bracket (R.H.) WPL D2420012 Contact Us For Availability
11
xSelf-Tapping Screw - No. 10 x 1/2`` Phil. Tr WPL ARI115894A Contact Us For Availability
11
Keeper - Latch WPL P81218 Contact Us For Availability
11
Self-Tapping Screw 10-16 x 3/8 Phil. Truss Hd WPL SD2625 Contact Us For Availability
11
Roller - Upper Rack Track WPL B89738 Contact Us For Availability
11
Switch - Overfill Control (115 V., 60 Hz.) WPL C116269 Contact Us For Availability
11
Gasket - Cover Plate WPL 241974 Contact Us For Availability
11
Housing - Hose Coupler WPL 111464 Contact Us For Availability
11
``O`` Ring WPL 6750088 Contact Us For Availability
11
Bearing - Door Stop Insert WPL C88044 Contact Us For Availability
11
Washer - Rack WPL B241025 Contact Us For Availability
11
Bracket - Program Switch WPL 242424 Contact Us For Availability
11
Clip - Arm Guard WPL C241107 Contact Us For Availability
11
Wheel - Blower (Incls. screw) WPL C241566 Contact Us For Availability
11
Side Panel (L.H.) (White) WPL E2420042 Contact Us For Availability
11
Anchor - Cancel Spring WPL 116121 Contact Us For Availability
12
Kit - Panel Inserts (FA/CO) WPL B2416773 Contact Us For Availability
12
Actuator - Interlock Switch WPL B116100 Contact Us For Availability
12
Lock Washer-No.10 Ext. Shakeproof WPL WL712 Contact Us For Availability
12
Self-Tapping Screw 10-16 x 1 Phil. Pan Hd., T WPL SD3214 Contact Us For Availability
12
Standpipe - Overfill WPL D116270 Contact Us For Availability
12
Self-Tapping Screw 6-20 x 5/8 Phil. Oval Hd., WPL SD2614 Contact Us For Availability
12
Gasket - Heat Transfer WPL 116141 Contact Us For Availability
12
Vapor Shield Kit WPL B241970 Contact Us For Availability
12
Receiver - Manifold Tube WPL E115958 Contact Us For Availability
12
Self-Tapping Screw 10-24 x 5/16 Phil. Pan Hd. WPL SD3312 Contact Us For Availability
12
Side Panel (L.H.) (Almond) WPL E2420044 Contact Us For Availability
12
Timer - Interval (115 V., 60 Hz.) (KDB-21B) WPL 242604 Contact Us For Availability
13
Kit - Panel Inserts (SST) WPL B2416774 Contact Us For Availability
13
Bracket - Top Panel Anchor WPL C2404121 Contact Us For Availability
13
Gasket - Flat WPL B116202 Contact Us For Availability
13
Seal - Wash Pump Ring WPL 241901 Contact Us For Availability
13
Self-Tapping Screw - No.6-20 x 3/8`` Phil. Ov WPL SD2237 Contact Us For Availability
13
Spring - Thermostat Mounting WPL 116137 Contact Us For Availability
13
Bracket - R.H. Spring Mounting WPL B240028 Contact Us For Availability
13
Lift - Receiver (R.H.) WPL D116114 Contact Us For Availability
13
Special Screw - Hex Washer Hd WPL B116277 Contact Us For Availability
13
Plate - Blower Motor Mounting WPL D82104 Contact Us For Availability
13
Side Panel (L.H.) (Harvest Wheat) WPL E2420046 Contact Us For Availability
13
Kickboard WPL D242000 Contact Us For Availability
13
Timer - Interval (115 V., 60 Hz.) (KDI-21B) WPL 242605 Contact Us For Availability
14
Kit - Panel Inserts (AL/WH) WPL B2416775 Contact Us For Availability
14
Nut - Standpipe WPL C115983 Contact Us For Availability
14
Fine Strainer WPL 241938 Contact Us For Availability
14
Clamp - Hose WPL 105662 Contact Us For Availability
14
Terminal - Grounding WPL 116222 Contact Us For Availability
14
Bracket - L.H. Spring Mounting (Not Shown) WPL B240027 Contact Us For Availability
14
Lift - Receiver (L.H.) (Not Shown) WPL D116113 Contact Us For Availability
14
Tube (Manifold to Receiver) WPL C116029 Contact Us For Availability
14
Cover - Dryer Motor WPL C240990 Contact Us For Availability
14
Bracket - Top Panel Anchor WPL C242125 Contact Us For Availability
14
Self-Tapping Screw 10-16 x 3/8 Ind. Hex Hd., WPL SD2233 Contact Us For Availability
14
Switch - Program WPL 242489 Contact Us For Availability
15
Kit - Panel Inserts (HT/OB) WPL B2416776 Contact Us For Availability
15
Self-Tapping Screw 10-16 x 1/2 Phil. Truss Hd WPL SD1714 Contact Us For Availability
15
Self-Tapping Screw 10-16 x 1/2 Phil. Truss Hd WPL SD1713 Contact Us For Availability
15
Channel - Evaporation WPL C240649 Contact Us For Availability
15
Float & Retainer Assy WPL C240917 Contact Us For Availability
15
Self-Tapping Screw - No.10-16 x 3/8`` Phil. T WPL SD1711 Contact Us For Availability
15
Thermostat - Heat Control WPL 242625 Contact Us For Availability
15
Screw & Washer Assy. - No.10-32 x 3/8`` Phil. WPL SA218 Contact Us For Availability
15
Guard - Arm (KDS-21, KDI-61, KDI-21D, KDC-21D WPL D241056 Contact Us For Availability
15
Motor - Blower (115 V., 60 Hz.) WPL B240330 Contact Us For Availability
15
Special Nut - 1/8`` Stud ``Palnut`` WPL NS3540 Contact Us For Availability
16
Support - Evaporation Channel WPL D115912 Contact Us For Availability
16
``O`` Ring WPL 67500108 Contact Us For Availability
16
Bracket - Hose Anchor WPL 241998 Contact Us For Availability
16
Screw - Thermostat Thumb WPL 116138 Contact Us For Availability
16
Bracket - R.H. Door Stop WPL D1159783 Contact Us For Availability
16
Mach. Screw 8-32 x 1/4 Phil. Pan Hd. ``Nylok` WPL SC6910 Contact Us For Availability
16
Washer WPL B241331 Contact Us For Availability
16
Wood Screw 10-13 x 3/4 Phil. Flat Hd WPL SW104 Contact Us For Availability
16
Self-Tapping Screw 6-20 x 3/8 Phil. Rd. Hd., WPL SD174 Contact Us For Availability
16
Screw & Washer Assy WPL 240513 Contact Us For Availability
17
Motor Mounting Plate Kit (Incls. items 18 & 3 WPL 242636 Contact Us For Availability
17
Washer - Trim WPL 73017 Contact Us For Availability
17
Protector - Heat Control WPL 242626 Contact Us For Availability
17
Mach. Screw 10-32 x 5/16 Phil. Truss Hd WPL SC667 Contact Us For Availability
17
Washer WPL WS2814 Contact Us For Availability
17
Washer - Spacing (1/32`` Thk.) WPL WS239 Contact Us For Availability
17
Receiver - Manifold WPL C240968 Contact Us For Availability
17
Lead (Heater to Thermostat) (115 V.) WPL P82098 Contact Us For Availability
17
Panel - Rear (White) WPL E2419921 Contact Us For Availability
17
Barrier - Front Panel WPL D241999 Contact Us For Availability
17
Self-Tapping Screw No.6-32 x 7/8`` Phil. Pan WPL SD932 Contact Us For Availability
17
Cap - End (L.H.) WPL 241058 Contact Us For Availability
18
Frame Assy. (L.H.) WPL D241852 Contact Us For Availability
18
Gasket - Motor Mounting Plate WPL 115716 Contact Us For Availability
18
Self-Tapping Screw - No.6-20 x 3/8`` Phil. Ov WPL SD2227 Contact Us For Availability
18
Cover - Thermostat WPL 116227 Contact Us For Availability
18
Lead Assy. (Thermoprotector) (Not Shown) WPL 116282 Contact Us For Availability
18
Roller - Upper Rack WPL C116008 Contact Us For Availability
18
Washer - Sealing WPL A105767 Contact Us For Availability
18
Spacer - End Cap (R.H.) WPL 2424941 Contact Us For Availability
18
Support - Receiver WPL C240979 Contact Us For Availability
18
Clip - Thermoprotector WPL C242037 Contact Us For Availability
18
Panel - Rear (Almond) WPL E2419922 Contact Us For Availability
18
End Cap - Caster Trim (R.H.) WPL D240010 Contact Us For Availability
19
Cross Frame - Rear WPL D241753 Contact Us For Availability
19
Drain Pump Top Assy WPL 241915 Contact Us For Availability
19
Bracket - R.H. Hinge WPL D1159703 Contact Us For Availability
19
Self-Tapping Screw 10-16 x 5/8 Phil. Pan Hd., WPL SD3220 Contact Us For Availability
19
Washer - No.10 ``Nyltite`` WPL M754012 Contact Us For Availability
19
Screw & Washer Assy WPL 242436 Contact Us For Availability
19
Spacer - Upper Rack (KDI-21, KDI-21B, KDB-21B WPL B242263 Contact Us For Availability
19
Protector - Control WPL B242113 Contact Us For Availability
19
Panel - Rear (Harvest Wheat) WPL E2419923 Contact Us For Availability
19
Trim - Front Caster WPL C240009 Contact Us For Availability
19
Trim Panel & Insert Assy. (KDB-21B) WPL 242608 Contact Us For Availability
20
Track - Rack WPL D240989 Contact Us For Availability
20
Gasket - Drain Pump WPL 242108 Contact Us For Availability
20
Wire Tie (8``) (Fill Hose) WPL 241941 Contact Us For Availability
20
Spring - Door Co-Balance WPL C241342 Contact Us For Availability
20
Mach. Screw - No.10-32 x 7/16`` Phil. Truss H WPL SC6619 Contact Us For Availability
20
Switch - Program (KDI) (5 Button) WPL 242491 Contact Us For Availability
20
Self-Tapping Screw - No.8-32 x 7/8`` Phil. Pa WPL SD3581 Contact Us For Availability
20
Trim Panel & Insert Assy. (KDI-21B) WPL 242612 Contact Us For Availability
20
Washer (KDI-21, KDI-21B, KDB-21B, KDA-21 & KD WPL 242264 Contact Us For Availability
20
Self-Tapping Screw - No.8-18 x 5/16`` Phil. P WPL SD3389 Contact Us For Availability
20
Side Panel (R.H.) (White) WPL E2420041 Contact Us For Availability
20
Bracket - Front Caster WPL D116295 Contact Us For Availability
21
Frame Assy. (R.H.) WPL D241851 Contact Us For Availability
21
Stud - Rack Roller WPL B241952 Contact Us For Availability
21
Mach. Screw 8-32 x 1/2 Phil. Pan Hd WPL SC934 Contact Us For Availability
21
Cord Reel Assy WPL 240013 Contact Us For Availability
21
Pin - Hinge WPL B115910 Contact Us For Availability
21
Roller & Washer Assy. (Upper Rack) (Incls. it WPL A110333 Contact Us For Availability
21
Cap - End (R.H.) WPL 2424131 Contact Us For Availability
21
Knob - Timer WPL 241537 Contact Us For Availability
21
Heater - Open Coil (Dryer Unit) (115 V.) WPL B240203 Contact Us For Availability
21
Side Panel (R.H.) (Almond) WPL E2420043 Contact Us For Availability
21
Self-Tapping Screw 10-16 x 1/2 Phil. Truss Hd WPL SD1718 Contact Us For Availability
22
Self-Tapping Screw 1/4-20 x 1/2 Hex Washer Hd WPL SD3390 Contact Us For Availability
22
Gasket - Rack Stud WPL B241950 Contact Us For Availability
22
Motor Clamp Assy WPL 240106 Contact Us For Availability
22
Clip - Hinge Pin Retaining WPL C115968 Contact Us For Availability
22
Cover - Heater Hole WPL B242262 Contact Us For Availability
22
Side Panel (R.H.) (Harvest Wheat) WPL E2420045 Contact Us For Availability
22
Caster - Front WPL B116273 Contact Us For Availability
22
Handle - Latch WPL 115959 Contact Us For Availability
23
Cross Frame - Front WPL E115370 Contact Us For Availability
23
Self-Tapping Screw 10-16 x 3/8 Phil. Pan Hd., WPL SD1923 Contact Us For Availability
23
Gasket - Venturi WPL 241894 Contact Us For Availability
23
Bracket - Cord Reel Mounting WPL 241996 Contact Us For Availability
23
Screw & Washer Assy WPL B240333 Contact Us For Availability
23
Stud - Bumper Retaining WPL B241305 Contact Us For Availability
23
Mach. Screw 10-32 x 5/8 Phil. Oval Hd WPL SC1714 Contact Us For Availability
23
Bracket - Rear Panel Anchor WPL C241997 Contact Us For Availability
23
Lock Washer - 3/8`` Light WPL WL44 Contact Us For Availability
24
Kick Board WPL D115957 Contact Us For Availability
24
Washer - Roller Spacing WPL B241954 Contact Us For Availability
24
Relay - Start WPL 242745 Contact Us For Availability
24
Gasket - Detergent Dispenser WPL C116065 Contact Us For Availability
24
Upper Rack Assy. (KDC-21D) WPL 241195 Contact Us For Availability
24
Upper Rack Assy. (Incls. item No.25) WPL B241245 Contact Us For Availability
24
Lens - Pilot Light (KDI-21B) WPL 2411572 Contact Us For Availability
24
Wiring Harness (Overflow Control) WPL 116193 Contact Us For Availability
24
Jam Nut 3/8-16 Hex Fin WPL NS1716 Contact Us For Availability
25
Foot - Leveling (5/16`` -18 Thd.) WPL C241857 Contact Us For Availability
25
Roller - Rack Track WPL B241951 Contact Us For Availability
25
Clamp - Hose (1`` Dia.) WPL 2402023 Contact Us For Availability
25
Strap - Retaining (Cord) WPL 240318 Contact Us For Availability
25
Wiring Harness (Lower Common) WPL 2424421 Contact Us For Availability
25
Washer (Fiber) WPL WS1934 Contact Us For Availability
25
End Cap - Caster Trim (L.H.) WPL C240011 Contact Us For Availability
25
Button - Push WPL 116102 Contact Us For Availability
26
Bushing - Rack Track WPL B241953 Contact Us For Availability
26
Tube - Flexible (Drain) WPL 242211 Contact Us For Availability
26
Clamp - Hose WPL 240319 Contact Us For Availability
26
Coupler Service Kit WPL 240936 Contact Us For Availability
26
Bimetal Assy WPL C241225 Contact Us For Availability
26
Support - Front Caster Bracket (L.H.) WPL D2420011 Contact Us For Availability
26
Cap - End (R.H.) WPL 241057 Contact Us For Availability
27
Self-Tapping Screw - No.10-32 x 3/8`` Indente WPL SD1238 Contact Us For Availability
27
Baffle - Lower WPL E1150531 Contact Us For Availability
27
Self-Tapping Screw - No.6-32 x 3/8`` Phil. Tr WPL SD3229 Contact Us For Availability
27
Small Items Basket & Lid Assy WPL M83696 Contact Us For Availability
28
Enclosure - Electrical Supply WPL C115371 Contact Us For Availability
28
Bumper - Upper Rack WPL C240228 Contact Us For Availability
28
Clamp - Hose (.937`` Dia.) WPL 1157477 Contact Us For Availability
28
Self-Tapping Screw 8-18 x 1/2 Phil. Truss Hd. WPL SD1742 Contact Us For Availability
28
Button - Prog WPL 242406 Contact Us For Availability
29
Self-Tapping Screw - No.8-18 x 1/2`` Phil. Bi WPL SD1741 Contact Us For Availability
29
Stud - Bumper Retaining WPL B89746 Contact Us For Availability
29
Bracket - Check Valve WPL 242525 Contact Us For Availability
29
Cap WPL B240471 Contact Us For Availability
29
Clip - Grounding (Front Panel) WPL 240220 Contact Us For Availability
30
Tank & Frame As WPL 243075 Contact Us For Availability
30
Bumper - Rack Track WPL D240288 Contact Us For Availability
30
Check Valve Assy WPL 241905 Contact Us For Availability
30
Detergent Dispenser & Gasket Assy. (115 V., 6 WPL A115152 Contact Us For Availability
30
WPL SD3580 WPL SD3580 Contact Us For Availability
30
Bracket - Program Switch WPL 115996 Contact Us For Availability
31
Motor, Seal & Gasket Kit (Incls. items 18, 24 WPL 242635 Contact Us For Availability
31
xDetergent Dispenser & Gasket Assy. (115 V., WPL A115153 Contact Us For Availability
31
R.H. Adjustable Rack Track Mech WPL D116155 Contact Us For Availability
31
Mach. Screw - No.6-32 WPL SC6039 Contact Us For Availability
31
WPL 242422 WPL 242422 Contact Us For Availability
32
Mach. Screw 1/4-20 x 1 Pan Hd WPL SC1871 Contact Us For Availability
32
WPL WS2815 WPL WS2815 Contact Us For Availability
32
L.H. Adjustable Rack Track Mech. (Not Shown) WPL D116154 Contact Us For Availability
32
WPL NS354 WPL NS354 Contact Us For Availability
32
WPL SC11752 WPL SC11752 Contact Us For Availability
33
WPL C240388 WPL C240388 Contact Us For Availability
33
Connector - Overhead WPL 116003 Contact Us For Availability
33
Bearing & Spacer - Rack Roller WPL B241034 Contact Us For Availability
33
WPL 105437 WPL 105437 Contact Us For Availability
33
WPL 242414 WPL 242414 Contact Us For Availability
34
Nut - Roller WPL B114054 Contact Us For Availability
34
Clamp - Hose (1.468`` Dia.) WPL 2402021 Contact Us For Availability
34
WPL B241163 WPL B241163 Contact Us For Availability
34
WPL 116166 WPL 116166 Contact Us For Availability
35
Shaft Seal & Gasket Kit (Incls. items No.8, 1 WPL 242634 Contact Us For Availability
35
WPL SD1311 WPL SD1311 Contact Us For Availability
35
WPL B241101 WPL B241101 Contact Us For Availability
35
WPL 242641 WPL 242641 Contact Us For Availability
36
WPL C1161982 WPL C1161982 Contact Us For Availability
36
Pump System Assy. (Incls. items No.1 thru 21, WPL 241936 Contact Us For Availability
36
Impeller - Drai WPL 242097 Contact Us For Availability
36
WPL 242437 WPL 242437 Contact Us For Availability
36
WPL SD843 WPL SD843 Contact Us For Availability
37
WPL B115840 WPL B115840 Contact Us For Availability
37
WPL RS3013 WPL RS3013 Contact Us For Availability
38
WPL D241137 WPL D241137 Contact Us For Availability
38
WPL 242445 WPL 242445 Contact Us For Availability
38
WPL 2424132 WPL 2424132 Contact Us For Availability
39
WPL C1159713 WPL C1159713 Contact Us For Availability
39
WPL 2424942 WPL 2424942 Contact Us For Availability
39
WPL 2424211 WPL 2424211 Contact Us For Availability
39
WPL 241302 WPL 241302 Contact Us For Availability
39
WPL 242609 WPL 242609 Contact Us For Availability
39
WPL 242613 WPL 242613 Contact Us For Availability
40
WPL C240162 WPL C240162 Contact Us For Availability
41
WPL C240163 WPL C240163 Contact Us For Availability
42
WPL C242528 WPL C242528 Contact Us For Availability
43
WPL 243154 WPL 243154 Contact Us For Availability
43
WPL C240377 WPL C240377 Contact Us For Availability
43
WPL 242444 WPL 242444 Contact Us For Availability
48
WPL 242441 WPL 242441 Contact Us For Availability
49
WPL 242601 WPL 242601 Contact Us For Availability
51
WPL 2424203 WPL 2424203 Contact Us For Availability
52
WPL 2424204 WPL 2424204 Contact Us For Availability
53
WPL 242518 WPL 242518 Contact Us For Availability
56
WPL 106311 WPL 106311 Contact Us For Availability
56
WPL 2424213 WPL 2424213 Contact Us For Availability
56
WPL 2424214 WPL 2424214 Contact Us For Availability
56
WPL 242519 WPL 242519 Contact Us For Availability
× ![]()
