Model Whirlpool KUDH03DTSS0 DISHWASHER – Common Parts & Diagrams
03 - TUB PARTS
04 - WASH SYSTEM PARTS

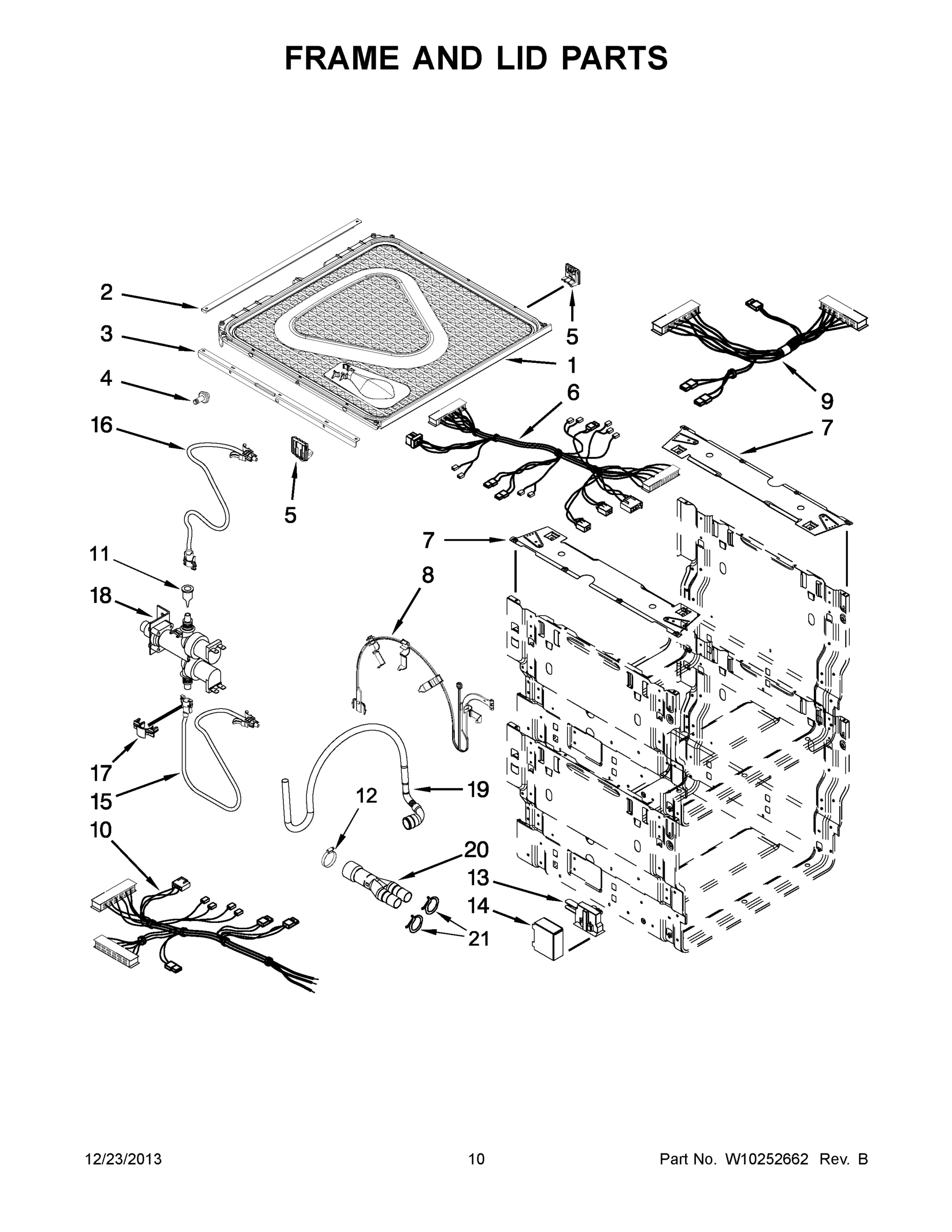

06 - FRAME AND LID PARTS

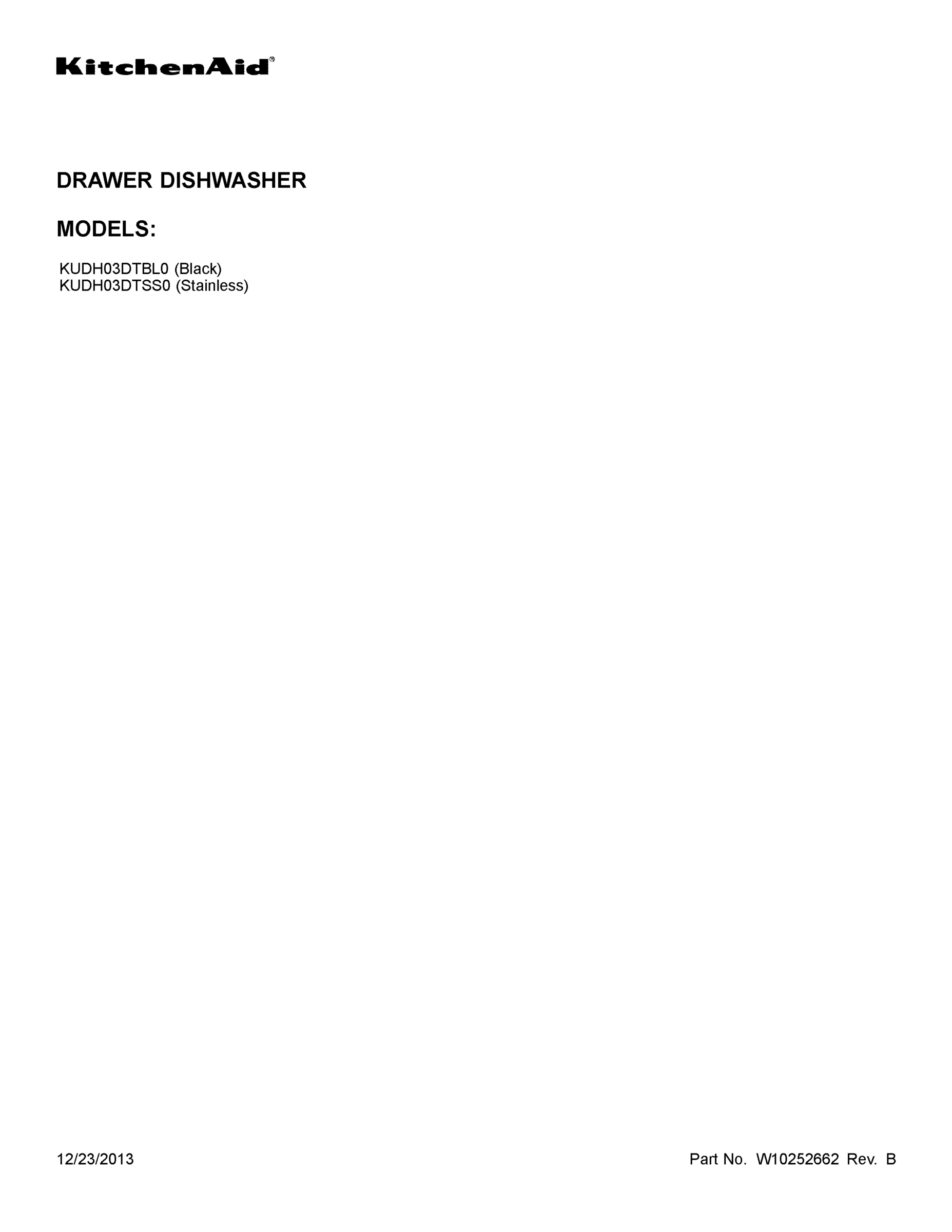

01 - COVER SHEET

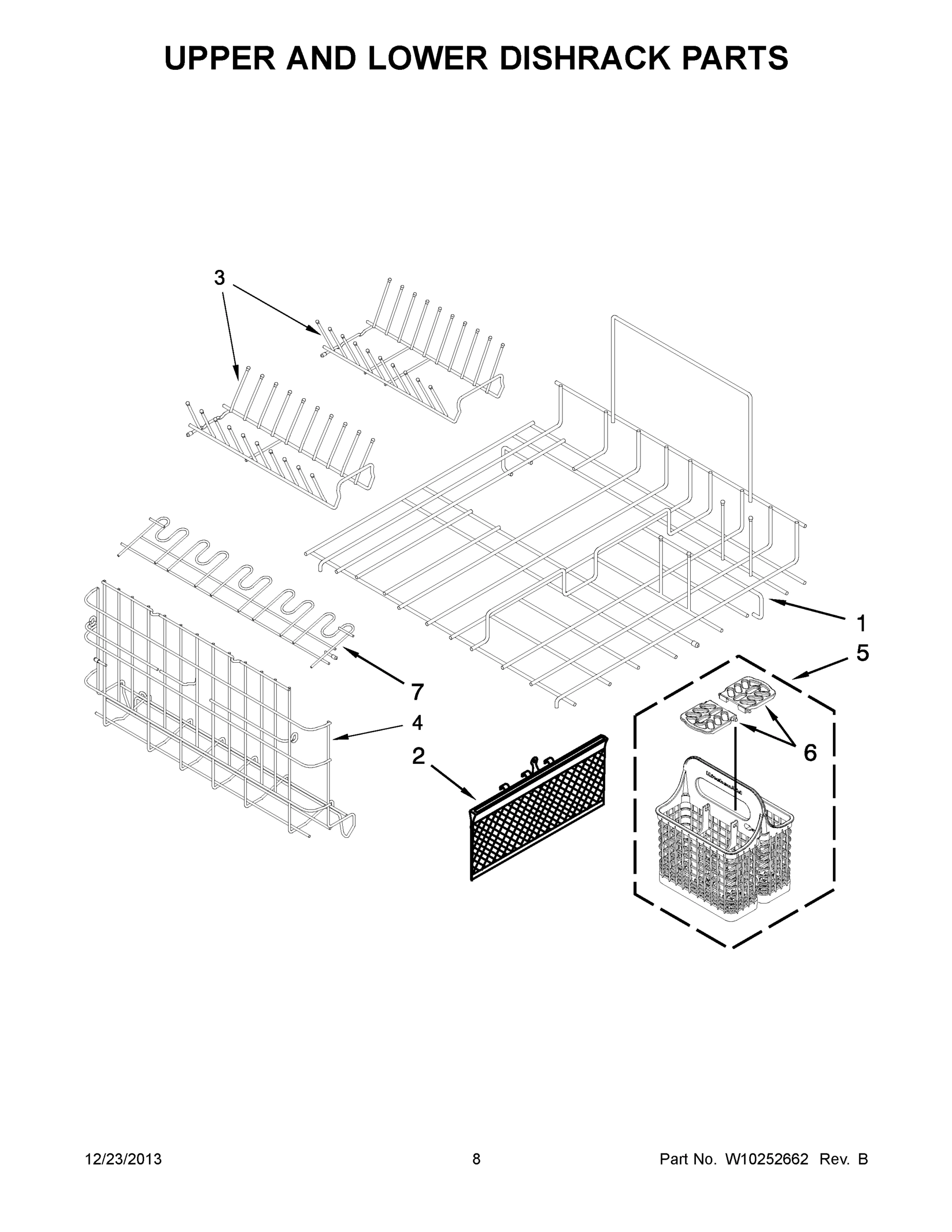

05 - UPPER AND LOWER DISHRACK PARTS

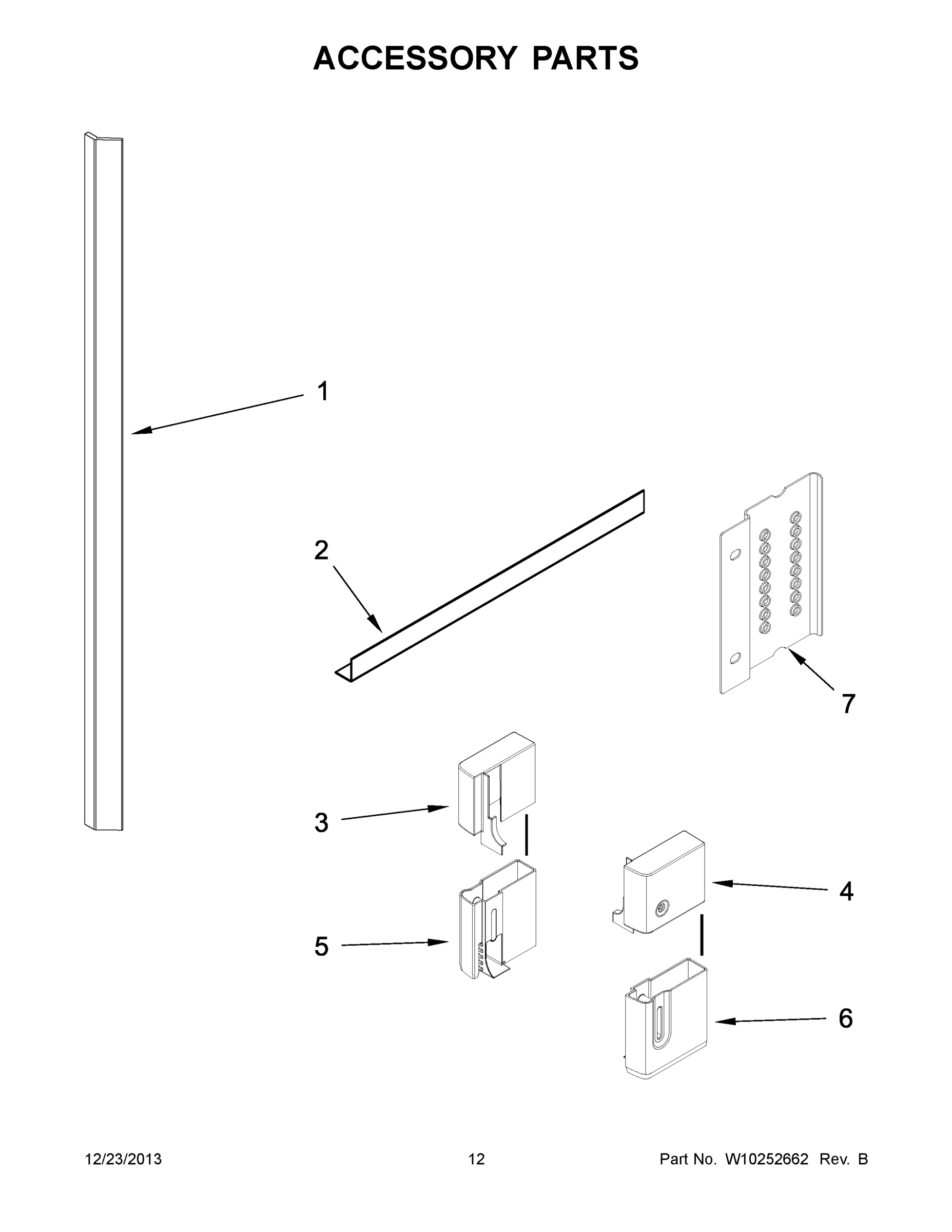

07 - ACCESSORY PARTS

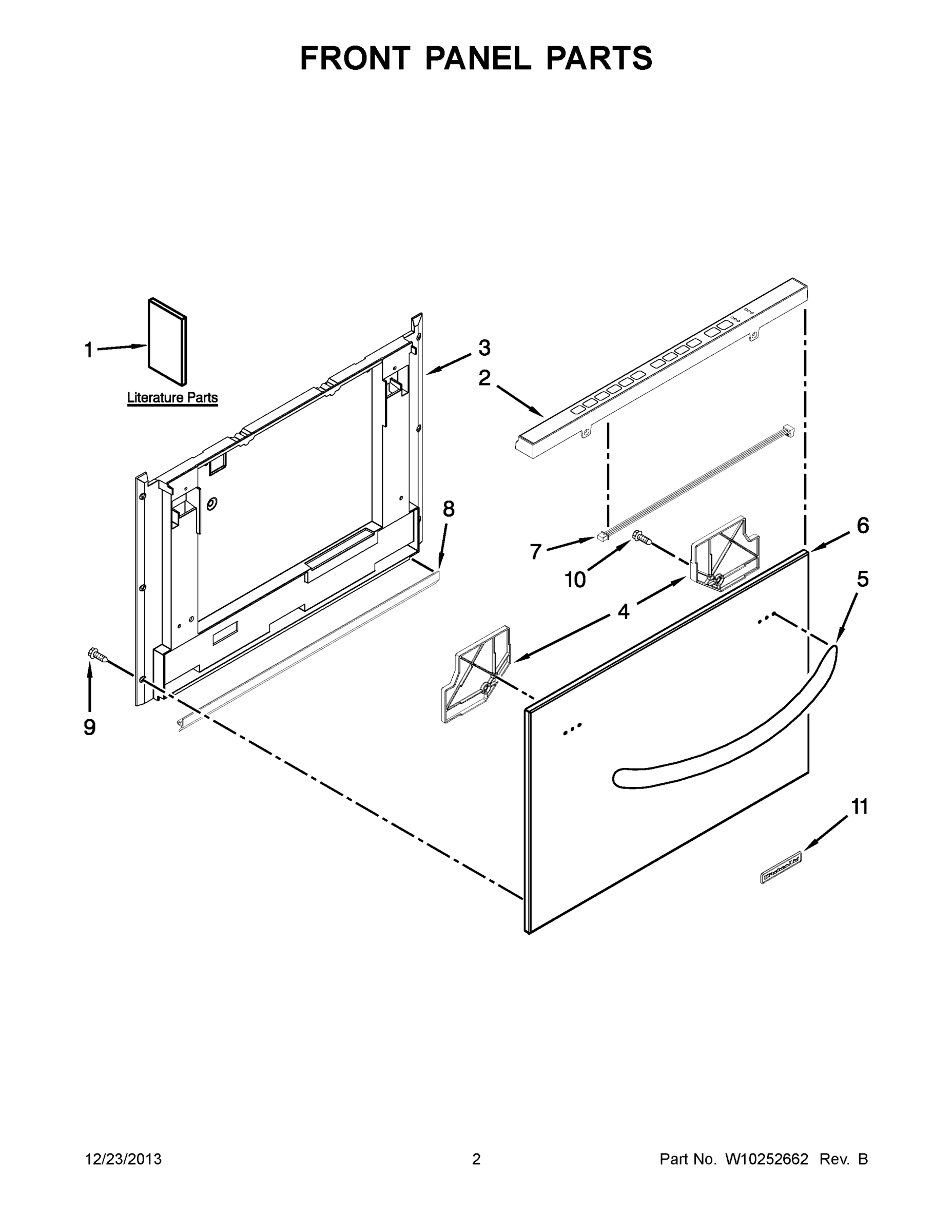

02 - FRONT PANEL PARTS
Common parts from model Whirlpool KUDH03DTSS0 DISHWASHER
1
Wash Arm Assembly WPL 99003689 Contact Us For Availability
1
Rack, Base WPL W10118023 Contact Us For Availability
1
Energy Guide WPL W10208035 Contact Us For Availability
1
Instructions, Installation WPL W10216167 Contact Us For Availability
2
BASKET, SMALL ITEMS WPL 8519716 Contact Us For Availability
2
CONTROL PANEL (INCLUDES USER INTERFACE) (BLAC WPL W10258843 Contact Us For Availability
2
Bracket, Lid (Rear) WPL Y6920305 Contact Us For Availability
2
CONTROL PANEL (INCLUDES USER INTERFACE) (STAI WPL W10258844 Contact Us For Availability
3
BRACKET, LID ASSEMBLY (SIDE) WPL 99003722 Contact Us For Availability
3
Intermediate Panel WPL 99003750 Contact Us For Availability
3
TOE KICK BASE (LEFT HAND) (BLACK) WPL Y6920293 Contact Us For Availability
3
TOE KICK BASE (LEFT HAND) (WHITE) WPL Y6920297 Contact Us For Availability
3
Rack, Insert (Small Tines) WPL W10118019 Contact Us For Availability
3
RACK, INSERT (LARGE TINES) WPL W10118020 Contact Us For Availability
4
TOE KICK BASE (RIGHT HAND) (BLACK) WPL Y6920295 Contact Us For Availability
4
Roller, Lid Pin WPL 99003724 Contact Us For Availability
4
TOE KICK BASE (RIGHT HAND) (WHITE) WPL Y6920299 Contact Us For Availability
4
Anchor Panel WPL W10138778 Contact Us For Availability
5
LID SLIDER ASSEMBLY (RIGHT HAND) WPL 99003725 Contact Us For Availability
5
Basket, Silverware Assembly WPL W10118031 Contact Us For Availability
5
TOE KICK SLIDE (LEFT HAND) (BLACK) WPL Y6920294 Contact Us For Availability
5
TOE KICK SLIDE (LEFT HAND) (WHITE) WPL Y6920298 Contact Us For Availability
5
HANDLE (BLACK) WPL W10185044 Contact Us For Availability
5
Handle (Stainless) WPL W10185045 Contact Us For Availability
6
Harness, Drawer WPL 99003706 Contact Us For Availability
6
TOE KICK SLIDE (RIGHT HAND) (BLACK) WPL Y6920296 Contact Us For Availability
6
Cover, Silverware Basket WPL W10118032 Contact Us For Availability
6
TOE KICK SLIDE (RIGHT HAND) (WHITE) WPL Y6920300 Contact Us For Availability
6
PANEL, FRONT LOWER (ALSO ORDER ITEM 11) (STAI WPL W10185027 Contact Us For Availability
6
PANEL, FRONT LOWER (ALSO ORDER ITEM 11) (BLAC WPL W10185034 Contact Us For Availability
6
PANEL, FRONT UPPER (STAINLESS) WPL W10185059 Contact Us For Availability
6
PANEL, FRONT UPPER (BLACK) WPL W10185061 Contact Us For Availability
7
Shelf, Rack WPL W10118001 Contact Us For Availability
7
Switch, Pressure WPL 99003626 Contact Us For Availability
7
Bracket, Mounting WPL Y6920591 Contact Us For Availability
7
Harness, User Interface WPL W10117969 Contact Us For Availability
8
Trim, Toe Kick (BlacK) WPL 99003716 Contact Us For Availability
10
Control Module WPL 99003733 Contact Us For Availability
10
HEATER WPL 99003625 Contact Us For Availability
10
Harness, Lower WPL 99003709 Contact Us For Availability
11
CHECK VALVE, DUCKBILL WPL 6919759 Contact Us For Availability
11
NAMEPLATE WPL W10185040 Contact Us For Availability
13
Coarse Cup, Upper WPL 99003776 Contact Us For Availability
13
Base, Utility Box WPL 99003732 Contact Us For Availability
14
Coarse Cup Cap WPL 99003778 Contact Us For Availability
14
Cover, Utility Box WPL 99003731 Contact Us For Availability
15
Cover, Bottom WPL 99003714 Contact Us For Availability
15
Hose, Fill (Lower) WPL 99003766 Contact Us For Availability
15
Inlet, Upper (Manifold) WPL Y6920170 Contact Us For Availability
17
Retainer, Valve End WPL W10189242 Contact Us For Availability
19
WASH PUMP WPL 99003730 Contact Us For Availability
19
Hose, Drain WPL 99003597 Contact Us For Availability
20
Y- Connector WPL Y6919906 Contact Us For Availability
21
O-Ring, Turbidity Sensor WPL 99002651 Contact Us For Availability
22
Shield, Fine Filter WPL 99003704 Contact Us For Availability
25
Fuse, Thermal WPL 99003624 Contact Us For Availability
26
Thermostat, High Limit WPL 99003623 Contact Us For Availability
36
Filter WPL 99003715 Contact Us For Availability
× ![]()
