  • Whirlpool KUDH03DTBL3

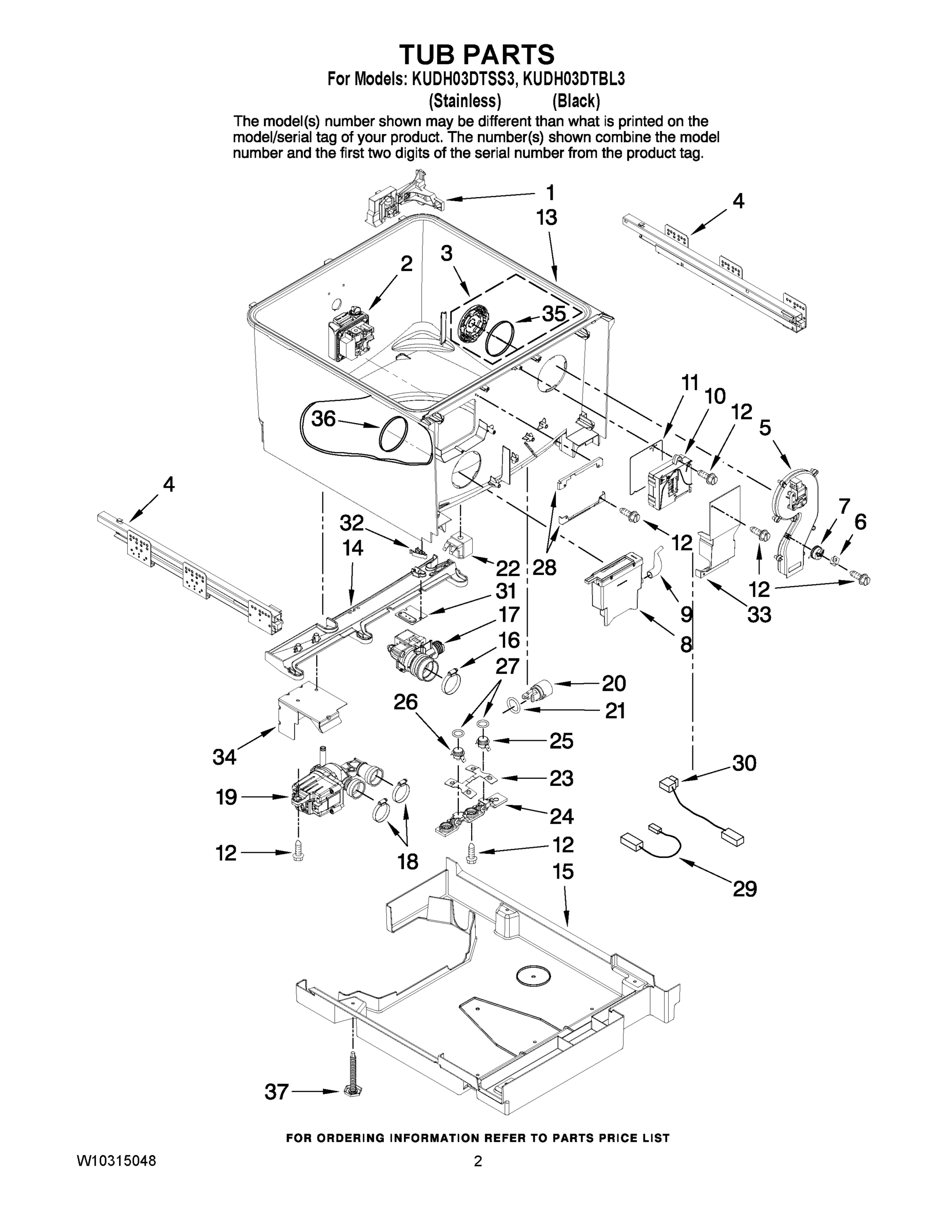

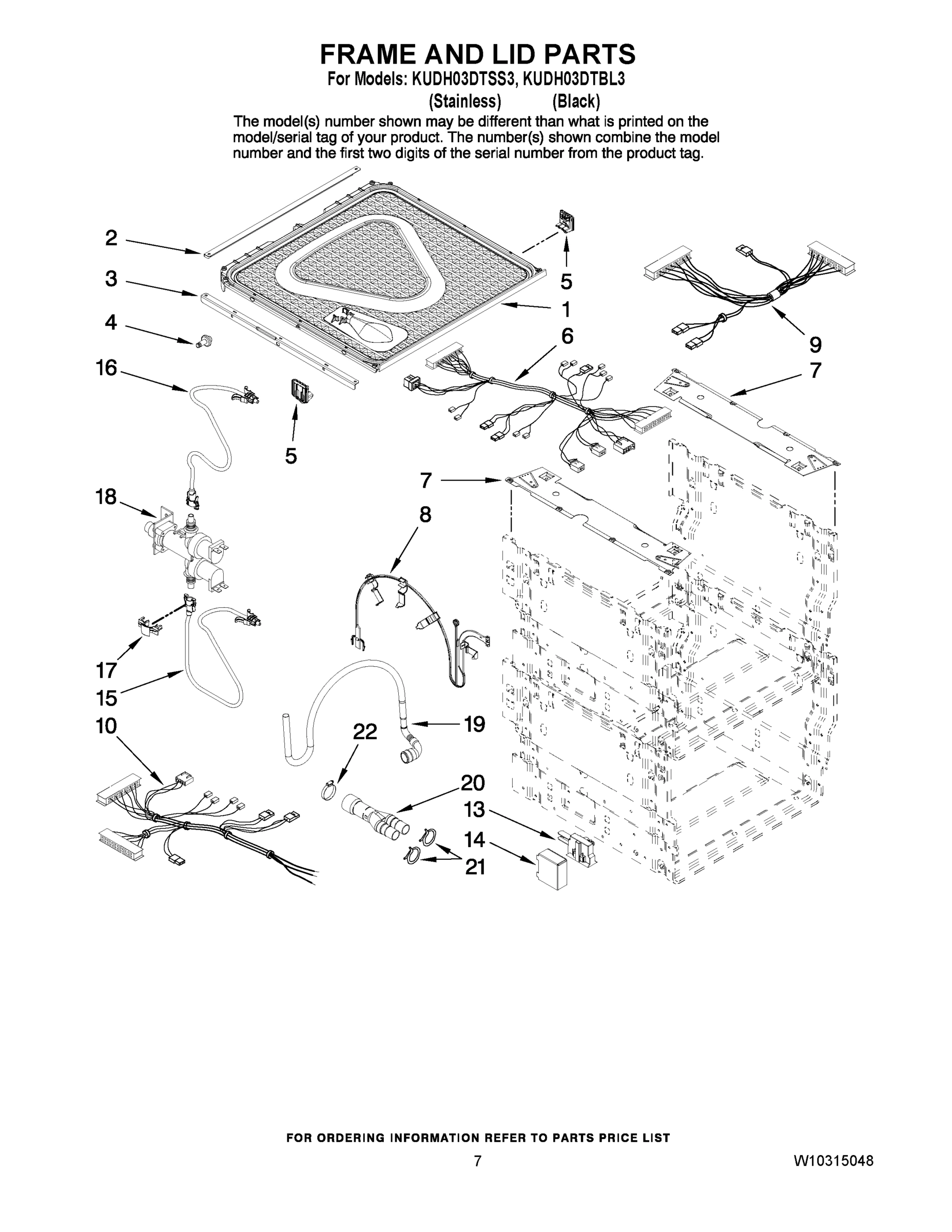

Model Whirlpool KUDH03DTBL3 DRAWER DISHWASHER – Common Parts & Diagrams

1
Rack, Base
Rack, Base WPL W10118023 Contact Us For Availability
View on Model
1
Trim, Side
Trim, Side WPL W10133725 Contact Us For Availability
View on Model
1
ENERGY GUIDE
ENERGY GUIDE WPL W10275772 Contact Us For Availability
View on Model
1
INSTRUCTIONS, INSTALLATION
INSTRUCTIONS, INSTALLATION WPL W10300220 Contact Us For Availability
View on Model
2
DISPENSER
DISPENSER WPL W10250853 Contact Us For Availability
View on Model
2
Bracket, Lid (Rear)
Bracket, Lid (Rear) WPL Y6920305 Contact Us For Availability
View on Model
2
CONTROL PANEL (INCLUDES USER INTERFACE) (STAI
CONTROL PANEL (INCLUDES USER INTERFACE) (STAI WPL W10128552 Contact Us For Availability
View on Model
2
CONTROL PANEL (INCLUDES USER INTERFACE) (BLAC
CONTROL PANEL (INCLUDES USER INTERFACE) (BLAC WPL W10128553 Contact Us For Availability
View on Model
2
Trim, Toe Kick (BlacK)
Trim, Toe Kick (BlacK) WPL 99003716 Contact Us For Availability
View on Model
3
FILTER FLOWPLATE ASSEMBLY
FILTER FLOWPLATE ASSEMBLY WPL W10239616 Contact Us For Availability
View on Model
3
Toe Kick Base (LH) (White)
Toe Kick Base (LH) (White) WPL Y6920297 Contact Us For Availability
View on Model
4
Anchor Panel
Anchor Panel WPL W10138778 Contact Us For Availability
View on Model
4
Toe Kick Base (RH) (White)
Toe Kick Base (RH) (White) WPL Y6920299 Contact Us For Availability
View on Model
5
Lid Slider Assy. (Right Hand)
Lid Slider Assy. (Right Hand) WPL 99003725 Contact Us For Availability
View on Model
5
Basket, Silverware Assembly
Basket, Silverware Assembly WPL W10118031 Contact Us For Availability
View on Model
5
HANDLE (BLACK)
HANDLE (BLACK) WPL W10185044 Contact Us For Availability
View on Model
5
Handle (Stainless)
Handle (Stainless) WPL W10185045 Contact Us For Availability
View on Model
5
Toe Kick Slide (LH) (White)
Toe Kick Slide (LH) (White) WPL Y6920298 Contact Us For Availability
View on Model
6
Harness, Drawer
Harness, Drawer WPL 99003706 Contact Us For Availability
View on Model
6
Toe Kick Slide (RH) (Black)
Toe Kick Slide (RH) (Black) WPL Y6920296 Contact Us For Availability
View on Model
6
Cover, Silverware Basket
Cover, Silverware Basket WPL W10118032 Contact Us For Availability
View on Model
6
PANEL, DRAWER (LOWER) (ALSO ORDER ITEM 11) (S
PANEL, DRAWER (LOWER) (ALSO ORDER ITEM 11) (S WPL W10185027 Contact Us For Availability
View on Model
6
PANEL, DRAWER (LOWER) (ALSO ORDER ITEM 11) (B
PANEL, DRAWER (LOWER) (ALSO ORDER ITEM 11) (B WPL W10185034 Contact Us For Availability
View on Model
6
Panel, Drawer (Upper) (Nameplate not Included
Panel, Drawer (Upper) (Nameplate not Included WPL W10185059 Contact Us For Availability
View on Model
6
PANEL, DRAWER (UPPER) (NAMEPLATE NOT INCLUDED
PANEL, DRAWER (UPPER) (NAMEPLATE NOT INCLUDED WPL W10185061 Contact Us For Availability
View on Model
7
Shelf, Rack
Shelf, Rack WPL W10118001 Contact Us For Availability
View on Model
7
Bracket, Mounting
Bracket, Mounting WPL Y6920591 Contact Us For Availability
View on Model
10
HEATER
HEATER WPL 99003625 Contact Us For Availability
View on Model
11
NAMEPLATE (STAINLESS STEEL)
NAMEPLATE (STAINLESS STEEL) WPL W10185030 Contact Us For Availability
View on Model
11
NAMEPLATE (BLACK)
NAMEPLATE (BLACK) WPL W10185037 Contact Us For Availability
View on Model
13
DRAWER, TUB
DRAWER, TUB WPL W10258895 Contact Us For Availability
View on Model
14
Coarse Cup Cap
Coarse Cup Cap WPL 99003778 Contact Us For Availability
View on Model
14
COVER, UTILITY BOX
COVER, UTILITY BOX WPL W10258867 Contact Us For Availability
View on Model
15
Cover, Bottom
Cover, Bottom WPL 99003714 Contact Us For Availability
View on Model
15
Hose, Fill (Lower)
Hose, Fill (Lower) WPL 99003766 Contact Us For Availability
View on Model
19
WASH PUMP
WASH PUMP WPL 99003730 Contact Us For Availability
View on Model
22
Shield, Fine Filter
Shield, Fine Filter WPL 99003704 Contact Us For Availability
View on Model
35
Filter
Filter WPL 99003715 Contact Us For Availability
View on Model
