Model Whirlpool KUDD03DTWH10 DRAWER DISHWASHER – Common Parts & Diagrams

1

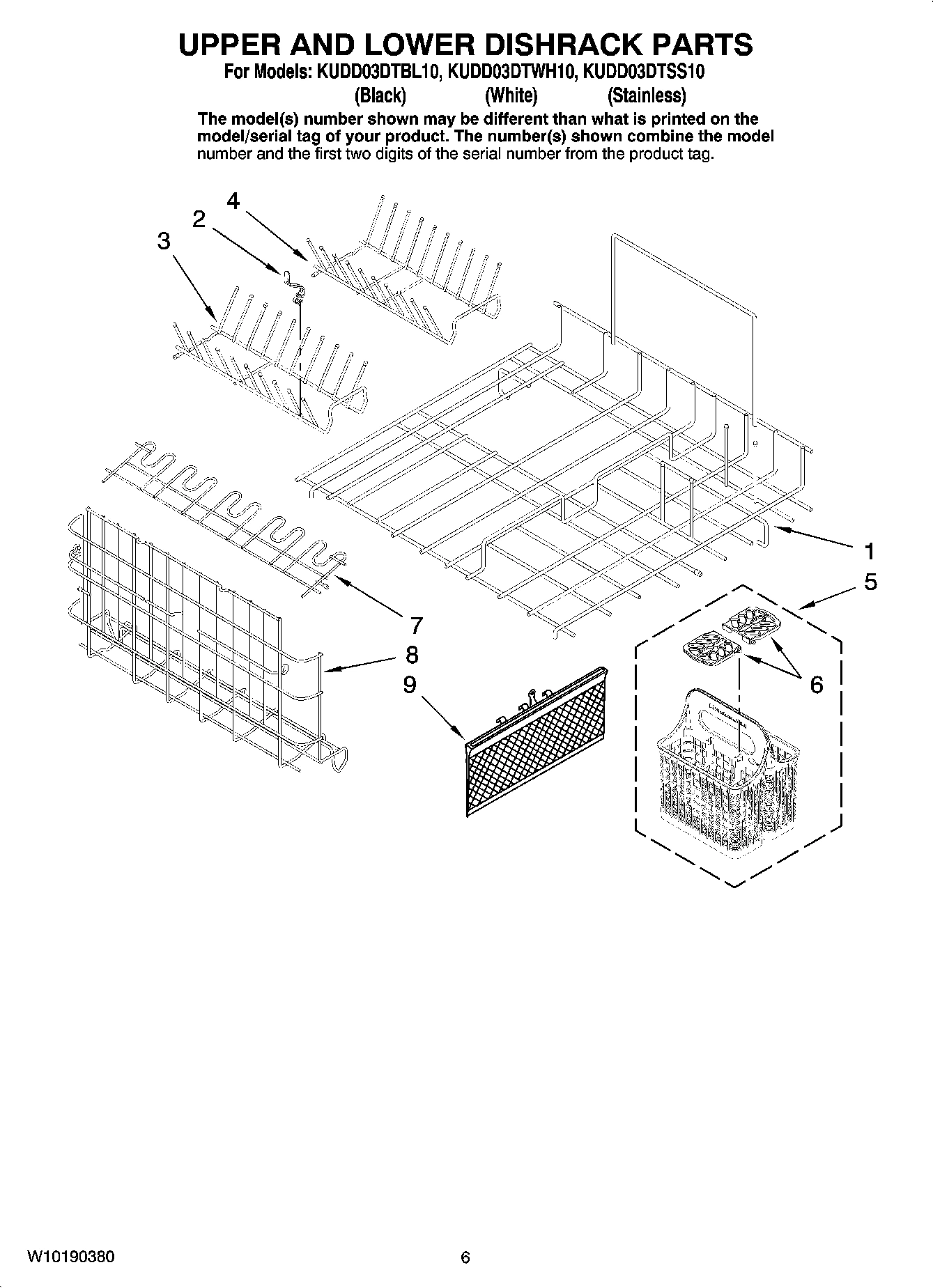

Rack, Base
Rack, Base WPL W10118023 Contact Us For Availability
View on Model
2

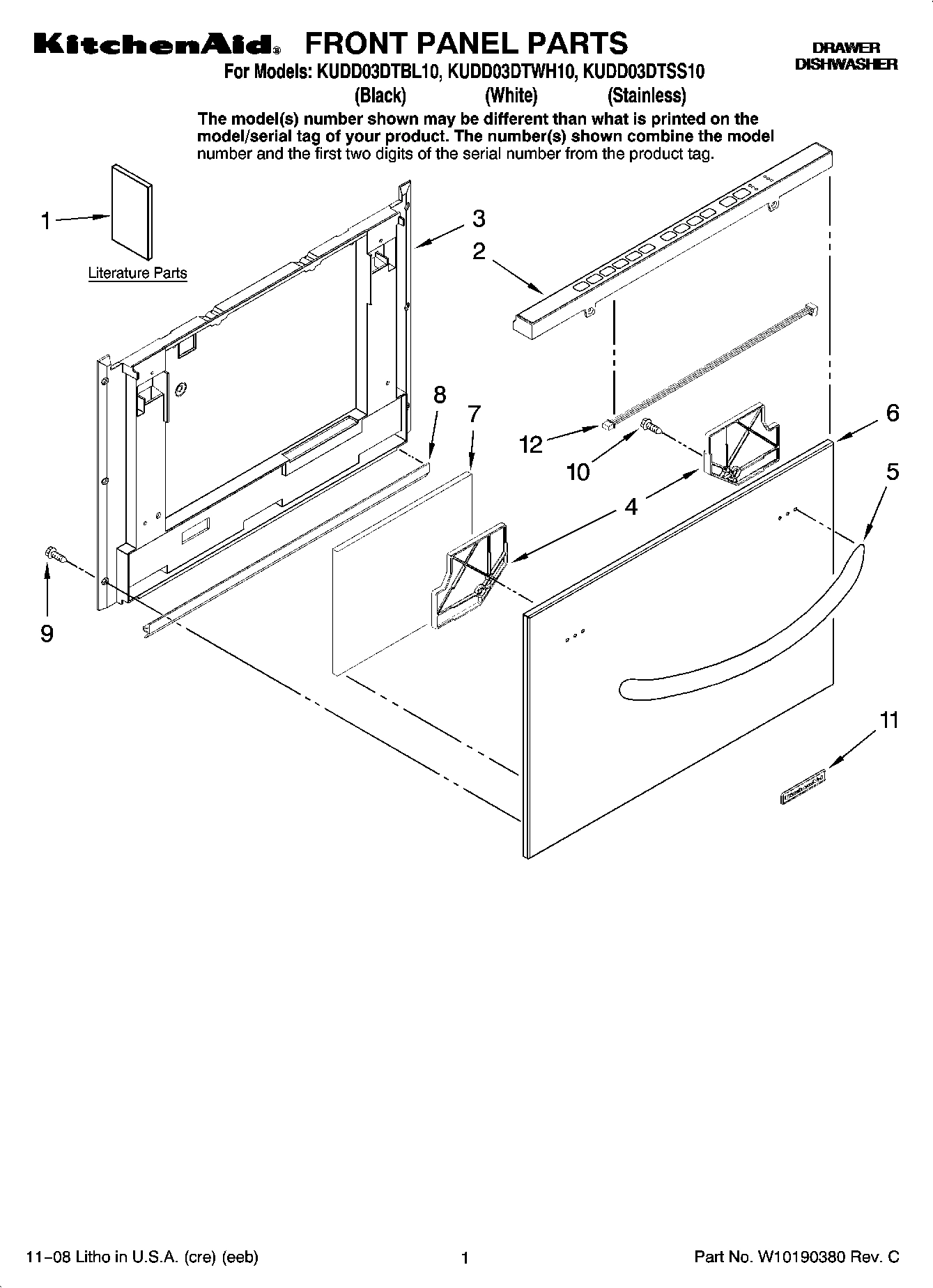

Control Panel (Includes User Interface) (Blac
Control Panel (Includes User Interface) (Blac WPL W10117977 Contact Us For Availability
View on Model
2

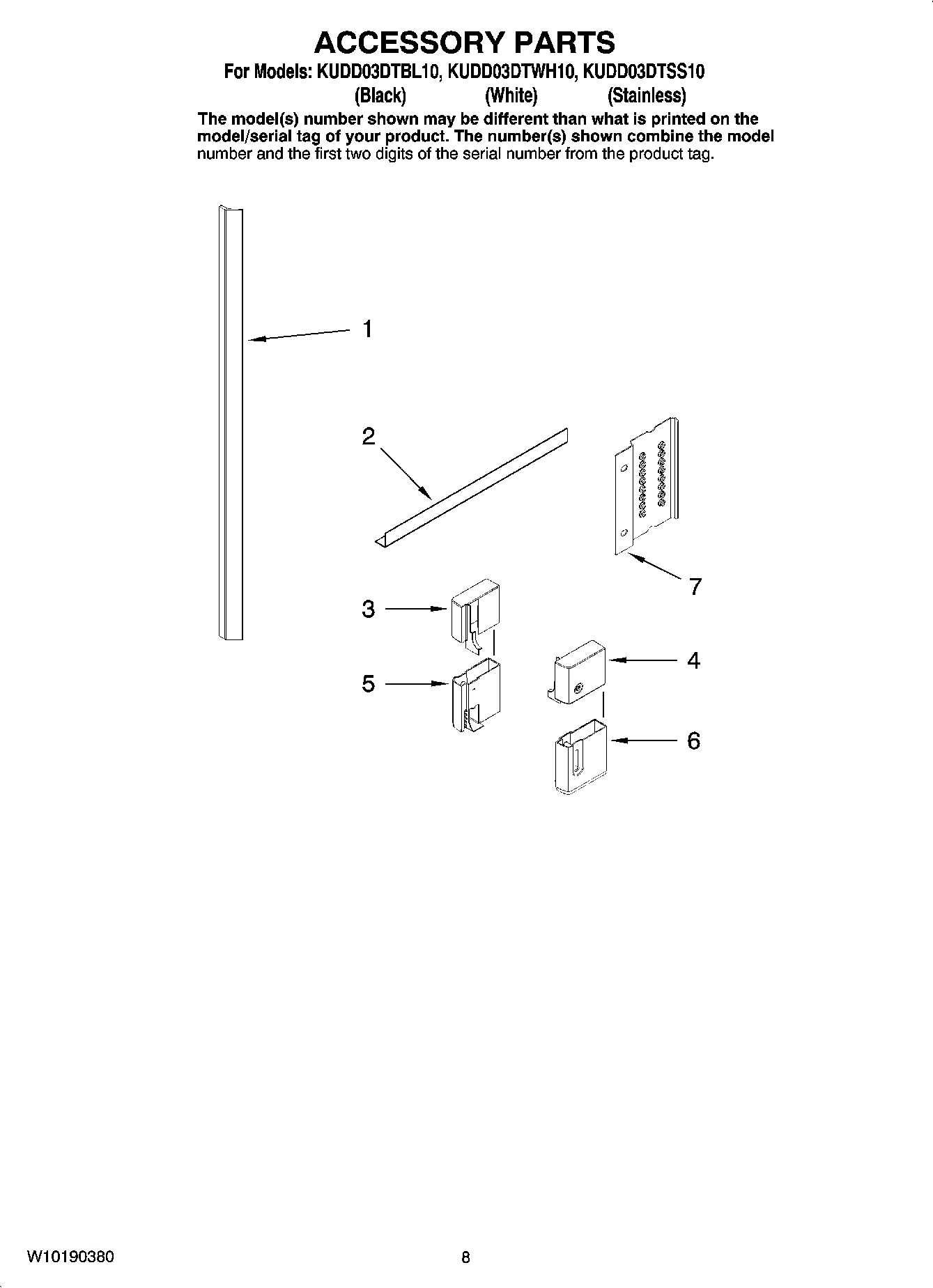

Trim, Toe Kick (BlacK)
Trim, Toe Kick (BlacK) WPL 99003716 Contact Us For Availability
View on Model
3
Intermediate Panel (Upper)
Intermediate Panel (Upper) WPL W10117987 Contact Us For Availability
View on Model
3
Toe Kick Base (LH) (White)
Toe Kick Base (LH) (White) WPL Y6920297 Contact Us For Availability
View on Model
3
Rack, Insert (Includes Item 2)
Rack, Insert (Includes Item 2) WPL W10154735 Contact Us For Availability
View on Model
4
Toe Kick Base (RH) (White)
Toe Kick Base (RH) (White) WPL Y6920299 Contact Us For Availability
View on Model
5
Lid Slider Assy. (Right Hand)
Lid Slider Assy. (Right Hand) WPL 99003725 Contact Us For Availability
View on Model
5
Basket, Silverware Assembly
Basket, Silverware Assembly WPL W10118031 Contact Us For Availability
View on Model
5
Lid Slider Assy. (Left Hand)
Lid Slider Assy. (Left Hand) WPL 99003726 Contact Us For Availability
View on Model
5
Toe Kick Slide (LH) (White)
Toe Kick Slide (LH) (White) WPL Y6920298 Contact Us For Availability
View on Model
6

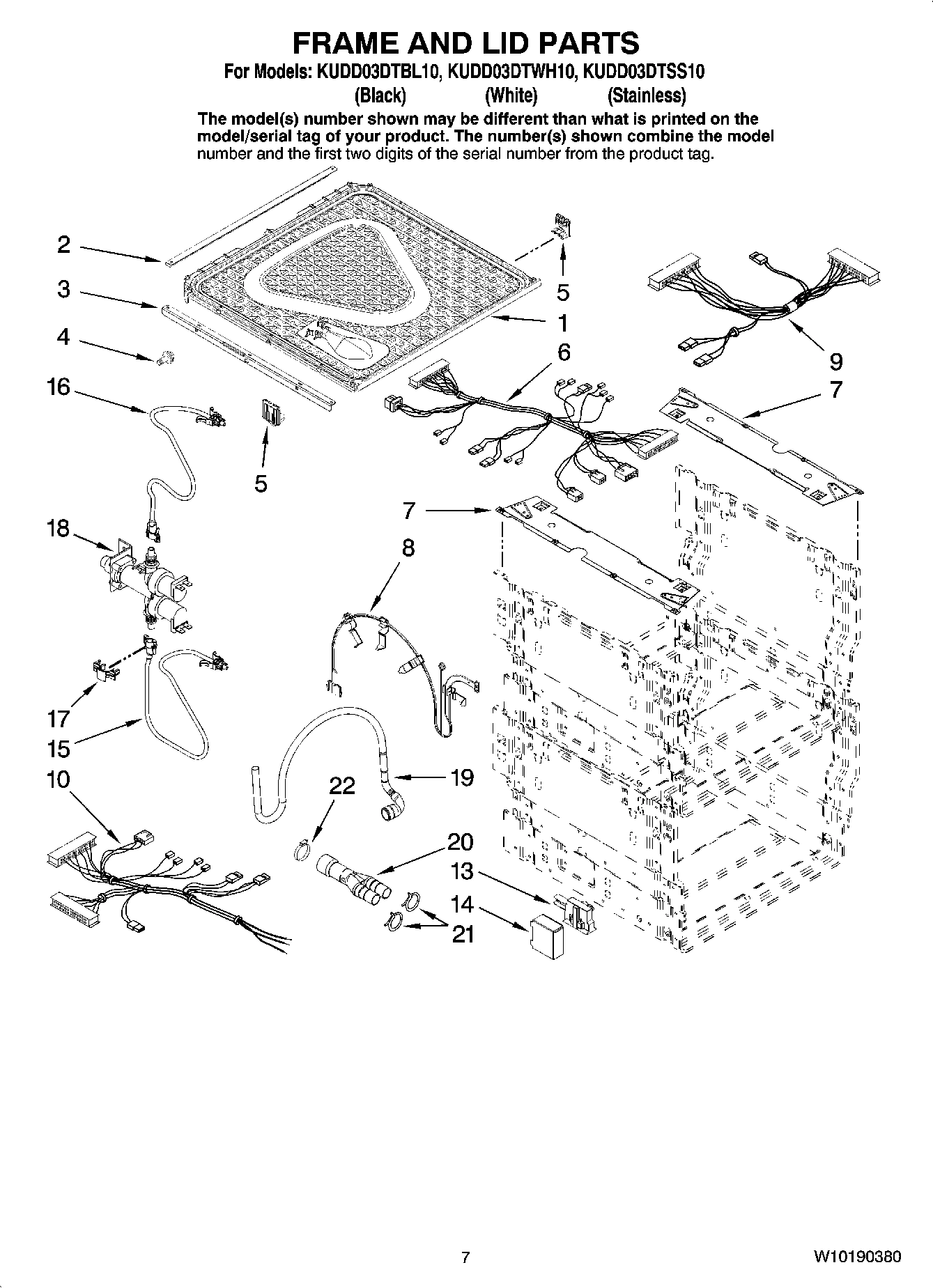

Harness, Drawer
Harness, Drawer WPL 99003706 Contact Us For Availability
View on Model
6
Seal, Fine Drain
Seal, Fine Drain WPL 99003692 Contact Us For Availability
View on Model
7
Shelf, Rack
Shelf, Rack WPL W10118001 Contact Us For Availability
View on Model
7
Armature, Fine Drain
Armature, Fine Drain WPL 99003772 Contact Us For Availability
View on Model
7
Brace, Top Side (Undercounter Mounting Bracke
Brace, Top Side (Undercounter Mounting Bracke WPL W10188309 Contact Us For Availability
View on Model
7
Bracket, Mounting
Bracket, Mounting WPL Y6920591 Contact Us For Availability
View on Model
8
Spring, Fine Drain
Spring, Fine Drain WPL 99003774 Contact Us For Availability
View on Model
9
BASKET, SMALL ITEMS
BASKET, SMALL ITEMS WPL 8519716 Contact Us For Availability
View on Model
10
HEATER
HEATER WPL 99003625 Contact Us For Availability
View on Model
10
Harness, Lower
Harness, Lower WPL 99003709 Contact Us For Availability
View on Model
11
Nameplate (Stainless)
Nameplate (Stainless) WPL 8304603SS Contact Us For Availability
View on Model
11
O-Ring (EPDM)
O-Ring (EPDM) WPL Y6920320 Contact Us For Availability
View on Model
12
Coarse Cup, Lower
Coarse Cup, Lower WPL 99003777 Contact Us For Availability
View on Model
13
Base, Utility Box
Base, Utility Box WPL 99003732 Contact Us For Availability
View on Model
14
Coarse Cup Cap
Coarse Cup Cap WPL 99003778 Contact Us For Availability
View on Model
14
Cover, Utility Box
Cover, Utility Box WPL 99003731 Contact Us For Availability
View on Model
15
Cover, Bottom
Cover, Bottom WPL 99003714 Contact Us For Availability
View on Model
16
Washer
Washer WPL 910069 Contact Us For Availability
View on Model
17
Bracket, Upper Manifold Mtg
Bracket, Upper Manifold Mtg WPL Y6920354 Contact Us For Availability
View on Model
18
Cap, Manifold Inlet
Cap, Manifold Inlet WPL Y6920171 Contact Us For Availability
View on Model
19

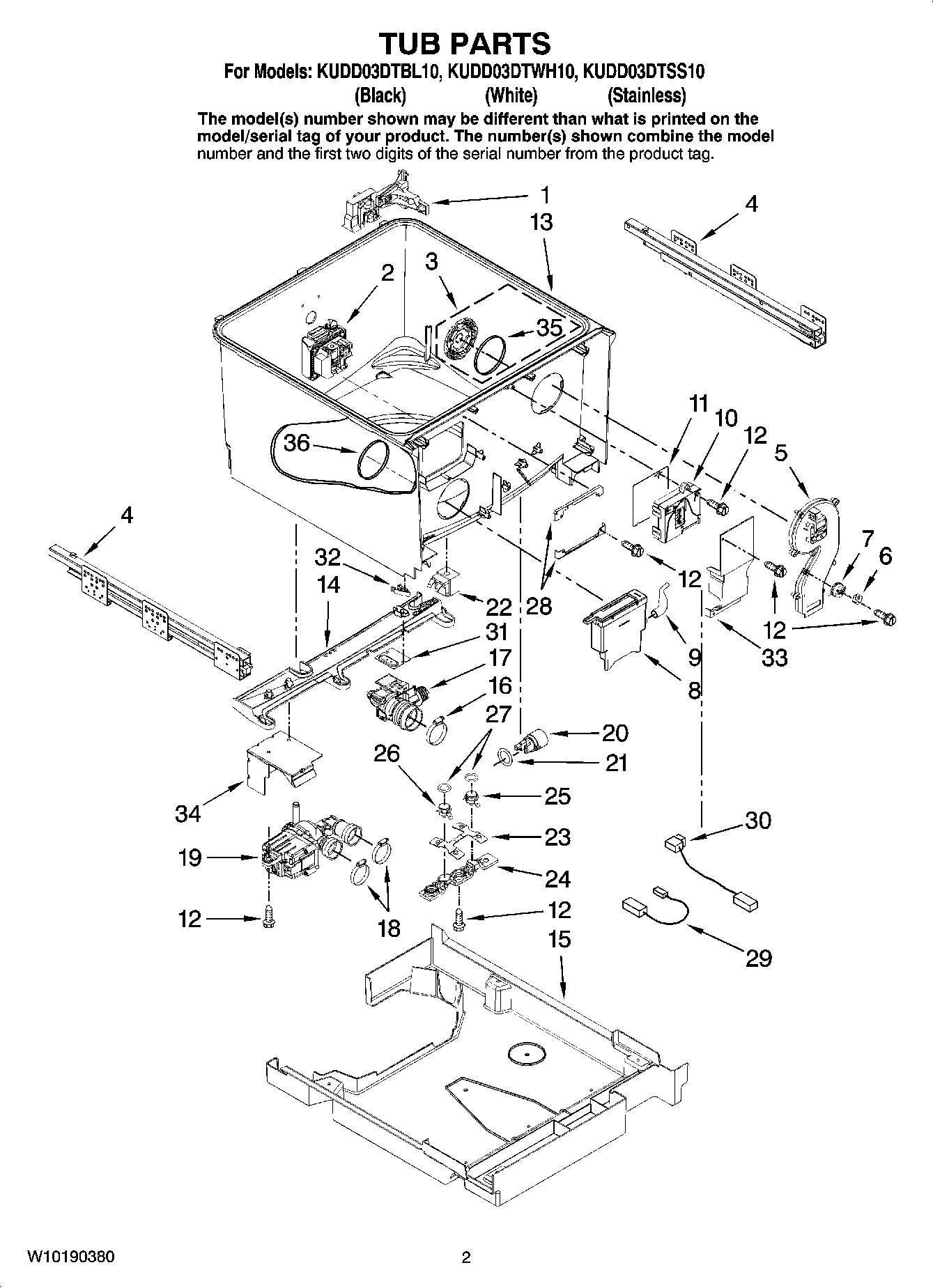

WASH PUMP
WASH PUMP WPL 99003730 Contact Us For Availability
View on Model
19
Hose, Drain
Hose, Drain WPL 99003597 Contact Us For Availability
View on Model
19
O-Ring Inlet/Outlet
O-Ring Inlet/Outlet WPL 99002857 Contact Us For Availability
View on Model
20
Y- Connector
Y- Connector WPL Y6919906 Contact Us For Availability
View on Model
22

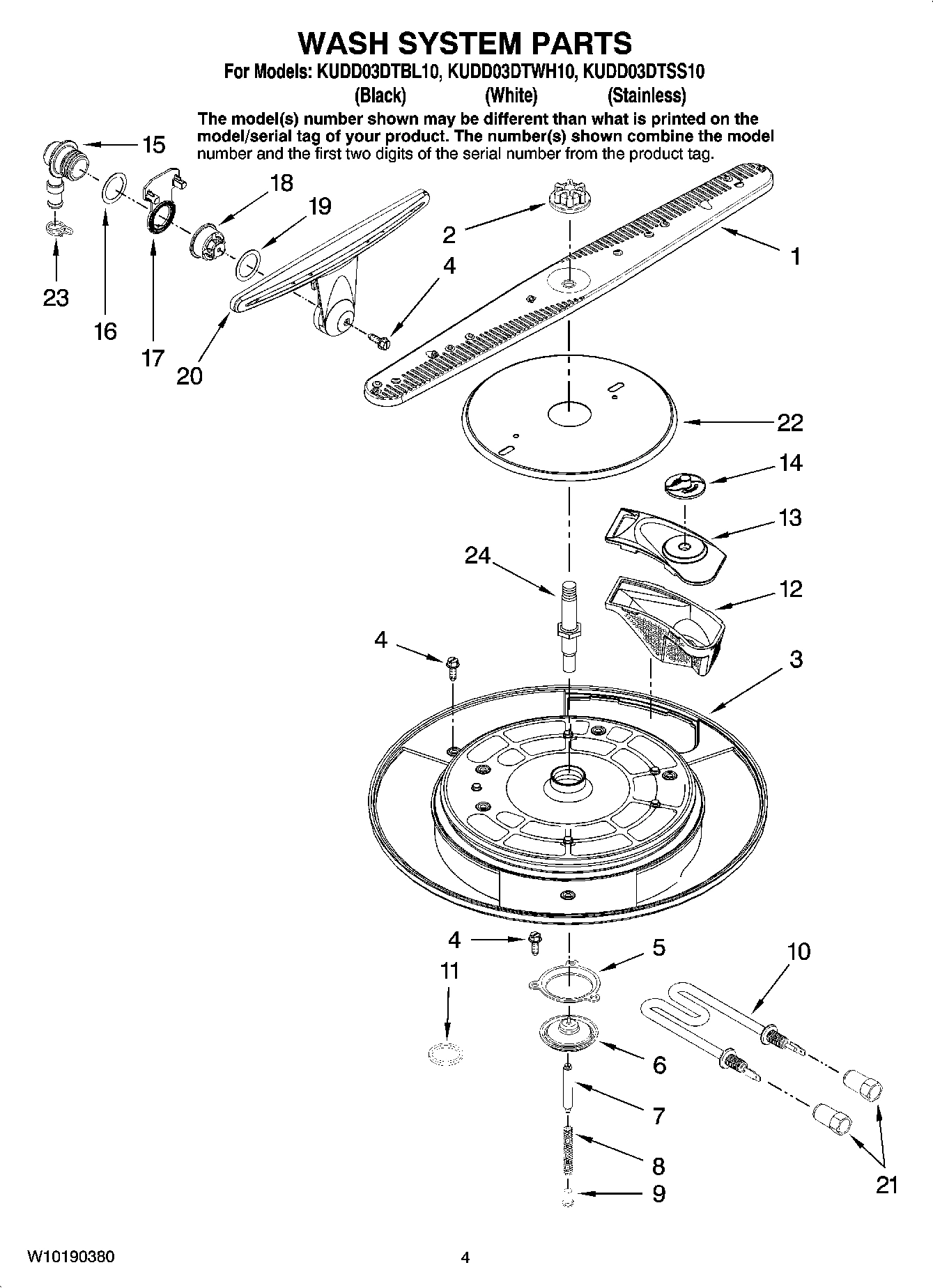

Shield, Fine Filter
Shield, Fine Filter WPL 99003704 Contact Us For Availability
View on Model
24
Pivot, Wash Arm
Pivot, Wash Arm WPL 99003697 Contact Us For Availability
View on Model
35
Filter
Filter WPL 99003715 Contact Us For Availability
View on Model
