Model Whirlpool KUDD01SSSS0 SINGLE DRAWER DISHWASHER – Common Parts & Diagrams

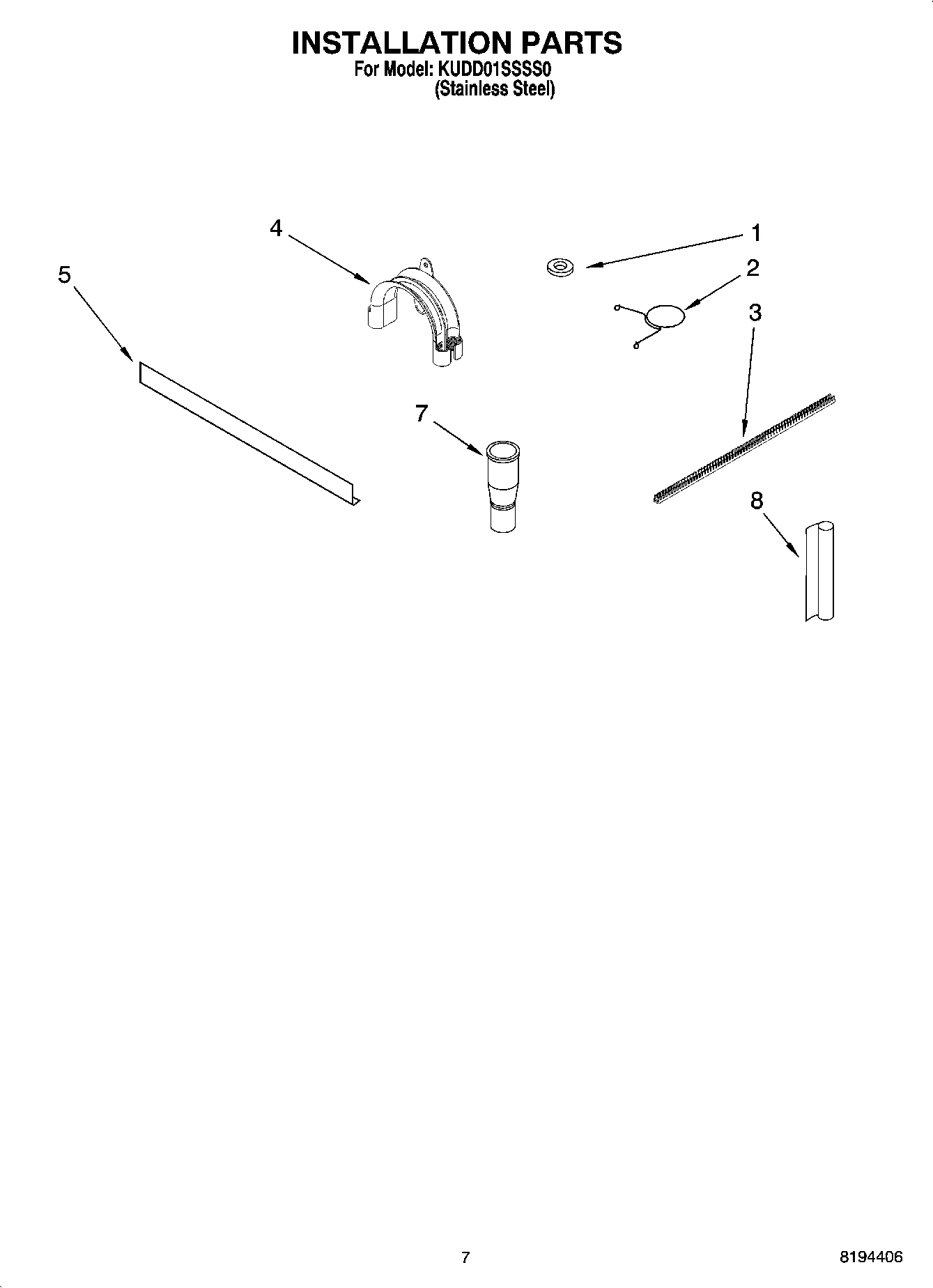

06 - INSTALLATION PARTS

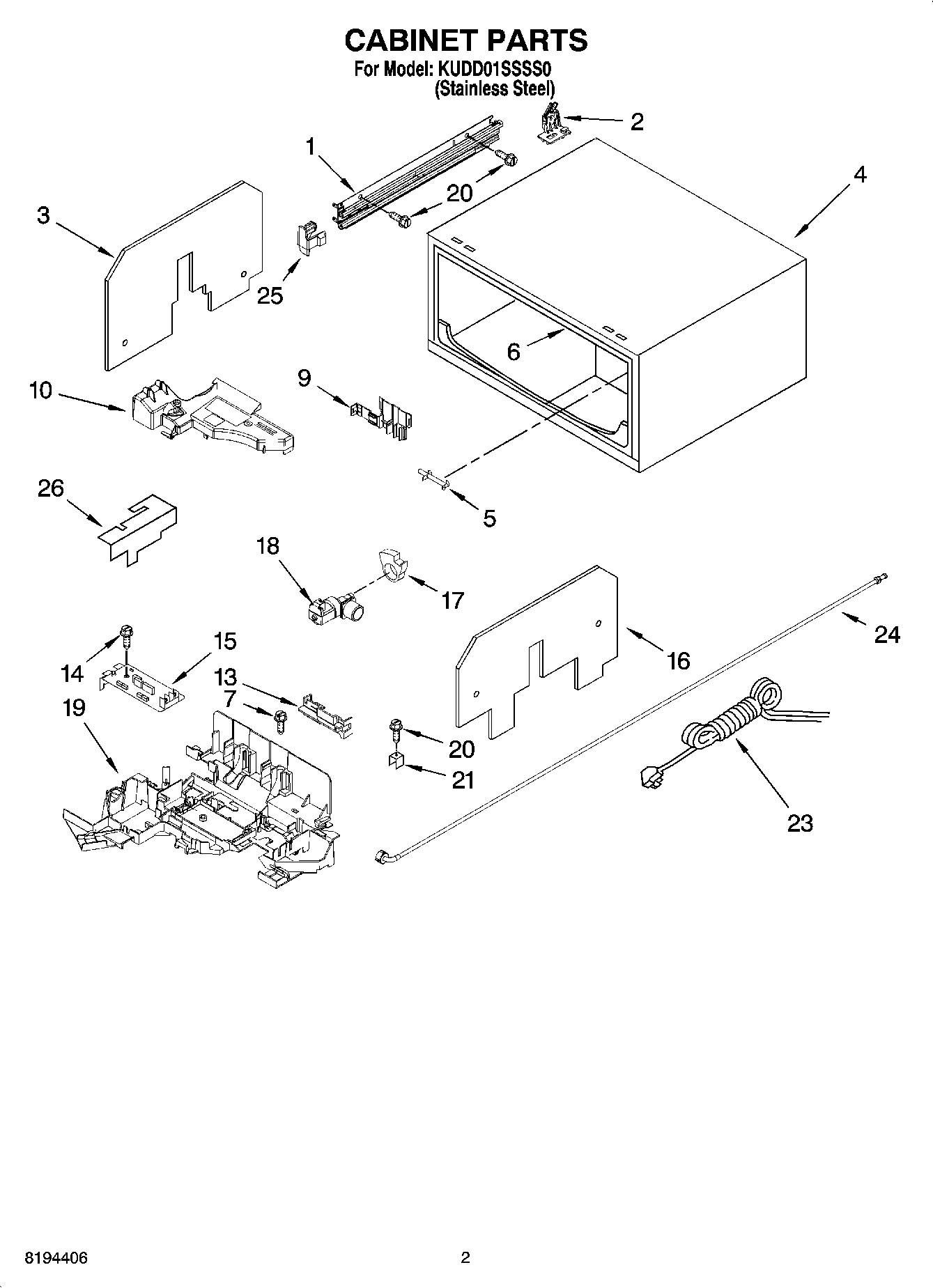

02 - CABINET PARTS
03 - LID AND LINK ASSEMBLY
01 - ARCHITECT SERIES DRAWER AND PANEL PARTS
04 - DRAWER PARTS
05 - DISHRACK PARTS
Common parts from model Whirlpool KUDD01SSSS0 SINGLE DRAWER DISHWASHER
1
Track (Right Hand) WPL 8194051 Contact Us For Availability
1
Yoke, Lid (Right) WPL 8194074 Contact Us For Availability
1
Yoke, Lid (Left) WPL 8194075 Contact Us For Availability
1
Energy Guide WPL 8194421 Contact Us For Availability
1
Instructions, Installation WPL 8533714 Contact Us For Availability
1
DVD WPL 8546426 Contact Us For Availability
1
Tech Sheet WPL 8546449 Contact Us For Availability
1
Instructions, Panel Installation WPL 8573714 Contact Us For Availability
1
Guide, Use & Care WPL 8573753 Contact Us For Availability
1
Nut, Lock Filter Plate WPL 8194088 Contact Us For Availability
1
Cupshelf WPL 8194410 Contact Us For Availability
2
Latch, Drawer (Left Hand) WPL 8194053 Contact Us For Availability
2
Latch, Drawer (Right Hand) WPL 8194052 Contact Us For Availability
2
Actuator, Lid WPL 8194405 Contact Us For Availability
2
Drawer Panels Complete WPL 8194423 Contact Us For Availability
2
Trim, Filter WPL 8194089 Contact Us For Availability
2
Rack, Plate WPL 8194411 Contact Us For Availability
3
Filter WPL 8194090 Contact Us For Availability
3
Rod, Link Support WPL 8194402 Contact Us For Availability
3
Panel, Drawer WPL 8194424 Contact Us For Availability
4
Control WPL 8194425 Contact Us For Availability
4
Hose, Fill WPL 8194079 Contact Us For Availability
4
Filter, Plate WPL 8194409 Contact Us For Availability
4
Basket, Silverware WPL 8546363 Contact Us For Availability
5
Hose, Drain WPL 8194081 Contact Us For Availability
5
Prisim WPL 8194056 Contact Us For Availability
5
HANDLE WPL 8557792 Contact Us For Availability
5
Rack, Glasses WPL 8194413 Contact Us For Availability
6
Plate, Backing WPL 8194426 Contact Us For Availability
6
Drawer WPL 8194399 Contact Us For Availability
6
Clip, No-Flip WPL 8194414 Contact Us For Availability
7
Tube WPL 8194094 Contact Us For Availability
7
Insulation WPL 8194427 Contact Us For Availability
7
Clip, Cupshelf WPL 8546414 Contact Us For Availability
8
Lid Assembly WPL 8194084 Contact Us For Availability
8
Door, Access Drain Filter WPL 8194135 Contact Us For Availability
8
Panel, Support WPL 8194428 Contact Us For Availability
8
Cap, Rinse Aid WPL 8194095 Contact Us For Availability
9
Dispenser, Detergent WPL 8194096 Contact Us For Availability
9
Wiring Harness WPL 8194085 Contact Us For Availability
9
Screw WPL 8194429 Contact Us For Availability
10
Screw WPL 8194430 Contact Us For Availability
10
Bracket, Dipenser WPL 8194097 Contact Us For Availability
11
Fan Assembly WPL 8194098 Contact Us For Availability
11
Bracket WPL 8194403 Contact Us For Availability
11
Bracket, Left WPL 8194431 Contact Us For Availability
12
Clip WPL 8194404 Contact Us For Availability
12
Bracket, Right WPL 8194432 Contact Us For Availability
12
Shield WPL 8194401 Contact Us For Availability
13
Clip, Link WPL 8194415 Contact Us For Availability
13
Nameplate WPL 2005292 Contact Us For Availability
14
Hall Effect WPL 8194102 Contact Us For Availability
15
Board, Circuit WPL 8194064 Contact Us For Availability
15
Seal, Motor Housing WPL 8194103 Contact Us For Availability
16
Seal, Heater Plate/Tub WPL 8194104 Contact Us For Availability
17
Heater, Plate (Also Order Items 15 & 16) WPL 8194105 Contact Us For Availability
18
Valve, Inlet WPL 8194397 Contact Us For Availability
18
Nut, Locking WPL 8194106 Contact Us For Availability
19
Duct WPL 8194107 Contact Us For Availability
21
Protector, Wiring WPL 8194109 Contact Us For Availability
22
Spray-Arm WPL 8194110 Contact Us For Availability
23
O-RING WPL 8194082 Contact Us For Availability
24
Wiring Harness Motor WPL 8194112 Contact Us For Availability
25
Clip, Drawer (Left Hand) WPL 8194073 Contact Us For Availability
25
Clip, Drawer (Right Hand) WPL 8194072 Contact Us For Availability
25
Wiring Harness Dispenser WPL 8194113 Contact Us For Availability
26
CLAMP WPL 8194087 Contact Us For Availability
27
PROTECTOR WPL 8194188 Contact Us For Availability
28
Wiring Harness, Protector WPL 8194194 Contact Us For Availability
29
SEAL WPL 8194189 Contact Us For Availability
32
Pin, Drawer WPL 8194193 Contact Us For Availability
33
Wiring Harness, Control WPL 8194195 Contact Us For Availability
× ![]()
