Model Whirlpool KUDD01DSSS0 DOUBLE DRAWER DISHWASHER – Common Parts & Diagrams

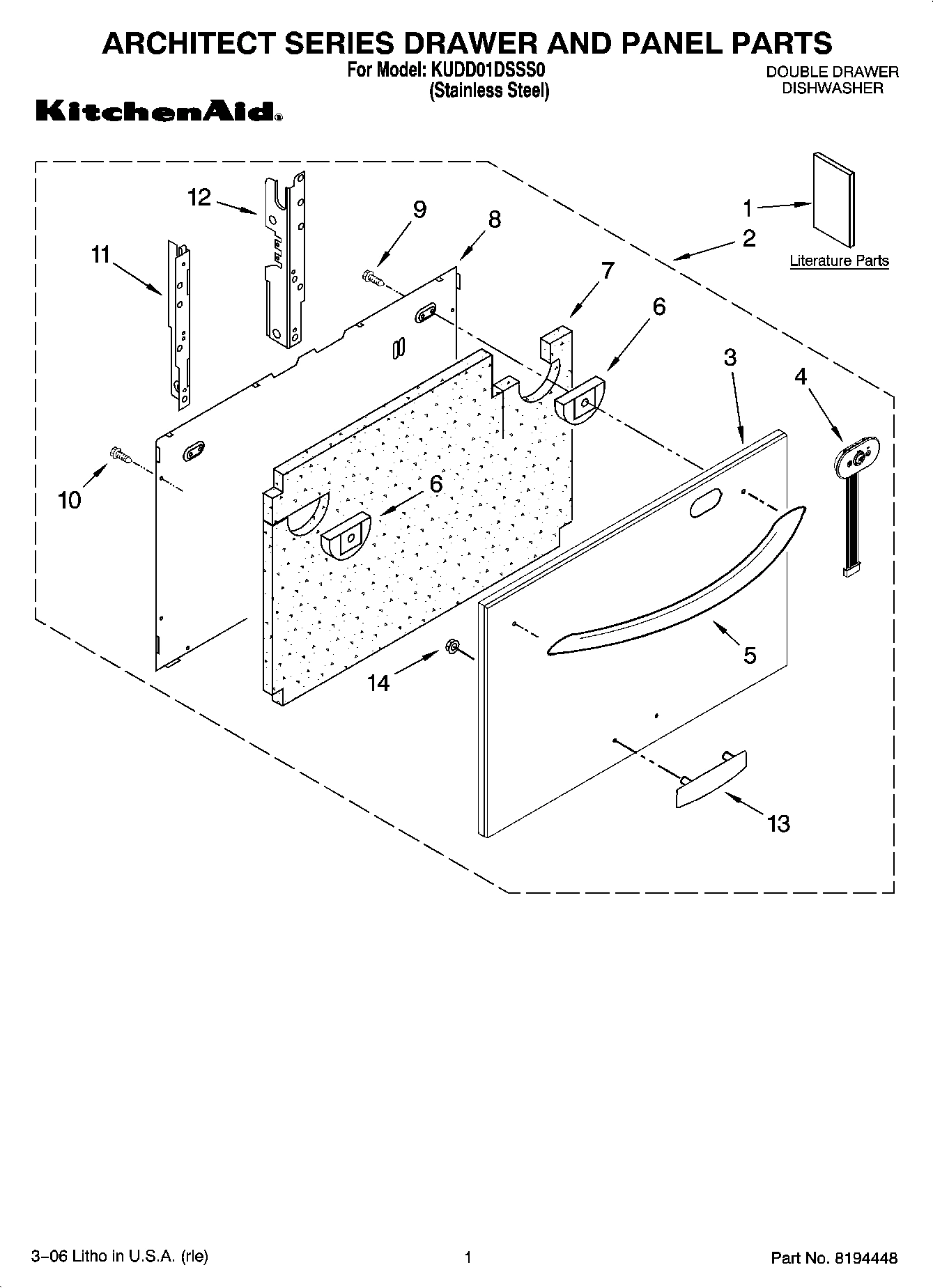

01 - ARCHITECT SERIES DRAWER AND PANEL PARTS

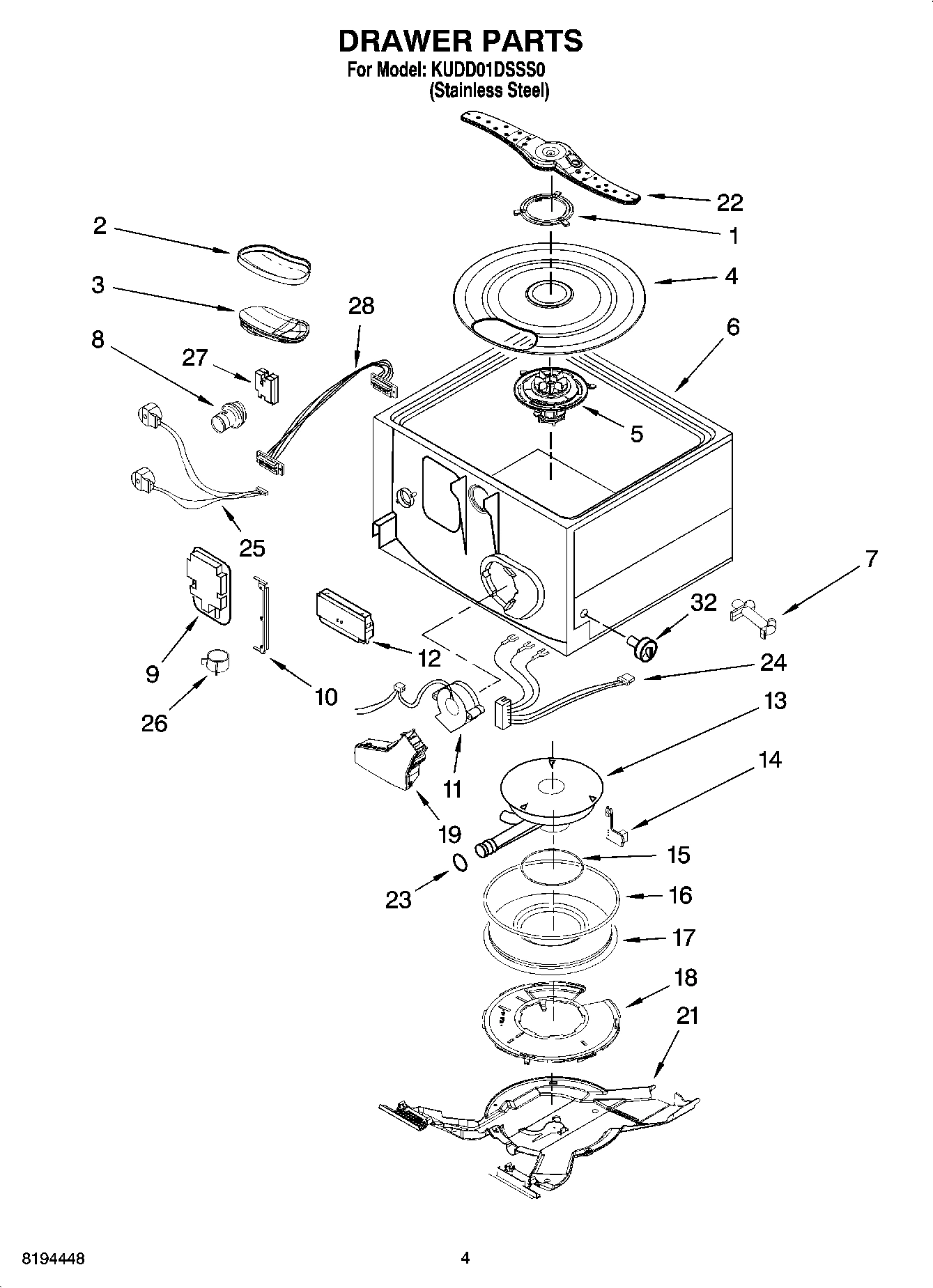

04 - DRAWER PARTS

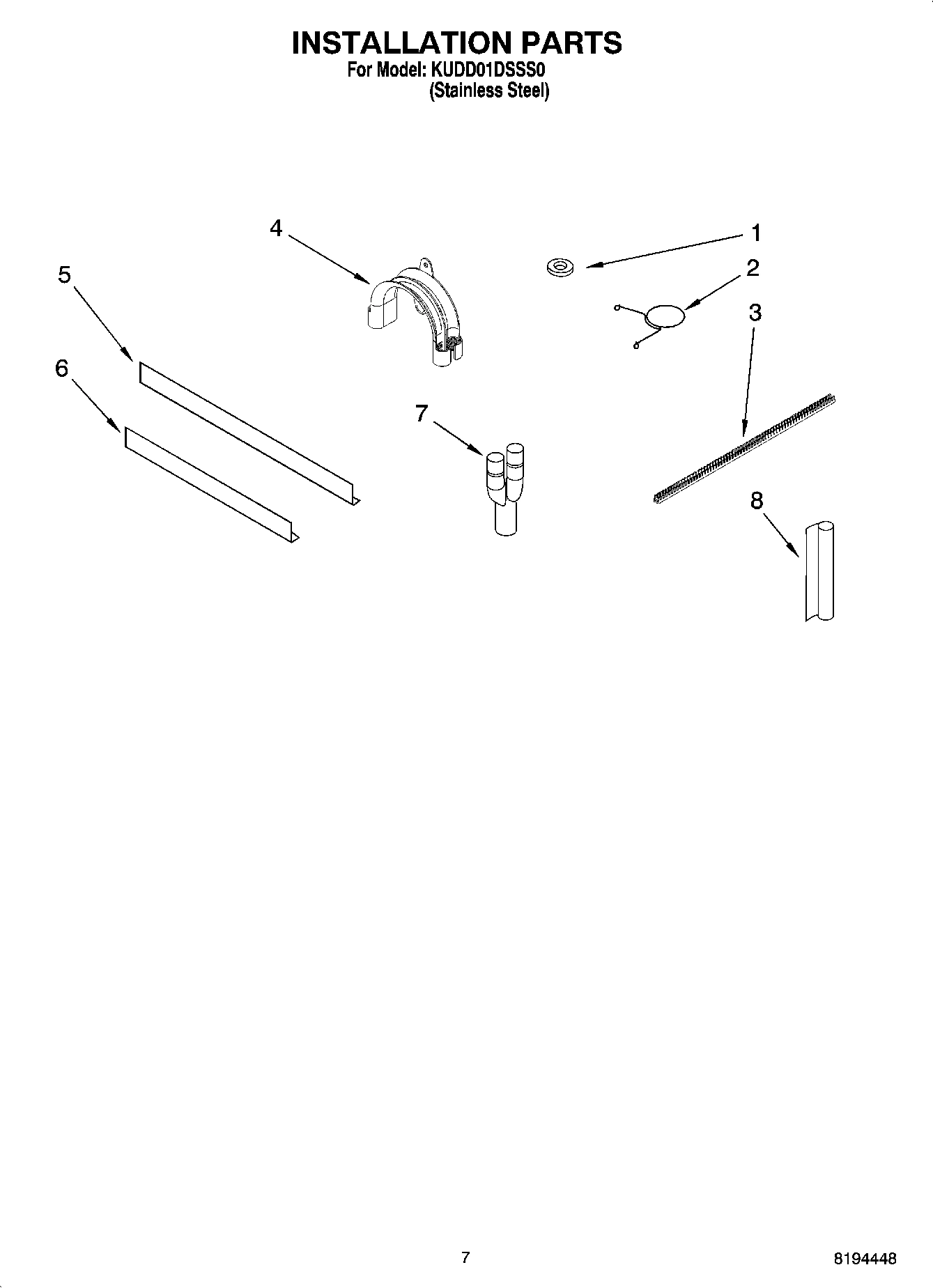

06 - INSTALLATION PARTS

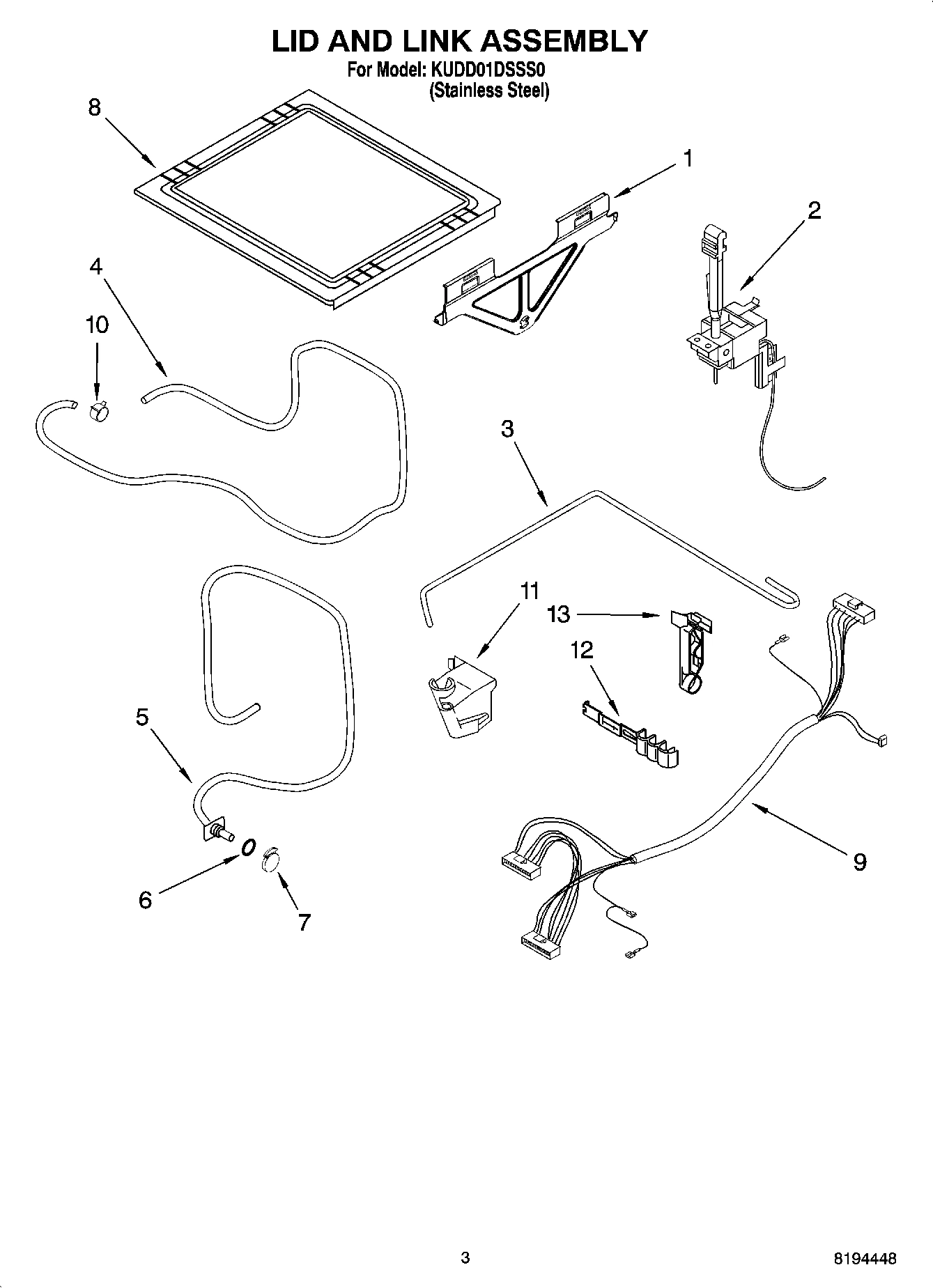

03 - LID AND LINK ASSEMBLY

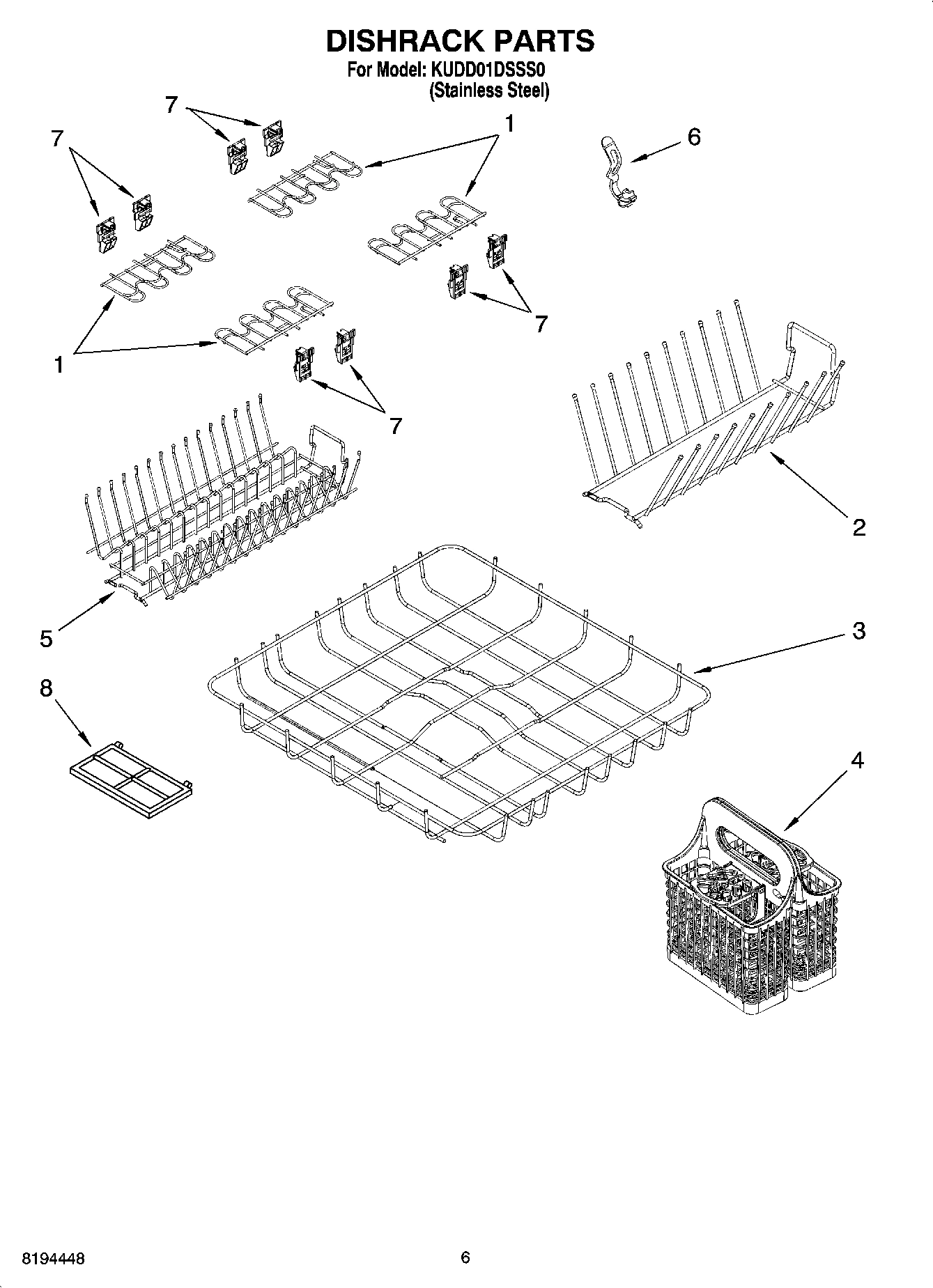

05 - DISHRACK PARTS

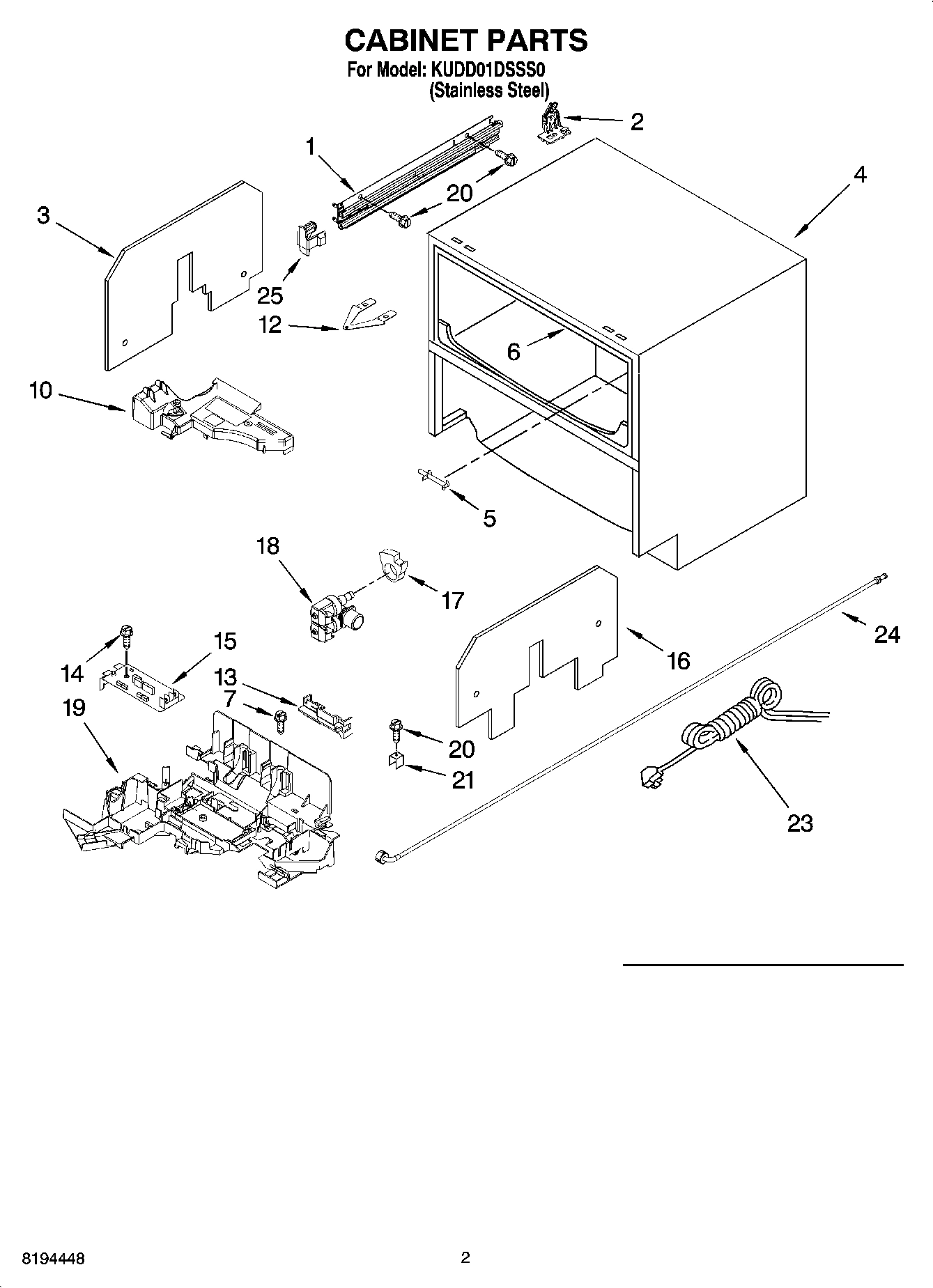

02 - CABINET PARTS
Common parts from model Whirlpool KUDD01DSSS0 DOUBLE DRAWER DISHWASHER
1
Track (Right Hand) WPL 8194051 Contact Us For Availability
1
Washer WPL 8194120 Contact Us For Availability
1
Yoke, Lid (Right) WPL 8194074 Contact Us For Availability
1
Yoke, Lid (Left) WPL 8194075 Contact Us For Availability
1
Cupshelf WPL 8194410 Contact Us For Availability
1
Track (Left Hand) WPL 8194050 Contact Us For Availability
2
Actuator, Lid (Left or Right) (Upper Drawer) WPL 8194076 Contact Us For Availability
2
Actuator, Lid (Left or Left) (Lower Drawer) WPL 8194077 Contact Us For Availability
2
Latch, Drawer (Left Hand) WPL 8194053 Contact Us For Availability
2
Latch, Drawer (Right Hand) WPL 8194052 Contact Us For Availability
2
Clamp, Hose WPL 8194131 Contact Us For Availability
2
Rack, Plate WPL 8546401 Contact Us For Availability
3
Filter WPL 8194090 Contact Us For Availability
3
Protector, Edge WPL 8194122 Contact Us For Availability
3
Rod, Link Support WPL 8194402 Contact Us For Availability
3
Insulation, Cabinet (Left or Right) WPL 8194416 Contact Us For Availability
4
Control WPL 8194425 Contact Us For Availability
4
Hose, Fill (Upper Drawer) WPL 8194080 Contact Us For Availability
4
Support, Drain Hose WPL 8194123 Contact Us For Availability
4
Hose, Fill (Lower Drawer) WPL 8194079 Contact Us For Availability
4
Basket, Silverware WPL 8546363 Contact Us For Availability
4
Cabinet WPL 8194055 Contact Us For Availability
5
Hose, Drain WPL 8194081 Contact Us For Availability
5
Prisim WPL 8194056 Contact Us For Availability
5
Seal, Cabinet Side WPL 8194124 Contact Us For Availability
5
Rack, Glasses WPL 8546402 Contact Us For Availability
6
O-RING WPL 8194082 Contact Us For Availability
6
Seal, Cabinet Top WPL 8194126 Contact Us For Availability
6
Clip, No-Flip WPL 8194414 Contact Us For Availability
6
Trim, Seal WPL 8194057 Contact Us For Availability
7
Valve, Check WPL 8194083 Contact Us For Availability
7
Connector, Drain WPL 8194127 Contact Us For Availability
7
Tube WPL 8194094 Contact Us For Availability
7
Clip, Cupshelf WPL 8546414 Contact Us For Availability
7
Screw WPL 8194134 Contact Us For Availability
8
Lid Assembly WPL 8194084 Contact Us For Availability
8
Door, Access Drain Filter WPL 8194135 Contact Us For Availability
8
Barrier, Moisture Undercounter WPL 8194132 Contact Us For Availability
8
Extension Kit, Drain Hose WPL 8194400 Contact Us For Availability
8
Optional Parts Not Included WPL ARI113641A Contact Us For Availability
9
Dispenser, Detergent WPL 8194096 Contact Us For Availability
9
Wiring Harness (Lower Drawer) WPL 8194085 Contact Us For Availability
9
Wiring Harness (Upper Drawer) WPL 8194086 Contact Us For Availability
10
Clamp, Hose WPL 8194087 Contact Us For Availability
10
Module, Lid Cabinet WPL 8194059 Contact Us For Availability
11
Fan Assembly WPL 8194098 Contact Us For Availability
11
Bracket WPL 8194403 Contact Us For Availability
12
Control, Electronic WPL 8194444 Contact Us For Availability
12
Bracket, Undercounter WPL 8194061 Contact Us For Availability
12
Clip WPL 8194404 Contact Us For Availability
13
Clip, Link WPL 8194415 Contact Us For Availability
13
Retainer, Link WPL 8194062 Contact Us For Availability
14
Hall Effect WPL 8194102 Contact Us For Availability
14
Screw WPL 8194063 Contact Us For Availability
15
Board, Circuit WPL 8194064 Contact Us For Availability
15
Seal, Motor Housing WPL 8194103 Contact Us For Availability
16
Seal, Heater Plate/Tub WPL 8194104 Contact Us For Availability
16
Insulation, Cabinet (Pad-Ins) WPL 8194441 Contact Us For Availability
16
Insulation, Cabinet (Pad-Ins) WPL 8194442 Contact Us For Availability
17
Heater, Plate (Also Order Items 15 & 16) WPL 8194105 Contact Us For Availability
17
CLAMP WPL 8194067 Contact Us For Availability
18
Valve, Inlet WPL 8194068 Contact Us For Availability
19
Module, Cabinet WPL 8194069 Contact Us For Availability
20
Screw WPL 8194133 Contact Us For Availability
21
Strain Relief WPL 8194116 Contact Us For Availability
23
Cord, Power WPL 8194070 Contact Us For Availability
24
Wiring Harness Motor WPL 8194112 Contact Us For Availability
24
Hose-Fill WPL 8194071 Contact Us For Availability
25
Clip, Drawer (Left Hand) WPL 8194073 Contact Us For Availability
25
Clip, Drawer (Right Hand) WPL 8194072 Contact Us For Availability
32
Pin, Drawer WPL 8194193 Contact Us For Availability
× ![]()
