Model Whirlpool KUDD01DPPA0 DRAWER DISHWASHER – Common Parts & Diagrams

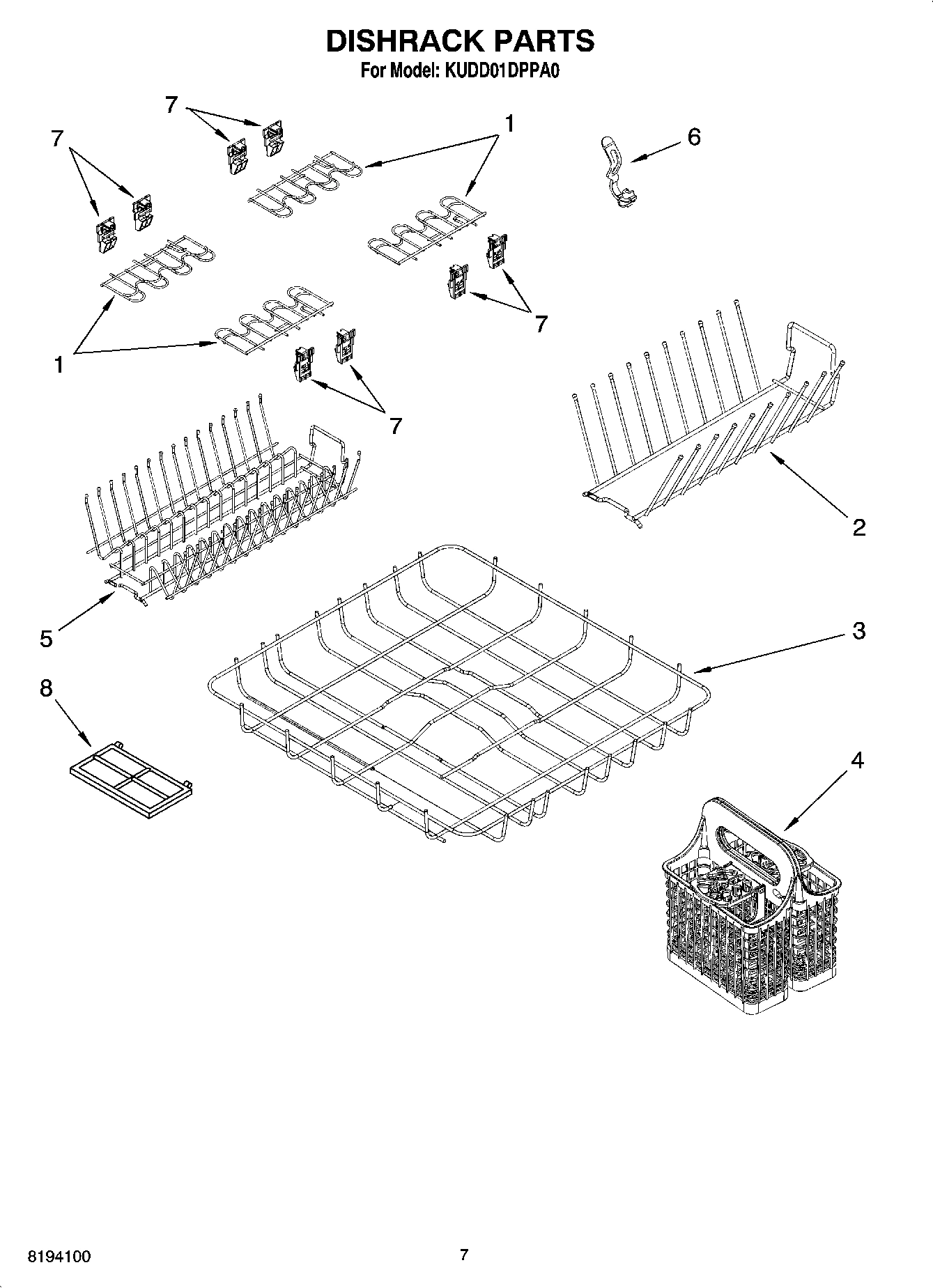

06 - DISHRACK PARTS

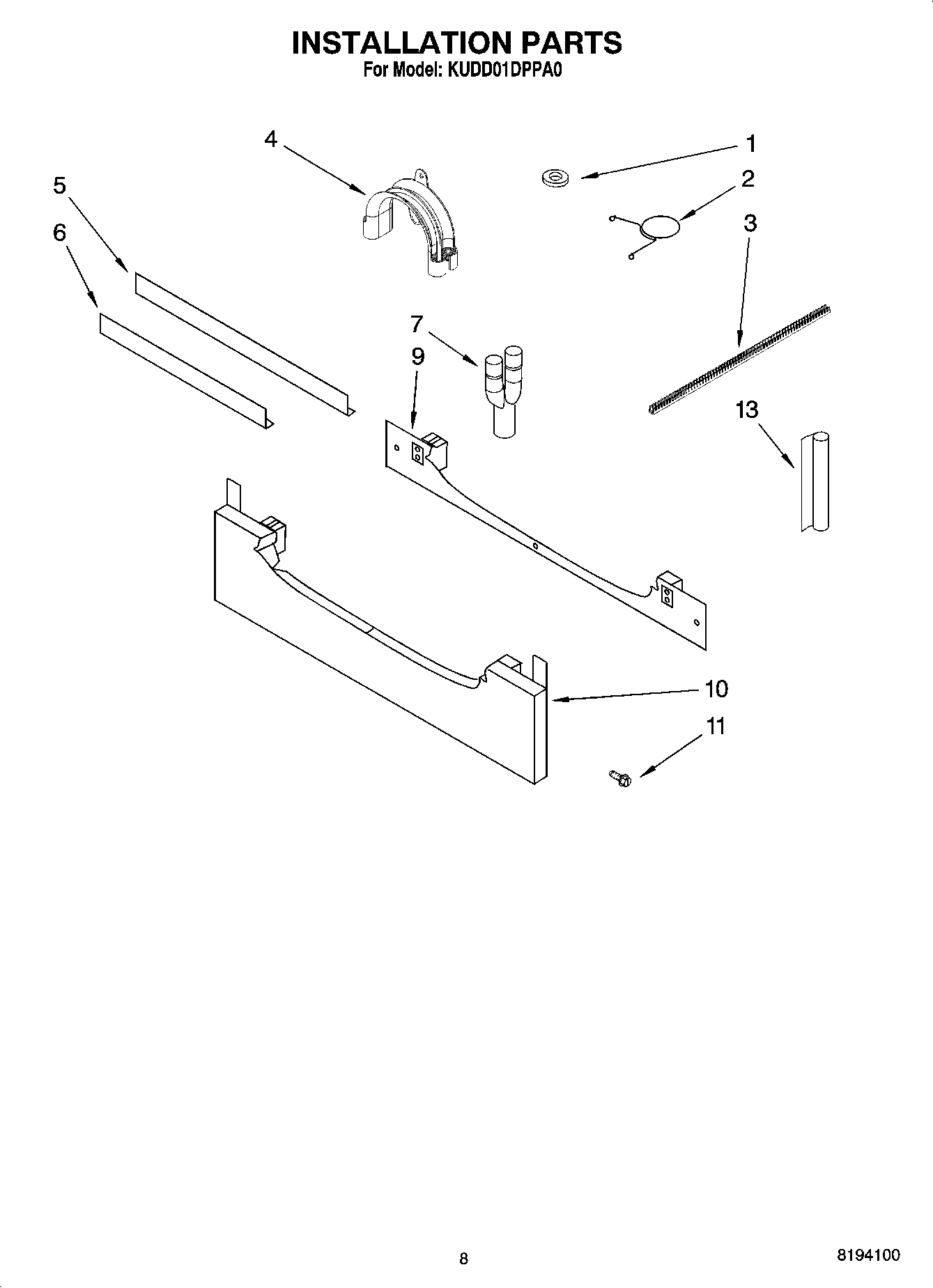

07 - INSTALLATION PARTS

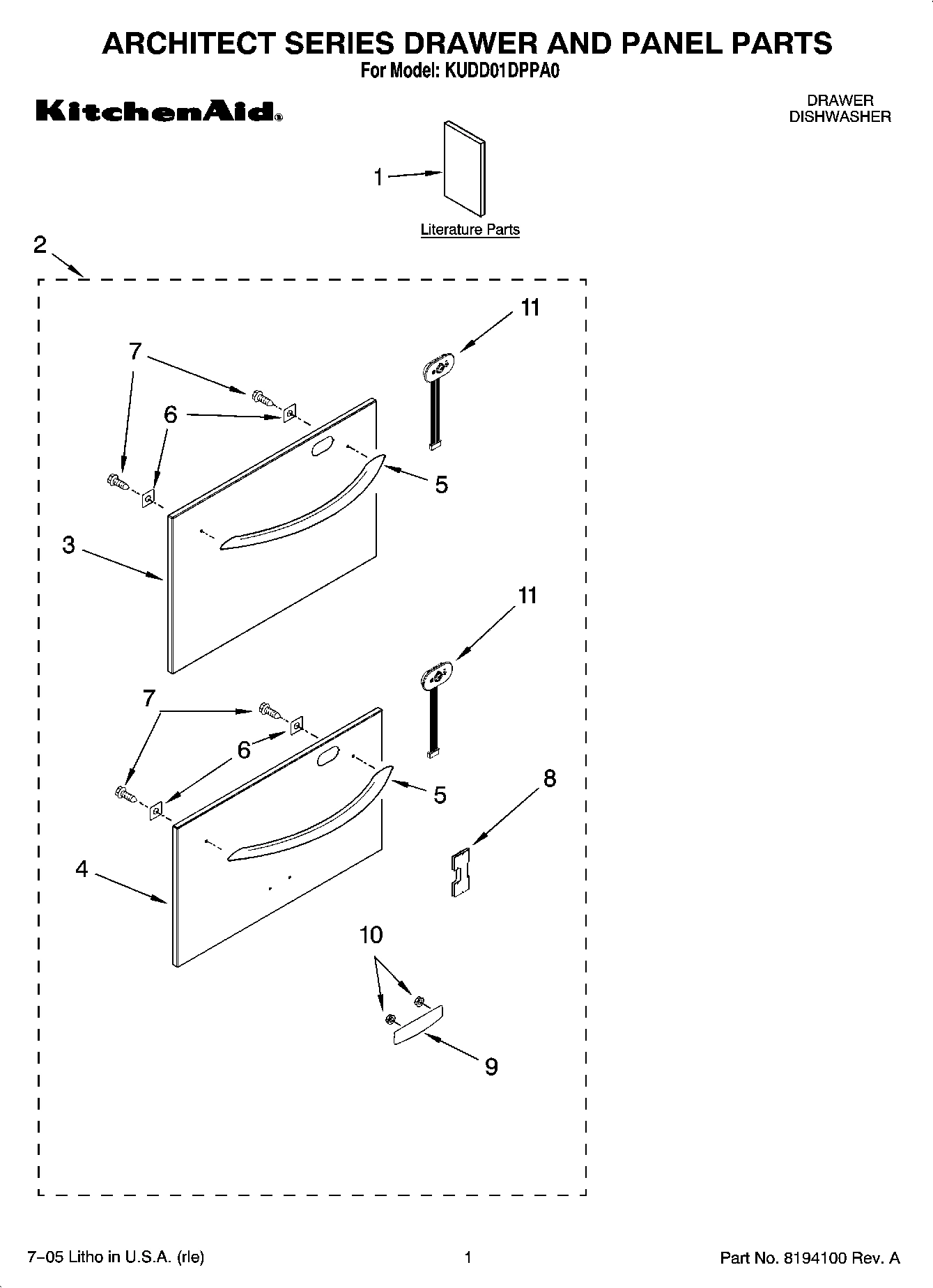

01 - ARCHITECT SERIES DRAWER AND PANEL PARTS

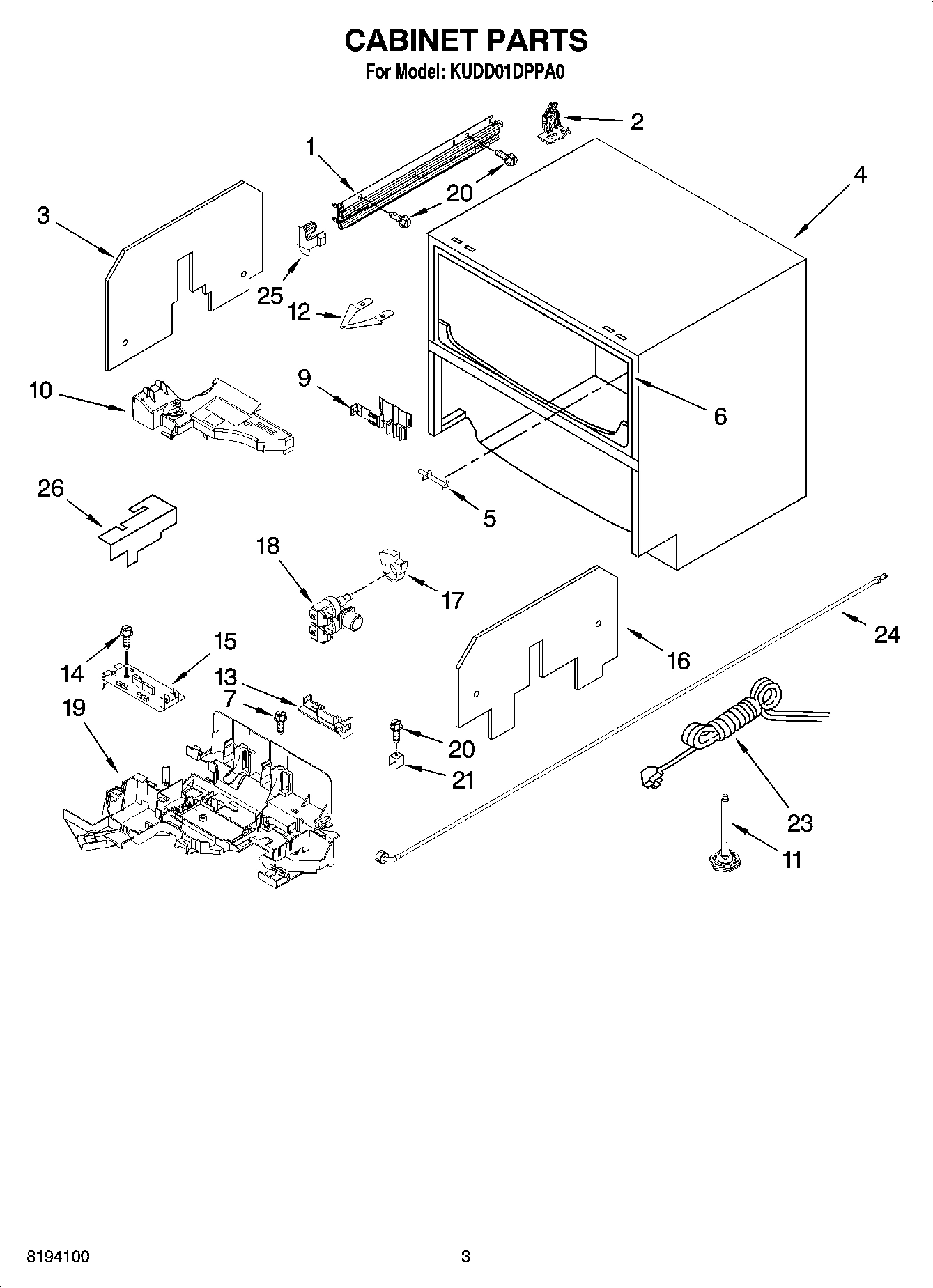

03 - CABINET PARTS

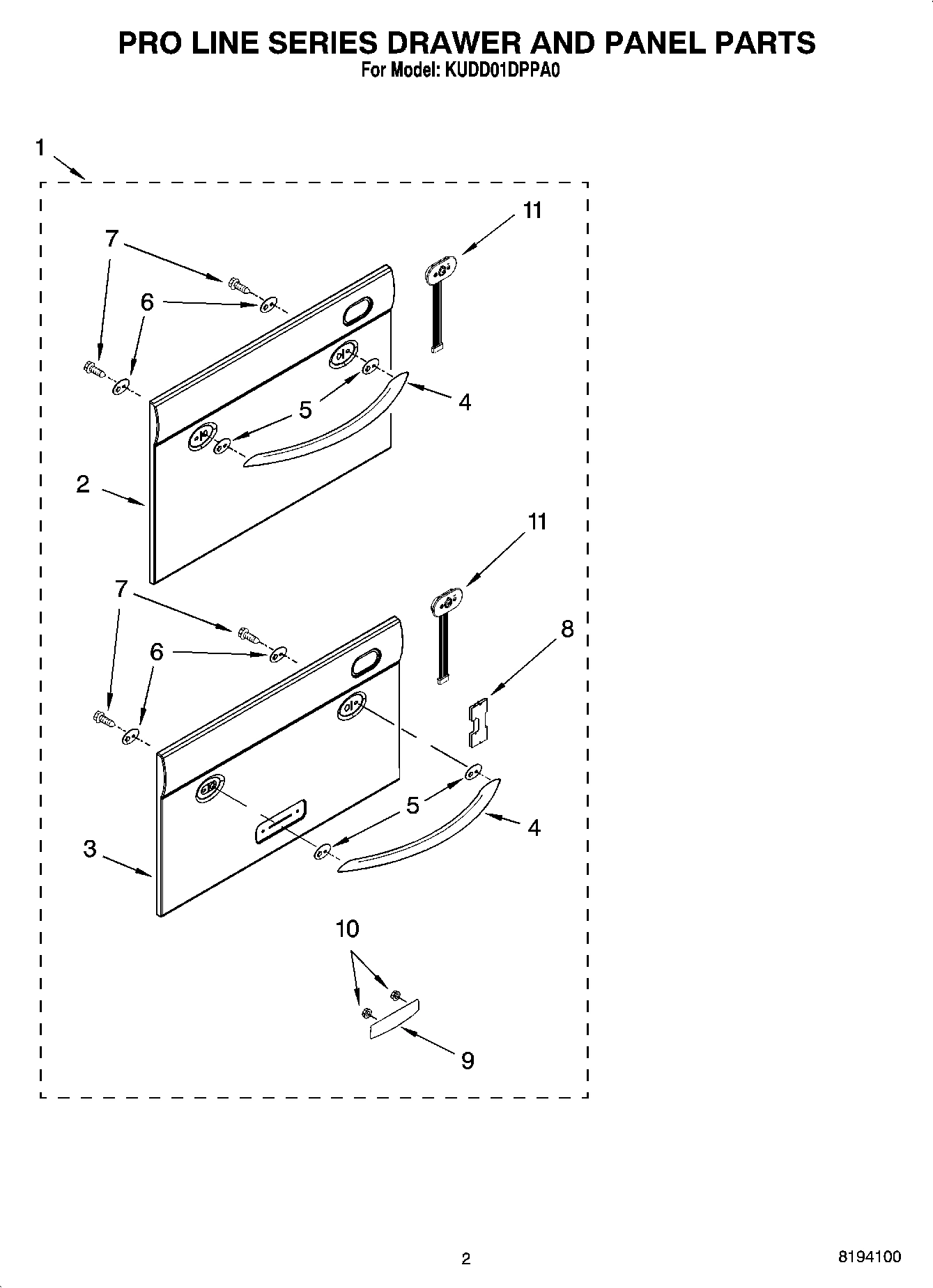

02 - PRO LINE SERIES DRAWER AND PANEL PARTS

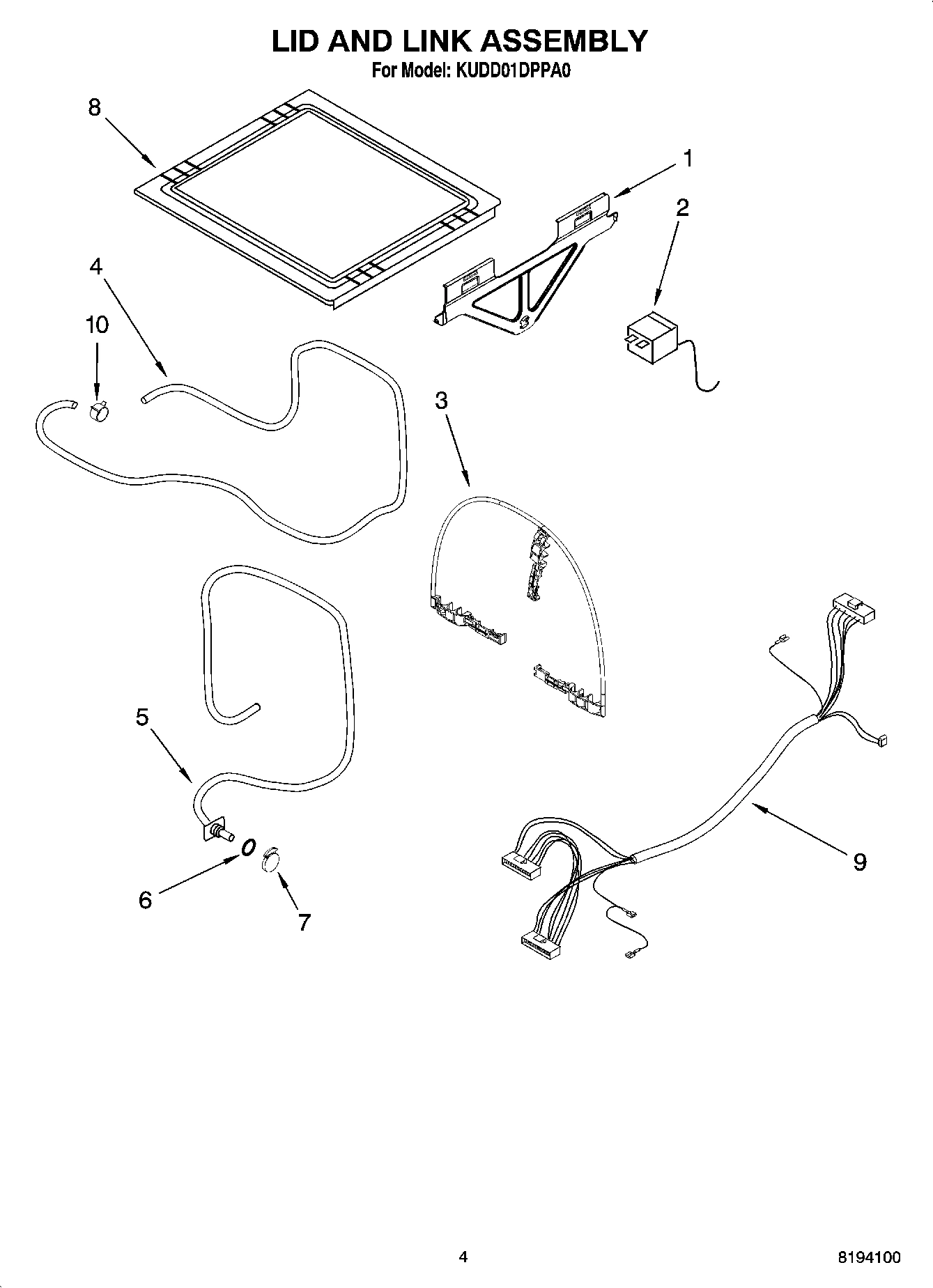

04 - LID AND LINK ASSEMBLY

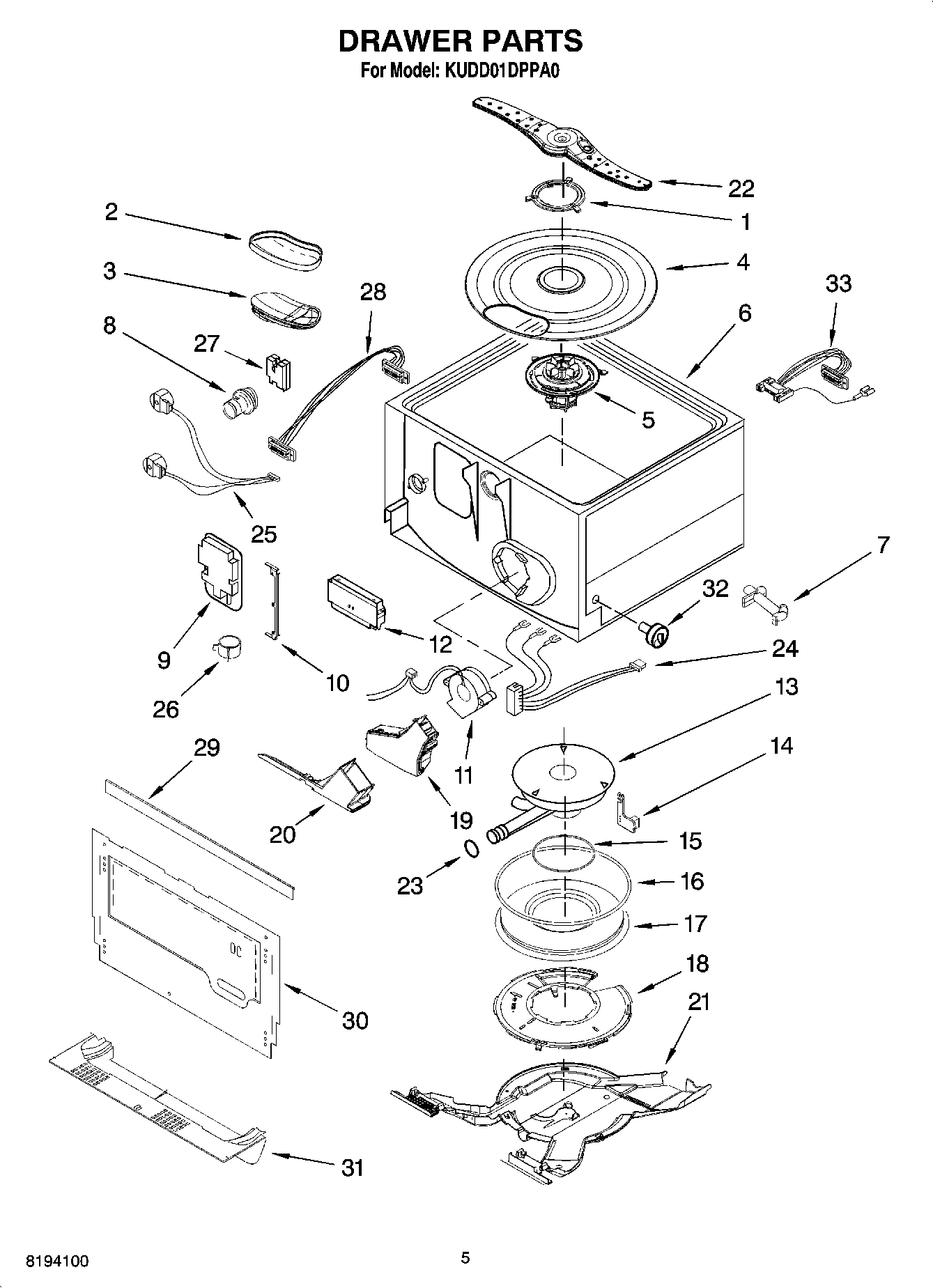

05 - DRAWER PARTS
Common parts from model Whirlpool KUDD01DPPA0 DRAWER DISHWASHER
1
Track (Right Hand) WPL 8194051 Contact Us For Availability
1
Track (Left Hand) WPL 8194050 Contact Us For Availability
1
Drawer Panels Complete (Stainless Steel) WPL 8546418 Contact Us For Availability
1
Drawer Panels Complete (Meteorite) WPL 8546419 Contact Us For Availability
1
Yoke, Lid (Right) WPL 8194074 Contact Us For Availability
1
Yoke, Lid (Left) WPL 8194075 Contact Us For Availability
1
Nut, Lock Filter Plate WPL 8194088 Contact Us For Availability
2
Actuator, Lid (Top Drawer) WPL 8194076 Contact Us For Availability
2
Actuator, Lid (Bottom Drawer) WPL 8194077 Contact Us For Availability
2
Latch, Drawer (Left Hand) WPL 8194053 Contact Us For Availability
2
Latch, Drawer (Right Hand) WPL 8194052 Contact Us For Availability
2
Panel, Drawer Upper (Stainless Steel) WPL 8546353 Contact Us For Availability
2
Panel, Drawer Upper (Meteorite) WPL 8546382 Contact Us For Availability
2
Trim, Filter WPL 8194089 Contact Us For Availability
3
Filter WPL 8194090 Contact Us For Availability
3
Insulation, Cabinet WPL 8194054 Contact Us For Availability
3
Panel, Drawer Lower (Stainless Steel) WPL 8546354 Contact Us For Availability
3
Panel, Drawer Lower (Meteorite) WPL 8546384 Contact Us For Availability
3
Support, Link WPL 8194078 Contact Us For Availability
4
Hose, Fill (Top Drawer) WPL 8194080 Contact Us For Availability
4
Cabinet WPL 8194055 Contact Us For Availability
4
Handle (Stainless Steel) WPL 8531595 Contact Us For Availability
4
Hose, Fill (Bottom Drawer) WPL 8194079 Contact Us For Availability
4
Filter, Plate WPL 8194091 Contact Us For Availability
5
Hose, Drain WPL 8194081 Contact Us For Availability
5
Prisim WPL 8194056 Contact Us For Availability
5
Plate, Backing (Front) WPL 8531605 Contact Us For Availability
6
Trim, Seal WPL 8194057 Contact Us For Availability
6
Plate, Backing (Rear) WPL 8531606 Contact Us For Availability
6
Drawer WPL 8194093 Contact Us For Availability
7
Connector, Drain WPL 8194127 Contact Us For Availability
7
Tube WPL 8194094 Contact Us For Availability
7
Screw WPL 8194134 Contact Us For Availability
7
Screw WPL 8533924 Contact Us For Availability
8
Lid Assembly WPL 8194084 Contact Us For Availability
8
Door, Access Drain Filter WPL 8194135 Contact Us For Availability
8
Cap, Rinse Aid WPL 8194095 Contact Us For Availability
9
Dispenser, Detergent WPL 8194096 Contact Us For Availability
9
Wiring Harness (Lower Cabinet) WPL 8194085 Contact Us For Availability
9
Wiring Harness (Upper Cabinet) WPL 8194086 Contact Us For Availability
9
Nameplate (White) WPL 2209118W Contact Us For Availability
9
Mount, Link Top WPL 8194058 Contact Us For Availability
9
Nameplate WPL 8531788 Contact Us For Availability
10
Module, Lid Cabinet WPL 8194059 Contact Us For Availability
10
Bracket, Dipenser WPL 8194097 Contact Us For Availability
11
Fan Assembly WPL 8194098 Contact Us For Availability
11
Control (White) WPL 8546389 Contact Us For Availability
11
Control (Black) WPL 8546390 Contact Us For Availability
11
Control (Grey) WPL 8546392 Contact Us For Availability
11
Foot WPL 8194060 Contact Us For Availability
11
CONTROL WPL 8546398 Contact Us For Availability
12
Bracket, Undercounter WPL 8194061 Contact Us For Availability
12
Control, Electronic WPL 8194099 Contact Us For Availability
13
Retainer, Link WPL 8194062 Contact Us For Availability
14
Hall Effect WPL 8194102 Contact Us For Availability
14
Screw WPL 8194063 Contact Us For Availability
15
Board, Circuit WPL 8194064 Contact Us For Availability
15
Seal, Motor Housing WPL 8194103 Contact Us For Availability
16
Seal, Heater Plate/Tub WPL 8194104 Contact Us For Availability
16
Insulation, Cabinet (Bottom Left) WPL 8194065 Contact Us For Availability
16
Insulation, Cabinet (Bottom Right) WPL 8194066 Contact Us For Availability
17
Heater, Plate (Also Order Items 15 & 16) WPL 8194105 Contact Us For Availability
17
CLAMP WPL 8194067 Contact Us For Availability
18
Valve, Inlet WPL 8194068 Contact Us For Availability
18
Nut, Locking WPL 8194106 Contact Us For Availability
19
Module, Cabinet WPL 8194069 Contact Us For Availability
19
Duct, Top WPL 8194107 Contact Us For Availability
20
Screw WPL 8194133 Contact Us For Availability
20
Duct, Bottom WPL 8194108 Contact Us For Availability
21
Strain Relief WPL 8194116 Contact Us For Availability
21
Protector, Wiring WPL 8194109 Contact Us For Availability
22
Spray-Arm WPL 8194110 Contact Us For Availability
23
O-RING WPL 8194082 Contact Us For Availability
23
Cord, Power WPL 8194070 Contact Us For Availability
24
Wiring Harness Motor WPL 8194112 Contact Us For Availability
24
Hose-Fill WPL 8194071 Contact Us For Availability
25
Clip, Drawer (Left Hand) WPL 8194073 Contact Us For Availability
25
Clip, Drawer (Right Hand) WPL 8194072 Contact Us For Availability
25
Wiring Harness Dispenser WPL 8194113 Contact Us For Availability
26
SHIELD WPL 8194136 Contact Us For Availability
26
CLAMP WPL 8194087 Contact Us For Availability
27
PROTECTOR WPL 8194188 Contact Us For Availability
28
Wiring Harness, Protector WPL 8194194 Contact Us For Availability
29
SEAL WPL 8194189 Contact Us For Availability
30
Panel, Support (Upper, Drawer) WPL 8194190 Contact Us For Availability
30
Panel, Support (Lower, Drawer) WPL 8194191 Contact Us For Availability
31
SHIELD WPL 8194192 Contact Us For Availability
32
Pin, Drawer WPL 8194193 Contact Us For Availability
33
Wiring Harness, Control WPL 8194195 Contact Us For Availability
× ![]()
