Model Whirlpool KUDC21DS0 – Common Parts & Diagrams
19 - LOWER RACK
04 - KDB-21, KDC-21A AND KDC-61A

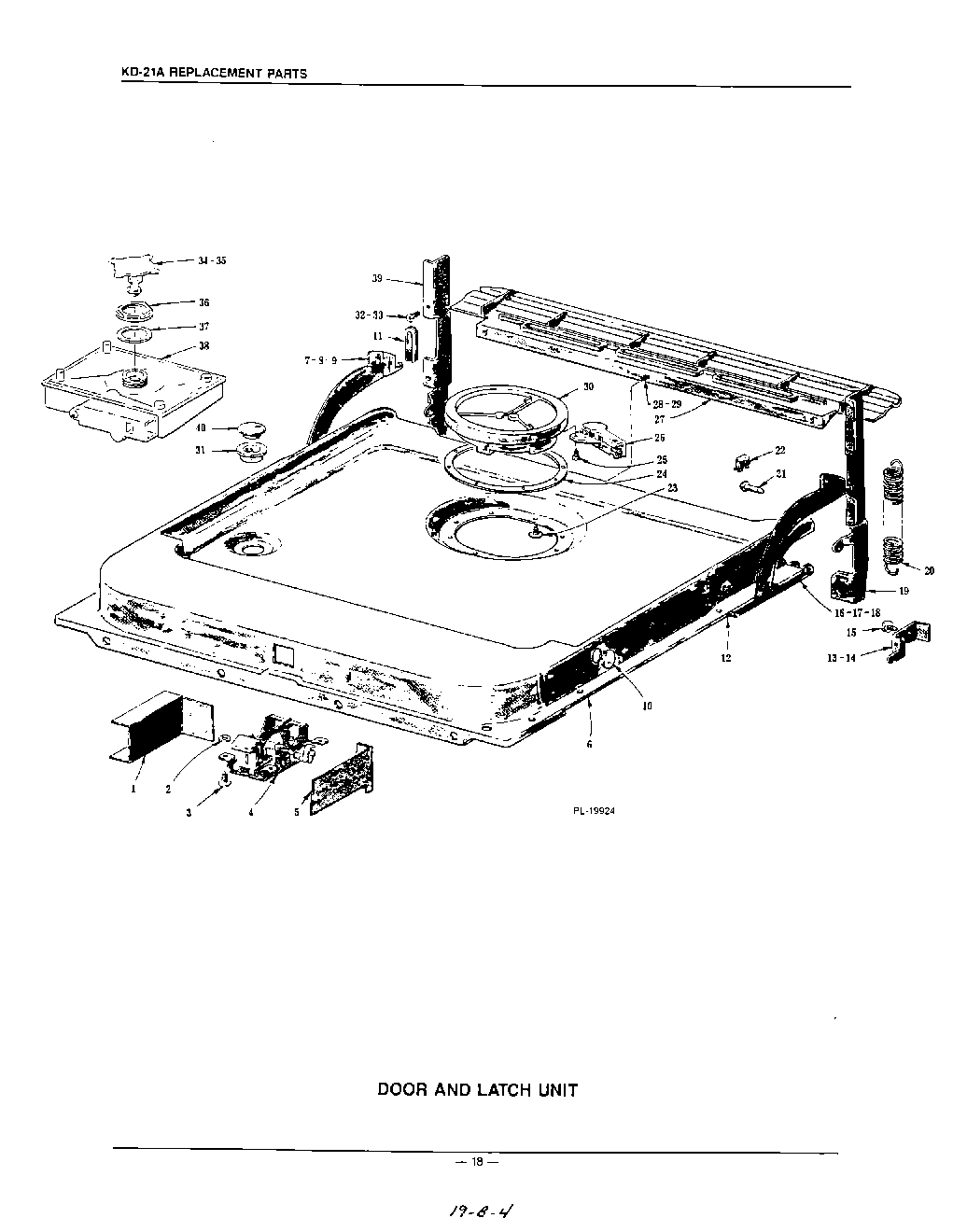

11 - DOOR AND LATCH

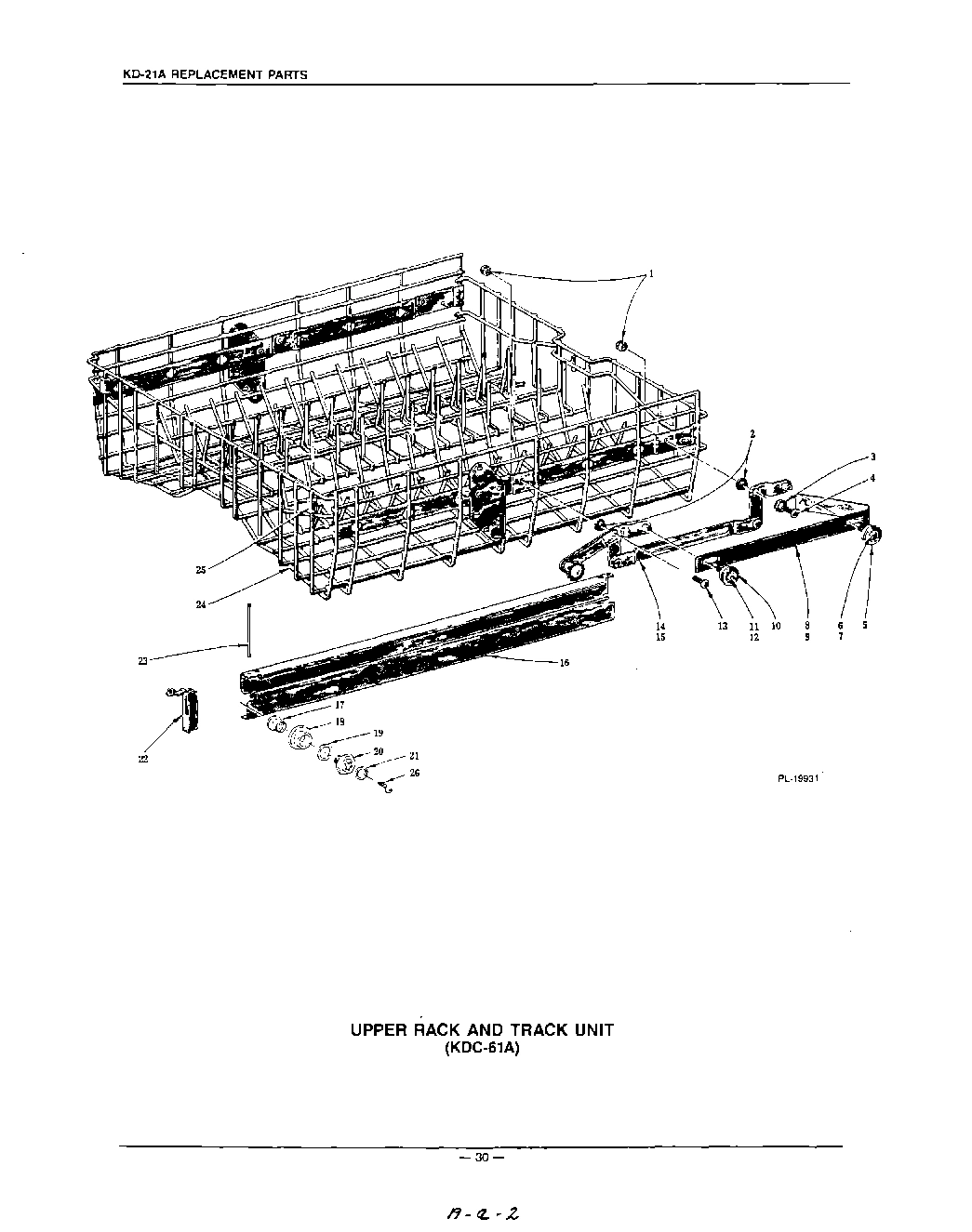

18 - KDC-61A

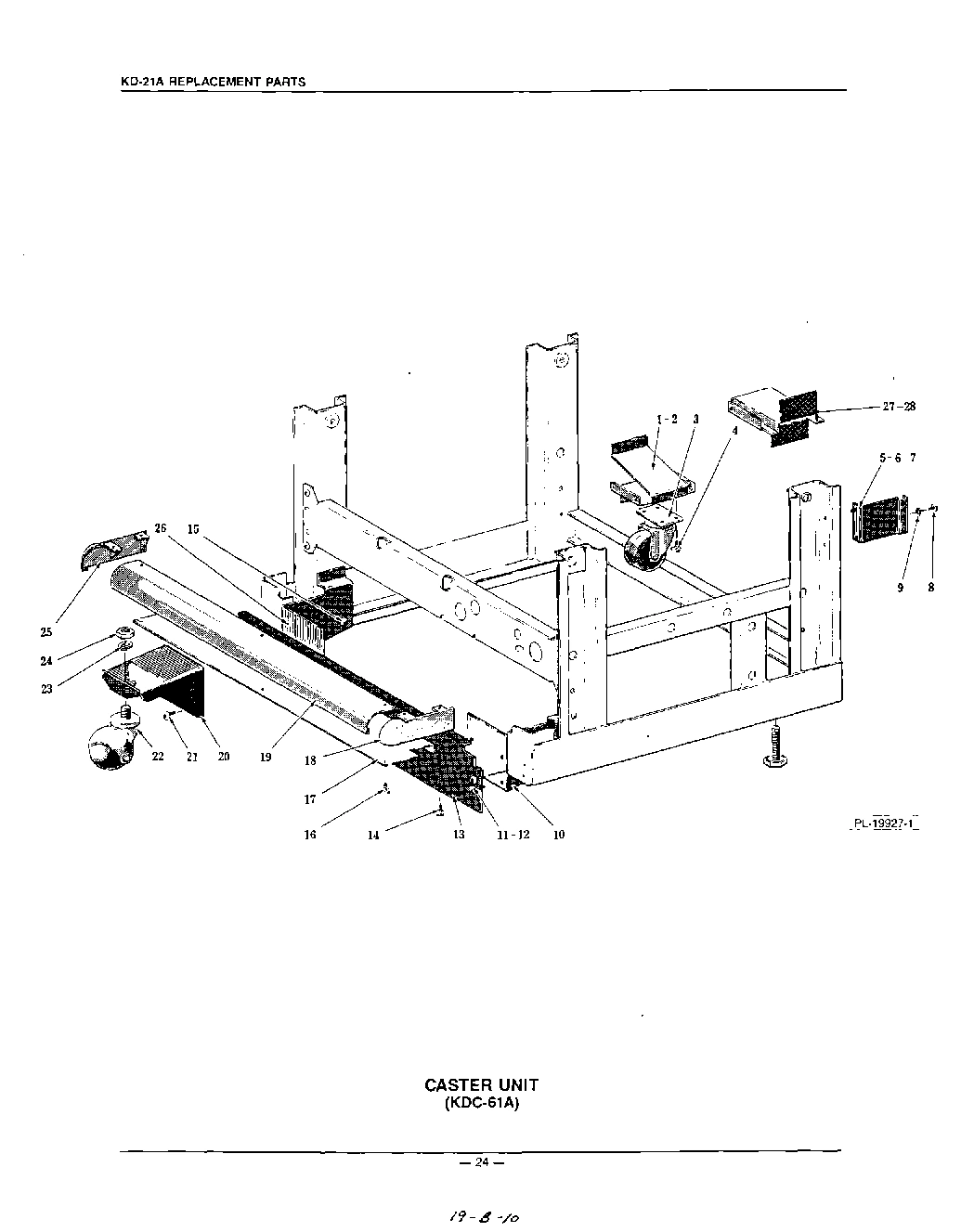

14 - CASTER

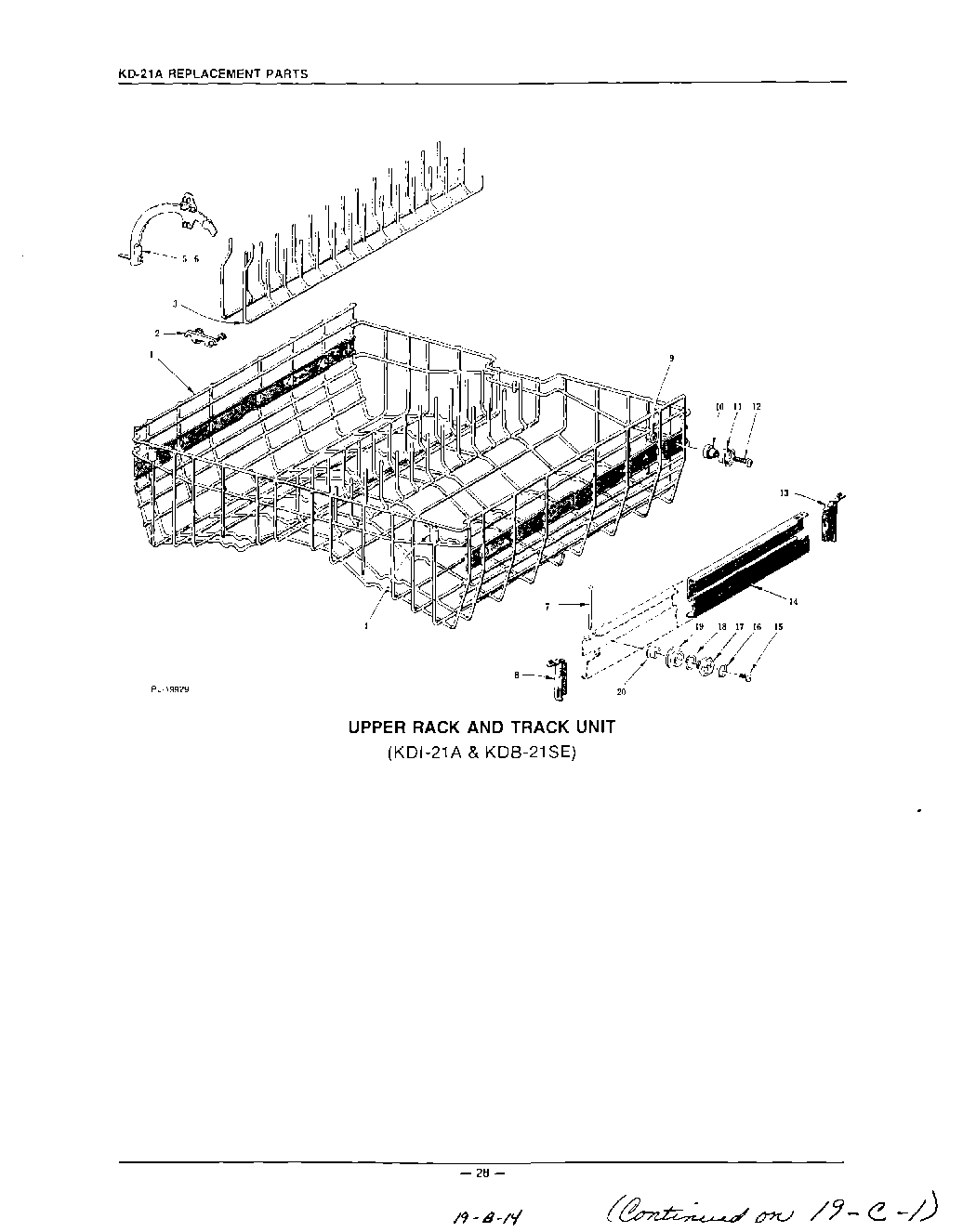

16 - KDI-21A AND KDB-21SE

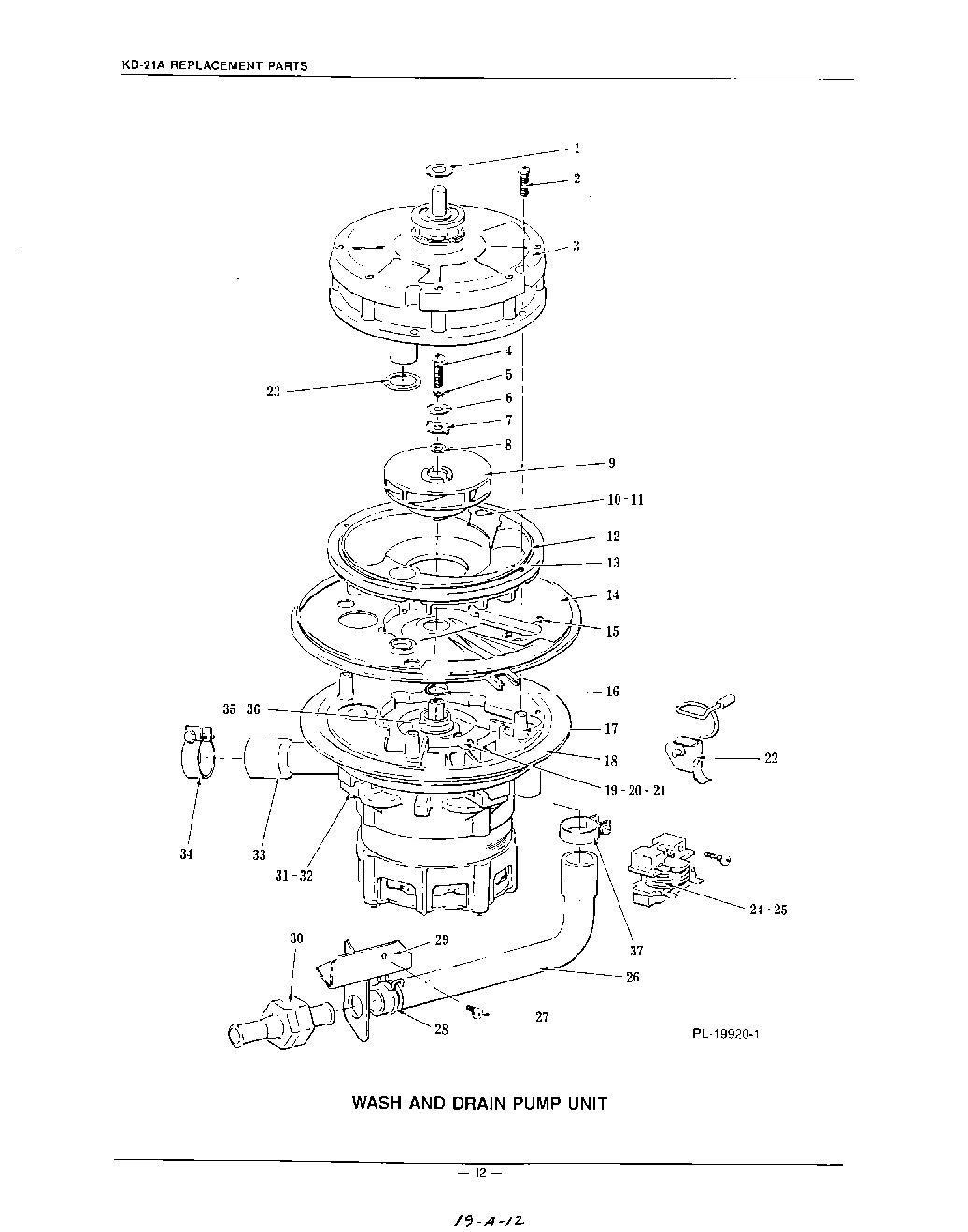

07 - WASH AND DRAIN PUMP

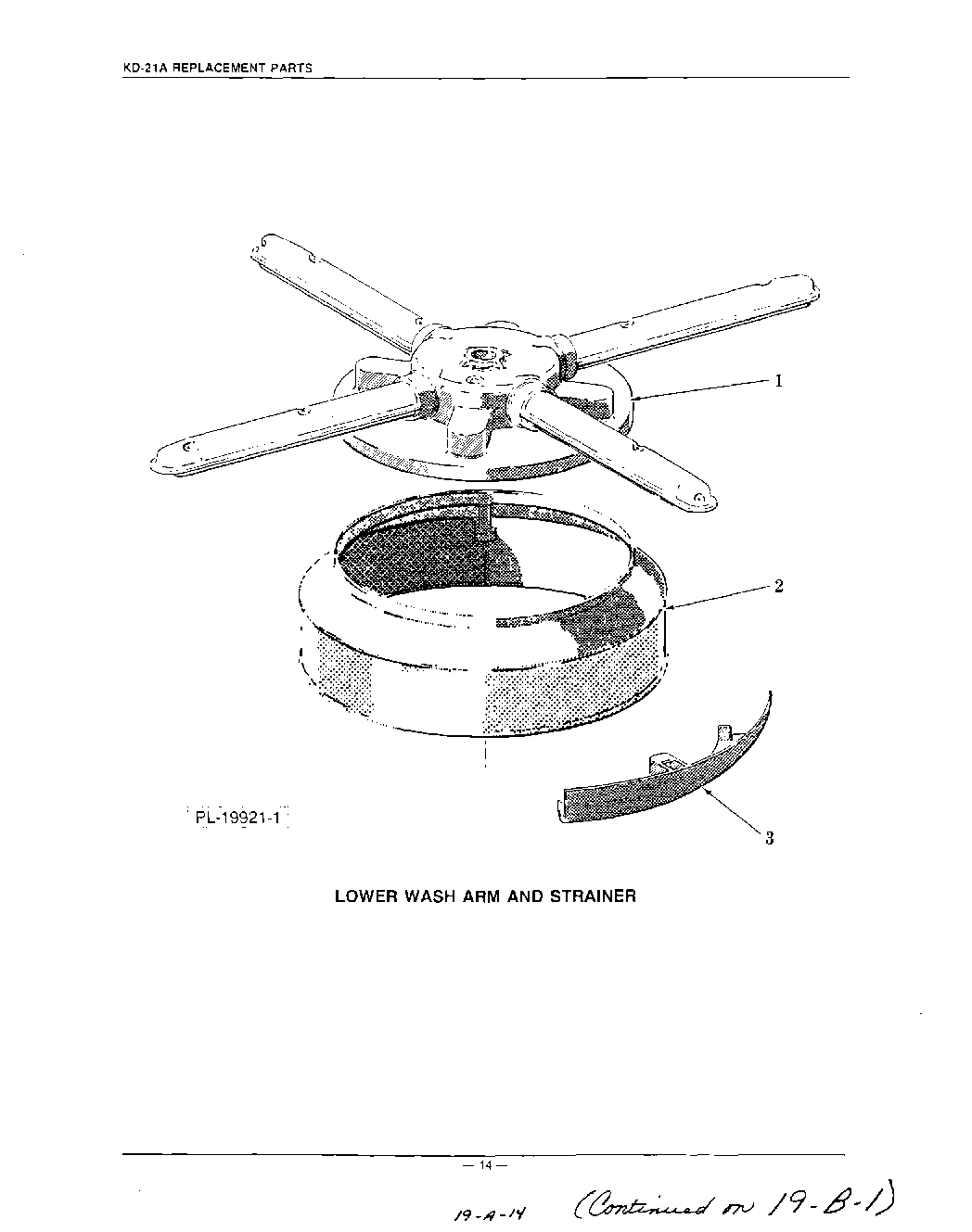

08 - LOWER WASH ARM AND STRAINER

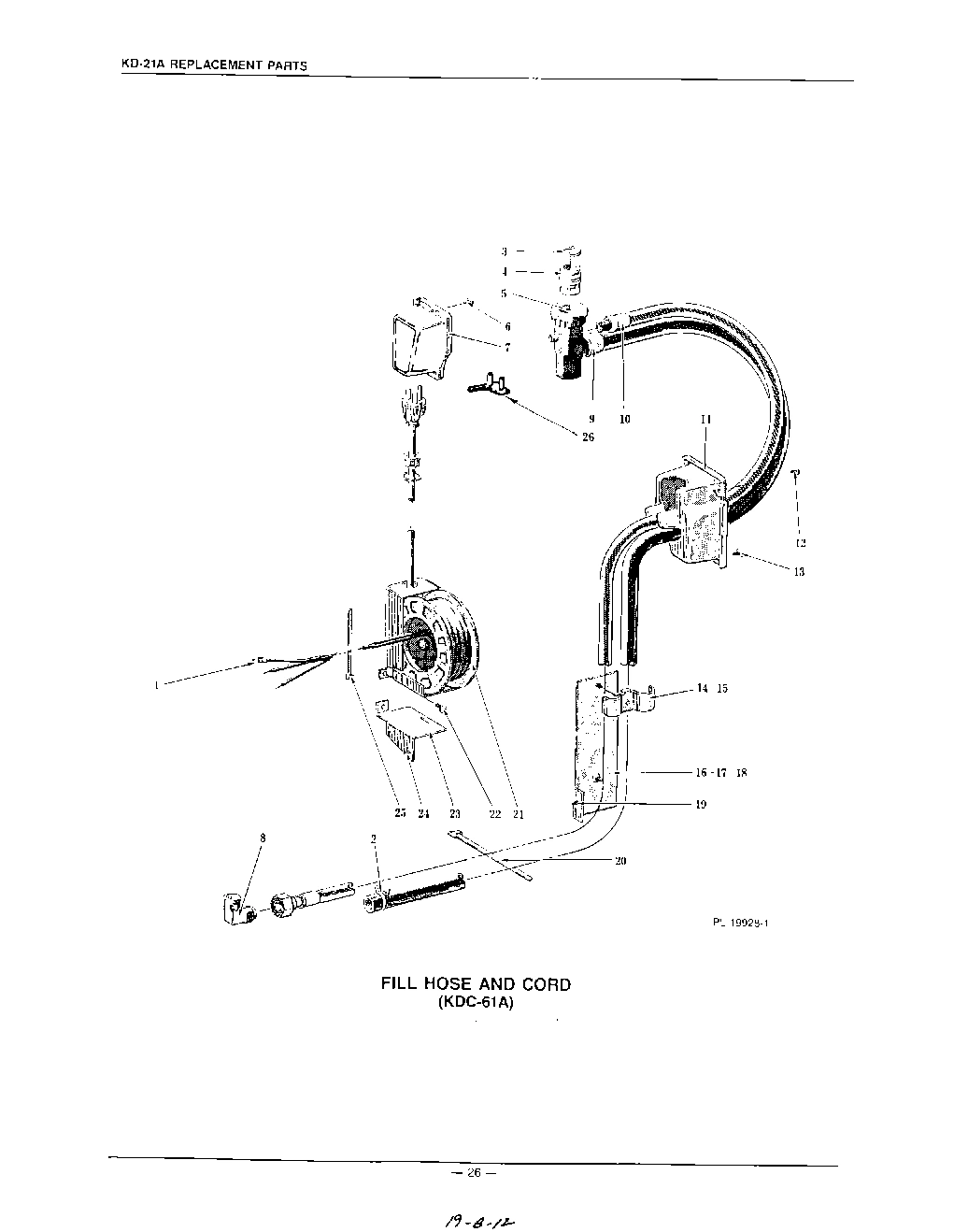

15 - FILL HOSE AND CORD KDC-61A

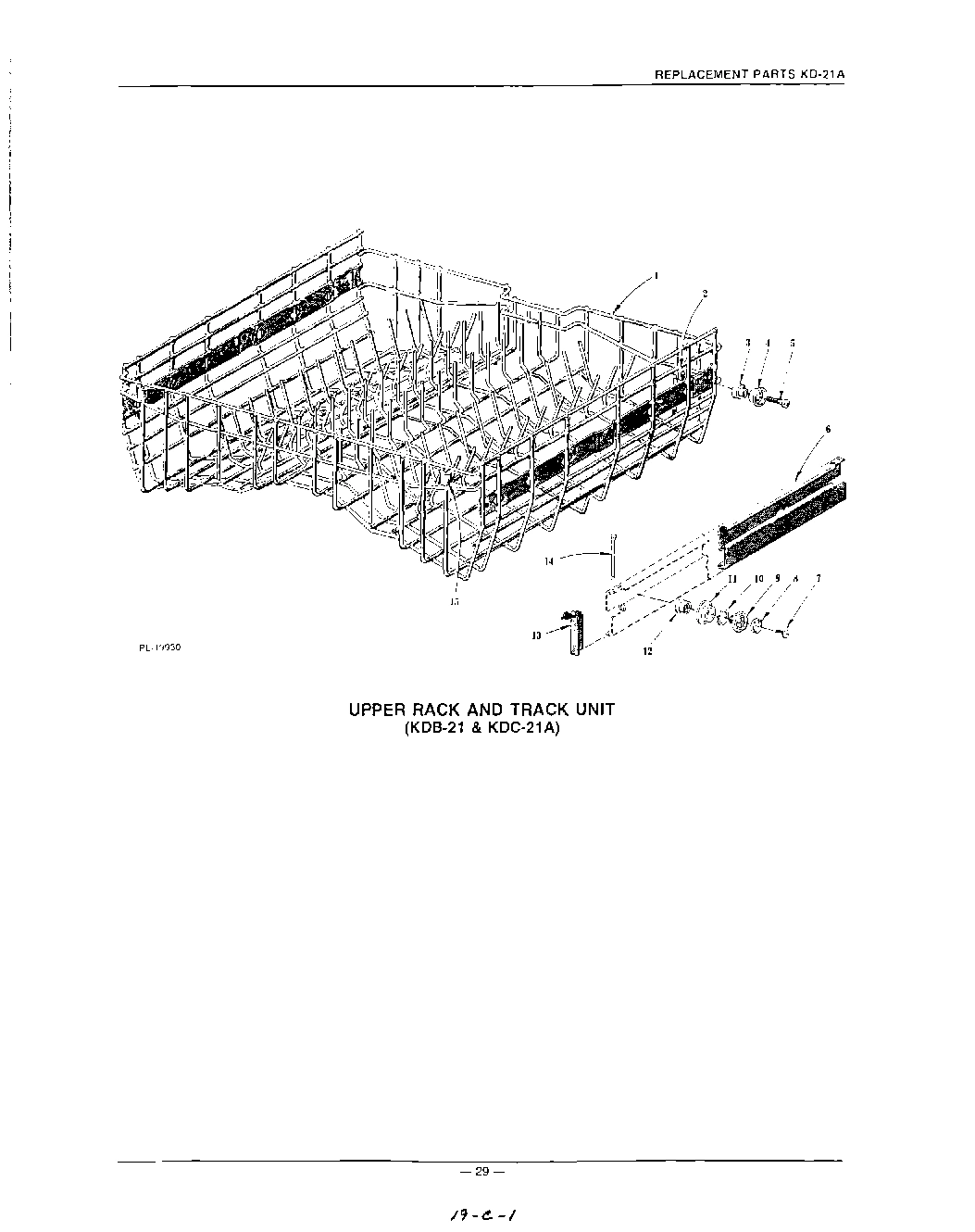

17 - KDB-21 AND KDC-21A

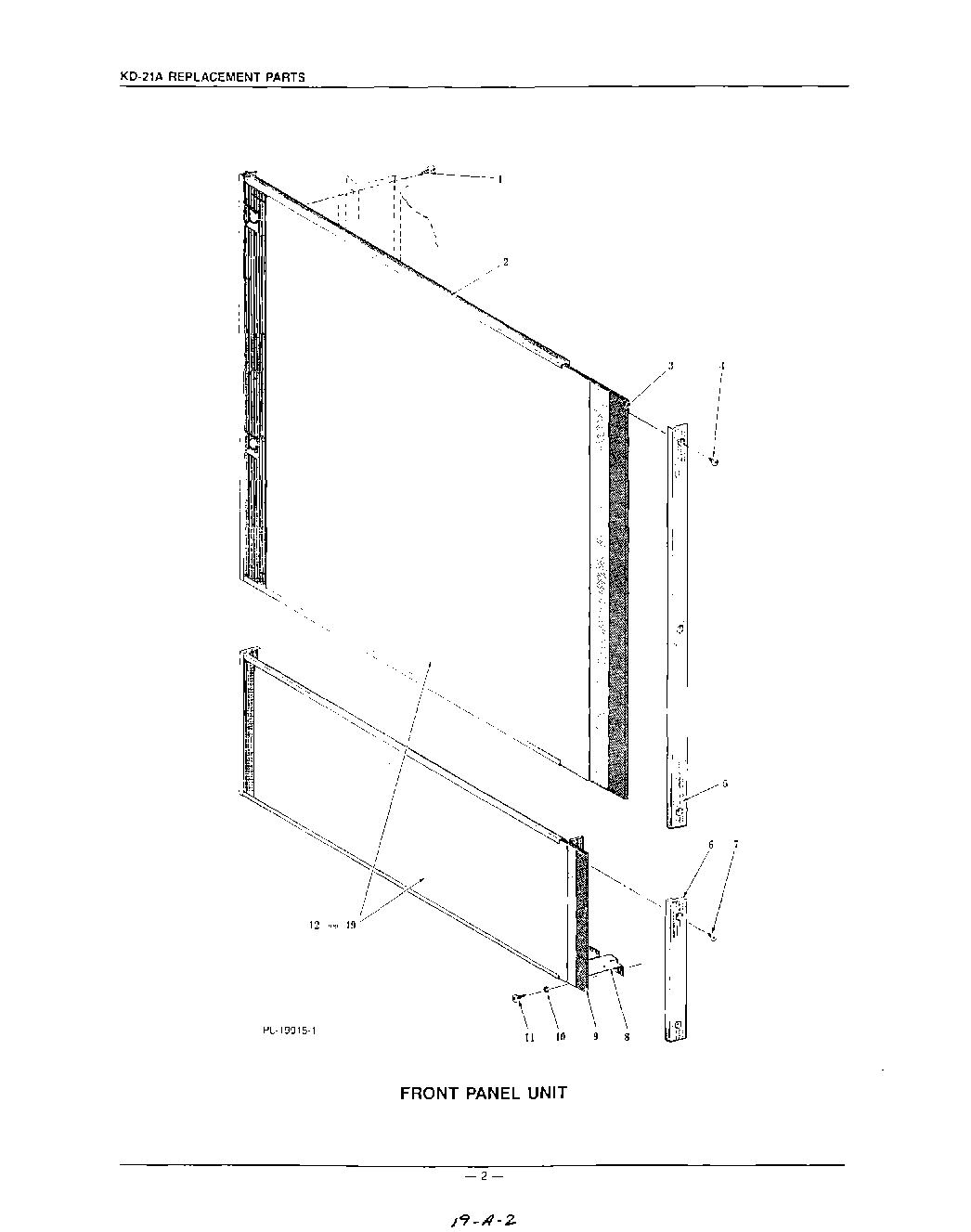

02 - FRONT PANEL
09 - HEAT UNIT

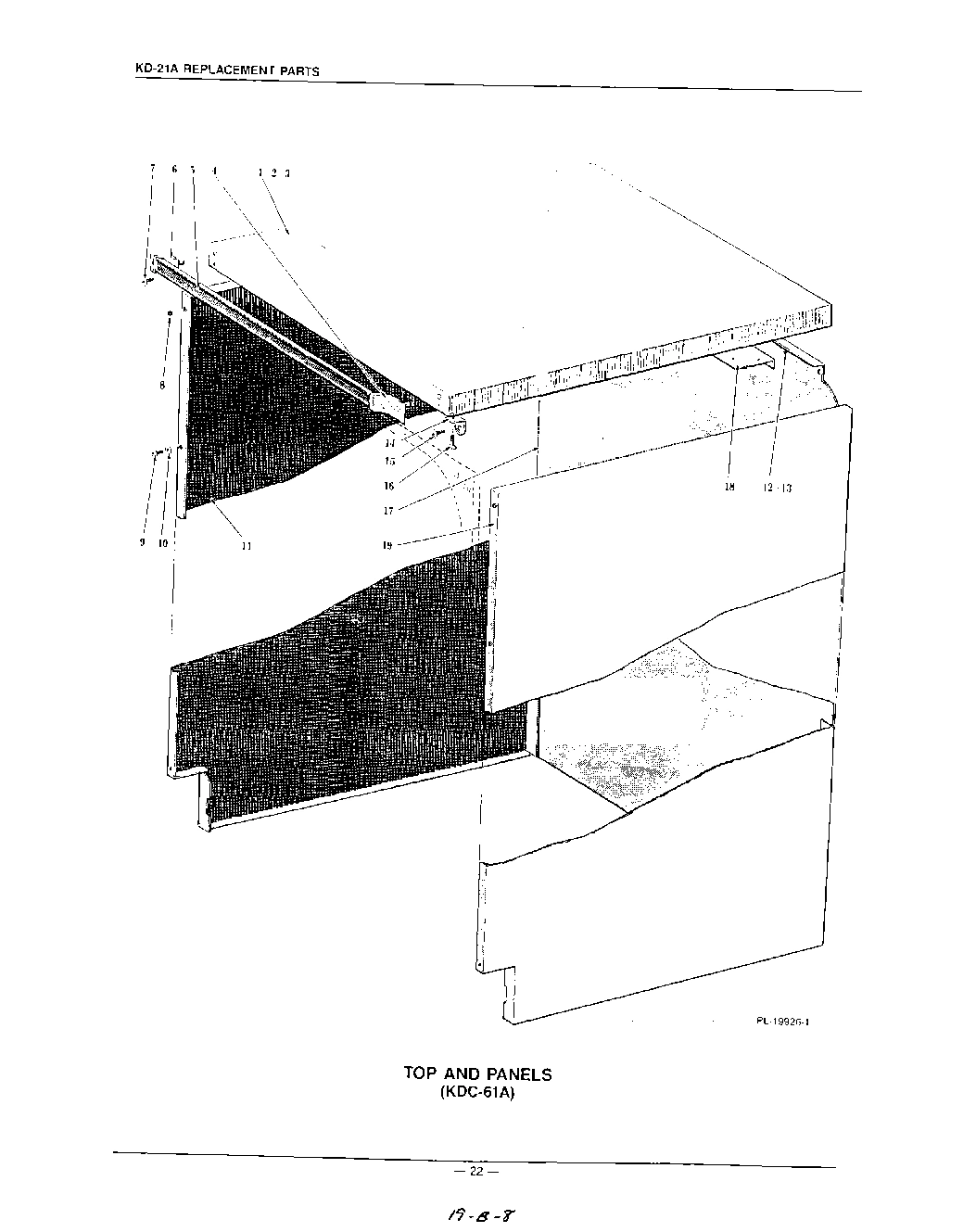

13 - TOP AND PANELS

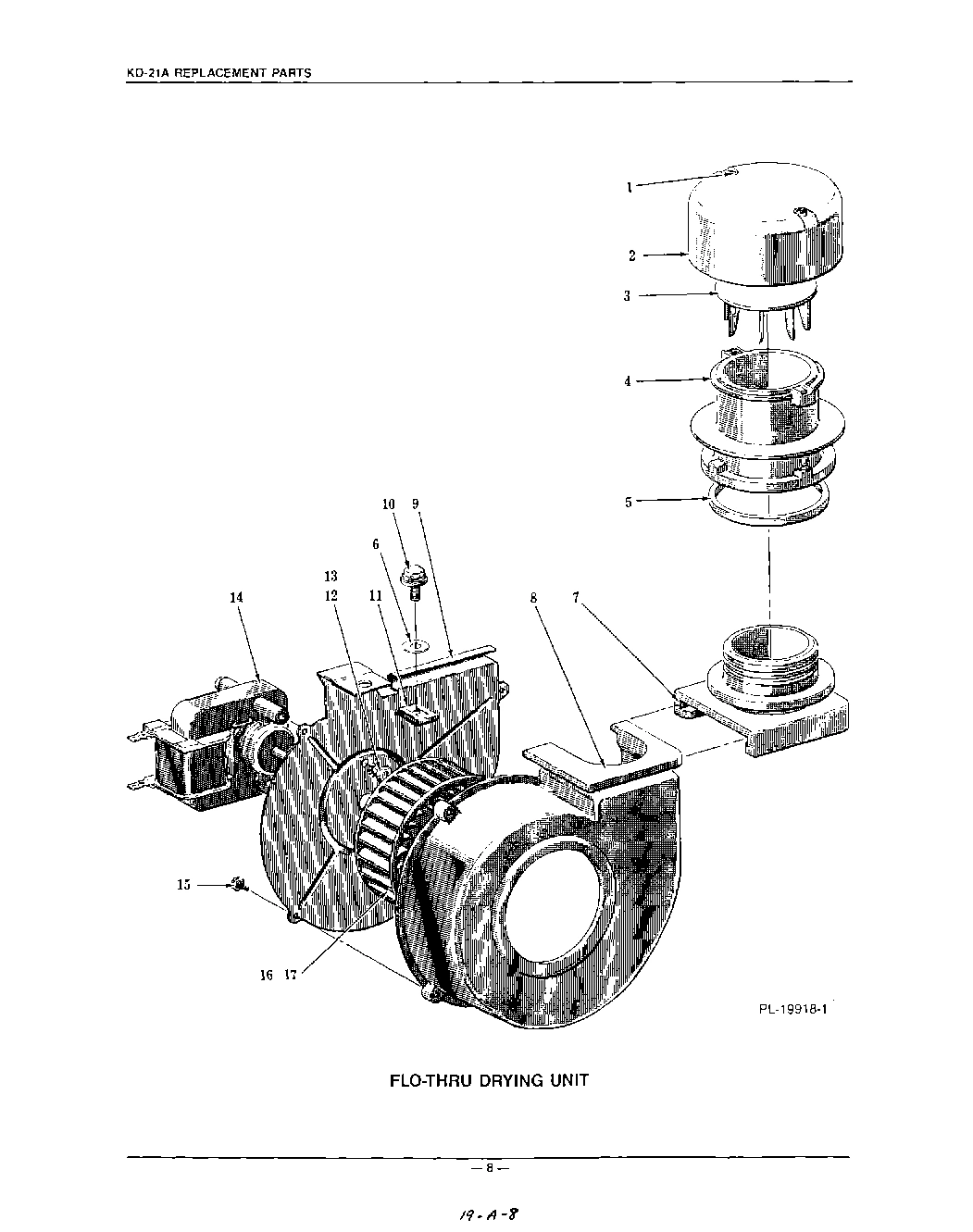

05 - FLO-THRU DRYING

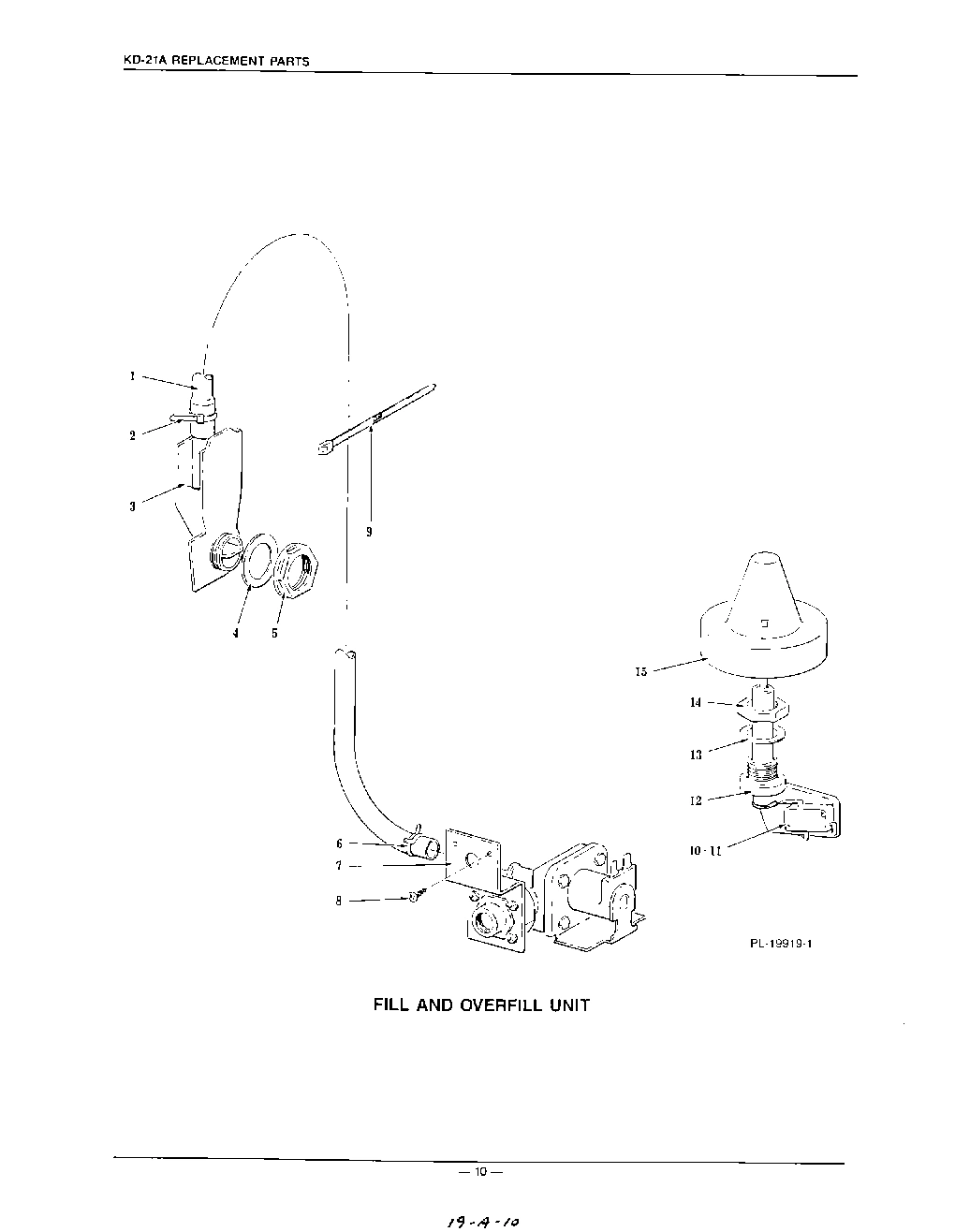

06 - FILL AND OVERFILL

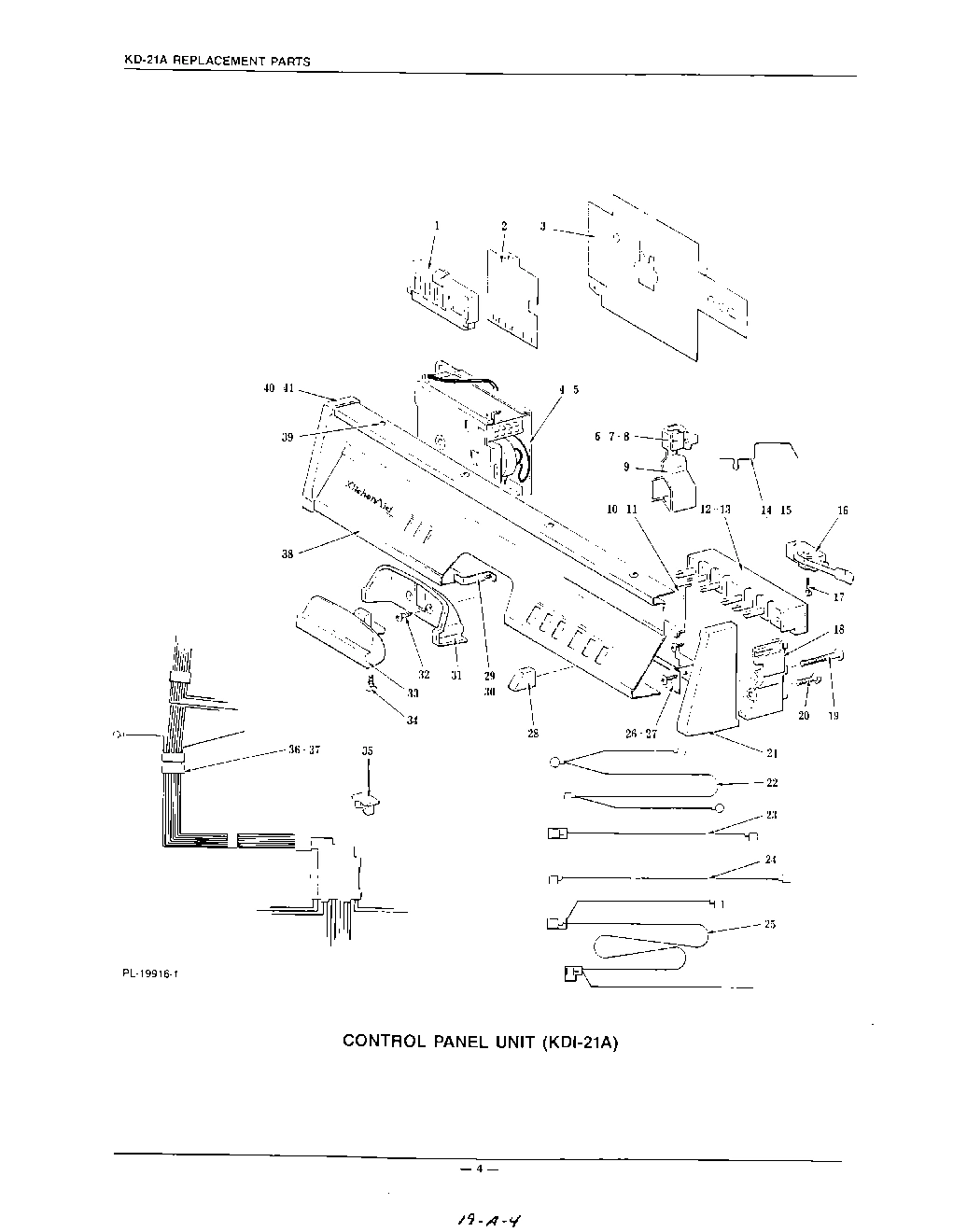

03 - KDI-21A

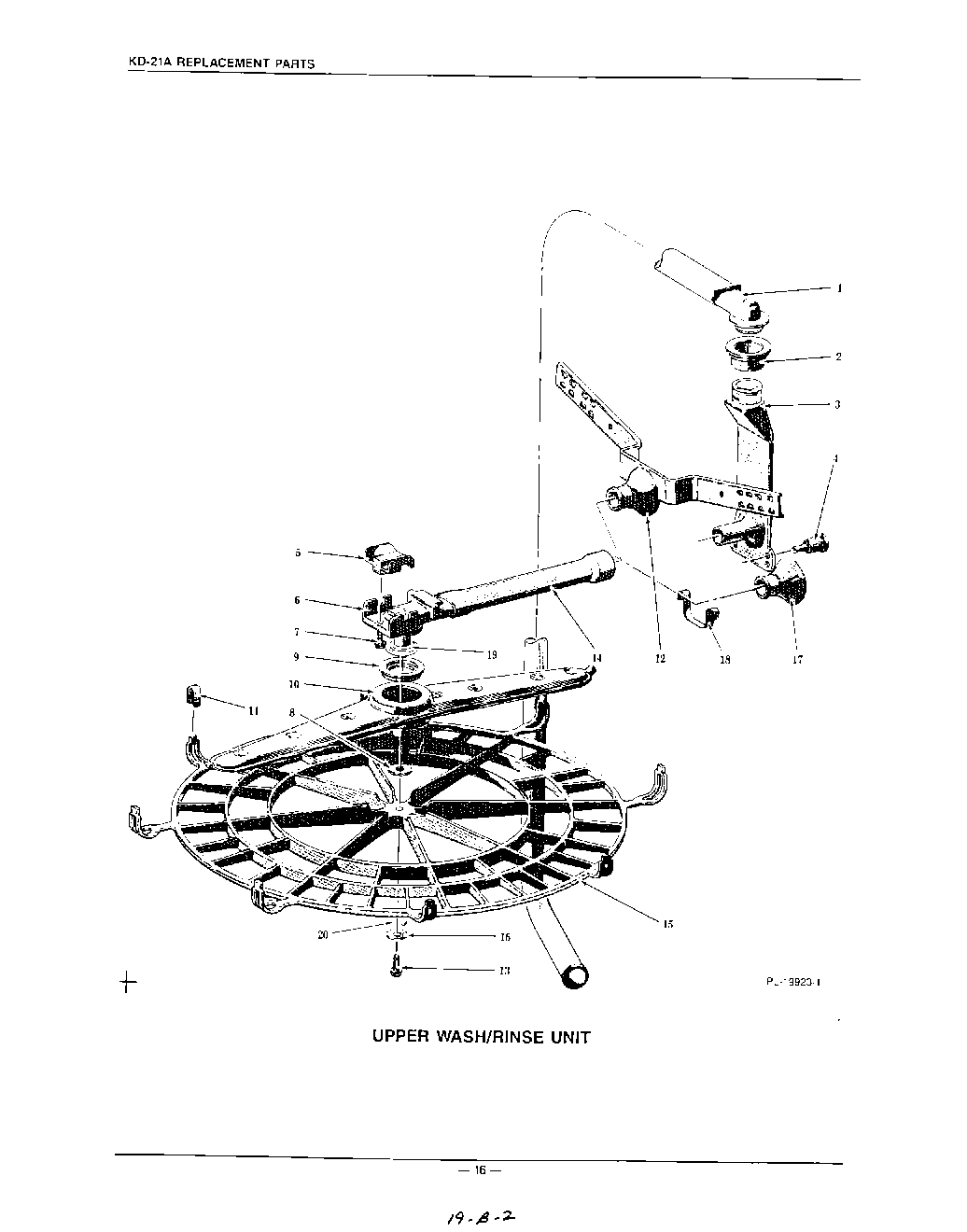

10 - UPPER WASH/RINSE

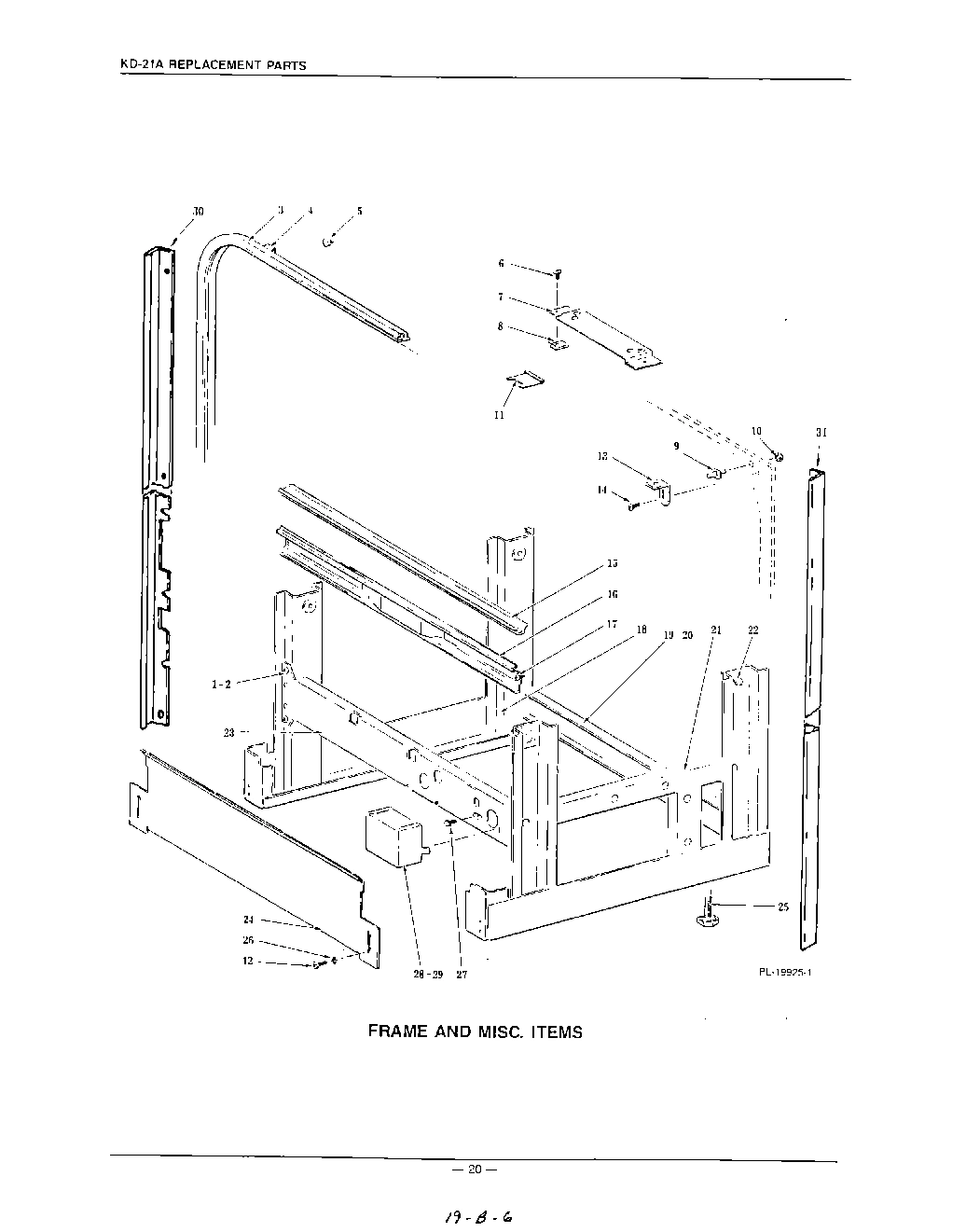

12 - FRAME AND MISCELLANEOUS
Common parts from model Whirlpool KUDC21DS0
1
Cover - Wiring Harness WPL 116174 Contact Us For Availability
1
Bracket - Rear Caster (L.H.) WPL 242003 Contact Us For Availability
1
Upper Rack Assy. (KDB-21SE) WPL 241131 Contact Us For Availability
1
Upper Rack Assy. (Incls. items 2 thru 6 & 9 t WPL 241196 Contact Us For Availability
1
Washer - Wear WPL 241783 Contact Us For Availability
1
Wash Arm Assy WPL 241917 Contact Us For Availability
1
Self-Tapping Screw 10-16 x 1/2 Phil. Rd. Hd., WPL SD1712 Contact Us For Availability
1
Upper Rack Assy. (Incls. items 2, 3, 4, 5 & 1 WPL 242257 Contact Us For Availability
1
xxScrew & Washer Assy WPL ARI113632A Contact Us For Availability
1
Spring - Heater Retainer WPL 243148 Contact Us For Availability
1
Wood Top & Insulation Assy. (W/Pull Bar) (Inc WPL 2426861 Contact Us For Availability
1
Self-Tapping Screw 6-32 x 7/8 Phil. Rd. Hd., WPL SD3323 Contact Us For Availability
1
Hose - Flexible (Fill Valve to Air Gap) WPL 242402 Contact Us For Availability
1
Light Package WPL 242964 Contact Us For Availability
1
Tube & Connector Assy WPL 241439 Contact Us For Availability
1
Short Frame Assy. (Incls. items 2, 18, 19, 20 WPL 241837 Contact Us For Availability
2
Axle - Lower Rack WPL 240682 Contact Us For Availability
2
Washer WPL WS251 Contact Us For Availability
2
Nut - Roller WPL 114054 Contact Us For Availability
2
Bearing & Spacer - Rack Adjusting WPL 241034 Contact Us For Availability
2
Clip - Partition Retaining WPL 101685 Contact Us For Availability
2
Mach. Screw 10-24 x 1 Phil. Pan Hd WPL SC10958 Contact Us For Availability
2
Strainer - Fine WPL 241934 Contact Us For Availability
2
Clamp - Hose WPL 240319 Contact Us For Availability
2
Clamp - Hose WPL 240318 Contact Us For Availability
2
xUpper Mounting Panel & Trim Assy WPL ARI113633A Contact Us For Availability
2
Hook - Heater Element WPL 242958 Contact Us For Availability
2
Wood Top & Insulation Assy. (W/O Pull Bar) (I WPL 2416862 Contact Us For Availability
2
Cap - Air Inlet WPL 241075 Contact Us For Availability
2
Insulator - Light Package WPL 242599 Contact Us For Availability
2
Connector - Vertical Conduit WPL 241546 Contact Us For Availability
3
Wheel - Lower Rack WPL 240683 Contact Us For Availability
3
Insulator - Latch Area WPL 242870 Contact Us For Availability
3
Washer - Rack WPL 241025 Contact Us For Availability
3
Caster - Rear WPL 104540 Contact Us For Availability
3
Partition - Upper Rack WPL 115948 Contact Us For Availability
3
Bearing & Spacer - Rack Roller WPL 241035 Contact Us For Availability
3
Wash Pump Top Kit (Incls. items 1 & 23) WPL 242638 Contact Us For Availability
3
Strainer - Coarse WPL 241939 Contact Us For Availability
3
Washer Kit WPL 110553 Contact Us For Availability
3
xFiller (Upper Panel) WPL ARI113634A Contact Us For Availability
3
Washer - Countersunk WPL WC58 Contact Us For Availability
3
Wood Screw 10-13 x 3/4 Phil. Rd. Hd WPL SW525 Contact Us For Availability
3
Damper - Air Inlet WPL 241078 Contact Us For Availability
3
Air Gap - Fill Assy. (Incls. items 1 & 2) WPL 242446 Contact Us For Availability
3
Conduit - Vertical WPL 241392 Contact Us For Availability
3
Door Seal Assy. (Incls. item 4) WPL 116115 Contact Us For Availability
4
Basket - Silverware WPL 101296 Contact Us For Availability
4
Latch Mechanism Assy WPL 1160222 Contact Us For Availability
4
Gasket - Rubber WPL 115840 Contact Us For Availability
4
Roller - Upper Rack Track WPL 89738 Contact Us For Availability
4
Special Screw - No.10-32 WPL 241898 Contact Us For Availability
4
Aerator & Connector Assy. (Incls. item No.3) WPL 110552 Contact Us For Availability
4
xxSelf-Tapping Screw 6 x 1/4 Phil. Flat Hd., WPL ARI113635A Contact Us For Availability
4
Washer - Sealing WPL 78397 Contact Us For Availability
4
End Cap - Guide Bar (R.H.) WPL 116298 Contact Us For Availability
4
Tube - Air Inlet WPL 241076 Contact Us For Availability
4
Timer Assy. (115 V., 60 Hz.) WPL 242960 Contact Us For Availability
4
Clip - Seal WPL 116010 Contact Us For Availability
5
Bumper - Lower Rack WPL 241244 Contact Us For Availability
5
Insulation - Switch WPL 240377 Contact Us For Availability
5
Nut (Fill Air Gap) WPL 1161982 Contact Us For Availability
5
Bracket - Side Panel Mounting WPL 116223 Contact Us For Availability
5
Quadrant - Flexo Divider (L.H.) WPL 108783 Contact Us For Availability
5
Self-Tapping Screw 10-16 x 1 Phil. Pan Hd., T WPL SD3214 Contact Us For Availability
5
Lock Washer 10 Ext. Shakeproof WPL WL147 Contact Us For Availability
5
Gasket - Seal (``U`` Section) WPL 89038 Contact Us For Availability
5
Side Trim - Upper Panel WPL 241482 Contact Us For Availability
5
Washer WPL WS1917 Contact Us For Availability
5
Bar - Guide WPL 116297 Contact Us For Availability
5
Seal - Air Inlet WPL 241074 Contact Us For Availability
5
Retainer - Manifold WPL 241105 Contact Us For Availability
5
Bumper - Door WPL 116101 Contact Us For Availability
6
Anchor - Cancel Spring WPL 242632 Contact Us For Availability
6
Self-Tapping Screw 10-16 x 1/2 Phil. Truss Hd WPL SD1714 Contact Us For Availability
6
Inner Door Assy WPL 241119 Contact Us For Availability
6
Track - Rack WPL 240989 Contact Us For Availability
6
Quadrant - Flexo Divider (R.H.) (Not Shown) WPL 108784 Contact Us For Availability
6
Washer - Spring (Impeller) WPL 83752 Contact Us For Availability
6
Side Trim - Lower Panel WPL 241484 Contact Us For Availability
6
Washer WPL WS235 Contact Us For Availability
6
End Cap - Guide Bar (L.H.) WPL 116299 Contact Us For Availability
6
Spacer - Blower Mounting WPL 241316 Contact Us For Availability
6
Clamp - Hose WPL 1157475 Contact Us For Availability
6
Manifold - Upper Arm WPL 241051 Contact Us For Availability
7
Fill Valve Assy. (115 V., 60 Hz.) WPL 242905 Contact Us For Availability
7
Spacer - Spring WPL 108984 Contact Us For Availability
7
Self-Tapping Screw 10-16 x 3/8 Phil. Pan Hd., WPL SD1923 Contact Us For Availability
7
Washer - Impeller WPL 241896 Contact Us For Availability
7
Housing - Power Cord WPL 111465 Contact Us For Availability
7
xxSelf-Tapping Screw 6 x 1/4 Phil. Flat Hd., WPL ARI113636A Contact Us For Availability
7
Wood Screw 10-13 x 3/4 Phil. Oval Hd WPL SW910 Contact Us For Availability
7
Support - Blower WPL 241077 Contact Us For Availability
7
Protector - Upper Water Inlet WPL 116247 Contact Us For Availability
8
Pop Rivet - 1/8`` Open End WPL RS3013 Contact Us For Availability
8
Switch - Program (KDB-21) WPL 242433 Contact Us For Availability
8
Lift - Receiver (R.H.) WPL 116114 Contact Us For Availability
8
Gasket - Rack Stud WPL 241950 Contact Us For Availability
8
``O`` Ring WPL 67500107 Contact Us For Availability
8
Elbow - Tube Fitting WPL 240872 Contact Us For Availability
8
xLower Mounting Panel & Trim Assy WPL ARI113637A Contact Us For Availability
8
xLead (Thermostat to Heater) WPL 243056 Contact Us For Availability
8
Housing - Blower WPL 241081 Contact Us For Availability
8
Bearing - Arm (Bottom) WPL 241332 Contact Us For Availability
8
Speed Nut 10, Type U WPL 240423 Contact Us For Availability
9
Spring - Switch Cancel WPL 242425 Contact Us For Availability
9
Bracket - L.H. Door Stop WPL 1159773 Contact Us For Availability
9
Lift - Receiver (L.H.) (Not Shown) WPL 116113 Contact Us For Availability
9
Stud - Rack Roller WPL 241952 Contact Us For Availability
9
Wash Impeller Assy WPL 241908 Contact Us For Availability
9
Coupler, Drain Hose & Ferrule Assy. (Incls. i WPL 1069552 Contact Us For Availability
9
Strap (Flexible Connector to Tank) WPL 241941 Contact Us For Availability
9
xFiller (Lower Panel) WPL ARI113638A Contact Us For Availability
9
xThermostat - Limiter WPL 243044 Contact Us For Availability
9
Plate - Blower Motor Mounting WPL 241080 Contact Us For Availability
9
Bearing - Arm (Top) WPL 241095 Contact Us For Availability
9
Actuator - Interlock Switch WPL 242997 Contact Us For Availability
10
Bracket - Program Switch WPL 242424 Contact Us For Availability
10
Plug Button WPL PB312 Contact Us For Availability
10
Roller - Upper Rack WPL 116008 Contact Us For Availability
10
Washer - Roller Spacing WPL 241954 Contact Us For Availability
10
Support - Front Caster Bracket (R.H.) WPL 2420012 Contact Us For Availability
10
Plate - Air Inlet Cover WPL 241973 Contact Us For Availability
10
Fill Hose, Sleeve & Nut Assy WPL 107113 Contact Us For Availability
10
xLock Washer 10 Ext. Shakeproof (Left Side fo WPL ARI113639A Contact Us For Availability
10
xBracket - Thermostat WPL 242961 Contact Us For Availability
10
Screw - Blower Retainer WPL 241143 Contact Us For Availability
10
Self-Tapping Screw 4-40 x 3/4 Phil. Pan Hd., WPL SD2912 Contact Us For Availability
10
Wash/Rinse Arm Assy WPL 241055 Contact Us For Availability
10
Lock Nut 3/16 Palnut WPL NS4728 Contact Us For Availability
11
Bearing - Door Stop Insert WPL 88044 Contact Us For Availability
11
Mach. Screw 8-32 x 1/4 Phil. Pan Hd. ``Nylok` WPL SC6910 Contact Us For Availability
11
Roller - Rack Track WPL 241951 Contact Us For Availability
11
Gasket - Cover Plate WPL 241974 Contact Us For Availability
11
Housing - Hose Coupler WPL 111464 Contact Us For Availability
11
xSelf-Tapping Screw - No. 10 x 1/2`` Phil. Tr WPL ARI113640A Contact Us For Availability
11
xLock Nut 10-32 Hex WPL NS406 Contact Us For Availability
11
Side Panel (L.H.) (White) WPL 2420042 Contact Us For Availability
11
Side Panel (L.H.) (Almond) WPL 2420044 Contact Us For Availability
11
Side Panel (L.H.) (Harvest Tone) WPL 2420046 Contact Us For Availability
11
Speednut - Type ``U`` WPL 241815 Contact Us For Availability
11
Switch - Overfill Control (115 V., 60 Hz.) WPL 116269 Contact Us For Availability
11
Clip - Arm Guard (KDC-61A & KDI-21A) WPL 241107 Contact Us For Availability
11
Keeper - Latch WPL 81218 Contact Us For Availability
12
Vapor Shield Kit WPL 241970 Contact Us For Availability
12
Washer WPL WS2814 Contact Us For Availability
12
Bushing - Rack Roller WPL 241953 Contact Us For Availability
12
Self-Tapping Screw 10-16 x 5/16 Phil. Truss H WPL SD179 Contact Us For Availability
12
Self-Tapping Screw 10-16 x 3/8 Phil. Truss Hd WPL SD2625 Contact Us For Availability
12
Self-Tapping Screw 6-20 x 5/8 Phil. Oval Hd., WPL SD2614 Contact Us For Availability
12
Kit - Panel Inserts (FA/CO) WPL 2416773 Contact Us For Availability
12
Kit - Panel Inserts (SST) WPL 2416774 Contact Us For Availability
12
Kit - Panel Inserts (AL/WH) WPL 2416775 Contact Us For Availability
12
Kit - Panel Inserts (PL/TO) WPL 2416777 Contact Us For Availability
12
Kit - Panel Inserts (SI/OB) WPL 2416779 Contact Us For Availability
12
Kit - Panel Inserts (HT/OB) WPL 2516776 Contact Us For Availability
12
Kit - Panel Inserts (SA/OB) WPL 2516778 Contact Us For Availability
12
Element - Heater WPL 242951 Contact Us For Availability
12
Mach. Nut 6-32 Hex WPL NS97 Contact Us For Availability
12
Standpipe - Overfill WPL 116270 Contact Us For Availability
12
Switch - Program WPL 242954 Contact Us For Availability
12
Receiver - Manifold Tube (KDC-61A) WPL 115958 Contact Us For Availability
13
Self-Tapping Screw 6-32 x 3/8 Phil. Truss Hd. WPL SD3229 Contact Us For Availability
13
Bracket - R.H. Spring Mounting WPL 240028 Contact Us For Availability
13
Self-Tapping Screw 10-16 x 5/8 Phil. Pan Hd., WPL SD3220 Contact Us For Availability
13
Bumper - Rack Track WPL 240288 Contact Us For Availability
13
Kickboard WPL 242000 Contact Us For Availability
13
Seal - Wash Pump Ring WPL 241901 Contact Us For Availability
13
Self-Tapping Screw 6-20 x 3/8 Phil. Oval Unde WPL SD2237 Contact Us For Availability
13
Grommet - Heater Element WPL 2411353 Contact Us For Availability
13
Washer WPL WS1934 Contact Us For Availability
13
Lock Washer 6 Ext. Shakeproof WPL WL72 Contact Us For Availability
13
Special Screw - Hex Washer Hd WPL 116277 Contact Us For Availability
13
Bracket - Top Panel Anchor WPL 2404121 Contact Us For Availability
14
Spring - Door Interlock WPL 242980 Contact Us For Availability
14
Bracket - L.H. Spring Mounting (Not Shown) WPL 240027 Contact Us For Availability
14
Adjustable Rack Track Mech. (R.H.) WPL 116155 Contact Us For Availability
14
Stud - Bumper Retaining WPL 89746 Contact Us For Availability
14
Self-Tapping Screw 10-16 x 3/8 Ind. Hex Hd., WPL SD2233 Contact Us For Availability
14
Fine Strainer WPL 241938 Contact Us For Availability
14
Clamp - Hose WPL 105662 Contact Us For Availability
14
Self-Tapping Screw 10-16 x 1/2 Phil. Truss Hd WPL SD1713 Contact Us For Availability
14
Washer - Heater Element WPL 242963 Contact Us For Availability
14
Bracket - Top Panel Anchor WPL 242125 Contact Us For Availability
14
Motor - Blower (115 V., 60 Hz.) (Incls. Screw WPL 241220 Contact Us For Availability
14
Nut - Standpipe WPL 115983 Contact Us For Availability
14
Tube (Manifold to Receiver) WPL 116029 Contact Us For Availability
15
Self-Tapping Screw 10-16 x 1/2 Phil. Truss Hd WPL SD3629 Contact Us For Availability
15
Screw & Washer Assy. 10-32 x 3/8 Phil. Hex Hd WPL A218 Contact Us For Availability
15
Adjustable Rack Track Mech. (L.H.) (Not Shown WPL 116154 Contact Us For Availability
15
Bumper - Upper Rack WPL 240228 Contact Us For Availability
15
Self-Tapping Screw 10-16 x 3/8 Phil. Truss Hd WPL SD1711 Contact Us For Availability
15
Nut - Heater Element WPL 242965 Contact Us For Availability
15
Heater Kit (Service) (Incls. items 12 thru 15 WPL 243041 Contact Us For Availability
15
Self-Tapping Screw 6 x 1/2 Phil. Pan Hd., Typ WPL SD1929 Contact Us For Availability
15
Float & Retainer Assy WPL 240917 Contact Us For Availability
15
Guard - Arm (KDC-61A & KDI-21A) WPL 241056 Contact Us For Availability
15
Channel - Evaporation WPL 240649 Contact Us For Availability
16
Switch - Interlock WPL 105437 Contact Us For Availability
16
Bracket - R.H. Door Stop WPL 1159783 Contact Us For Availability
16
Self-Tapping Screw 6-20 x 3/8 Phil. Rd. Hd., WPL SD174 Contact Us For Availability
16
``O`` Ring WPL 67500108 Contact Us For Availability
16
Bracket - Hose Anchor WPL 241998 Contact Us For Availability
16
Wood Screw 10-13 x 3/4 Phil. Flat Hd WPL SW104 Contact Us For Availability
16
Blower Wheel Assy. (Incls. item 17) WPL 241104 Contact Us For Availability
16
Washer WPL 241331 Contact Us For Availability
16
Support - Evaporation Channel WPL 115912 Contact Us For Availability
17
Self-Tapping Screw 6-32 x 7/8 Phil. Pan Hd., WPL SD932 Contact Us For Availability
17
Mach. Screw 10-32 x 5/16 Phil. Truss Hd WPL SC667 Contact Us For Availability
17
Mach. Screw 10-32 x 1/2 Phil. Truss Hd., CA P WPL 240388 Contact Us For Availability
17
Barrier - Front Panel WPL 241999 Contact Us For Availability
17
Motor Mounting Plate Kit (Incls. items 18 & 3 WPL 242636 Contact Us For Availability
17
Washer - Trim WPL 73017 Contact Us For Availability
17
Panel - Rear (Almond) WPL 2419922 Contact Us For Availability
17
Blower Assy. Unit (Incls. items 8, 9, 11, 12, WPL 241082 Contact Us For Availability
17
Retaining Ring WPL 241084 Contact Us For Availability
17
Receiver - Manifold (KDB-21, KDC-21A & KDI-21 WPL 240968 Contact Us For Availability
18
Spacer - End Cap (R.H.) WPL 2424941 Contact Us For Availability
18
End Cap - Caster Trim (R.H.) WPL 240010 Contact Us For Availability
18
Gasket - Motor Mounting Plate WPL 115716 Contact Us For Availability
18
Bracket - Rear Panel Anchor WPL 241997 Contact Us For Availability
18
Support - Receiver (KDB-21, KDC-21A & KDI-21A WPL 240979 Contact Us For Availability
18
Frame Assy. (L.H.) WPL 241852 Contact Us For Availability
19
Screw & Washer Assy WPL 242436 Contact Us For Availability
19
Wiring Harness (Grounding) (KDB-21) WPL 243020 Contact Us For Availability
19
Bracket - R.H. Hinge WPL 1159703 Contact Us For Availability
19
Trim - Front Caster WPL 240009 Contact Us For Availability
19
Drain Pump Top Assy WPL 241915 Contact Us For Availability
19
Side Panel (R.H.) (White) WPL 2420041 Contact Us For Availability
19
Side Panel (R.H.) (Almond) WPL 2420043 Contact Us For Availability
19
Side Panel (R.H.) (Harvest Tone) WPL 2420045 Contact Us For Availability
19
Spacer - Upper Rack (KDB-21 & KDC-21A) WPL 242263 Contact Us For Availability
19
Cross Frame - Rear WPL 241753 Contact Us For Availability
20
Self-Tapping Screw 8-32 x 7/8 Phil. Pan Hd., WPL SD3623 Contact Us For Availability
20
Spring - Door Co-Balance WPL 241342 Contact Us For Availability
20
Bracket - Front Caster WPL 116295 Contact Us For Availability
20
Gasket - Drain Pump WPL 242108 Contact Us For Availability
20
Washer (KDB-21 & KDC-21A) WPL 242264 Contact Us For Availability
20
Screw & Lock Washer Assy. 10-16 x 5/8 Phil. T WPL SA118 Contact Us For Availability
21
Cap - End (R.H.) WPL 2424131 Contact Us For Availability
21
Pin - Hinge WPL 115910 Contact Us For Availability
21
Self-Tapping Screw 10-16 x 1/2 Phil. Truss Hd WPL SD1718 Contact Us For Availability
21
Mach. Screw 8-32 x 1/2 Phil. Pan Hd WPL SC934 Contact Us For Availability
21
Cord Reel Assy. (Service) WPL 242110 Contact Us For Availability
21
Frame Assy. (R.H.) WPL 241851 Contact Us For Availability
22
Wiring Harness (Ground) WPL 242968 Contact Us For Availability
22
Clip - Hinge Pin Retaining WPL 115968 Contact Us For Availability
22
Caster - Front WPL 116273 Contact Us For Availability
22
Motor Clamp Assy WPL 240106 Contact Us For Availability
22
Self-Tapping Screw 1/4-20 x 1/2 Hex Washer Hd WPL SD3390 Contact Us For Availability
23
Lead Assy. (Fill Control Switch to Fill Valve WPL 242777 Contact Us For Availability
23
Wiring Harness (Lower Common) (KDB-21) WPL 243018 Contact Us For Availability
23
Screw & Washer Assy WPL 240333 Contact Us For Availability
23
Lock Washer - 3/8`` Light WPL WL44 Contact Us For Availability
23
Gasket - Venturi WPL 241894 Contact Us For Availability
23
Bracket - Cord Reel Mounting WPL 241996 Contact Us For Availability
23
Cross Frame - Front WPL 115370 Contact Us For Availability
24
Lead Assy. (Interlock Switch to Program Switc WPL 241315 Contact Us For Availability
24
Gasket - Detergent Dispenser WPL 116065 Contact Us For Availability
24
Upper Rack Assy. (KDC-21AD & KDI-21AD) WPL 241140 Contact Us For Availability
24
Upper Rack Assy. (Incls. item 25) / (KDC-61A WPL 241245 Contact Us For Availability
24
Jam Nut 3/8-16 Hex Fin WPL NS1716 Contact Us For Availability
24
Start Relay Kit (Incls. item 25) WPL 243102 Contact Us For Availability
24
Kick Board WPL 115957 Contact Us For Availability
25
Wiring Harness (Lower Common) WPL 242967 Contact Us For Availability
25
End Cap - Caster Trim (L.H.) WPL 240011 Contact Us For Availability
25
Self-Tapping Screw 8-18 x 1 1/4 Phil. Rd. Hd. WPL SD1926 Contact Us For Availability
25
Coupler Service Kit WPL 240936 Contact Us For Availability
25
Foot - Leveling (5/16-18 Thd.) WPL 241857 Contact Us For Availability
26
Clip - Grounding (Front Panel) WPL 240220 Contact Us For Availability
26
Bimetal Assy WPL 241225 Contact Us For Availability
26
Lock Washer 10 Ext. Shakeproof WPL WL712 Contact Us For Availability
26
Support - Front Caster Bracket (L.H.) WPL 2420011 Contact Us For Availability
26
Tube - Flexible (Drain) WPL 242211 Contact Us For Availability
26
Guide-Locking WPL 113715 Contact Us For Availability
27
Button - Program Switch WPL 2424062 Contact Us For Availability
27
Self-Tapping 8-18 x 1/2 Phil. Pan Hd., Type B WPL SD1311 Contact Us For Availability
27
Baffle - Lower WPL 1150531 Contact Us For Availability
27
Bracket - Rear Caster (R.H.) WPL 242999 Contact Us For Availability
27
Self-Tapping Screw 10-32 x 3/8 Indented Hex W WPL SD1238 Contact Us For Availability
28
Self-Tapping Screw 8-18 x 1/2 Phil. Truss Hd. WPL SD1742 Contact Us For Availability
28
Clamp - Hose (.937`` Dia.) WPL 1157477 Contact Us For Availability
28
Button - Program Switch WPL 2424061 Contact Us For Availability
28
Enclosure - Elec. Supply WPL 115371 Contact Us For Availability
29
Cap WPL 240471 Contact Us For Availability
29
Bracket - Check Valve WPL 242525 Contact Us For Availability
29
Tank & Frame Assy. (Service) WPL 243040 Contact Us For Availability
29
Self-Tapping Screw 8-18 x 1/2 Phil. Bin WPL SD1741 Contact Us For Availability
30
Self-Tapping Screw 6-20 x 3/8 Phil. Truss Hd. WPL SD3580 Contact Us For Availability
30
WPL 2424222 WPL 2424222 Contact Us For Availability
30
Detergent Dispenser & Gasket Assy. (115 V., 6 WPL 115152 Contact Us For Availability
30
Check Valve Assy WPL 241905 Contact Us For Availability
30
WPL 115903 WPL 115903 Contact Us For Availability
31
Gasket - Plug Button WPL 240163 Contact Us For Availability
31
Motor, Seal & Gasket Kit (Incls. items 18, 24 WPL 242635 Contact Us For Availability
31
Trim - Handle WPL 2424221 Contact Us For Availability
31
WPL 115904 WPL 115904 Contact Us For Availability
32
Mach. Screw 8-32 x 1/2 Phil. WPL SC11752 Contact Us For Availability
32
Washer (Rubber) WPL WS2815 Contact Us For Availability
32
Mach. Screw 1/4-20 x 1 Pan Hd WPL SC1871 Contact Us For Availability
33
WPL 242414 WPL 242414 Contact Us For Availability
33
Connector - Overhead WPL 116003 Contact Us For Availability
34
WPL SC1714 WPL SC1714 Contact Us For Availability
34
Fill Hole Plug Assy. (Incls. item 35) WPL 241163 Contact Us For Availability
34
Clamp - Hose (1.468`` Dia.) WPL 2402021 Contact Us For Availability
35
WPL 242641 WPL 242641 Contact Us For Availability
35
WPL 243019 WPL 243019 Contact Us For Availability
35
Washer - Fill Hole Plug WPL 241101 Contact Us For Availability
35
Shaft Seal & Gasket Kit (Incls. items 8, 16, WPL 242634 Contact Us For Availability
36
WPL 242969 WPL 242969 Contact Us For Availability
36
Impeller - Drain WPL 242097 Contact Us For Availability
36
WPL 242970 WPL 242970 Contact Us For Availability
37
WPL SD843 WPL SD843 Contact Us For Availability
37
Clamp - WPL 2402023 Contact Us For Availability
37
WPL 241936 WPL 241936 Contact Us For Availability
38
WPL 241537 WPL 241537 Contact Us For Availability
38
WPL 241137 WPL 241137 Contact Us For Availability
38
WPL 2429722 WPL 2429722 Contact Us For Availability
39
WPL 2429723 WPL 2429723 Contact Us For Availability
39
WPL SD2227 WPL SD2227 Contact Us For Availability
39
WPL 1159713 WPL 1159713 Contact Us For Availability
40
WPL 2429721 WPL 2429721 Contact Us For Availability
40
WPL 2424942 WPL 2424942 Contact Us For Availability
40
WPL 240162 WPL 240162 Contact Us For Availability
40
WPL 242649 WPL 242649 Contact Us For Availability
41
WPL 2424132 WPL 2424132 Contact Us For Availability
41
WPL 2429732 WPL 2429732 Contact Us For Availability
44
WPL 242993 WPL 242993 Contact Us For Availability
45
WPL 242959 WPL 242959 Contact Us For Availability
46
WPL 2429731 WPL 2429731 Contact Us For Availability
46
WPL 2429733 WPL 2429733 Contact Us For Availability
× ![]()
