Model Whirlpool KUCS181D0 – Common Parts & Diagrams

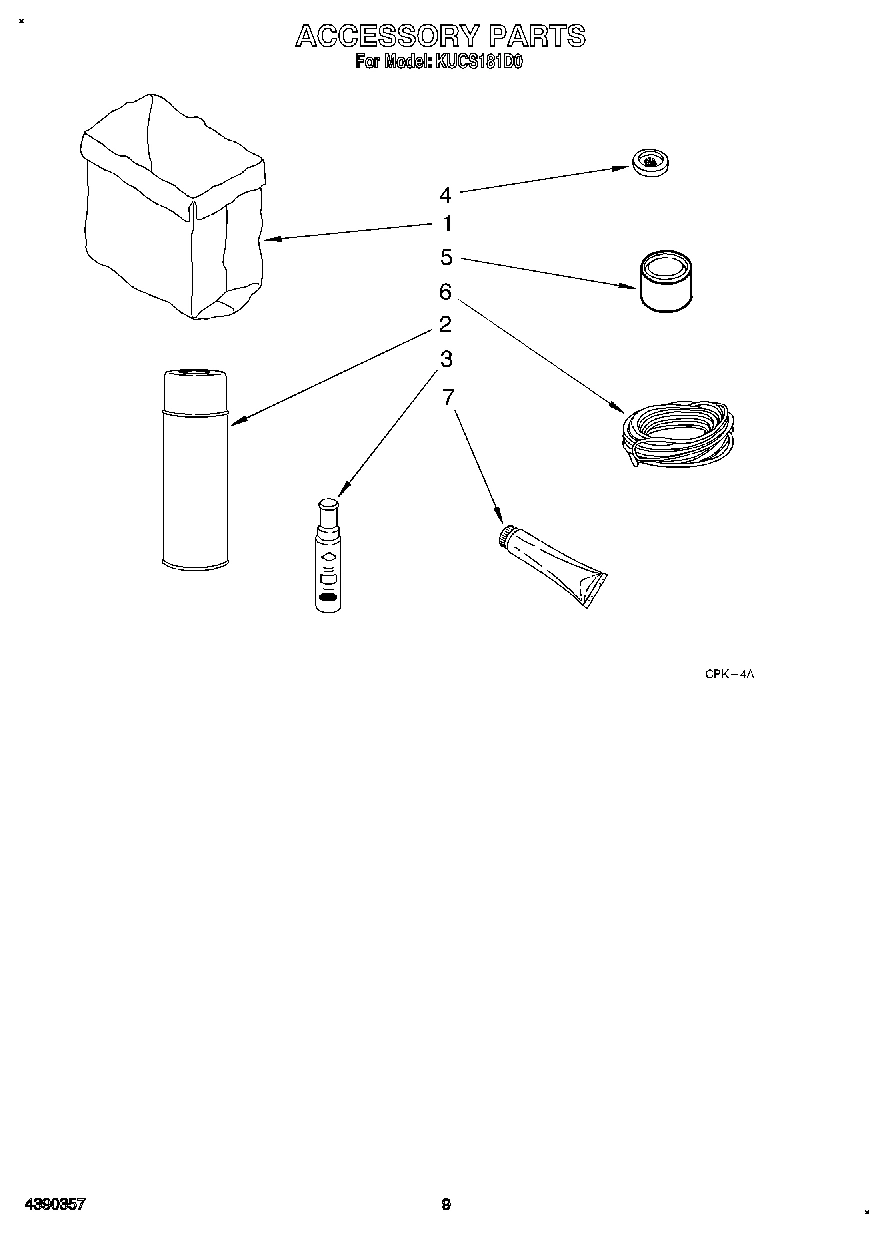

05 - ACCESSORY

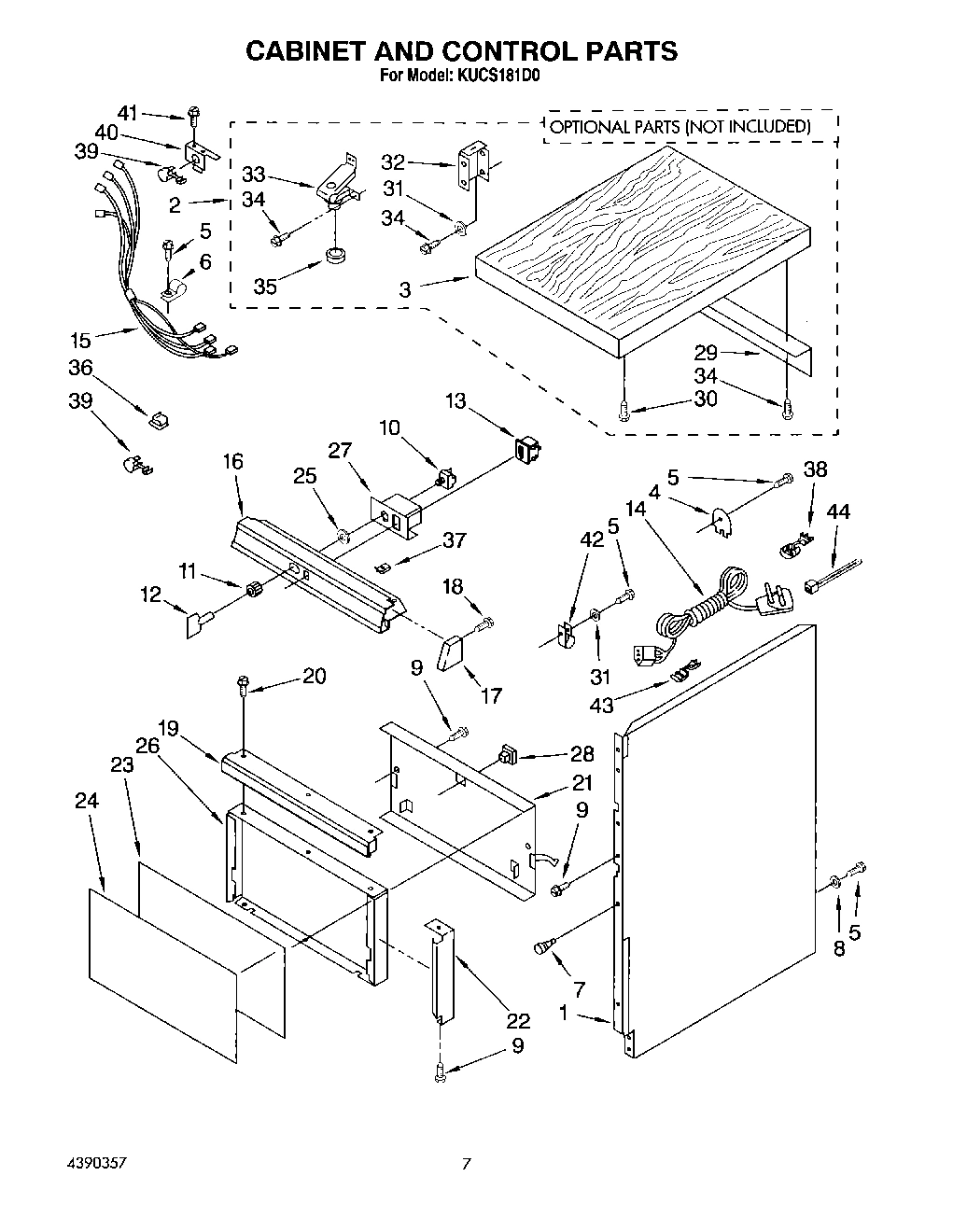

04 - CABINET AND CONTROL

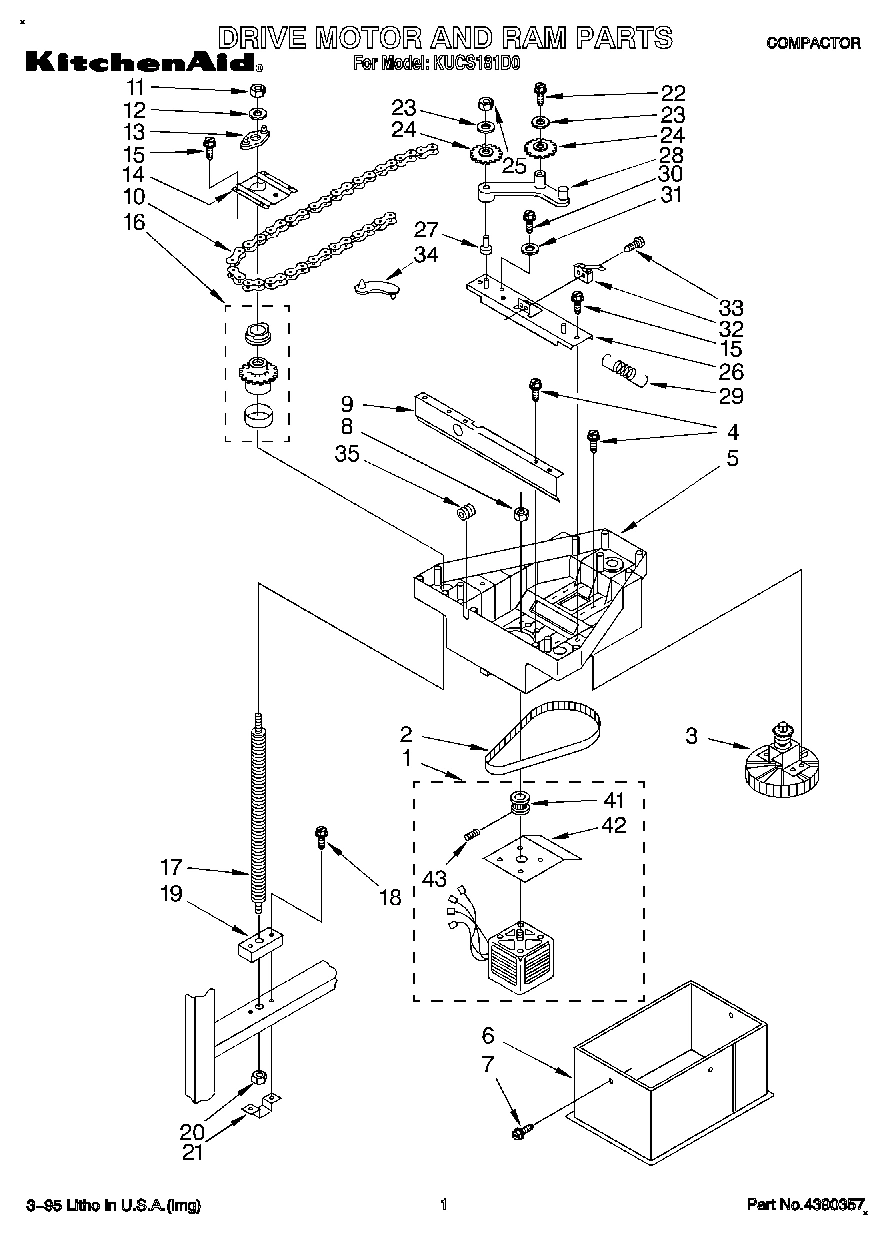

01 - DRIVE MOTOR AND RAM, LITERATURE

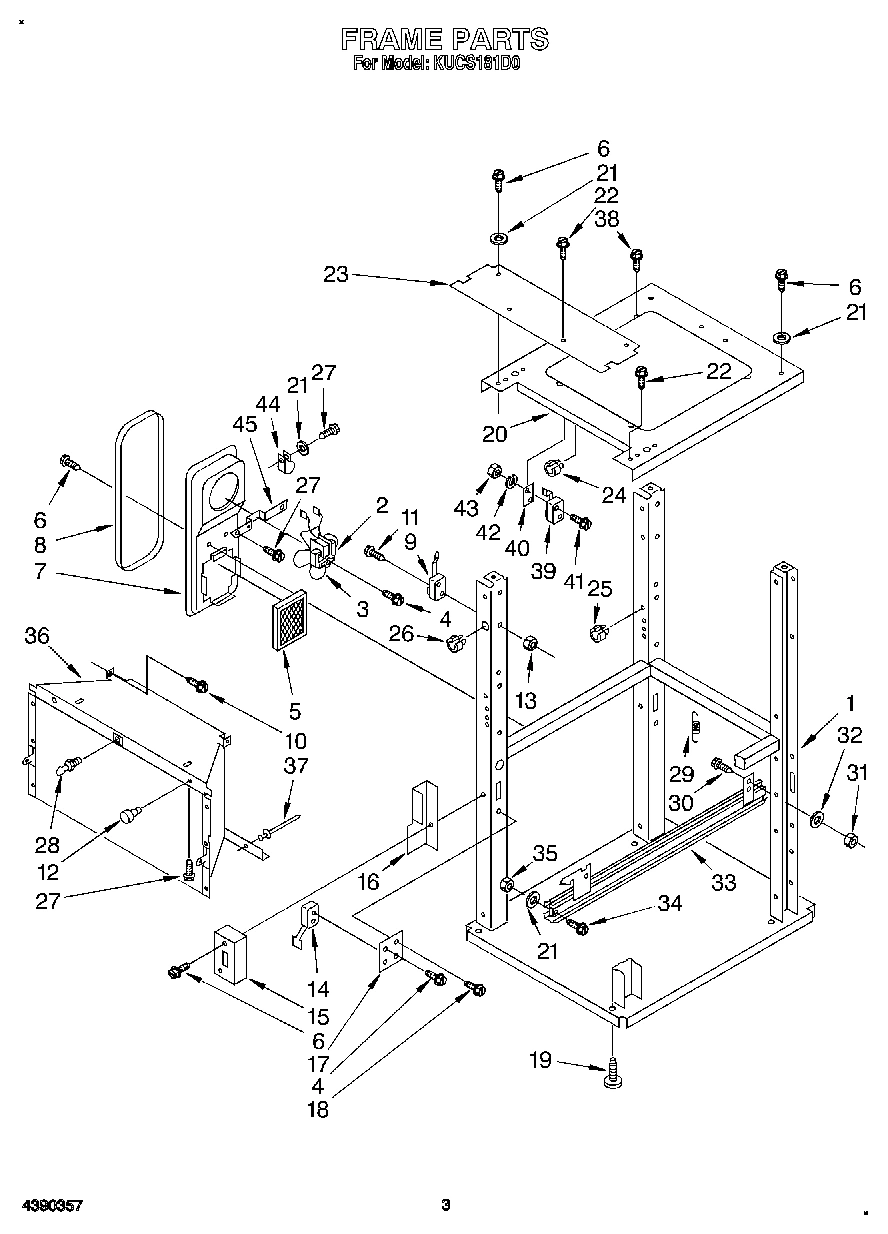

02 - FRAME

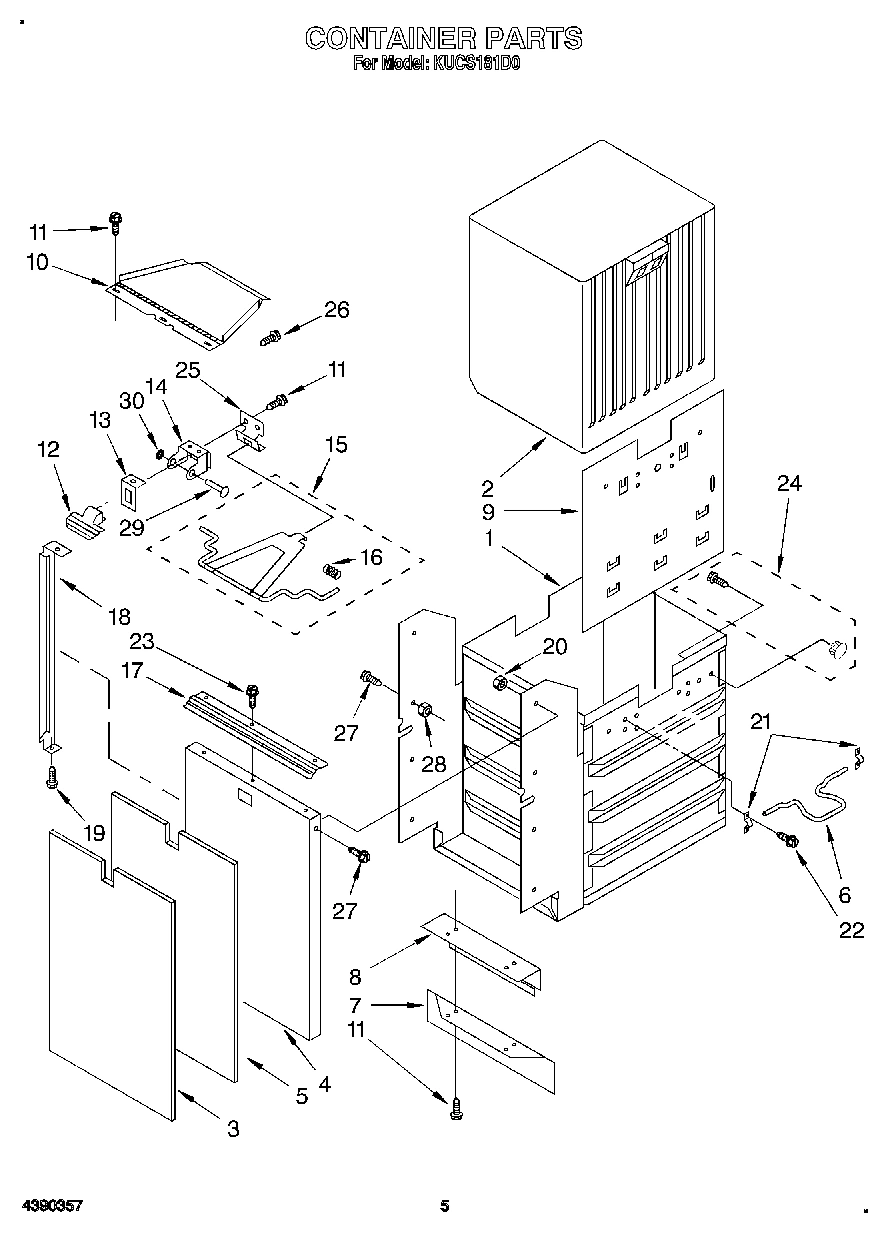

03 - CONTAINER
Common parts from model Whirlpool KUCS181D0
Guide, Use and Care WPL LIT9740079 Contact Us For Availability
Instructions, Installation (Front Panel) WPL LIT9740200 Contact Us For Availability
Instructions, Installation (Built-In Applicat WPL LIT9870117 Contact Us For Availability
Diagram, Wiring WPL LIT9870159 Contact Us For Availability
1
Panel, Cabinet (Back) WPL 9870713 Contact Us For Availability
1
Panel, Cabinet (Left Side) WPL 9870732 Contact Us For Availability
1
Panel, Cabinet (Right Side) WPL 9870733 Contact Us For Availability
1
Motor, Drive WPL 4178043 Contact Us For Availability
1
Frame (Not a Serviceable Part) WPL ARI113302A Contact Us For Availability
1
Container (Includes Items Nos.6, 21 & 22) WPL 9870981 Contact Us For Availability
2
Freestanding, Conversion Kit WPL 4164800 Contact Us For Availability
2
Belt, Drive WPL 4161013 Contact Us For Availability
2
Motor, Fan WPL 4162329 Contact Us For Availability
2
Liner, Container WPL 4161337 Contact Us For Availability
3
Top, Wood WPL 4161162 Contact Us For Availability
3
Sprocket, Driven WPL 4178086 Contact Us For Availability
3
Blade, Fan WPL 4161698 Contact Us For Availability
3
Panel, Container (White & Black) WPL 9871190 Contact Us For Availability
4
Plate WPL 775676 Contact Us For Availability
4
Screw, 1/4 20 x 2`` (4) WPL 4159303 Contact Us For Availability
4
Screw, 6-32 x 7/8 (2) WPL 4159353 Contact Us For Availability
4
Front, Container WPL 4178051 Contact Us For Availability
5
Ram, Top WPL 4161268 Contact Us For Availability
5
Filter, Air WPL 4178085 Contact Us For Availability
5
Filler, Panel WPL 4162880 Contact Us For Availability
6
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
6
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
6
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
6
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
6
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
6
Clamp, Wire WPL 4162573 Contact Us For Availability
6
Ram, Bottom WPL 4163107 Contact Us For Availability
6
Handle WPL 4161186 Contact Us For Availability
7
Housing, Filter WPL 9870703 Contact Us For Availability
7
Plate, Toe WPL 4161232 Contact Us For Availability
8
Gasket, Housing WPL 4161673 Contact Us For Availability
8
Bracket, Toe Plate WPL 4161152 Contact Us For Availability
9
Brace, Top WPL 4161212 Contact Us For Availability
9
Switch, Ram Stop WPL 4161216 Contact Us For Availability
9
Plate, Releif WPL 4178056 Contact Us For Availability
10
Switch, Rotary WPL 4162882 Contact Us For Availability
10
Screw, 10-24 x 1/2 WPL 4159416 Contact Us For Availability
10
Chain, Drive WPL 4160983 Contact Us For Availability
10
Cover, Storage WPL 4161527 Contact Us For Availability
11
Nut, Switch WPL 4162883 Contact Us For Availability
11
Nut, 5/16-18 (3) WPL 4159084 Contact Us For Availability
11
Screw, 6-32 x 1`` (2) WPL 4178067 Contact Us For Availability
12
Bumper, Door (2) WPL 4159983 Contact Us For Availability
12
Handle, Pull WPL 4161515 Contact Us For Availability
13
Switch, Rocker WPL 4162891 Contact Us For Availability
13
Stop, Ram Upper WPL 4161041 Contact Us For Availability
13
Nut, 6-32 (2) WPL 4159104 Contact Us For Availability
13
Bezel, Handle WPL 4162881 Contact Us For Availability
14
Cord, Power WPL 4162569 Contact Us For Availability
14
Plate, Powerscrew Cover (Right Side) WPL 4161002 Contact Us For Availability
14
Plate, Powerscrew Cover (Left Side) WPL 4161003 Contact Us For Availability
14
Plate, Powerscrew Cover (Rear) WPL 4161271 Contact Us For Availability
14
Switch, Drawer WPL 4162252 Contact Us For Availability
14
Bracket, Handle WPL 4178080 Contact Us For Availability
15
Harness, Wiring (Motor Drive To Directional S WPL 4161258 Contact Us For Availability
15
Harness, Wiring (Interlock To Bypass) WPL 4162668 Contact Us For Availability
15
Harness, Wiring (Power Distribution) WPL 4162893 Contact Us For Availability
15
Harness, Wiring (Ram Switch To Key) WPL 4162894 Contact Us For Availability
15
Harness, Wiring (Rocker Switch To Fan Motor) WPL 4162895 Contact Us For Availability
15
Harness, Wiring (Main Harness) WPL 4162896 Contact Us For Availability
15
Block WPL 4162253 Contact Us For Availability
15
Latch Assembly WPL 9870260 Contact Us For Availability
16
Escutcheon, Control WPL 4178077 Contact Us For Availability
16
Sprocket, Powerscrew (3) WPL 4161449 Contact Us For Availability
16
Barrier WPL 4162571 Contact Us For Availability
16
Spring, Latch (Right Side) WPL 4162739 Contact Us For Availability
16
Spring, Latch (Left Side) WPL 4162740 Contact Us For Availability
17
End Cap (Right Side) WPL 4162885 Contact Us For Availability
17
End Cap (Left Side) WPL 4162886 Contact Us For Availability
17
Handle, Container WPL 4160981 Contact Us For Availability
17
Powerscrew (3) WPL 4160988 Contact Us For Availability
17
Bracket WPL 4162310 Contact Us For Availability
18
Screw, 4 x 1/4 (4) WPL 4178052 Contact Us For Availability
18
Trim, Front (Bottom) WPL 4161177 Contact Us For Availability
18
Screw, 1/4-20 x 7/16 WPL 4162027 Contact Us For Availability
18
Trim, Front (Right Side) WPL 4161173 Contact Us For Availability
18
Trim, Front (Left Side) WPL 4161176 Contact Us For Availability
19
Stop, Ram Lower (3) WPL 4162026 Contact Us For Availability
19
Foot, leveling (4) WPL 4161363 Contact Us For Availability
19
Screw, 10-32 x 5/16 WPL 4159439 Contact Us For Availability
20
Screw, 10-32 x 5/16 WPL 4159441 Contact Us For Availability
20
Nut (3) WPL 4161394 Contact Us For Availability
20
Plate, Frame Cover WPL 4161274 Contact Us For Availability
21
Panel, Litter Bin Rear WPL 4161294 Contact Us For Availability
21
Washer WPL 4159494 Contact Us For Availability
21
Retainer, Nut (3) WPL 4161390 Contact Us For Availability
21
Clip, Handle (2) WPL 9871068 Contact Us For Availability
22
Trim, Litter Bin (Right Side) WPL 4161171 Contact Us For Availability
22
Trim, Litter Bin (Left Side) WPL 4161174 Contact Us For Availability
22
Screw, 8-18 x 3/8 WPL 4153701 Contact Us For Availability
22
Screw, 6 x 3/8 (4) WPL 776559 Contact Us For Availability
22
Screw, 10-32 x 1/4 WPL 9871065 Contact Us For Availability
23
Filler, Bin Panel WPL 4162879 Contact Us For Availability
23
Plate, Top Front WPL 4178078 Contact Us For Availability
23
Screw, No.10 x 3/8 (3) WPL 4178087 Contact Us For Availability
24
Insert, Door (White & Black) WPL 9871189 Contact Us For Availability
24
Sprocket, Idler (4) WPL 4161121 Contact Us For Availability
24
Bushing WPL 4178050 Contact Us For Availability
24
Retainer, Bag (4) WPL 4147703 Contact Us For Availability
25
Washer WPL 4159503 Contact Us For Availability
25
Strain Releif WPL 4159023 Contact Us For Availability
25
Hinge, Handle WPL 4178081 Contact Us For Availability
26
Panel, Bin WPL 4178013 Contact Us For Availability
26
Plate, Idler WPL 4178066 Contact Us For Availability
26
Bushing (2) WPL 4178049 Contact Us For Availability
26
Screw, 10-24 x 3/8 WPL 4159414 Contact Us For Availability
27
Barrier, Switch WPL 4162936 Contact Us For Availability
27
Screw WPL 4159388 Contact Us For Availability
27
Bushing (2) WPL 4161124 Contact Us For Availability
27
Screw, 10-32 x 5/16 WPL 342043 Contact Us For Availability
28
Arm, Idler (Left Side) WPL 4161122 Contact Us For Availability
28
Arm, Idler (Right Side) WPL 4161123 Contact Us For Availability
29
Bracket, Wood top WPL 4161161 Contact Us For Availability
29
Spring, Chain Tension WPL 4161133 Contact Us For Availability
29
Spring, Track (4) WPL 4160982 Contact Us For Availability
29
Pin WPL 4178082 Contact Us For Availability
30
Nut, Push WPL 4161473 Contact Us For Availability
30
Screw, 1/4-20 x 3/8 (4) WPL 4161134 Contact Us For Availability
31
Nut, 1/4-20 (4) WPL 4159106 Contact Us For Availability
32
Block, Leveling Leg (Right Side) WPL 4161149 Contact Us For Availability
32
Block, Leveling Leg (Left Side) WPL 4161150 Contact Us For Availability
32
Switch, Directional WPL 4161012 Contact Us For Availability
32
Washer (4) WPL 4159554 Contact Us For Availability
33
Bracket, Foot (4) WPL 4161154 Contact Us For Availability
34
Retainer, Wire WPL 4160064 Contact Us For Availability
34
Screw, 10-32 x 3/8 (2) WPL 4159305 Contact Us For Availability
35
Clip, Foot (4) WPL 4161235 Contact Us For Availability
35
Grommet, Wiring WPL 776118 Contact Us For Availability
36
Clip, Cable WPL 4178064 Contact Us For Availability
36
Bin, Litter WPL 4162616 Contact Us For Availability
37
Nut, Speed WPL 4162903 Contact Us For Availability
37
Rivet WPL 4159166 Contact Us For Availability
38
Relief, Strain WPL 4159026 Contact Us For Availability
38
Screw, No. 6 x 3/8 WPL 4159384 Contact Us For Availability
39
Relief, 90~ WPL 4159031 Contact Us For Availability
39
Switch, Limit WPL 4161250 Contact Us For Availability
40
WPL 4178076 WPL 4178076 Contact Us For Availability
40
Baffle WPL 4161165 Contact Us For Availability
41
Gear, Drive WPL 9870617 Contact Us For Availability
41
Screw, 4-40 x 5/8 WPL 4159268 Contact Us For Availability
42
WPL 4178083 WPL 4178083 Contact Us For Availability
42
Deflector, Debris WPL 4178045 Contact Us For Availability
42
Washer, Lock WPL 4159495 Contact Us For Availability
43
WPL 776119 WPL 776119 Contact Us For Availability
43
Pin, Gear WPL 4159154 Contact Us For Availability
43
Nut WPL 4159069 Contact Us For Availability
44
WPL 4178062 WPL 4178062 Contact Us For Availability
44
WPL 4178063 WPL 4178063 Contact Us For Availability
44
Retainer, Cord WPL 9740311 Contact Us For Availability
45
Bracket, Motor WPL 9870706 Contact Us For Availability
× ![]()
