Model Whirlpool KUCC151T3 TRASH COMPACTOR – Common Parts & Diagrams

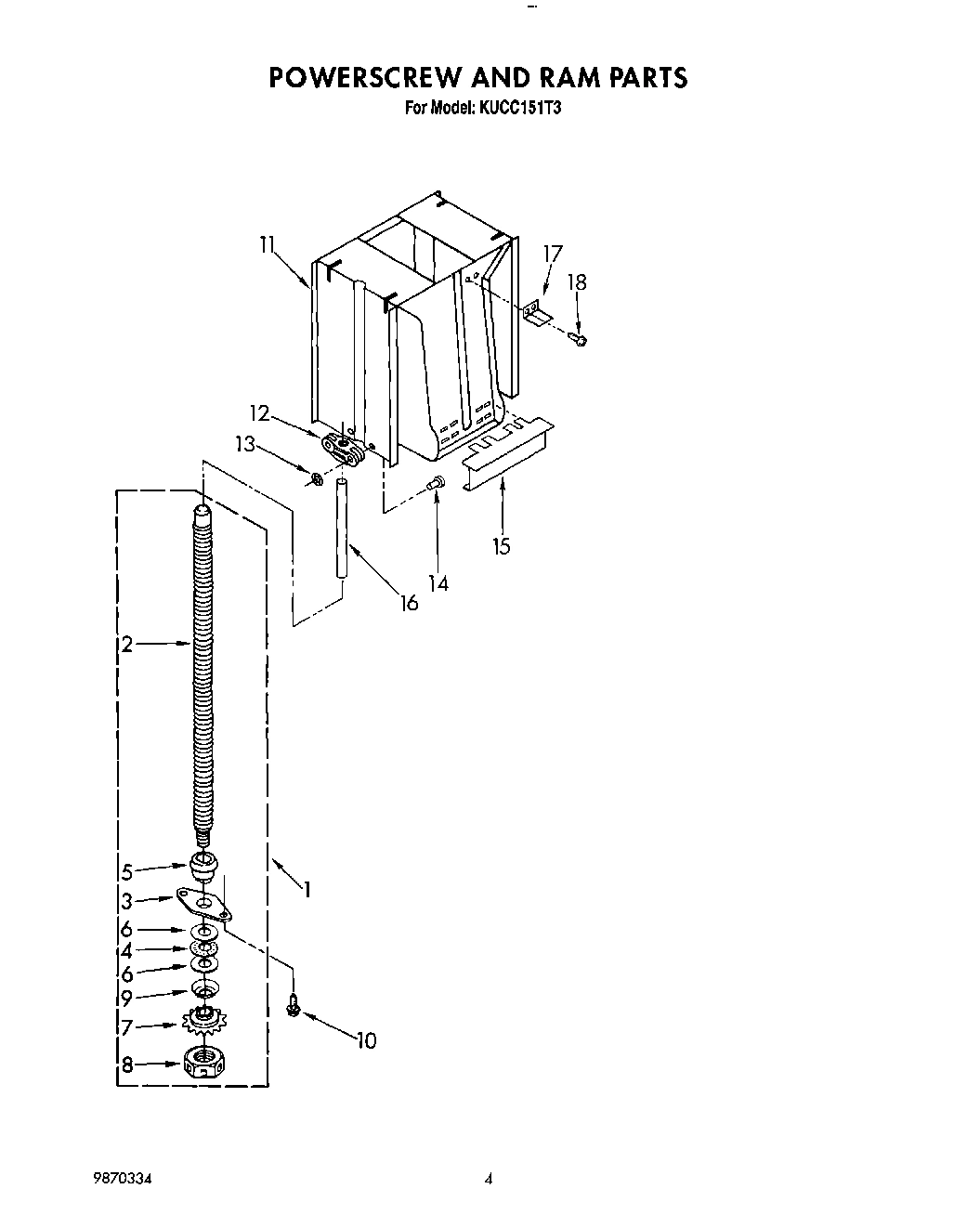

04 - POWERSCREW AND RAM

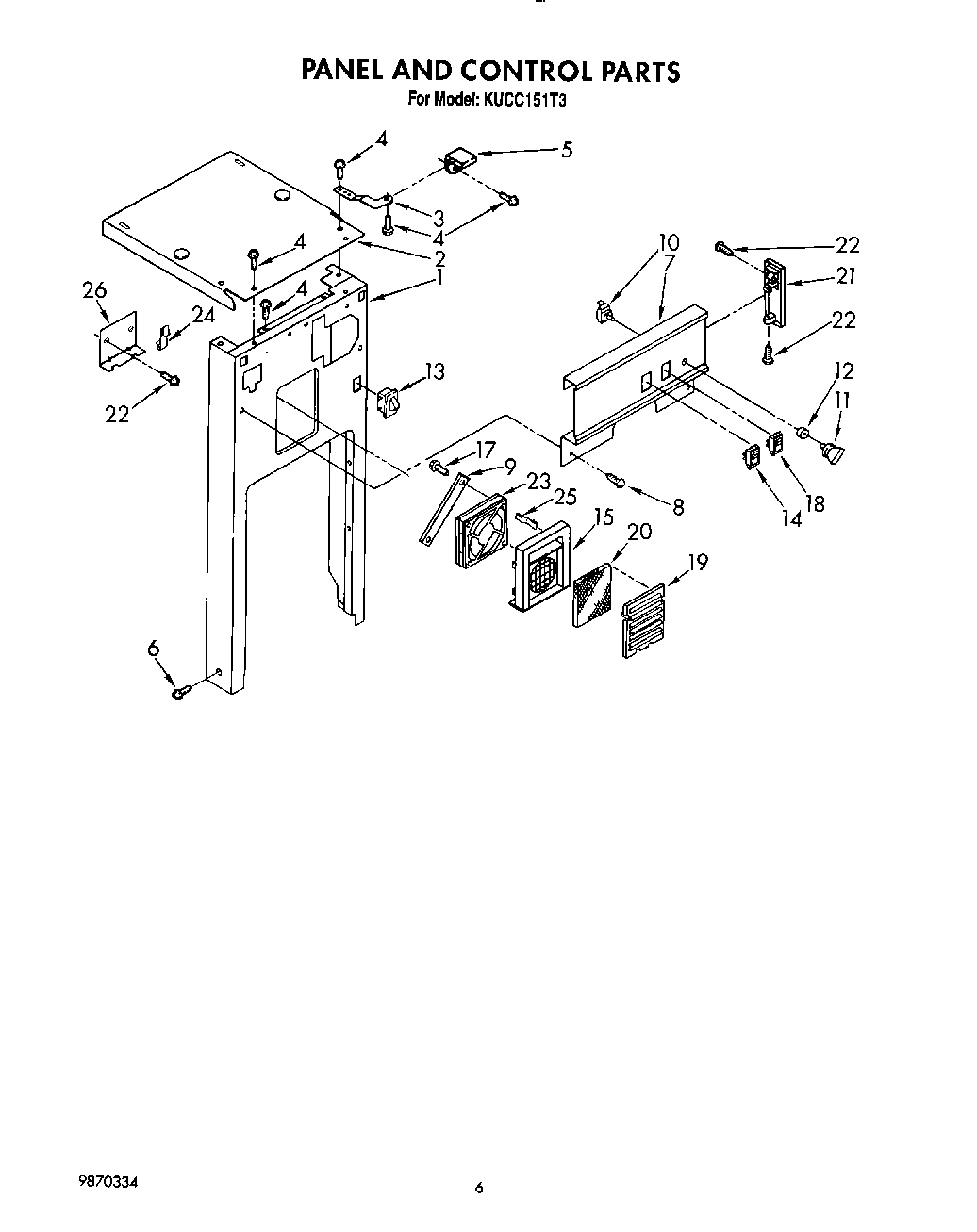

06 - PANEL AND CONTROL
03 - FRAME
07 - ACCESSORY
02 - MOTOR AND DRIVE, LIT/OPTIONAL
05 - CONTAINER
Common parts from model Whirlpool KUCC151T3 TRASH COMPACTOR
Sheet, Tech WPL LIT4151912 Contact Us For Availability
Instructions, Installation WPL LIT4151913 Contact Us For Availability
Guide, Use And Care WPL LIT4153302 Contact Us For Availability
Do-It-Yourself Manual WPL LIT677821 Contact Us For Availability
Wiring Diagram WPL LIT9870155 Contact Us For Availability
List, Repair Parts WPL LIT9870334 Contact Us For Availability
1
Panel, Container Front (White & Copper Hi-Lit WPL 608438 Contact Us For Availability
1
Panel, Contianer Front (Brushed Chrome) WPL 675378 Contact Us For Availability
1
Panel, Container Front (Coffee & Harvest Gold WPL 777714 Contact Us For Availability
1
Panel, Contianer Front (White & New Avocado) WPL 777761 Contact Us For Availability
1
Panel, Container Front (Almond & Harvest Gold WPL 777762 Contact Us For Availability
1
panel, container front (coffee & avocado) WPL 777912 Contact Us For Availability
1
Panel, Container Front (Black & White) WPL 777941 Contact Us For Availability
1
Panel, Container Front (Platinum & Toast) WPL 780280 Contact Us For Availability
1
Panel, Container Front (Almond & Black) WPL 780334 Contact Us For Availability
2
Handle, Container WPL 4151451 Contact Us For Availability
3
Deodorizer, Solid Stick-Ups (2-Pack) WPL 777635 Contact Us For Availability
3
Screw. 1/4-20 x 1/2 (4) WPL 776593 Contact Us For Availability
3
Panel, Container (Harvest Gold & Almond) WPL 4151462 Contact Us For Availability
3
Panel, Container (White & Black) WPL 4151463 Contact Us For Availability
4
Trash, Container (Reusable) WPL 882653 Contact Us For Availability
4
Panel, Spacer WPL 4151465 Contact Us For Availability
5
Container Assembly WPL 882671 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
10
Paint, Touch-Up 1/2 Oz. (Stanford Brown) WPL 72106 Contact Us For Availability
10
WPL 72108 WPL 72108 Contact Us For Availability
10
WPL 72112 WPL 72112 Contact Us For Availability
11
WPL 261886 WPL 261886 Contact Us For Availability
11
WPL 261888 WPL 261888 Contact Us For Availability
11
WPL 261890 WPL 261890 Contact Us For Availability
11
WPL 285365 WPL 285365 Contact Us For Availability
11
WPL 285366 WPL 285366 Contact Us For Availability
11
WPL 675167 WPL 675167 Contact Us For Availability
11
WPL 978726 WPL 978726 Contact Us For Availability
11
End Cap, Handle (R.H.) WPL 4151454 Contact Us For Availability
11
End Cap, Handle (L.H.) WPL 4151455 Contact Us For Availability
12
Harness, Wiring WPL 4151552 Contact Us For Availability
13
Bumper, Container (2) WPL 775785 Contact Us For Availability
14
Screw (2) WPL 4149395 Contact Us For Availability
17
Bracket, Top Limit Switch WPL 9870498 Contact Us For Availability
19
Trim, Container (Front) WPL 4151460 Contact Us For Availability
20
Plate, Nut WPL 777850 Contact Us For Availability
20
Pin WPL 776654 Contact Us For Availability
21
Cord, Power WPL 778575 Contact Us For Availability
22
Bushing, Cord WPL 776119 Contact Us For Availability
23
Clamp, Wire WPL 777035 Contact Us For Availability
24
Grommet, Motor Cover WPL 776118 Contact Us For Availability
25
Retainer, Bag (Contains 4 Each) WPL 4147703 Contact Us For Availability
27
Wheel, Leveler (R.H. Rear) WPL 9870405 Contact Us For Availability
× ![]()
