Model Whirlpool KUCC151T1 TRASH COMPACTOR – Common Parts & Diagrams

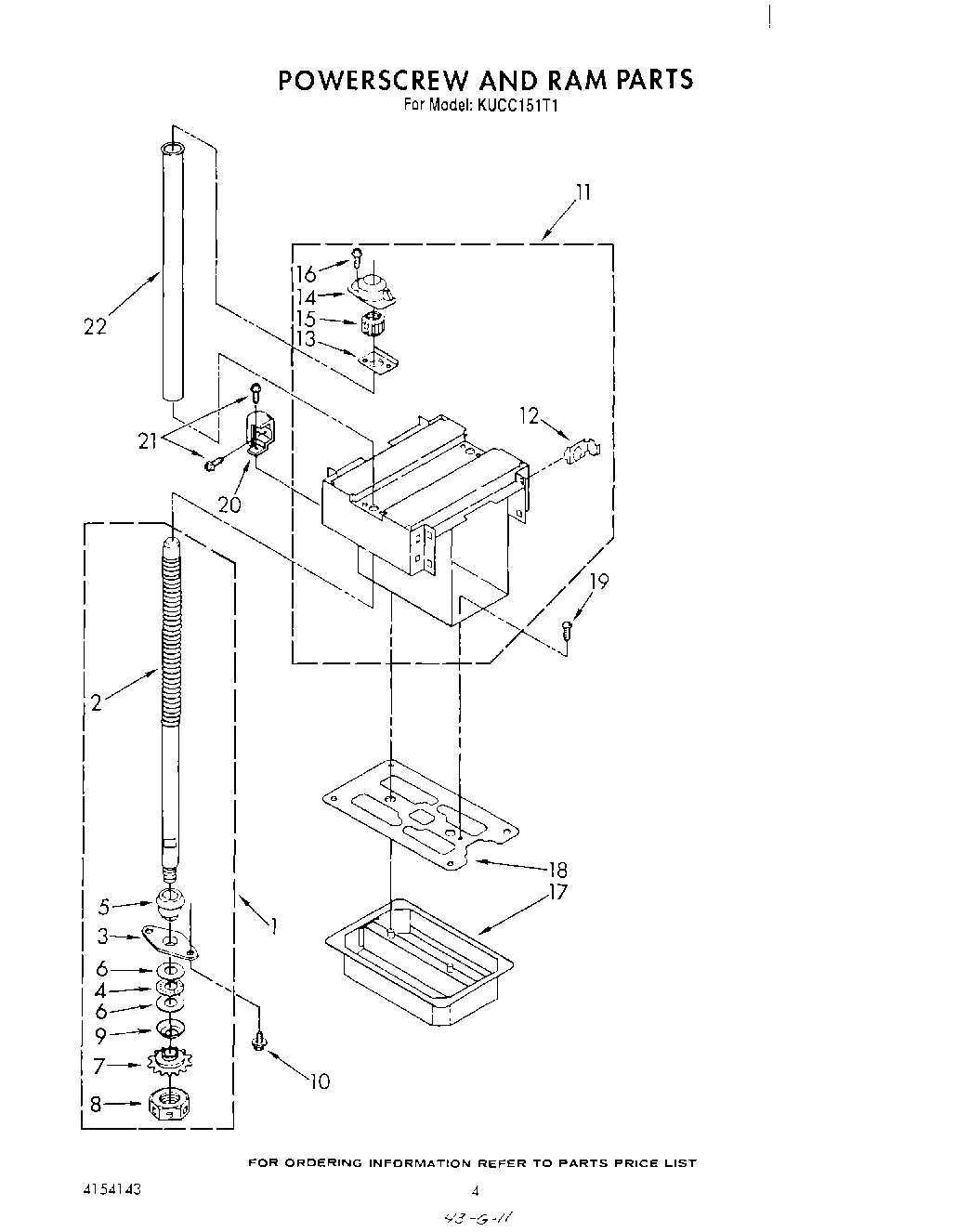

04 - POWERSCREW AND RAM

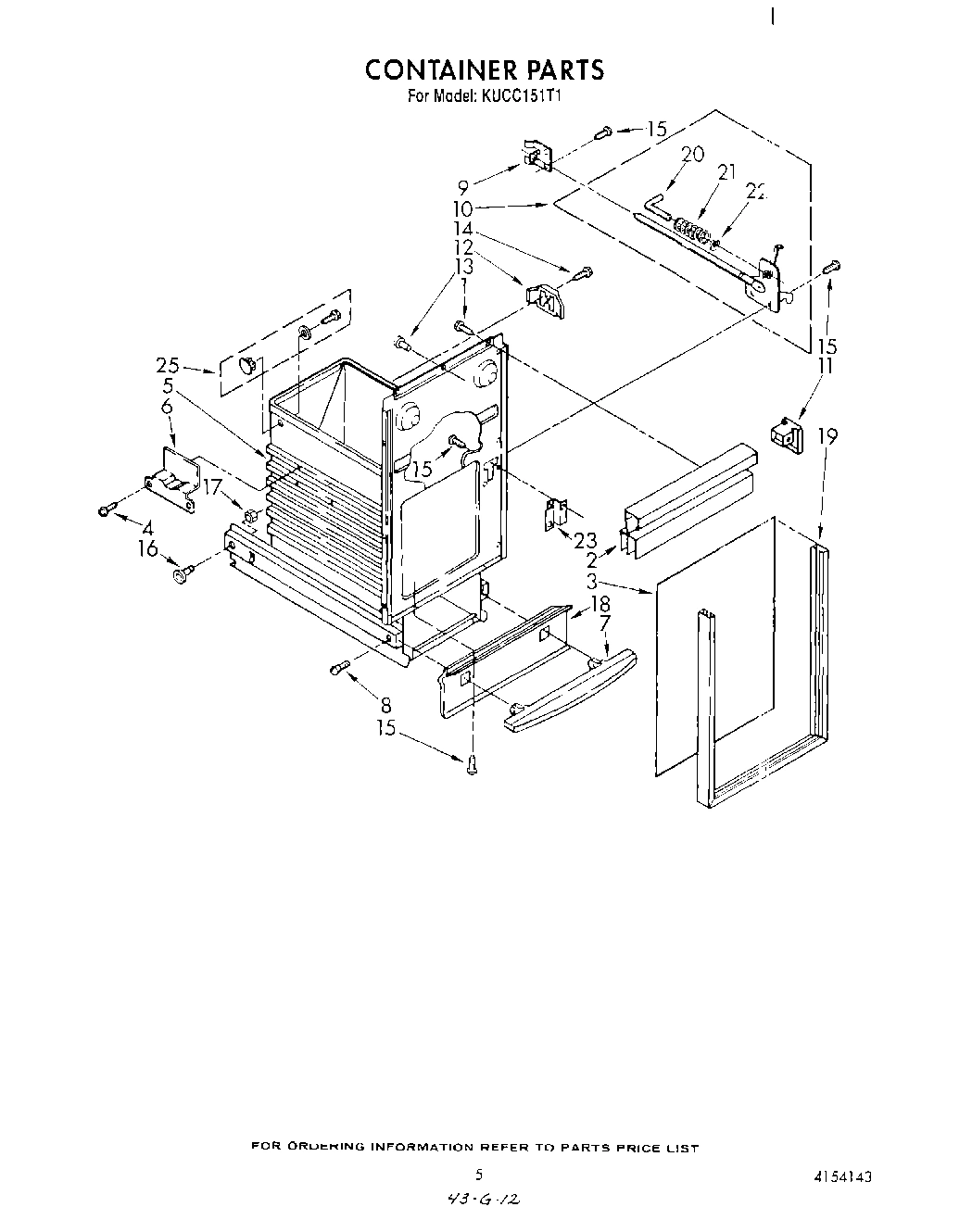

05 - CONTAINER

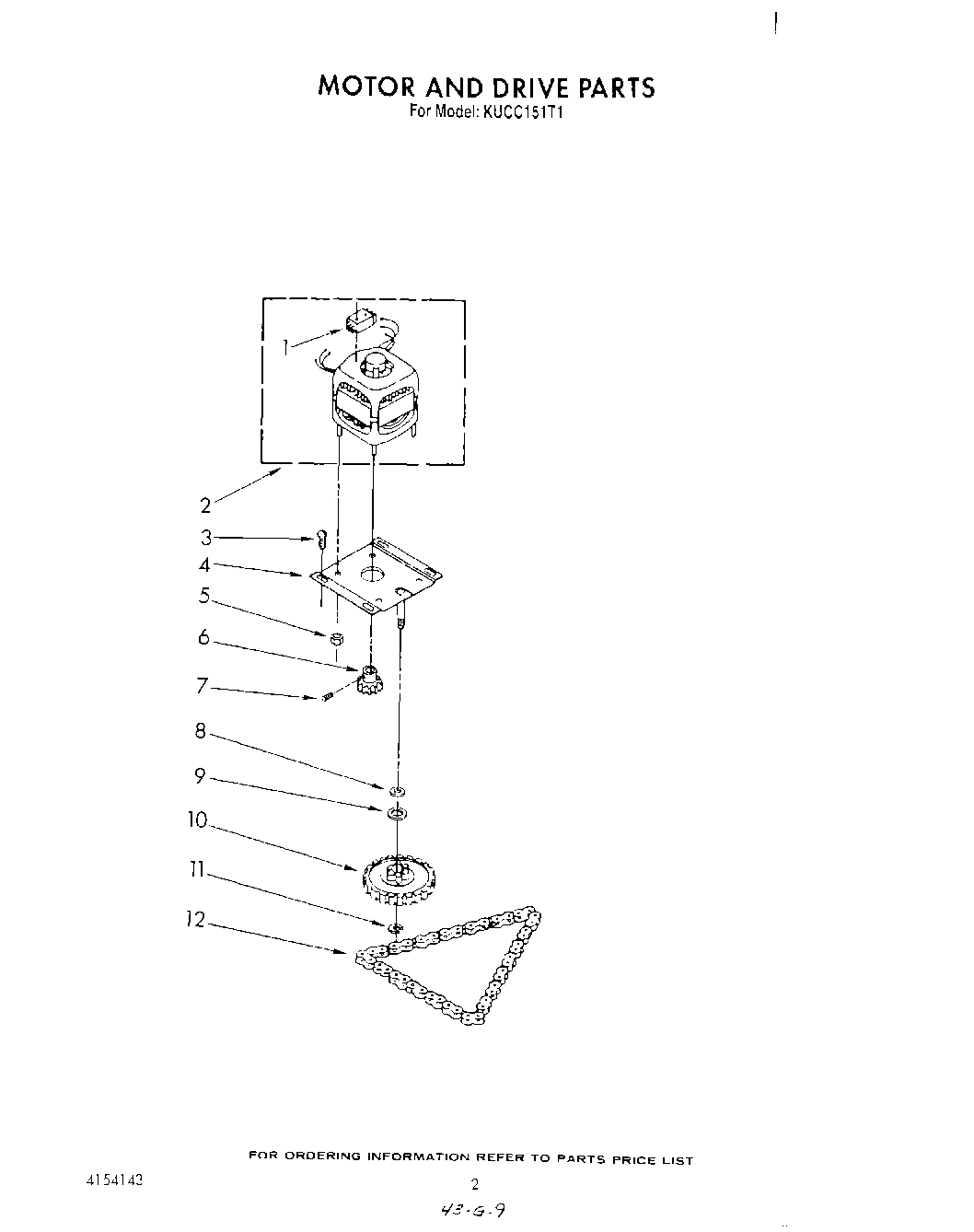

02 - MOTOR AND DRIVE , LIT/OPTIONAL

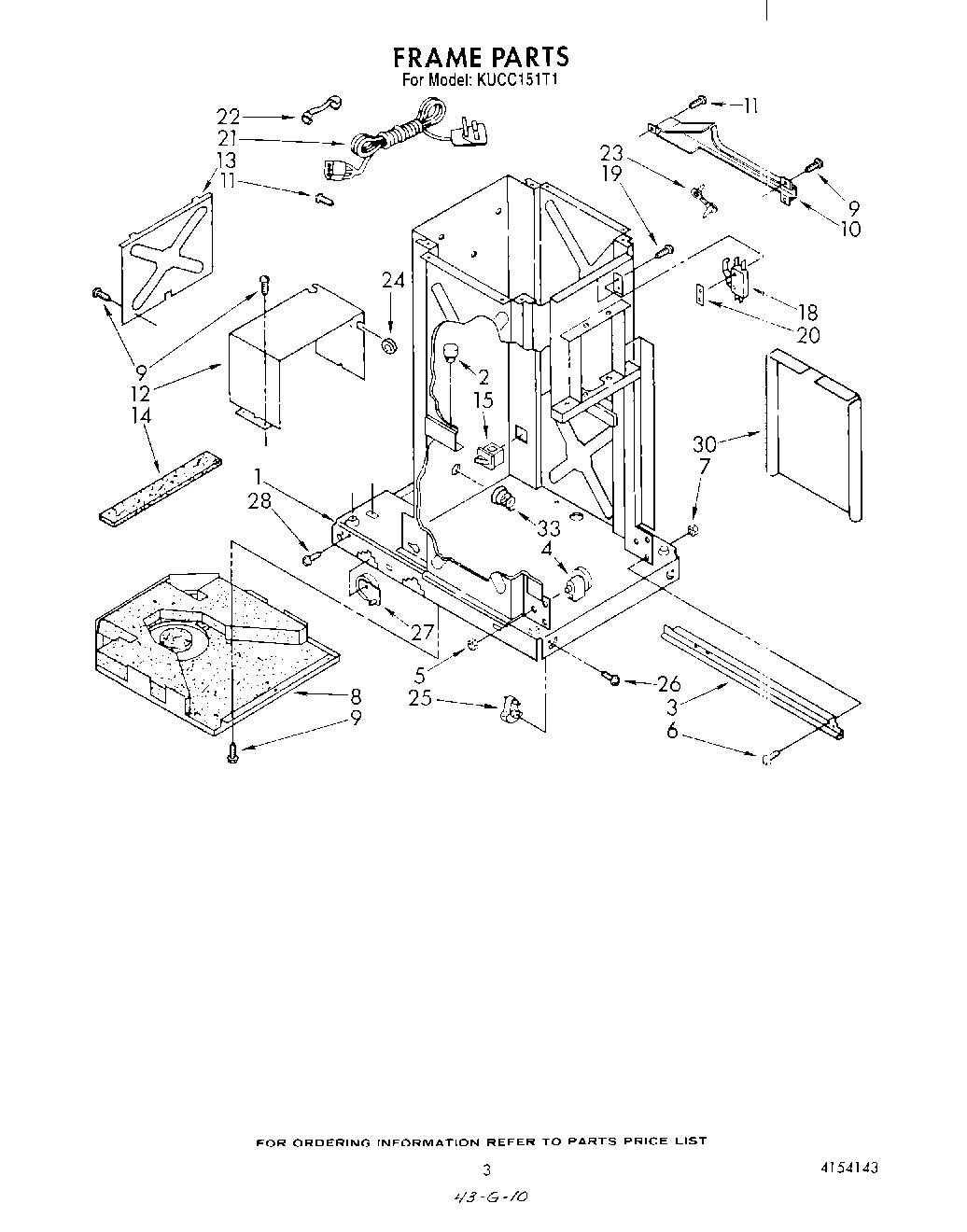

03 - FRAME

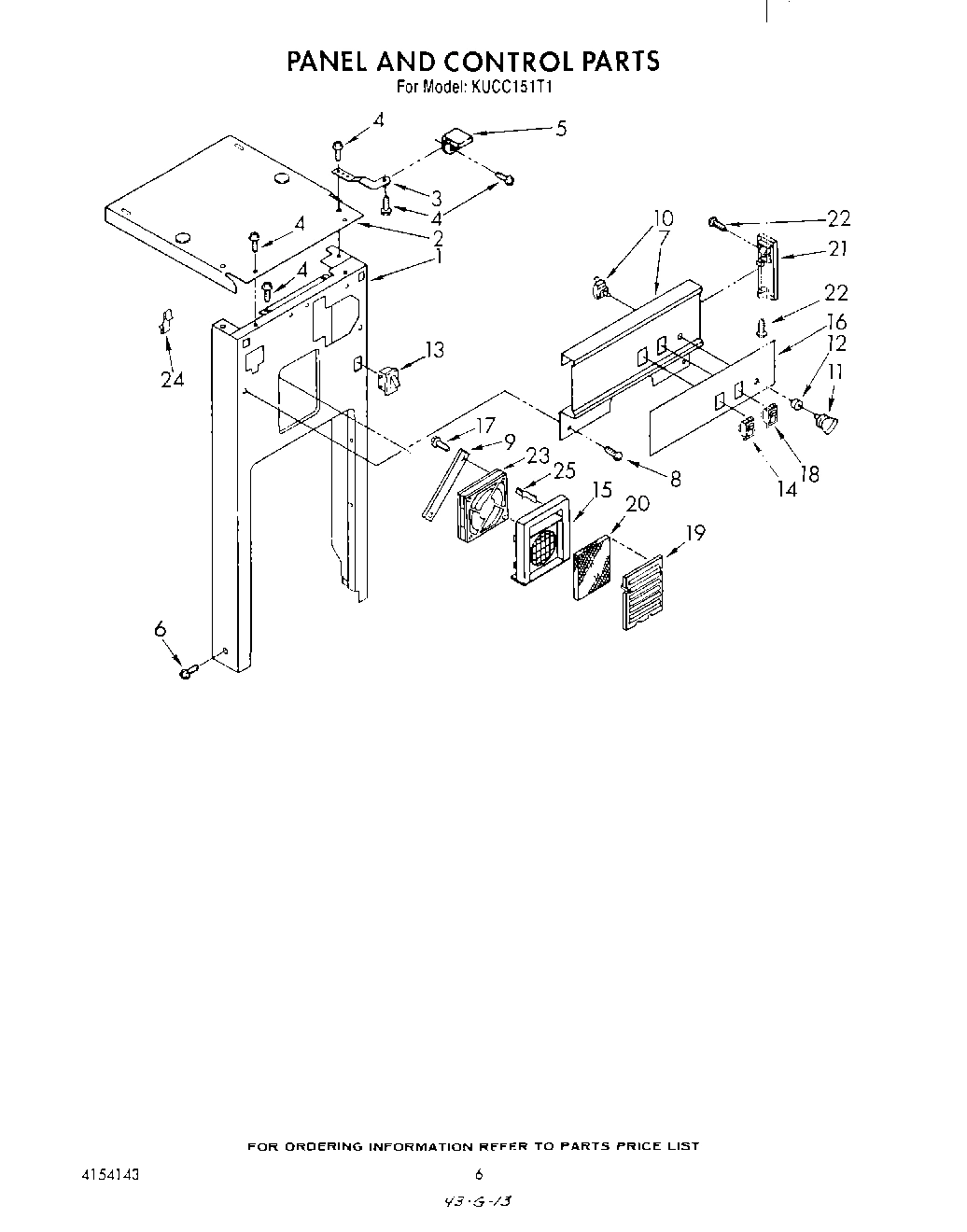

06 - PANEL AND CONTROL

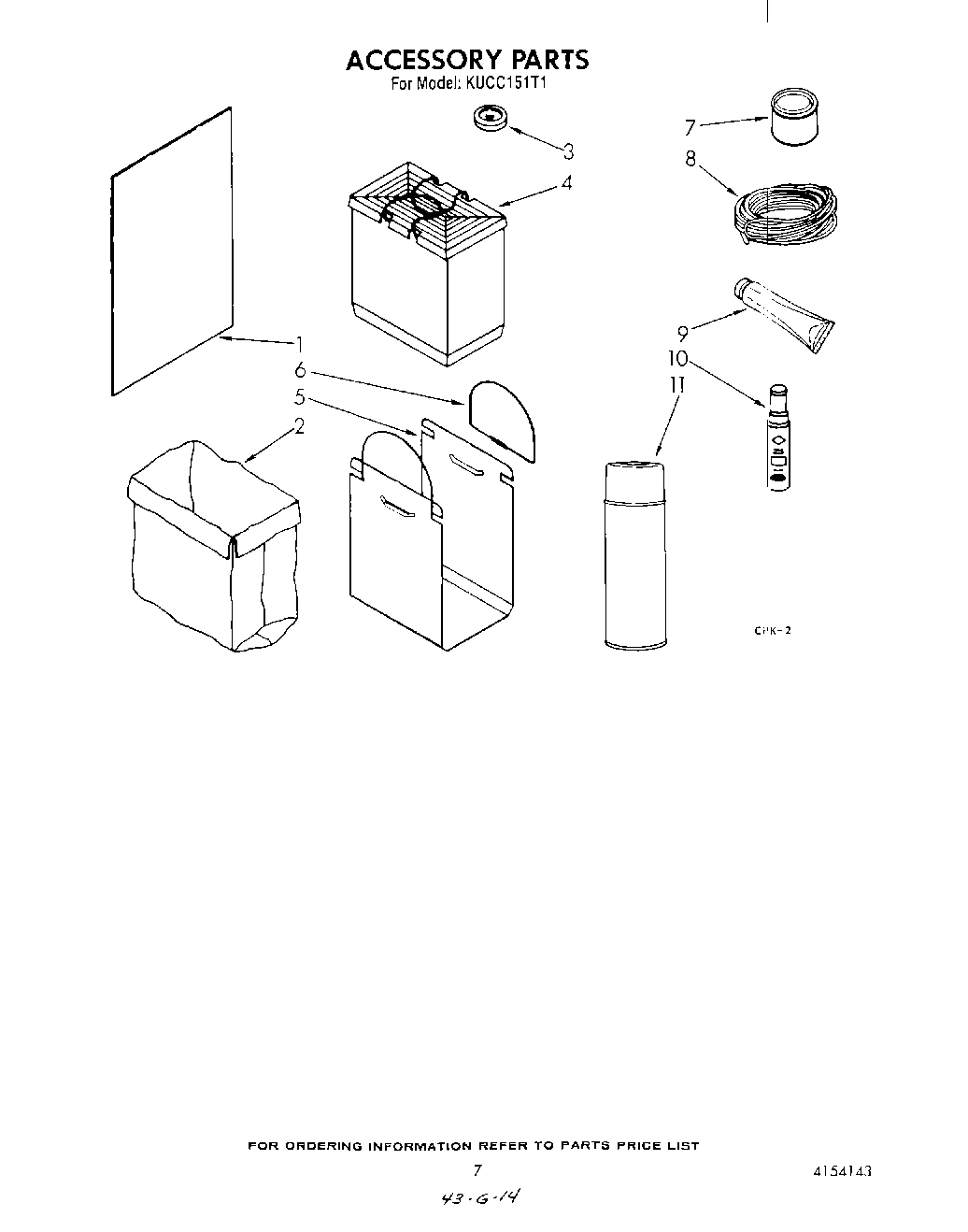

07 - ACCESSORIES
Common parts from model Whirlpool KUCC151T1 TRASH COMPACTOR
1
Frame (Not a Serviceable Part) WPL ARI113201A Contact Us For Availability
1
Panel, Front Frame WPL 4152069 Contact Us For Availability
1
Panel, Container Front (White & Copper Hi-Lit WPL 608438 Contact Us For Availability
1
Panel, Contianer Front (Brushed Chrome) WPL 675378 Contact Us For Availability
1
Panel, Container Front (Coffee & Harvest Gold WPL 777714 Contact Us For Availability
1
Panel, Contianer Front (White & New Avocado) WPL 777761 Contact Us For Availability
1
Panel, Container Front (Almond & Harvest Gold WPL 777762 Contact Us For Availability
1
panel, container front (coffee & avocado) WPL 777912 Contact Us For Availability
1
Panel, Container Front (Black & White) WPL 777941 Contact Us For Availability
1
Panel, Container Front (Platinum & Toast) WPL 780280 Contact Us For Availability
1
Panel, Container Front (Almond & Black) WPL 780334 Contact Us For Availability
2
Bumper (4) WPL 775643 Contact Us For Availability
2
Cover, Top WPL 608572 Contact Us For Availability
3
Screw. 1/4-20 x 1/2 (4) WPL 776593 Contact Us For Availability
3
Deodorizer, Solid Stick-Ups (2-Pack) WPL 777635 Contact Us For Availability
4
Trash, Container (Reusable) WPL 882653 Contact Us For Availability
6
Retainer, Bag (2) WPL 776523 Contact Us For Availability
7
Nut, 6-32 (4) WPL 776188 Contact Us For Availability
7
Escutcheon, Control WPL 4151456 Contact Us For Availability
8
Screw, 6-20 x 3/8 (2) WPL 776559 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
10
WPL 72112 WPL 72112 Contact Us For Availability
11
WPL 261890 WPL 261890 Contact Us For Availability
11
WPL 285365 WPL 285365 Contact Us For Availability
11
WPL 285366 WPL 285366 Contact Us For Availability
12
Harness, Wiring WPL 4151552 Contact Us For Availability
12
Cover, Motor WPL 608849 Contact Us For Availability
13
Plate, Motor Cover WPL 780441 Contact Us For Availability
14
Barrier, Glass WPL 776780 Contact Us For Availability
16
insert, escutcheon (optional) (white) WPL 4151847 Contact Us For Availability
16
insert, escutcheon (optional) (almond) WPL 4151848 Contact Us For Availability
19
cover, air fresehener WPL 4151441 Contact Us For Availability
20
Plate, Nut WPL 777850 Contact Us For Availability
21
Cord, Power WPL 778575 Contact Us For Availability
21
End Cap, Escutcheon (R.H.) WPL 4151452 Contact Us For Availability
21
End Cap, Escutcheon (L.H.) WPL 4151453 Contact Us For Availability
22
Bushing, Cord WPL 776119 Contact Us For Availability
23
Clamp, Wire WPL 777035 Contact Us For Availability
24
Grommet, Motor Cover WPL 776118 Contact Us For Availability
25
Retainer, Bag (Contains 4 Each) WPL 4163646 Contact Us For Availability
25
Leveler, Front (2) WPL 780082 Contact Us For Availability
26
Screw, 10-16 x 3/4 (2) WPL 780125 Contact Us For Availability
27
Wheel, Leveler (R.H. Rear) WPL 780139 Contact Us For Availability
30
Insulation, Inner Panel WPL 780412 Contact Us For Availability
× ![]()
