Model Whirlpool KUCC151LPA0 TRASH COMPACTOR – Common Parts & Diagrams

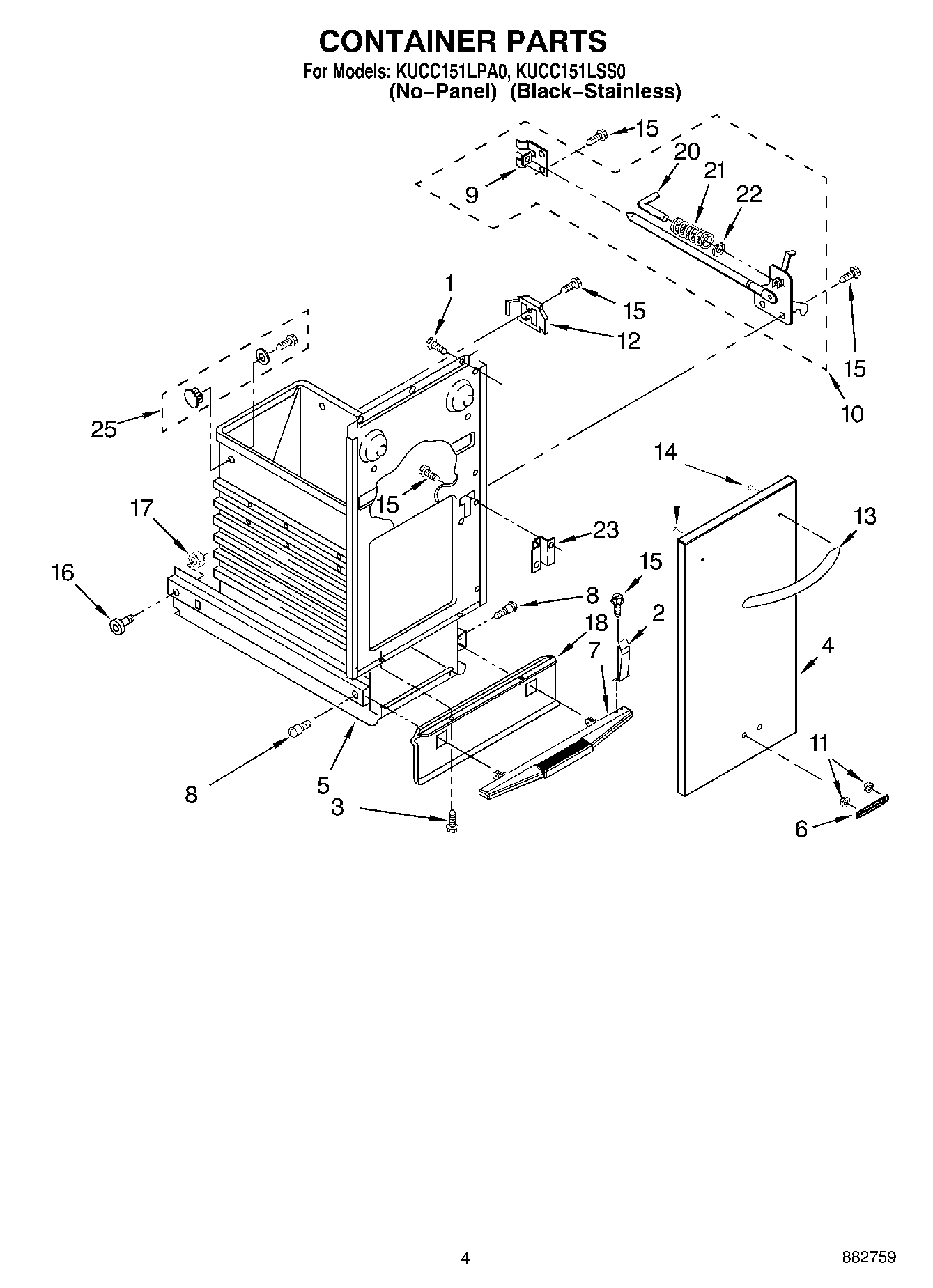

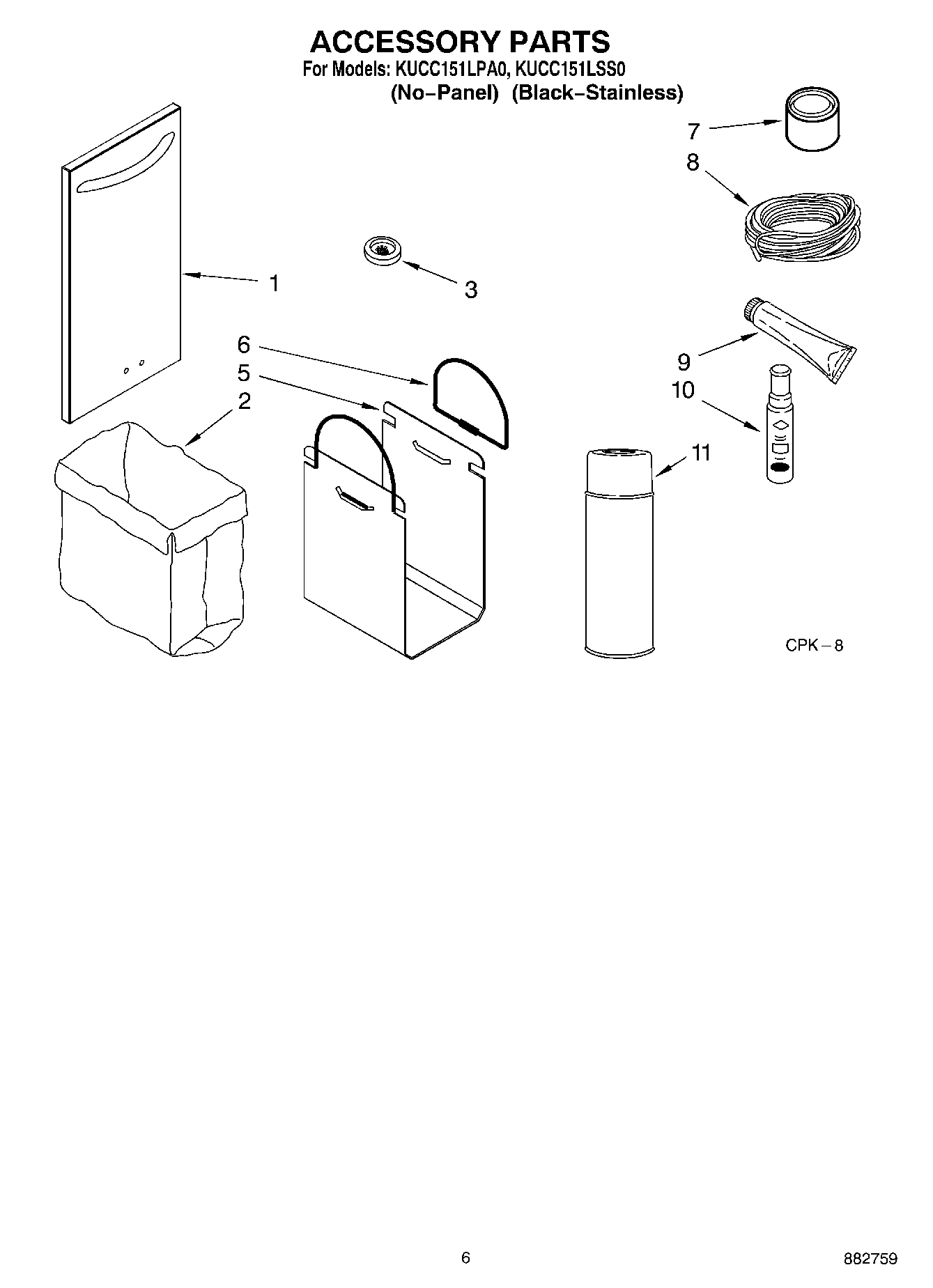

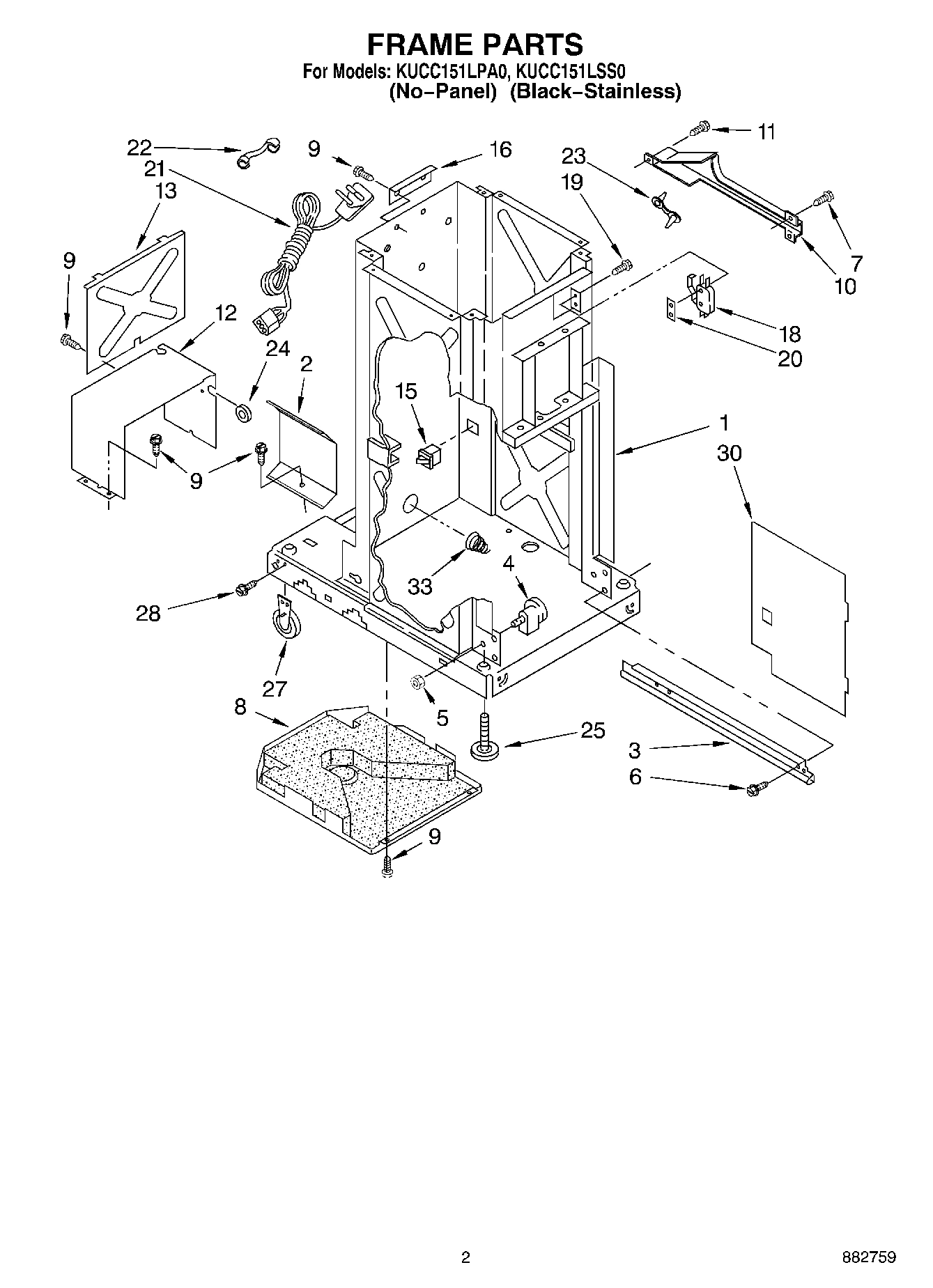

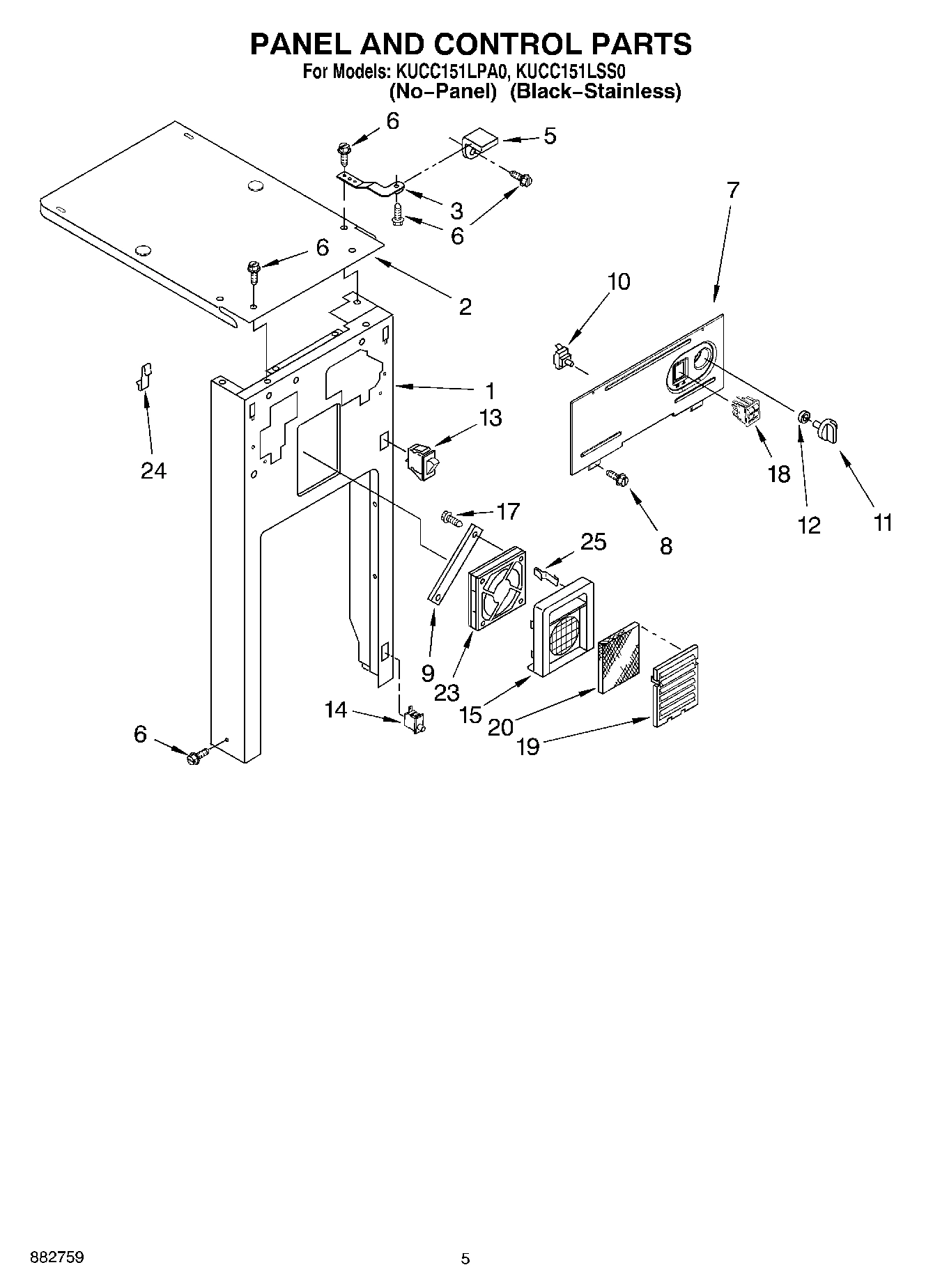

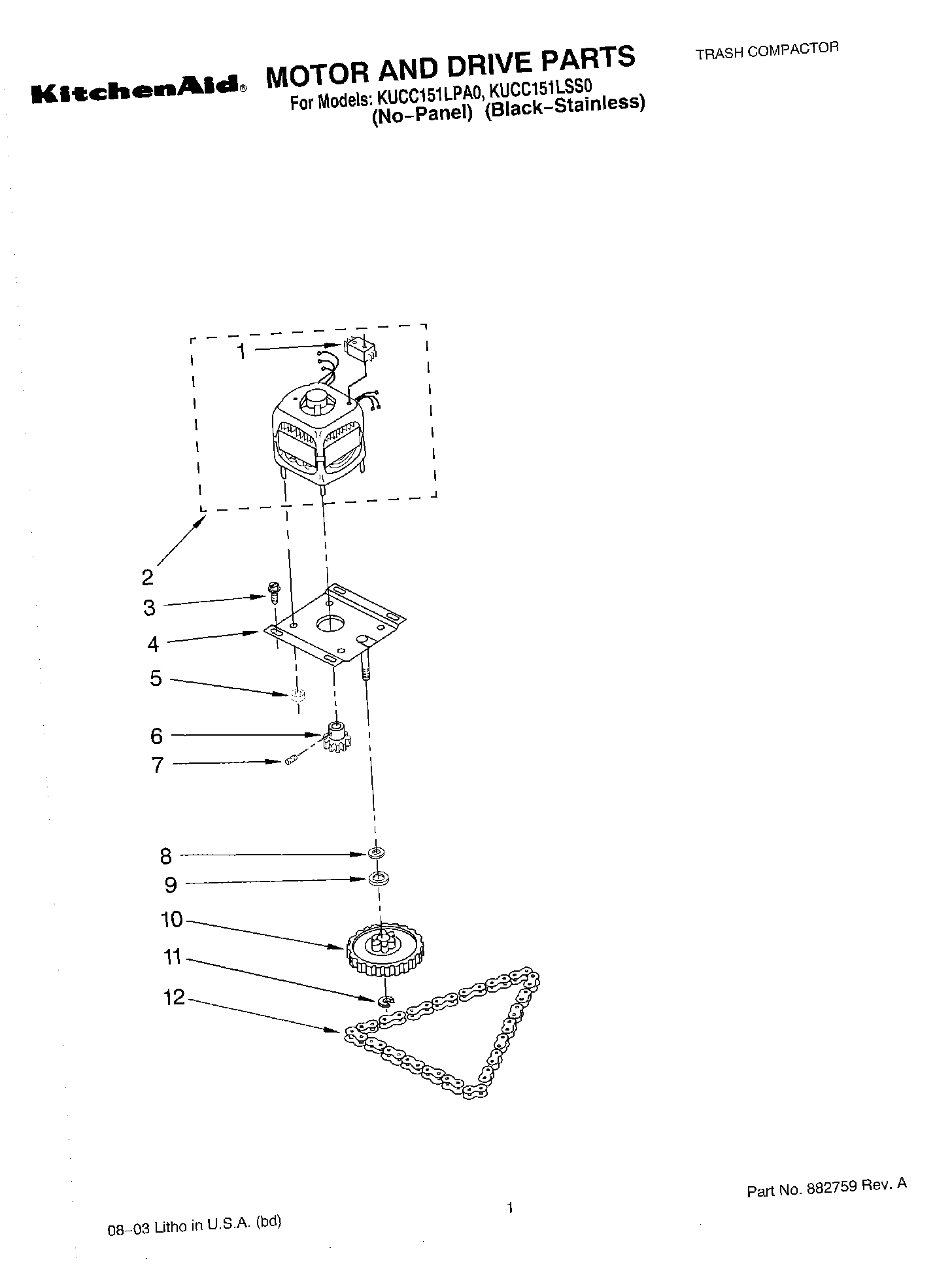

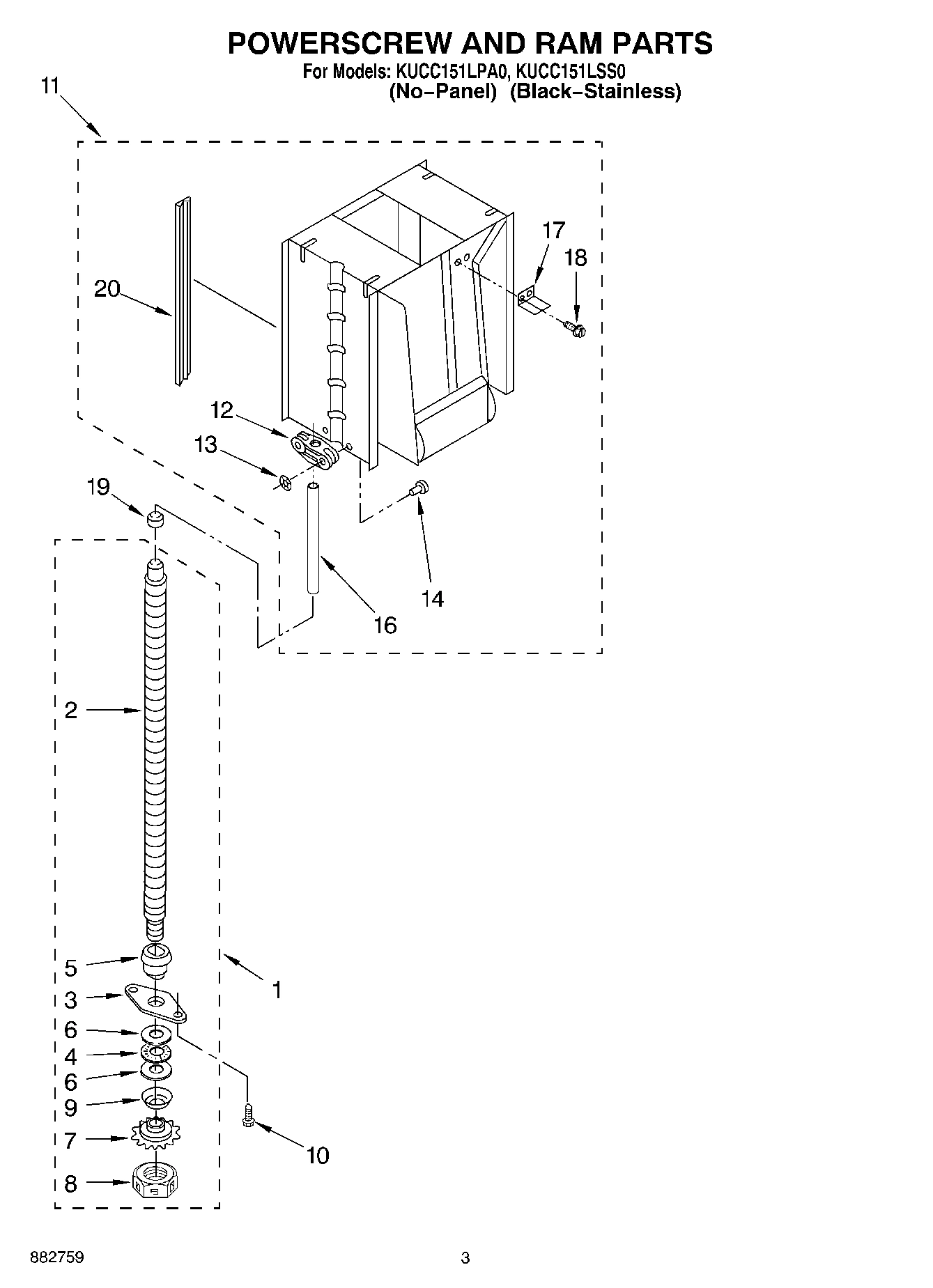

Common parts from model Whirlpool KUCC151LPA0 TRASH COMPACTOR
1
Panel, Front Frame (Black) WPL 9871072 Contact Us For Availability
2
Cover, Top WPL 608572 Contact Us For Availability
4
Panel, Container Front WPL 9871907S Contact Us For Availability
6
Nameplate WPL 2005292 Contact Us For Availability
8
Screw, 6-20 x 3/8 (2) WPL 246131 Contact Us For Availability
13
Handle WPL 9871564 Contact Us For Availability
17
Bracket, Top Limit Switch WPL 9870498 Contact Us For Availability
18
Plate, Toe Guard (Black) WPL 9871994 Contact Us For Availability
20
Pin WPL 776654 Contact Us For Availability
23
Clamp, Wire WPL 777035 Contact Us For Availability
24
Grommet, Motor Cover WPL 776118 Contact Us For Availability
25
Retainer, Bag (Contains 4 Each) WPL 4147703 Contact Us For Availability
× ![]()
