Model Whirlpool KUCC151DBL2 TRASH COMPACTOR – Common Parts & Diagrams
05 - PANEL AND CONTROL
01 - MOTOR AND DRIVE, LIT/OPTIONAL

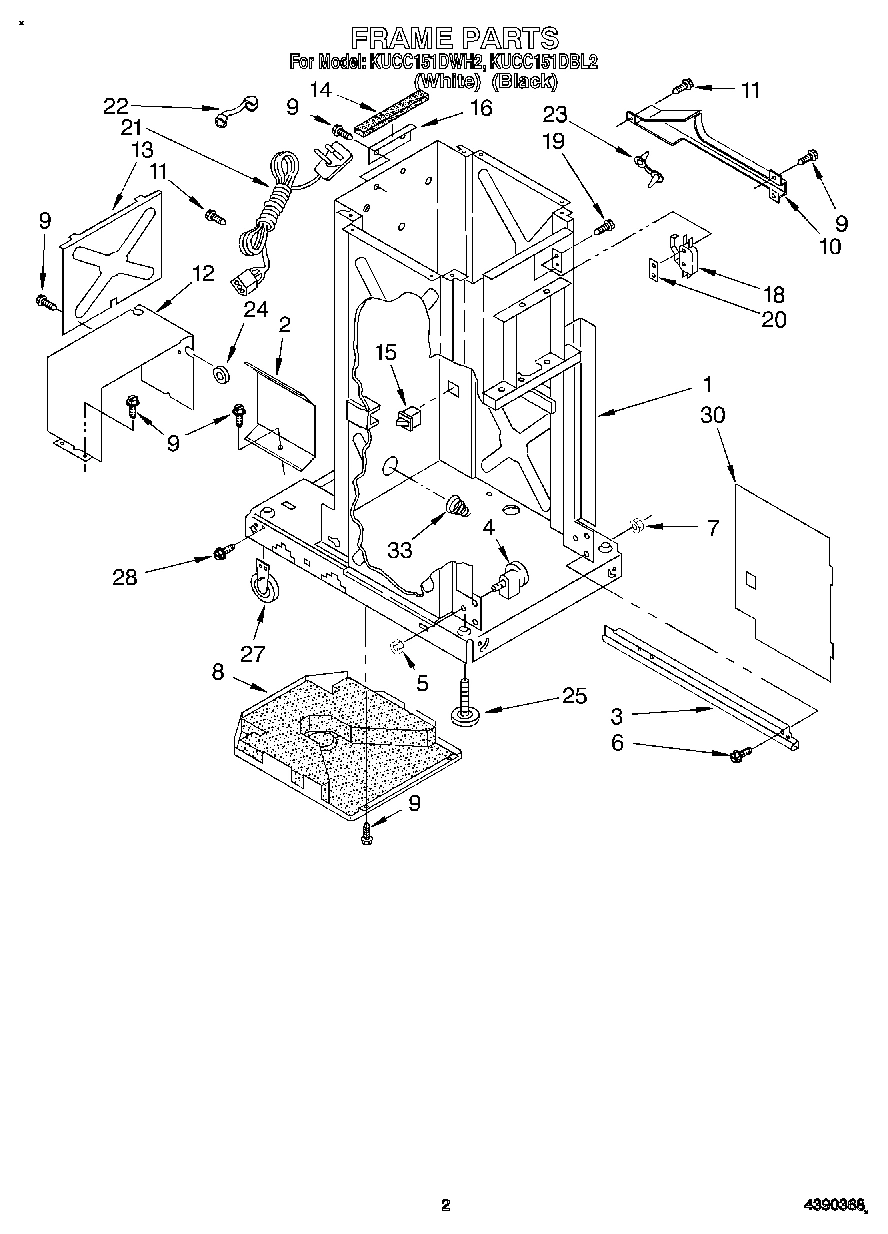

02 - FRAME

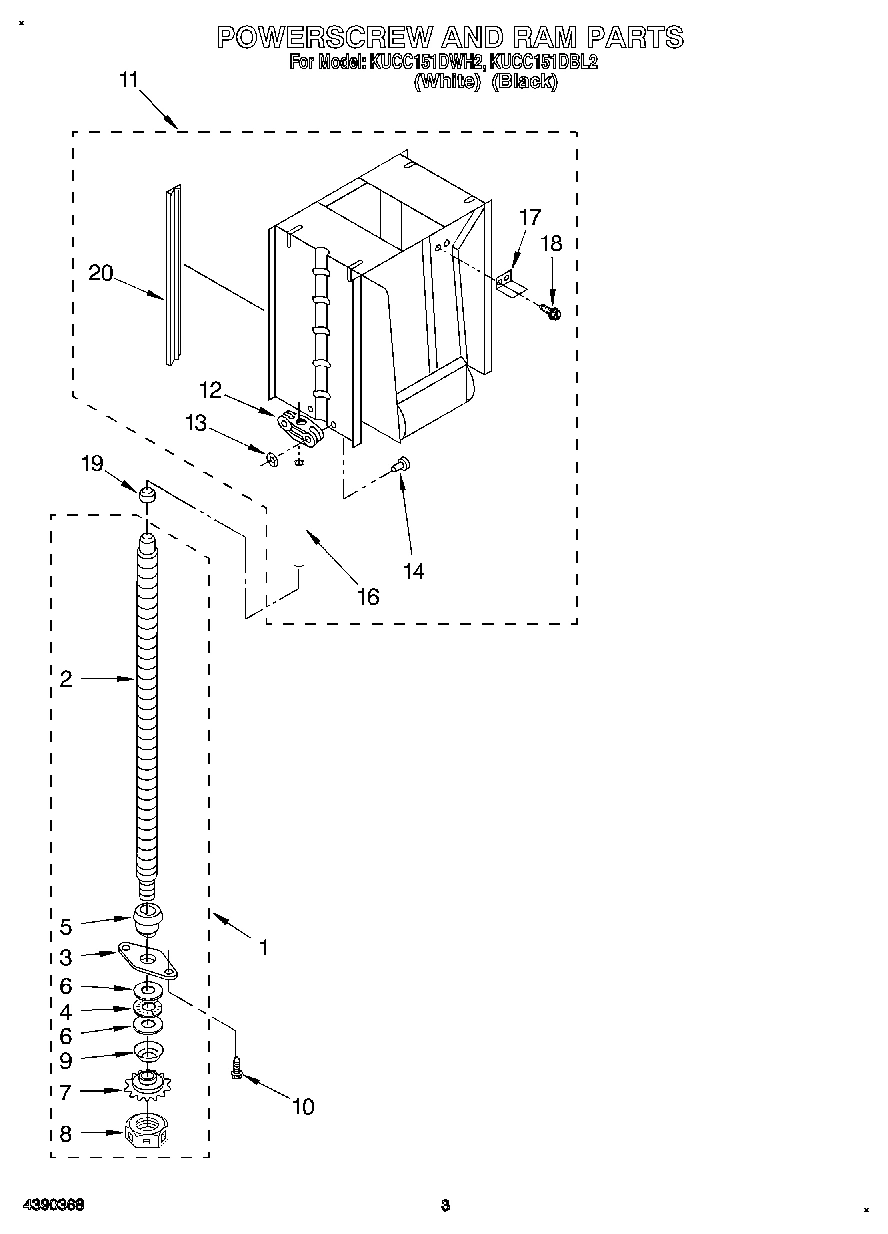

03 - POWERSCREW AND RAM

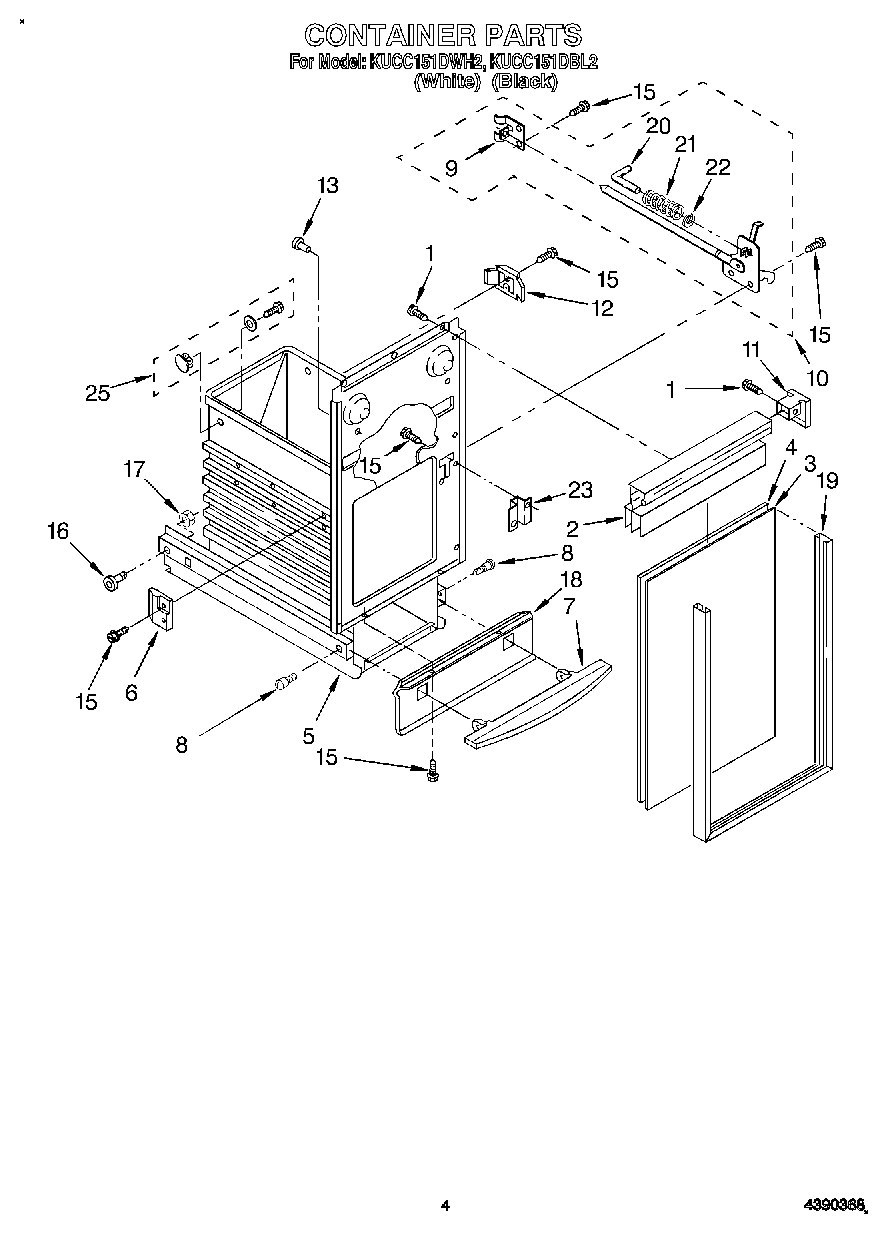

04 - CONTAINER

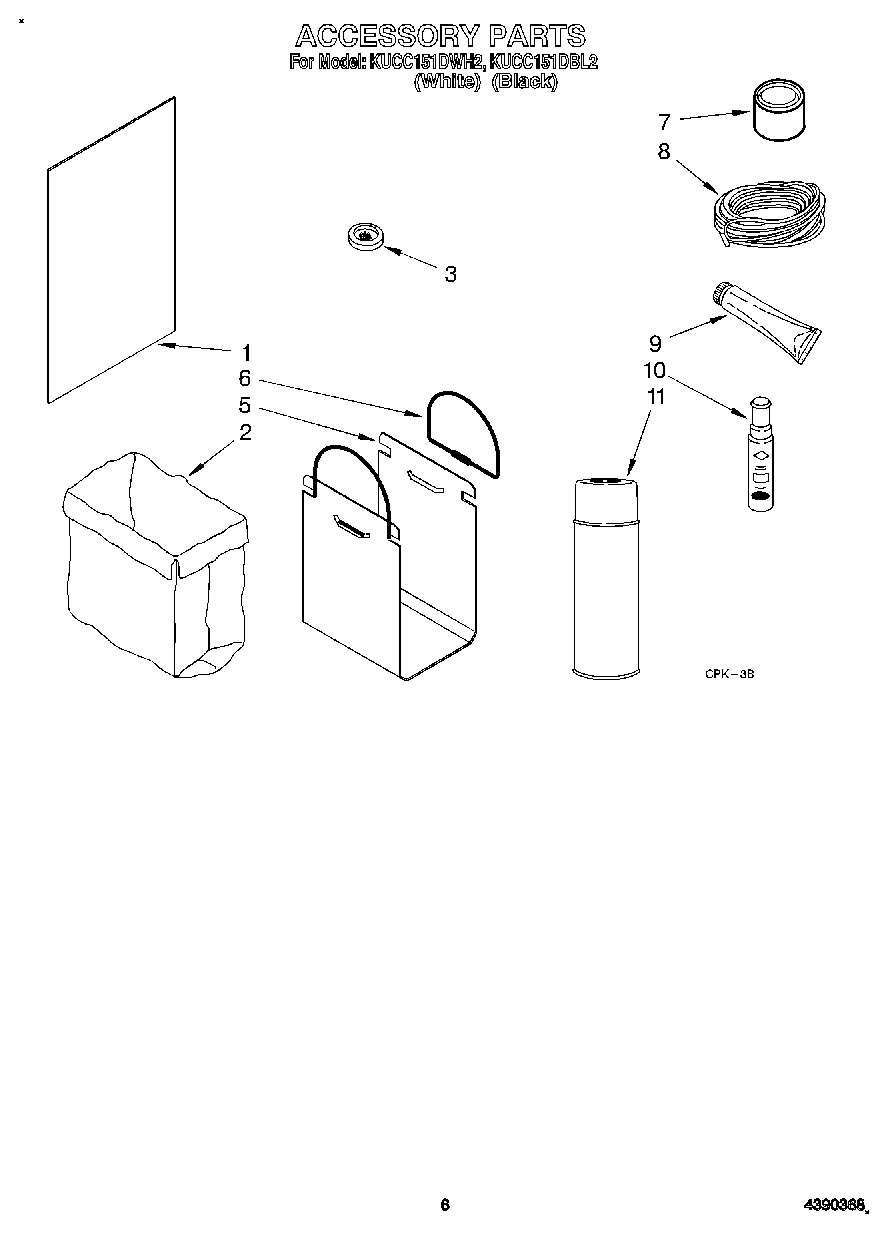

06 - ACCESSORY
Common parts from model Whirlpool KUCC151DBL2 TRASH COMPACTOR
1
Frame (Not a Serviceable Part) WPL ARI113108A Contact Us For Availability
1
Panel, Container Front (Black & White) WPL 4151463 Contact Us For Availability
1
Panel, Container Front (Almond & Black) WPL 9870989 Contact Us For Availability
1
Panel, Container Front (Almond & Harvest Gold WPL 4151462 Contact Us For Availability
1
panel, container front (coffee & avocado) WPL 777912 Contact Us For Availability
1
Panel, Container Front (Platinum & Toast) WPL 780280 Contact Us For Availability
1
Panel, Container Front (Brushed Chrome) WPL 882675 Contact Us For Availability
2
Shield, Slide Track (2) WPL 9870867 Contact Us For Availability
2
Screw, Power (Available Only As Complete Asse WPL ARI113109A Contact Us For Availability
2
Handle, Container (Black) WPL 9871082 Contact Us For Availability
2
Handle, Container (White) WPL 9871083 Contact Us For Availability
3
Plate, Bearing (2) WPL 779121 Contact Us For Availability
3
Deodorizer, Solid Stick-Ups (2-Pack) WPL 777635 Contact Us For Availability
4
Panel, Spacer WPL 4151465 Contact Us For Availability
5
Hub, Power Screw (2) WPL 776941 Contact Us For Availability
6
Race, Thrust (2) WPL 775481 Contact Us For Availability
6
Guide, Container (2) WPL 9870774 Contact Us For Availability
7
GREASE 4 OZ. (USE ON POWER SCREW AND RAM PRES WPL 675351 Contact Us For Availability
7
Nut, 6-32 (4) WPL 4159104 Contact Us For Availability
8
Nut, Power Screw (2) WPL 4154842 Contact Us For Availability
8
Washer, Wave WPL 776035 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
10
PAINT, TOUCH-UP (1/2OZ. WHITE) WPL 72017 Contact Us For Availability
10
PAINT, TOUCH-UP (1/2OZ. BLACK) WPL 72032 Contact Us For Availability
10
Paint, Touch-Up 1/2 Oz. (Harvest Gold) WPL 72110 Contact Us For Availability
10
Paint, Touch-Up 1/2 Oz. (Platinum) WPL 72113 Contact Us For Availability
10
Shield, Harness WPL 4149659 Contact Us For Availability
10
Screw, 10-24 x 3/4 (4) WPL 775071 Contact Us For Availability
10
Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability
11
WPL 350930 WPL 350930 Contact Us For Availability
11
paint, spray 13 oz. (black) WPL 285006 Contact Us For Availability
11
WPL 350956 WPL 350956 Contact Us For Availability
11
End Cap, Handle (White, LH) WPL 9871170 Contact Us For Availability
11
End Cap, Handle Left Hand (White) WPL 9871171 Contact Us For Availability
11
End Cap, Handle Left Hand (Black Right Hand) WPL 9871172 Contact Us For Availability
11
End Cap, Handle Left Hand (Black) WPL 9871173 Contact Us For Availability
11
Paint, Spray 13 Oz. (Harvest Gold) WPL 261890 Contact Us For Availability
11
Paint, Spray (13 WPL 285365 Contact Us For Availability
11
WPL 285366 WPL 285366 Contact Us For Availability
12
Chain, Drive WPL 780477 Contact Us For Availability
12
Actuator, Saftey Switch WPL 9871125 Contact Us For Availability
12
Harness, Wiring WPL 9871047 Contact Us For Availability
12
Cover, Motor WPL 780434 Contact Us For Availability
13
Plate, Motor Cover WPL 608009 Contact Us For Availability
13
Bumper, Container (2) WPL 775785 Contact Us For Availability
14
Barrier, Glass WPL 776780 Contact Us For Availability
16
Anble, Top Support WPL 775668 Contact Us For Availability
17
Bracket, Top Limit Switch WPL 9870498 Contact Us For Availability
19
Cover, Air Freshener (White) WPL 9870911 Contact Us For Availability
19
Trim, Container (Front) (White) WPL 9871088 Contact Us For Availability
19
Trim, Container (Front) (Black) WPL 9871107 Contact Us For Availability
20
Plate, Nut WPL 777850 Contact Us For Availability
20
Pin WPL 776654 Contact Us For Availability
21
Spring, Latch WPL 775736 Contact Us For Availability
21
Cord, Power WPL 778575 Contact Us For Availability
22
Bushing, Cord WPL 776119 Contact Us For Availability
24
Grommet, Motor Cover WPL 776118 Contact Us For Availability
25
Retainer, Bag (Contains 4 Each) WPL 4147703 Contact Us For Availability
× ![]()
