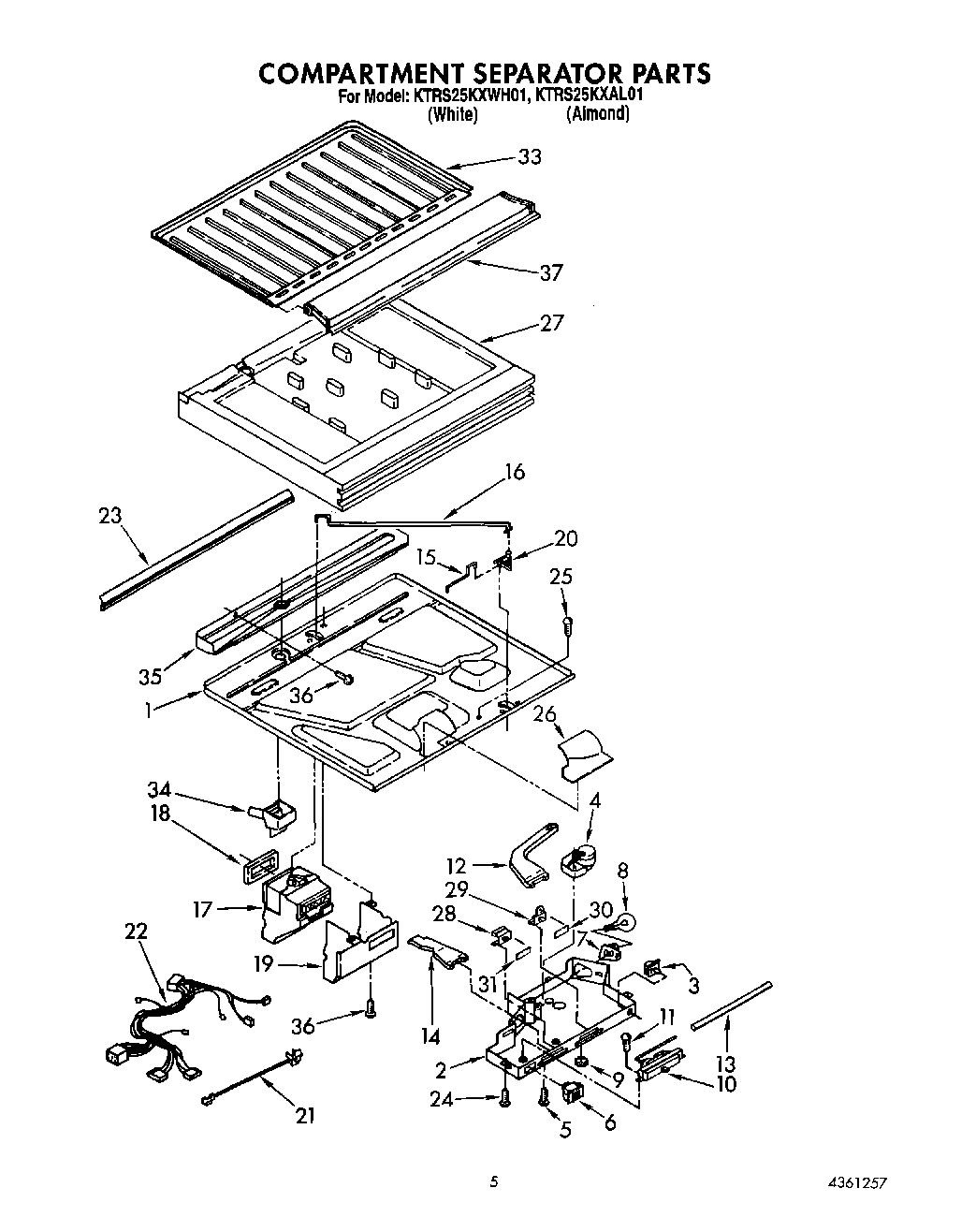

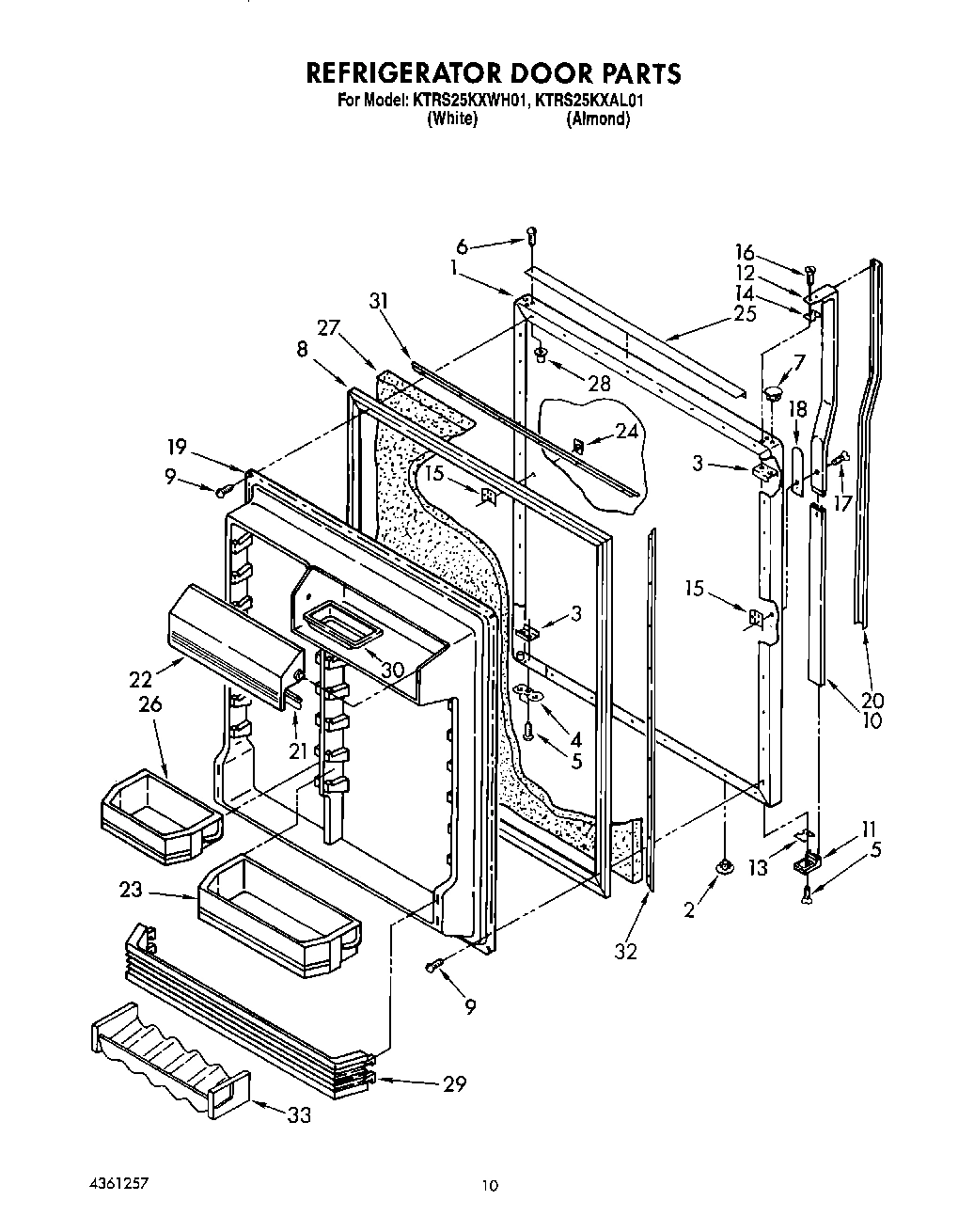

Model Whirlpool KTRS25KXWH01 – Common Parts & Diagrams
Common parts from model Whirlpool KTRS25KXWH01
1
Bottom, Compartment Separator WPL 1125871 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 1114585 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 1114588 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI112940A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI112941A Contact Us For Availability
1
Shelf, Ladder (2) WPL 1118102 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Box, Control WPL 1125510 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Roller, Front WPL 2152011 Contact Us For Availability
2
Shelf Ladder, Center WPL 1118101 Contact Us For Availability
3
Condenser Assembly WPL 1105640 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489333 Contact Us For Availability
3
Grommet (4) WPL 1110779 Contact Us For Availability
4
Timer, Defrost (10 Hour) WPL 1127570 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Roller, Rear (2) WPL 2147324 Contact Us For Availability
5
Clip, Wire (2) WPL 548745 Contact Us For Availability
5
Screw, 1/4-28 x 1/2 (6) WPL 488454 Contact Us For Availability
5
Wine & Egg Rack WPL 1125913 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 (3) WPL 489345 Contact Us For Availability
6
Switch, Toggle WPL 1125964 Contact Us For Availability
6
Electrical Shield WPL 2151616 Contact Us For Availability
7
Heat Shield, Evaporator WPL 1116511 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Sealing Gasket WPL 1114548 Contact Us For Availability
7
Electrical Shield WPL 2151608 Contact Us For Availability
7
Shelf, Cantilever (3) WPL 1125748 Contact Us For Availability
8
Tube Clamp WPL 510716 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1125922 Contact Us For Availability
8
Hole Plug (Almond) WPL 2151653 Contact Us For Availability
8
Electrical, Shield WPL 1106892 Contact Us For Availability
8
Gasket (Front) WPL 1125784 Contact Us For Availability
9
Dampener WPL 510769 Contact Us For Availability
9
Control, Front Cover WPL 1117939 Contact Us For Availability
9
Stud (3) WPL 946356 Contact Us For Availability
10
Thermostat Assembly WPL 1125768 Contact Us For Availability
10
Support Evap. WPL 842436 Contact Us For Availability
10
Insert, Handle (White) WPL 1125791 Contact Us For Availability
10
Insert, Handle (Almond) WPL 1125792 Contact Us For Availability
10
Heater, Mullion WPL 1114550 Contact Us For Availability
11
Strap, Cover WPL 943322 Contact Us For Availability
11
Retainer, Gasket WPL 1121119 Contact Us For Availability
11
Clip, Center Rail (4) WPL 2149060 Contact Us For Availability
12
Light Pipe (R.S.) WPL 1125511 Contact Us For Availability
12
Case, Relay WPL 1105055 Contact Us For Availability
12
Handle WPL 1107230 Contact Us For Availability
12
Spacer (2) WPL 2149077 Contact Us For Availability
12
Support, Stud (6) WPL 946355 Contact Us For Availability
12
Pan Shelf, (3) Cantilever WPL 1125777 Contact Us For Availability
13
Overload WPL 2154794 Contact Us For Availability
13
Spacer, Handle WPL 1107192 Contact Us For Availability
13
Center Rail (White) WPL 1114538 Contact Us For Availability
13
Center Rail (Almond) WPL 1114541 Contact Us For Availability
13
Cover, Air Duct WPL 2157412 Contact Us For Availability
14
Light Pipe (L.S.) WPL 1125512 Contact Us For Availability
14
Overload Spring WPL 943320 Contact Us For Availability
14
Shim WPL 1125789 Contact Us For Availability
14
Screw WPL 489327 Contact Us For Availability
14
Strap, Mtg. WPL 1123230 Contact Us For Availability
14
Glass, Shelf WPL 1125779 Contact Us For Availability
15
Connecting Rod, Short WPL 1125515 Contact Us For Availability
15
Relay (Order Overload To Obtain Relay) WPL ARI112942A Contact Us For Availability
15
Interior Door Panel WPL 1125739 Contact Us For Availability
15
Wine Rack (Egg) WPL 1126137 Contact Us For Availability
16
Rod, Connecting WPL 1126158 Contact Us For Availability
16
Housing Plug WPL 1118850 Contact Us For Availability
16
Glass, Shelf WPL 1125749 Contact Us For Availability
17
Air Diffuser Assembly WPL 1123221 Contact Us For Availability
17
Shelf Bin (2) WPL 1125743 Contact Us For Availability
17
Hinge, Top WPL 1123514 Contact Us For Availability
17
Shelf, Freezer WPL 1125745 Contact Us For Availability
18
Shim, Hinge Top WPL 1123515 Contact Us For Availability
18
Gasket, Air Diffuser WPL 1114325 Contact Us For Availability
18
Nameplate WPL 1125818 Contact Us For Availability
18
Shelf, Freezer WPL 1125746 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Retainer, Gasket WPL 1121120 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Pan, Crisper WPL 1117909 Contact Us For Availability
20
Pivot Arm WPL 1125581 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
20
Cap, Hinge Sleeve (4) WPL 509929 Contact Us For Availability
20
Screw WPL 489179 Contact Us For Availability
20
Grommet (2) WPL 848445 Contact Us For Availability
20
Pan, Meat WPL 1125932 Contact Us For Availability
21
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
21
Ground Wire WPL 1114482 Contact Us For Availability
21
Hinge, Center WPL 836153 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2154418 Contact Us For Availability
22
Evaporator WPL 1115146 Contact Us For Availability
22
Retainer, Insert WPL 1125790 Contact Us For Availability
22
Shim, Center (Repair) WPL 836195 Contact Us For Availability
22
Shim, Hinge Center WPL 841604 Contact Us For Availability
22
Socket, Light WPL 1123354 Contact Us For Availability
23
Gasket, Bottom Separator WPL 1116698 Contact Us For Availability
23
End Cap WPL 1125788 Contact Us For Availability
23
Hole Seal WPL 1129056 Contact Us For Availability
23
Scroll, Fan WPL 1114593 Contact Us For Availability
23
Retainer, Shelf WPL 1125754 Contact Us For Availability
24
Dike, Support WPL 1125577 Contact Us For Availability
24
Evaporator Cover WPL 1123353 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
26
Hinge Butt, Bottom WPL 2148563 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1114561 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Slide, Thermostat WPL 1125513 Contact Us For Availability
28
Compressor (Includes Items 43, 44, 45, 46, 47 WPL 4317962 Contact Us For Availability
28
Housing Plug WPL 2149732 Contact Us For Availability
28
Gasket (Front) WPL 1125813 Contact Us For Availability
29
Shim, Bottom WPL 987179 Contact Us For Availability
29
Slide, Air Control WPL 1125578 Contact Us For Availability
29
Clamp, Dryer WPL 1127590 Contact Us For Availability
29
Gasket, Rear WPL 1125816 Contact Us For Availability
30
Window, Air Control WPL 1125579 Contact Us For Availability
30
Light Lens WPL 981365 Contact Us For Availability
30
Divider WPL 1125542 Contact Us For Availability
31
Window, Thermostat WPL 1125580 Contact Us For Availability
31
Exchanger, Heat WPL 2154440 Contact Us For Availability
31
Spacer WPL 1129868 Contact Us For Availability
31
Shelf, Ice Tray WPL 1125543 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
33
WPL 4318433 WPL 4318433 Contact Us For Availability
33
WPL 4318434 WPL 4318434 Contact Us For Availability
33
WPL 4318435 WPL 4318435 Contact Us For Availability
33
Separator,(Rear) Compartment (Top) WPL 1114562 Contact Us For Availability
33
Heater, Defrost WPL 2149173 Contact Us For Availability
33
Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability
33
Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability
33
Roller (Roller L.S.) WPL 1112303 Contact Us For Availability
33
Roller, R.S. WPL 1125530 Contact Us For Availability
34
Cup, Drain WPL 937065 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1110708 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1110709 Contact Us For Availability
34
Eyelet, Roller WPL 1112308 Contact Us For Availability
35
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
35
Drain Pan WPL 1114597 Contact Us For Availability
35
Grille (White) WPL 1125714 Contact Us For Availability
35
Grille (Almond) WPL 1125716 Contact Us For Availability
35
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
35
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
35
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
35
WPL 978883 WPL 978883 Contact Us For Availability
36
Hole Plug (5) (White) WPL 1129062 Contact Us For Availability
36
Hole Plug (5) (Almond) WPL 1129063 Contact Us For Availability
37
Separator, Compartment (Top) (Front) WPL 1115189 Contact Us For Availability
37
Cabinet, Wiring Assembly WPL 2149634 Contact Us For Availability
39
Cover, Wiring WPL 1105606 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
45
Cover WPL 1108115 Contact Us For Availability
45
Clamp WPL 937357 Contact Us For Availability
46
Strap WPL 938384 Contact Us For Availability
46
Fitting, Drain WPL 937062 Contact Us For Availability
47
Overload Spring WPL 1114190 Contact Us For Availability
48
Cover, Unit WPL 2147323 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
49
Cover, Plug WPL 1105527 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
50
Hole Seal WPL 1120224 Contact Us For Availability
52
Support (L.S.) WPL 2149120 Contact Us For Availability
52
Clamp WPL 836077 Contact Us For Availability
57
Nut WPL 489142 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Washer WPL 489143 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability
68
Tube Clamp WPL 1105607 Contact Us For Availability
× ![]()
