Model Whirlpool KTRS25KGWH00 – Common Parts & Diagrams

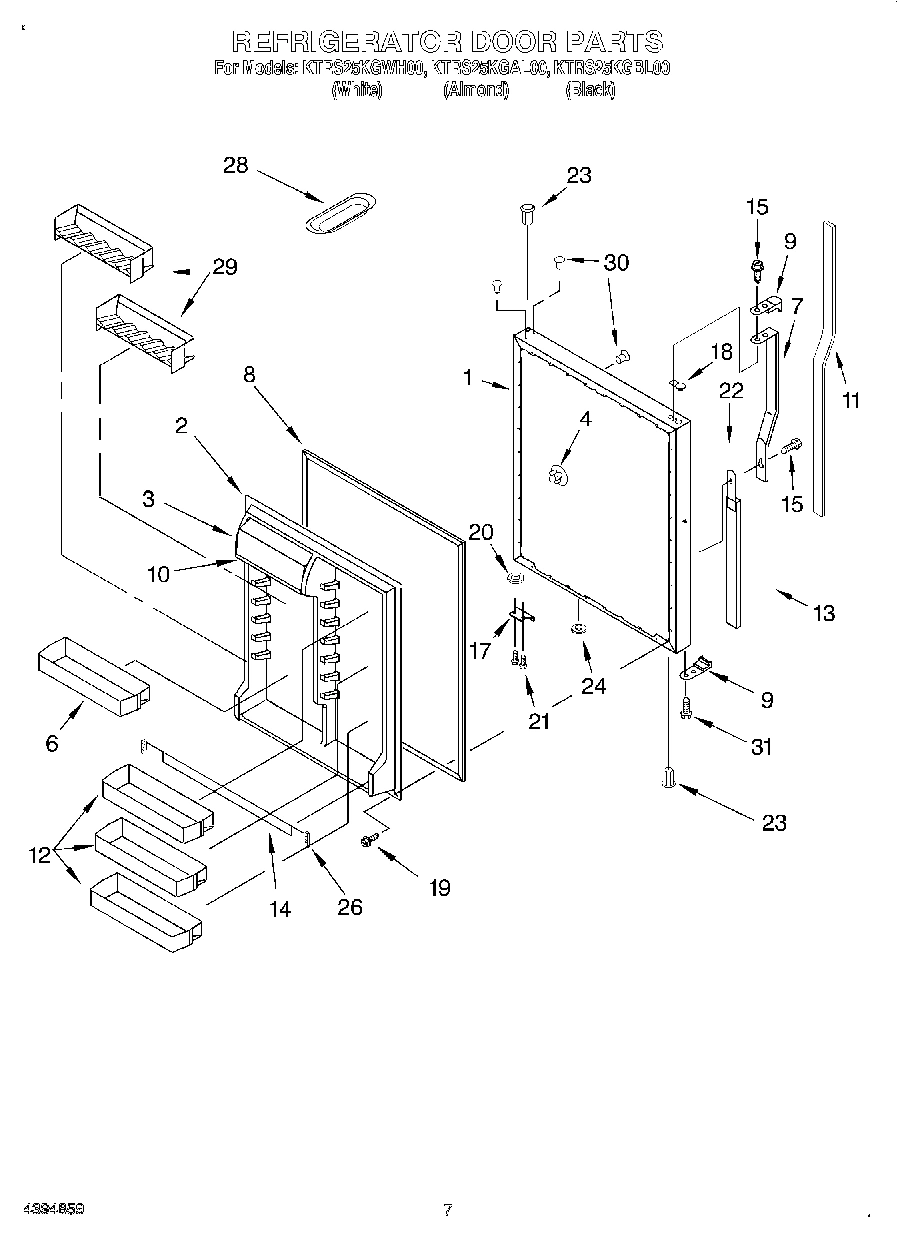

05 - REFRIGERATOR DOOR

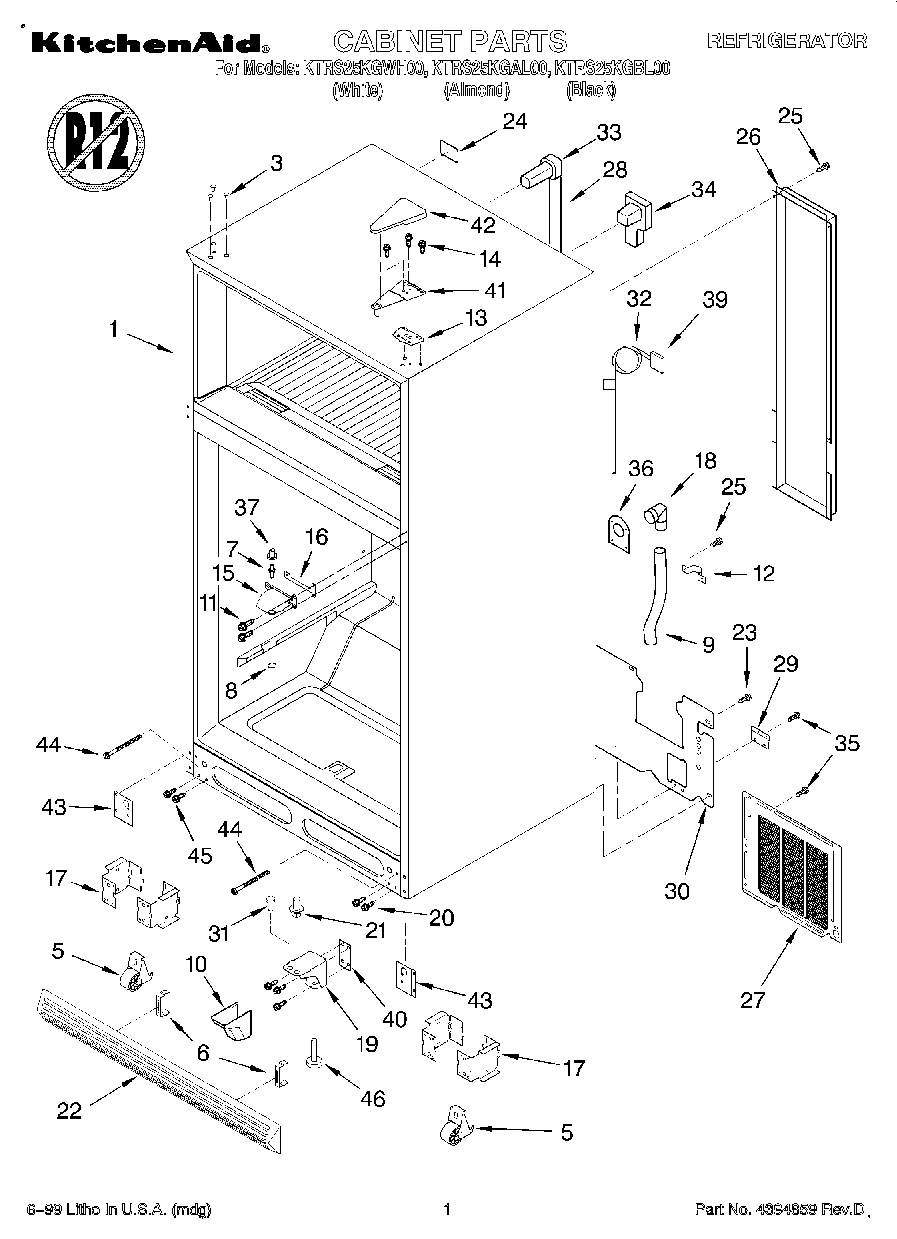

01 - CABINET

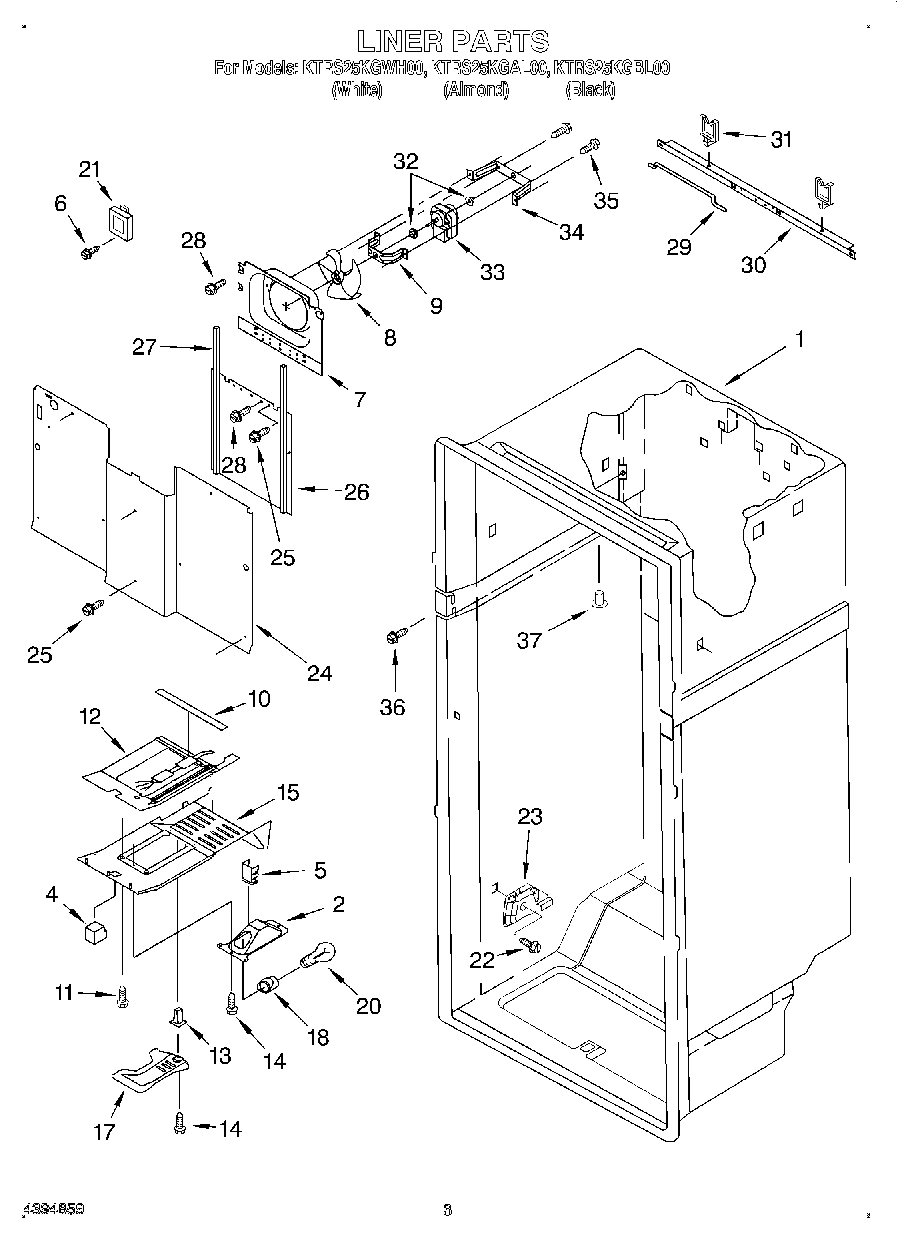

02 - LINER

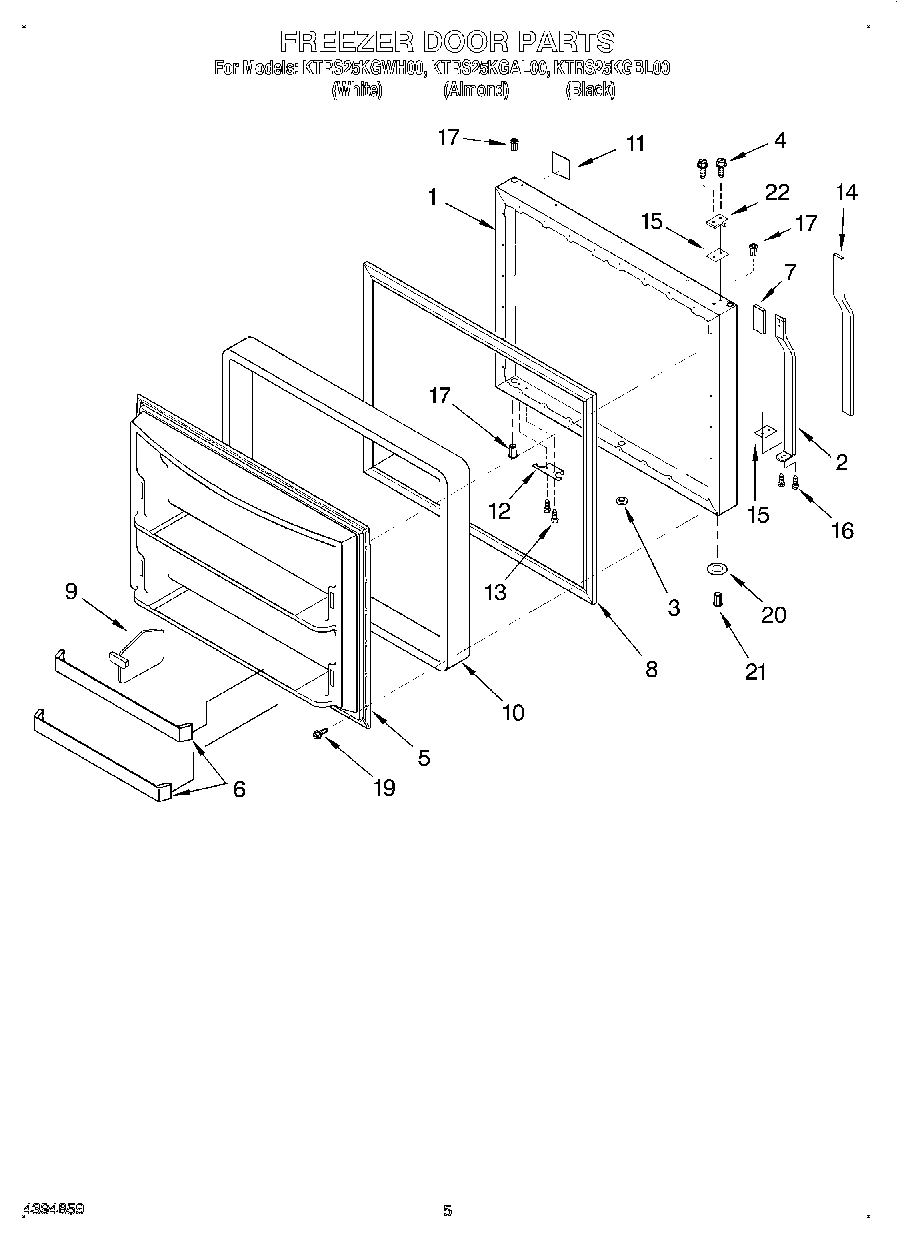

03 - FREEZER DOOR

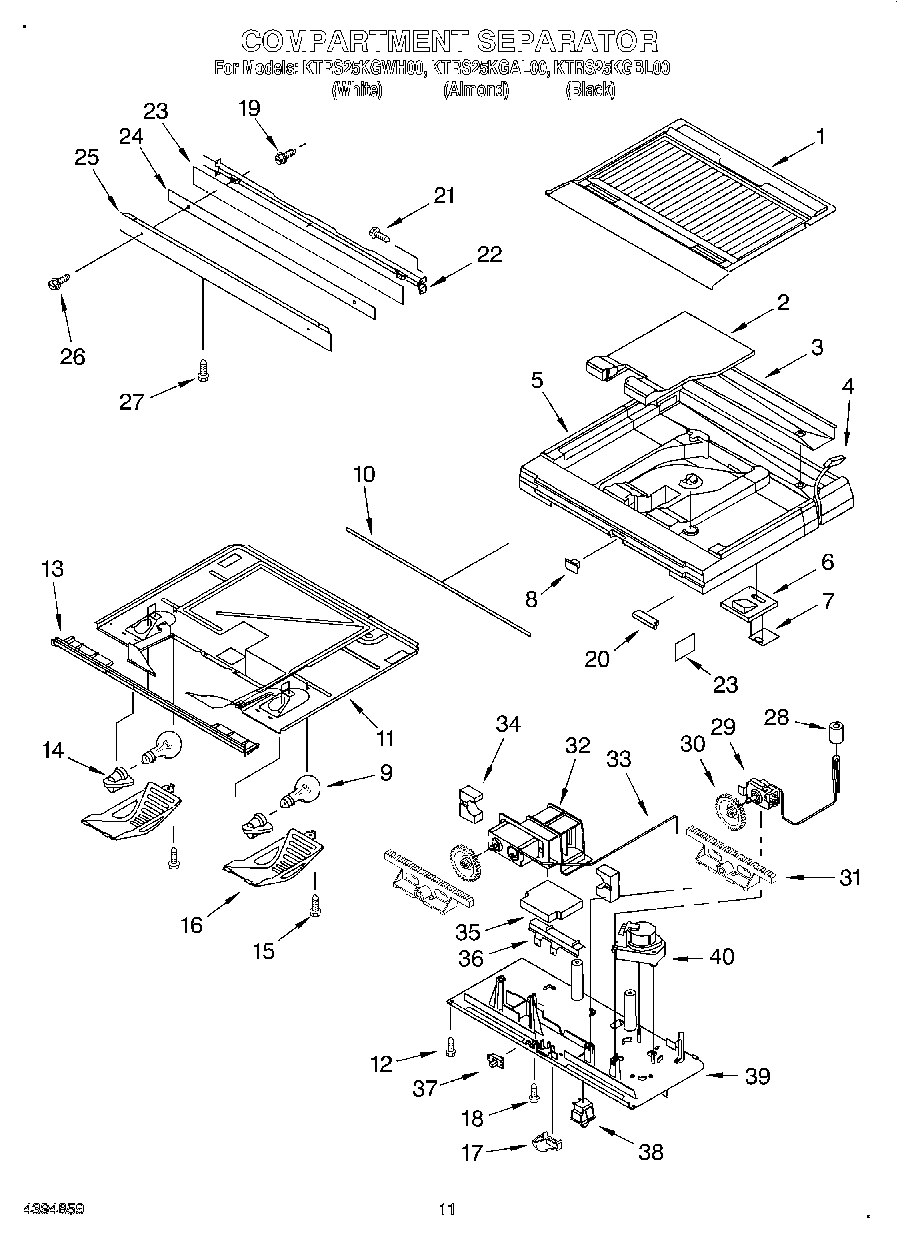

07 - COMPARTMENT SEPARATOR, LIT/OPTIONAL

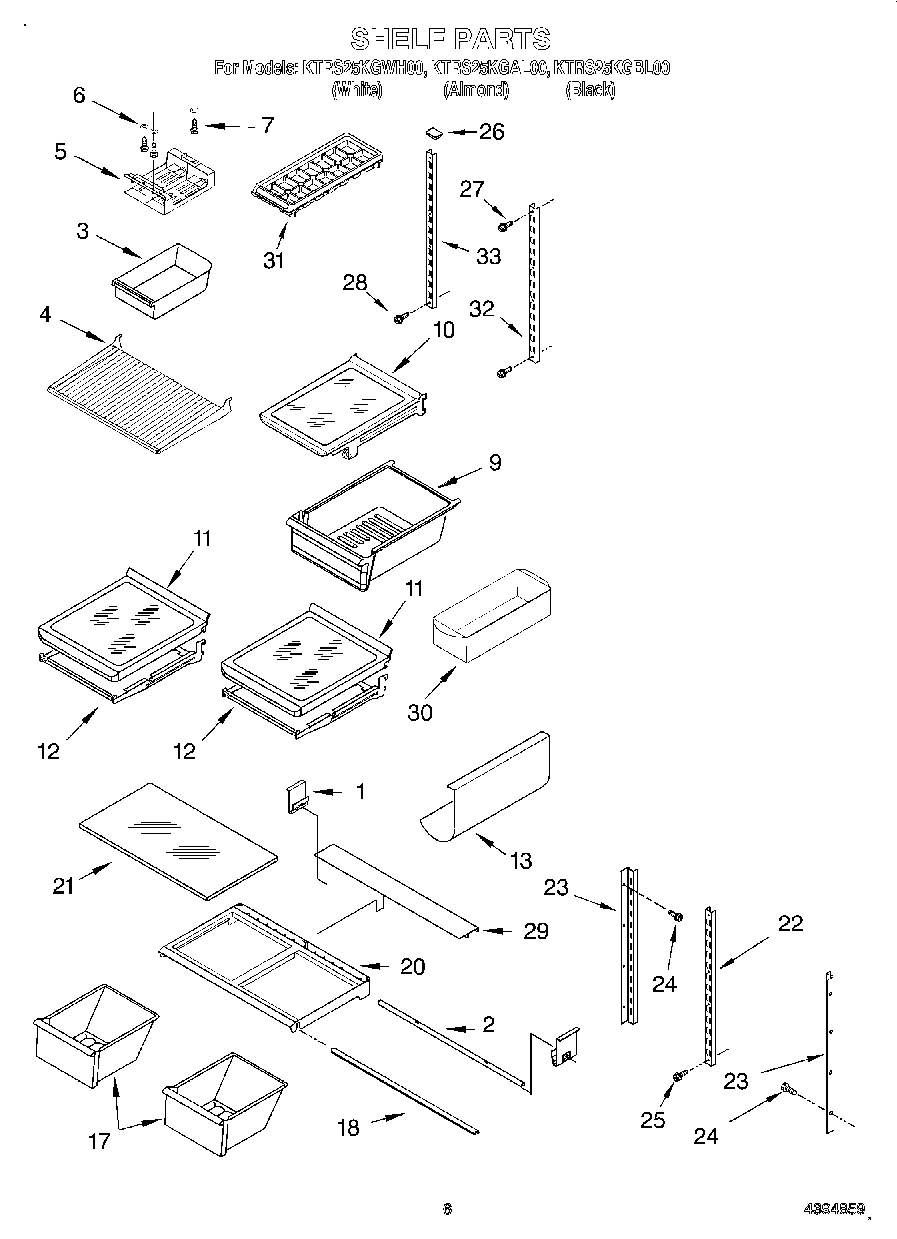

04 - SHELF

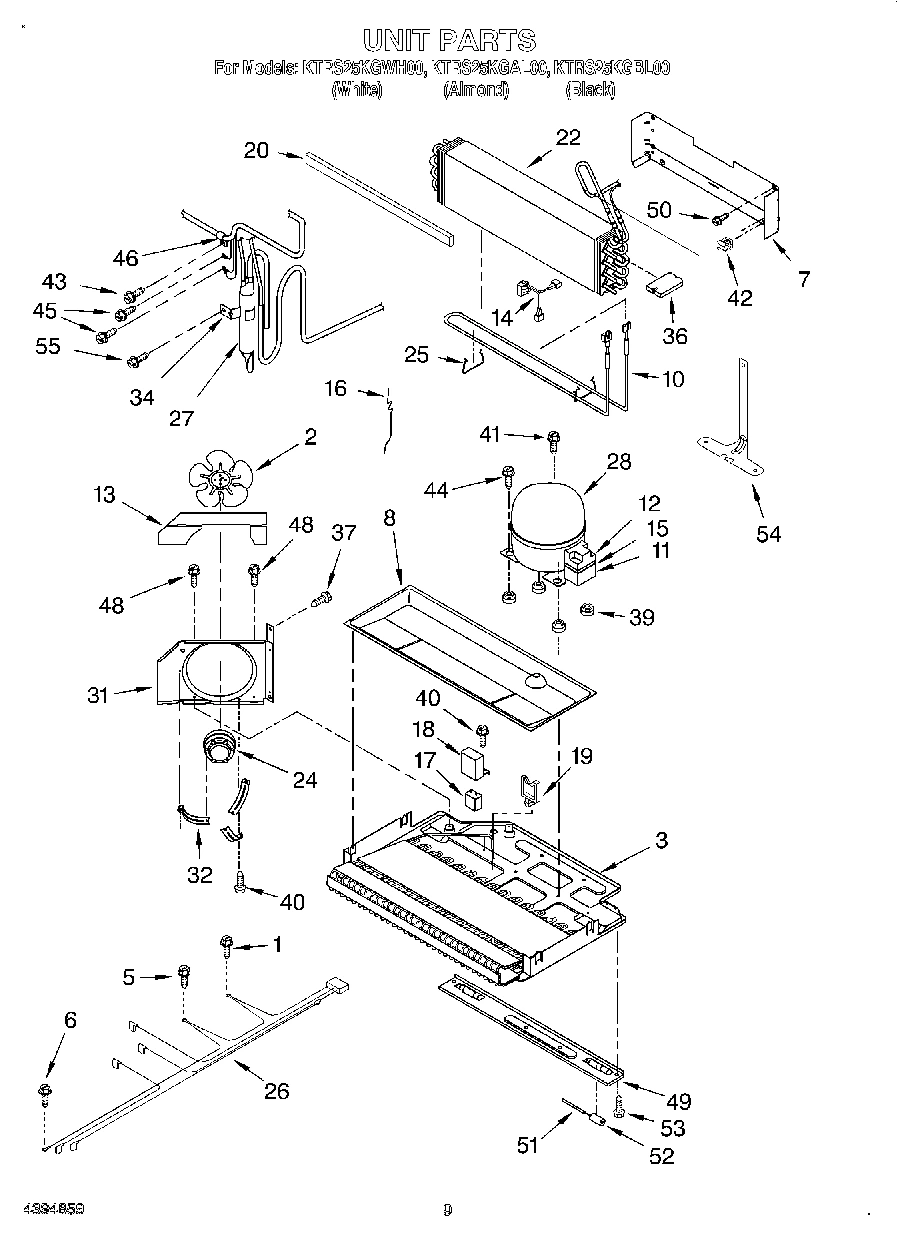

06 - UNIT
Common parts from model Whirlpool KTRS25KGWH00
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT4344403 WPL LIT4344403 Contact Us For Availability
WPL LIT4344546 WPL LIT4344546 Contact Us For Availability
WPL LIT4344547 WPL LIT4344547 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI112919A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI112920A Contact Us For Availability
1
Freezer Door Panel (Includes Insulation) (Bla WPL 4344537 Contact Us For Availability
1
Freezer Door Panel (Includes Insulation) (Alm WPL 4344538 Contact Us For Availability
1
Freezer Door Panel (Includes Insulation) (Whi WPL 4344539 Contact Us For Availability
1
Separator, Comp. WPL 4344466 Contact Us For Availability
1
Support, Crisper WPL 4344444 Contact Us For Availability
2
Housing, Frz. Light WPL 4344451 Contact Us For Availability
2
Handle WPL 2165908 Contact Us For Availability
2
Insert, Drain WPL 4344460 Contact Us For Availability
2
Crisper, Cross Member WPL 4344445 Contact Us For Availability
2
Fan, Blade WPL 4344271 Contact Us For Availability
3
Plug, Button (White) WPL 4344227 Contact Us For Availability
3
Plug, Button (Almond) WPL 4344363 Contact Us For Availability
3
Plug, Button (Black) WPL 4344364 Contact Us For Availability
3
Plug, Button (3) (Almond) WPL 4344189 Contact Us For Availability
3
Tray, Drip WPL 4344464 Contact Us For Availability
3
Ice Bucket WPL 4344317 Contact Us For Availability
3
Condenser & Pan Assembly WPL 4344508 Contact Us For Availability
4
Screw WPL 4344435 Contact Us For Availability
4
Harness, Drn Blk WPL 4344414 Contact Us For Availability
4
Shelf, Frz. Wire WPL 4344438 Contact Us For Availability
5
Roller, Front Assy. WPL 4344291 Contact Us For Availability
5
Clip, Ground WPL 4343682 Contact Us For Availability
5
Interior Panel WPL 4344541 Contact Us For Availability
5
Insulation WPL 4344461 Contact Us For Availability
5
Rack, Ice WPL 4344447 Contact Us For Availability
6
Clip, Grille WPL 4344155 Contact Us For Availability
6
Trivet, Door WPL 2171357 Contact Us For Availability
6
Insert, Air Sply WPL 4344470 Contact Us For Availability
6
Screw WPL 4343860 Contact Us For Availability
6
Washer WPL 4344449 Contact Us For Availability
7
Pin, Center Hinge WPL 4344428 Contact Us For Availability
7
Shroud, Evap Fan WPL 4344501 Contact Us For Availability
7
Retainer WPL 2165900 Contact Us For Availability
7
Gasket, Air Sply WPL 4344473 Contact Us For Availability
7
Screw WPL 4344448 Contact Us For Availability
7
Heat Shield WPL 4344486 Contact Us For Availability
8
Door Gasket, Magnetic (Black) WPL 4344408 Contact Us For Availability
8
Door Gasket, Magnetic (White) WPL 4344409 Contact Us For Availability
8
Cap, Switch WPL 4344467 Contact Us For Availability
8
Drain Pan WPL 4344510 Contact Us For Availability
9
Tube, Drain WPL 4344504 Contact Us For Availability
9
Bracket, Upper WPL 4344392 Contact Us For Availability
9
Divider, Door Shelf WPL 4344300 Contact Us For Availability
9
Meat Pan WPL 2175436 Contact Us For Availability
10
Hinge Cover, Bottom (Black) WPL 4344202 Contact Us For Availability
10
Hinge Cover, Bottom (Almond) WPL 4344203 Contact Us For Availability
10
Hinge Cover, Bottom (White) WPL 4344204 Contact Us For Availability
10
Gasket WPL 4344437 Contact Us For Availability
10
Insulation WPL 4344540 Contact Us For Availability
10
Membrane, Breaker WPL 4344465 Contact Us For Availability
10
Shelf, Meat Pan WPL 2173903 Contact Us For Availability
10
Evaporator Heater WPL 4344416 Contact Us For Availability
11
Nameplate (White) WPL 4344326 Contact Us For Availability
11
Nameplate (Almond) WPL 4344327 Contact Us For Availability
11
Nameplate (Black) WPL 4344328 Contact Us For Availability
11
Bottom, Comp. Separator WPL 4344462 Contact Us For Availability
11
Frame Assy (2) WPL 2174020 Contact Us For Availability
11
Cover WPL 4343852 Contact Us For Availability
12
Clamp WPL 4344509 Contact Us For Availability
12
Insulation WPL 4344457 Contact Us For Availability
12
Screw WPL 4344469 Contact Us For Availability
12
Shelf, S/G (2) WPL 2174018 Contact Us For Availability
13
Shim, Hinge Top (Black) WPL 4344192 Contact Us For Availability
13
Shim, Hinge Top (Almond) WPL 4344193 Contact Us For Availability
13
Shim, Hinge Top (White) WPL 4344194 Contact Us For Availability
13
Grommet WPL 4343657 Contact Us For Availability
13
Frame, Breaker WPL 4344471 Contact Us For Availability
13
Rack, Wine WPL 4344294 Contact Us For Availability
13
Gasket WPL 4344275 Contact Us For Availability
14
Socket (2) WPL 4344421 Contact Us For Availability
14
Insert (White) WPL 2165904 Contact Us For Availability
14
Insert (Almond) WPL 2165905 Contact Us For Availability
14
Insert (Black) WPL 2165906 Contact Us For Availability
14
Bi-Metal WPL 4344423 Contact Us For Availability
15
Hinge, Center WPL 4344431 Contact Us For Availability
15
Screw (2) WPL 4343861 Contact Us For Availability
15
Duct, Frz Air WPL 4344450 Contact Us For Availability
15
Shim WPL 1125789 Contact Us For Availability
16
Shim, Center Hinge (Black) WPL 4344425 Contact Us For Availability
16
Shim, Center Hinge (Almond) WPL 4344426 Contact Us For Availability
16
Shim, Center Hinge (White) WPL 4344427 Contact Us For Availability
16
Screw WPL 4344436 Contact Us For Availability
16
Shield, Light (2) WPL 4344472 Contact Us For Availability
16
Clip, Heat WPL 4344497 Contact Us For Availability
17
Bushing (Black) WPL 4344361 Contact Us For Availability
17
Bushing (White) WPL 4344362 Contact Us For Availability
17
Housing, Roller WPL 4344295 Contact Us For Availability
17
Shield, Light WPL 4344452 Contact Us For Availability
17
Knob (2) WPL 4344468 Contact Us For Availability
17
Pan, Crisper WPL 2175434 Contact Us For Availability
17
Capacitor WPL 4343851 Contact Us For Availability
18
Plug, Button (Black) WPL 4344432 Contact Us For Availability
18
Plug, Button (Almond) WPL 4344433 Contact Us For Availability
18
Plug, Button (White) WPL 4344434 Contact Us For Availability
18
Elbow, Drain Tube WPL 4344506 Contact Us For Availability
18
Screw WPL 4344167 Contact Us For Availability
18
Support, Crisper Cvr WPL 2179449 Contact Us For Availability
18
Shield, Capacitor WPL 4344277 Contact Us For Availability
19
Screw WPL 4343811 Contact Us For Availability
19
Hinge Bottom (Black) WPL 4344284 Contact Us For Availability
19
Hinge Bottom (White) WPL 4344285 Contact Us For Availability
19
Clip, Wire WPL 4343969 Contact Us For Availability
20
Shim (White) WPL 4344200 Contact Us For Availability
20
Shim (Black) WPL 4344201 Contact Us For Availability
20
Filter WPL 4344544 Contact Us For Availability
20
Insulation WPL 4344459 Contact Us For Availability
20
Cover, Pan WPL 2174132 Contact Us For Availability
20
Gasket WPL 4344495 Contact Us For Availability
21
Cover, Plug WPL 4344166 Contact Us For Availability
21
Bushing (Black) WPL 4344542 Contact Us For Availability
21
Bushing (White) WPL 4344543 Contact Us For Availability
21
Glass, Crisper Cover WPL 2174145 Contact Us For Availability
22
Spacer WPL 1107650 Contact Us For Availability
22
Grille (Black) WPL 4344519 Contact Us For Availability
22
Grille (Almond) WPL 4344520 Contact Us For Availability
22
Grille (White) WPL 4344521 Contact Us For Availability
22
End Cap (White) WPL 4344589 Contact Us For Availability
22
End Cap (Almond) WPL 4344590 Contact Us For Availability
22
End Cap (Black) WPL 4344591 Contact Us For Availability
22
Plate, Tap WPL 4344453 Contact Us For Availability
22
Ladder, Center WPL 4344522 Contact Us For Availability
22
Evaporator WPL 4344418 Contact Us For Availability
23
Screw WPL 4344267 Contact Us For Availability
23
Support, Crisper (Right Side) WPL 4344442 Contact Us For Availability
23
Support, Crisper (Left Side) WPL 4344443 Contact Us For Availability
23
Insulation WPL 4344454 Contact Us For Availability
23
Ladder, Side WPL 4344514 Contact Us For Availability
24
Plug, I/M WPL 4344264 Contact Us For Availability
24
Cover, Evaporator WPL 4344484 Contact Us For Availability
24
Heater, Mullion WPL 4344417 Contact Us For Availability
24
Screw WPL 4344523 Contact Us For Availability
24
Motor, Fan WPL 4344419 Contact Us For Availability
25
Mullion WPL 4344439 Contact Us For Availability
26
Wire Cover (2) WPL 4344503 Contact Us For Availability
26
Plate, Cover WPL 4344485 Contact Us For Availability
26
Cap WPL 4344491 Contact Us For Availability
26
Harness, Unit WPL 4344415 Contact Us For Availability
27
Back Cover WPL 4344261 Contact Us For Availability
27
Gasket WPL 4344492 Contact Us For Availability
27
Screw WPL 4344458 Contact Us For Availability
27
Screw WPL 4344493 Contact Us For Availability
28
Butter Dish WPL 4344296 Contact Us For Availability
28
Harness, Control WPL 4344412 Contact Us For Availability
28
Insulation WPL 4344479 Contact Us For Availability
28
Screw WPL 4344494 Contact Us For Availability
29
Holder, Beverage WPL 4344374 Contact Us For Availability
29
Gasket WPL 4344499 Contact Us For Availability
29
Thermostat WPL 4344407 Contact Us For Availability
29
Spacer, Crisper WPL 4344446 Contact Us For Availability
30
Plug, Button (Almond) WPL 4344534 Contact Us For Availability
30
Cover, Unit WPL 4344502 Contact Us For Availability
30
Support, Ctr Ldr WPL 4344488 Contact Us For Availability
30
Pinion, Control WPL 4344476 Contact Us For Availability
31
Plug, Button WPL 4344210 Contact Us For Availability
31
Rack, Control WPL 4344475 Contact Us For Availability
31
Shroud WPL 4344269 Contact Us For Availability
32
Power Cord WPL 4344505 Contact Us For Availability
32
Control, Damper WPL 4344406 Contact Us For Availability
32
Ladder, Frz RS WPL 4344489 Contact Us For Availability
32
Bracket, Fan Motor WPL 4344272 Contact Us For Availability
33
Grommet WPL 4344259 Contact Us For Availability
33
Motor, Evaporator WPL 4344420 Contact Us For Availability
33
Tube, Plastic WPL 4344481 Contact Us For Availability
33
Ladder, Frz LS WPL 4344490 Contact Us For Availability
34
PLug WPL 4344260 Contact Us For Availability
34
Bracket, Lower WPL 4344393 Contact Us For Availability
34
Insert, Damper WPL 4344477 Contact Us For Availability
34
Clip, Drier WPL 4343763 Contact Us For Availability
35
Insulation WPL 4344478 Contact Us For Availability
36
Gasket WPL 4344507 Contact Us For Availability
36
Shield, Wire WPL 4344480 Contact Us For Availability
36
Block, Evaporator (Left Side) WPL 4344482 Contact Us For Availability
36
Block, Evaporator (Right Side) WPL 4344500 Contact Us For Availability
37
Closure, Door (Black Model) WPL 4344429 Contact Us For Availability
37
Closure, Door (White & Almond Model) WPL 4344430 Contact Us For Availability
37
Plug, Button (3) WPL 4344455 Contact Us For Availability
37
Switch WPL 4344422 Contact Us For Availability
37
Screw WPL 4344151 Contact Us For Availability
39
Housing WPL 4344474 Contact Us For Availability
39
Grommet (4) WPL 4343845 Contact Us For Availability
40
WPL 876029 WPL 876029 Contact Us For Availability
40
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
40
Shim, Hinge WPL 4344515 Contact Us For Availability
40
Shim, Hinge WPL 4344516 Contact Us For Availability
40
Ice Container Assembly WPL 4343700 Contact Us For Availability
40
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
40
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
40
WPL 799833 WPL 799833 Contact Us For Availability
40
WPL 978883 WPL 978883 Contact Us For Availability
40
Screw WPL 4343859 Contact Us For Availability
41
Hinge Top WPL 4344172 Contact Us For Availability
41
Screw (2) WPL 4344511 Contact Us For Availability
42
Hinge Cover (Black) WPL 4344195 Contact Us For Availability
42
Hinge Cover (Almond) WPL 4344196 Contact Us For Availability
42
Hinge Cover (White) WPL 4344197 Contact Us For Availability
42
Clip, Evaporator WPL 4344487 Contact Us For Availability
43
Plate, Hinge Tap (Right Side) WPL 4344299 Contact Us For Availability
43
Plate, Hinge Tap (Left Side) WPL 4344301 Contact Us For Availability
44
Screw WPL 4344290 Contact Us For Availability
44
Screw (2) WPL 4343847 Contact Us For Availability
46
Clamp WPL 4343661 Contact Us For Availability
48
Screw WPL 4343749 Contact Us For Availability
49
Cabinet, Brace WPL 4344518 Contact Us For Availability
50
Screw WPL 4344346 Contact Us For Availability
51
Axle-Roller WPL 4344289 Contact Us For Availability
52
Roller-Rear WPL 4344288 Contact Us For Availability
53
Screw WPL 4344292 Contact Us For Availability
54
Brace WPL 4344512 Contact Us For Availability
55
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
55
Screw WPL 4343759 Contact Us For Availability
55
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
