Model Whirlpool KTRS22KXWH20 – Common Parts & Diagrams

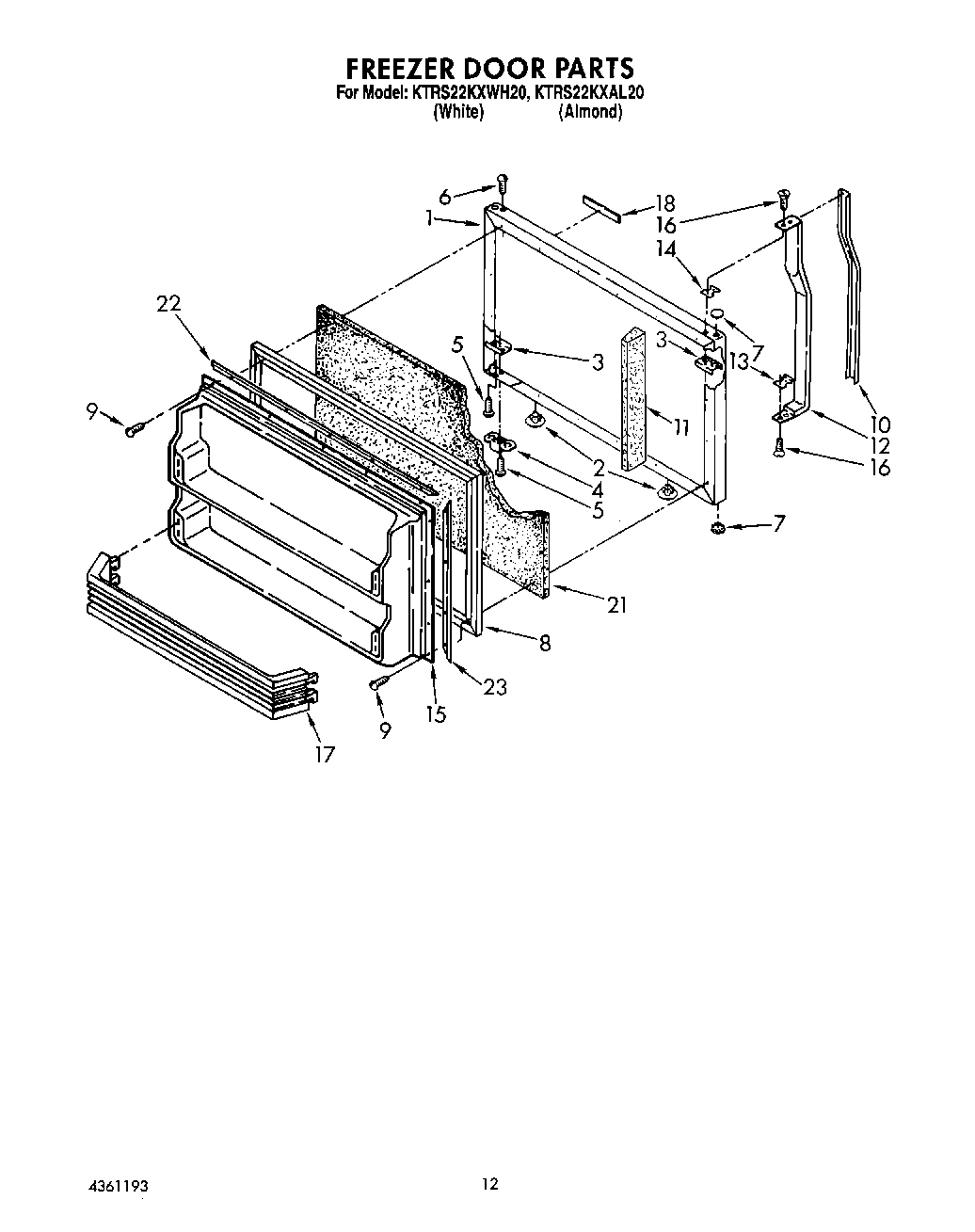

08 - FREEZER DOOR

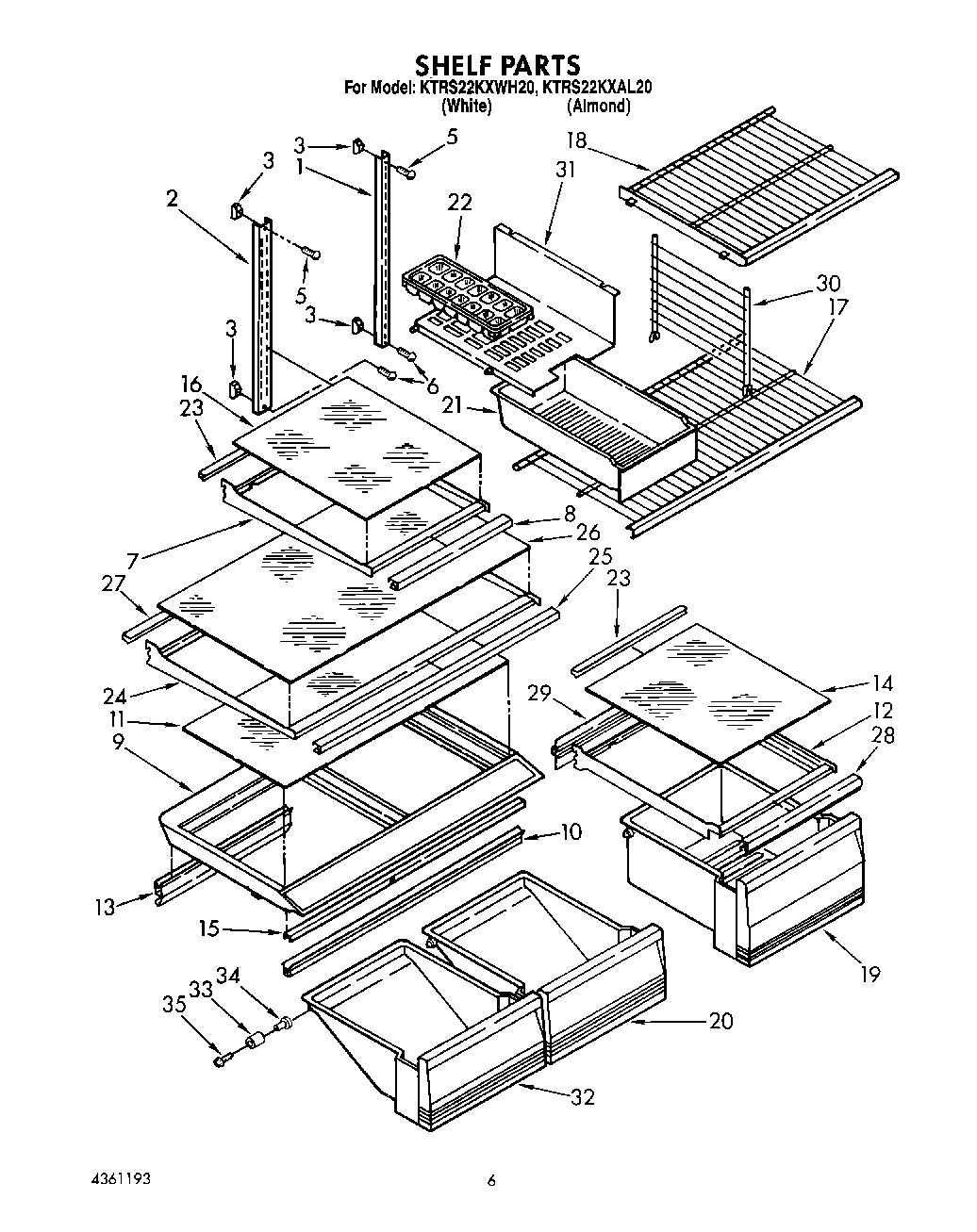

05 - SHELF, LIT/OPTIONAL
07 - REFRIGERATOR DOOR
02 - CABINET
04 - COMPARTMENT SEPARATOR
06 - UNIT
03 - LINER
Common parts from model Whirlpool KTRS22KXWH20
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Panel, Refrigerator Door (White) WPL 1122549 Contact Us For Availability
1
Panel, Refrigerator Door (Almond (Also Order WPL 1122658 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI112669A Contact Us For Availability
1
Bottom, Compartment Separator WPL 1125507 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI112670A Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
2
Roller, Front WPL 2152011 Contact Us For Availability
2
Box, Control WPL 1125510 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489333 Contact Us For Availability
3
Condenser Assembly WPL 2154010 Contact Us For Availability
3
Grommet (4) WPL 1110779 Contact Us For Availability
4
Bracket, Door Stop WPL 944036 Contact Us For Availability
4
Timer, Defrost (10 Hour) WPL 1127570 Contact Us For Availability
5
Clip, Wire (2) WPL 548745 Contact Us For Availability
6
Switch, Toggle WPL 1125964 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Hole Plug (Almond) WPL 2151653 Contact Us For Availability
7
Drain Pan/ Heat Shield WPL 2153974 Contact Us For Availability
8
Tube Clamp (2) WPL 510716 Contact Us For Availability
9
Control, Front Cover WPL 1126139 Contact Us For Availability
9
Dampener WPL 2149670 Contact Us For Availability
9
Stud (3) WPL 946356 Contact Us For Availability
10
Retainer, Insert WPL 1107209 Contact Us For Availability
10
Heater, Mullion WPL 2154065 Contact Us For Availability
10
Thermostat Assembly WPL 1125768 Contact Us For Availability
11
End Cap, Handle WPL 1107236 Contact Us For Availability
11
Clip, Center Rail (4) WPL 1129018 Contact Us For Availability
11
Spring, Relay Case WPL 943322 Contact Us For Availability
12
Handle WPL 1107230 Contact Us For Availability
12
Spacer (2) WPL 2149077 Contact Us For Availability
12
Light Pipe (R.S.) WPL 1125511 Contact Us For Availability
12
Case, Relay WPL 1105055 Contact Us For Availability
12
Support, Stud (6) WPL 946355 Contact Us For Availability
13
Shim, End Cap WPL 1107229 Contact Us For Availability
13
Center Rail (White) WPL 1122566 Contact Us For Availability
13
Center Rail (Almond) WPL 1122569 Contact Us For Availability
13
Overload WPL 2154140 Contact Us For Availability
13
Cover, Air Duct WPL 2157411 Contact Us For Availability
14
Spacer, Handle WPL 1107192 Contact Us For Availability
14
Screw WPL 489327 Contact Us For Availability
14
Light Pipe (L.S.) WPL 1125512 Contact Us For Availability
14
Strap, Mtg. WPL 1123230 Contact Us For Availability
15
Connecting Rod, Short WPL 1125515 Contact Us For Availability
16
Rod, Connecting WPL 1125514 Contact Us For Availability
16
Housing Plug WPL 1118850 Contact Us For Availability
17
Hinge, Top WPL 1123514 Contact Us For Availability
17
Air Diffuser Assembly WPL 1126124 Contact Us For Availability
18
Spacer, Handle WPL 1107650 Contact Us For Availability
18
Shim, Hinge Top WPL 1123517 Contact Us For Availability
18
Gasket, Air Diffuser WPL 1114325 Contact Us For Availability
19
Interior Door Panel WPL 1117954 Contact Us For Availability
19
Cover, Air Diffuser WPL 1125941 Contact Us For Availability
19
Grommet, Screw WPL 509812 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
20
Pan, Meat WPL 1117912 Contact Us For Availability
20
Insert, Handle (White) WPL 1125689 Contact Us For Availability
20
Insert, Handle (Almond) WPL 1125690 Contact Us For Availability
20
Pivot Arm WPL 1125581 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
20
Wine & Egg Rack WPL 1125913 Contact Us For Availability
21
Gasket, Utility Door WPL 1125695 Contact Us For Availability
21
Hinge, Center WPL 2147335 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
22
Utility Door (Includes Item 21) WPL 1125733 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2153995 Contact Us For Availability
22
Evaporator WPL 2153978 Contact Us For Availability
23
Retainer, Gasket WPL 1122553 Contact Us For Availability
23
Retainer, Shelf WPL 1110744 Contact Us For Availability
23
Shelf Bin (Wide) WPL 1125555 Contact Us For Availability
23
Gasket, Bottom Separator WPL 1114382 Contact Us For Availability
23
Scroll, Fan WPL 1127100 Contact Us For Availability
24
Shelf, Full Cantilever WPL 1125523 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Evaporator Cover WPL 2157427 Contact Us For Availability
25
Gasket (Front) WPL 1125783 Contact Us For Availability
25
Trim, Door WPL 1107199 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
26
Glass, Full Shelf WPL 1125524 Contact Us For Availability
26
Shelf Bin (3) WPL 1125556 Contact Us For Availability
26
Hinge Butt, Bottom WPL 2148563 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
27
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Retainer, Shelf WPL 1125525 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1105464 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Gasket, Front WPL 1125576 Contact Us For Availability
28
Slide, Thermostat WPL 1125513 Contact Us For Availability
28
Compressor (Includes Items 43, 44, 45, 46, 47 WPL 4317959 Contact Us For Availability
29
Gasket, Rear WPL 1125815 Contact Us For Availability
29
Shelf Bin, Fixed WPL 1125557 Contact Us For Availability
29
Shim, Bottom WPL 1123379 Contact Us For Availability
29
Slide, Air Control WPL 1125578 Contact Us For Availability
29
Support, Heater WPL 2149120 Contact Us For Availability
30
Divider WPL 1125542 Contact Us For Availability
30
Butter, Tray WPL 1125936 Contact Us For Availability
30
Window, Air Control WPL 1125579 Contact Us For Availability
30
Light Lens WPL 981365 Contact Us For Availability
31
Shelf, Ice Tray WPL 1125543 Contact Us For Availability
31
Retainer, Gasket WPL 1122551 Contact Us For Availability
31
Spacer WPL 1121117 Contact Us For Availability
31
Window, Thermostat WPL 1125580 Contact Us For Availability
32
Utility Pan WPL 1117911 Contact Us For Availability
32
Retainer, Gasket WPL 1122552 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
33
Roller L.S. WPL 1112303 Contact Us For Availability
33
Roller, R.S. WPL 1125530 Contact Us For Availability
33
Holder, Beverage WPL 1125981 Contact Us For Availability
33
Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability
33
Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability
33
Separator, Compartment (Top) WPL 2151663 Contact Us For Availability
33
Heater, Defrost WPL 2154736 Contact Us For Availability
34
Eyelet, Roller WPL 1112308 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability
34
Cup, Drain WPL 937065 Contact Us For Availability
35
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
35
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
35
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
35
WPL 799833 WPL 799833 Contact Us For Availability
35
WPL 978883 WPL 978883 Contact Us For Availability
35
Grille (White) WPL 1125663 Contact Us For Availability
35
Grille (Almond) WPL 1125667 Contact Us For Availability
36
Hole Plug (5) (White) WPL 1129062 Contact Us For Availability
36
Hole Plug (5) (Almond) WPL 1129063 Contact Us For Availability
37
Wiring Assy. Intermediate WPL 2153994 Contact Us For Availability
41
Air Baffle WPL 2155566 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
44
Overload WPL 1118841 Contact Us For Availability
45
Cover WPL 1108115 Contact Us For Availability
46
Strap WPL 938384 Contact Us For Availability
48
Cover, Unit WPL 1105531 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
51
Drain Extension WPL 2154119 Contact Us For Availability
53
Screw, 1/4-28 x 1/2 (2) WPL 488454 Contact Us For Availability
54
Support, Evaporator (R.S.) WPL 1118805 Contact Us For Availability
54
Support-Evaporator (L.S. Baffle (2)) WPL 1118806 Contact Us For Availability
56
Nut WPL 489142 Contact Us For Availability
57
Washer WPL 489143 Contact Us For Availability
59
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
59
Overload Spring WPL 1114190 Contact Us For Availability
59
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability
× ![]()
