Model Whirlpool KTRS22KDAL01 – Common Parts & Diagrams

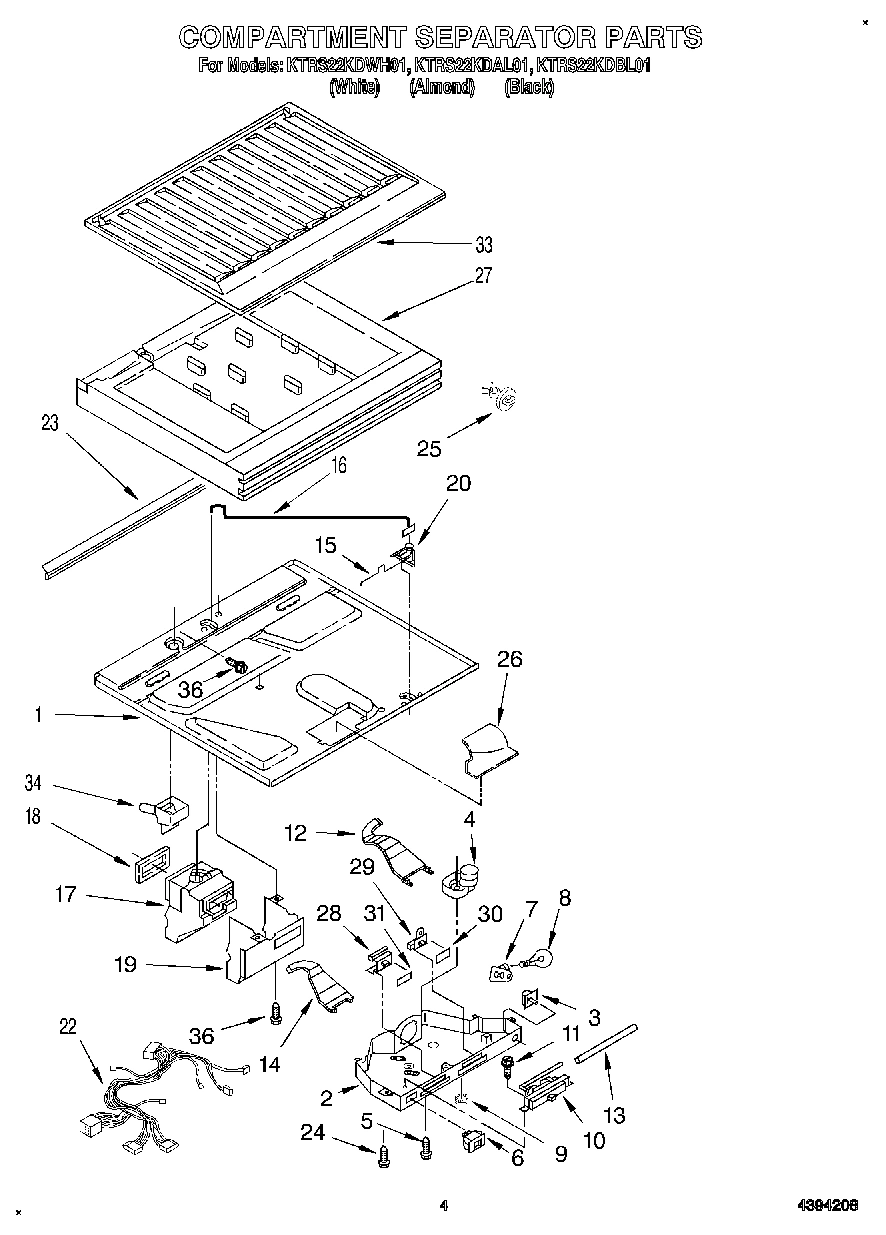

03 - COMPARTMENT SEPARATOR

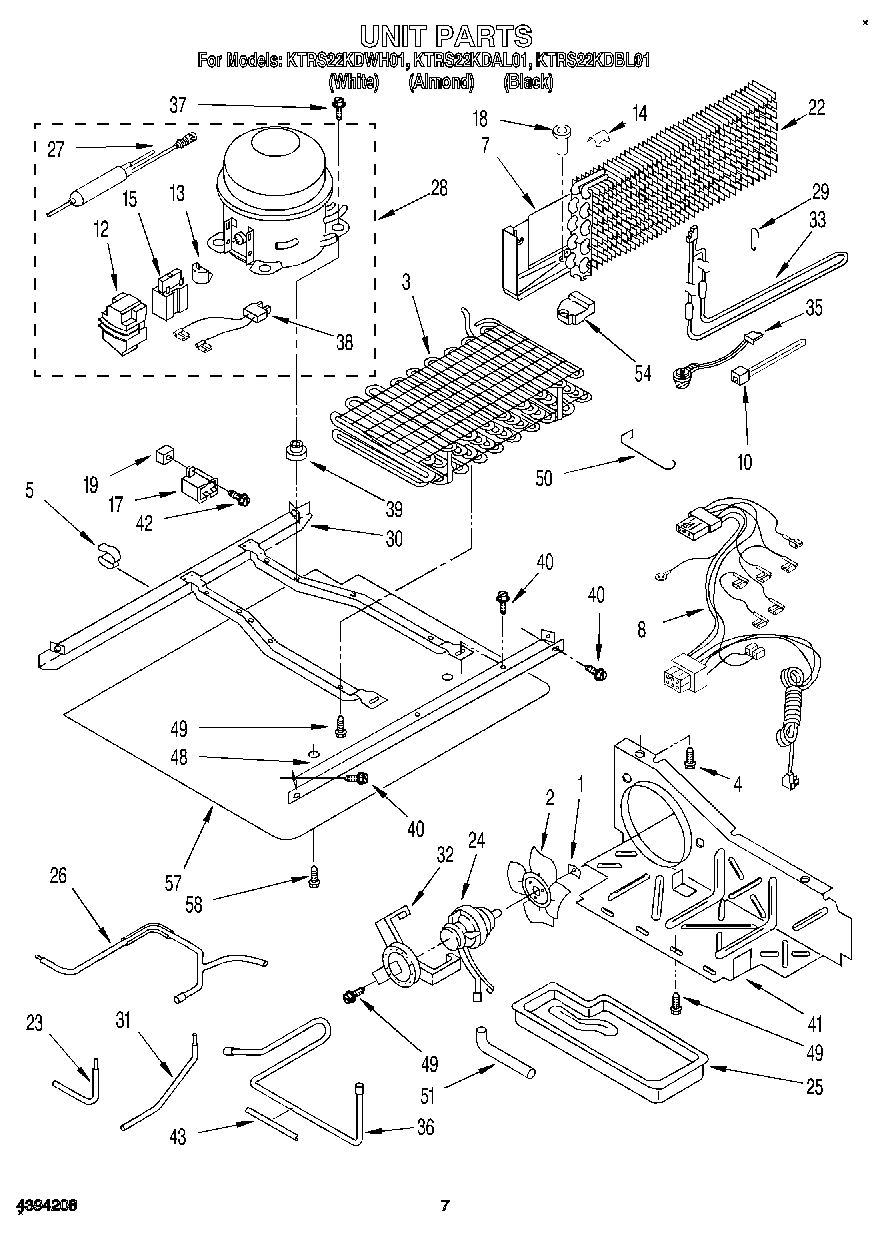

05 - UNIT

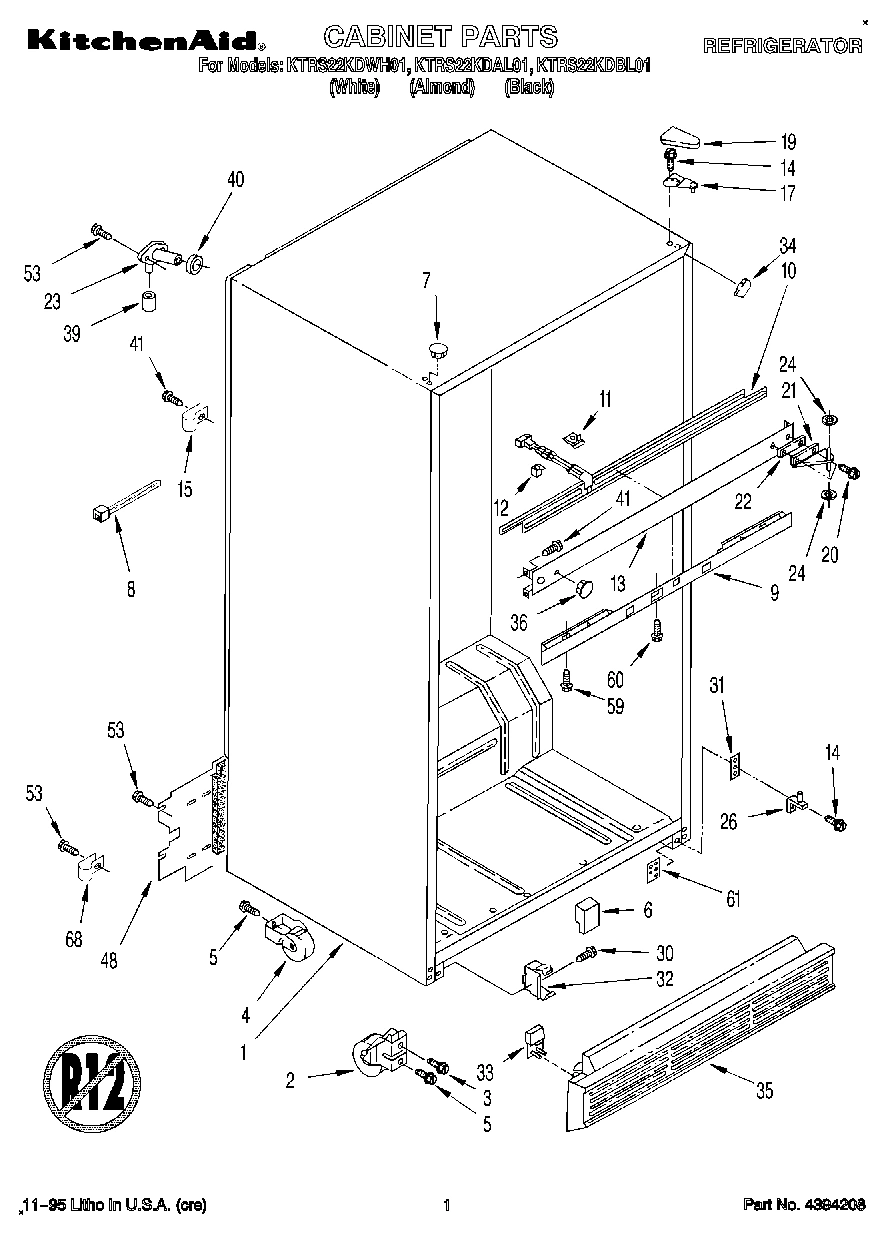

01 - CABINET

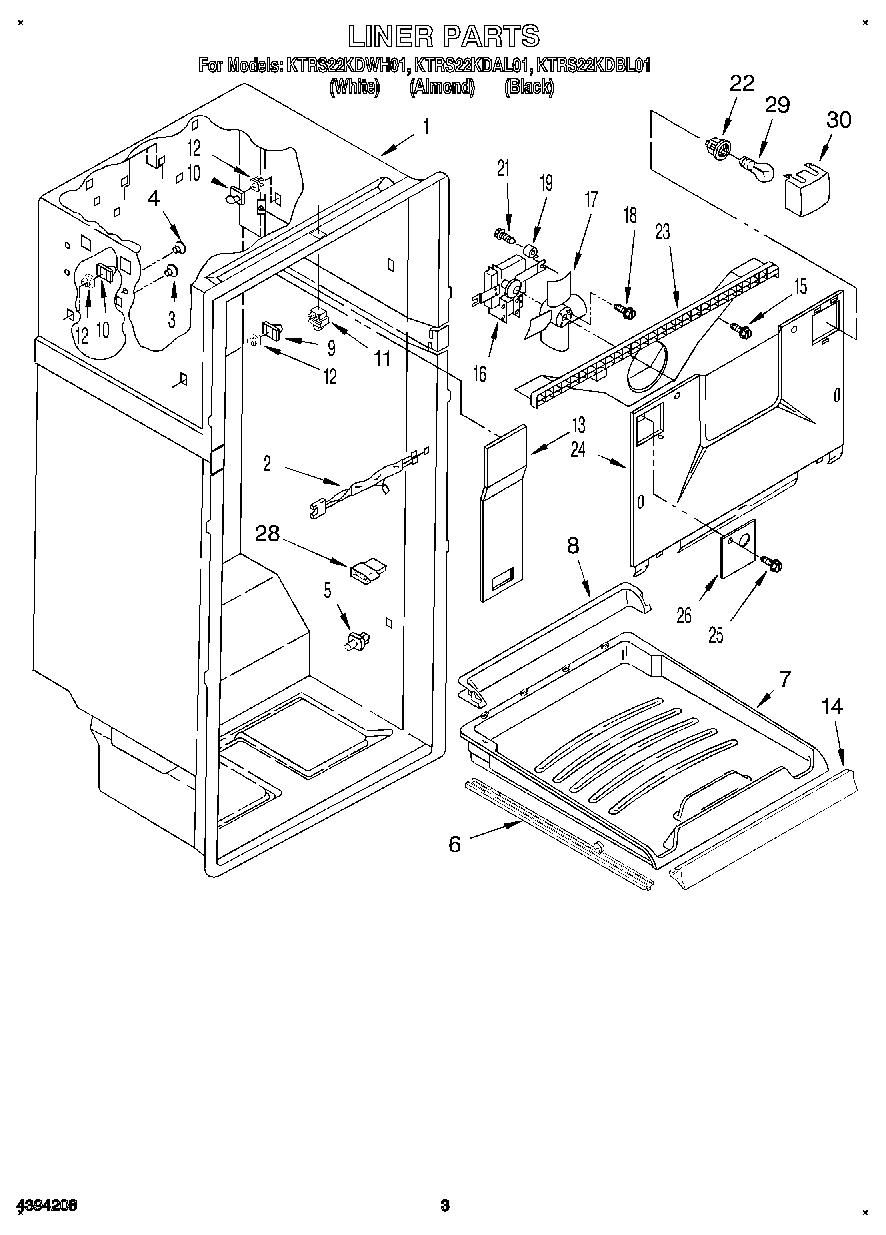

02 - LINER

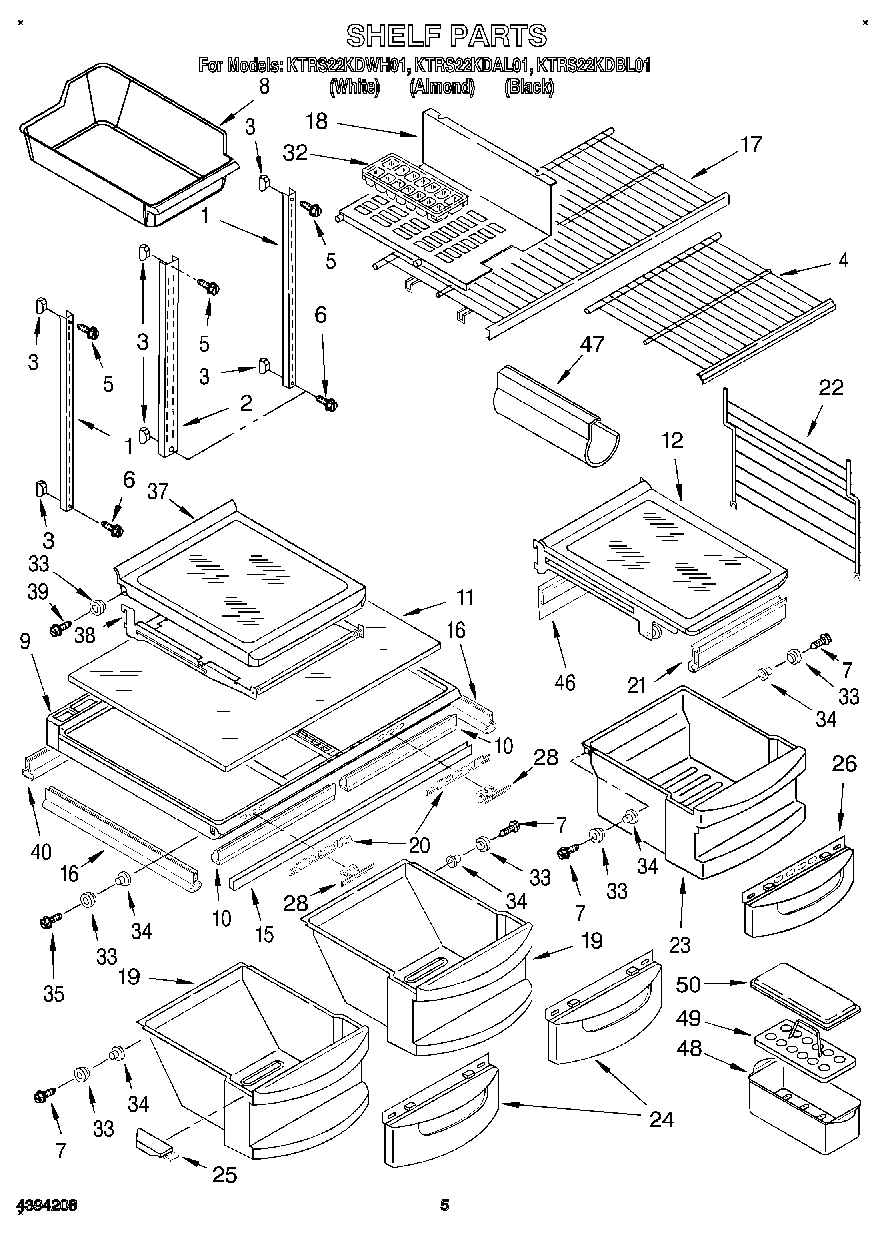

04 - SHELF, LIT/OPTIONAL

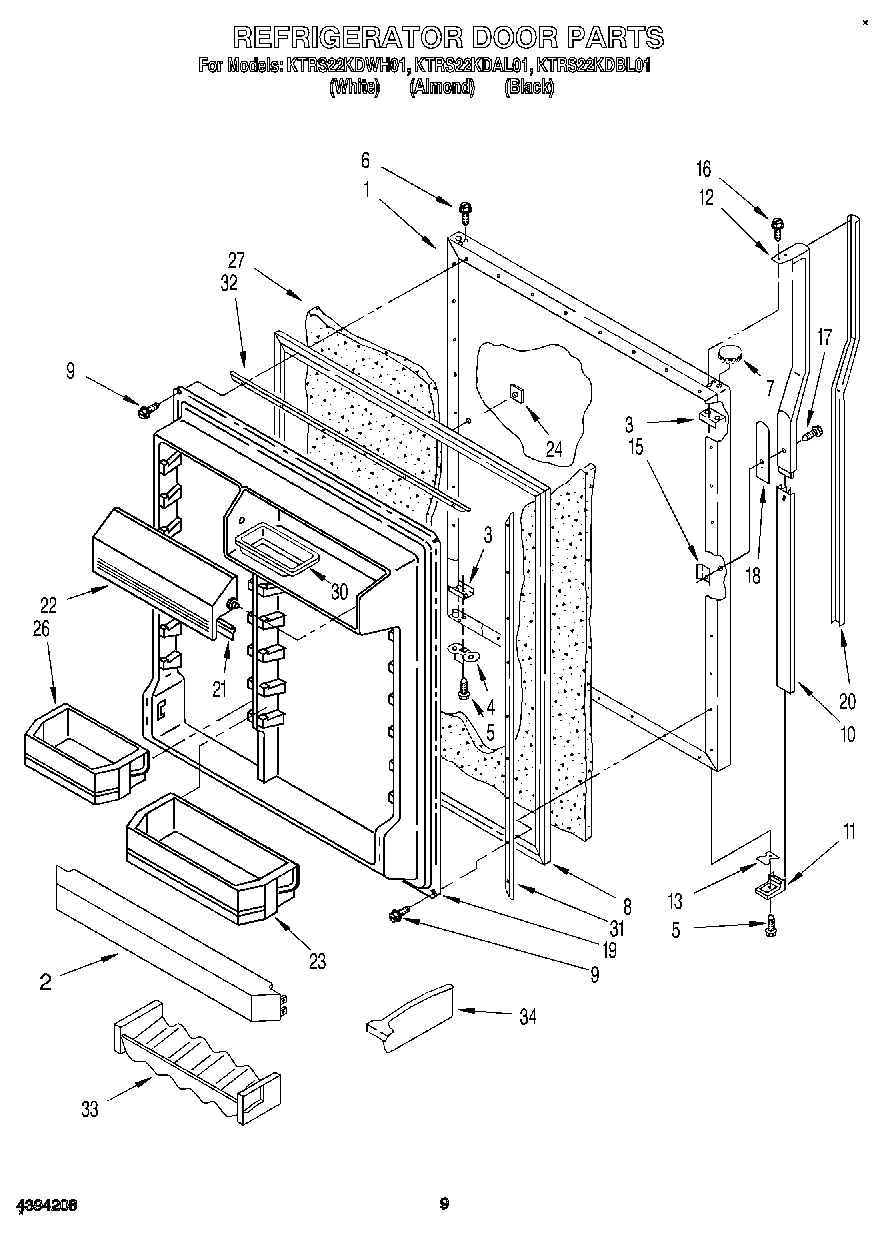

06 - REFRIGERATOR DOOR

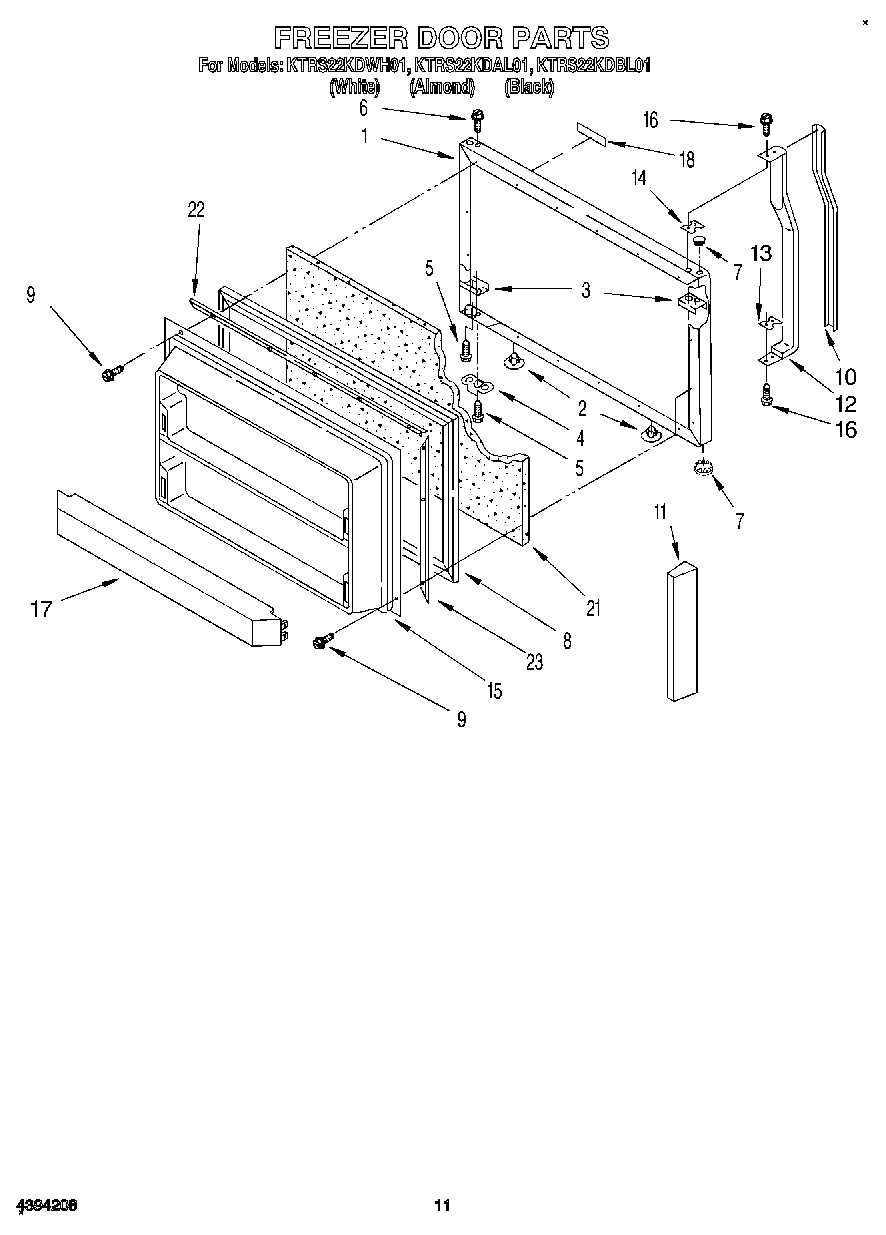

07 - FREEZER DOOR
Common parts from model Whirlpool KTRS22KDAL01
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2173943 WPL LIT2173943 Contact Us For Availability
WPL LIT2176901 WPL LIT2176901 Contact Us For Availability
WPL LIT2180084 WPL LIT2180084 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI112580A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI112581A Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
1
Panel, Refrigerator Door (White) WPL 1122549 Contact Us For Availability
1
Panel, Refrigerator Door (Almond) WPL 1122658 Contact Us For Availability
1
Panel, Refrigerator Door (Black (Also Order I WPL 2161866 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2159160 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2159163 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Bla WPL 2161870 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Roller, Front WPL 2174748 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
2
Hole Plug (2) (Black) WPL 1110485 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Grommet (4) WPL 1110779 Contact Us For Availability
4
Shelf, Freezer (Top) WPL 2179445 Contact Us For Availability
4
Bracket, Door Stop WPL 944036 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 WPL 489345 Contact Us For Availability
6
Insert WPL 2176796 Contact Us For Availability
6
Track, Freezer Floor (2) WPL 2174370 Contact Us For Availability
7
Hole Plug (Almond) WPL 2151653 Contact Us For Availability
7
Floor, Pull-Out Freezer WPL 2179543 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
8
Fence, Freezer Floor WPL 2174378 Contact Us For Availability
8
Ice Cube Pan WPL 2173688 Contact Us For Availability
9
Control, Front Cover WPL 2179541 Contact Us For Availability
9
Stud (3) WPL 946356 Contact Us For Availability
9
Pan Cover & Roller Assembly WPL 2174130 Contact Us For Availability
10
Heater, Mullion WPL 2157307 Contact Us For Availability
10
Retainer, Insert WPL 1107209 Contact Us For Availability
10
Insert, Handle (White) WPL 2161540 Contact Us For Availability
10
Insert, Handle (Almond) WPL 2161541 Contact Us For Availability
10
Insert, Handle (Black) WPL 2161867 Contact Us For Availability
11
Clip, Center Rail (4) WPL 1129018 Contact Us For Availability
11
Glass, Crisper Cover WPL 2174142 Contact Us For Availability
11
End Cap, Handle WPL 1107236 Contact Us For Availability
11
Dike, Door (2) WPL 1125577 Contact Us For Availability
12
Spacer (2) WPL 2149077 Contact Us For Availability
12
Support, Stud (6) WPL 946355 Contact Us For Availability
12
Pan Shelf & Roller Assembly WPL 2173902 Contact Us For Availability
12
Handle WPL 2161508 Contact Us For Availability
12
Handle WPL 2161517 Contact Us For Availability
13
Center Rail WPL 2179453 Contact Us For Availability
13
Cover, Air Duct WPL 2157411 Contact Us For Availability
13
Shim WPL 2151813 Contact Us For Availability
14
Trim, Freezer Floor WPL 2174323 Contact Us For Availability
14
Spacer, Handle WPL 1107628 Contact Us For Availability
15
Interior Door Panel WPL 1117940 Contact Us For Availability
16
Gasket, Pan Cover (Side) WPL 2179252 Contact Us For Availability
17
Shelf, Freezer WPL 1125540 Contact Us For Availability
17
Trivet, Door (2) WPL 2171358 Contact Us For Availability
18
Shelf, Ice Tray WPL 1125543 Contact Us For Availability
18
Spacer, Handle WPL 1107650 Contact Us For Availability
18
Nameplate (White Model) WPL 2168800 Contact Us For Availability
18
Nameplate (Almond Model) WPL 2168801 Contact Us For Availability
18
Nameplate (Black Model) WPL 2168804 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
19
Grommet (4) WPL 531933 Contact Us For Availability
19
Pan, Crisper (Includes Rollers) WPL 2179228 Contact Us For Availability
19
Interior Door Panel WPL 2177347 Contact Us For Availability
20
Slide, Humidity WPL 2174257 Contact Us For Availability
20
Insert, Handle (White) WPL 2161513 Contact Us For Availability
20
Insert, Handle (Almond) WPL 2161514 Contact Us For Availability
20
Insert, Handle (Black) WPL 2161851 Contact Us For Availability
21
Gasket, Utility Door WPL 2183037 Contact Us For Availability
21
Hinge, Center WPL 2147335 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Gasket-Front WPL 2174398 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Divider WPL 2179446 Contact Us For Availability
22
Utility Door (Includes Item 21) WPL 2183043 Contact Us For Availability
22
Retainer, Gasket WPL 1122552 Contact Us For Availability
23
Retainer, Gasket WPL 1122553 Contact Us For Availability
23
Scroll, Fan WPL 2160644 Contact Us For Availability
23
Meat Pan Assy. WPL 2179232 Contact Us For Availability
23
Shelf Bin (Wide) WPL 2171063 Contact Us For Availability
24
Evaporator Cover WPL 2174325 Contact Us For Availability
24
Window, Crisper Pan WPL 2174064 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
25
Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability
25
Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability
26
Window, Meat Pan WPL 2174085 Contact Us For Availability
26
Shelf Bin (3) WPL 2171066 Contact Us For Availability
27
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
28
Housing Plug WPL 2154491 Contact Us For Availability
28
Button, Humidity Control WPL 2174253 Contact Us For Availability
30
Light Lens WPL 2174443 Contact Us For Availability
30
Butter, Tray WPL 1125936 Contact Us For Availability
31
Tube, Condenser To Heat Loop WPL 2154032 Contact Us For Availability
31
Spacer WPL 2172744 Contact Us For Availability
31
Retainer, Gasket WPL 1122551 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
33
Heater, Defrost WPL 2162019 Contact Us For Availability
33
Corner Filler, Grille (Black) WPL 1118078 Contact Us For Availability
33
Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability
33
Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability
33
Roller WPL 2174388 Contact Us For Availability
33
Holder, Beverage WPL 1125981 Contact Us For Availability
34
Eyelet, Roller WPL 2174478 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability
34
Filler, Wrap Corner (Black) WPL 2162679 Contact Us For Availability
34
Divider (2) WPL 2171283 Contact Us For Availability
35
Grille (White) WPL 1125663 Contact Us For Availability
35
Grille (Almond) WPL 1125667 Contact Us For Availability
35
Grille (Black) WPL 1129001 Contact Us For Availability
36
Tube, Suction WPL 2162472 Contact Us For Availability
36
Hole Plug WPL 1129062 Contact Us For Availability
37
Shelf, Spillguard WPL 2174016 Contact Us For Availability
38
Frame & Roller Assembly WPL 2174017 Contact Us For Availability
39
Screw WPL 489439 Contact Us For Availability
40
Gasket, Pan Cover-Rear WPL 2179216 Contact Us For Availability
41
Air Baffle WPL 2162457 Contact Us For Availability
46
Gasket-Rear WPL 2179564 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
48
Cover, Unit WPL 2183166 Contact Us For Availability
50
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
50
Cover, Egg Bin WPL 2169935 Contact Us For Availability
50
Door Reversal Instructions WPL 2172757 Contact Us For Availability
50
CEMENT, ALUMILASTIC WPL 542639 Contact Us For Availability
50
WPL 799833 WPL 799833 Contact Us For Availability
50
WPL 978883 WPL 978883 Contact Us For Availability
51
Drain Extension WPL 2183033 Contact Us For Availability
54
Support-Evaporator (R.S.) WPL 2174769 Contact Us For Availability
54
Support-Evaporator (L.S.) WPL 2174770 Contact Us For Availability
57
Cover-Unit Btm. WPL 2160505 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
× ![]()
