Model Whirlpool KTRS20KXAL20 – Common Parts & Diagrams
03 - LINER
05 - SHELF, LIT/OPTIONAL

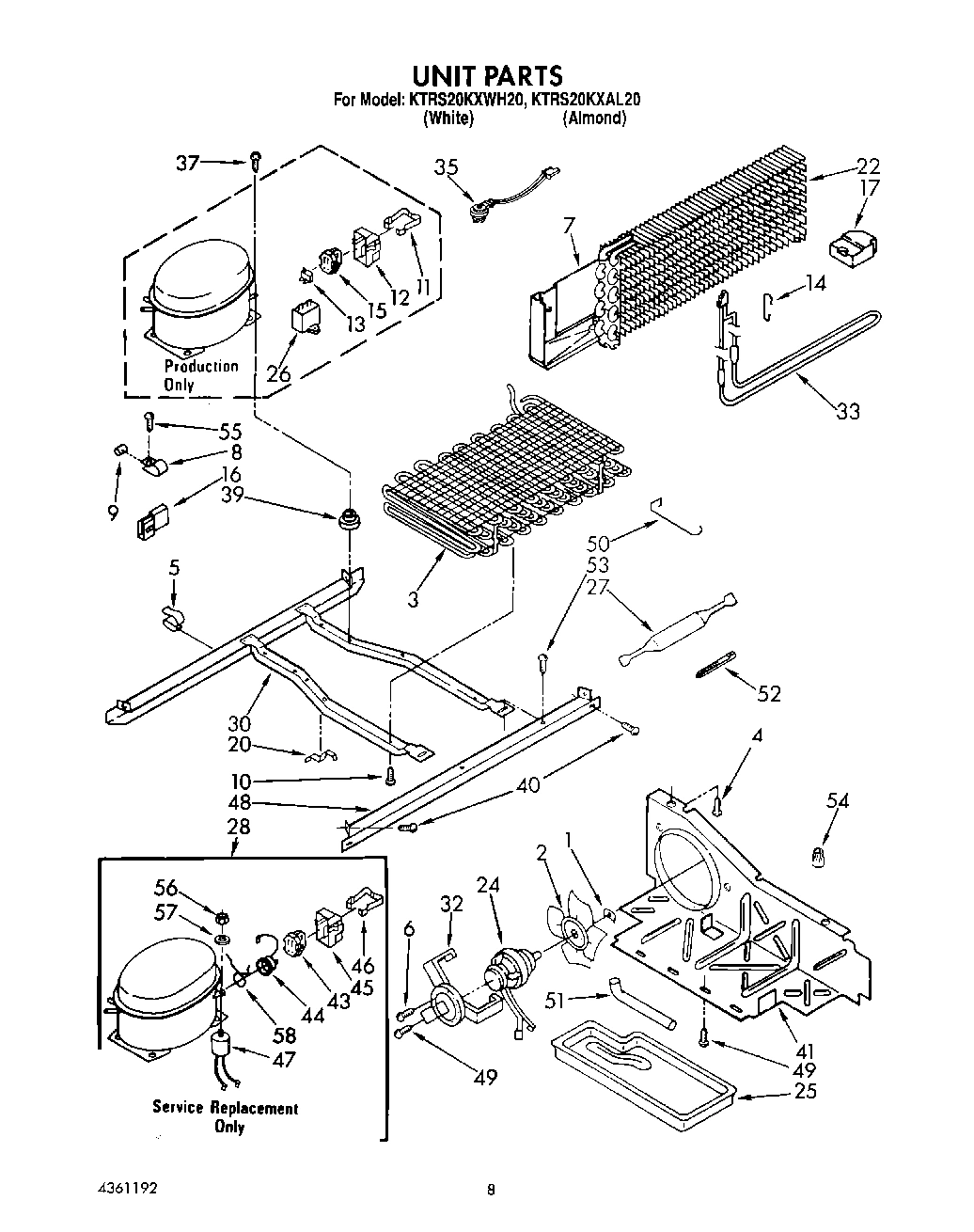

06 - UNIT

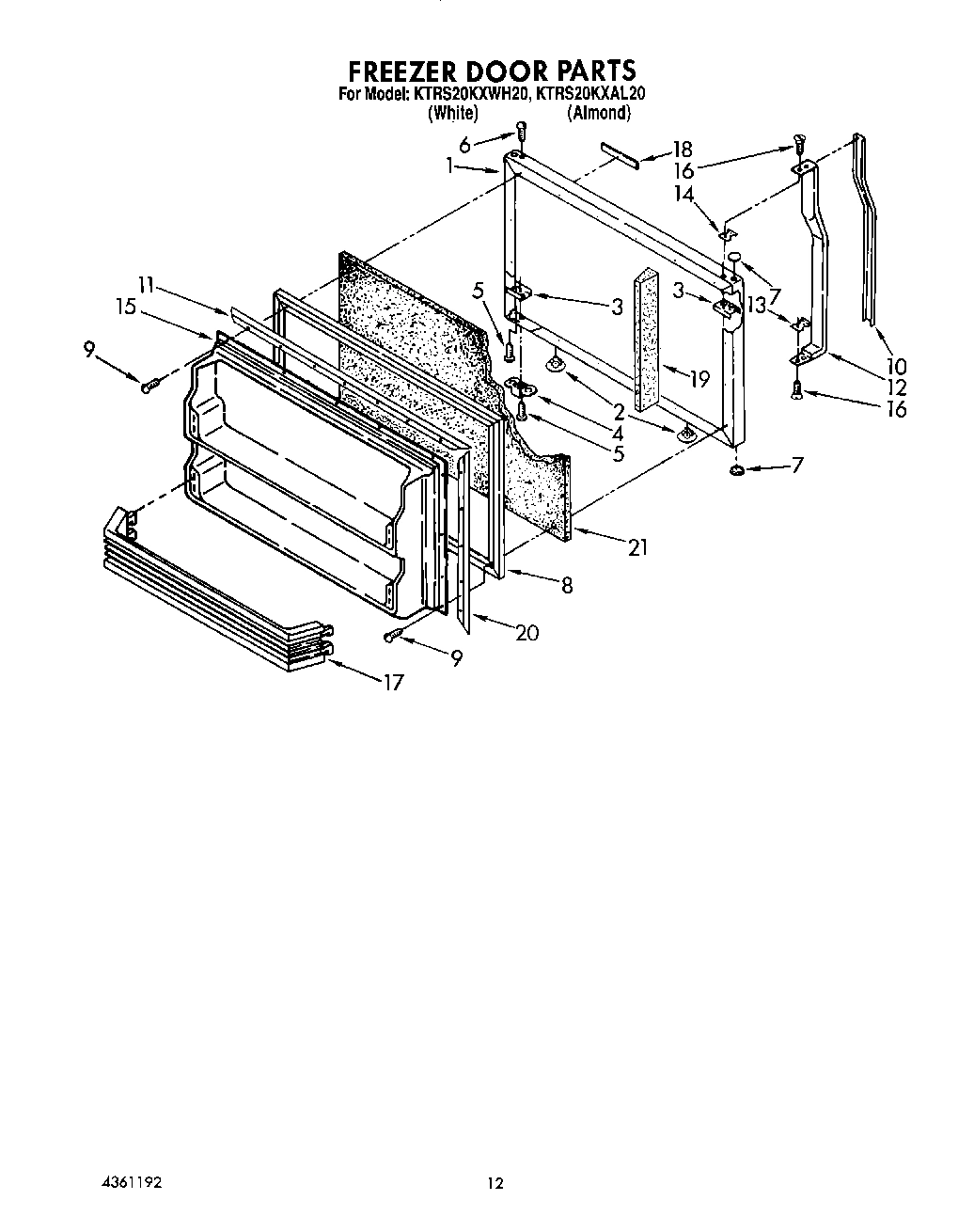

08 - FREEZER DOOR

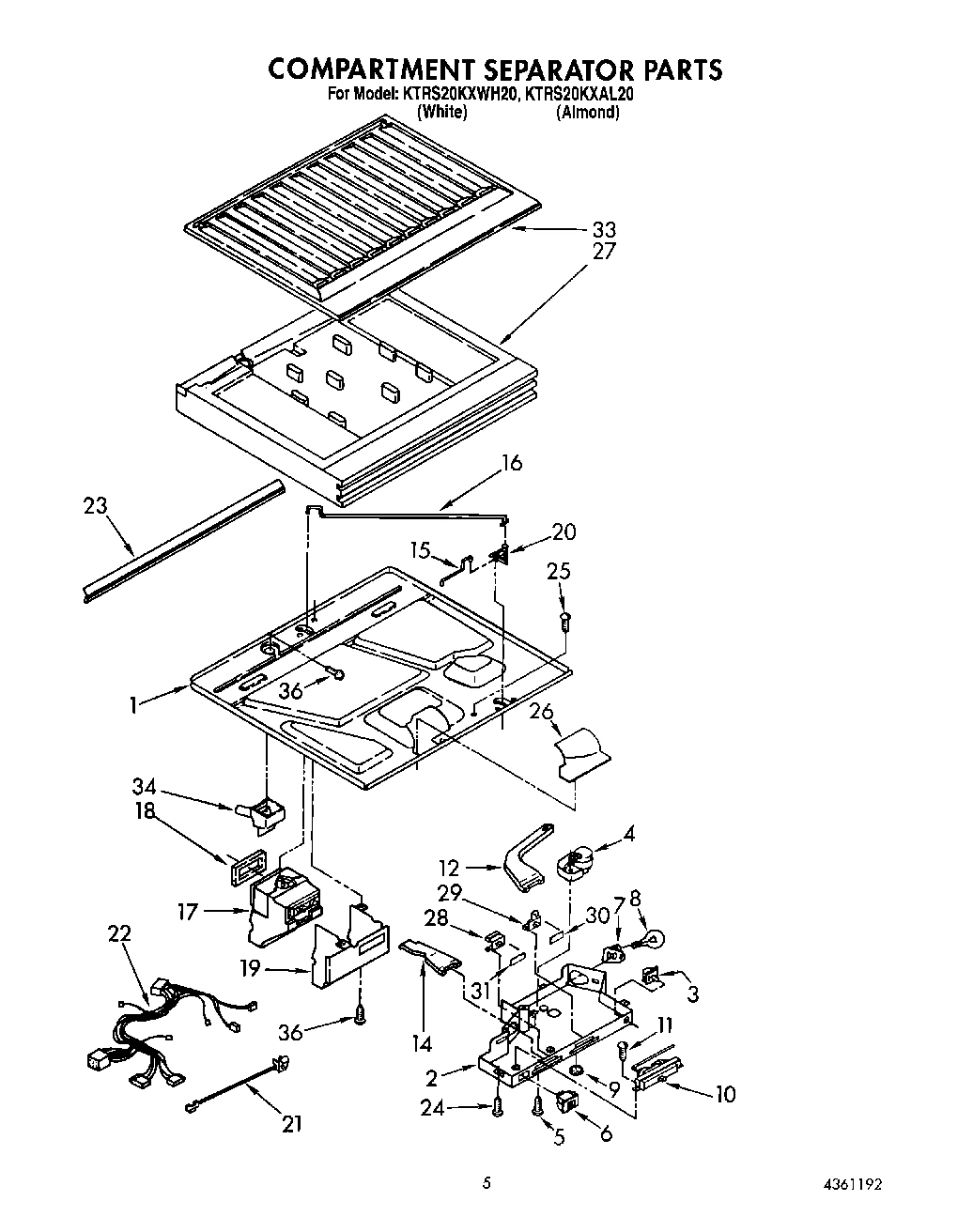

04 - COMPARTMENT SEPARATOR

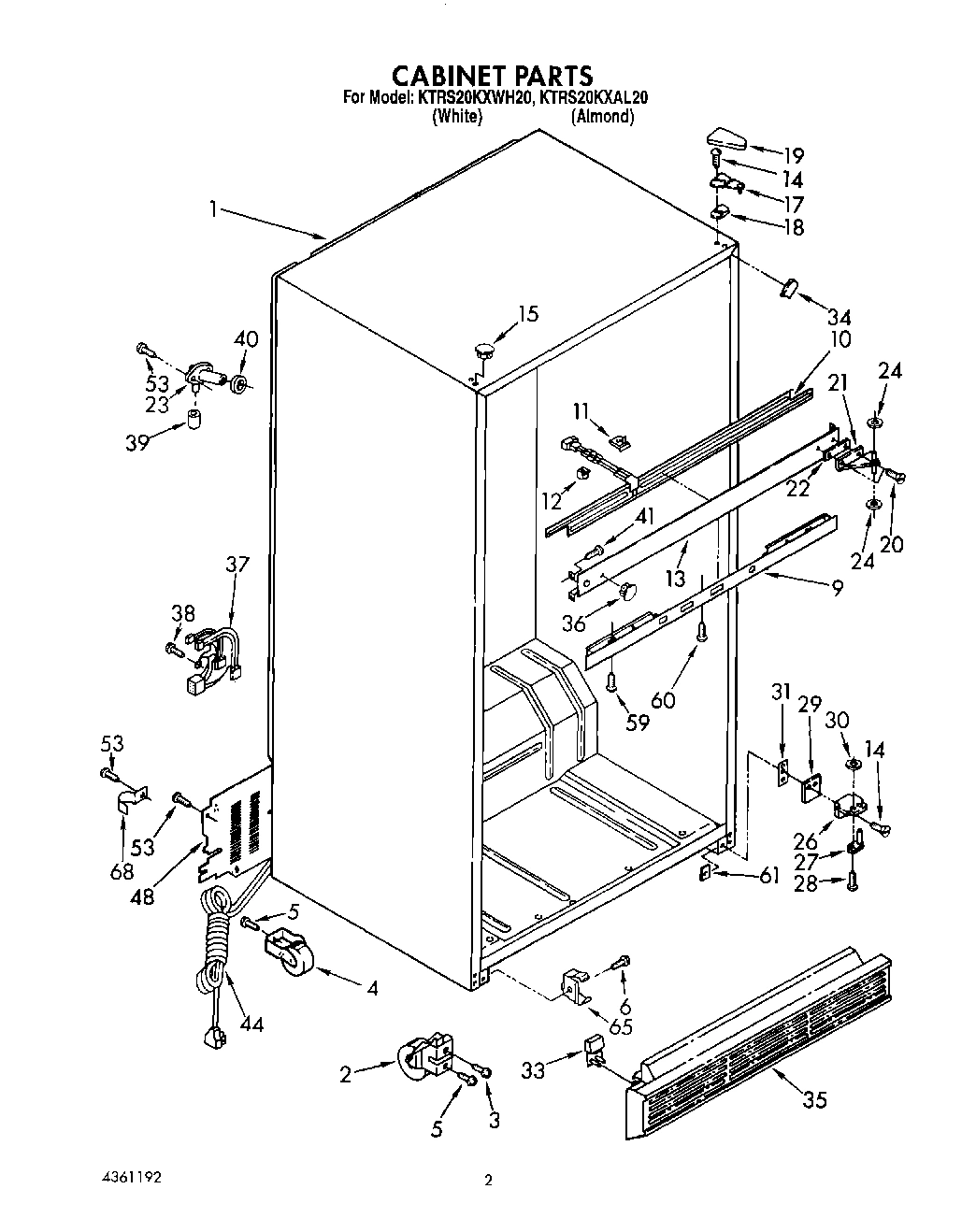

02 - CABINET

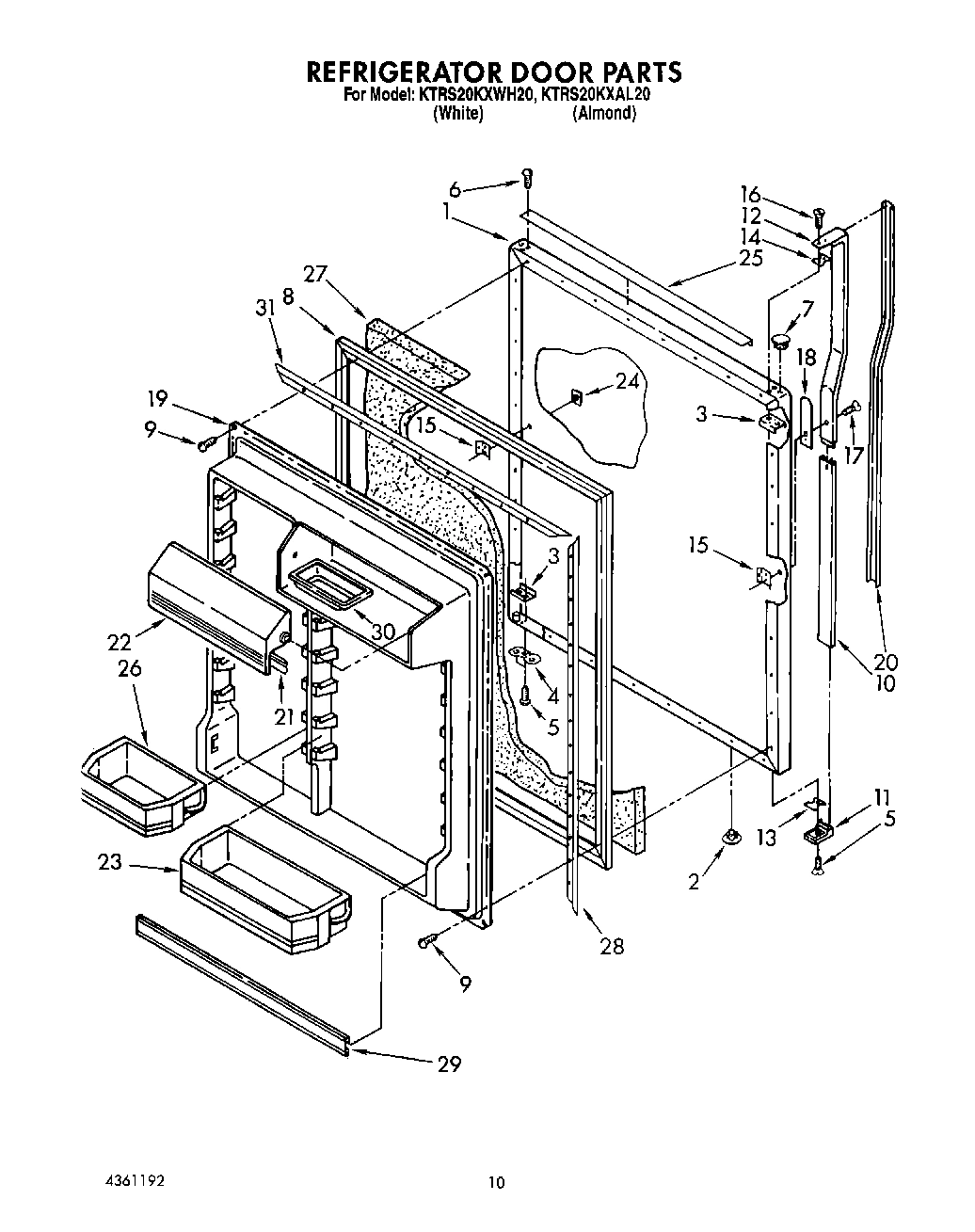

07 - REFRIGERATOR DOOR
Common parts from model Whirlpool KTRS20KXAL20
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 1122550 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 1122663 Contact Us For Availability
1
Bottom, Compartment Separator WPL 1125619 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI111934A Contact Us For Availability
1
Panel, Refrigerator Door (White) WPL 1122549 Contact Us For Availability
1
Panel, Refrigerator Door (Almond (Also Order WPL 1122658 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Box, Control WPL 1125510 Contact Us For Availability
2
Roller, Front WPL 2152011 Contact Us For Availability
3
Condenser Assembly WPL 2154010 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489333 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Timer, Defrost (10 Hour) WPL 1127570 Contact Us For Availability
4
Bracket, Door Stop WPL 944036 Contact Us For Availability
5
Shelf Stud (2) WPL 1106612 Contact Us For Availability
5
Clip, Wire (2) WPL 548745 Contact Us For Availability
5
Screw (6) WPL 488454 Contact Us For Availability
6
Switch, Toggle WPL 1125964 Contact Us For Availability
7
Drain Pan/ Heat Shield WPL 2153974 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
8
Tube Clamp WPL 510716 Contact Us For Availability
9
Dampener WPL 2149670 Contact Us For Availability
9
Control, Front Cover WPL 1126139 Contact Us For Availability
10
Insert, Handle (White) WPL 1125693 Contact Us For Availability
10
Insert, Handle (Almond) WPL 1125694 Contact Us For Availability
10
Thermostat Assembly WPL 2161525 Contact Us For Availability
10
Heater, Mullion WPL 2154065 Contact Us For Availability
10
Retainer, Insert WPL 1107209 Contact Us For Availability
11
Spring, Relay Case WPL 943322 Contact Us For Availability
11
Clip, Center Rail (4) WPL 1129018 Contact Us For Availability
11
End Cap, Handle WPL 1107236 Contact Us For Availability
12
Case, Relay WPL 1105055 Contact Us For Availability
12
Handle WPL 1107238 Contact Us For Availability
12
Light Pipe (R.S.) WPL 1125511 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
12
Handle WPL 1107230 Contact Us For Availability
13
Overload WPL 2154140 Contact Us For Availability
13
Center Rail (White) WPL 1122566 Contact Us For Availability
13
Center Rail (Almond) WPL 1122569 Contact Us For Availability
13
Shim, End Cap WPL 1107229 Contact Us For Availability
14
Support, Heater WPL 2149120 Contact Us For Availability
14
Spacer, Handle WPL 1107192 Contact Us For Availability
14
Spacer, Handle WPL 1107628 Contact Us For Availability
14
Light Pipe (L.S.) WPL 1125512 Contact Us For Availability
14
Screw WPL 489327 Contact Us For Availability
15
Interior Door Panel WPL 1117940 Contact Us For Availability
15
Connecting Rod, Short WPL 1125515 Contact Us For Availability
15
Hole Plug (Almond) WPL 2151653 Contact Us For Availability
16
Housing Plug WPL 1118850 Contact Us For Availability
16
Rod, Connecting WPL 1126148 Contact Us For Availability
17
Support, Evap. (R.S.) WPL 1118805 Contact Us For Availability
17
Support, Evap. (L.S.) WPL 1118806 Contact Us For Availability
17
Shelf Bin (2) WPL 1125557 Contact Us For Availability
17
Air Diffuser Assembly WPL 2161527 Contact Us For Availability
17
Hinge, Top WPL 1123514 Contact Us For Availability
18
Nameplate WPL 1125818 Contact Us For Availability
18
Gasket, Air Diffuser WPL 1114325 Contact Us For Availability
18
Shim, Hinge Top WPL 1123517 Contact Us For Availability
18
Spacer, Handle WPL 1107650 Contact Us For Availability
19
Dike-Door WPL 1125577 Contact Us For Availability
19
Cover, Air Diffuser WPL 1125941 Contact Us For Availability
19
Interior Door Panel WPL 1117941 Contact Us For Availability
20
Retainer, Gasket WPL 1122553 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
20
Pivot Arm WPL 1125581 Contact Us For Availability
20
Insert, Handle (White) WPL 1125689 Contact Us For Availability
20
Insert, Handle (Almond) WPL 1125690 Contact Us For Availability
21
Ground Wire WPL 1114482 Contact Us For Availability
21
Hinge, Center WPL 2151453 Contact Us For Availability
21
Gasket, Utility Door WPL 1125695 Contact Us For Availability
22
Evaporator WPL 2153978 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2153995 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Utility Door (Includes Item 21) WPL 1125733 Contact Us For Availability
23
Retainer, Shelf WPL 1110744 Contact Us For Availability
23
Gasket, Bottom Separator WPL 1114382 Contact Us For Availability
23
Shelf Bin (Wide) WPL 1125555 Contact Us For Availability
24
Shelf, Full Cantilever WPL 1125627 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
25
Gasket (Front) WPL 1125783 Contact Us For Availability
25
Trim, Door WPL 1107199 Contact Us For Availability
26
Glass, Full Shelf WPL 1125628 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
26
Hinge Butt, Bottom WPL 2148563 Contact Us For Availability
26
Shelf Bin (3) WPL 1125556 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Retainer, Shelf WPL 1125525 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1105463 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Gasket, Front WPL 1125576 Contact Us For Availability
28
Compressor (Includes Items 43, 44, 45, 46, 47 WPL 4317959 Contact Us For Availability
28
Slide, Thermostat WPL 1125513 Contact Us For Availability
28
Retainer, Gasket WPL 1122551 Contact Us For Availability
29
Gasket, Rear WPL 1125815 Contact Us For Availability
29
Slide, Air Control WPL 1125578 Contact Us For Availability
29
Shim, Bottom WPL 1123379 Contact Us For Availability
29
Trim, Door Shelf WPL 1125562 Contact Us For Availability
30
Divider WPL 1125542 Contact Us For Availability
30
Unit Mounting Frame WPL 1127942 Contact Us For Availability
30
Window, Air Control WPL 1125579 Contact Us For Availability
30
Butter, Tray WPL 1125936 Contact Us For Availability
31
Shelf, Ice Tray WPL 1125543 Contact Us For Availability
31
Retainer, Gasket WPL 1122552 Contact Us For Availability
31
Window, Thermostat WPL 1125580 Contact Us For Availability
31
Spacer WPL 1121117 Contact Us For Availability
31
Trimless Glass Kit (Trim Kit Panel For Trim K WPL 4318303 Contact Us For Availability
31
Trimless Glass Kit (Black (R.H.)) WPL 4318304 Contact Us For Availability
31
Trimless Glass Kit (White) WPL 4318306 Contact Us For Availability
31
Trimless Glass Kit (Almond Handle Insert) WPL 4318307 Contact Us For Availability
31
Trimless Glass Kit (Black) WPL 4318308 Contact Us For Availability
31
Trimless Glass Kit (Woodgrain) WPL 4318309 Contact Us For Availability
31
Trimless Glass Kit (White (R.H.)) WPL 4318312 Contact Us For Availability
31
Trimless Glass Kit (Almond (R.H.)) WPL 4318313 Contact Us For Availability
31
Trimless Glass WPL 4318414 Contact Us For Availability
31
WPL 4318430 WPL 4318430 Contact Us For Availability
31
WPL 4318431 WPL 4318431 Contact Us For Availability
31
WPL 4318432 WPL 4318432 Contact Us For Availability
31
WPL 819344 WPL 819344 Contact Us For Availability
32
Utility Pan WPL 1117911 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
33
Roller, R.S. WPL 1125530 Contact Us For Availability
33
Heater, Defrost WPL 2154736 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1129022 Contact Us For Availability
33
Corner Filler, Grille (White) WPL 1125665 Contact Us For Availability
33
Corner Filler, Grille (Almond) WPL 1125670 Contact Us For Availability
34
Eyelet, Roller WPL 1112308 Contact Us For Availability
34
Cup, Drain WPL 937065 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability
35
Grille (White) WPL 1125663 Contact Us For Availability
35
Grille (Almond) WPL 1125667 Contact Us For Availability
36
Wine & Egg Rack WPL 1126137 Contact Us For Availability
36
Hole Plug (5) (White) WPL 1129062 Contact Us For Availability
36
Hole Plug (5) (Almond) WPL 1129063 Contact Us For Availability
37
WPL 876029 WPL 876029 Contact Us For Availability
37
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
37
WPL 799344 WPL 799344 Contact Us For Availability
37
Roller R.S. WPL 1112303 Contact Us For Availability
37
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
37
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
37
WPL 799833 WPL 799833 Contact Us For Availability
37
WPL 978883 WPL 978883 Contact Us For Availability
37
Wiring Assy. Intermediate WPL 2153994 Contact Us For Availability
41
Air, Baffle WPL 1127938 Contact Us For Availability
44
Overload WPL 1118841 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
45
Cover WPL 1108115 Contact Us For Availability
46
Strap WPL 938384 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
48
Cover, Unit WPL 1105531 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
51
Drain Extension WPL 2154119 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
56
Nut WPL 489142 Contact Us For Availability
57
Washer WPL 489143 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Overload Spring WPL 1114190 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability
× ![]()
