Model Whirlpool KTRS19KDWH03 REFRIGERATOR – Common Parts & Diagrams
03 - SHELF
05 - UNIT

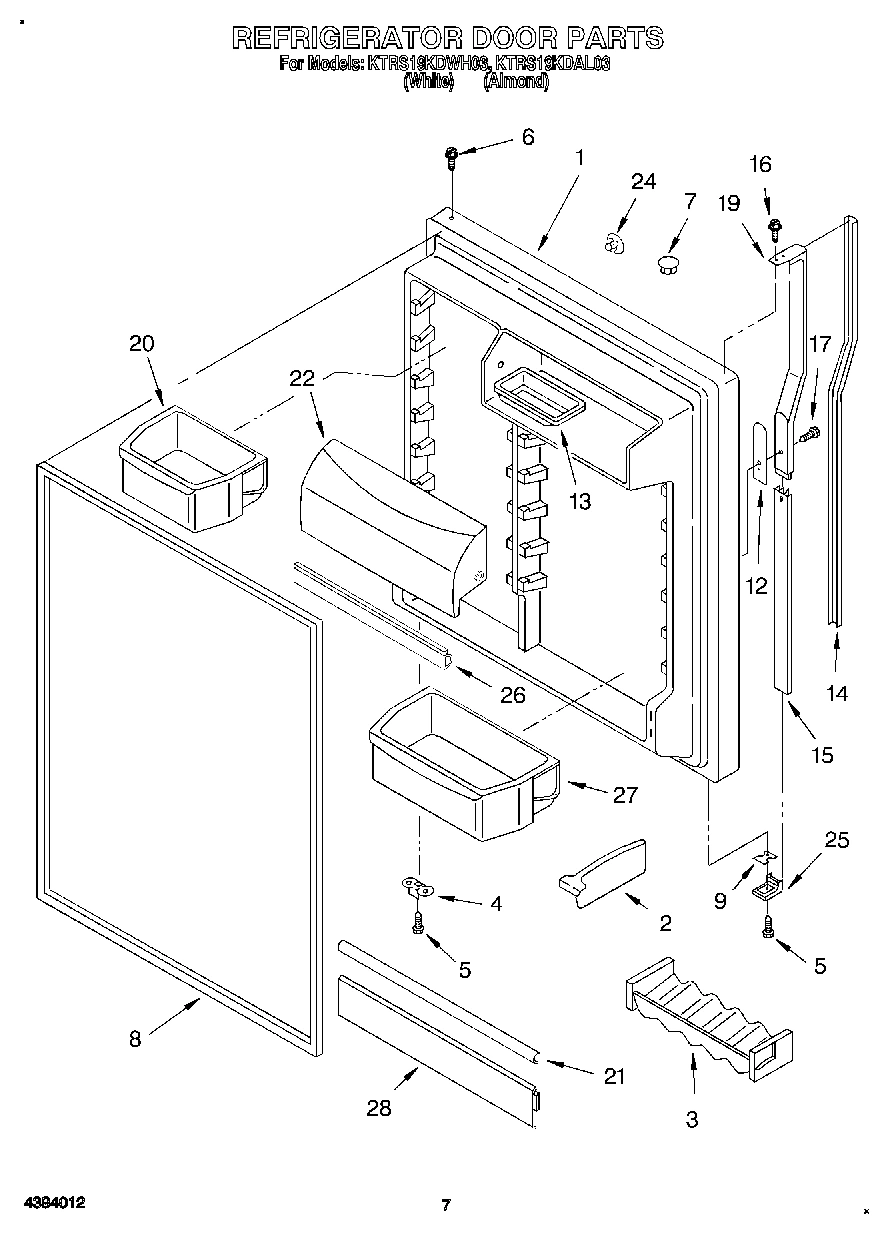

04 - REFRIGERATOR DOOR

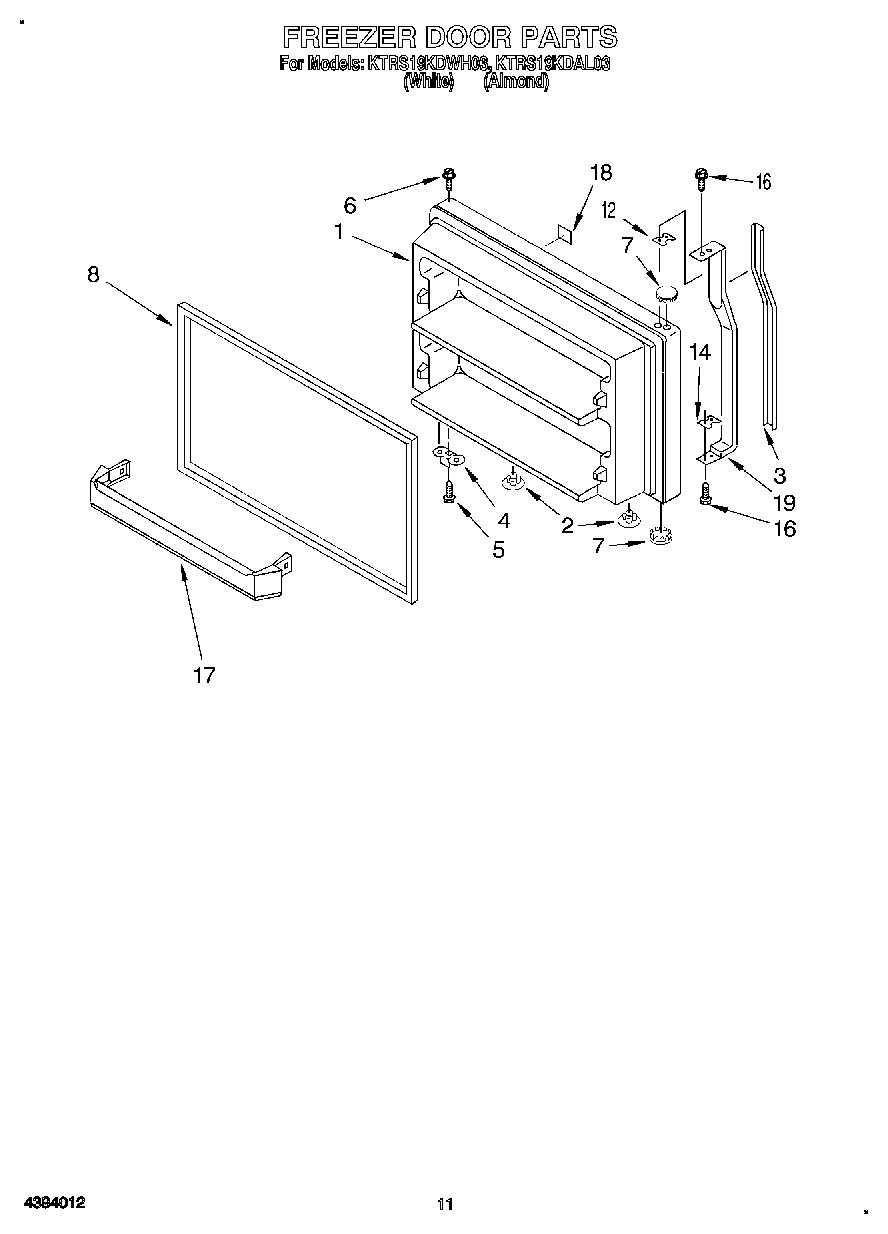

06 - FREEZER DOOR, LIT/OPTIONAL
02 - LINER

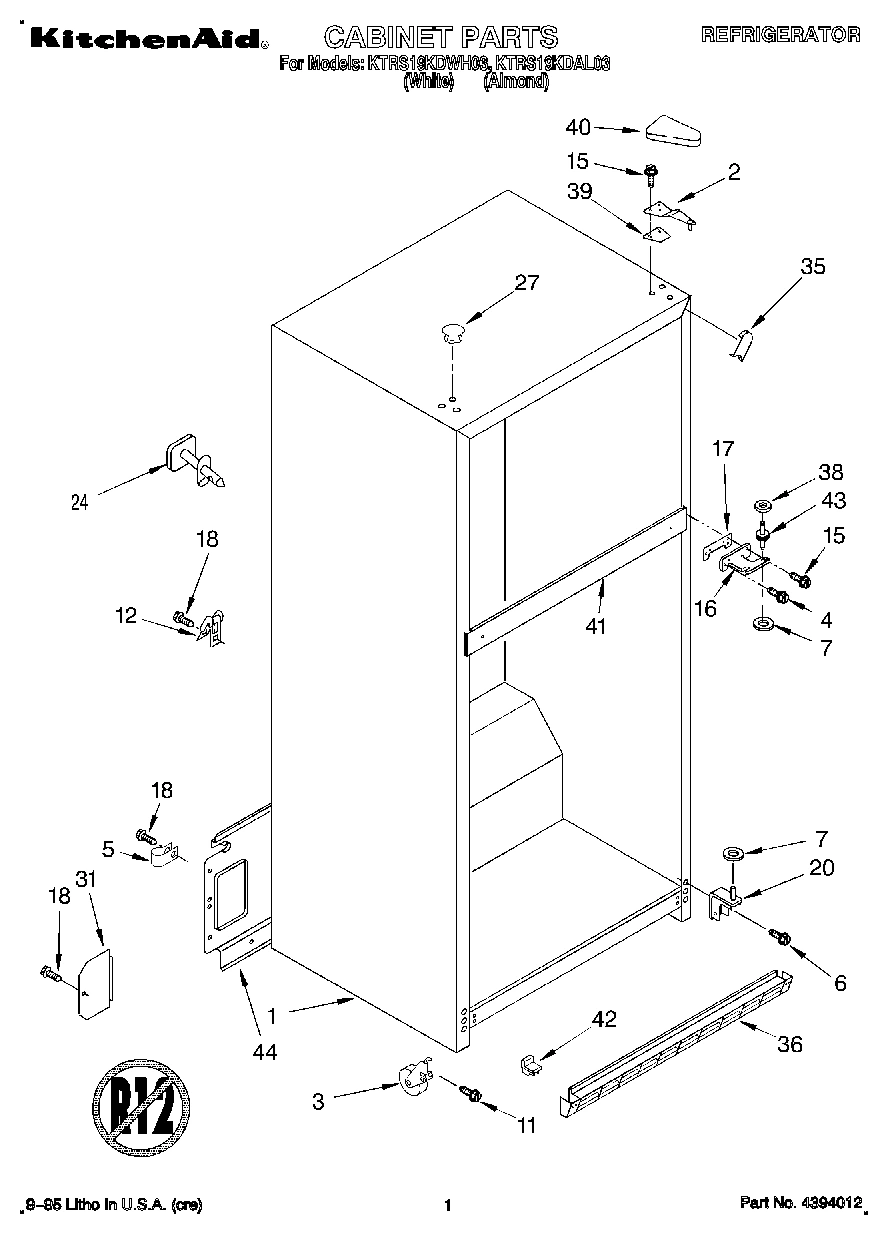

01 - CABINET
Common parts from model Whirlpool KTRS19KDWH03 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2172667 WPL LIT2172667 Contact Us For Availability
WPL LIT2179217 WPL LIT2179217 Contact Us For Availability
WPL LIT2179220 WPL LIT2179220 Contact Us For Availability
1
Refrigerator Door (Includes No.8) (White) WPL 2159285 Contact Us For Availability
1
Refrigerator Door (Includes No.8) (Almond) WPL 2159286 Contact Us For Availability
1
Freezer Door (Includes No.8) (White) WPL 2171338 Contact Us For Availability
1
Freezer Door (Includes No.8) (Almond) WPL 2171339 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI111547A Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI111544A Contact Us For Availability
2
Divider, Door Bin WPL 2171283 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
2
Hinge (Top) WPL 2174690 Contact Us For Availability
3
Holder, Beverage WPL 1125981 Contact Us For Availability
3
Insert, Handle (White) WPL 2168898 Contact Us For Availability
3
Insert, Handle (Almond) WPL 2168899 Contact Us For Availability
4
Bracket, Door Stop WPL 2159368 Contact Us For Availability
4
Bracket, Door Stop WPL 2159367 Contact Us For Availability
4
Screw WPL 489426 Contact Us For Availability
6
Screw WPL 489459 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Wire Assy. Control Box WPL 2172542 Contact Us For Availability
8
Door Gasket, Magnetic WPL 2177306 Contact Us For Availability
10
Eyelet, Roller WPL 2174478 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
10
Fan Motor WPL 2176298 Contact Us For Availability
11
Clamp (Production Only) WPL 2169464 Contact Us For Availability
11
Screw WPL 2174650 Contact Us For Availability
12
Spacer, Door Handle WPL 1107650 Contact Us For Availability
12
Spacer, Handle WPL 1107628 Contact Us For Availability
12
Control Box WPL 2174632 Contact Us For Availability
13
Butter, Tray WPL 1125936 Contact Us For Availability
13
Thermostat Assembly (Includes Items 5, 18, & WPL 2176346 Contact Us For Availability
14
Shim, Handle WPL 2151813 Contact Us For Availability
14
Insert, Handle (White) WPL 2168896 Contact Us For Availability
14
Insert, Handle (Almond) WPL 2168897 Contact Us For Availability
14
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
15
Module WPL 2169337 Contact Us For Availability
15
Retainer, Insert WPL 2168900 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Cover, Evaporator WPL 2183152 Contact Us For Availability
16
Hinge, Center WPL 2183066 Contact Us For Availability
17
Roller (2) WPL 2163782 Contact Us For Availability
17
Trivet, Door WPL 2159291 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
18
Nameplate (White Model) WPL 2168800 Contact Us For Availability
18
Nameplate (Almond Model) WPL 2168991 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
KIT, FOAM SLAB (30`` X 32 1/2` WPL 876029 Contact Us For Availability
19
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
19
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
19
Handle WPL 2161508 Contact Us For Availability
19
Handle WPL 2168901 Contact Us For Availability
19
Door Reversal Instructions WPL 2180007 Contact Us For Availability
19
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
19
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
19
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
19
WPL 978883 WPL 978883 Contact Us For Availability
20
Screw WPL 489473 Contact Us For Availability
20
Bin, Door Shelf (3) WPL 2171065 Contact Us For Availability
20
Wire Assembly, Freezer Compartment WPL 2174610 Contact Us For Availability
20
Hinge Butt WPL 2179810 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI111548A Contact Us For Availability
22
Door, Compartment WPL 2171078 Contact Us For Availability
22
Slide, Knob WPL 2174633 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI111545A Contact Us For Availability
25
End Cap Bottom WPL 1107236 Contact Us For Availability
25
Freezer Floor WPL 2166298 Contact Us For Availability
26
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
27
Bin, Door WPL 2171062 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
32
Capacitor WPL 2169137 Contact Us For Availability
34
Air Damper (Slide) WPL 2179855 Contact Us For Availability
35
Light Fiber (2) WPL 2179921 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
36
Grille (White) WPL 2182429 Contact Us For Availability
36
Grille (Almond) WPL 2182430 Contact Us For Availability
39
Air Baffle WPL 2182395 Contact Us For Availability
39
Housing Base WPL 2166269 Contact Us For Availability
39
Shim WPL 2176201 Contact Us For Availability
40
PC Board, Freezer Light WPL 2166266 Contact Us For Availability
40
Cover-Hinge (White) WPL 2172613 Contact Us For Availability
40
Cover-Hinge (Almond) WPL 2176204 Contact Us For Availability
41
Wiring Harness, Freezer Light WPL 2166281 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI111546A Contact Us For Availability
42
Wire Assy., Unit WPL 2182379 Contact Us For Availability
42
Electrical Shield, Freezer Light WPL 2166280 Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
43
Fan, Blade WPL 851732 Contact Us For Availability
44
Cover, Freezer Light WPL 2166270 Contact Us For Availability
44
Cover, Unit WPL 2183158 Contact Us For Availability
45
Shroud, Icemaker WPL 2172624 Contact Us For Availability
46
Tube, Discharge WPL 2184451 Contact Us For Availability
46
Wiring Harness, Freezer Light WPL 2166274 Contact Us For Availability
47
Tube, Suction WPL 2182475 Contact Us For Availability
47
Shield, Electrical Heat WPL 2166273 Contact Us For Availability
48
Gasket, Rear WPL 2166284 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
49
Pullout, Freezer Floor WPL 2179225 Contact Us For Availability
50
Rear Fence, Pull- Out Freezer Floor WPL 2176242 Contact Us For Availability
51
Roller, Slide WPL 2176246 Contact Us For Availability
52
Side Support, Floor Assembly WPL 2179713 Contact Us For Availability
53
Center Support, Floor Assembly WPL 2179714 Contact Us For Availability
54
Trim, Pullout Freezer Floor WPL 2179720 Contact Us For Availability
56
Insulation, Freezer WPL 2179772 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
60
WPL 2172906 WPL 2172906 Contact Us For Availability
61
WPL 2174639 WPL 2174639 Contact Us For Availability
× ![]()
