Model Whirlpool KTRS19KDAL01 REFRIGERATOR – Common Parts & Diagrams

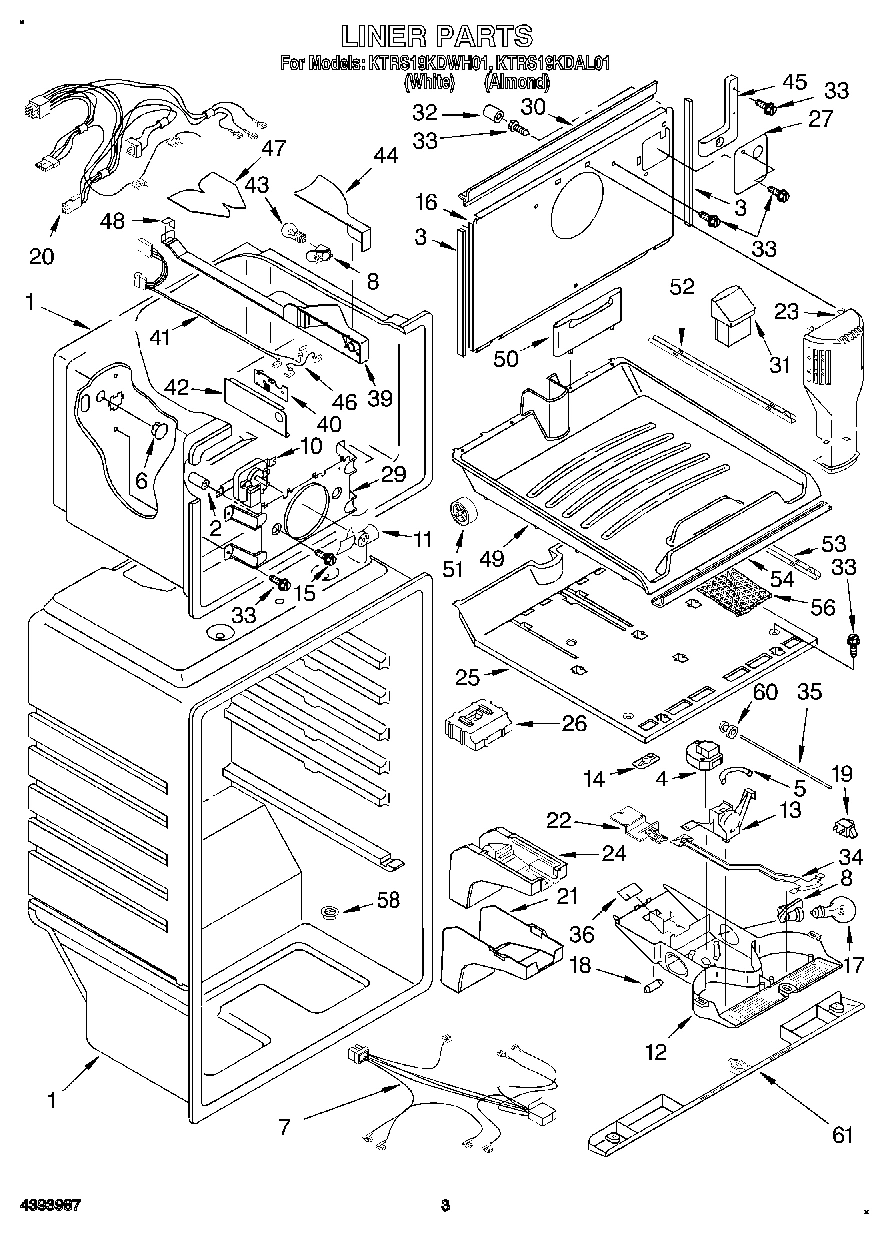

02 - LINER

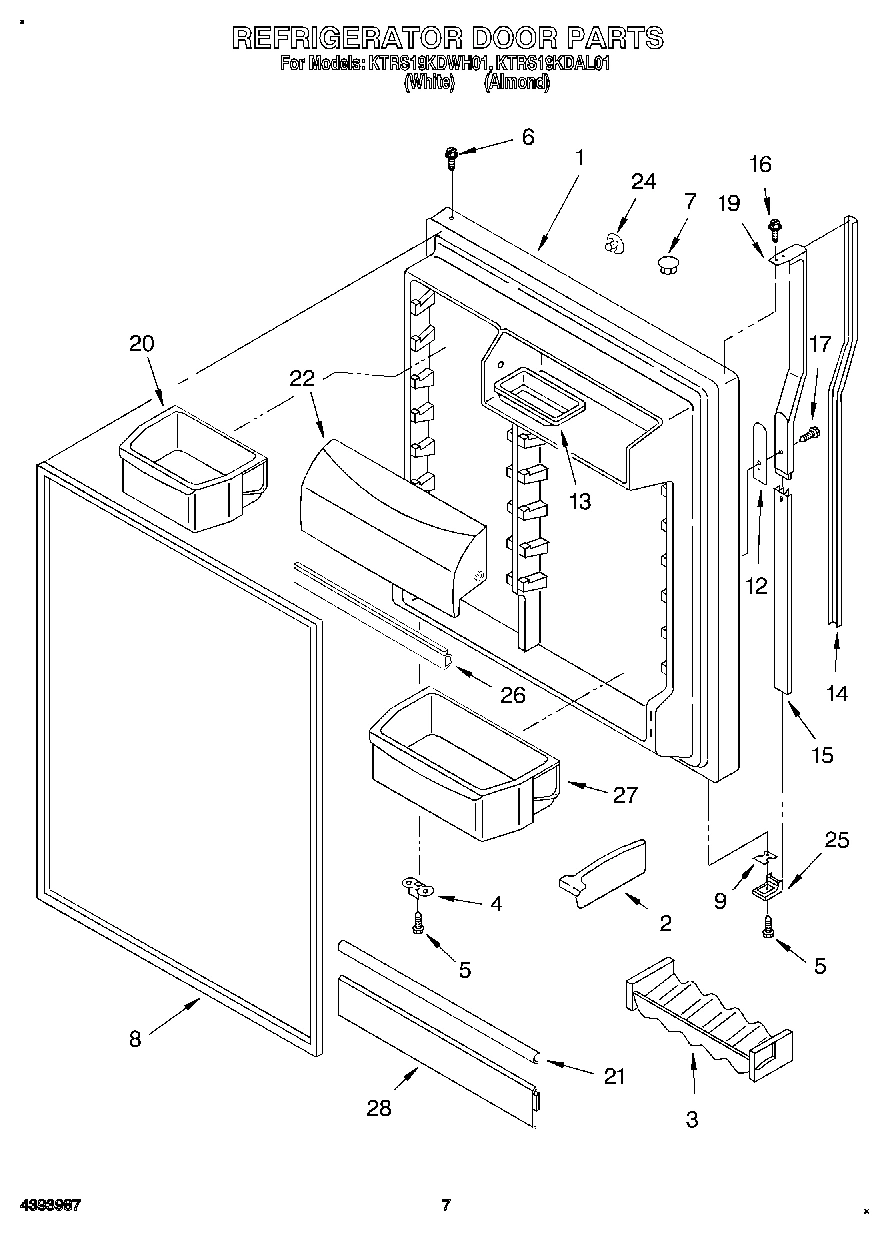

04 - REFRIGERATOR DOOR

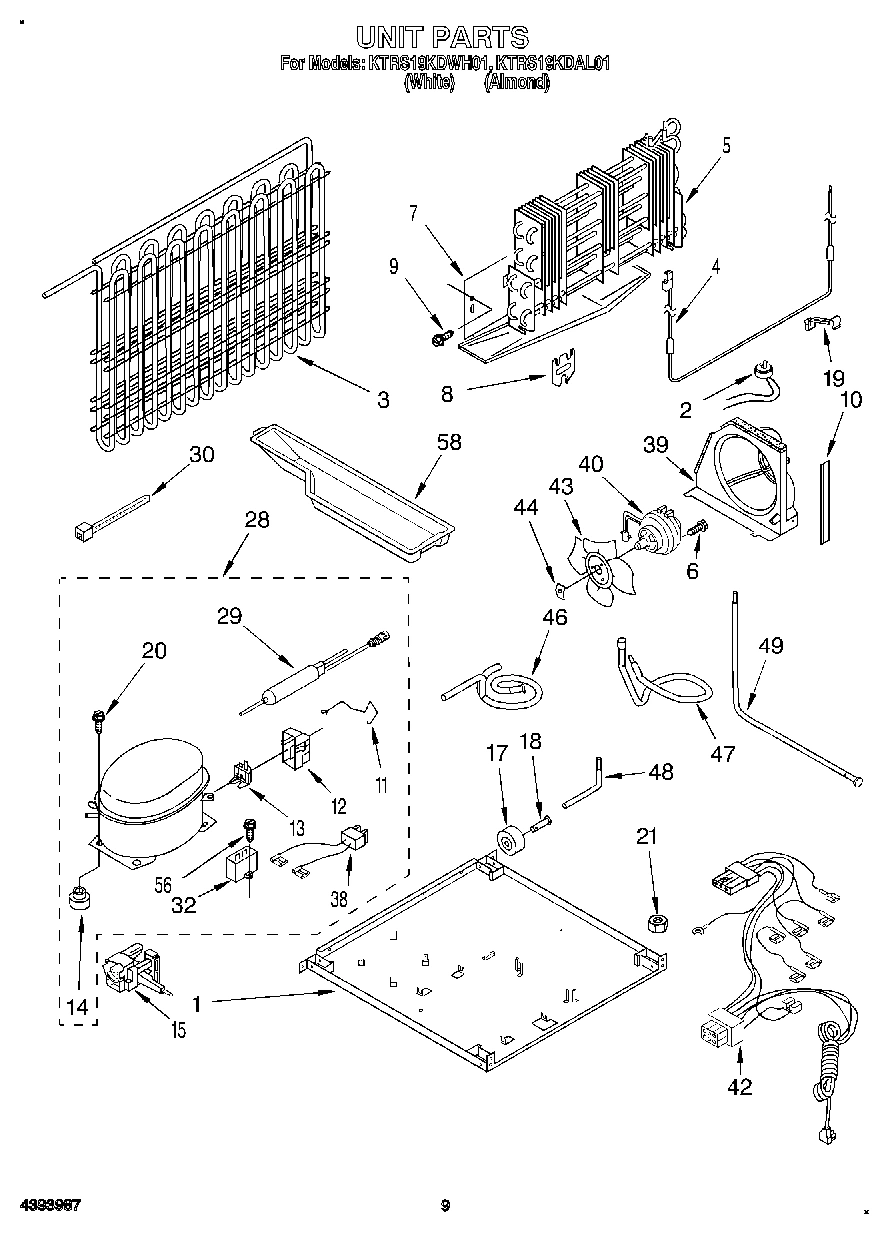

05 - UNIT

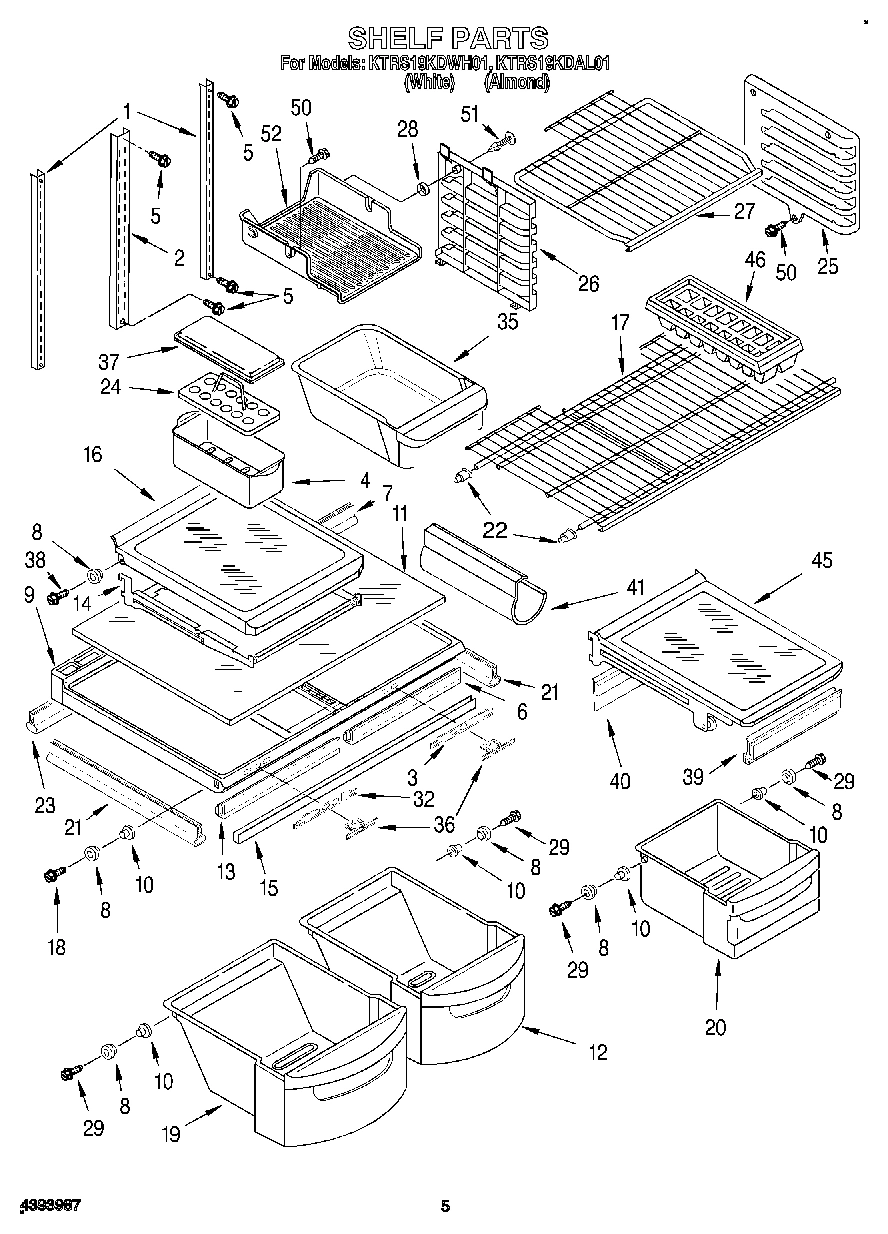

03 - SHELF

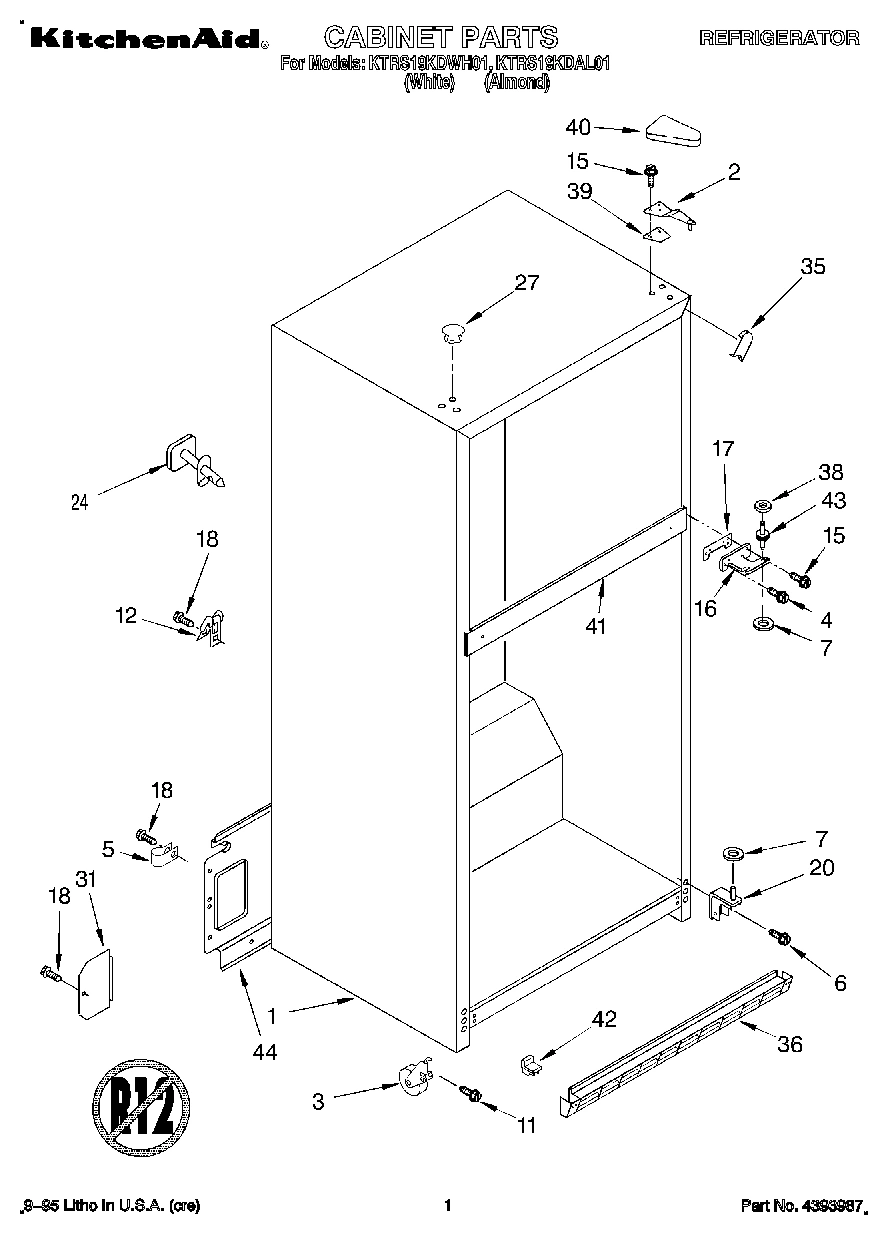

01 - CABINET

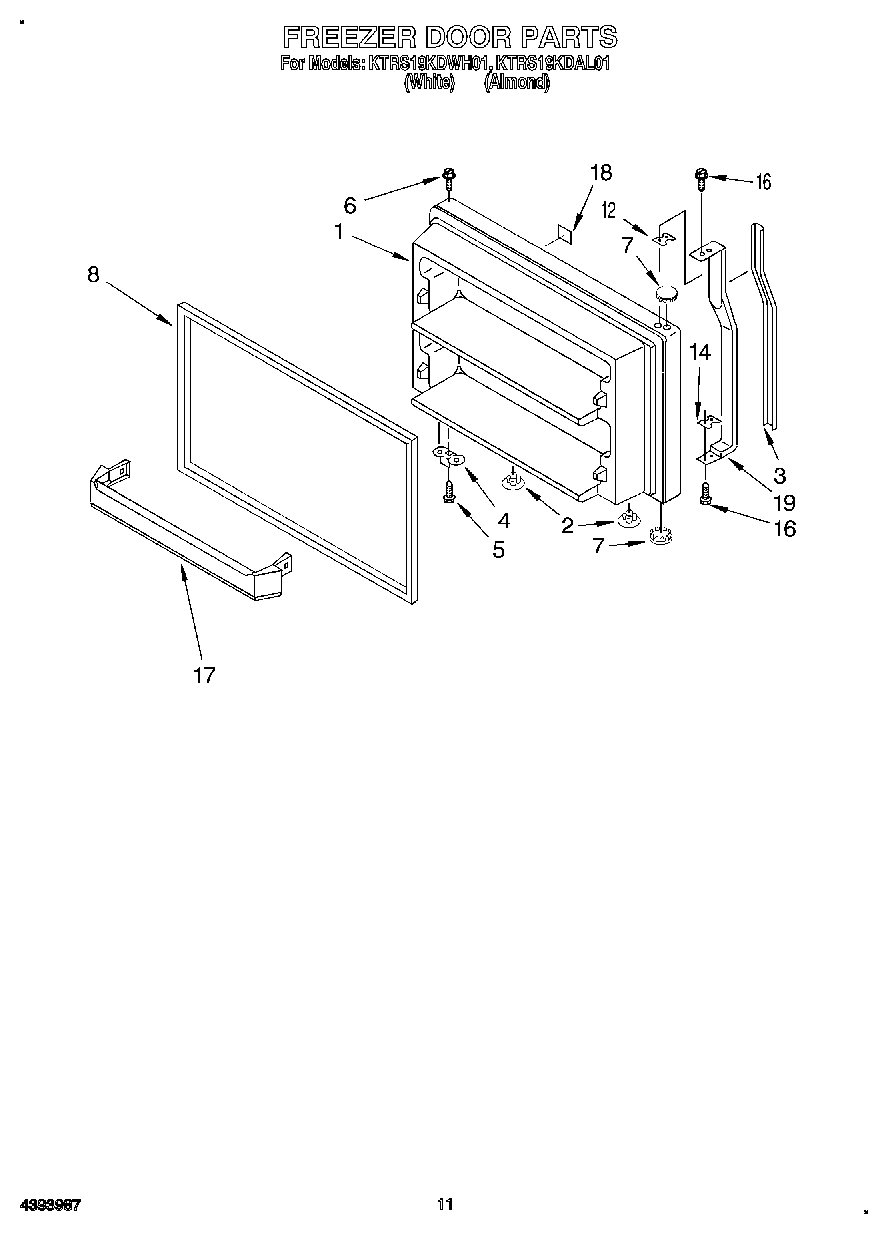

06 - FREEZER DOOR, LIT/OPTIONAL
Common parts from model Whirlpool KTRS19KDAL01 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2172667 WPL LIT2172667 Contact Us For Availability
WPL LIT2179217 WPL LIT2179217 Contact Us For Availability
WPL LIT2179220 WPL LIT2179220 Contact Us For Availability
1
Refrigerator Door (Includes No.8) (White) WPL 2159285 Contact Us For Availability
1
Refrigerator Door (Includes No.8) (Almond) WPL 2159286 Contact Us For Availability
1
Plate, Unit Mounting WPL 2174620 Contact Us For Availability
1
Shelf, Ladder (2) WPL 2172637 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI111524A Contact Us For Availability
1
Freezer Door (Includes No.8) (White) WPL 2171338 Contact Us For Availability
1
Freezer Door (Includes No.8) (Almond) WPL 2171339 Contact Us For Availability
2
Divider, Door Bin WPL 2171283 Contact Us For Availability
2
Shelf, Ladder Center WPL 2172638 Contact Us For Availability
2
Hinge (Top) WPL 2174690 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Holder, Beverage WPL 1125981 Contact Us For Availability
3
Condenser WPL 2179882 Contact Us For Availability
3
Slide, Humidity WPL 2174256 Contact Us For Availability
3
Insert, Handle (White) WPL 2168898 Contact Us For Availability
3
Insert, Handle (Almond) WPL 2168899 Contact Us For Availability
4
Bracket, Door Stop WPL 2159368 Contact Us For Availability
4
Screw WPL 489426 Contact Us For Availability
4
Bracket, Door Stop WPL 2159367 Contact Us For Availability
5
Evaporator Assy. WPL 2176337 Contact Us For Availability
6
Screw WPL 489414 Contact Us For Availability
6
Screw WPL 489459 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Drain Pan WPL 2172619 Contact Us For Availability
7
Gasket, Crisper Cover (Rear) WPL 2179215 Contact Us For Availability
8
Bracket, Heater WPL 2176301 Contact Us For Availability
8
Roller & Tread Assembly WPL 2174388 Contact Us For Availability
8
Door Gasket, Magnetic WPL 2177306 Contact Us For Availability
9
Crisper Cover (Includes Rollers) WPL 2174126 Contact Us For Availability
10
Eyelet, Roller WPL 2174478 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Clamp (Production Only) WPL 2162400 Contact Us For Availability
11
Glass, Crisper Cover WPL 2174140 Contact Us For Availability
11
Screw WPL 2174650 Contact Us For Availability
12
Spacer, Door Handle WPL 1107650 Contact Us For Availability
12
Pan, Crisper (Includes Rollers) WPL 2174059 Contact Us For Availability
12
Spacer, Handle WPL 1107628 Contact Us For Availability
13
Butter, Tray WPL 1125936 Contact Us For Availability
14
Shim, Handle WPL 2151813 Contact Us For Availability
14
Insert, Handle (White) WPL 2168896 Contact Us For Availability
14
Insert, Handle (Almond) WPL 2168897 Contact Us For Availability
14
Grommet (4) (Production) WPL 2174621 Contact Us For Availability
14
Frame Assembly, Spillguard WPL 2174011 Contact Us For Availability
15
Retainer, Insert WPL 2168900 Contact Us For Availability
15
Module WPL 2169337 Contact Us For Availability
16
Shelf Assembly, Spillguard (3) (Includes Roll WPL 2174009 Contact Us For Availability
16
Hinge, Center WPL 2183066 Contact Us For Availability
17
Roller (2) WPL 2163782 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
17
Trivet, Door WPL 2159291 Contact Us For Availability
18
Nameplate (White Model) WPL 2168800 Contact Us For Availability
18
Nameplate (Almond Model) WPL 2168991 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
KIT, FOAM SLAB (30`` X 32 1/2` WPL 876029 Contact Us For Availability
19
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
19
Handle WPL 2161508 Contact Us For Availability
19
Pan, Crisper (Includes Rollers) WPL 2174062 Contact Us For Availability
19
Handle WPL 2168901 Contact Us For Availability
19
Door Reversal Instructions WPL 2180007 Contact Us For Availability
19
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
19
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
19
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
19
WPL 978883 WPL 978883 Contact Us For Availability
20
Bin, Door Shelf (3) WPL 2171065 Contact Us For Availability
20
Screw WPL 489433 Contact Us For Availability
20
Pan, Meat (Includes Rollers) WPL 2174077 Contact Us For Availability
20
Hinge Butt WPL 2179810 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI111528A Contact Us For Availability
21
Gasket, Crisper Cover (Side) (4) WPL 2179214 Contact Us For Availability
22
Door, Compartment WPL 2171078 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Gasket, Crisper Cover (Rear) WPL 2179216 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI111525A Contact Us For Availability
25
End Cap Bottom WPL 1107236 Contact Us For Availability
25
Bracket, Shelf Mounting (R.S.) WPL 2172625 Contact Us For Availability
26
Gasket, Door Compartment WPL 2159124 Contact Us For Availability
26
Bracket, Shelf Mounting (L.S.) WPL 2184459 Contact Us For Availability
27
Bin, Door WPL 2171062 Contact Us For Availability
27
Shelf, Freezer (Top) WPL 2166111 Contact Us For Availability
27
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Support, Ice Tray Shelf WPL 2176292 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
32
Capacitor WPL 2169137 Contact Us For Availability
32
Slide, Humidity WPL 2174257 Contact Us For Availability
35
Pan, Ice Cube WPL 2174124 Contact Us For Availability
35
Corner Filler (2) (Almond) WPL 2166187 Contact Us For Availability
36
Button, Humidity Control WPL 2174253 Contact Us For Availability
36
Grille (White) WPL 2182429 Contact Us For Availability
36
Grille (Almond) WPL 2182430 Contact Us For Availability
37
Cover WPL 2169935 Contact Us For Availability
38
Screw WPL 489439 Contact Us For Availability
39
Air Baffle WPL 2182395 Contact Us For Availability
39
Gasket, Front WPL 2174394 Contact Us For Availability
39
Shim WPL 2176201 Contact Us For Availability
40
Gasket, Rear WPL 2174395 Contact Us For Availability
40
Cover-Hinge (White) WPL 2172613 Contact Us For Availability
40
Cover-Hinge (Almond) WPL 2176204 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI111526A Contact Us For Availability
42
Wire Assy., Unit WPL 2182379 Contact Us For Availability
42
Corner Filler, Grille (White) WPL 2166156 Contact Us For Availability
42
Corner Filler, Grille (Almond) WPL 2166204 Contact Us For Availability
43
Fan, Blade WPL 851732 Contact Us For Availability
44
Cover, Unit WPL 2183158 Contact Us For Availability
45
Shelf Assembly, Spillguard WPL 2174383 Contact Us For Availability
46
Tube, Discharge WPL 2184451 Contact Us For Availability
47
Tube, Suction WPL 2182475 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
51
Fastener WPL 2176270 Contact Us For Availability
52
Shelf, Ice Tray WPL 2172626 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
