Model Whirlpool KTRP22KDAL00 REFRIGERATOR – Common Parts & Diagrams

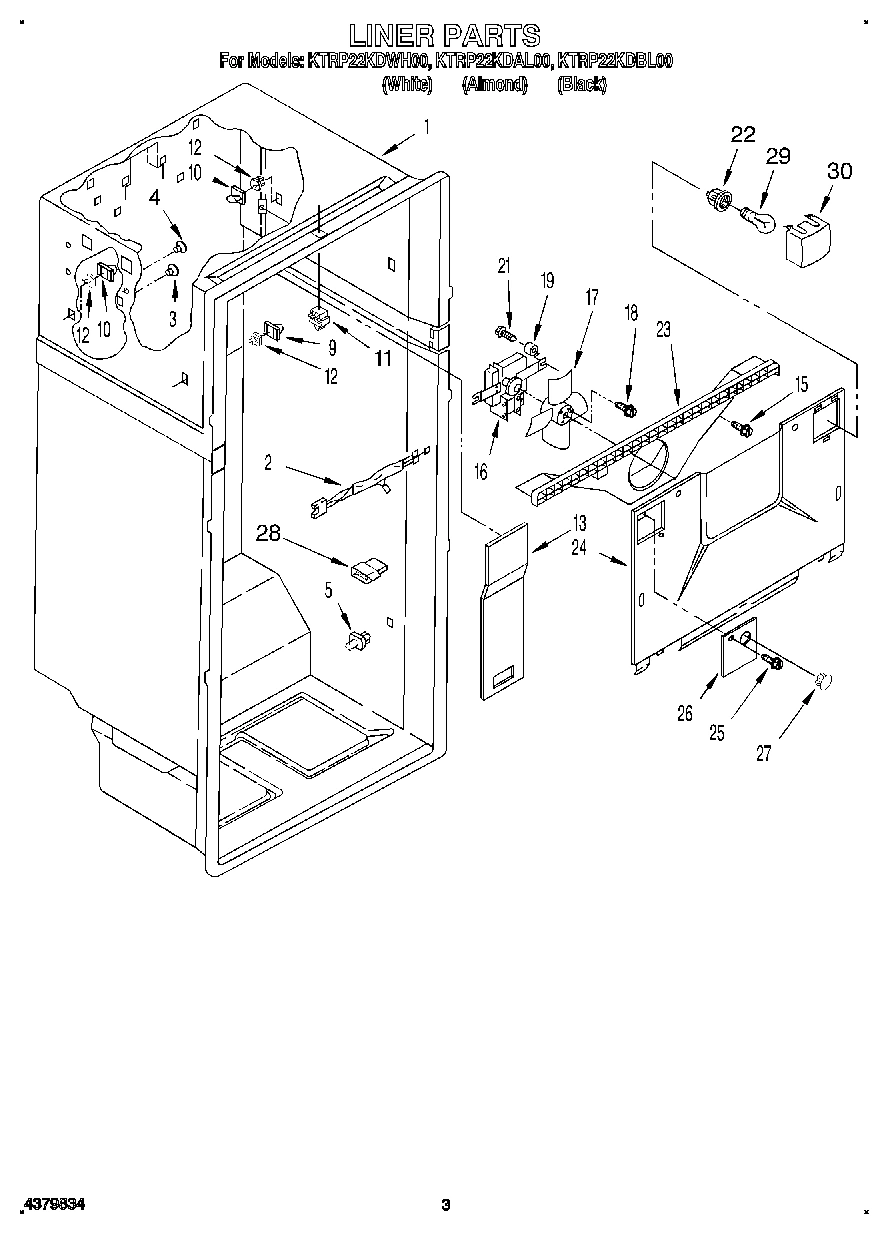

02 - LINER

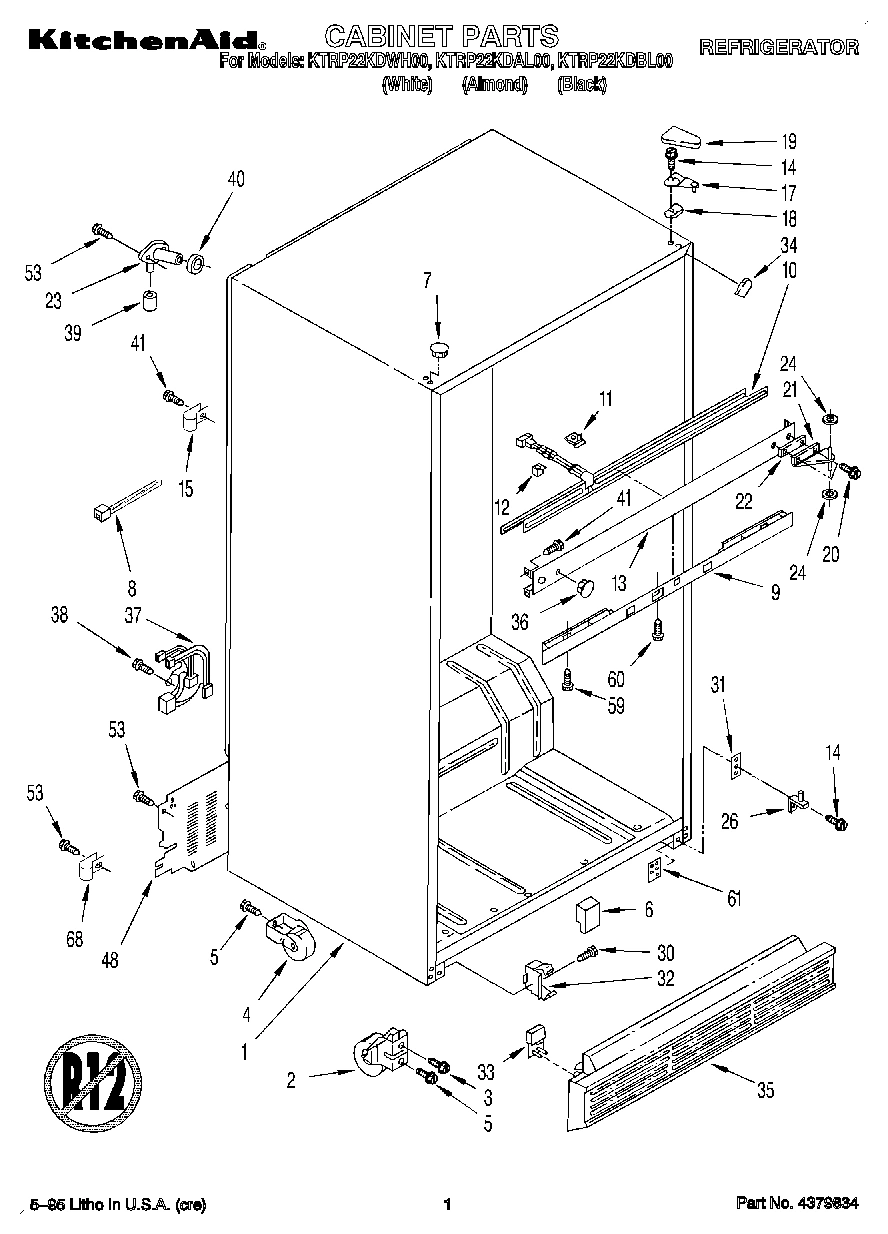

01 - CABINET

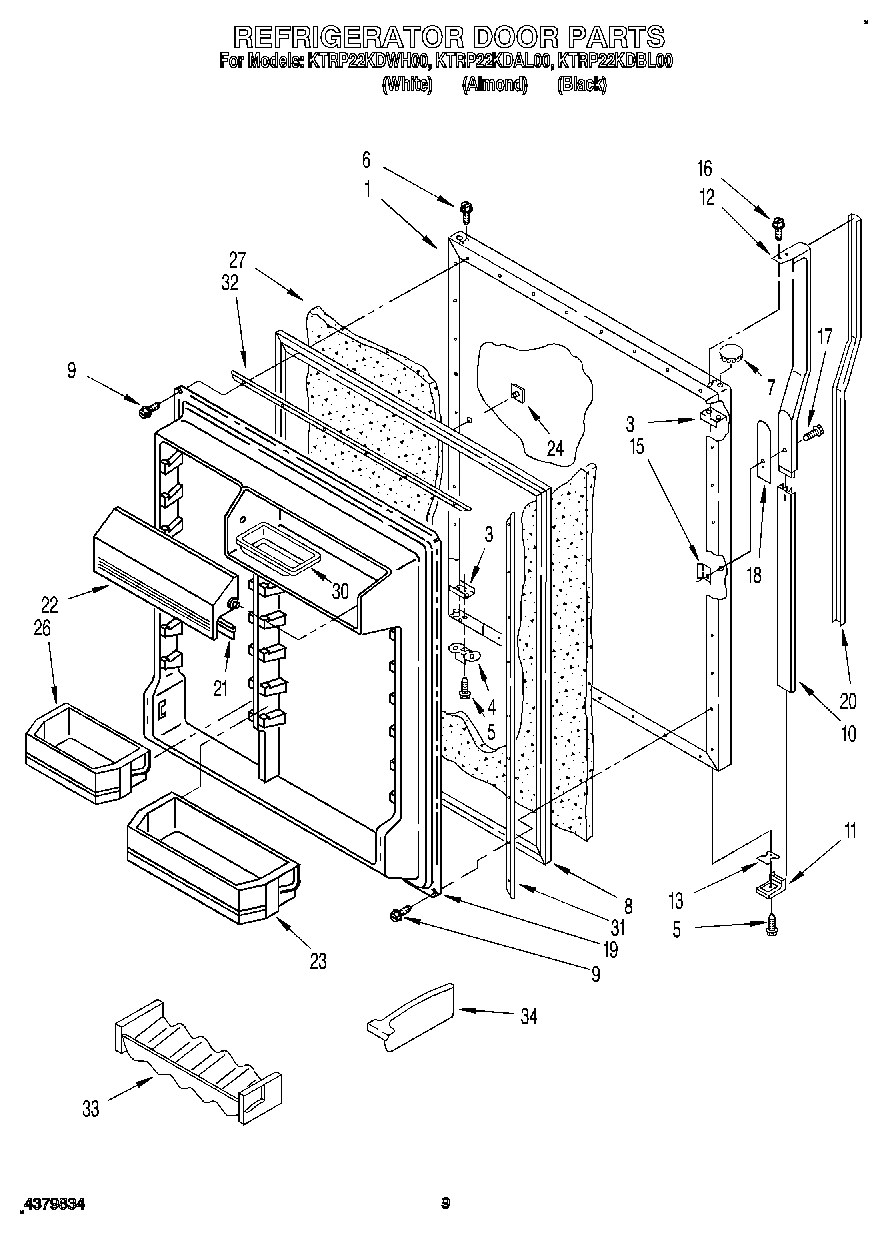

06 - REFRIGERATOR DOOR

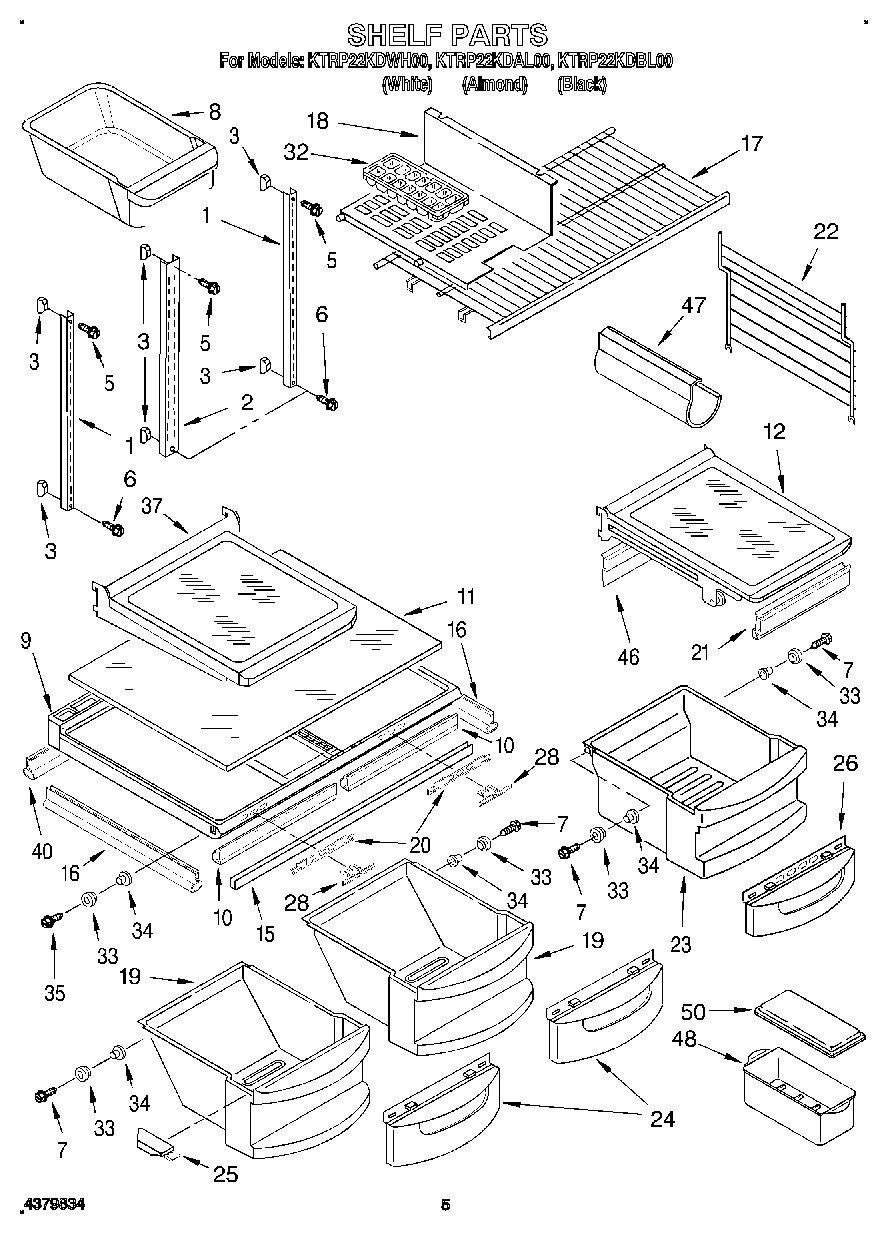

04 - SHELF, LIT/OPTIONAL

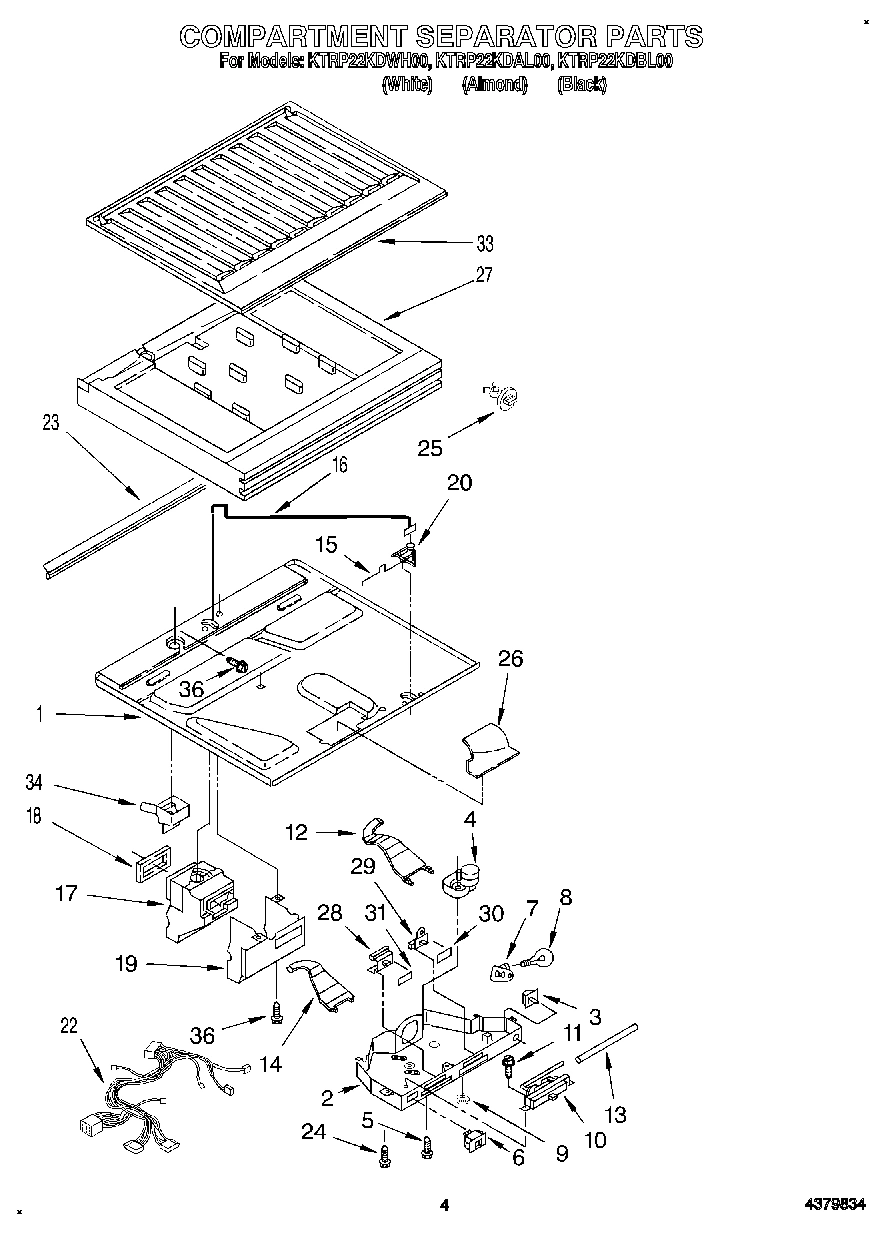

03 - COMPARTMENT SEPARATOR

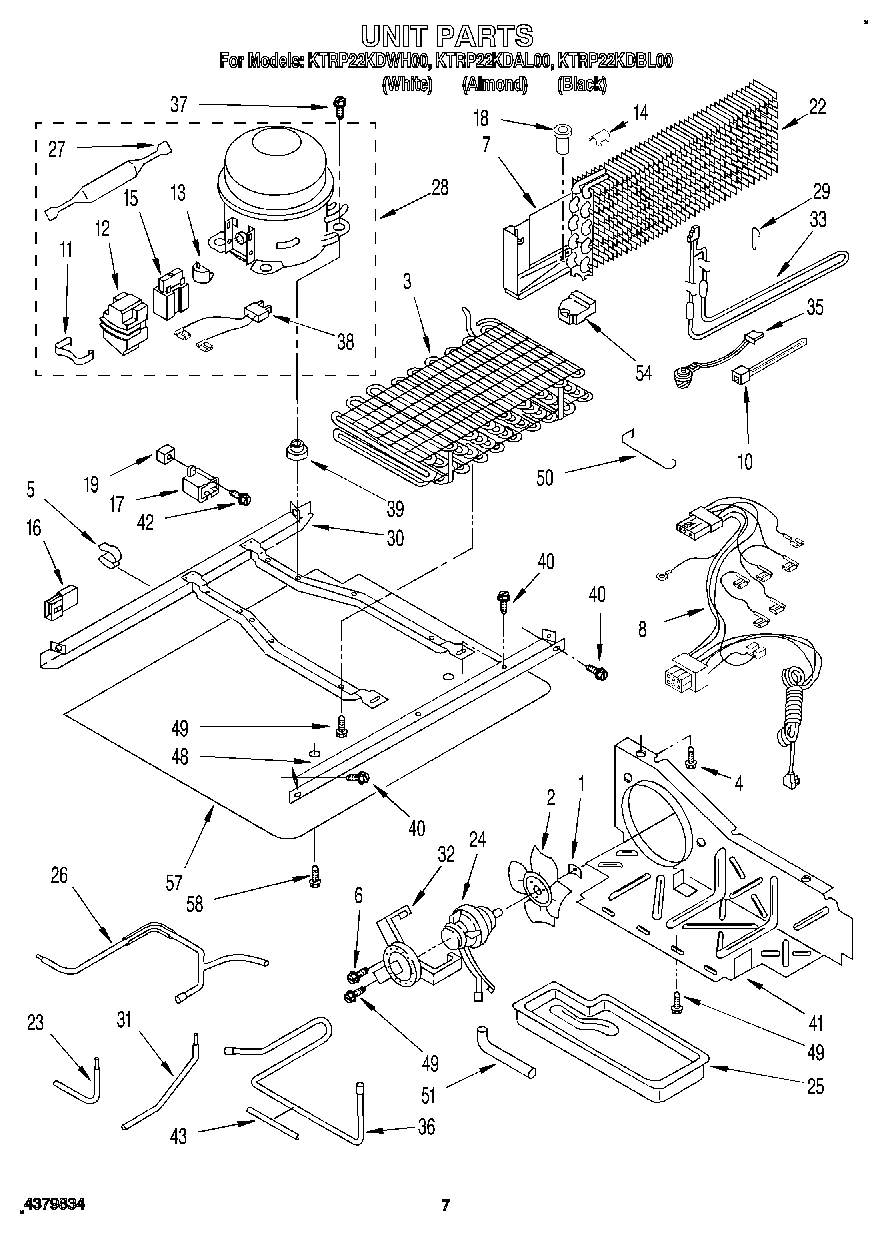

05 - UNIT

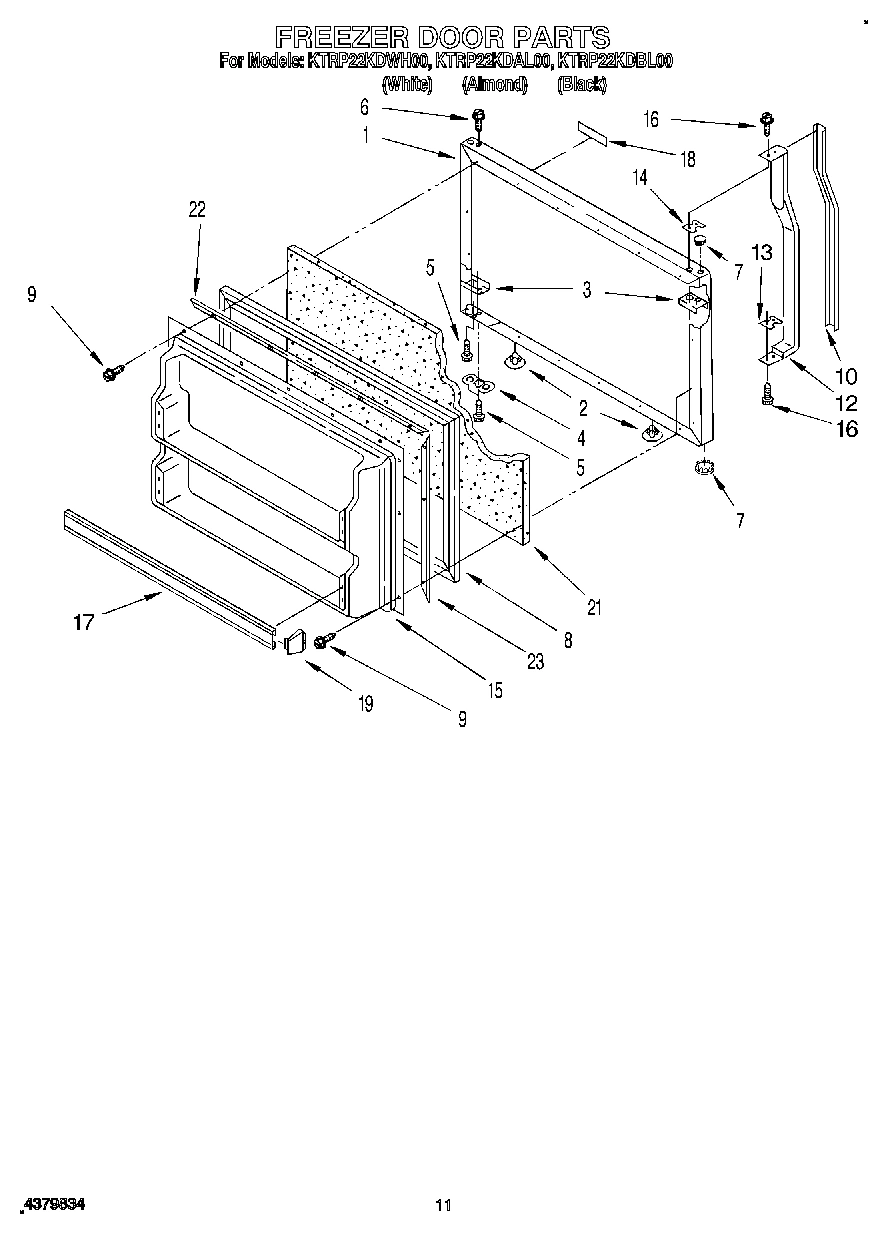

07 - FREEZER DOOR
Common parts from model Whirlpool KTRP22KDAL00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2169004 WPL LIT2169004 Contact Us For Availability
WPL LIT2176901 WPL LIT2176901 Contact Us For Availability
WPL LIT2180084 WPL LIT2180084 Contact Us For Availability
1
Panel, Refrigerator Door (White) WPL 1122549 Contact Us For Availability
1
Panel, Refrigerator Door (Almond) WPL 1122658 Contact Us For Availability
1
Panel, Refrigerator Door (Black (Also Order I WPL 2161866 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
1
Bottom, Compartment Separator WPL 2174811 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2159160 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2159163 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Bla WPL 2161870 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
2
Box, Control WPL 2174829 Contact Us For Availability
2
Blade, Fan WPL 2176753 Contact Us For Availability
2
Hole Plug (2) (Black) WPL 1110485 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
4
Bracket, Door Stop WPL 944036 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 WPL 489345 Contact Us For Availability
5
Clip, Wire (2) WPL 548745 Contact Us For Availability
6
Switch, Toggle WPL 1125964 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Drain Pan/ Heat Shield WPL 2153974 Contact Us For Availability
8
Pan, Ice Cube WPL 2174124 Contact Us For Availability
8
Wire Assy WPL 2176857 Contact Us For Availability
9
Pan Cover & Roller Assembly WPL 2174130 Contact Us For Availability
10
Retainer, Insert WPL 1107209 Contact Us For Availability
10
Thermostat WPL 2159753 Contact Us For Availability
10
Insert, Handle (White) WPL 2161540 Contact Us For Availability
10
Insert, Handle (Almond) WPL 2161541 Contact Us For Availability
10
Insert, Handle (Black) WPL 2161867 Contact Us For Availability
11
End Cap, Handle WPL 1107236 Contact Us For Availability
11
Glass, Crisper Cover WPL 2174142 Contact Us For Availability
11
Strap (Service) WPL 938384 Contact Us For Availability
12
Handle WPL 2161508 Contact Us For Availability
12
Pan Shelf & Roller Assembly WPL 2174385 Contact Us For Availability
12
Light Pipe (R.S.) WPL 2160641 Contact Us For Availability
12
Cover (Service) WPL 1108115 Contact Us For Availability
12
Handle WPL 2161517 Contact Us For Availability
13
Shim WPL 2151813 Contact Us For Availability
14
Light Pipe (L.S.) WPL 2160640 Contact Us For Availability
14
Spacer, Handle WPL 1107628 Contact Us For Availability
15
Connecting Rod, Short WPL 1125515 Contact Us For Availability
15
Relay (See Overload) WPL ARI111382A Contact Us For Availability
15
Interior Door Panel WPL 1122575 Contact Us For Availability
16
Gasket, Pan Cover (Side) WPL 2179252 Contact Us For Availability
16
Rod, Connecting WPL 1125514 Contact Us For Availability
16
Housing Plug WPL 1118850 Contact Us For Availability
17
Shelf, Freezer WPL 1125540 Contact Us For Availability
17
Air Diffuser Assembly WPL 2157253 Contact Us For Availability
17
Capacitor WPL 2169137 Contact Us For Availability
17
Shelf Trim (2) WPL 2171403 Contact Us For Availability
18
Spacer, Handle WPL 1107650 Contact Us For Availability
18
Shelf, Ice Tray WPL 1125543 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
18
Drain Fitting WPL 2172811 Contact Us For Availability
18
Nameplate (White Model) WPL 2168800 Contact Us For Availability
18
Nameplate (Almond Model) WPL 2168801 Contact Us For Availability
18
Nameplate (Black Model) WPL 2168804 Contact Us For Availability
19
Interior Door Panel WPL 1125742 Contact Us For Availability
19
Pan, Crisper (Includes Rollers) WPL 2179228 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Grommet, Screw WPL 509812 Contact Us For Availability
20
Insert, Handle (White) WPL 2161513 Contact Us For Availability
20
Insert, Handle (Almond) WPL 2161514 Contact Us For Availability
20
Insert, Handle (Black) WPL 2161851 Contact Us For Availability
20
Slide, Humidity WPL 2174257 Contact Us For Availability
20
Pivot Arm WPL 1125581 Contact Us For Availability
21
Gasket, Utility Door WPL 2159124 Contact Us For Availability
21
Gasket-Front WPL 2174398 Contact Us For Availability
22
Utility Door (Includes Item 21) WPL 2171079 Contact Us For Availability
22
Retainer, Gasket WPL 1122552 Contact Us For Availability
22
Divider WPL 2179446 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2160799 Contact Us For Availability
22
Evaporator WPL 2153979 Contact Us For Availability
23
Retainer, Gasket WPL 1122553 Contact Us For Availability
23
Shelf Bin (Wide) WPL 2171063 Contact Us For Availability
23
Meat Pan Assy. WPL 2179232 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159684 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Window, Crisper Pan WPL 2174064 Contact Us For Availability
25
Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability
25
Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability
25
Clip WPL 2172812 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
26
Shelf Bin (3) WPL 2171066 Contact Us For Availability
26
Window, Meat Pan WPL 2174085 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
26
Tube, Discharge WPL 2162475 Contact Us For Availability
27
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
27
Insulation, Compartment Separator WPL 2174366 Contact Us For Availability
28
Button, Humidity Control WPL 2174253 Contact Us For Availability
28
Slide, Thermostat WPL 1125513 Contact Us For Availability
29
Slide, Air Control WPL 1125578 Contact Us For Availability
29
Support, Heater WPL 851358 Contact Us For Availability
30
Butter, Tray WPL 1125936 Contact Us For Availability
30
Window, Air Control WPL 1125579 Contact Us For Availability
31
Retainer, Gasket WPL 1122551 Contact Us For Availability
31
Window, Thermostat WPL 1125580 Contact Us For Availability
31
Tube, Condenser To Heat Loop WPL 2154032 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
33
Holder, Beverage WPL 1125981 Contact Us For Availability
33
Roller WPL 2174388 Contact Us For Availability
33
Separator, Compartment (Top) WPL 2174327 Contact Us For Availability
33
Heater, Defrost WPL 2162019 Contact Us For Availability
34
Eyelet, Roller WPL 2174478 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability
34
Filler, Wrap Corner (Black) WPL 2162679 Contact Us For Availability
34
Divider (2) WPL 2171283 Contact Us For Availability
34
Cup, Drain WPL 937065 Contact Us For Availability
35
Grille (White) WPL 1125663 Contact Us For Availability
35
Grille (Almond) WPL 1125667 Contact Us For Availability
35
Grille (Black) WPL 1129001 Contact Us For Availability
36
Hole Plug WPL 1129062 Contact Us For Availability
36
Tube, Suction WPL 2162472 Contact Us For Availability
37
Wiring Assy. Intermediate WPL 2153994 Contact Us For Availability
37
Shelf, Spillguard WPL 2174031 Contact Us For Availability
40
Gasket, Pan Cover-Rear WPL 2179216 Contact Us For Availability
41
Air Baffle WPL 2162457 Contact Us For Availability
46
Gasket-Rear WPL 2179564 Contact Us For Availability
48
Cover, Unit WPL 2160490 Contact Us For Availability
48
Egg Bin WPL 2182736 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
50
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
50
Cover, Egg Bin WPL 2164374 Contact Us For Availability
50
Door Reversal Instructions WPL 2172757 Contact Us For Availability
50
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
50
WPL 799833 WPL 799833 Contact Us For Availability
50
WPL 978883 WPL 978883 Contact Us For Availability
51
Drain Extension WPL 2154119 Contact Us For Availability
54
Support-Evaporator (R.S.) WPL 2174769 Contact Us For Availability
54
Support-Evaporator (L.S.) WPL 2174770 Contact Us For Availability
57
Cover-Unit Btm. WPL 2160505 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
× ![]()
